Zanussi ZKH 2105 User manual

User
manual
Washer-
dryer
ZKH 2105
132960310.qxd 23/10/2008 12:09 Pagina 1

2
Content
Safety information - - - - - - - - - - - - - - - - - - -3
Description of the appliance - - - - - - - - - - - -5
Detergent dispenser drawer - - - - - - - - - - - -5
Control panel and functions - - - - - - - - - -6-8
Programme table - - - - - - - - - - - - - - - - -9-10
Programme information - - - - - - - - - - - - - -11
Washing and drying hints - - - - - - - - - - - - -12
Before the first use - - - - - - - - - - - - - - - - -15
Operating Sequence - - - - - - - - - - - - - - - -15
Washing - - - - - - - - - - - - - - - - - - - - - - - - -15
Drying - - - - - - - - - - - - - - - - - - - - - - - - - -19
Drying programmes - - - - - - - - - - - - - - - - -21
Care and cleaning - - - - - - - - - - - - - - - - - -22
Something not working - - - - - - - - - - - - - - 25
Technical data- - - - - - - - - - - - - - - - - - - - - 29
Consumption values - - - - - - - - - - - - - - - - 30
Installation instruction - - - - - - - - - - - - - - - 31
Fitting under a counter- - - - - - - - - - - - - - - 34
Environmental concerns - - - - - - - - - - - - - 35
Thank you for selecting our appliance
We wish you lots of enjoyment with your new appliance and we hope that you will consider our
brand again when purchasing household appliances.
Please read this user manual carefully and keep it throughout the product life cycle as a reference
document. The user manual should be passed on to any future owner of the appliance.
The following symbols are used in this manual:
Important information concerning your personal safety and information on how to avoid
damaging the appliance.
General information and tips
Environmental information
132960310.qxd 23/10/2008 12:09 Pagina 2

3
Safety information
In the interest of your safety and to ensure
the correct use, before installing and first
using the appliance, read this user manual
carefully, including its hints and warnings.
To avoid unnecessary mistakes and
accidents, it is important to ensure that all
people using the appliance are thoroughly
familiar with its operation and safety
features. Save these instructions and make
sure that they remain with the appliance if it
is moved or sold, so that everyone using it
through its life will be properly informed on
appliance use and safety.
General safety
●It is dangerous to alter the specifications or
attempt to modify this product in any way.
●During high temperature washing and drying
programmes the door glass may get hot. Do
not touch it!
●Make sure that small pets do not climb into
the drum. To avoid this, please check into
the drum before using.
●Any objects such as coins, safety pins, nails,
screws, stones or any other hard, sharp
material can cause extensive damage and
must not be placed into the machine.
●Only use the advised quantities of fabric
softener and detergent. Damage to the fabric
can ensue if you over-fill. Refer to the
manufacturer’s recommendations of
quantities.
●Wash small items such as socks, laces,
washable belts etc in a washing bag or
pillow case as it is possible for such items to
slip down between the tub and the inner
drum.
●Do not use your washer-dryer to wash
articles with whalebones, material without
hems or torn material.
●Always unplug the appliance and turn off the
water supply after use, clean and
maintenance.
●Under no circumstances should you attempt
to repair the machine yourself. Repairs
carried out by inexperienced persons may
cause injury or serious malfunctioning.
Contact your local Service Centre. Always
insist on genuine spare parts.
Installation
●This appliance is heavy. Care should be
taken when moving it.
●When unpacking the appliance, check that it
is not damaged. If in doubt, do not use it and
contact the Service Centre.
●All packing and transit bolts must be
removed before use. Serious damage can
occur to the product and to property if this is
not adhered to. See relevant section in the
user manual.
●After having installed the appliance, check
that it is not standing on the inlet and drain
hose and the worktop is not pressing the
electrical supply cable.
●If the machine is situated on a carpeted floor,
please adjust the feet in order to allow air to
circulate freely.
●Always be sure, that there is no water
leakage from hoses and their connections
after the installation.
●If the appliance is installed in a location
subject to frost, please read the «dangers of
freezing» chapter.
●Any plumbing work required to install this
appliance should be carried out by a
qualified plumber or competent person.
●Any electrical work required to install this
appliance should be carried out by a
qualified electrician or competent person.
132960310.qxd 23/10/2008 12:09 Pagina 3

4
Use
●This appliance is designed for domestic use.
It must not be used for purposes other than
those for which it was designed.
●Only wash and dry fabrics which are
designed to be machine washed and dried.
Follow the instructions on each garment
label.
●Do not overload the appliance. See the
relevant section in the user manual.
●Before washing, ensure that all pockets are
empty and buttons and zips are fastened.
Avoid washing frayed or torn articles and
treat stains such as paint, ink, rust, and
grass before washing. Underwired bras must
NOT be machine washed.
●Garments which have been in contact with
volatile petroleum products should not be
machine washed. If volatile cleaning fluids
are used, care should be taken to ensure
that the fluid is removed from the garment
before placing in the machine.
●As some duvets and eiderdowns should be
washed/dried in large commercial machines
because of their bulk, please check with the
manufacturer of the item before washing in a
domestic machine.
●The users should always check that they
have not left their gas lighters (disposable or
otherwise) in their clothing.
●Never dry items that have had contact with
chemicals such as dry cleaning fluid.These
are of a volatile nature and could cause an
explosion.
●Only tumble dry items which have been
washed in water or require airing.
●Plastic detergent dispensers should not
remain in the drum during the drying cycle,
as the plastic used is not designed to
withstand the heat. If you wish to wash-
through-to-dry you should use the
conventional detergent dispenser drawer.
●Never pull the power supply cable to remove
the plug from the socket; always take hold of
the plug itself.
●Never use the washer-dryer if the power
supply cable, the control panel, the working
surface or the base are damaged so that the
inside of the washer-dryer is accessible.
Child safety
●This appliance is not intended for use by
person (including children) with reduced
physical sensory or mental capabilities or
lack of experience and knowledge unless
they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
●Young children should be supervised to
ensure that they do not play with the
appliance.
●The packaging components (e.g. plastic film,
polystyrene) can be dangerous to children -
danger of suffocation! Keep them out of
children’s reach
●Keep all detergents in a safe place out of
children’s reach.
●Make sure that children or pets do not climb
into the drum. To avoid this the machine
incorporates special feature.
To disable this device
and restore the
possibility of closing the
door, rotate the button
anti-clockwise until the
groove is vertical.
To activate this device,
rotate the button
(without pressing it)
inside the door
clockwise until the
groove is horizontal. If
necessary use a coin.
132960310.qxd 23/10/2008 12:09 Pagina 4

5
Description of the appliance
Detergent dispenser drawer
Control panel
Door opening handle
Rating plate
Drain pump
Adjustable feet
6
5
4
3
2
1
12
3
5
6
4
Detergent dispenser drawer
Prewash
Wash
Fabric Softener
132960310.qxd 23/10/2008 12:09 Pagina 5

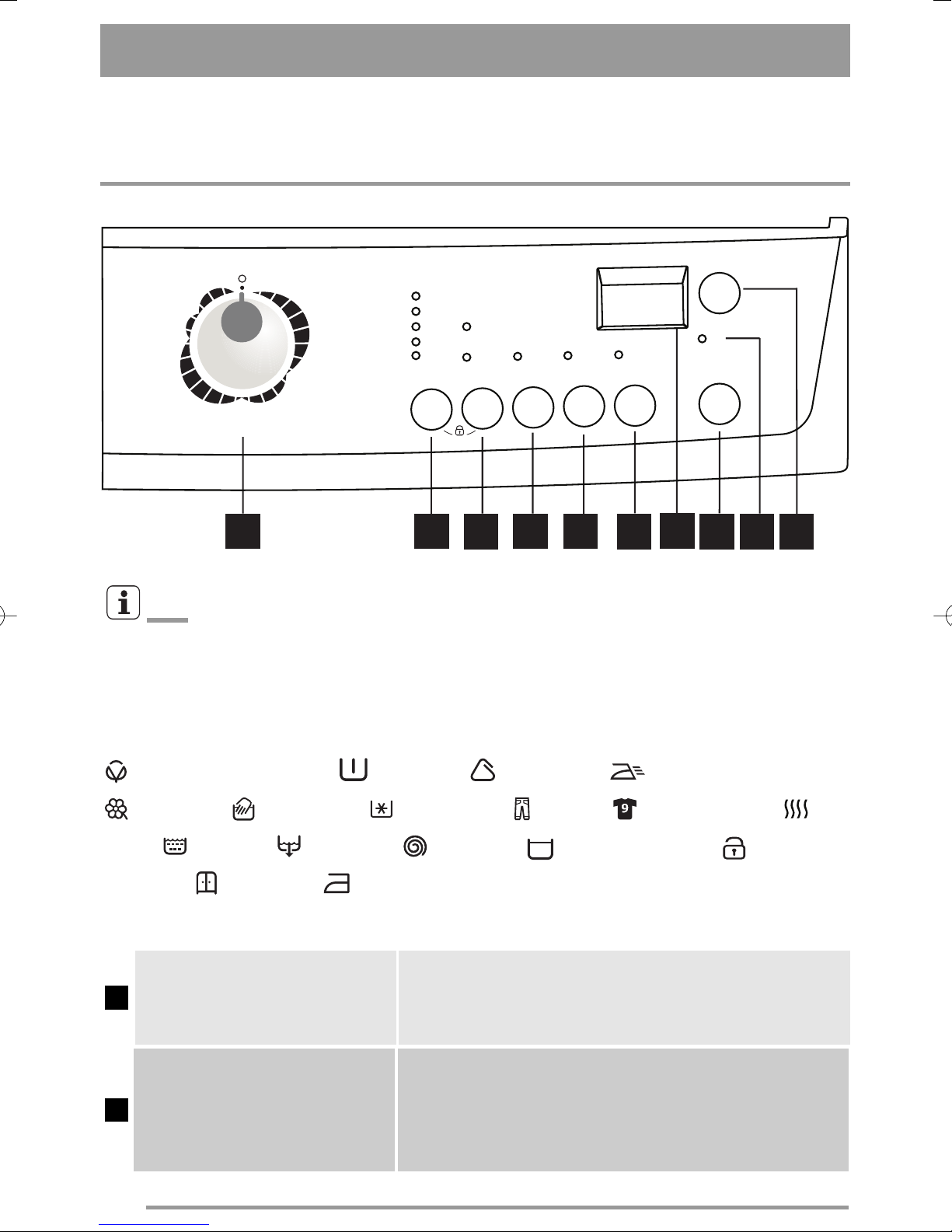

Control panel and functions
6
2 4 5 67
3
18 10
9
Programme selector dial and
On/Off switch
●The programme selector dial allows to select a
programme and/or to switch the machine on/off. It can
be turned either clockwise or anticlockwise. The light of
the button 8starts to flash.
1
Programme selector dial and Control Panel symbols:
= White/Coloured cottons, = Prewash, = Synthetics, = Easy Iron,
= Delicates, = Handwash, = Cold Wash, = Jeans, = Sport Intensive, =
Drying, = Rinsing, = Draining , = Spinning, = Rinse Hold option, = Child
safety lock, = Store Dry, = Iron Dry.
Infos
Henceforth, the programme selector dial, the different buttons and the programme progress
display will be indicated in all the book with the relevant numbers given in the table above.
Spin reduction button
●Press this button repeatedly to change the spin speed, if
you want your laundry to be spun at a speed different
from the one proposed by the washer-dryer or to select
the «Rinse Hold» option. The relevant light will light up.
2
132960310.qxd 23/10/2008 12:09 Pagina 6

7
Extra Rinse button ●By means of this button, the machine performs some
additional rinses.
6
Start/Pause button
●This button allows to start the selected programme; the
corresponding green pilot light stops flashing.
●This button interrupts also a programme which is running,
the corresponding green pilot light starts to flash.
Drying Time button
●By depressing this button you can select a timed
programme for cotton or synthetics, the relevant phase
light illuminates.
Door locked light ●This light indicates when it is possible to open the door.
Display
●The display shows the following information: duration of
the selected programme, selected drying time, incorrect
option selection, alarm codes, child safety lock and end
of programme.
7
8
4
9
Super Quick button ●With this option it is possible to reduce the washing time
for lightly soiled laundry.
5
Delay Start button ●With this function,the wash programme can be delayed
up to 20 hours to a more convenient for you time.
10
Automatic Drying button
●By means of this button you can choose the required
degree of drying for cottons and synthetics between:
Cupboard dry (cottons and synthetics) and Iron dry
(cottons).The corresponding pilot light illuminates.
3
132960310.qxd 23/10/2008 12:09 Pagina 7

8
Rinse hold (Button 2)
By selecting this option, the machine will not
drain the water of the last rinse to prevent the
fabrics from creasing.
When the programme has finished, the light of
the button 8goes off and the light 9
illuminates. The door is locked to indicate that
the water must be emptied out.
To empty out the water see chapter «At the
end of the programme».
«Automatic drying» (Button 3)
By means of this button you can choose the
required degree of drying for cottons and
synthetics between: Cupboard dry (cottons and
synthetics) and Iron dry (cottons). The
corresponding pilot light illuminates.
The drying time is automatically adjusted by the
machine: the laundry will be dried to the selec-
ted degree of dryness.
Drying Time button (Button 4)
By depressing this button you can select a
timed programme for cotton or synthetics. The
relevant light illuminates.
For Cottons and Synthetics you can select a
drying time from 10 minutes to 250 minutes
(4.10). Every time you press the button the
time increases by 5 mins.
Note!
The programme time will automatically increase
by up to 2 minutes. This is quite normal.
«Super Quick» (Button 5)
Short cycle for lightly soiled items or for laundry
that have been used or worn for a short time
and needs only freshening up.
We recommend you to reduce the fabrics
loading.
The washing time will be reduced according to
the type of fabric and the selected temperature.
«Extra rinse» (Button 6)
The machine performs some additional rinses
during the washing cycle. This option is
recommended for people who are allergic to
detergents, and in areas where the water is
very soft.
«Start/Pause» (Button 8)
This button allows to start the selected
programme; the corresponding green pilot light
stops flashing. This button interrupts also a
programme which is running, the
corresponding green pilot light starts to flash.
«Door locked» light (9)
This light illuminates after pressing button 8.
The light 9indicates when the door can be
opened:
●light on: the door is locked and cannot be
opened. The washing or the drying cycle
starts working and the door is locked.
●light off: the door can be opened. The
washing programme has finished.
If there is water left in the tub, the light 9
remains lit. The door will be still locked and it
will be necessary to empty out before
opening the door.
To empty out the water see chapter «At the
end of the programme».
«Delay start» (Button 10)
The wash programme can be delayed from 30
min - 60 min - 90 min, 2 hours and then by 1
hour up to a maximum of 20 hours.
The Delay start cannot be selected with
«Drain» programme.
Functions
132960310.qxd 23/10/2008 12:09 Pagina 8

9
Programme table
Cottons
90° - 60°
White cotton (heavy
soiled cotton items)
Spin reduction /
Rinse Hold
Super Quick, Extra rinse
Main wash, Rinses,
Long spin at the maximum
speed
Max load: 7 kg
Reduced load: 3.5 kg
Cottons
40°- 30°
White and colour
cotton (lightly soiled
cotton items)
Spin reduction /
Rinse Hold
Super Quick, Extra rinse
Main wash, Rinses, Long
spin at the maximum,
Max load: 7 kg, Red.
load: 3.5 kg
Cottons
60° Eco
White and fast colour
cotton (normally soiled
cotton items)
Spin reduction / Hold
Extra rinse
Main wash, Rinses, Long
spin at the maximum
speed, Max load: 7 kg,
Reduced load: 3.5 kg
Synthetics
60° - 40° - 30°
Synthetic or mixed
fabrics,
Spin reduction /
Rinse Hold
Super Quick, Extra rinse
Main wash, Rinses
Short spin
Max load: 3.5 kg
Reduced load: 2 kg
Synthetics
Easy iron 40°
Synthetic or mixed
fabrics to be gentle
washed and spun.
Spin reduction /
Rinse Hold
Extra rinse
Main wash
Rinses
Short spin
Max load: 1 kg
Programme/
Temperature Type of laundry Options Description of programme
Cotton
90° + Prewash
White cotton
(white cotton items
heavily soiled )
Spin reduction /
Rinse Hold
Super Quick, Extra rinse
Prewash, Main wash,
Rinses, Long spin at the
maximum speed, Max load:
7 kg, Red. load: 3.5 Kg
Cotton
60° + Prewash
White cotton and fast
colour cotton
(cotton items normally
soiled )
Spin reduction /
Rinse Hold
Super Quick, Extra rinse
Prewash, Main wash
Rinses, Long spin at the
maximum speed, Max load:
7 kg, Red. load: 3.5
Cotton
40° + Prewash
Cotton colour
(cotton colour items
normally soiled )
Spin reduction /
Rinse Hold
Super Quick, Extra rinse
Prewash, Main wash
Rinses, Long spin at the
maximum speed, Max
load: 7 kg, Red.load: 3.5
Kg
132960310.qxd 23/10/2008 12:09 Pagina 9

10
Delicates
40° - 30°
Delicate fabrics, for
example curtains.
Spin reduction / Rinse
Hold
Super Quick, Extra rinse
Main wash, Rinses
Short spin
Max load: 3.5 kg
Reduced load: 2 kg
Programme table
Rinses
Separate rinse cycle for
hand washed cotton
items.
Spin reduction / Rinse
Hold, Extra rinse
3 rinses, Long spin at the
maximum speed, Max
load: 7 kg
Jeans
40°
Special programme for
jeans or dark colours
cotton items
Spin reduction / Rinse
Hold
Main Wash, Rinses, Long
spin, Max load: 3.5 kg
Drain
For emptying out the last
rinse water in
programmes with the
Rinse Hold option.
Draining of water
Spin Separate spin for
cottons. Spin red. Drain and long spin at the
maximum speed
Handwash
40° - 30° - Cold
Special programme for
hand washing fabrics
Spin reduction / Rinse
Hold
Main wash, Rinses
Short spin
Max load: 2 kg
Sport Intensive
40°
Special programme for
sport items heavily soiled
Spin reduction / Rinse
Hold, Extra rinse
Prewash, Main wash,
Rinses, Short spin, Max
load: 3 kg
Programme/
Temperature Type of laundry Options Description of programme
OTo interrupt a running programme, to cancel an incorrect option selection or to
switch the machine off,
132960310.qxd 23/10/2008 12:09 Pagina 10

11
Programme information
Rinses
With this programme it is possible to rinse and spin cotton garments
which have been washed by hand.
The machine performs 3 rinses, followed by a final spin at maximum
speed.
The spin speed can be reduced by pressing button 2.
Drain
For emptying out the water of the last rinse in programmes with the
Rinse Hold option.
Turn first the programme selector dial to «O», then select programme
Drain and press 8.
Easy Iron
Selecting this programme, the laundry is gently washed and spun to
avoid any creasing. In this way ironing is easier. Furthermore the
machine will perform additional rinses.
Spin
Separate spin for hand washed garments and after programmes
with Rinse Hold option. Before selecting this programme the
selector dial must be turned to «O». You can choose the speed by
means of the relevant button to adapt it to the fabrics to be spun.
O= Cancelling/Off To reset a programme and to switch off the machine turn the
selector dial to «O». Now can a new programme be selected.
(Wool)
Handwash
Washing programme for machine washable wool as well as for hand
washable woollens and delicate fabrics with the «hand washing»
care symbol .
Eco programme
This programme can be selected for slightly or normally soiled
cotton items. The temperature will decrease and the washing time
will be extended. This allows to obtain a good washing efficiency by
saving energy.
Jeans
With this programme it is possible to wash free time items as pants,
shirts or jackets in Jeans and also jersey made of hi-tech materials.
Some extra rinses will be carried out by the machine.
Sport intensive
This programme is suitable for washing heavily soiled sport items.
The machine will add automatically a prewash phase before the
main wash to eliminate mud stains. The washing temperature is
40°C. The maximum spin speed is reduced.
We recommend you NOT to put detergent in the compartment
marked by the symbol (Prewash).
132960310.qxd 23/10/2008 12:09 Pagina 11

12
Washing and drying hints
Sorting the laundry
Follow the wash code symbols on each
garment label and the manufacturer’s washing
instructions. Sort the laundry as follows: whites,
coloureds, synthetics, delicates, woollens.
Temperatures
Before loading the laundry
Never wash whites and coloureds together.
Whites may lose their «whiteness» in the
wash.
New coloured items may run in the first wash;
they should therefore be washed separately
the first time.
Make sure that no metal objects are left in
the laundry (e.g. hair clips, safety pins,
pins). Button up pillowcases, close zip
fasteners, hooks and poppers. Tie any belts
or long tapes.
Remove persistent stains before washing.
Rub particularly soiled areas with a special
detergent or detergent paste.
Treat curtains with special care. Remove hooks
or tie them up in a bag or net.
Avoid drying dark clothes with light coloured
fluffy items such as towels as these can attract
the fluff.
Remove the laundry when the appliance has
finished drying.
To avoid a static charge when drying is com-
pleted, use either a fabric softener when you
are washing the laundry or a fabric conditioner
specifically for tumble dryers.
Particularly delicate items such as synthetic
curtains, woollen and silk, garments with metal
inserts, nylon stockings, bulky garments such
as anoraks, bedcovers, quilts, sleeping bags
and duvets must not be machine dried.
Garments padded with foam-rubber or materi-
als similar to foam-rubber must not be machine
dried; they represent a fire hazard.
Also, fabrics containing residues of setting
lotions or hair sprays, nail solvents or similar
solutions must not be machine dried in order to
avoid the formation of harmful vapours.
For drying, follow the indications given on the
manufacturer’s labels.
For drying, follow the indications given on the
manufacturer’s labels.
May be tumble dried
Drying at high temperature
Drying at reduced temperature
Do not tumble dry
IMPORTANT!
As a dryer, the machine works on the
condensation principle.
Therefore, the water tap must be open and
the drain hose must drain water into a sink
or into the drain pipe, even during the dry-
ing cycle.
90° or 95°
for normally soiled white cottons
and linen (e.g. tea cloths, towels,
tablecloths, sheets...)
50°/60°
for normally soiled, colour fast
garments (e.g. shirts, night
dresses, pyjamas....) in linen,
cotton or synthetic fibres and for
lightly soiled white cotton (e.g.
underwear).
30°-40°-Cold
for delicate items (e.g. net
curtains), mixed laundry including
synthetic fibres and woollens
bearing the label «pure new wool,
machine washable, non-shrink».
132960310.qxd 23/10/2008 12:09 Pagina 12

13
Maximum loads
Recommended loads are indicated in the
programme charts.
General rules:
Cotton, linen: drum full but not too tightly
packed;
Synthetics: drum no more than half full;
Delicate fabrics and woollens: drum no more
than one third full.
Washing a maximum load makes the most
efficient use of water and energy.
For heavily soiled laundry, reduce the load
size.
Laundry weights
The following weights are indicative:
Removing stains
Stubborn stains may not be removed by just
water and detergent. It is therefore advisable to
treat them prior to washing.
Blood: treat fresh stains with cold water. For
dried stains, soak overnight in water with a
special detergent then rub in the soap and
water.
1200 gbathrobe
100 gnapkin
700 gquilt cover
500 gsheet
200 gpillow case
250 gtablecloth
200 gtowelling towel
100 gtea cloth
200 gnight dress
100 gladies’ briefs
600 gman’s work shirt
200 gman’s shirt
500 gman’s pyjamas
100 gblouse
100 gmen’s underpants
Oil based paint: moisten with benzine stain
remover, lay the garment on a soft cloth and
dab the stain; treat several times.
Dried grease stains: moisten with turpentine,
lay the garment on a soft surface and dab the
stain with the fingertips and a cotton cloth.
Rust: oxalic acid dissolved in hot water or a
rust removing product used cold. Be careful
with rust stains which are not recent since the
cellulose structure will already have been
damaged and the fabric tends to hole.
Mould stains: treat with bleach, rinse well
(whites and fast coloureds only).
Grass: soap lightly and treat with bleach
(whites and fast coloureds only).
Ball point pen and glue: moisten with
acetone (*), lay the garment on a soft cloth and
dab the stain.
Lipstick: moisten with acetone as above, then
treat stains with methylated spirits. Remove
any residual marks from white fabrics with
bleach.
Red wine: soak in water and detergent, rinse
and treat with acetic or citric acid, then rinse.
Treat any residual marks with bleach.
Ink: depending on the type of ink, moisten the
fabric first with acetone (*), then with acetic
acid; treat any residual marks on white fabrics
with bleach and then rinse thoroughly.
Tar stains: first treat with stain remover,
methylated spirits or benzine, then rub with
detergent paste.
(*) do not use acetone on artificial silk.
Detergents and additives
Good washing results also depend on the
choice of detergent and use of the correct
quantities to avoid waste and protect the
environment. Although biodegradable,
detergents contain substances which, in large
quantities, can upset the delicate balance of
nature.
The choice of detergent will depend on the
type of fabric (delicates, woollens, cottons,
132960310.qxd 23/10/2008 12:09 Pagina 13

14
etc.), the colour, washing temperature and
degree of soiling.
All commonly available washer-dryer
detergents may be used in this appliance:
●powder detergents for all types of fabric,
●powder detergents for delicate fabrics (60°C
max) and woollens,
●liquid detergents, preferably for low
temperature wash programmes (60°C max)
for all types of fabric, or special for woollens
only.
The detergent and any additives must be
placed in the appropriate compartments of the
dispenser drawer before starting the wash
programme.
If using concentrated powder or liquid
detergents, a programme without prewash
must be selected.
The washer-dryer incorporates a recirculation
system which allows an optimal use of the
concentrated detergent.
Pour liquid detergent into the dispenser drawer
compartment marked just before starting
the programme.
Any fabric softener or starching additives must
be poured into the compartment marked
before starting the wash programme.
Follow the product manufacturer’s
recommendations on quantities to use and do
not exceed the «MAX» mark in the
detergent dispenser drawer.
Quantity of detergent to be used
The type and quantity of detergent will depend
on the type of fabric, load size, degree of
soiling and hardness of the water used.
Water hardness is classified in so-called
«degrees» of hardness. Information on
hardness of the water in your area can be
obtained from the relevant water supply
company, or from your local authority.
Follow the product manufacturers’ instructions
on quantities to use.
Degrees of water hardness
Follow the product manufacturers’ instructions
on quantities to use.
Use less detergent if:
●you are washing a small load,
●the laundry is lightly soiled,
●large amounts of foam form during washing.
Level
Degrees
German
°dH
French
°T.H.
Characteristic
1 0-7 0-15soft
2 8-14 16-25medium
3 15-21 26-37hard
4> 21 > 37very hard
132960310.qxd 23/10/2008 12:09 Pagina 14

15
Before the first use
WARNING!
Ensure that the electrical and water
connections comply with the installation
instructions.
IMPORTANT!
Remove the polystyrene block and any
material from the drum.
IMPORTANT!
Pour 2 litres of water into the main wash
compartment of the detergent drawer in
order to activate the ECO valve. Then run a
cotton cycle at 90°C, without any laundry in the
machine, to remove any manufacturing residue
from the drum and tub. Pour 1/2 a measure of
detergent into the dispenser drawer and start
the machine.
Child safety lock
This device permits you to leave the appliance
unsupervised without having the worry that
children might be injured by or cause damage
to the appliance.
This function remains able also when the
washer-dryer is not working.
There are two different ways to set this option:
●before pressing the button 8: it will be
impossible to start the machine.
●after pressing the button 8it will be
impossible to change any other programme
or option.
To enable (disable) this option press
simoultaneously for about 6 seconds 2and 3
buttons until the icon appears (disappears)
on (from) the display.
Acoustic signals
The machine is provided of an acoustic device,
which sounds in the following cases:
●at the end of the cycle
●in the event of operating problems
By pressing the 4and 5buttons
simultaneously for about 6 seconds, the
acoustic signal is deactivated (except for the
events of operating problems).
By pressing these buttons again, the the
acoustic signal is reactivated.
Operating sequence
Washing
1. Load the laundry
Open the door by
carefully pulling the
door handle outwards.
Place the laundry in
the drum, one item at
a time, shaking them
out as much as
possible. Close the door.
2. Measure out the detergent and the fabric
softener
Pull out the dispenser drawer until it stops.
Measure out the amount of detergent required,
132960310.qxd 23/10/2008 12:09 Pagina 15

16
pour it into the main wash compartment
and, if you wish to carry out a programme with
the prewash phase, pour it into the
compartment marked .
If required, pour fabric softener into the
compartment marked (the amount used
must not exceed the «MAX» mark in the
drawer). Close the drawer gently.
Select the required programme by means
ofthe programme selector dial (1)
Turn the programme selector dial to the
required programme. The green light of button
8starts to flash.
It can be turned either clockwise or
anticlockwise. On position «O» the programme
is reset and the machine is switched OFF.
At the end of the programme the selector
dial must be turned to position «O», to
switch the machine off.
IMPORTANT!
If you turn the programme selector dial to
another programme when the machine is
working, the red light will of the button 8
flashes 3 times and the message Err is
displayed on the display to indicate a wrong
selection. The machine will not perform the
new selected programme.
Select the spin speed or the Rinse Hold
option by pressing button 2
The relevant light will light up.
When selecting a programme, the light
corresponding to the maximum speed allowed
for that programme will illuminate.
Select the degree of dryness or the duration
of the drying cycle by means of buttons 3
and 4
The relevant light illuminates.
By depressing the button 3it is possible to
select the degrees of dryness for cotton or
synthetics items. The washer dryer will
automatically adjust the duration of the drying
cycle to the selected degree.
Also this button allows you to select a drying
time for Cottons and Synthetics from 10
minutes to 250 minutes (4.10). Every time you
press this button the time increases by 5 mins.
Select the desired option by means of
buttons 5and 6
Depending on the programme, different
functions can be combined. These must be
selected after choosing the desired programme
and before depressing the button 8. The
corrisponding light illuminates.
For more information about the compatibility of
the options with the washing programmes,
refer to the section «Programmes table».
Select the delayed start by pressing the
button 10
Depress button this button to select the
required delay.
The selected delay time value will appear on
the display for few seconds, then the duration
of the programme will appear again.
You must select this option after you have set
the programme and before you press the
button 8.
You can cancel the delay time at any moment,
before you press button 8.
If you have already pressed it, and you wish
to cancel the delay time, proceed as follows:
• set the washing machine to PAUSE by
pressing button 8;
• press the button 10 once. On the display will
appear the symbol «0’».
• press button 8 again to start the programme.
IMPORTANT!
• If the programme has already started, the
selected delay can be modified only after you
have turned the programme selector dial to
132960310.qxd 23/10/2008 12:09 Pagina 16

17
the «O» position and after you have selected
the programme again.
• The door will be locked throughout the delay
time. If you need to open the door, you must
first set the washer dryer to PAUSE by
pressing button 8. After you have closed the
door, press the same button again.
Note!
The Delay Start cannot be selected with
«Drain» programme.
Display
The display shows the following information:
After selecting a programme the duration of
the selected programme appears in minutes
or hours and minutes on the display .(e.g.
2.05)
During the program-
me, the time remai-
ning is updated every
minute.
Selected drying time
After selecting a drying programme programme
the drying time is shown in minutes or hours
and minutes.
After the programme
has started, the time
remaining is updated
every minute.
The Delayed start appears on the display for
about 3 seconds, then the duration of the
previously selected programme is displayed.
1.00
2.00
The delay time value
decreases by one
unit every hour, 90
minutes and then,
when 1 hour remain,
every minute.
The incorrect option selection is indicated
by the message Err displayed for a few
seconds and by flashing of the red light button
8.
In the event of operating problems, some
alarm codes can be displayed, (see para-
graph “Something not working”).
The End of programme or the stop wit
water left in the tub is indicated by a flashing
zero «0».
Start the programme by pressing button 8
To start the selected programme, press this
button; the corresponding green pilot light
stops flashing.
The pilot light 9illuminates to indicate that the
appliance starts operating and the door is
locked.
0
E20
132960310.qxd 23/10/2008 12:09 Pagina 17

18
IMPORTANT!
If an option which is not compatible with the set
wash programme is selected, the message Err
is displayed for few seconds and the red light
of this button flashes for 3 times.
Altering an option or a running programme
It is possible to change any option before the
programme carries it out.
Before you make any change, you must pause
the washing machine by pressing button 8.
Changing a running programme is possible
only by resetting it. Turn the programme
selector dial to «O» and then to the new
programme position. Start the new programme
by pressing button 8again.
The washing water in the tub will not empty
out.
Interrupting a programme
Press button 8to interrupt a programme which
is running, the corresponding light starts to
flash. Press the button again to restart the
programme.
Cancelling a programme
Turn the selector dial to «O» to cancel a
programme which is running. Now you can
select a new programme.
Opening the door after the programme has
started
First set the machine to pause by pressing the
button 8.
If the light 9goes off, the door can be opened.
If it does not go off, this means that the
machine is already heating, that the water level
is above the bottom edge of the door. In this
cases the door cannot be opened.
If you cannot open the door but you need to
open it you have to switch the machine off by
turning the selector dial to «O». The door can
be opened after a few minutes.
(Pay attention to the water level and
temperature!).
After this procedure, it will be necessary to set
the programme and the options again and then
to press button 8.
At the end of the programme
The washer dryer stops automatically. Some
acustic signals sound and on the display will
appear a flashing «0 ». The button 8 light and
the light 9go off. The door can be opened.
If, at the end of a programme, there is water in
the tub (light 9still on), to empty out the water
follow the following instructions:
To empty out the water:
1. turn the programme selector dial to «O»
2. select the Drain»or «Spin» programme
3. reduce the spin speed, if needed, by means
of the button 2
4. press button 8
5. at the end of the programme, the display
shows a flashing zero «0», the light 9 goes
off and it will be possible to open the door.
Turn the programme selector dial to «O»to
switch the machine off.
Remove the laundry from the drum and
carefully check that the drum is empty.
If you do not intend to carry out another wash,
close the water tap.
Leave the door open to prevent the formation
of mildew and unpleasant smells.
Stand By: If your laundry is not removed within
10 minutes after the programme is finished, the
back light of the display switches off and the
energy saving system will be enabled. Only the
pilot light of the button 8 is blinking to indicate
that the appliance has to be switched off. By
pressing any button the appliance will come
out from the energy saving status and you can
set another programme or switch the appliance
off.
132960310.qxd 23/10/2008 12:09 Pagina 18

Drying only
The max load to dry in your washer -dryer is 3.5
kg for cotton and 2 kg for synthetics.
Note!
Only with the timed drying, it is possible also to
dry up to 5 kg of cotton items (see the drying
time table).
The water tap must be open and the drain
hose must be positioned in the sink or connect-
ed to the drain pipe.
1. Load the laundry.
2. Turn the selector dial to «Cotton» or
«Synthetics» programme in the «Drying»
sector.
3. For the automatic drying, «Store dry»
(only for synthetics) or «Iron dry», press
the button 3until the light corresponding to
the desired dryness degree illuminates.
4. For the timed drying, press the button 4
until the time you want appears on the dis-
play (see the drying programmes).
Every time you press this button the drying
time increases by 5 mins.
Note!
The programme time will automatically increase
by up to 2 minutes. This is quite normal.
5. Press button 8to start the programme.
After the programme has started, the time
remaining is updated every minute.
Note!
The different type of cottons (towelling, sheets,
shirts, and so on) or any laundry items rolling
up during the spinning phase may result in
partial dryness. In the exceptional case that at
the end of the cycle the laundry remains
slightly wet, we suggest that you unfold the
rolled up items, redistribute them evenly in the
drum and select an additional drying cycle of
20-30 minutes.
6. At the end of the programme, the buzzer
sounds. A flashing zero «0» will appear on
the display.
At this point, begins the anti-crease phase
which lasts for about 10 minutes. During
this time the light 9is alight, the door can-
not be opened and the display keeps
showing three flashing zeros «0».
At the end of this phase, the pilot light 9
goes off and the door can be opened.
Note!
If you whish to open the door before or
during the anti-crease phase or to interrupt it,
press any button or turn the programme selec-
tor dial to any programme position (except
«O»), the door can be immediately opened.
7. Turn the selector dial to the «O» position to
switch the machine off. Remove the laun-
dry.
Drying
19
132960310.qxd 23/10/2008 12:09 Pagina 19

20
Autodrying (NON-STOP
programme)
Warning!
For NON-STOP programmes, it is essential not
to exceed the maximum load sizes of 3.5 kg for
cotton and 2 kg for synthetics.
Note!
Only with the timed drying, it is possible also to
dry up to 5 kg of cotton items (see the drying
time table).
Do not use a dosing device/ball when carry-
ing out a washing & drying programme.
1. Load the laundry.
2. Add detergent and fabric softener.
3. Switch the machine on by turning the
selector dial to the selected wash pro-
gramme/fabric.
4. Select the dryness degree or the drying
time by pressing button 3and 4. The dis-
play shows the entire duration of the wash-
ing and the selected drying cycle.
5. Select the required options by means of
the relevant buttons. If possible, do not
select a spin speed lower than that pro-
posed by the appliance to avoid a too long
drying time so saving energy.
In any case the reduction of the spin speed
is only possible after selecting drying.
The lowest value with AUTOMATIC DRYING is
900 r.p.m. for cottons and synthetics
The lowest value with TIMED DRYING you
can select is 700 r.p.m. for synthetics
6. Start the programme by pressing button 8.
7. At the end of the programme, turn the
selector dial to the «O» position to switch
the machine off. Remove the laundry.
132960310.qxd 23/10/2008 12:09 Pagina 20
