Zass ZWD 20 C User manual

WATER DISPENSER
Instruction Manual
Model: ZWD 20 C
Sole importer in Romania:
ZASS Romania SRL (CUI RO15328988)
Ungheni nr. 40 A, cod 547605, Mureş
Telefon: [phone], Fax: [phone]
www.zassromania.ro, e-mail: o[email protected]

1
A: SAFETY INSTRUCTION
WARNING
To reduce risk of injury and property damage, user must read this entire guide before
assembling, installing & operating dispenser.
Failure to execute the instructions in this manual can cause personal injury or property
damage.This product dispenses water at very high temperatures. Failure to use properly
can cause personal injury. When operating this dispenser, always exercise basic safety
precautions, including the following:
•Prior to use, this dispenser must be properly assembled and installed in accordance with this
manual.
•This dispenser is intended for water dispensing only. Do NOT use other liquids.
•Do NOT use for other purposes. Never use any other liquid in the dispenser other than known
and microbiologically safe bottled water.
•For indoor use only. Keep water dispenser in a dry place away from direct sunlight. Do NOT use
outdoors.
•Install and use only on a hard, flat and level surface.
•Do NOT place dispenser into an enclosed space or cabinet.
•Do NOT operate dispenser in the presence of explosive fumes.
•Position back of dispenser no closer than 20cm from wall and permit free airflow between wall
and dispenser. There must be at least 20cm clearance on the sides of the dispenser to permit
airflow.
•Use only properly grounded outlets.
•Do not use an extension cord with your water dispenser.
•Always grasp plug and pull straight out from outlet. Never unplug by pulling on power cord.
•Do NOT use dispenser if cord becomes frayed or otherwise damaged.
•To protect against electric shock, do NOT immerse cord, plug, or any other part of dispenser in
water or other liquids.
•Ensure dispense is unplugged prior to cleaning.
•Never allow children to dispense hot water without proper and direct supervision. Unplug unit to
prevent unsupervised use by children.
•Service should be performed only by a certified technician.
•Warning: Do not damage the refrigerant circuit.
•This appliance can be used by children aged from 8 years and above if they have been given
supervision or instruction concerning use of the appliance in a safe way and if they understand
the hazards involved. Cleaning and user maintenance shall not be made by children unless they
are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged
less than 8 years.
•Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they have been given supervision or instruction concerning use
of the appliance in a safe way and understand the hazards involved.
•Children shall not play with the appliance.
•This appliance is intended to be used by expert or trained users in shops, in light industry and on
farms, or for commercial use by lay persons.
•If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
•The appliance must not be cleaned by a water jet.
•The appliance is suitable for indoor use only.
•WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear
of obstruction.
•WARNING: Do not use mechanical devices or other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
•WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

2
B.GETTING STARTED
Locate Dispenser
1. Place dispenser upright.
2. Locate dispenser on a hard and level surface in a cool shaded
location near a grounded wall outlet.
Notice: Do NOT plug in power cord yet.
3. Position dispenser so the back is at least 20cm from wall and
there are at least 20cm of clearance on both sides.
3 Gallon Bottle
5 Gallon Bottle
Collar
Collar
Head
Head
Install Water Bottle
1. Open dispenser door.
2. Place probe assembly on probe hanger.
3. Place fresh bottle outside of cabinet.
4. Remove entire plastic cap from top of bottle.
5. Clean outside of new bottle with a cloth.
6. Place probe into bottle.
7. Slide collar down until it clicks in place.
8. Push head down until tubes hit bottom of bottle.
9. Slide bottle into cabinet and close door.
Provide Electricity
Plug cord into a properly grounded wall outlet. At this time the pump
will begin to move water from the bottle to the hot and cold tanks.
It will take up to 12 minutes to fill the tanks for the first time.
During this period the pump will run continuously. This is normal.
Activate Heating & Cooling
Notice: This unit will not dispense hot or cold water until the switches are activated.
To activate, push top side of power switches in to start heating and cooling water.
- If you do not want to heat water, push bottom side of red switch in.
- If you do not want to cool water, push bottom side of green switch in.
•Do not store explosive substances such as aerosol cans with a flammable propellant in this
appliance.
•
This appliance should work under environment of temperature from 4~40°C humidity ≤90%.
•This appliance is not suitable for installation in an area where a water jet could be used.
•Never turn the machine upside down or lean it more than 45°.
•When the machine is under the ice point and blocked by ice, the cooling switch must be closed
for 4 hours before turning it on again to continue its operation.
•This machine should not be turned on until 3 minutes later after turning off the power switch.
•WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear
of the appliance.
•It is recommended to use bottled pure water. If you use hard water, may lead to hot pot furring
or detonation tank or pipeline risk. If you need cleaning tube, remove scale, need to find a
professional institutions and professional operation.
•This product is not recommended to use in areas above 2,500m altitude.
•The appliance must not be immersed

3
C: PARTS NAME
NOTE:
This machine is suitable for bottle of 3 or 5 gallons.
Don’t use unhealthy hard water.
(FRONT) (REAR)
top cover
1
2
3
4
5
6
7
8
9

4
This unit has been tested and sanitized prior to packing and shipping. During transit dust and
odors can accumulate in the tank and lines. Dispense and dispose at least one quart of water
prior to drinking any water.
D. DISPENSING WATER
Dispensing Cold Water
After setup, it will take up to 1 hour to get water to maximum cold temperature. During this time the
compressor could run continuously. This is normal.
1. Position bottle, glass, pitcher or cooking pot below spout.
2. Depress cold water control downward to start cold water flow.
3. Release control once desired fill level is achieved.
Dispensing Normal Water
1. Position bottle, glass, pitcher or cooking pot below spout.
2. Depress normal water control downward to start normal water flow.
3. Release control once desired fill level is achieved.
Dispensing Hot Water
After setup, hot water will be available in 15-20 minutes.
1. Position bottle, glass, pitcher or cooking pot below spout.
2. Slide red button away from you and depress hot water control downward to start hot water flow.
3. Release control once desired fill level is achieved.
Changing Bottles
A flashing red light on your function lights alerts you when your bottle is
empty. Replace the bottle as soon as possible
Notice: Do not dispense hot or cold water if the red light is flashing as you could empty the tanks
and cause the dispenser to overheat.
1. Open dispenser door.
2. Slide empty bottle out of cabinet.
3. Remove probe assembly from empty bottle. Place probe assembly on probe hanger.
4. Set empty bottle aside.
5. Place fresh bottle outside of cabinet. Remove entire plastic cap from top of bottle. Clean outside
of new bottle with a cloth.
6. Place probe into bottle. Slide collar down until it clicks in place. Push head down until tubes hit
bottom of bottle.
7. Slide bottle into cabinet and close door.

5
5
E: TROUBLE SHOOTING
F: CLEANING
To avoid accident, cut off the power supply before operation according to the following
instruction.
1. The machine had been disinfected before departed from factory.
Cleaning the dispenser prior to install a full bottle of water for the first time.
2. Cleaning and draining instruction:
a) Before cleaning, make sure the power switch in the O(off) position and unplug the water
dispenser.

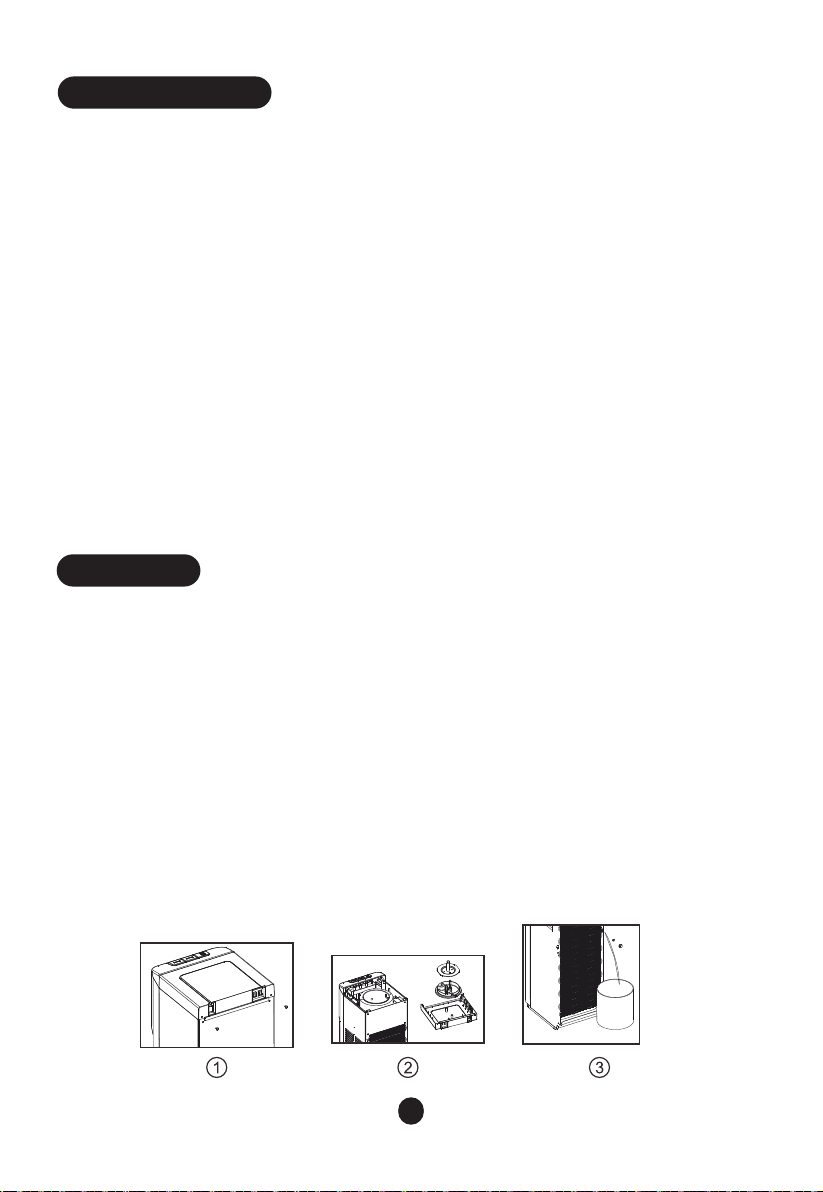

b)Twist out the two screws①, then take down top cover, cold tank cover and separator②.
c)Fill 0.6 gallons pure water into cold tank to clean it.
d) Place a large water bucket beneath the drain outlet which on the back of water dispenser, then
remove the drain cover and drain the water③.
e)Reposition the drain cover, separator, cold tank cover and top cover after draining. Ensure the
pipe and wires are connected properly , then, you can use the machine normally.
Attention: 1) The cleaning must be under the guidance of professional staff.
2)The dispenser heats water to a temperature of approximately 85℃. It can cause
severe burns. Please operate it carefully.
Water is leaking.
•Unplug dispenser, remove bottle and replace it.
No Water is coming from the spout.
•Make sure the bottle is not empty. If empty, replace it.
•Make sure to completely depress the pushbutton controls.
Cold water is not cold.
•It takes up to one hour after setup to dispense cold water.
•Make sure the power cord is properly connected to a working outlet.
•Make sure the back of the dispenser is at least 20cm from a wall and there is free airflow on all
20cm sides of the dispenser.
•Make sure green power switch on back of dispenser is ON.
•If water still isn’t cold, please ask for the service agent for assistance.
Hot water is not hot.
•It takes 15-20 minutes after setup to dispense hot water.
•Make sure the power cord is properly connected to a working outlet.
•Make sure red power switch on back of dispenser is ON.
Dispenser Is Noisy
•Make sure the dispenser is positioned on a level surface.

G: MACHINE INSTALLATION
3.Sanitizing
The machine should be disinfected with the disinfectant separately bought from drugstore or
marketplace according to the instruction manual of the disinfectant and then clean it with water
(see cleaning and draining instruction). Generally this should be done every three months.
4.To remove mineral deposits:
Mix 4 liters water with 200g citric acid crystals, inject into the machine and make sure the water
can flow out of the hot water tap. Switch on the power and heat it about 10 minutes, 30 minutes
later, drain off the liquid and clean it with water for two or three times. Generally this should be
done every six months.
Never disassemble this machine by yourself to avoid danger from damaged machine.
WARNING! To avoid a hazard due to instability of the appliance, it must be fixed in accordance
with the instructions.
Water dispenser
Bracket
The hole for
tighten screw
1-2. Loosen the screw of the left or right bottom angle
just as the picture shown.
3. Use the screw to fix the bracket on the left or right
bottom angle of the water dispenser.
4. Make a hole on the floor’s or the desk’s surface where
the water dispenser will be installed.
5. Fix the bracket on the floor by screw tightly.
6. Tighten the screw.
5 6
The packaging material used is recyclable; we recommend that you
separate plastic, paper and cardboard and hand them over to recycling
companies. To help preserve the environment, the refrigerant used in
this product is R134a (Hydrofluorocarbon-HFC), which does not affect
the ozone layer and has a low impact on the greenhouse effect.
IMPORTANT INFORMATION ON THE CORRECT DISPOSALOF THE PRODUCT INACCORDANCE WITH EC DIRECTIVE 2012/19 / EU
Used electrical appliances are valuable materials, which is why their place is not in the garbage! Therefore, please support us and participate in the protection of
natural resources and the environment by handing this device over to the collection centers or to the importer whose address you can find in this manual or in the
warrantycertificate. By removinghousehold appliances separately, you willavoid any negativeconsequences that incorrectdisposal could haveon the environment
and health, and you will allow the use of constituent materials to save energy and resources.Additional details can be requested from the local administration or at
the nearest collection point. Improper disposal of waste may, in accordance with national regulations, be amended. Separate decommissioning of an appliance is
specified by marking the product with the image of a cut bin.
This product does not contain environmentally hazardous materials (lead, mercury, cadmium, hexavalent chromium and brominated flammable agents: PBB and PBDE).
We assume the right to make changes to these provisions without further notice.
SC ZASS ROMANIAS.R.L. is not responsible for any typographical errors, images or product characteristics.
COMPLIANT
