Zass ZWD 21 CTL User manual

WATER DISPENSER
Instruction Manual
Model: ZWD 21 CTL
Sole importer in Romania:
ZASS Romania SRL (CUI RO15328988)
Ungheni nr. 40 A, cod 547605, Mureş
Telefon: [phone], Fax: [phone]
www.zassromania.ro, e-mail: o[email protected]

1
A: SAFETY INSTRUCTION
WARNING
To reduce risk of injury and property damage, user must read this entire guide before
assembling, installing & operating dispenser.
Failure to execute the instructions in this manual can cause personal injury or property
damage.This product dispenses water at very high temperatures. Failure to use properly
can cause personal injury. When operating this dispenser, always exercise basic safety
precautions, including the following:
•Prior to use, this dispenser must be properly assembled and installed in accordance with this
manual.
•This dispenser is intended for water dispensing only. Do NOT use other liquids.
•Do NOT use for other purposes. Never use any other liquid in the dispenser other than known
and microbiologically safe bottled water.
•For indoor use only. Keep water dispenser in a dry place away from direct sunlight. Do NOT
use outdoors.
•Install and use only on a hard, flat and level surface.
•Do NOT place dispenser into an enclosed space or cabinet.
•Do NOT operate dispenser in the presence of explosive fumes.
•Position back of dispenser no closer than 20cm from wall and permit free airflow between wall
and dispenser. There must be at least 20cm clearance on the sides of the dispenser to permit
airflow.
•Use only properly grounded outlets.
•Do not use an extension cord with your water dispenser.
•Always grasp plug and pull straight out from outlet. Never unplug by pulling on power cord.
•Do NOT use dispenser if cord becomes frayed or otherwise damaged.
•To protect against electric shock, do NOT immerse cord, plug, or any other part of dispenser in
water or other liquids.
•Ensure dispense is unplugged prior to cleaning.
•Never allow children to dispense hot water without proper and direct supervision. Unplug unit to
prevent unsupervised use by children.
•Service should be performed only by a certified technician.
•Warning: Do not damage the refrigerant circuit.
•This appliance can be used by children aged from 8 years and above if they have been given
supervision or instruction concerning use of the appliance in a safe way and if they understand
the hazards involved. Cleaning and user maintenance shall not be made by children unless
they are older than 8 and supervised. Keep the appliance and its cord out of reach of children
aged less than 8 years.
•Children should be supervised to ensure that they do not play with the appliance.
•This appliance is intended to be used in household and similar applications such as: staff
kitchen areas in shops, offices and other working environments; farm houses and by clients in
hotels, motels and other residential type environments; bed and breakfast type environments;
catering and similar non-retail applications.
•If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
•The appliance must not be cleaned by a water jet.
•The appliance is suitable for indoor use only.
•WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure,
clear of obstruction.
•WARNING: Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
•Do not store explosive substances such as aerosol cans with a flammable propellant in this
appliance.

B:GETTING STARTED
2
•This appliance should work under environment of temp from 10°C~43°C.
•This appliance is not suitable for installation in an area where a water jet could be used.
•Never turn the machine upside down or lean it more than 45°.
•When the machine is under the ice point and blocked by ice, the cooling switch must be
closed for 4 hours before turning it on again to continue its operation.
•This machine should not be turned on until 3 minutes later after turning off the power switch.
Locate Dispenser
1.Place dispenser upright.
2.Locate dispenser on a hard and level surface in a cool shaded location near a grounded
wall outlet.
Notice: Do NOT plug in power cord yet.
3.Position dispenser so the back is at least 20cm from wall and there are at least 20cm of
clearance on both sides.
Assemble
1.Remove drip tray from door and place the grid on top.
2.Snap drip tray and grid assembly into door.
Install Water Bottle
1.Open dispenser door.
2.Place probe assembly on probe hanger.
3. Place fresh bottle outside of cabinet.
4. Remove entire plastic cap from top of bottle.
5. Clean outside of new bottle with a cloth.
6.Place probe into bottle.
7.Slide collar down until it clicks in place.
8.Push head down until tubes hit bottom of bottle.
9.Slide bottle into cabinet and close door.
Provide Electricity
Plug cord into a properly grounded wall outlet. At this time the pump
will begin to move water from the bottle to the hot and cold tanks.
It will take up to 12 minutes to fill the tanks for the first time.
During this period the pump will run continuously. This is normal.
Activate Heating & Cooling
Notice: This unit will not dispense hot or cold water until the switches are activated.
To activate, push top side of power switches in to start heating and cooling water.
-If you do not want to heat water, push bottom side of red switch in.
-If you do not want to cool water, push bottom side of green switch in.
3 Gallon Bottle
5 Gallon Bottle
Collar
Collar
Head
Head

3
C: PARTS NAME
NOTE:
This machine is suitable for bottle of 3 or 5 gallons. Don’t use unhealthy hard water.
(FRONT) (REAR)
6
7
Child lock button
Hot water button
Warm water button
Cold water button
Water faucet
Water collector
Door
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Night light switch
Heating switch
Cooling switch
Touchless icon
Power cord
Hot water outlet
Condenser
12 34
5
11 9
10
12
13
14
8

4
D: DISPENSING WATER
This unit has been tested and sanitized prior to packing and shipping. During transit dust and odors
can accumulate in the tank and lines. Dispense and dispose at least one quart of water prior to
drinking any water.
Dispensing Warm or Cold Water
1.Water will take approximately 1 hour after initial set up to become completely chilled. Cooling light
will turn off once the water has been fully chilled.
2.Press cold/warm water button to dispense cold/warm water
3.Release button once desired fill level is achieved.
Dispensing Hot Water
1.Water will take approximately 12 minutes after initial set up to reach its hottest temperature. Heating
light will turn off once the water has been fully heated.
2.This water dispenser is equipped with a child safety feature in order to prevent inadvertent
dispensing. To enable dispensing of hot water, press the child lock button first, then press the hot
water button.
3.Release button once desired fill level is achieved.
CAUTION: This unit dispenses water at temperatures that can cause severe burns. Avoid direct
contact with hot water. Keep children and pets away from the unit while dispensing. Never allow
children to dispense hot water without proper and direct supervision, Disable the heating feature by
switching the heating convenience switch.
Touchless control function
Place the hand 2 inches over the sensor to dispense cold water. When you take you hand away
from the sensor, the water stops. The continuous water dispensing time is up to 30 seconds by
default setting when you keep your hand over the sensor.
Setting model:
Press the child lock button and hot water button together for 3s, the child lock button and cold water
button light flash. The machine enters setting mode. You can reset the continuous dispensing time
by putting your hand over the sensor within 10 seconds. The machine starts dispensing cold water
till you take your hand away or 40 seconds. The machine will remember this timing as continuous
dispensing time.
If you don’t take any action in 10 seconds after the machine enters setting mode, the child lock
button and cold water button light flash will stop flashing and the touchless control function is
inactivated.
To activate the touchless control function, you need to enter the setting mode again and set the
continuous dispensing time. Power off the machine will resume to default setting.
Changing Bottles
A flashing red light on your function lights alerts you when your bottle is empty. Replace the bottle as
soon as possible
Notice: Do not dispense hot or cold water if the red light is flashing as you could empty the tanks
and cause the dispenser to overheat.
1.Open dispenser door.
2.Slide empty bottle out of cabinet.
3.Remove probe assembly from empty bottle. Place probe assembly on probe hanger.
4.Set empty bottle aside.
5.Place fresh bottle outside of cabinet. Remove entire plastic cap from top of bottle. Clean outside
of new bottle with a cloth.
6.Place probe into bottle. Slide collar down until it clicks in place. Push head down until tubes hit
bottom of bottle.
7.Slide bottle into cabinet and close door.

5
E: TROUBLE SHOOTING
F: CLEANING
Water is leaking.
•Unplug dispenser, remove bottle and replace it.
No Water is coming from the spout.
•Make sure the bottle is not empty. If empty, replace it.
•Make sure to completely depress the pushbutton controls.
Cold water is not cold.
•It takes up to one hour after setup to dispense cold water.
•Make sure the power cord is properly connected to a working outlet.
•Make sure the back of the dispenser is at least 20cm from a wall and there is free airflow on all
20cm sides of the dispenser.
•Make sure green power switch on back of dispenser is ON.
•If water still isn’t cold, please ask for the service agent for assistance.
Hot water is not hot.
•It takes 15-20 minutes after setup to dispense hot water.
•Make sure the power cord is properly connected to a working outlet.
•Make sure red power switch on back of dispenser is ON.
Dispenser Is Noisy
•Make sure the dispenser is positioned on a level surface.
To avoid accident, cut off the power supply before operation according to the following instruction.
1.The machine had been disinfected before departed from factory. Cleaning the dispenser prior to
install a full bottle of water for the first time.
2.Cleaning and draining instruction:
a) Before cleaning, make sure the power switch in the O(off) position and unplug the water dispenser.

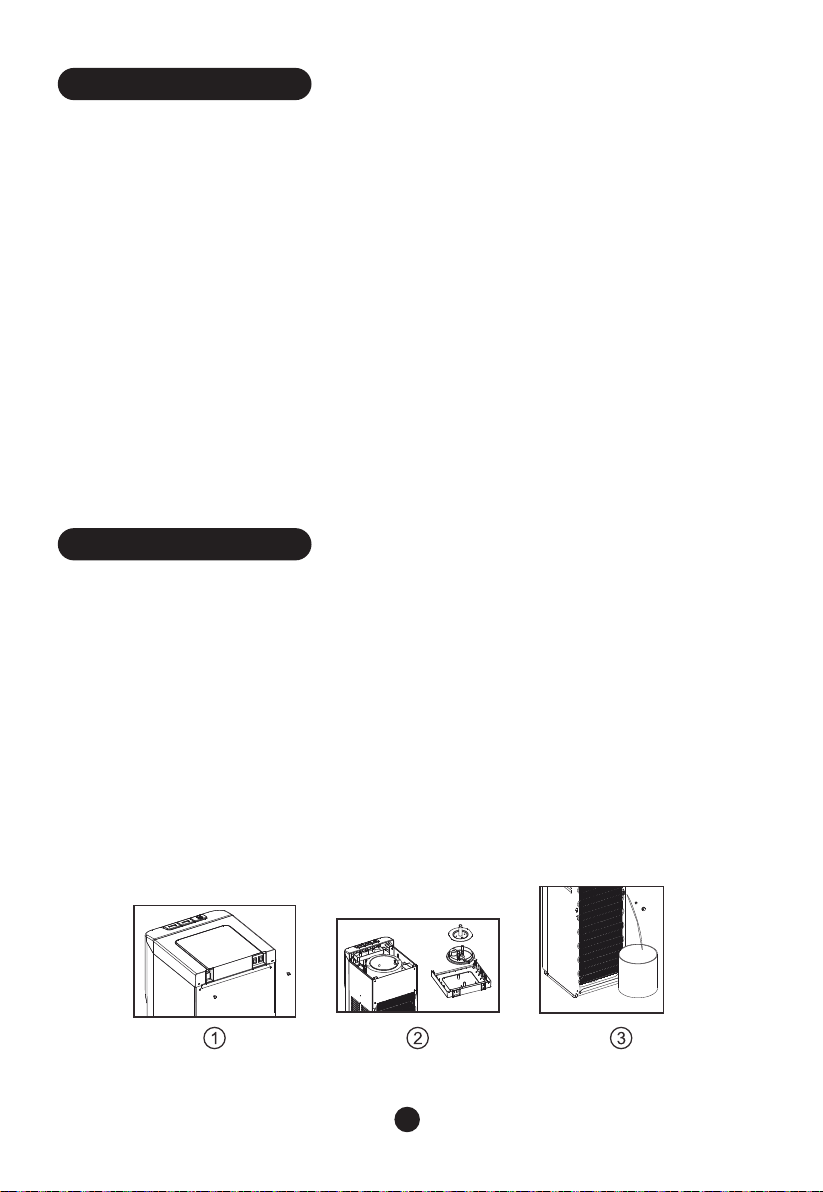

b)Twist out the two screws①, then take down top cover, cold tank cover and separator②.
c)Fill 0.6 gallons pure water into cold tank to clean it.
d)Place a large water bucket beneath the drain outlet which on the back of water dispenser, then
remove the drain cover and drain the water③.
e)Reposition the drain cover, separator, cold tank cover and top cover after draining. Ensure the pipe
and wires are connected properly , then, you can use the machine normally.
Attention: 1) The cleaning must be under the guidance of professional staff.
2)The dispenser heats water to a temperature of approximately 85℃. It can cause severe burns.
Please operate it carefully.

G: MACHINE INSTALLATION
3.Sanitizing
The machine should be disinfected with the disinfectant separately bought from drugstore or
marketplace according to the instruction manual of the disinfectant and then clean it with water (see
cleaning and draining instruction). Generally this should be done every three months.
4.To remove mineral deposits:
Mix 4 liters water with 200g citric acid crystals, inject into the machine and make sure the water can
flow out of the hot water tap. Switch on the power and heat it about 10 minutes, 30 minutes later,
drain off the liquid and clean it with water for two or three times. Generally this should be done every
six months.
Never disassemble this machine by yourself to avoid danger from damaged machine.

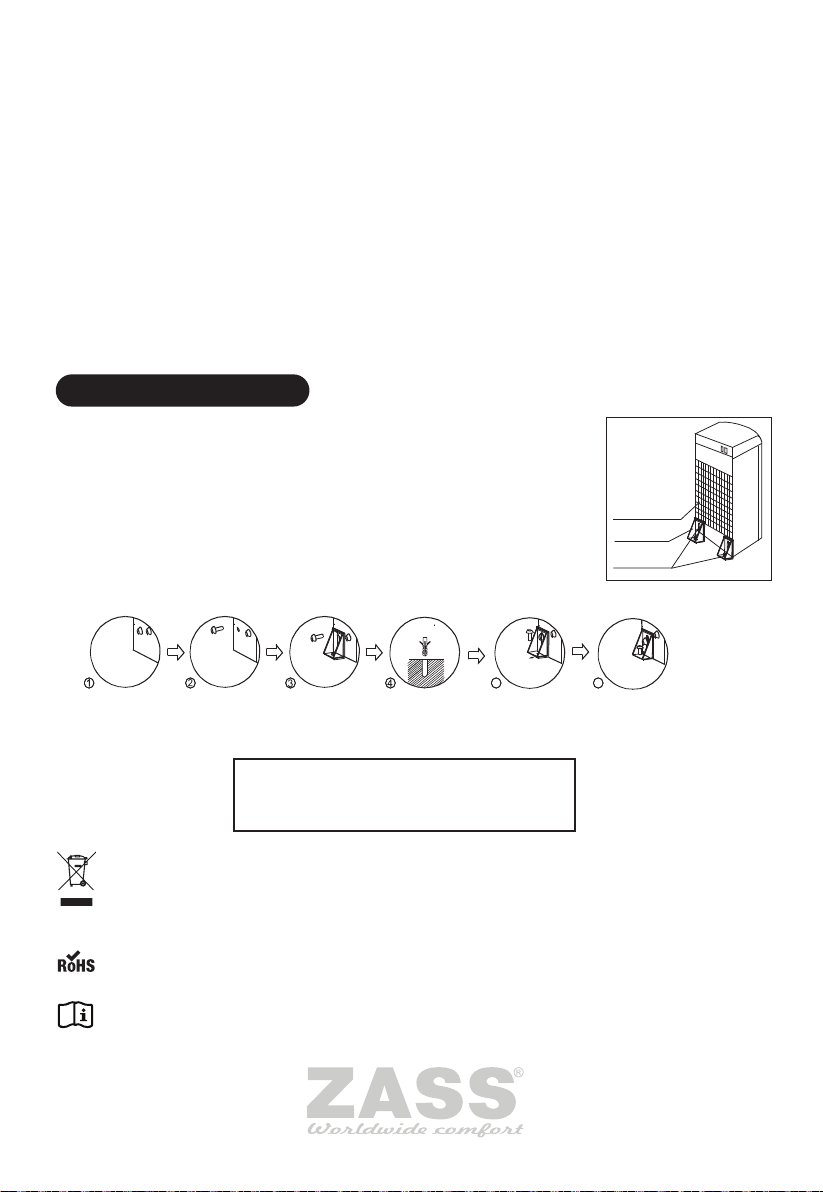

1-2. Loosen the screw of the left or right bottom angle just as the picture
shown.
3.Use the screw to fix the bracket on the left or right bottom angle of the
water dispenser.
4.Make a hole on the floor’s or the desk’s surface where the water
dispenser will be installed.
5.Fix the bracket on the floor by screw tightly.
6.Tighten the screw.
WARNING! To avoid a hazard due to instability of the appliance, it must be fixed in accordance
with the instructions.
Water dispenser
Bracket
The hole for
tighten screw
5 6
The packaging material used is recyclable; we recommend that you
separate plastic, paper and cardboard and hand them over to recycling
companies. To help preserve the environment, the refrigerant used in
this product is R134a (Hydrofluorocarbon-HFC), which does not affect
the ozone layer and has a low impact on the greenhouse effect.
IMPORTANT INFORMATION ON THE CORRECT DISPOSALOF THE PRODUCT INACCORDANCE WITH EC DIRECTIVE 2012/19 / EU
Used electrical appliances are valuable materials, which is why their place is not in the garbage! Therefore, please support us and participate in the protection of
natural resources and the environment by handing this device over to the collection centers or to the importer whose address you can find in this manual or in the
warrantycertificate. By removinghouseholdappliances separately,youwillavoid any negativeconsequencesthat incorrect disposalcouldhave on theenvironment
and health, and you will allow the use of constituent materials to save energy and resources.Additional details can be requested from the local administration or at
the nearest collection point. Improper disposal of waste may, in accordance with national regulations, be amended. Separate decommissioning of an appliance is
specified by marking the product with the image of a cut bin.
This product does not contain environmentally hazardous materials (lead, mercury, cadmium, hexavalent chromium and brominated flammable agents: PBB and PBDE).
We assume the right to make changes to these provisions without further notice.
SC ZASS ROMANIAS.R.L. is not responsible for any typographical errors, images or product characteristics.
COMPLIANT
www.zassromania.ro
