Zaxcom URX100 User manual

1
User Manual
Published May 2019
Firmware Version URX-057
URX100

2
FRONT ......................................................................................................................................................................4
TOP..........................................................................................................................................................................5
REAR ........................................................................................................................................................................6
HOME SCREEN.................................................................................................................................. 7
MAIN MENU..................................................................................................................................... 8
NAVIGATING THE MAIN MENU .....................................................................................................................................8
FREQUENCY SELECT.....................................................................................................................................................8
WALKIE IN GAIN.........................................................................................................................................................8
LOCK SCREEN .............................................................................................................................................................8
SUB MENUS...................................................................................................................................... 9
MENU GROUPS ..........................................................................................................................................................9
ACCESSING AND NAVIGATING THE MENU GROUPS ............................................................................................................9
ENTERING AND NAVIGATING A SUB MENU .......................................................................................................................9
EXITING THE EXTENDED MENU......................................................................................................................................9
CHANNEL PRESET MENU................................................................................................................. 10
NUMBER OF PRESETS ................................................................................................................................................10
PRESET ADJUST ........................................................................................................................................................10
SCAN MENU ................................................................................................................................... 11
FREQUENCY SCAN.....................................................................................................................................................11
Scanning for a frequency ................................................................................................................................. 11
Selecting the frequency ...................................................................................................................................11
SETTING THE SCAN RANGE .........................................................................................................................................12
ROUTING MENU ............................................................................................................................. 13
WALKIE ROUTING .....................................................................................................................................................13
RECEIVE AUDIO LEFT ROUTING ...................................................................................................................................13
RECEIVE AUDIO RIGHT ROUTING .................................................................................................................................13
TIME CODE MENU .......................................................................................................................... 14
MUTE TIME CODE UNTIL JAMMED ..............................................................................................................................14
TIME CODE OUTPUT LEVEL.........................................................................................................................................14
SETUP MENU.................................................................................................................................. 15
TONE OUTPUT .........................................................................................................................................................15
MODULATION SELECT................................................................................................................................................15
MUTE IF UNIT CODE .................................................................................................................................................15
SOFTWARE UPDATE ..................................................................................................................................................16
IFB VOTING .............................................................................................................................................................16
AUDIO DELAY SET.....................................................................................................................................................16
DISPLAY FLIP............................................................................................................................................................16
BATTERY TYPE..........................................................................................................................................................16
OLED BRIGHTNESS ...................................................................................................................................................17
INFORMATION PAGE .................................................................................................................................................17
HIDE ENCRYPTION MENU ..........................................................................................................................................17
ENCRYPTION CODE SET..............................................................................................................................................17
Adjusting the encryption code.........................................................................................................................17

3
WIRING CONFIGURATION............................................................................................................... 18
TA5 CONNECTOR .....................................................................................................................................................18
HEADPHONE OUT .....................................................................................................................................................18
OPERATING FREQUENCIES .............................................................................................................. 19
UHF AUDIO.............................................................................................................................................................19

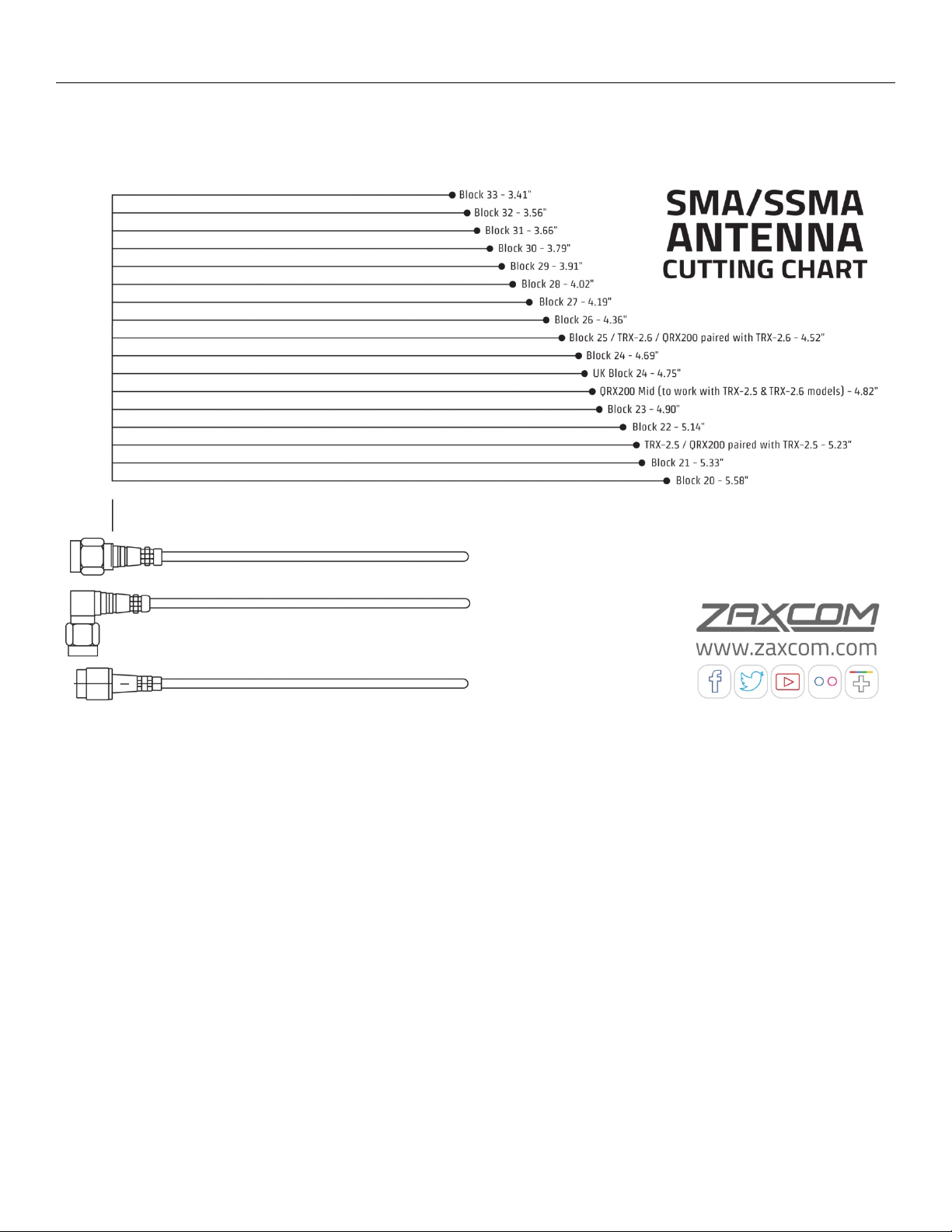

ANTENNA CUTTING CHART ............................................................................................................. 20
FIRMWARE..................................................................................................................................... 21
SPECIFICATIONS.............................................................................................................................. 22
PRODUCT SUPPORT ........................................................................................................................ 23
ZAXCOM WARRANTY POLICY AND LIMITATIONS............................................................................. 24

Zaxcom URX100 Front
4
Front
1. Volume Up and Down keys
2. Channel Up and Down keys
•When in the home or lock screen press to cycle through channel presets.
•When in the sub menu press to cycle through the menus.
•When in a menu press the keys to change the menu parameters.
3. Power / Time Code key
•Press and hold for 2 seconds to power up the URX100.
•Press and hold for 4 seconds to power down the URX100 - then pess the MENU key
•Press three times quickly to enter or exit the menu groups.
•From the home or lock screen press to display the time code and user bits.
4. Menu key
•Press to cycle to the next menu item.
2
1
3
2
1
4

Zaxcom URX100 Top
5
3
1
2
Top
1. SMA Antenna Connection
2. OLED Display
3. 3.5mm Headphone Jack / URXL1 connector
Please note that this jack acts as the second antenna for diversity reception.
For optimal preformance when a headphone, or the URXL1 lanyard, is not being used it is
recommended that a 3.5mm connector with a piece of wire (approximatally 5 inches long)
connected to the sheild is inserted to act as a second antenna.

Zaxcom URX100 Rear
6
Rear
1. Battery Compartment - The URX100 uses 3 AA batteries and will work with alkaline, NiMH or
lithium AA batteries.
2. URXL1 Walkie Talkie Lanyard (Optional)-The URX100 can be connected to the remote speaker/mic
port of a walkie talkie. Allowing the user to route the walkie talkie audio left right or center and mix
it with the URX100 audio so both the walkie and URX100 audio can be heard at the same time with
a single pair of headphones.
The URXL1 Lanyard has a push-to-talk button and a microphone to communicate with the walkie
talkie. Any headphone with a 3.5mm jack can be plugged into the URXL1.
1
2

Zaxcom URX100 Home Screen
7
Received TX Name Rec Status Low Battery Indicator
Save Indicator
Received RF Signal Strength Meter
Frequency Receiving Antenna
Audio Level Meter TC Battery Meter
Home Screen
Received Transmitter Name
This is the name of the transmitter being received by the URX100.
Received Transmitter Record Status
This displays the status of the internal recorder of the transmitter being received by the URX100. Stop (STP) Play
(PLY) or Record (REC) will be displayed.
Low Battery Indicator of Received Transmitter
TX BATT will appear when the battery level of the transmitter being received is low.
Save Indicator
The save indicator will briefly flash when after a setting change as a parameter is being written to the memory
of the URX100. .
Received Frequency
This is the preset position number and the UHF frequency that the URX100 is receiving.
RF Signal Strength
The RF strength meter shows the radio signal strength of the transmitter. The RF signal is depicted as a staircase
pattern with the lowest step (low signal strength) on the left and building up to the right (higher signal strength).
When more stairs are showing the stronger the signal is.
Receiving Antenna
This shows the antenna that is receiving the RF signal.
Audio Level
Displays the incoming audio level, the meter extends from the left to the right. The vertical bar is the -20dBFS
mark and the far right side of the box is 0dBFS.
Time Code
This is the time code of the transmitter that the URX100 is receiving.
Battery Meter
This displays a rough indication of the transmitter’s battery level. For a more accurate battery reading the battery
type being used in the transmitter needs to be set in the setup menu.
TX NAME REC TXBATT
(P1) 570.1
09:18:05:03

Zaxcom URX100 Main Menu
8
Main Menu
Navigating the Main Menu
•To enter the main menu - press the MENU key.
•To advance to the next menu press the MENU key again.
Frequency Select
The frequency select menu is where the URX100 receive frequency is set. This frequency needs to match the
frequency that is set on the corresponding transmitter. To adjust the frequency press the channel up key to
increase the frequency and press the channel down key to decrease the frequency. Also displayed is the
modulation format, the name of the transmitter being received, a signal strength meter and audio meter and an
arrow showing which antenna the signal is being received on.
Walkie In Gain
6
The walkie in gain menu is where the level of the optional lanyard microphone input from to the URX100 is set.
The higher the level is set the more gain the microphone will have.
Lock Screen
6
The lock screen is landed on a 5 second countdown clock will start. After 5 seconds elapse the URX100 will lock
and the menus cannot be accessed. This is to prevent the parameters from accidentally be changed.
When the URX100 is locked the volume adjust keys, the channel preset keys and the time code display key can
still be used.
To exit the lock screen hold the MENU key and press the CH UP key 4 times.
WALKIE IN GAIN:
60
FREQ: 570.0
STEREO ‘TX NAME’
LOCKING IN 4
FREQ: 570.0
STEREO ‘TX NAME’

Zaxcom URX100 Menu Navigation
9
Sub Menus
Menu groups
The URX100 has five sub menu groups
•Channel Preset - Sets the number of preset channels, and sets the frequency of each preset channel.
•Scan - Is where the URX100 can scan the set RF spectrum.
•Routing - Sets the routing of the received audio and the walkie feed to the desired headphone side.
•Time Code - Changes the time code parameters of URX100.
•Setup - Changes the parameters of the general operation on the URX100.
Accessing and navigating the menu groups
From in the main menu press the POWER / TC key three times quickly to access the six menu groups. Then
pressing the CH UP or CH DOWN key will cycle between the menu items.
Entering and navigating a sub menu
When landing on the desired menu group press the MENU key to enter that menu. Pressing the MENU key
again will cycle through the menu items.
To return to the top of the menu press the MENU key to cycle to the top or press and hold the MENU key for
1.5 seconds.
Exiting the extended menu
To exit the menus press the POWER / TC key 3 times quickly to return to the main menu.

Zaxcom URX100 Frequency Presets
10
CHANNEL PRESET MENU
Number of Presets
From this menu the number of presets that the URX100 will display can be selected. The URX100 can display up
to 100 presets.
Preset Adjust
From this menu each preset frequency can be adjusted by pressing the CH UP and CH DOWN keys. If the
frequency has a corresponding transmitter that is on the name of the transmitter will be displayed.
Each preset can be toggled on and off by pressing the POWER/TC key. When the preset is ON the user will be
able to cycle to that preset and listen to it, if the preset is OFF the user will not be able access that preset.
After the frequency is set press the MENU key to advance to the next preset.
Please note the number of available frequencies will be determined by the number of presets that was set in the
previous menu.
NUMBER OF
PRESETS: 100
PRESET 2: 524.3
TX NAME (ON)

Zaxcom URX100 Scan Menu
11
SCAN MENU
Frequency Scan
The frequency scan menu is where the URX100 can scan the user specified frequency range and search for a
clear frequencies. The frequency range will be displayed on the bottom half of the display.
After the scan is completed a graphic display of the RF that is present in that specified range will be shown and
the URX100 will also suggest a clear frequency. That frequency can be accepted by pressing the CH UP key. Or
press the CH DOWN key to skip the first chosen frequency and have the URX100 suggest another frequency.
Scanning for a frequency
•Turn off the transmitter(s).
•From the scan menu press the CH UP key to initiate a scan.
•While the URX100 is scanning, the frequency being examined is
displayed in the bottom half of the screen. Once the scan has
completed a graphic map of the scan will be displayed. The low end of the frequency range is on
the left side and the high end is on the right. Wherever RF is found, a vertical line will be drawn.
The line extends from the baseline up. The length of the line indicates the level or strength of the
found RF at that frequency.
Selecting the frequency
When the scan is complete the URX100 will draw a vertical blinking
line on the display to indicate where the first suggested frequency is,
and the frequency in MHz will appear below the scan graphic.
•Press the CH UP key to accept the new frequency.
•Press the CH DOWN key to decline and suggest a different frequency.
PRESS TO SCAN
(ALL 200: 512 – 698)
SCANNING 568.9
TO TAKE 618.2

Zaxcom URX100 Scan Menu
12
Setting the Scan Range
The scan range menu sets the frequency range that the URX100 will scan when doing a frequency scan. Pressing
the CH UP and CH DOWN keys will cycle through the scanning options.
Available Scan Ranges
•All 200 - All frequencies from 512.0MHz through 698.0MHz will be scanned..
•LO 100 - Corresponds to the frequency range of 3.5 transmitters, when selected the RX200 will scan all
frequencies from 512.0MHz through 614.0MHz.
•HI 100 - Corresponds to the frequency range of 3.6 transmitters, when selected the RX200 will scan all
frequencies from 596.0 through 698.0MHz.
•BLK (20 -26) - Allows the RX200 to scan a specific block (Blocks 20-26).
•Block 20 - 518-542 MHz
•Block 21 - 536-572 MHz
•Block 22 - 560-590 MHz
•Block 23 - 590-614MHz (block 23 needs to be enabled)
•Block 24 - 614-644 MHz
•Block 25 - 638-668 MHz
•Block 26 - 662-698 MHz
SCAN LIMIT:
ALL 200 512 - 698

Zaxcom URX100 Headphone Routing Menu
13
ROUTING MENU
Walkie Routing
From the walkie routing menu the walkie receive audio can be routed to the desired headphone side.
The walkie audio can be routed to both sides of the headphones, the left side only, the right side only, or it can
be disabled.
Receive Audio Left Routing
From the RX left routing menu the left received audio can be routed to the desired headphone side.
The audio can be routed to both sides of the headphones, the left side only, the right side only, or it can be
disabled.
Receive Audio Right Routing
From the RX right routing menu the right received audio can be routed to the desired headphone side.
The audio can be routed to both sides of the headphones, the left side only, the right side only, or it can be
disabled.
WALKIE ROUTED
TO HP-BOTH
RX LEFT ROUTED
TO HP-LEFT
RX RIGHT ROUTED
TO HP-RIGHT

Zaxcom URX100 Time Code Menu
14
TIME CODE MENU
Mute Time Code Until Jammed
If mute time code is set to on, the time code out of the TA5 is muted and the URX100 will not output any time
code until it receives and locks to the time code that is being sent from the transmitter. This is to prevent
incorrect time code being outputted.
Time Code Output Level
The URX100’s time code output can be adjusted for equipment that needs a specific time code voltage.
The URX100 can output time code from 0.001 to 3.000 Volts.
TC OUTPUT LEVEL:
1.000 VOLTS
MUTE TC UNTIL
JAMMED: ON

Zaxcom URX100 Set Up Menu
15
SETUP MENU
Tone Output
The tone menu allows the URX100 to output tone. This is useful to set levels and check routing. Pressing
the CH UP and CH DOWN keys key will cycle through and output the different tone settings.
•OFF - No tone is being outputted.
•-20dBFS -Tone is outputted at -20dBFS.
•+0dBFS - Tone is outputted at full scale 0dBFS.
Modulation Select
The modulation menu is where the receive format is set. Modulation is simply the way a transmitter
“modulates”, or sends, its signal to the URX100. This setting needs to match the modulation mode that the
corresponding transmitter is set to - if the two setting do not match the URX100 will not be able to receive and
decode the signal from the transmitter.
Modulation types
•STEREO - Select when receiving audio from a Camera Link, Maxx transmitter, or a stereo transmitter.
•ZHD 96 - Select when receiving signal from a ZHD transmitter set to ZHD-96.
•XR MONO - Select when using extended range modulation (XR).
•MONO - Select when using a mono transmitter and XR modulation is not available in the software.
•EU - Select when using a transmitter that is set up for European broadcast standards.
Mute If Unit Code
This menu sets if transmitters with certain ZaxNet unit codes will not be able to be monitored by the URX100.
For example if this menu is set to 30 any transmitter with a ZaxNet unit code below 30 will not be able to be
monitored by the URX100.
If a muted preset is selected to be monitored “MUTE” will appear on the display and that preset will not be able
to be listened to - even if that preset is enabled.
MUTE IF UNIT CODE
(NEVER MUTE)
TONE :
OFF
RX FORMAT:
STEREO
MUTE IF UNIT CODE
IS LESS THAN 2

Zaxcom URX100 Set Up Menu
16
Software Update
This menu is where the URX software is updated from.
When in this menu pressing the CH UP key will initiate the update process and the URX100 will wait and search
for software that will be transmitted from a Zaxcom transmitter (please refer to the software update section of
this manual for more information on how to update the URX100.)
IFB voting
The IFB voting feature will allow the URX100 to automatically switch to a secondary frequency when it loses its
signal from the primary transmitter. One purpose of this is, on a large set, a second transmitter can be placed
at a distant location, so if the URX100 loses the signal from one transmitter it will automatically switch to the
other transmitter.
To use IFB voting just set the offset in this menu to (200 KHz, 300 KHz, 400 KHz or 500 KHz). Then set the
second transmitters frequency to the primary frequency + the offset. So for example if the primary frequency
is 560.000 MHz and the offset is 200 KHz then the second transmitter should be set to 560.200 MHz
Audio Delay Set
The audio delay menu sets a variable delay to the output audio. A delay is useful if the ERX is being used for
personal monitoring and there is a video processing delay to the monitors - so engaging the delay will delay the
audio to match the video. The audio delay can be adjusted from 1MS to 400MS in 1MS increments.
Display Flip
The display flip menu changes the orientation of the display for when the unit will be inverted.
Battery Type
The chemistry of the batteries being used in the URX100 is selected in this menu. Alkaline, NiMH or Lithium can
be selected
DISPLAY FLIP:
OFF
PRESS TO
UPDATE SOFTWARE
IFB VOTING: ON
200KHZ OFFSET
AUDIO DELAY:
OFF
BATTERY TYPE:
LITHIUM

Zaxcom URX100 Set Up Menu
17
OLED Brightness
The OLED brightness menu adjusts the brightness of the OLED display. The brightness can be adjusted from 0 to
3 with 0 being the dimmest setting and 3 being the brightest.
Information Page
This page displays the current firmware version and the serial number of the URX100.
Hide Encryption Menu
This menu allows for the encryption menu to be hidden preventing accidental changes.
•HIDDEN - The encryption menu does not appear when cycling through the menu settings.
•SHOW - The encryption menu will appear.
Encryption Code Set
This menu is where the encryption is turned on and the code is set. This code needs to match the encryption
code of the associated transmitter(s). If an encryption code is set on the transmitter the transmitted audio will
be encrypted and can only be listened to if the URX100 has the same matching encryption code entered. When
the codes do not match, all that will be heard is white-noise.
These two sets of numbers are formed into a single six-digit encryption code which provides a total of
16,777,216 possible combinations. For non-encrypted operations all six numbers should be set to 0.
Adjusting the encryption code
1. Press the menu key to cycle to the next character.
2. To change the designated character, press the CH UP or CH DOWN key.
3. To exit this page, press and hold the MENU key.
ENCRYPTION MENU:
HIDDEN
ID1: 000 ID0: 000
ENCRYPTION CODE
OLED BRIGHTNESS:
3
- - - INFO - - -
FIRMWARE 0-53
SN: 1234
URX-100

Zaxcom URX100 Wiring Configuration
18
Wiring Configuration
TA5 Connector
Pin
1 - Ground
2 - Audio in from walkie receiver
3 - Time Code out and AUX PTT (open collector)
4 - Microphone audio out to walkie with PTT bias control
5 - IFB audio out (Hard-wired to headphone left feed)
Headphone Out
The headphone out is a 3.5mm TRRS connector. The URXL1 walkie lanyard uses all 4 connectors, but any standard
headphone can be used to listen to audio.
Please note that the when a headphone, or the optional URXL1 Lanyard, is being used its wire becomes the second
antenna for the URX100 giving it diversity reception. It is recommended that when no headphone, or lanyard, is
connected to the 3.5mm jack a 3.5mm plug with a short piece of cable (approximately 5 inches long - wired only to
the shield) should be connected for better reception.

Zaxcom URX100 Operating Frequencies
19
Operating Frequencies
UHF Audio
512.0 MHz to 698.0 MHz (Blocks 20 through 26)

Zaxcom URX100 Antenna Cutting Chart
20
Antenna Cutting Chart
