ZEISS ZX1
USER GUIDE

Congratulations on your purchase of the ZEISS ZX1™. We are condent
that you will nd your new camera easy and fun to use, ensuring you take
stunning photos and stay in your ow.
Designing and manufacturing exceptionally good cameras is an
enormously demanding process. Scientic and technological excellence is
essential in this regard, but above all else, one thing is an absolute must –
passion!
ZEISS has been producing top-quality precision engineering products since
1846. Expertise and cutting-edge technology across various elds of optics
have been used to build a family of high-performance lenses for full-frame
mirrorless system cameras – and now, a camera itself!
ZEISS ZX1 Digital Camera

3
1 Safety Instructions 6
2 Hardware 9
2.1 | Box Content 10
2.2 | Handling Basics 11
2.2.1 Camera 11
2.2.2 Lens Cap, Lens Ring & Lens Shade 15
2.2.3 Power Supply & Charging 16
2.2.4 Strap & Accessories 21
3 Getting Started 25
3.1 | Levels of Control 26
3.2 | ON/OFF Switch 27
3.3 | Touch Gestures 30
3.4 | Modes & Mode Switch 31
3.5 | Shooting Mode 32
3.6 | Advanced Settings 37
4 Shooting 40
4.1 | Camera Functions 41
Basic // Exposure 42
4.1.1 Exposure Adjustments 43
Basic // Aperture 48
4.1.2 Aperture Adjustments 49
Basic // Shutter Speed 50
Table of Content

4
4.1.3 Shutter Speed Adjustments 51
Basic //ISO Speed 53
4.1.4 ISO Speed Adjustments 54
Basic //Focus 55
4.1.5 Focus Adjustments 56
Basic // White Balance 62
4.1.6 White Balance Adjustments 63
4.2 | Drive Modes 65
4.2.1 Single 66
4.2.2 Continuous 67
4.2.3 Self-timer 68
4.2.4 Interval 70
4.2.5 AE Bracketing 73
4.2.6 Panorama 75
4.3 | Video Shooting 77
4.4 | Shoot to a Collection 79
4.5 | Helpers 80
4.5.1 Level Indicator 81
4.5.2 Histogram 82
4.5.3 Grid 83
4.5.4 Clipping 84
4.5.5 Depth of Field 85
4.5.6 Hide helpers 86
5 Gallery 87
5.1 | Show Contents 88
5.1.1 Organize Contents 90
5.1.2 Content Review 92

5
5.2 | Handling Contents 93
5.2.1 Share 95
5.2.2 Check Upload History 97
5.2.3 Copy/Move 98
5.2.4 Edit 100
5.2.5 Delete 101
5.2.6 Slideshow 102
5.2.7 View Content on TV/Monitor 104
5.3 | Video 105
5.4 | Backup Contents to Cloud Storage and NAS 106
5.4.1 Check Backup History 107
5.4.2 Manage Backup Settings 108
6 Settings 109
6.1 | Overview 110
6.2 | Camera Settings 111
6.3 | Connection Settings 112
6.4 | Storage Settings 114
6.5 | General Settings 115
7 Apps 117
7.1 | General 118
7.2 | Companion App 119
8 Specications 122
9 Handling Precautions 127
9.1 | Care 128
9.2 | Cleaning 129
10 Legal Information 131

1
Safety
Instructions
Please read the following safety instructions to prevent
personal injury or damage to the ZEISS ZX1.
This will ensure that you enjoy working with your new
camera for as long as possible.

71 Safety Instructions
WARNING – Danger of Injury.
Ο Keep the camera out of reach of children. Children may choke on
small parts; risk of strangulation from the camera strap or a cable.
Ο Do not trigger the ash near the eyes, the skin, or other objects.
This may lead to serious eye injuries or burns.
Ο Do not push hard on the lens or the back display. This may lead to
cuts and skin irritation.
Ο Do not take apart or modify the camera. Touching the cameras
internal parts may lead to physical injury.
Ο Immediately stop using the camera if it smells odd or starts giving
o smoke. Continued usage may lead to physical injury.
WARNING – Risk of Explosion.
Ο Do not use the camera in the presence of ammable gas.
Ο Do not place the battery near or directly in a naked ame.
Ο Only use the batteries recommended.
WARNING – Risk of Fire.
Ο Do not expose the camera to water or any other liquid.
Ο Do not disassemble or short-circuit the battery.
Ο Do not expose the battery to water.
Ο Immediately stop using the battery if you notice any changes such
as deformation or discoloration of the battery.
CAUTION – Damage to Property.
Ο Keep the camera away from strong magnetic elds.
Ο Switch o the camera when camera use is prohibited due to
electromagnetic waves, e.g. in airplanes or hospitals.
Ο Unplug the power adapter when not in use.
Ο Do not drop the camera.
Ο Avoid hard impacts to the camera.
Ο Do not place the camera in humid or dusty places.
Ο Do not use the camera if condensation has formed on it.
Ο Do not point the camera at strong light sources.

81 Safety Instructions
Battery & Power Adapter
Ο Use only original ZEISS batteries.
Ο Replacing the battery with an incorrect battery type may lead to
loss of property and void the warranty. For information on how
to replace the battery, refer to 2.2.3 Power Supply & Charging.
Ο Batteries may explode if not handled properly.
Ο The power adapter can be used indoors only at an altitude of up
to 5,000 meters above sea level.
Ο In the case of a hazard such as smoke or re, disconnect the
power supply from the power grid.
Ο If you are not using the camera for a long period, remove the
battery from the camera and store it separately in a dry and cool
place.
Ο Do not place the battery near or directly in a naked ame.
Ο Do not plug in or unplug the power adapter with wet hands.
Ο Prevent the USB connector and plug o the power adapter from
coming in contact with metal objects or dust.
Ο Regularly clean the power adapter and remove dust and dirt.
Ο There is no risk of leaking battery electrolyte.
Ο This camera uses a lithium battery. If you take it on an airplane,
please contact your airline regarding relevant requirements for
checked and carry-on baggage.
Intended Use
The ZEISS ZX1 is intended for capturing pictures and videos in dry indoor
and outdoor spaces only. Liability and warranty claims are excluded in the
event of improper use.

2
Hardware
Your ZEISS ZX1 comes with great accessories. They go
together perfectly to ensure a smooth and ecient
workow. Find out what is in the box and learn the
handling basics.

102 Hardware
2.1 | Box Content
1. Camera
2. Lens protection ring
3. Lens shade
4. Lens cap
5. Hot shoe cover
6. AC adapter
7. AC adapter plug*/**
8. USB cable
9. USB adapter
10. Rechargeable Li-ion
battery pack
11. Camera strap (with 1
strap anchor mounted)
12. Strap accessory folder
with mounting plate,
Allen key, extra strap
anchors
13. Camera quick guide
14. Folder with warranty,
safety & compliance
leaet
1
2
3
4
5
6

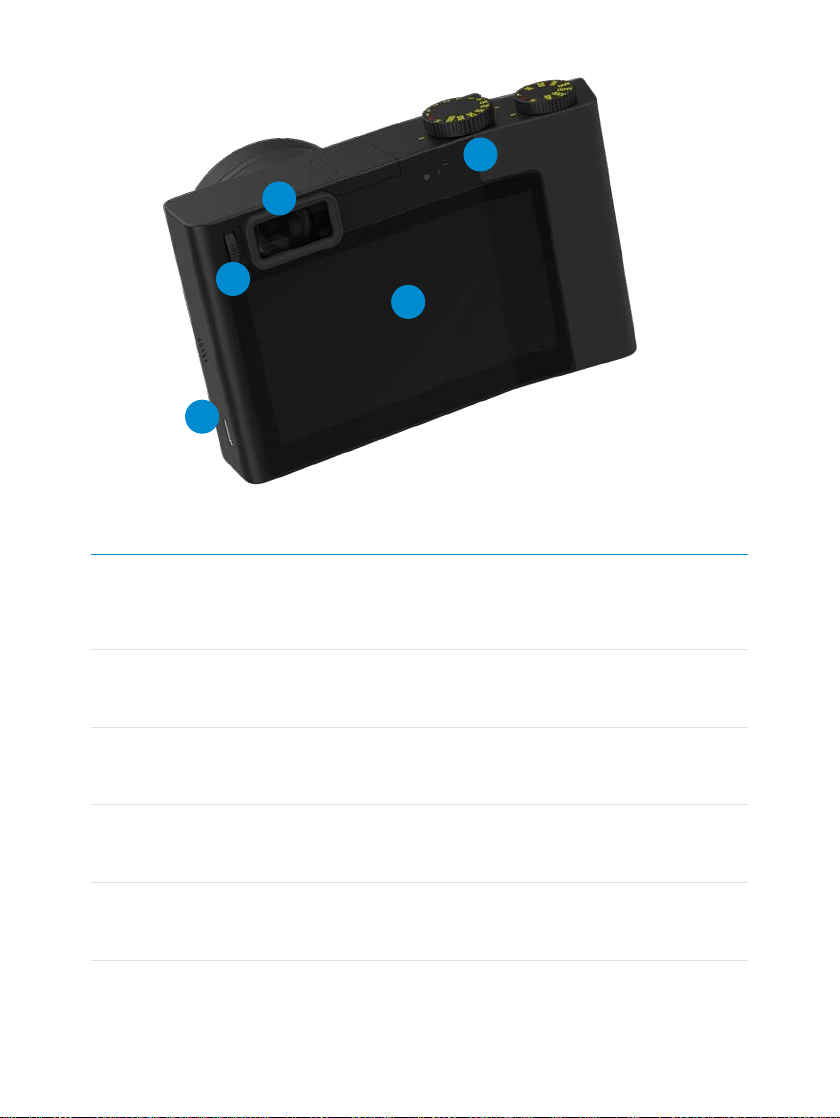

7
8
9
10
11
13
14
12
* Mounted on the AC adapter in the sales package
** The type of plug included in the sales package may vary between countries/regions.
Find the full collection of original ZEISS ZX1 accessories here.

112 Hardware
2.2 | Handling Basics
2.2.1 Camera
1
2
3
4
5
6
PART NOTE CHAPTER
1 ON/OFF switch Switch the camera on and o, activate
standby mode, wake it up and toggle be-
tween still image and video mode.
3.2
2Shutter button Half-press to focus, full-press to take pictures
and videos.
3Shutter speed dial Use to select the desired shutter speed. 4.1.3
Basic // Shutter Speed
4ISO speed dial Use to select the desired ISO speed. 4.1.4
Basic // ISO Speed
5 Hot shoe cover Slide out to insert an external ash. 4.1.1
Basic // Exposure
6Antenna cover Do not cover (especially with metallic mate-
rials), in order to allow for the best-possible
wireless connection.

122 Hardware
7
8
9
10
11
PART NOTE CHAPTER
7EVF (electronic
view nder)
with proximity
sensor
Use either the display or the EVF for live view. 3.5
8 Diopter control Turn the diopter control while using the EVF
to adjust the diopter and accommodate for
dierences in vision.
9 Fn button Use the Fn button to lock the desired focus
and/or automatic exposure settings.
4.1.1, 4.1.5,
Basic // Exposure,
Basic // Focus
10 Display with
screen bend
A touchscreen that shows image and control
elements, enabling direct interaction.
3.3, 3.4
11 USB port Use this port to plug the USB cable and other
accessories.
2.2.3

132 Hardware

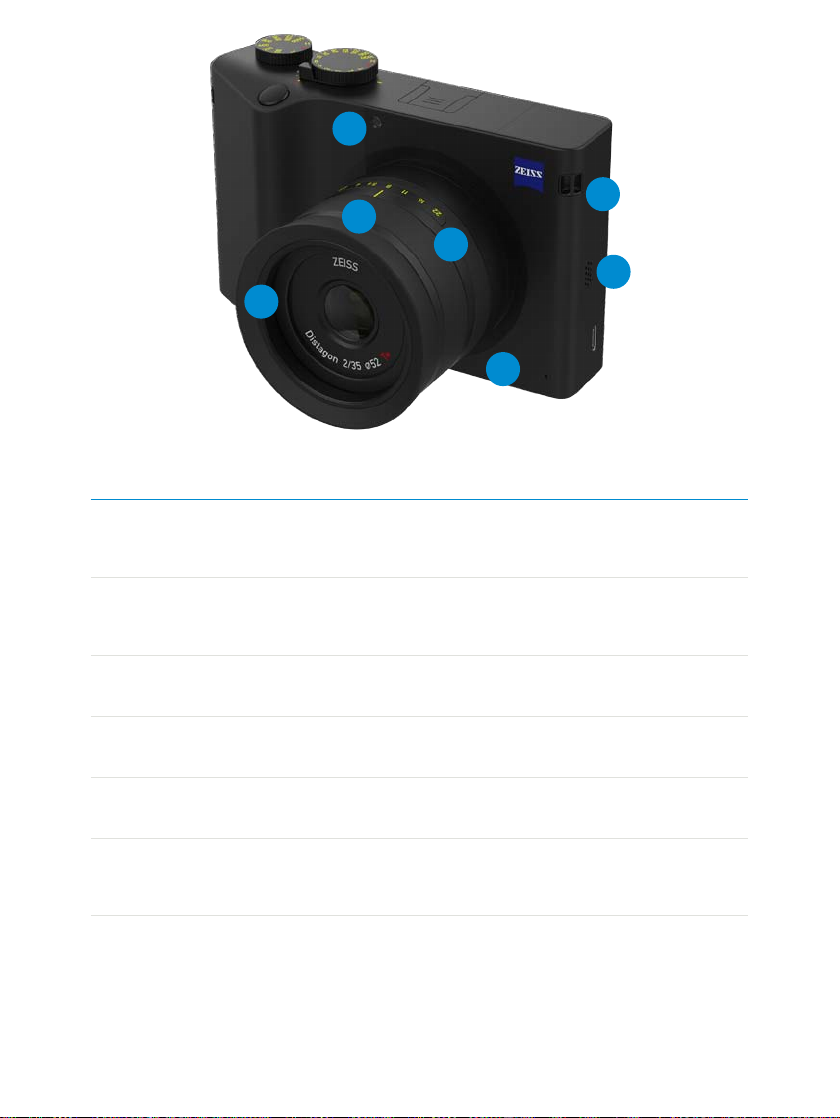

PART NOTE CHAPTER
12 AF assist lamp The AF assist lamp lights up to illuminate the
desired object in autofocus mode and gives
feedback regarding the self-timer countdown.
4.2.3, 4.1.5,
Basic // Focus
13 Strap eyelets Use the eyelets to mount the strap anchors.
The camera strap can then be attached to the
anchors.
2.2.4
14 Aperture ring Use to select the desired aperture size. 4.1.2,
Basic // Aperture
15 Focus ring Use to set the focus manually. 4.1.5,
Basic // Focus
16 Filter thread
mount
Use to mount the lens cap and/or lters.
17 Microphones Use the microphones to record sound while
capturing videos. Do not cover them, in order
to achieve the best audio quality.
18 Speaker The speaker is used for video playback and sys-
tem sounds. Do not cover it, in order to achieve
the best sound quality.
14
16
15
13
18
12
17

142 Hardware

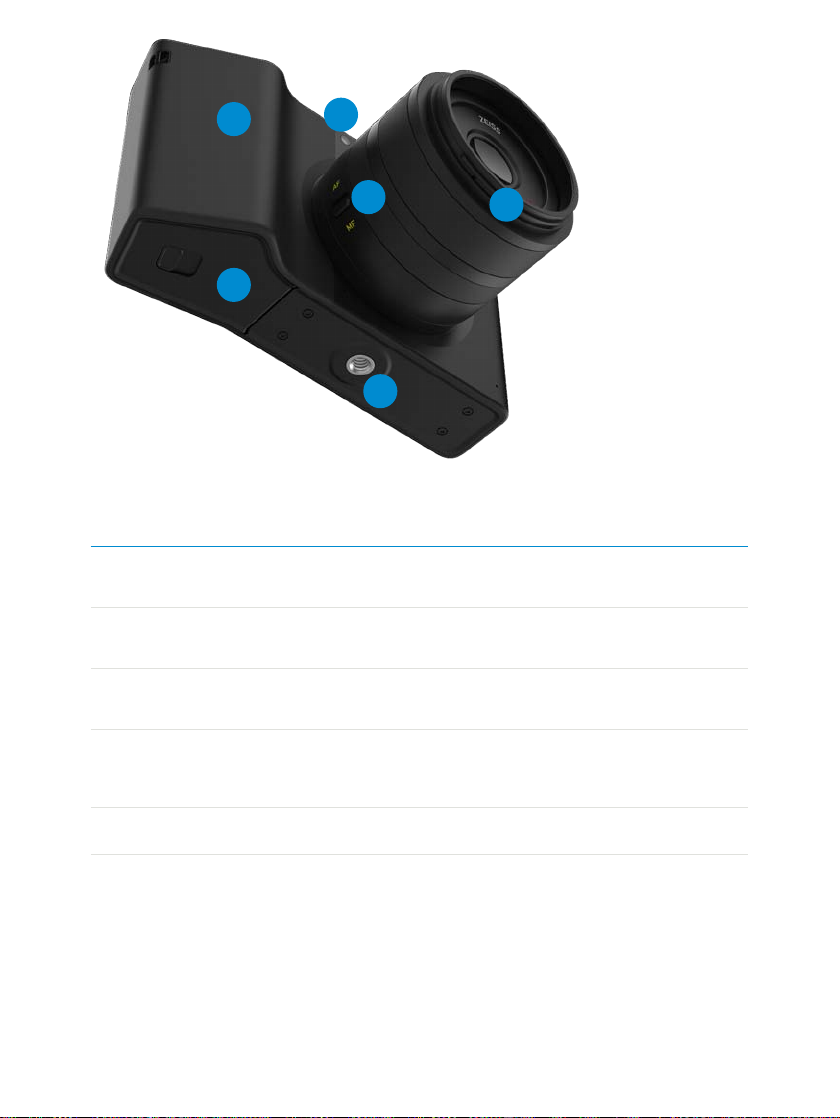

20 19
21
22
23 24
PART NOTE CHAPTER
19 Lens shade bayonet
mount
Use to mount the lens ring or the lens
shade.
2.2.2
20 AF/MF switch Use to switch between automatic and
manual focus modes.
4.1.5,
Basic // Focus
21 Battery compartment
cover with slider
Open to insert or remove the battery. 2.2.3
22 Tripod mounting
thread
Use to mount the camera on a tripod or
attach other accessories. The ZEISS ZX1
uses a standard ¼ inch thread.
23 Handle Use the handle for a secure grip.
24 LED White: booting up or shutting down
Flashing white: standby
Red: taking exposure
Flashing red: recording video or process-
ing data
Flashing red rapidly: error
Blue: charging (when camera is o or in
standby)

152 Hardware

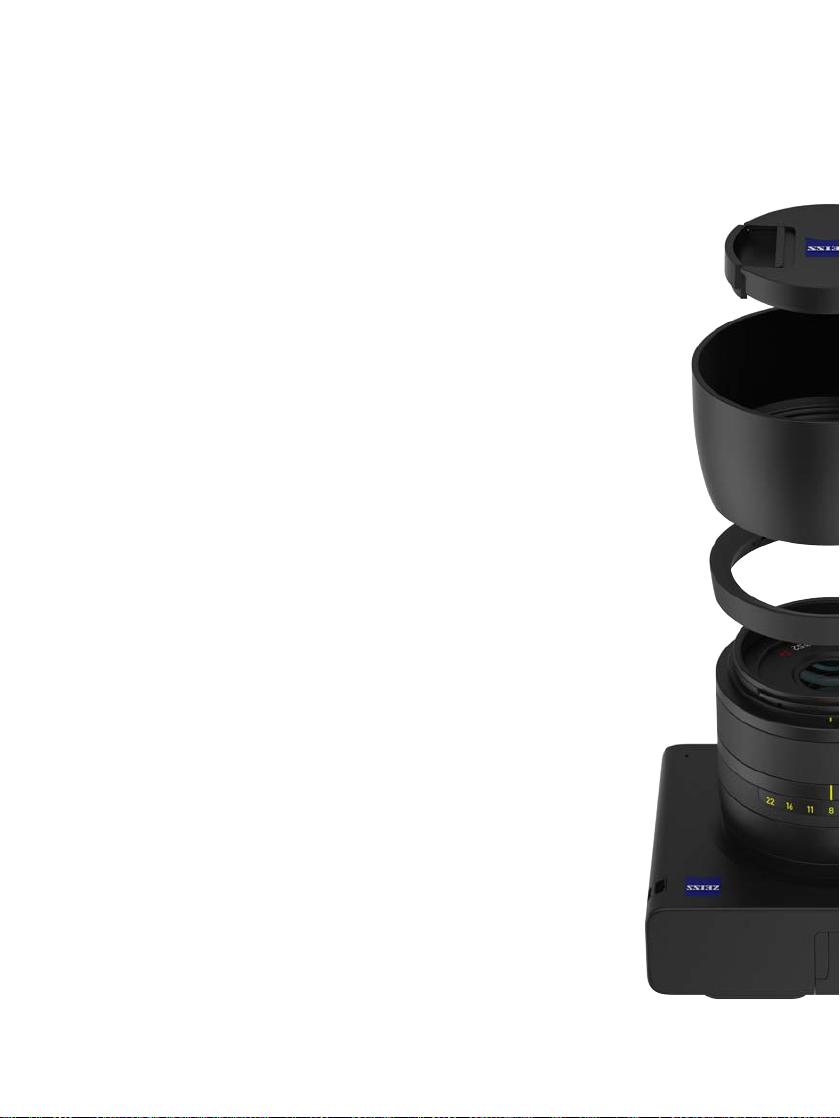

2.2.2 Lens Cap, Lens Ring & Lens Shade
Lens Cap
Whenever you are not shooting pictures, use the lens cap to protect the
lens. Pinch the two sliders to release or secure the cap.
Lens Ring
Use the rubber lens ring to protect the lens barrel.
Place the lens ring with the eyelet directly facing the lens barrel and turn it
90° clockwise until it locks in place. The eyelet is pointing down now. To
detach the lens ring, turn it 90° counterclockwise.
Lens Shade
Use the lens shade to prevent glare and lens are.
Align the yellow dot with the yellow mark on the lens barrel and turn it
90° clockwise until it locks in place. To detach the lens shade, turn it 90°
counterclockwise. Mount the lens shade in the reverse direction to carry
the camera more easily while it is not in use.
Note: The lens cap can always be mounted on either the lens ring or the
lens shade.
Note: The lens ring and lens shade cannot be used at the same time.

162 Hardware
2.2.3 Power Supply & Charging

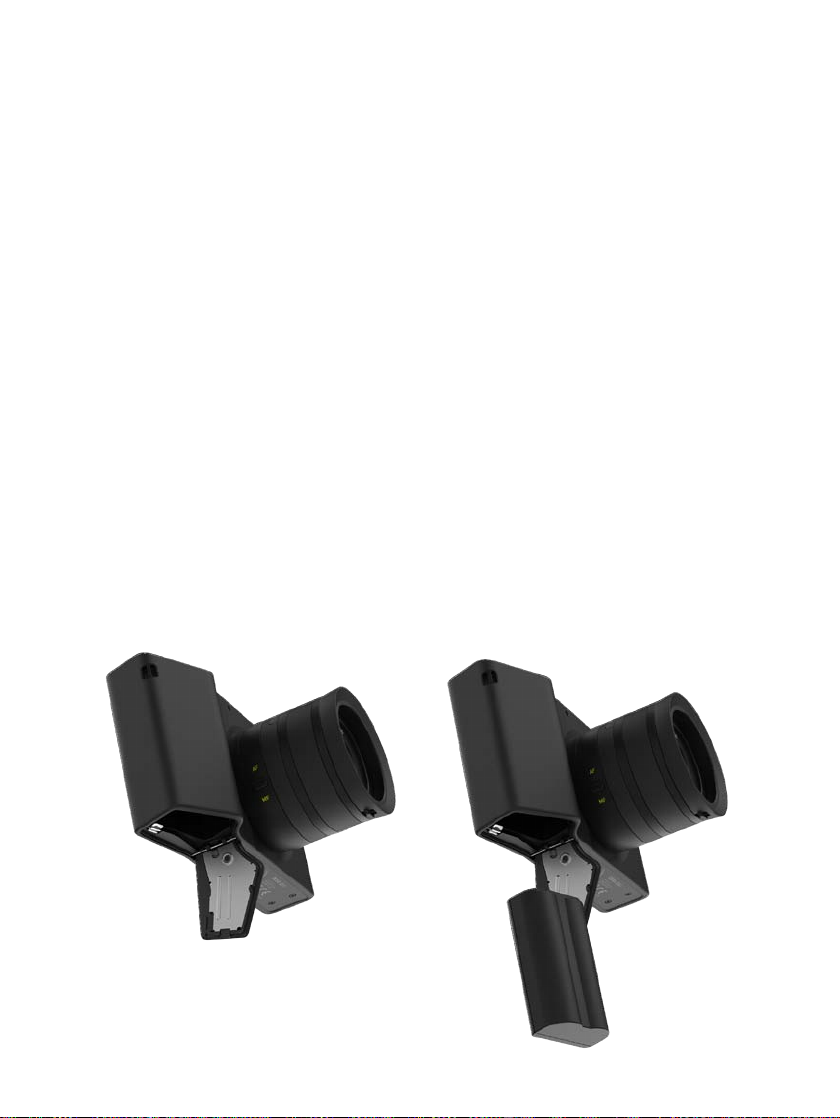

Battery Handling
Insert the battery before using the camera.
Unlatch and open the battery compartment cover and insert the battery as
shown. Once you have inserted the battery correctly, the battery lock will
x it in place. Then close the battery compartment cover.
Open the battery compartment cover to remove the battery. Slide away
the battery lock, remove the battery and close the battery compartment
cover.

172 Hardware
Battery Hot-Swap
The ZEISS ZX1 comes with a hot swap function. It allows you to remove
an almost dead battery and insert a charged one without powering o the
camera. Open the battery compartment cover. The camera automatically
switches into sleep mode. Wait until the LED ashes and has turned from
red to white. Remove the depleted battery and insert the new one within
30 seconds. Close the battery compartment cover.
Note: If the battery is removed while the camera is operating, it will shut
down and will not reboot on its own after the battery is reinserted.
AC Adapter
The AC adapter comes with a premounted plug. To exchange the plug
with a dierent type, move the slider downwards to release it. To attach
the new plug, rst align the ridge with the groove. Then push it in all the
way, while turning it slightly.

182 Hardware
Charging the Battery in the Camera
Connect the camera to the AC adapter using the USB cable. Plug the AC
adapter into a power socket.
When the camera is switched o, the
battery charge level will appear on the
display for a few seconds. After the screen
turns o, the LED will light up blue until
the battery is fully charged. To check the
charging status, press the shutter button to
bring up the battery charge level again on
the display.
When the camera is switched on, the
battery charge level of the cameraWcan be
found in the top left corner of the status
bar. The icon turns redVwhen the battery
charge level is below 15 %.
If the camera is being charged when it is
turned on, the battery iconXchanges to
the charging icon Ὁ.
To see the getting started video
series follow the Link or use the
QR code.

192 Hardware
Charging the battery in the battery charger (sold separately)
Connect the battery charger to the AC adapter using the USB cable. Plug
the AC adapter into a power socket.
Insert the battery in the battery charger compartment with contacts facing
down. Once the battery is inserted correctly, the charger LED will light up
in one of the following patterns, depending on the current battery charge
level:
Ο From 0 to 50 %: The charger's LED lights up steadily blue.
Ο From 51 to 75 %: The charger's LED blinks blue twice approx.
every 2 seconds.
Ο From 76 to 99 %: The charger's LED blinks blue once approx.
every 2 seconds.
Ο Battery full: Charging stops automatically. The charger's LED
slowly fades in and out white.
Ο Error: The charger's LED ashes red rapidly if the battery status
cannot be read properly.
To stop charging the battery at any time, remove the battery from the
battery charger compartment.

202 Hardware
Troubleshooting
Keep the following points in mind to make sure the camera battery fully
charges:
Ο Ensure the USB cable is properly connected to both the battery
charger and the AC adapter.
Ο Make sure the connection between the AC adapter body and the
changeable plug is tight.
Ο Make sure that there are no small objects in the battery charger
compartment that may impede the battery's connection.
Ο Make sure that the battery charger is stable while charging and
that the USB cable is not kinked or pinched o.
