Zephyr Presrv PRB24C01CBSG Installation guide

WWW.ZEPHYRONLINE.COM
JAN23.0101
PRB24C01CBSG

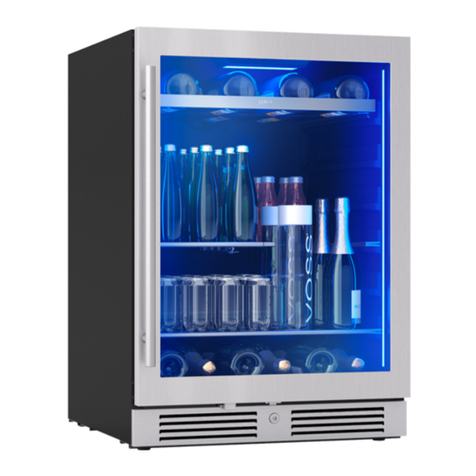

Presrv™ Single Zone Beverage Cooler
EN Use, Care, and Installation Guide
FR Guide d’utilisation, d’entretien et d’installation

2PRB24C01CBSG Use, Care, and Installation Guide
BEVERAGE
COOLER
SINGLE ZONE
PRESRV™

3
PRB24C01CBSG Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Contents
Page
Safety Information .................................................................................4-11
Types of Safety Warnings........................................................................ 4
General Safety .......................................................................................5-7
Save These Instructions ........................................................................... 8
Disposal of Old Appliance........................................................................ 8
Before Using Your Appliance .................................................................... 9
Installation of Your Appliance ................................................................9-10
Attention................................................................................................. 10
Electrical Connection ..............................................................................11
Introduction ............................................................................................ 12
List of Materials....................................................................................... 13
Ů ..........................................................................14-15
Product Summary ...................................................................................14
Internal Storage.......................................................................................14
Parts Identification ................................................................................. 15
Dimensions............................................................................................. 15
Installation Instructions........................................................................ 16-24
Installation Clearance Requirements .......................................................16
Carbon Filter ...........................................................................................17
Installing the Handle................................................................................17
Reversing the Door Swing of Your Appliance......................................... 18-19
Installing the Wooden Roll-Out Shelves .................................................. 20
Removing the Wooden Roll-Out Shelves ................................................. 20
Removing the Glass Shelves ....................................................................21
Retractable Glass Quarter Shelf Installation........................................ 22-23
Using the Retractable Glass Quarter Shelf ............................................. 24
Operating Your Appliance ....................................................................25-28
Using the Control Panel.......................................................................... 25
Internal Light .......................................................................................... 26
Display Brightness.................................................................................. 26
Door Open Alarm.................................................................................... 26
Sabbath Mode........................................................................................ 27
Demonstration Mode .............................................................................. 27
Temperature Alarm ................................................................................. 27
Defrosting............................................................................................... 28
Child Safety Lock ................................................................................... 28
Care and Maintenance......................................................................... 29-30
Normal Sounds ....................................................................................... 29
Cleaning the Unit ................................................................................... 29
Power Failure.......................................................................................... 30
Moving Your Beverage Cooler ................................................................. 30
Energy Saving Tips ................................................................................. 30
Troubleshooting.................................................................................... 31-32
Limited Warranty ....................................................................................33
Product Registration................................................................................34

4PRB24C01CBSG Use, Care, and Installation Guide
BEVERAGE
COOLER
SINGLE ZONE
PRESRV™
Safety Information
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual for your appliance. Always read
and obey all safety messages.
This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can cause severe
bodily injury or death. All safety messages will follow the Safety Alert Symbol and either the words
“DANGER” “WARNING” or “CAUTION”
DANGER
WARNING
CAUTION
Danger means that failure to heed this safety
statement may result in severe injury or death.
Warning means that failure to heed this safety
statement may result in extensive product damage,
serious personal injury, or death.
Caution means that failure to heed this safety
statement may result in minor or moderate
personal injury, property or equipment damage.

5
PRB24C01CBSG Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Safety Information
When using an electrical appliance, basic precautions should
always be followed to reduce the risk of fire, electric shock, and
injury to persons.
DANGER
For your safety, read all instructions carefully before operating the appliance.
To reduce the risk of fire, electric shock or personal injury, unplug
or disconnect the appliance from the power supply before
servicing.
WARNING
Flammable refrigerant used! When handling, moving and use of
the refrigerator, make sure to avoid either damaging the
refrigerant tubing, or increasing the risk of a leak.
CAUTION
ŹUse this appliance only as described in this manual. Other uses not recommended may cause fire,
electric shock or personal injury.
ŹThis appliance is not intended for use by young children or infirm persons unless they have been
adequately supervised by a responsible person to ensure that they can use the appliance safely.
ŹYoung children should be supervised to ensure that they never play with the appliance.
ŹTo protect against the risk of electric shock, NEVER IMMERSE the unit, cord, or plug in water or
spray any other liquid.
ŹUnplug the appliance from the plug socket when not in use, when moving from one location to
another and before cleaning.
General Safety

6PRB24C01CBSG Use, Care, and Installation Guide
BEVERAGE
COOLER
SINGLE ZONE
PRESRV™
Safety Information
For your safety, read all instructions carefully before operating the appliance.
ŹTo disconnect the appliance, grip the plug and pull it from the wall outlet. Never pull by the cord.
ŹNever operate the appliance in the presence of explosive and/or flammable fumes.
ŹNever place the appliance or any of its parts near an open flame, cooking or other heating
appliance.
ŹNever operate the appliance with a damaged cord or plug, if the product malfunctions, or if it is
dropped or damaged in any manner.
ŹThe use of attachments not recommended by the manufacturer may be hazardous.
ŹNever operate if the housing is removed or damaged.
ŹA loose fit between the AC outlet (receptacle) and plug may cause overheating and a distortion of
the plug. Contact a qualified electrician to replace loose or worn outlet.
Prop. 65 Warning for California Residents: This product may
contain chemicals known to the State of California to cause
cancer, birth defects, or other reproductive harm.
WARNING
ŹLocate the unit away from direct sunlight and sources of heat (stove, heater, radiator, etc.).
ŹThis appliance is CFC and HFC free and contains small quantities of Isobutane (R600a), an
environmentally friendly coolant.
ŹYou must ensure that the cooling circuit is undamaged when installing the appliance. However, if it
becomes damaged, avoid proximity to open fires and heat sources of all kinds. The room in which
the appliance is located should be ventilated properly and according to state and local codes.
ŹNever use an appliance with a damaged circuit.
ŹEnsure that the ventilation openings to and from a built-in appliance are never blocked or covered.
ŹNo liability will be accepted for any damage caused by misuse of the appliance, or as a result of
repairs carried out by unqualified person. In this case neither the warranty nor any other liability
claims will apply.

7
PRB24C01CBSG Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Safety Information
For your safety, read all instructions carefully before operating the appliance.
Never operate any other electrical appliance inside this
appliance.
WARNING
ŹNever attempt to repair or replace any part of your appliance unless it is specifically
recommended in this manual. All other servicing should be referred to a qualified technician.
ŹReplace all access panels before operating.
ŹUse two or more people to move and install the appliance. Failure to do so can result in back or
other injury.
ŹNever clean appliance parts with flammable liquids. These fumes can create a fire hazard or
explosion. Never store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance. The fumes can create a fire hazard or explosion.
ŹNever connect or disconnect the electric plug with wet hands.
ŹIt is recommended that a separate circuit, serving only your appliance be provided. Use
receptacles that cannot be turned o by a switch or pull chain.
To reduce the risk of fire, electric shock or personal injury, unplug
or disconnect the appliance from the power supply before
servicing.
WARNING

8PRB24C01CBSG Use, Care, and Installation Guide
BEVERAGE
COOLER
SINGLE ZONE
PRESRV™
Safety Information
For your safety, read all instructions carefully before operating the appliance.
Save These Instructions
If you are experiencing problems, check the Troubleshooting Guide at the back of this manual. It lists
causes of minor operating problems that you can correct yourself.
Disposal of Old Appliance
Dispose of your appliance packaging properly. Refrigeration equipment must be properly disposed
of in a way which protects the environment. This applies to your old appliance and to your new unit
once it has reached the end of its service life.
Please ensure that old, worn appliances are rendered unusable
before disposal by removing the plug, cutting the power cable,
and removing or destroying any snap fastenings or bolts. You will
thus prevent children from locking themselves in the appliance
during play (risk of suocation) or endangering their lives in any
other way.
WARNING
ŹThe appliance must not be disposed with normal household waste collection.
ŹThe coolant circuit, particularly the heat exchange at the back/bottom of the unit, must not be
damaged.
ŹThe symbol on the product or its packaging indicates that this product is not to be handled
as normal household waste but is to be taken to a recycling collection point for electrical and
electronic goods. By correctly disposing of this product you are contributing to the protection of
the environment. Improper disposal endangers health and the environment. Further information
about the recycling of the product may be obtained from your town hall or local waste collection
department.

9
PRB24C01CBSG Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Safety Information
For your safety, read all instructions carefully before operating the appliance.
Before Using Your Appliance
ŹRemove all exterior and interior packing.
ŹBefore connecting the appliance to the power source, let it stand upright for approximately 2
hours. This will reduce the possibility of a malfunction in the cooling system caused by handling
during transportation.
ŹClean the interior surface with warm water using a soft cloth.
ŹThe door on this appliance can be opened from either the left or the right side. The unit is delivered
with the door opening on the left side. Should you wish to open the door from the right, follow the
instructions, “Reversing the Door Swing of your Appliance,” listed below.
Installation of Your Appliance
Do not store or install the appliance outdoors.
WARNING
ŹThe appliances are designed for either built-in, or free-standing installation.
ŹPlace your appliance on a floor that is strong enough to support it when it is fully loaded. To level
your appliance, adjust the 4 legs until level.
ŹLocate the appliance away from direct sunlight and sources of heat (stove, heater, radiator,
etc.). Direct sunlight may aect the acrylic coating and heat sources may increase electrical
consumption. Extreme cold ambient temperatures may also cause the unit not to perform
properly.
ŹNever place the unit in damp areas.
ŹPlug the appliance into an exclusive, easily accessible electrical socket.
ŹAny questions concerning power and/or electrical connection should be directed towards a
qualified electrician or an authorized products service center.
ŹThe air vent at the front of the appliance must never be covered or blocked in any way.

10 PRB24C01CBSG Use, Care, and Installation Guide
BEVERAGE
COOLER
SINGLE ZONE
PRESRV™
Safety Information
For your safety, read all instructions carefully before operating the appliance.
ŹThe appliance must be installed to all electrical connections in accordance with state and local
codes.
ŹUse two or more people to move and install the beverage cooler. Failure to do so can result in back
or other injury.
ŹThe cooler may experience decreased cooling eciency if air flow is restricted due to a fully
loaded cabinet.
ŹInstall the beverage cooler in a well-ventilated area where the ambient temperature is above 50ºF
and below 90ºF.
Attention
ŹNever overload the cabinet.
ŹNever open the door unless necessary.
ŹNever cover shelves with aluminum foil or any other shelf material which may prevent air
circulation.
ŹShould the appliance be left empty for long periods, it is suggested that the appliance be
unplugged, and, after careful cleaning, leave the door ajar to allow air to circulate inside the
cabinet in order to avoid possible condensation, mold or odors from forming.

11
PRB24C01CBSG Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Safety Information
For your safety, read all instructions carefully before operating the appliance.
Electrical Connection
Check that the voltage marked on the product corresponds with your supply voltage.
This appliance should be properly grounded for your safety. The power cord of this appliance is
equipped with a three-pin plug which mates with standard three-pin wall outlets to minimize the
possibility of electrical shock.
Never under any circumstances cut or remove the third ground prong from the power cord supplied.
For personal safety, this appliance must be properly grounded.
Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly
grounded. When a standard two-pin wall outlet is encountered, it is your responsibility and obligation
to have it replaced with a properly grounded three-pin wall outlet.
To prevent accidental injury, the cord should be secured behind the appliance and not left exposed or
dangling.
The appliance should always be plugged into its own individual electrical outlet which has a voltage
rating that matches the rating label on the appliance. This provides the best performance and also
prevent overloading wiring circuits that could cause a fire hazard from overheating. Never unplug
the appliance by pulling the power cord. Always grip the plug firmly and pull straight out from the
receptacle. Repair or replace immediately all power cords that have become frayed or otherwise
damaged. Never use a cord that shows cracks or abrasion damage along its length or at either end.
When moving the appliance, be careful not to damage the power cord.
Never use your appliance with an extension cord unless this cord has been checked and tested by a
qualified technician or service person. The extension cord must be a UL/CUL Listed, 3-wire grounding
extension cord that has a grounding plug and outlet and that the electrical rating of the cord is 115
volts and at least 10 amperes.
Improper use of the grounded plug can result in the risk of
electrical shock. If the power cord is damaged, have it replaced
by a qualified electrician or an authorized service center.
WARNING

12 PRB24C01CBSG Use, Care, and Installation Guide
BEVERAGE
COOLER
SINGLE ZONE
PRESRV™
Introduction
Thank you for purchasing your Zephyr beverage cooler. Zephyr is dedicated to developing products
that will enhance your lifestyle with superior quality and distinctive features. Please visit
www.zephyronline.com for more information on your product and other Zephyr products.
This manual contains important information regarding the proper installation, use, and maintenance
of your beverage cooler. Following this manual will ensure that your product will work at its peak
performance and eciency.
For Your Records
Please write down the model number and serial number below for future reference. Both numbers are
located on the rating label on the back of your unit and inside the the unit towards the bottom of the
cabinet and are needed to obtain warranty service. You may also want to staple your receipt to this
manual as it is the proof of your purchase and may also be needed for service under warranty.
Model Number:
Serial Number:
Date of Purchase:
To better serve you, please do the following before contacting customer service:
If you received a damaged product, immediately contact the retailer or dealer that sold you the
product.
ŹRead and follow this instruction manual carefully to help you install, use and maintain your
beverage cooler.
ŹRead the troubleshooting section of this manual as it will help you diagnose and solve common
issues.
ŹVisit us on the web at http://www.zephyronline.com to download product guides, additional
troubleshooting resources and up-to-date information.
ŹIf you need warranty service, our friendly customer service representatives are available on our
website at http://zephyronline.com/contact or by telephone at 888-880-8368.

13
PRB24C01CBSG Use, Care, and Installation Guide
ZEPHYRONLINE.COM
List of Materials
Door handle screws (M4*35)
(pre-installed)
Door handle
Black decorative nails
Flat washers (Φ4.3*Φ8*0.5, M4)
(pre-installed)
Quantity Part
Spring washers (Φ4*1.1, M4)
(pre-installed)
ůĬŞİŚşĭ
M3 Allen key (hex key)
Keys

14 PRB24C01CBSG Use, Care, and Installation Guide
BEVERAGE
COOLER
SINGLE ZONE
PRESRV™
Ů
Product Summary
This appliance requires a standard 115/120 Volt AC~60Hz electrical ground outlet.
DESCRIPTION OF PRODUCT Presrv Single Zone Beverage Cooler
MODEL PRB24C01CBSG
VOLTAGE/FREQUENCY AC 115/60Hz
AMPERAGE 1.5A
COLOR Black Cabinet with Black Stainless Steel Door
STORAGE CAPACITY* (7) 750ml Bottles + (108) 12oz cans or
(13) 750ml Bottles + (80) 12oz cans
REFRIGERANT R600a
TEMPERATURE RANGE 34°F - 50°F
DIMENSIONS (HxWxD) 33-7/8’’ X 23-7/8’’ X 23-5/8’’
GROSS WEIGHT (lb) 126lb
WEIGHT CAPACITY - STANDARD GLASS SHELF (lb) 66lb
OPTIONAL RETRACTABLE GLASS SHELF 50150016
OPTIONAL PRO HANDLE ACCESSORY PRHAN-C001
OPTIONAL CONTEMPORARY HANDLE ACCESSORY,
BRUSHED GOLD
PRHAN-C102
OPTIONAL CONTEMPORARY HANDLE ACCESSORY, MATTE
BLACK
PRHAN-C104
REPLACEMENT CARBON FILTER Z0F-C004
*Storage capacity is based on standard 12 oz. cans and 750 ml. Bordeaux-style wine bottles.
Internal Storage
o
o
R
F
C
F
o
C
o
38 cans (std. 12oz)
7 bottles (max. Ø 3-1/2”)
42 cans (std. 12oz)
28 cans (std. 12oz) or
6 bottles
(max. Ø 3-1/2”)
7 bottles + 108 cans capacity or
13 bottles + 80 cans capacity

15
PRB24C01CBSG Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Ů
Ů
Dimensions
Carbon Filter
Leveling Legs
Front Vent
Standard Glass Shelf
Sensor
Wooden Roll-Out Shelf
Control Panel
Internal Fan
o
o
R
F
C
F
oC
o
Retractable Glass Shelf
Child Safety Lock
Seamless Black
Stainless Steel Door
Door Handle
Top View
Side View
Max 115°
23-7/8”
33-7/8” - 34-7/8”
21-7/8”
23-5/8”
25-5/8”
24-3/4”
46-1/2”
23-5/8”
30”

16 PRB24C01CBSG Use, Care, and Installation Guide
BEVERAGE
COOLER
SINGLE ZONE
PRESRV™
Installation Instructions
Installation Clearance Requirements
When installing the beverage cooler under a counter, follow the recommended spacing dimensions
shown.
ŹFor proper clearance of the electrical plug, allow at least 1” of clearance at the back as shown in
the diagram.
ŹAn installation next to a wall will require a minimum 2-1/4” door clearance to accommodate the
Zephyr handle.
ŹThe cabinet should allow at least 24” for the width and 34” for the height to accommodate the
beverage cooler.
ŹThe power cable is located on the back right of the unit and has a length of 72” to accommodate
multiple outlet locations.
ŹOnce you are ready to install the unit, you must adjust the feet to level the beverage cooler.
ŹThis refrigerator can be fully built-in to cabinetry and does not require any additional clearances
besides what is referenced below.
ŹThe installation should allow the unit to be pulled forward for servicing, if necessary.
2-
1/4
” Min.
24” Min.
34” Min.
1” Min.

17
PRB24C01CBSG Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Installation Instructions
Carbon Filter
A built-in carbon filter protects your beverages by acting
as a natural barrier against harmful odors. The carbon
filter should be replaced every 3-6 months depending on
the unit’s exposure level to odor. If the unit is placed in a
kitchen, regular replacement every three months is ideal.
Remove the carbon filter by turning counterclockwise to
unlock from rear panel.
Carbon Filter Replacement Part #: Z0F-C004
Handle
Door Frame
Gasket
Flat Washer
Locked Washer
Screw
Zephyr Presrv Contemporary Handles
Zephyr Presrv Pro Handle
Part #: PRHAN-C101
Part #: PRHAN-C102
Part #: PRHAN-C104
Color: Stainless Steel (included)
Color: Brushed Gold
Color: Matte Black
Part #: PRHAN-C001 Color: Stainless Steel
Installing the Handle
If a pro handle or dierent colored contemporary handles are desired, refer below for the part
numbers.
1. Push aside the door gasket on the side you wish to install the handle. Under the gasket you will see
two designated holes for handle installation and pre-installed screws.
2. Install the handle tightly as shown with two screws, lock washers and flat washers pre-installed.

18 PRB24C01CBSG Use, Care, and Installation Guide
BEVERAGE
COOLER
SINGLE ZONE
PRESRV™
Installation Instructions
Reversing the Door Swing of Your Appliance
Should you desire to reverse the opening direction of the door, please follow the instructions below.
Safely reversing the door swing of your appliance should require at least two people.
1. Remove the door axis button (1) and door
axis (2) from both the top and bottom
right hinge. Carefully remove the door (3).
2. Remove the top right hinge (4) and lower
right hinge (5) by 3 screws each using a
M3 Allen key.
3. Remove the door magnet (6) and child
safety lock catch (7) by 2 screws each
and reinstall them to the opposite end of
the door.
11
1
2
2 3
2
4
5
3
7
6

19
PRB24C01CBSG Use, Care, and Installation Guide
ZEPHYRONLINE.COM
4. Remove 3 of the decorative nails (8) from
both the upper and lower left corners and
reinstall them to the upper and lower right
corners. Reinstall the previously removed
hinges (4) and (5) to the left side. (4) on
the lower left and (5) on the upper left
side.
5. Align the door to the hinges, secure the
door axis (2) and then the door axis button
(1) to the top and bottom left hinge.
Installation Instructions
4
5
4
8
8
52
1
2
1
Reversing the Door Swing of Your Appliance

20 PRB24C01CBSG Use, Care, and Installation Guide
BEVERAGE
COOLER
SINGLE ZONE
PRESRV™
Installation Instructions
ŹTo prevent damaging the door or door gasket, make sure the door is open at least 90-degrees
when pulling shelves out of the rail compartment.
ŹThe door opens to a maximum of 115 degrees with a door stop on the bottom hinge preventing the
door from opening further.
Installing the Wooden Roll-Out Shelves
1. Open the door completely.
2. Line up the shelf notches with the rail posts on both the right and left sides.
3. Push the shelf down and then push it all the way inwards until the shelf fully rests inside of the unit
and you are able to close the door.
4. The shelf should glide smoothly back and forth. If it does not, you may need to remove it and start
over.
TIP: To prevent damaging the door gasket, make sure to open the door fully before pulling the shelves
out of their track.
Removing the Wooden Roll-Out Shelves
1. Open the door completely.
2. Remove all of the contents loaded on the shelf, if applicable.
3. Line up the shelf notches with the rail posts as indicated below. This will require you to hold on to
both rails as you move the shelf to line up the posts with the notches on both sides of the shelf.
4. Evenly lift the shelf up and then pull the shelf out.
Rail Posts
Notch
Rail
Rail
