Zephyr Presrv PRW24F02CPG Installation guide

WWW.ZEPHYRONLINE.COM
DEC23.0201
Presrv™ Full Size Panel Ready Coolers
EN Use, Care, and Installation Guide
FR Guide d’utilisation, d’entretien et d’installation
PRB24F01BPG
PRW24F02CPG
PRW24F02CPG
(dual zone panel ready
wine cooler)
PRB24F01BPG
(single zone panel
ready beverage cooler)
(wine cooler only)

2PRW24F02CPG, PRB24F01BPG Use, Care, and Installation Guide
FULL SIZE COOLER
SINGLE & DUAL ZONE
PRESRV™

3
PRW24F02CPG, PRB24F01BPG Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Contents
Page
Safety Information ......................................................................................4-11
Types of Safety Warnings............................................................................. 4
General Safety ............................................................................................5-7
Save These Instructions ................................................................................ 8
Disposal of Old Appliance............................................................................. 8
Before Using Your Appliance ......................................................................... 9
Installation of Your Appliance ..................................................................... 9-10
Attention.......................................................................................................10
Electrical Connection ................................................................................... 11
Introduction ................................................................................................. 12
List of Materials............................................................................................ 13
Ů ...............................................................................14-17
Product Summary ........................................................................................14

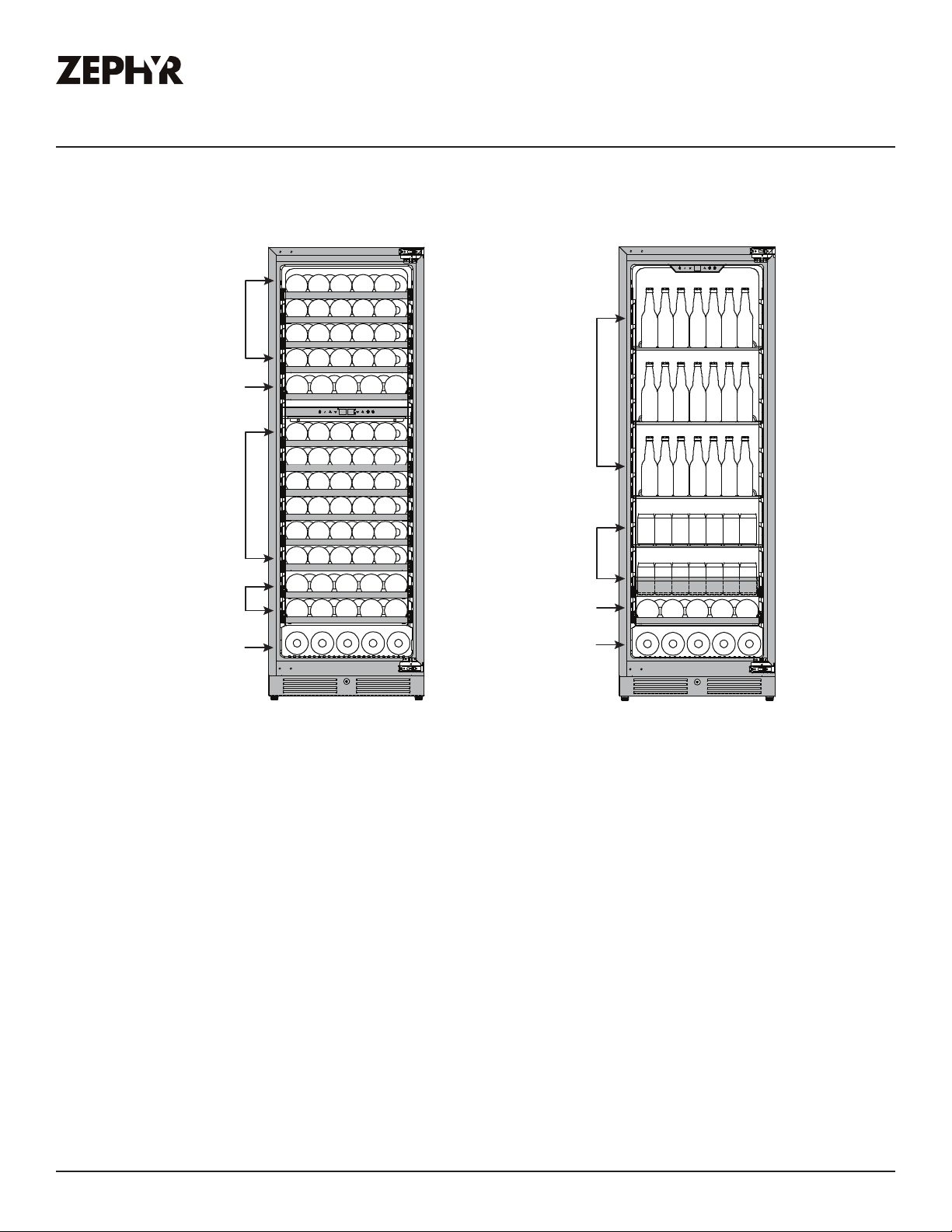

Internal Storage............................................................................................15

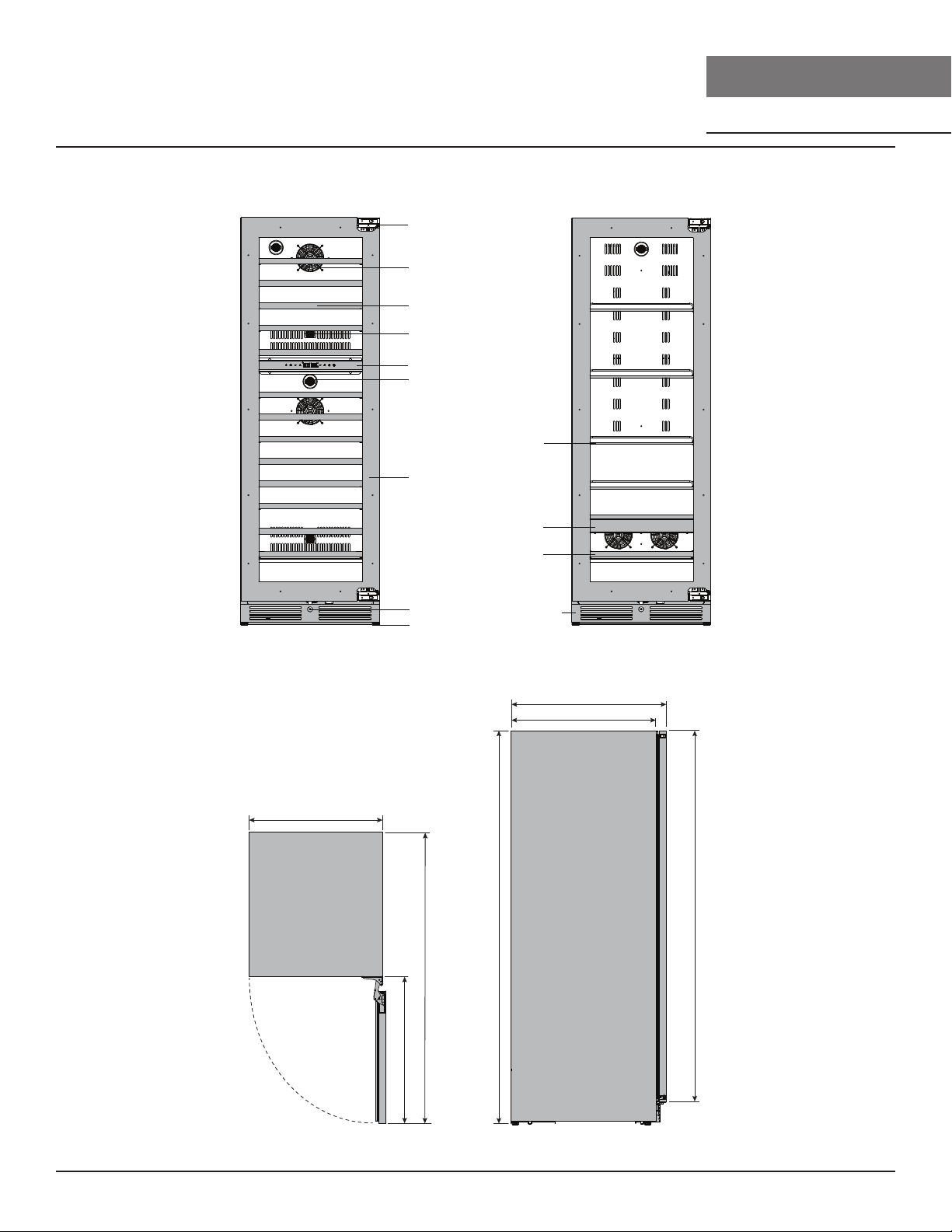

Parts Identification .......................................................................................16
Dimensions...................................................................................................16
Overlay Panel Dimensions............................................................................17
Installation Instructions..............................................................................18-26
Installation Clearance Requirements ............................................................18

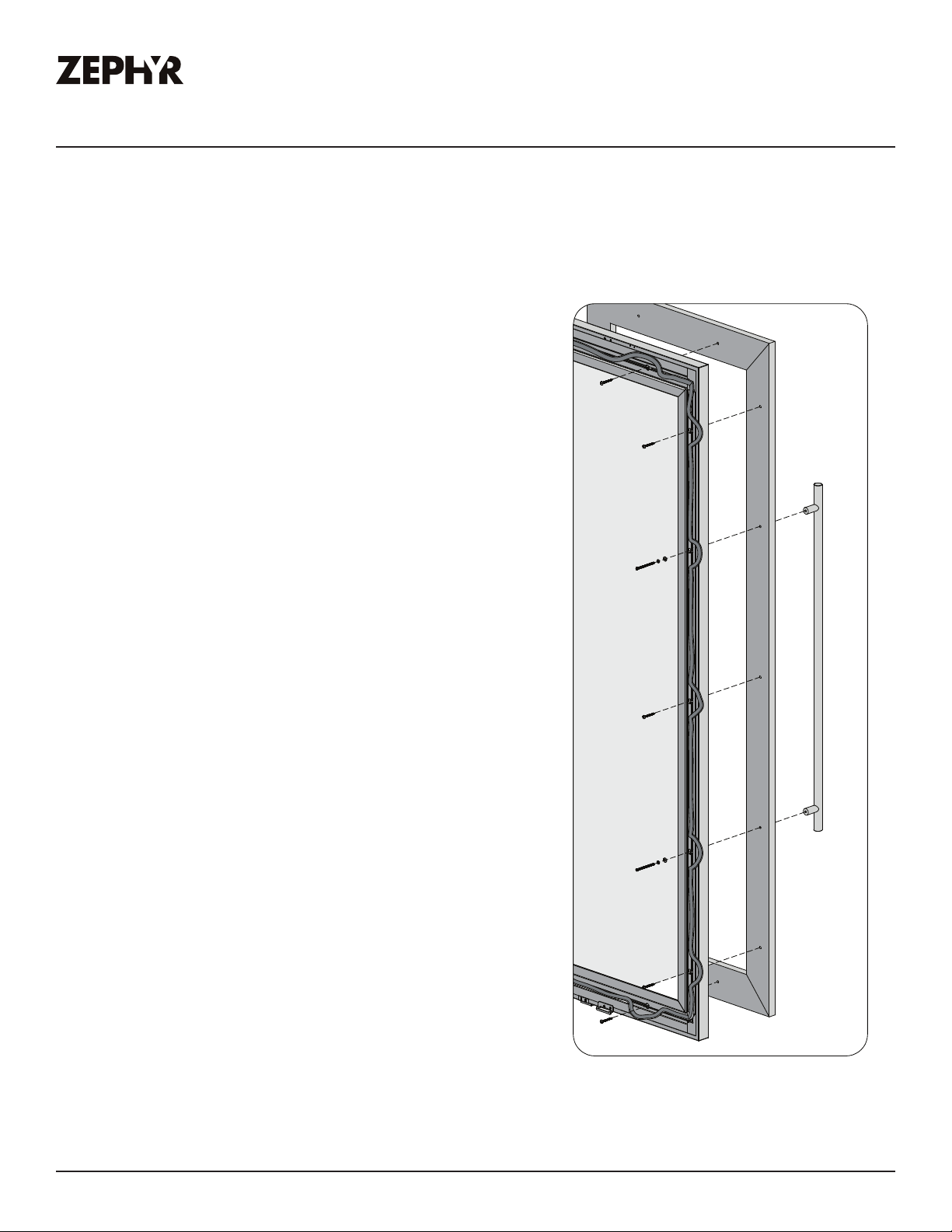

Installing the Overlay Panel..........................................................................19
Carbon Filter ............................................................................................... 20
Installing the Door Handle ........................................................................... 20
Installing the Floor Anti-tip Bracket...............................................................21
Installing the Hettich Hinge...........................................................................21
Setting Up the Display Rack for Your Wine Cooler ....................................... 22
Reversing the Door Swing of Your Appliance..............................................22-24
Installing the Wooden Roll-Out Shelves ....................................................... 25
Removing the Wooden Roll-Out Shelves ...................................................... 25
Removing the Sliding Glass Shelves............................................................. 26
Operating Your Appliance ......................................................................... 27-30
Using the Control Panel................................................................................27
Internal Light ............................................................................................... 28
Door Open Alarm......................................................................................... 28
Sabbath Mode............................................................................................. 28
Demonstration Mode ................................................................................... 29
Temperature Alarm ...................................................................................... 29
Defrosting.................................................................................................... 29
Child Safety Lock ........................................................................................ 30
Care and Maintenance...............................................................................31-32
Normal Sounds.............................................................................................31
Cleaning the Unit .........................................................................................31
Power Failure............................................................................................... 32
Moving Your Cooler ..................................................................................... 32
Energy Saving Tips ...................................................................................... 32
Troubleshooting......................................................................................... 33-34
Limited Warranty .........................................................................................35
Product Registration.....................................................................................36

4PRW24F02CPG, PRB24F01BPG Use, Care, and Installation Guide
FULL SIZE COOLER
SINGLE & DUAL ZONE
PRESRV™
Safety Information
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual for your appliance. Always read
and obey all safety messages.
This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can cause severe
bodily injury or death. All safety messages will follow the Safety Alert Symbol and either the words
“DANGER” “WARNING” or “CAUTION”
DANGER
WARNING
CAUTION
Danger means that failure to heed this safety
statement may result in severe injury or death.
Warning means that failure to heed this safety
statement may result in extensive product damage,
serious personal injury, or death.
Caution means that failure to heed this safety
statement may result in minor or moderate
personal injury, property or equipment damage.

5
PRW24F02CPG, PRB24F01BPG Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Safety Information
When using an electrical appliance, basic precautions should
always be followed to reduce the risk of fire, electric shock, and
injury to persons.
DANGER
For your safety, read all instructions carefully before operating the appliance.
To reduce the risk of fire, electric shock or personal injury, unplug
or disconnect the appliance from the power supply before
servicing.
WARNING
Flammable refrigerant used! When handling, moving and use of
the refrigerator, make sure to avoid either damaging the
refrigerant tubing, or increasing the risk of a leak.
CAUTION
ŹUse this appliance only as described in this manual. Other uses not recommended may cause fire,
electric shock or personal injury.
ŹThis appliance is not intended for use by young children or infirm persons unless they have been
adequately supervised by a responsible person to ensure that they can use the appliance safely.
ŹYoung children should be supervised to ensure that they never play with the appliance.
ŹTo protect against the risk of electric shock, NEVER IMMERSE the unit, cord, or plug in water or
spray any other liquid.
ŹUnplug the appliance from the plug socket when not in use, when moving from one location to
another and before cleaning.
General Safety

6PRW24F02CPG, PRB24F01BPG Use, Care, and Installation Guide
FULL SIZE COOLER
SINGLE & DUAL ZONE
PRESRV™
Safety Information
For your safety, read all instructions carefully before operating the appliance.
ŹTo disconnect the appliance, grip the plug and pull it from the wall outlet. Never pull by the cord.
ŹNever operate the appliance in the presence of explosive and/or flammable fumes.
ŹNever place the appliance or any of its parts near an open flame, cooking or other heating
appliance.
ŹNever operate the appliance with a damaged cord or plug, if the product malfunctions, or if it is
dropped or damaged in any manner.
ŹThe use of attachments not recommended by the manufacturer may be hazardous.
ŹNever operate if the housing is removed or damaged.
ŹA loose fit between the AC outlet (receptacle) and plug may cause overheating and a distortion of
the plug. Contact a qualified electrician to replace loose or worn outlet.
Prop. 65 Warning for California Residents: This product may
contain chemicals known to the State of California to cause
cancer, birth defects, or other reproductive harm.
WARNING
ŹLocate the unit away from direct sunlight and sources of heat (stove, heater, radiator, etc.).
ŹThis appliance is CFC and HFC free and contains small quantities of Isobutane (R600a), an
environmentally friendly coolant.
ŹYou must ensure that the cooling circuit is undamaged when installing the appliance. However, if it
becomes damaged, avoid proximity to open fires and heat sources of all kinds. The room in which
the appliance is located should be ventilated properly and according to state and local codes.
ŹNever use an appliance with a damaged circuit.
ŹEnsure that the ventilation openings to and from a built-in appliance are never blocked or covered.
ŹNo liability will be accepted for any damage caused by misuse of the appliance, or as a result of
repairs carried out by unqualified person. In this case neither the warranty nor any other liability
claims will apply.

7
PRW24F02CPG, PRB24F01BPG Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Safety Information
For your safety, read all instructions carefully before operating the appliance.
Never operate any other electrical appliance inside this
appliance.
WARNING
ŹNever attempt to repair or replace any part of your appliance unless it is specifically
recommended in this manual. All other servicing should be referred to a qualified technician.
ŹReplace all access panels before operating.
ŹUse two or more people to move and install the appliance. Failure to do so can result in back or
other injury.
ŹNever clean appliance parts with flammable liquids. These fumes can create a fire hazard or
explosion. Never store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance. The fumes can create a fire hazard or explosion.
ŹNever connect or disconnect the electric plug with wet hands.
ŹIt is recommended that a separate circuit, serving only your appliance be provided. Use
receptacles that cannot be turned o by a switch or pull chain.
To reduce the risk of fire, electric shock or personal injury, unplug
or disconnect the appliance from the power supply before
servicing.
WARNING

8PRW24F02CPG, PRB24F01BPG Use, Care, and Installation Guide
FULL SIZE COOLER
SINGLE & DUAL ZONE
PRESRV™
Safety Information
For your safety, read all instructions carefully before operating the appliance.
Save These Instructions
If you are experiencing problems, check the Troubleshooting Guide at the back of this manual. It lists
causes of minor operating problems that you can correct yourself.
Disposal of Old Appliance
Dispose of your appliance packaging properly. Refrigeration equipment must be properly disposed
of in a way which protects the environment. This applies to your old appliance and to your new unit
once it has reached the end of its service life.
Please ensure that old, worn appliances are rendered unusable
before disposal by removing the plug, cutting the power cable,
and removing or destroying any snap fastenings or bolts. You will
thus prevent children from locking themselves in the appliance
during play (risk of suocation) or endangering their lives in any
other way.
WARNING
ŹThe appliance must not be disposed with normal household waste collection.
ŹThe coolant circuit, particularly the heat exchange at the back/bottom of the unit, must not be
damaged.
ŹThe symbol on the product or its packaging indicates that this product is not to be handled
as normal household waste but is to be taken to a recycling collection point for electrical and
electronic goods. By correctly disposing of this product you are contributing to the protection of
the environment. Improper disposal endangers health and the environment. Further information
about the recycling of the product may be obtained from your town hall or local waste collection
department.

9
PRW24F02CPG, PRB24F01BPG Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Safety Information
For your safety, read all instructions carefully before operating the appliance.
Before Using Your Appliance
ŹRemove all exterior and interior packing.
ŹBefore connecting the appliance to the power source, let it stand upright for approximately 2
hours. This will reduce the possibility of a malfunction in the cooling system caused by handling
during transportation.
ŹClean the interior surface with warm water using a soft cloth.
ŹThe door on this appliance can be opened from either the left or the right side. The unit is delivered
with the door opening on the left side. Should you wish to open the door from the right, follow the
instructions, “Reversing the Door Swing of your Appliance,” listed below.
Installation of Your Appliance
Do not store or install the appliance outdoors.
WARNING
ŹThe appliances are designed for either built-in, or free-standing installation.
ŹPlace your appliance on a floor that is strong enough to support it when it is fully loaded. To level
your appliance, adjust the 4 legs until level.
ŹLocate the appliance away from direct sunlight and sources of heat (stove, heater, radiator,
etc.). Direct sunlight may aect the acrylic coating and heat sources may increase electrical
consumption. Extreme cold ambient temperatures may also cause the unit not to perform
properly.
ŹNever place the unit in damp areas.
ŹPlug the appliance into an exclusive, easily accessible electrical socket.
ŹAny questions concerning power and/or electrical connection should be directed towards a
qualified electrician or an authorized products service center.
ŹThe air vent at the front of the appliance must never be covered or blocked in any way.

10 PRW24F02CPG, PRB24F01BPG Use, Care, and Installation Guide
FULL SIZE COOLER
SINGLE & DUAL ZONE
PRESRV™
Safety Information
For your safety, read all instructions carefully before operating the appliance.
ŹThe appliance must be installed to all electrical connections in accordance with state and local
codes.
ŹHave two or more people to move and install the cooler. Failure to do so can result in back or other
injury.
ŹThe cooler may experience decreased cooling eciency if air flow is restricted due to a fully
loaded cabinet.
ŹInstall the cooler in a well-ventilated area where the ambient temperature is above 50ºF and below
90ºF.
Attention
ŹNever overload the cabinet.
ŹNever open the door unless necessary.
ŹNever cover shelves with aluminum foil or any other shelf material which may prevent air
circulation.
ŹShould the appliance be left empty for long periods, it is suggested that the appliance be
unplugged, and, after careful cleaning, leave the door ajar to allow air to circulate inside the
cabinet in order to avoid possible condensation, mold or odors from forming.

11
PRW24F02CPG, PRB24F01BPG Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Safety Information
For your safety, read all instructions carefully before operating the appliance.
Electrical Connection
Check that the voltage marked on the product corresponds with your supply voltage.
This appliance should be properly grounded for your safety. The power cord of this appliance is
equipped with a three-pin plug which mates with standard three-pin wall outlets to minimize the
possibility of electrical shock.
Never under any circumstances cut or remove the third ground prong from the power cord supplied.
For personal safety, this appliance must be properly grounded.
Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly
grounded. When a standard two-pin wall outlet is encountered, it is your responsibility and obligation
to have it replaced with a properly grounded three-pin wall outlet.
To prevent accidental injury, the cord should be secured behind the appliance and not left exposed or
dangling.
The appliance should always be plugged into its own individual electrical outlet which has a voltage
rating that matches the rating label on the appliance. This provides the best performance and also
prevent overloading wiring circuits that could cause a fire hazard from overheating. Never unplug
the appliance by pulling the power cord. Always grip the plug firmly and pull straight out from the
receptacle. Repair or replace immediately all power cords that have become frayed or otherwise
damaged. Never use a cord that shows cracks or abrasion damage along its length or at either end.
When moving the appliance, be careful not to damage the power cord.
Never use your appliance with an extension cord unless this cord has been checked and tested by a
qualified technician or service person. The extension cord must be a UL/CUL Listed, 3-wire grounding
extension cord that has a grounding plug and outlet and that the electrical rating of the cord is 115
volts and at least 10 amperes.
Improper use of the grounded plug can result in the risk of
electrical shock. If the power cord is damaged, have it replaced
by a qualified electrician or an authorized service center.
WARNING

12 PRW24F02CPG, PRB24F01BPG Use, Care, and Installation Guide
FULL SIZE COOLER
SINGLE & DUAL ZONE
PRESRV™
Introduction
Thank you for purchasing your Zephyr cooler. Zephyr is dedicated to developing products that will
enhance your lifestyle with superior quality and distinctive features. Please visit
www.zephyronline.com for more information on your product and other Zephyr products.
This manual contains important information regarding the proper installation, use, and maintenance
of your cooler. Following this manual will ensure that your product will work at its peak performance
and eciency.
For Your Records
Please write down the model number and serial number below for future reference. Both numbers are
located on the rating label on the back of your unit and are needed to obtain warranty service. You
may also want to staple your receipt to this manual as it is the proof of your purchase and may also
be needed for service under warranty.
Model Number:
Serial Number:
Date of Purchase:
To better serve you, please do the following before contacting customer service:
ŹIf you received a damaged product, immediately contact the retailer or dealer that sold you the
product.
ŹRead and follow this instruction manual carefully to help you install, use and maintain your cooler.
ŹRead the troubleshooting section of this manual as it will help you diagnose and solve common
issues.
ŹVisit us on the web at http://www.zephyronline.com to download product guides, additional
troubleshooting resources and up-to-date information.
ŹIf you need warranty service, our friendly customer service representatives are available on our
website at http://zephyronline.com/contact.

13
PRW24F02CPG, PRB24F01BPG Use, Care, and Installation Guide
ZEPHYRONLINE.COM
List of Materials
Quantity Part
Black decorative nails
Screws (M5*12)
Keys
Anti-tip bracket
Anti-tip bracket screws (ST5*50)
Flat washers (Φ6.5*Φ13*1)
Self-tapping screws (ST4*30)
Door handle screws (M4*55)
Flat washers (Φ4.3*Φ8*0.5, M4)
Spring washers (Φ4*1.1, M4)
Display rack (sold separately
for PRW24F02CPG)
Screws for Hettich hinge (ST4*16)
Spare screws for Hettich hinge (M5*14)

14 PRW24F02CPG, PRB24F01BPG Use, Care, and Installation Guide
FULL SIZE COOLER
SINGLE & DUAL ZONE
PRESRV™
Ů
Product Summary
This appliance requires a standard 115/120 Volt AC~60Hz electrical ground outlet.
DESCRIPTION OF PRODUCT Presrv™ Full Size Dual Zone Panel Ready Wine Cooler
Presrv™ Full Size Single Zone Panel Ready Beverage Cooler
MODEL & GROSS WEIGHT (lb) PRW24F02CPG: 304lb
PRB24F01BPG: 254lb
VOLTAGE/FREQUENCY AC 115/60Hz
AMPERAGE 2.5A
COLOR Black Cabinet with Stainless Steel Door
VOLUME PRW24F02CPG: 14.5 cu ft
PRB24F01BPG: 14.9 cu ft
REFRIGERANT R600a
TEMPERATURE RANGE PRW24F02CPG: 38°F - 65°F
PRB24F01BPG: 34°F - 50°F
DIMENSIONS (HxWxD) 69-1/4’’ X 23-7/8’’ X 27-3/8’’
OPTIONAL PRO HANDLE ACCESSORY PRHAN-F001
OPTIONAL CONTEMPORARY HANDLE
ACCESSORY
50280004
OPTIONAL DISPLAY RACK PRDISP-F001
REPLACEMENT CARBON FILTER Z0F-C004
NOTE: Internal storage is based on standard 12 oz. cans and 750 ml. Bordeaux-style wine bottles.

15
PRW24F02CPG, PRB24F01BPG Use, Care, and Installation Guide
ZEPHYRONLINE.COM
PRB24F01BPG
168 beer bottle + 14 wine bottle
+ 98 can capacity
56 bottles x 3
49 cans x 2
9 bottles
(max. Ø 3-3/8”)
5 bottles
(max. Ø 3-1/2”)
PRW24F02CPG
132 wine bottle capacity
10 bottles x 4
(max. Ø 3-3/8”)
9 bottles
(max. Ø 3-1/2”)
10 bottles x 6
(max. Ø 3-3/8”)
9 bottles x 2
(max. Ø 3-1/2”)
5 bottles
(max. Ø 3-1/2”)
F
C
o
o
R
F
C
F
C
Ů
Internal Storage

16 PRW24F02CPG, PRB24F01BPG Use, Care, and Installation Guide
FULL SIZE COOLER
SINGLE & DUAL ZONE
PRESRV™
Ů
Ů
Dimensions
Control Panel
Panel Ready
Door
Sensor
Internal Fan
Wooden Roll-Out Shelf
Carbon Filter
Child Safety Lock
Leveling Legs
Sliding Glass Shelf
Metal Roll-Out Drawer
Wooden Roll-Out Shelf
PRW24F02CPG PRB24F01BPG
Front Vent
Articulating Hinge
Top View
23-7/8”
Side View
65-3/16”
25-5/8”
27-3/8”*
Max 115°
69-1/4” - 70-3/4”
* Depth without 3/4” thick overlay panel
26-1/8”
51-3/4”

17
PRW24F02CPG, PRB24F01BPG Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Ů
Overlay Panel Dimensions
1/4”
10-1/4”6-5/8”
1-3/4”
Panel Ready Door
Overlay Panel
Panel Thickness:
5/8” - 3/4”
1-1/8”
52-3/8”
29-1/8”
(optional Zephyr handle screw holes*)
18”
6-3/8”
17-5/8”
23-1/2”
3”
3-3/8”
65-1/4”
58-1/2”
* Hole locations are compatible with Zephyr handle accessory models,
PRHAN-F001 (pro handle) and 50280004 (contemporary handle).

18 PRW24F02CPG, PRB24F01BPG Use, Care, and Installation Guide
FULL SIZE COOLER
SINGLE & DUAL ZONE
PRESRV™
Installation Instructions
Installation Clearance Requirements
When installing the cooler, follow the recommended spacing dimensions shown.
ŹFor proper clearance of the electrical plug, allow at least 1” of clearance at the back as shown in
the diagram.
ŹAn installation next to a wall will require a minimum 7” door clearance to accommodate the
Zephyr handle and to prevent the shelf from rubbing against the gasket. If using a custom handle
that is shallower, the distance may be reduced.
ŹThe cabinet should allow at least 24” for the width and 69-3/4” for the height to accommodate
the cooler.
ŹThe power cable is located on the back right of the unit and has a length of 72” to accommodate
multiple outlet locations.
ŹOnce you are ready to install the unit, you must adjust the feet to level the coolers. An improperly
leveled drawer may not close properly.
ŹThe installation should allow the unit to be pulled forward for servicing, if necessary.
7” Min.
1” Min.
24” Min.
69-3/4” Min.

19
PRW24F02CPG, PRB24F01BPG Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Installation Instructions
Installing the Overlay Panel
To install the overlay panel onto the door, please follow the instructions below. Refer to the dimensions
section to ensure proper measurements prior to installation. If you plan to use a custom handle, install
the custom handle to the overlay panel before mounting the overlay panel onto the door.
1. Open the door.
2. Temporarily remove the door gasket to see the 14 holes
for the overlay panel. There are 2 holes on the top and
bottom sides of the door with 5 holes on the left and
right.
3. Open the hardware package containing 14 self-tapping
screws (ST4*30 size) for the overlay panel.
4. Clamp the overlay panel with the door firmly with bar
clamps and screw the self-tapping screws into the
overlay panel. Perform this step per screw until the
overlay panel is completely secured
NOTE: If using a Zephyr accessory handle, 2 of the 5
holes on either the left or right side will be used for
installing the door handle. Only 12 of the 14 self-
tapping screws will be used rather than all 14.
5. Reattach the door gasket and close the door.

20 PRW24F02CPG, PRB24F01BPG Use, Care, and Installation Guide
FULL SIZE COOLER
SINGLE & DUAL ZONE
PRESRV™
Installation Instructions
Carbon Filter
A built-in carbon filter protects your drinks by acting
as a natural barrier against harmful odors. The carbon
filter should be replaced every 3-6 months depending on
the unit’s exposure level to odor. If the unit is placed in a
kitchen, regular replacement every three months is ideal.
Remove the carbon filter by turning counterclockwise to
unlock from rear panel.
Carbon Filter Replacement Part #: Z0F-C004
Handle
Door Frame
Gasket
Flat Washer
Spring Washer
Screw
Installing a Zephyr Optional
Door Handle
Follow the instructions below to install a handle onto your
cooler. You may install your own handle onto the wood
overlay panel. Take care to measure and drill the handle
screw holes accurately and source the appropriate screws
(not included) unless using Zephyr accessory handles.
Refer to the images for Zephyr door handles.
1. Confirm if the overlay panel has already been installed
onto the unit. If not, refer to Installing the Overlay
Panel section to mount the overlay panel onto the unit.
2. Push aside the door gasket. Under the gasket you will
see two designated holes for handle installation. Mark
handle hole locations on the overlay panel.
3. Remove overlay panel from door. Using 3/16” drill bit,
create holes for handle screws.
4. Re-install overlay panel on the door.
5. Install the handle tightly as shown with (2) M4*55
screws, (2) M4 spring washers, and (2) M4 flat
washers.
NOTE: If using a custom handle, install the handle in the
position of your choosing with counter sunk screw
holes prior to installing the overlay panel to the
door.
Zephyr Presrv Pro Handle
Part #: PRHAN-F001 Color: Stainless Steel
Zephyr Presrv Contemporary Handle
Part #: 50280004 Color: Stainless Steel
