Zephyr ARC AHZ-M90AWX User manual

www.zephyronline.com
Horizon
AHZ-M90ABX
AHZ-M90AWX
AHZ-M90ARX
RANGE HOOD - Installation instructions

www.zephyronline.com
HOTTE PER CUISINE - Notice d’utilisation...Pag. 23
CAMPANA EXTRACTORA - Manual de utilización...Pag. 45
CAPPA ASPIRANTE - istruzioni per l’uso...Pag. 67
- 2 -

Contents
SAFETY INSTRUCTIONS..................................................................................................pag. 4
LIST OF MATERIALS...........................................................................................................pag. 7
DUCTING CALCULATION SHEETS...............................................................................pag. 8
HOOD SPECIFICATION.....................................................................................................pag. 9
INSTALLATION
- INTERNAL BLOWER.....................................................................................pag. 10
- EXTERNAL & IN-LINE BLOWER PREPARATION...............................pag. 13
- DUCTING OPTIONS.....................................................................................pag. 16
- MOUNTING THE RANGE HOOD.............................................................pag. 17
- POWER SUPPLY CONNECTION..............................................................pag. 19
MAINTENANCE.................................................................................................................pag. 20
LIST OF PARTS AND ACCESSORIES.........................................................................pag. 21
- 3 -

www.zephyronline.com
IMPORTANT SAFETY INSTRUCTIONS
FOR RESIDENTIAL USE ONLY
READ AND SAVE THESE INSTRUCTIONS
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING.
IMPORTANT: Save these Instructions for the Local Electrical Inspectors use.
INSTALLER: Please leave these Instructions with this unit for the owner.
OWNER: Please retain these instructions for future reference.
Take care when using cleaning agents or detergents.
Suitable for use in household cooking area
WARNING - To reduce the risk of re or electric shock, do not use this fan
with any Solid-State Speed Control Device.
CAUTION - To reduce risk of re and to properly exhaust air, be sure to duct
air outside – Do not vent exhaust air into spaces within walls or ceilings or into
attics, crawl spaces, or garages.
CAUTION - For general ventilating use only. Do not use to exhaust hazardous
or explosive materials and vapors.
CAUTION - To avoid motor bearing damage and noisy and/or unbalanced
impellers, keep drywall spray, construction dust, etc. o power unit.
CAUTION - Please read specication label on product for further information
and requirements.
WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO
PERSONS, OBSERVE THE FOLLOWING:
A. Use this unit only in the manner intended by the manufacturer. If you have
ques tions, contact the manufacturer.
B. Before servicing or cleaning unit, switch power o at service panel and lock
the service disconnecting means to prevent power from being switched on ac-
cidentally. When the service disconnecting means cannot be locked, securely
fasten a prominent warning device, such as a tag, to the service panel.
WARNING - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
A. Never leave surface units unattended at high settings. Boilovers cause smo-
king and greasy spillovers that may ignite. Heat oils slowly on low or medium
Safety instructions
- 4 -

settings.
B. Always turn hood ON when cooking at high heat or when ambeing foods
( i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambè ).
C. Clean ventilating fans frequently. Grease should not be allowed to accumulate
on fan or lter.
D. Use proper pan size. Always use cookware appropriate for the size of the
surface element.
E. Keep fan, lters and grease laden surface clean.
F. Use high range setting on range only when necessary.Heat oil slowly on
low to medium setting.
G. Don’ t leave range unattended when cooking.
H. Always use cookware and utensils appropriate for the type and amount o
food being prepared.
WARNING – TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF
A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:
A. SMOTHER FLAMES with a close-tting lid, cookie sheet, or metal tray, then
turn o the burner. BE CAREFUL TO PREVENT BURNS. If the ames do not go
out mmediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
B. NEVER PICK UP A FLAMING PAN – You may be burned.
C. DO NOT USE WATER, including wet dishcloths or towels – a violent steam
explosion will result.
D. Use an extinguisher ONLY if:
1. You know you have a Class ABC extinguisher, and you already know how
to perate it.
2. The re is small and contained in the area where it started.
3. The re department is being called.
4. You can ght the re with your back to an exit.
aBased on “kitchen resafety tips” published by NFPA
Proper maintenance of the Range Hood will assure proper performance
of the unit.
INSTALLATION INSTRUCTIONS
WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO
PERSONS, OBSERVE THE FOLLOWING:
A. Installation work and electrical wiring must be done by qualied person(s)
in accordance with all applicable codes and standards, including re-rated
construction.
B. Sucient air is needed for proper combustion and exhausting of gases
Safety instructions
- 5 -

www.zephyronline.com
through the ue (chimney) of fuel burning equipment to prevent back drafting.
Follow the heating equipment manufacturer’s guideline and safety standards
such as those published by the National Fire Protection Association (NFPA), and
the American Society for Heating, Refrigeration and Air Conditioning Engineers
(ASHRAE), and the local code authorities.
C. When cutting or drilling into wall or ceiling, do not damage electrical wiring
and other hidden utilities.
D. Ducted fans must always be vented to the outdoors.
E. This unit must be grounded.
WARNING - TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.
WARNING - UNDER CERTAIN CIRCUMSTANCES DOMESTIC APPLIANCES MAY
BE DANGEROUS.
A. Do not check lters with hood working.
B. Do not touch the lamps after a prolonged use of the appliance.
C. No food must be cooked ambè underneath the hood.
D. The use of an unprotected ame is dangerous for the lters and could cause
res.
E. Watch constantly the fried food in order to avoid the cooking oil ares up.
F. before performing any mainteinance operation, disconnect the hood from
the electrical service.
The manufacturers will not to accept any responsability for eventual damages,
because of failure to observe the above instructions.
Safety instructions
- 6 -

List of Materials
Control
Electrical
Junction
Box
Glass
Glass
Light Bulbs
Decorative Mesh
Filters
Range Hood Body

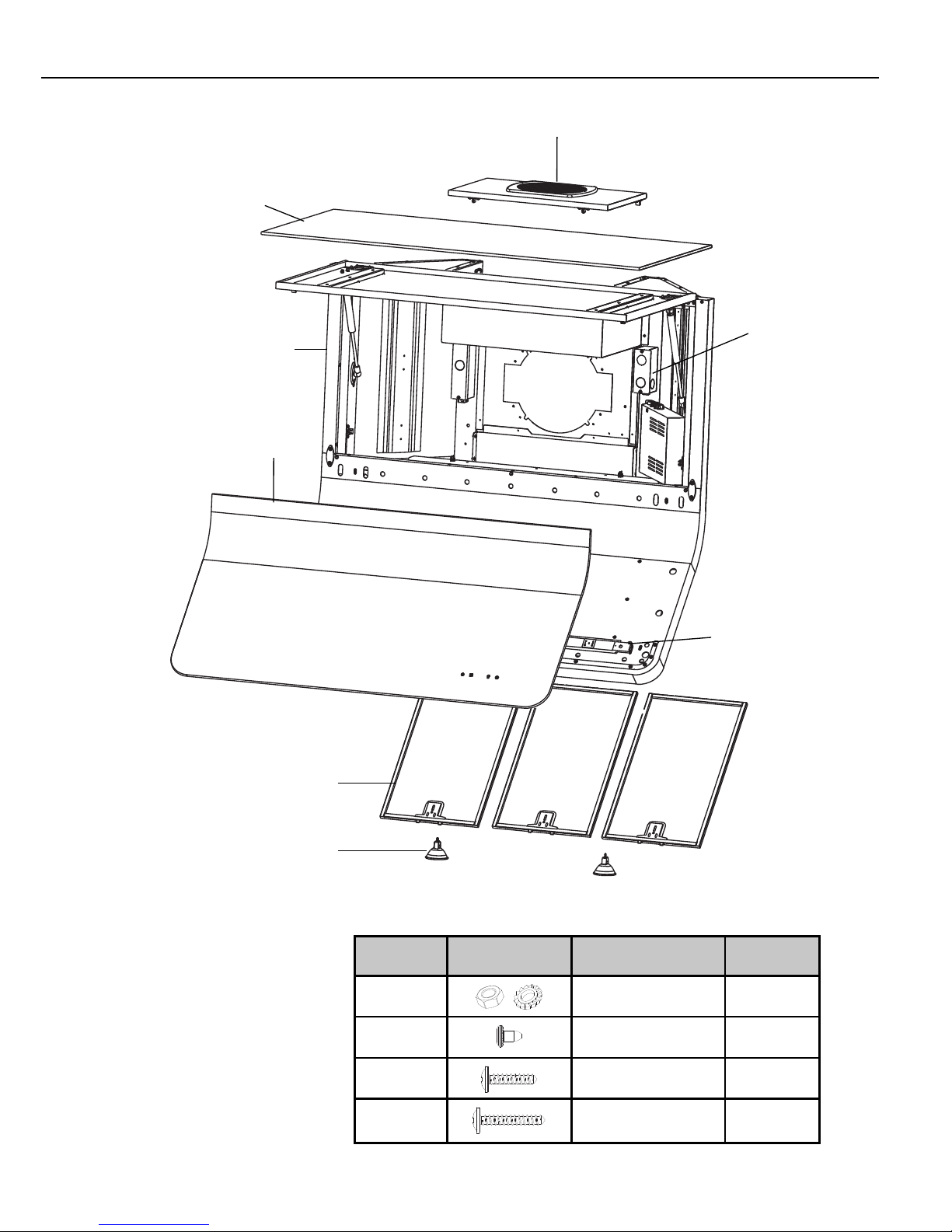

Top Cover
TYPE DESCRIPTION N°
AM4 1 + 1
B1/8" x 1/4" 12
C1/8" x 2/4" 4
D1/4" x 2-3/4" 6
- 7 -

www.zephyronline.com
Ducting Calculation Sheet
Maximum Duct Length:
For satisfactory air movement, the total duct length
should not exceed 100 equivalent feet.
- 8 -

Hood Specications
front of hood side of hood
top of hood
- 9 -

www.zephyronline.com
Installation - Internal Blower
NOTE! The device in this version (with
internal suction blower) is equipped for
rear discharge of exhaust air. However,
if required, it is possible to have the
exhaust air discharged from the top.
This can be accomplished by carrying
out the steps indicated in the following
paragraphs; upon reaching step 4, the
motor plate must not be rotated.
The following instructions are for installing the internal blower.
CAUTION: To reduce the risk of re and electric shock, install this range-
hood only with internal blower models MT-020 provided with the kit code
CBI-600A.
For external and in-line blower preparation please turn to page 13.
1. Unclip the top cover. Fig.1
2. Remove the 6” round metal knockout
plate from the blower plate by using a
at head screwdriver. See.Fig.2
3. Remove the (6) screws securing the blo-
wer plate to the blower housing and re-
move blower plate. See. Fig.3
- 10 -

Installation - Internal Blower

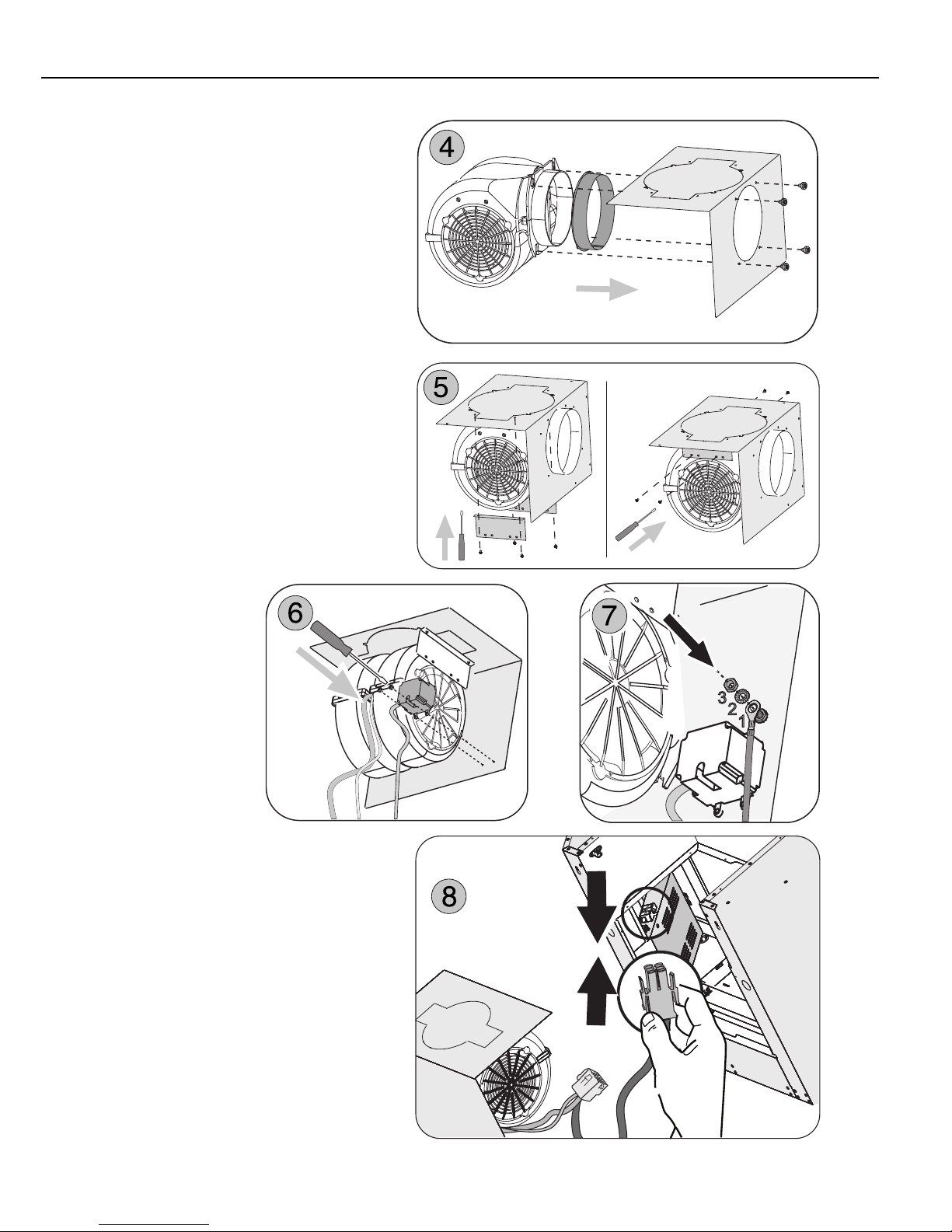

4. Rotate the blower plate
(Note! If air is discharged
from the top, do not rotate
the plate).Place the 6" metal-
lic ange on the blower's air
outlet (the ange may alre-
ady be pre-installed). Install
internal blower into blower
plate and secure using (4)
screws included with the blo-
wer. See Fig.4
5. Fasten the two brackets to the
sides of the blower by xing
them onto the blower plate
with the (4 type B) screws,
and to the sides of the blower
with other (4 type C) screws.
Fig 5
6. Secure capacitor box con-
nected to the provided
cable to the blower plate
using (2 type B) screws in-
cluded with the blower. See.
Fig.6
7. Secure Green/Yellow ground
wire connected to the cable
to the provided capacitor to
blower plate. (type A). Fig.7
- 11 -

www.zephyronline.com
8. Attach the 6 pin male molex con-
nector from blower wire to the 6
pin female molex connector lo-
cated inside the blower housing.
See Fig.8
9. Install the blower and plate on
the inside of the blower housing:
carry out the instructions at step
3 in reverse order then use the
screws provided to complete installation.
(Tot. 12 type B). Fig.9
10. Open the ap Fig.10. Connect 9 pin male
molex connector from blower wire to 9 pin
female molex connector on the capacitor
wire. See Fig.11
WARNING! Place electrical wiring
inside the blower housing.
11. Close the ap until it clicks into
place and put the top cover back
on.
The hood is now ready to be installed on the wall.
Installation - Internal Blower
- 12 -

NOTE! The device in this version
(with external blower) is equipped for
rear discharge of exhaust air. However,
if required, it is possible to have the
exhaust air discharged from the top.
This can be accomplished by carrying
out the steps indicated in the follow-
ing paragraphs; upon reaching step 5,
the blower plate must be rotated and
installed in the opposite direction.
The following instructions are for preparing the hood for use with an ex-
ternal or in-line blowers models CBE-1000 or PBN-1000A.
CAUTION: To reduce the risk of re and electric shock, install this rangehood
only with remote blowers rated maximum 6.2 A.
For internal blower instructions please turn to page 10.

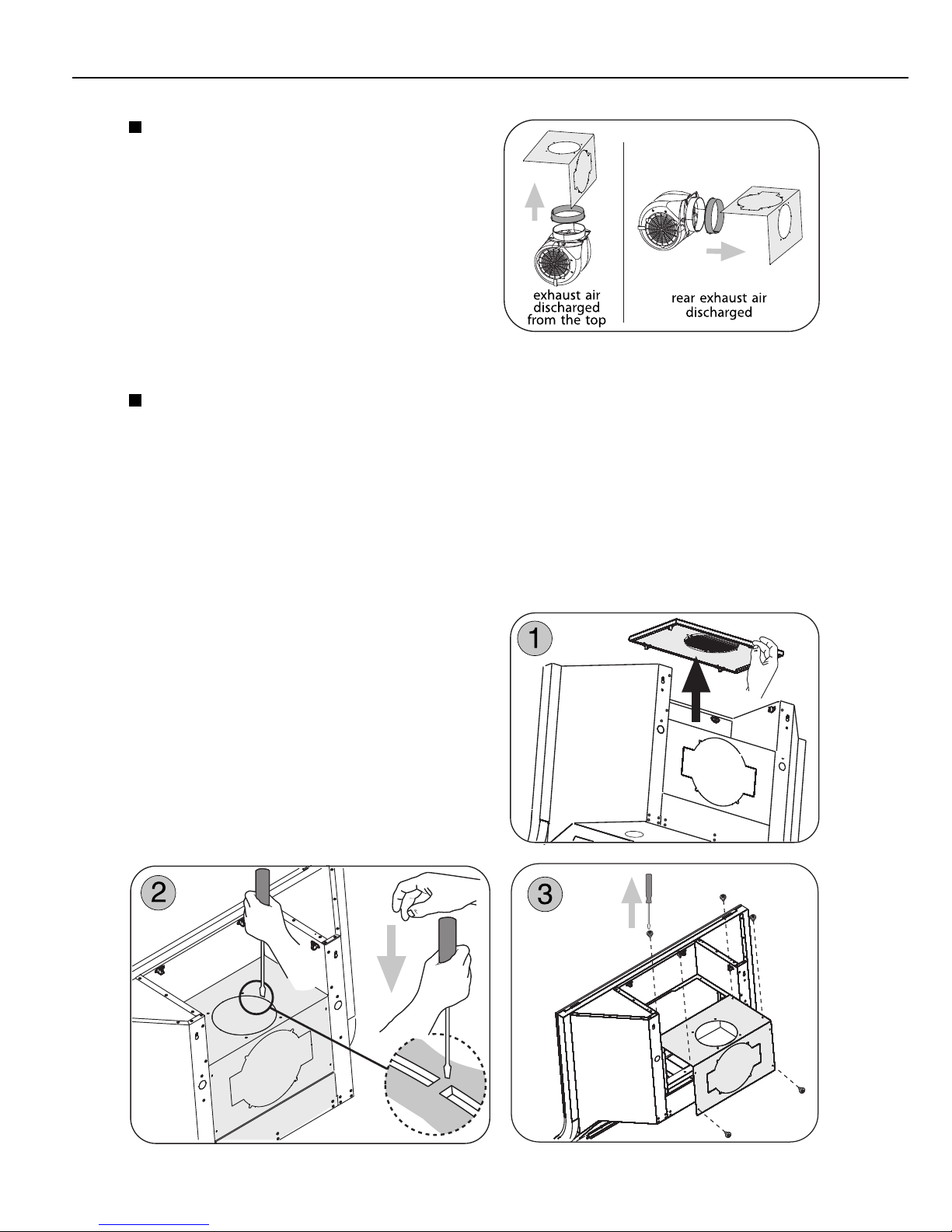

1. Unclip the top cover. Fig.1
2. Remove the metal blower plate by
striking it with the aid of a slotted
screwdriver Fig.2
3. Remove the (6) screws securing the
blower plate to the blower housing
and remove blower plate. See.Fig.3

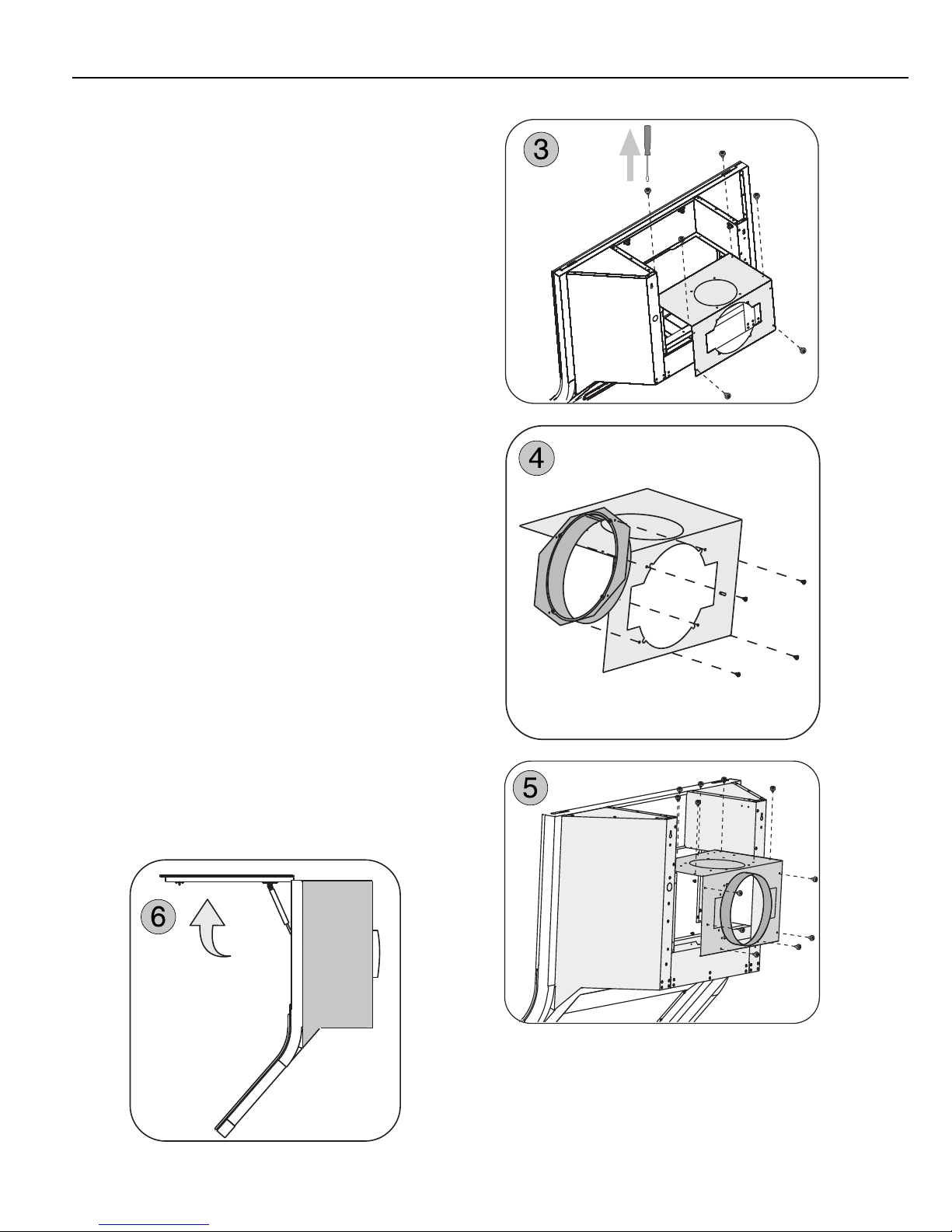

4. Install the flange and fix it to the blower
plate with the (4 type B) screws. Fig 4
Installation - External & In-Line Blower Preparation
- 13 -

www.zephyronline.com
5. Install the plate with the ange facing
the wall, inside the motor casing: carry
out the instructions at stage 3 in rever-
se order then use the screws provided
to complete installation. (Tot. 12 type
B). (Note! If air is discharged from the
top, rotate the plate and install it in the
opposite direction with the ange fa-
cing upwards) Fig.5
6. Put the top cover back on.

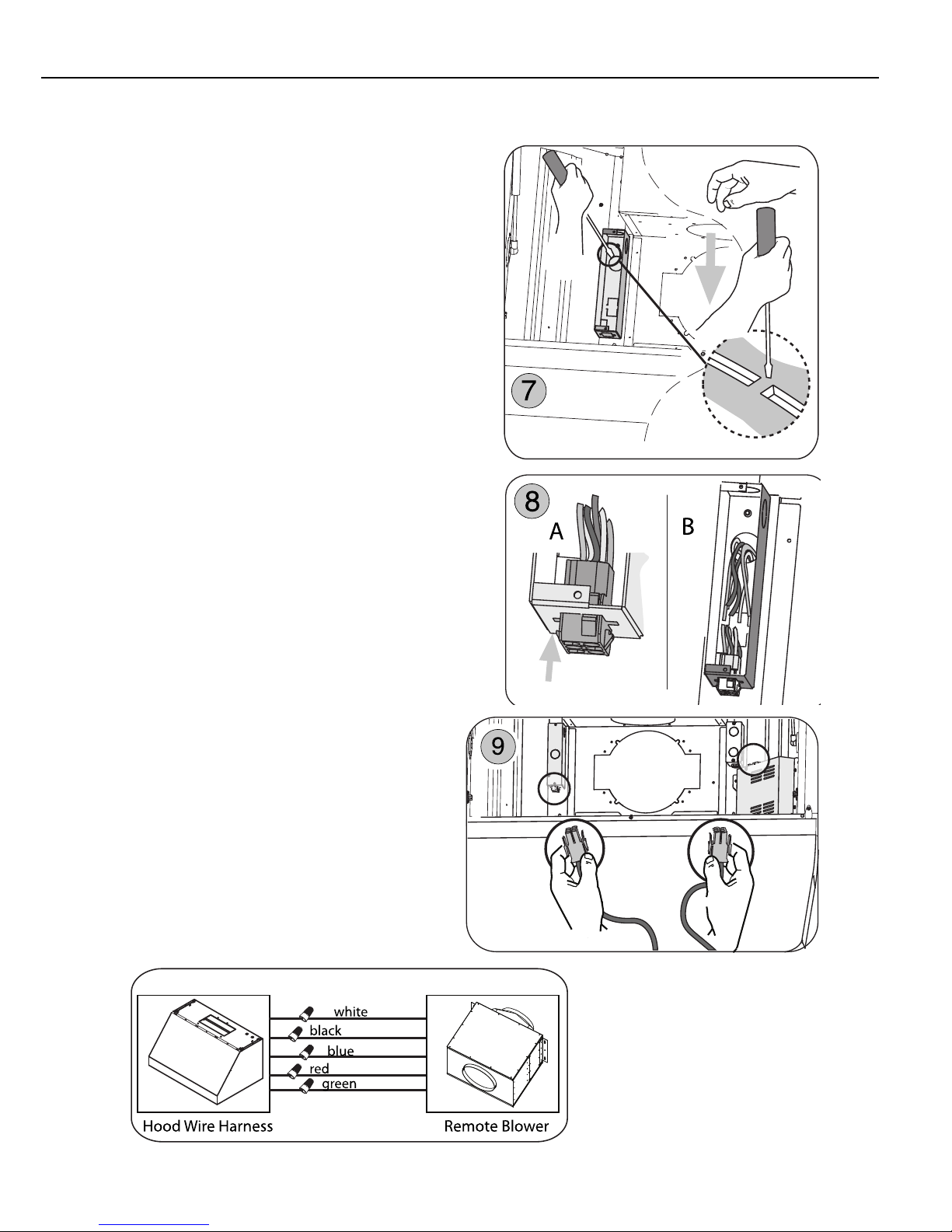

7. Open the ap Fig.6
8. With the aid of a slotted screwdriver,
break the grommet of circular hole
through which the wires pass. Fig. 7
9. Insert the female connector in the
terminal box already attached to the
hood. Fig. 8A
Installation - External & In-Line Blower Preparation
- 14 -

Pass the wires of the remote motor throu-
gh the terminal box hole and connect
them to the connector wires. Fig.8B
Note: Carry out the power supplly con-
nection in accordance with the natio-
nal electric code, ANSI/NFPA 70-1999.
Note1: A cable lock (not included) may
be required by local codes. Please re-
view local codes for more information.
11. Attach 6 pin male molex connectors
to 6 pin female molex connectors insi-
de blower housing. See Fig. 9
Note2: Check local codes to determine
minimum wire gauge.
See manual included with external
and in-line blower for instructions
on installing the blower.
Installation - External & In-Line Blower Preparation
- 15 -

www.zephyronline.com
WARNING FIRE HAZARD
NEVER exhaust air or terminate duct work into spaces between walls, crawl
spaces, ceiling, attics or garages.
All exhaust must be ducted to the outside, unless using the recirculating op-
tion.
Use single wall rigid Metal ductwork only.
Fasten all connections with sheet metal screws and tape all joints w/ certied
Silver Tape or Duct Tape.
Some Ducting Options
Installation - Ducting Options
- 16 -

Installation - Mounting the Range Hood
MOUNTING HEIGHTS
The range hood must be installed at a minimum
height of 22 inches (56 cm) from the cooking
surface. If a connecting duct work composed of
two parts is used, the upper part must be placed
outside the lower part. Do not connect the range
hood duct to the same duct used to exhaust hot
air or fumes from another appliance. Before pro-
ceeding with the assembly instructions remove the
decorative mesh lters so that the range hood is
easier to handle.
MOUNTING TO THE WALL
1. Place the paper template included with
your hood on the wall to determine
where to add the screws for mounting
the hood. Make sure that the line at
the bottom of the template is aligned
with the edge of the rear lower corner
of the hood. Fig. 13
Note! Cut out holes for ducting if venting
out the back. Drill holes for the power
supply and the remote blower power
supply (if required), using the measure-
ments indicated in Fig.14
2. Fix the power supply conduit to the
hole on the hood. If the hood has an
external motor, x the motor’s power
supply conduit to the hole on the hood
as well. Fig.15
Min 22" - Max 34"
36"
- 17 -

www.zephyronline.com
Installation - Mounting the Range Hood
3. Lift the hood onto the screws
(type D) and adjust to make
sure the hood is level.
4. When the hood has been
adjusted tighten the screws to
secure the hood in place.
NOTE: Screws must be fastened into wooden studs so wood blocking may be
necessary. If using wall anchors make sure to check your local codes for suita-
bility and type of anchors to use.
NOTE1: For the various installations use screws and screw anchors suited to the
type of wall (minimum screw size: 1/4" diameter x 2-3/4" length).
NOTE2: The following Duct Cover kits are available as acessories: Z1C-00HZ
and Z1C-01HZ.
- 18 -

Installation - Power Supply Connection
GENERAL
• Carefully read the following important information regarding installation
safety and maintenance. Keep this information booklet accessible for further
consultations.
POWER SUPPLY CONNECTION
For connection to the power supply refer to the following:
1. Open the ap Fig.16
2. Remove the power supply cover by undoing
the (2) screws Fig. 17.
3. Connect the wires of the hood to those of
the power supply as described. Fig.18 :
BLACK = L line
WHITE = Nneutral
GREEN / YELLOW = G ground
- A double-pole switch properly rated must
be installed to provide the range hood
power supply disconnection.
- Connect the electrical conduit to the Field
Wiring Compartment using listed conduit
ttings.
- Carry out the power supplly connection in
accordance with the national electric code,
ANSI/NFPA 70-1999.
4. Insert the wires into the box, then close the
box cover, securing it using the screws that
were previously removed.
5. Close the ap until it clicks into place.
- 19 -

www.zephyronline.com
Maintencance
MAINTENANCE
• It is recommended to operate the appliance prior to cooking. It is recommended
to leave the appliance in operation for 5 minutes after cooking is completed in
order to completely eliminate cooking vapors and odors. The proper function
of the range hood is conditioned by the regularity of maintenance.
• The decorative mesh lters capture the grease particles suspended in the air
and are therefore subject to clogging because of frequent use. In order to pre-
vent a re hazard, it is recommended to clean the lter a minimum of every 2
months or when instructed by the Metal Filter Clean indicator on the range hood
controls. Clean the range hood by carrying out the following instructions:
- Remove the lters from the range hood and wash them in a solution of water
and neutral liquid detergent, leaving to soak.
- Rinse thoroughly with warm water and leave to dry.
- Filters may also be washed in the dishwasher at the lowest setting.
The lters may alter in color after several washes but is not cause for replace-
ment.
• Clean the blower and other surfaces of the range hood regularly using a cloth
moistened with denatured alcohol or non abrasive liquid detergent.
- 20 -
