Zephyr Edge Wall AED - M90ASX User manual

www.zephyronline.com
Layers Wall
ALA - M90ABX
ALA - M90AWX
ALA - E42ABX
ALA - E42AWX
Edge Wall
AED - M90ASX
Surface Wall
ASU - M90ASX
ASU - E42ASX
Duo Wall
ADU - M90ASX
RANGE HOOD - Installation instructions

www.zephyronline.com
HOTTE PER CUISINE - Notice d’utilisation...Pag. 27
CAMPANA EXTRACTORA - Manual de utilización...Pag. 53
CAPPA ASPIRANTE - istruzioni per l’uso...Pag. 79
- 2 -

Contents
SAFETY INSTRUCTIONS..................................................................................................pag. 4
LIST OF MATERIALS...........................................................................................................pag. 7
DUCTING CALCULATION SHEETS.............................................................................pag. 11
HOOD SPECIFICATION..................................................................................................pag. 12
INSTALLATION
- INTERNAL BLOWER.....................................................................................pag. 16
- EXTERNAL & IN-LINE BLOWER PREPARATION...............................pag. 18
- DUCTING OPTIONS.....................................................................................pag. 20
- MOUNTING THE RANGE HOOD.............................................................pag. 21
- POWER SUPPLY CONNECTION..............................................................pag. 22
- MOUNTING THE DUCT COVER...............................................................pag. 23
MAINTENANCE.................................................................................................................pag. 25
LIST OF PARTS AND ACCESSORIES..........................................................................pag. 26
- 3 -

www.zephyronline.com
IMPORTANT SAFETY INSTRUCTIONS
FOR RESIDENTIAL USE ONLY
READ AND SAVE THESE INSTRUCTIONS
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING.
IMPORTANT: Save these Instructions for the Local Electrical Inspectors use.
INSTALLER: Please leave these Instructions with this unit for the owner.
OWNER: Please retain these instructions for future reference.
Take care when using cleaning agents or detergents.
Suitable for use in household cooking area
WARNING - To reduce the risk of re or electric shock, do not use this fan
with any Solid-State Speed Control Device.
CAUTION - To reduce risk of re and to properly exhaust air, be sure to duct
air outside – Do not vent exhaust air into spaces within walls or ceilings or into
attics, crawl spaces, or garages.
CAUTION - For general ventilating use only. Do not use to exhaust hazardous
or explosive materials and vapors.
CAUTION - To avoid motor bearing damage and noisy and/or unbalanced
impellers, keep drywall spray, construction dust, etc. o power unit.
CAUTION - Please read specication label on product for further information
and requirements.
WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO
PERSONS, OBSERVE THE FOLLOWING:
A. Use this unit only in the manner intended by the manufacturer. If you have
ques tions, contact the manufacturer.
B. Before servicing or cleaning unit, switch power o at service panel and lock
the service disconnecting means to prevent power from being switched on ac-
cidentally. When the service disconnecting means cannot be locked, securely
fasten a prominent warning device, such as a tag, to the service panel.
WARNING - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
A. Never leave surface units unattended at high settings. Boilovers cause smo-
king and greasy spillovers that may ignite. Heat oils slowly on low or medium
Safety instructions
- 4 -

settings.
B. Always turn hood ON when cooking at high heat or when ambeing foods
( i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambè ).
C. Clean ventilating fans frequently. Grease should not be allowed to accumulate
on fan or lter.
D. Use proper pan size. Always use cookware appropriate for the size of the
surface element.
E. Keep fan, lters and grease laden surface clean.
F. Use high range setting on range only when necessary.Heat oil slowly on
low to medium setting.
G. Don’ t leave range unattended when cooking.
H. Always use cookware and utensils appropriate for the type and amount o
food being prepared.
WARNING – TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF
A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:
A. SMOTHER FLAMES with a close-tting lid, cookie sheet, or metal tray, then
turn o the burner. BE CAREFUL TO PREVENT BURNS. If the ames do not go
out mmediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
B. NEVER PICK UP A FLAMING PAN – You may be burned.
C. DO NOT USE WATER, including wet dishcloths or towels – a violent steam
explosion will result.
D. Use an extinguisher ONLY if:
1. You know you have a Class ABC extinguisher, and you already know how
to perate it.
2. The re is small and contained in the area where it started.
3. The re department is being called.
4. You can ght the re with your back to an exit.
aBased on “kitchen resafety tips” published by NFPA
Proper maintenance of the Range Hood will assure proper performance
of the unit.
INSTALLATION INSTRUCTIONS
WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO
PERSONS, OBSERVE THE FOLLOWING:
A. Installation work and electrical wiring must be done by qualied person(s)
in accordance with all applicable codes and standards, including re-rated
construction.
B. Sucient air is needed for proper combustion and exhausting of gases
Safety instructions
- 5 -

www.zephyronline.com
through the ue (chimney) of fuel burning equipment to prevent back drafting.
Follow the heating equipment manufacturer’s guideline and safety standards
such as those published by the National Fire Protection Association (NFPA), and
the American Society for Heating, Refrigeration and Air Conditioning Engineers
(ASHRAE), and the local code authorities.
C. When cutting or drilling into wall or ceiling, do not damage electrical wiring
and other hidden utilities.
D. Ducted fans must always be vented to the outdoors.
E. This unit must be grounded.
WARNING - TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.
WARNING - UNDER CERTAIN CIRCUMSTANCES DOMESTIC APPLIANCES MAY
BE DANGEROUS.
A. Do not check lters with hood working.
B. Do not touch the lamps after a prolonged use of the appliance.
C. No food must be cooked ambè underneath the hood.
D. The use of an unprotected ame is dangerous for the lters and could cause
res.
E. Watch constantly the fried food in order to avoid the cooking oil ares up.
F. before performing any mainteinance operation, disconnect the hood from
the electrical service.
WARNING! For models AED-M90ASX and ADU-M90ASX never lean on the hood's
body any object weighing more than 33,1lb (15kg), although evenly spread over
the whole surface.
The manufacturers will not to accept any responsability for eventual damages,
because of failure to observe the above instructions.
Safety instructions
- 6 -

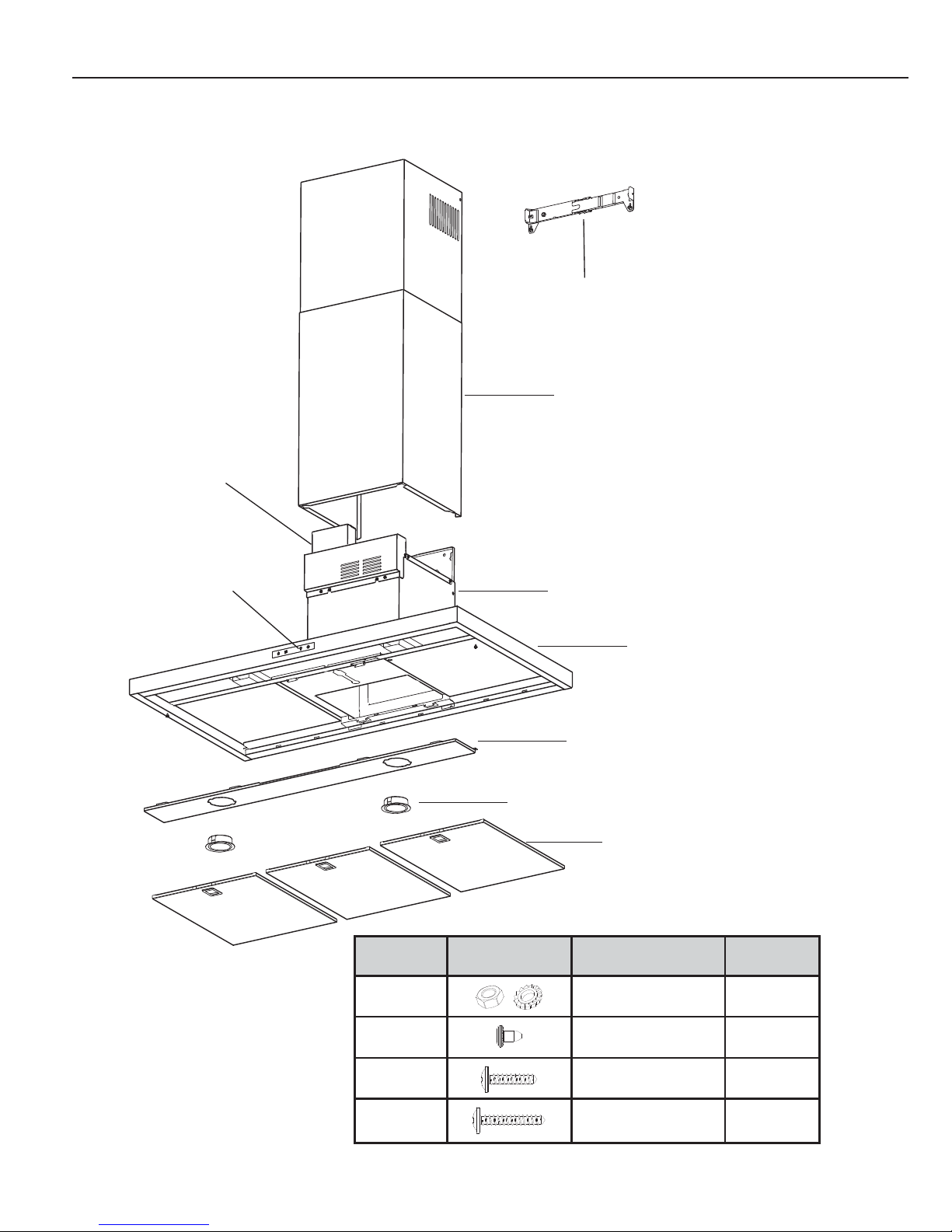

Models: ALA-M90ABX / ALA-M90AWX / ALA-E42ABX / ALA-E42AWX
Duct Covers
Electrical
Junction Box
Duct Cover Bracket
Glass
Light Bulbs
Decorative Mesh Filters
Range Hood
Body
List of Materials
TYPE DESCRIPTION N°
AM4 1 + 1
B1/8" x 1/4" 12
C1/8" x 2/4" 4
D1/4" x 2-3/4" 6
Blower Housing
- 7 -

www.zephyronline.com

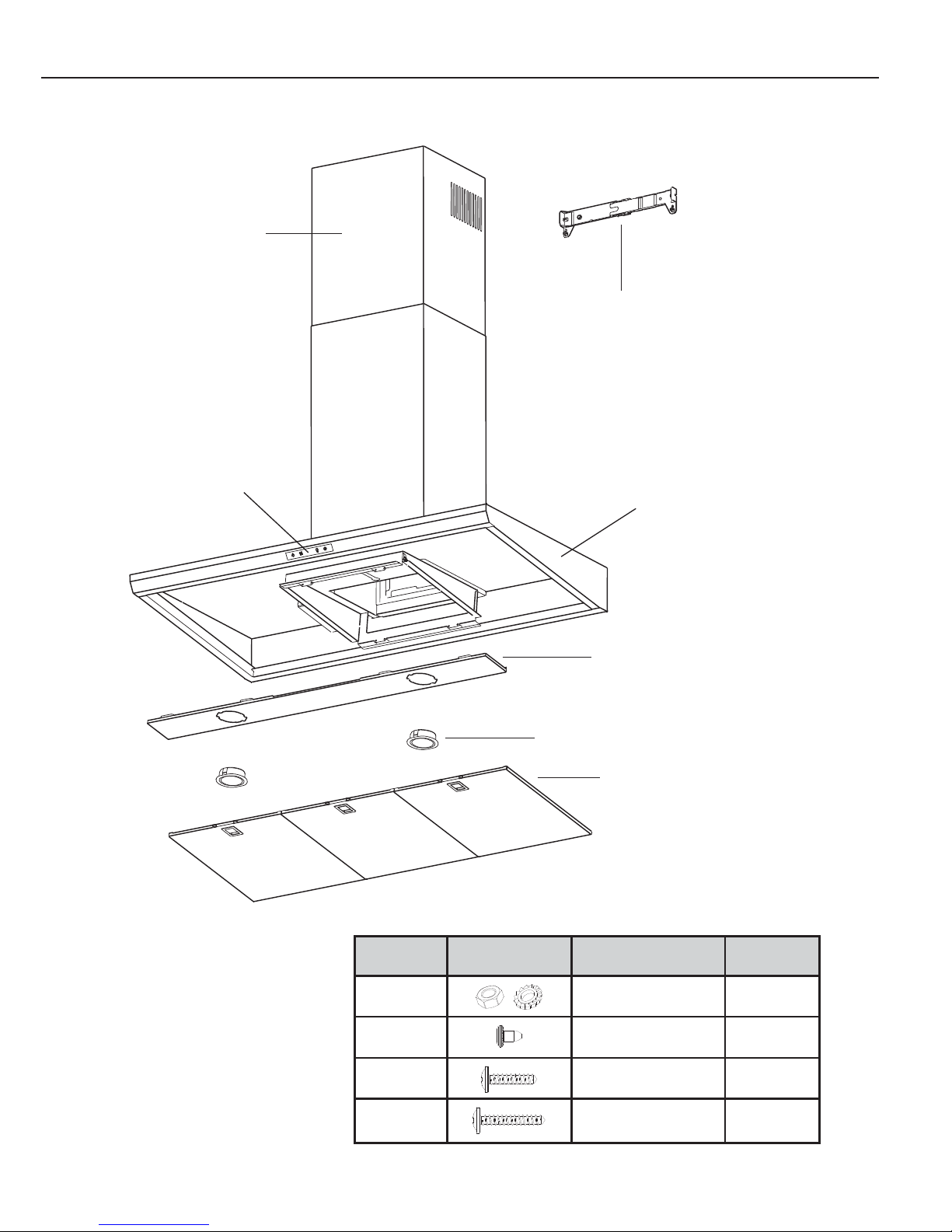

Models: ASU-M90ASX / ASU-E42ASX
Duct Cover Bracket
Control
Duct Covers
Blower Housing
Range Hood
Body
Glass
Electrical
Junction Box
Light Bulbs
Decorative Mesh Filters
List of Materials
TYPE DESCRIPTION N°
AM4 1 + 1
B1/8" x 1/4" 12
C1/8" x 2/4" 4
D1/4" x 2-3/4" 6
- 8 -

Models: AED M90ASX
Duct Cover Bracket
Control
Duct Covers
Light Panel
Light Bulbs
Decorative Mesh Filters
List of Materials
Range Hood
Body
TYPE DESCRIPTION N°
AM4 1 + 1
B1/8" x 1/4" 12
C1/8" x 2/4" 4
D1/4" x 2-3/4" 6
- 9 -

www.zephyronline.com
Model: ADU-M90ASX
Light Bulbs
Control
Decorative Mesh Filters
Range Hood
Body
Light Panel
Blower Housing
Electrical
Junction Box
Duct Cover Bracket
Duct Covers
List of Materials
TYPE DESCRIPTION N°
AM4 1 + 1
B1/8" x 1/4" 12
C1/8" x 2/4" 4
D1/4" x 2-3/4" 6
- 10 -

Ducting Calculation Sheet
Maximum Duct Length:
For satisfactory air movement, the total duct length
should not exceed 100 equivalent feet.
- 11 -

www.zephyronline.com
front of hood side of hood
top of hood

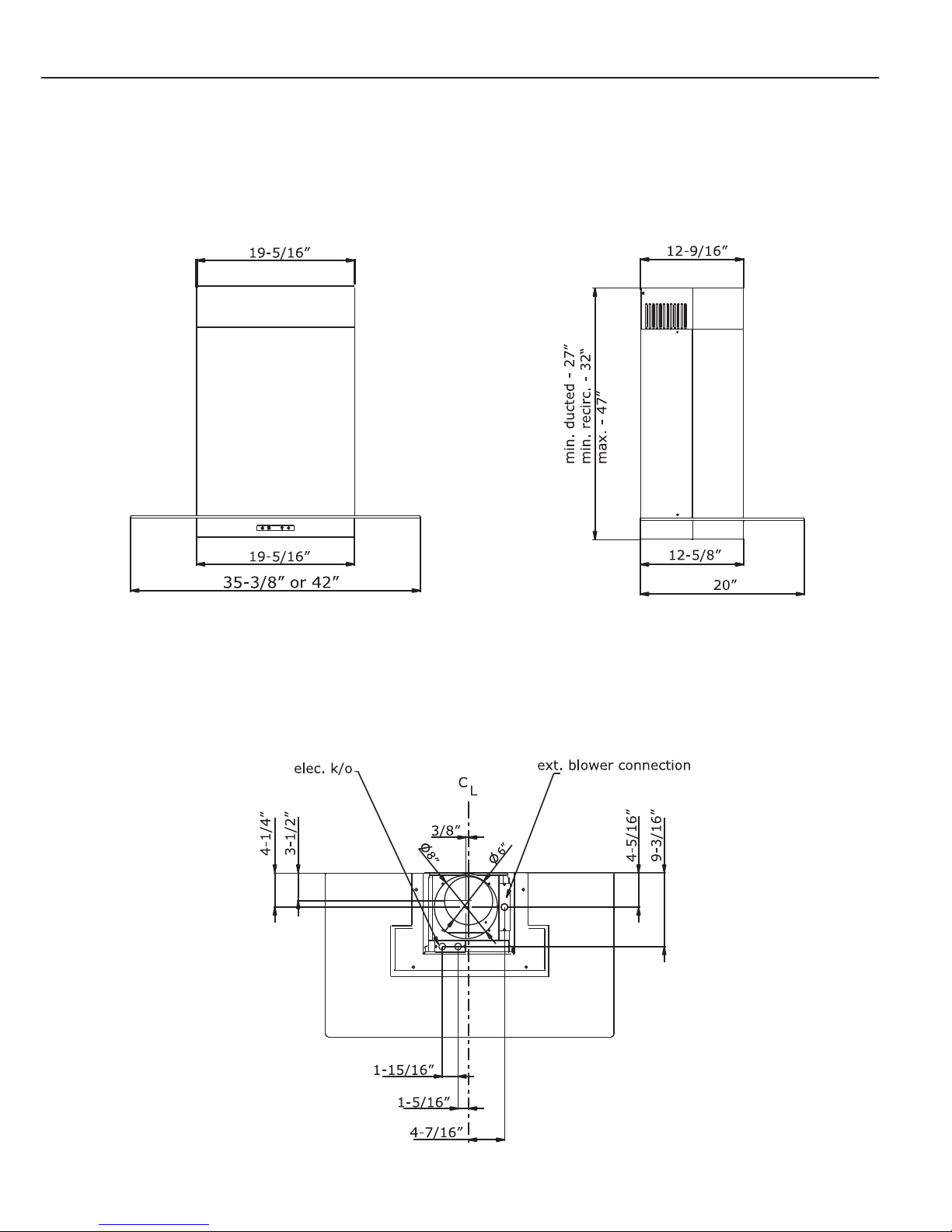

Models: ALA-M90ABX / ALA-M90AWX / ALA-E42ABX / ALA-E42AWX
Hood Specications
- 12 -

Models: ASU-M90ASX / ASU-E42ASX
front of hood side of hood
top of hood
Hood Specications
- 13 -

www.zephyronline.com
Models: AED-M90ASX
35-3/8"
11-1/4"
12-1/16"
10-1/16"
19-11/16"
Wood Trim Dimensions
5/8" Thickness
Hood Specications
front of hood side of hood
top of hood
- 14 -

Models: ADU-M90ASX
35-3/8"
11-1/4"
12-1/16"
10-1/16"
19-11/16"
Wood Trim Dimensions
1-5/8" Thickness
Hood Specications
front of hood side of hood
top of hood
- 15 -

www.zephyronline.com
Installation - Internal Blower
The following instructions are for installing the internal blower.
CAUTION: To reduce the risk of re and electric shock, install this range-
hood only with internal blower models MT-020 provided with the kit cod
CBI-600A.
For external and in-line blower prepa-
ration please turn to page 18.
1.Remove the 6”round metal knockout
plate from the blower plate by using
a at head screwdriver. See.Fig.1
2. Remove the (6) screws securing the
blower plate to the blower housing
and remove blower plate. See. Fig.2
3. Place the 6" metallic ange on the
blower's air outlet Fig.3A.(the ange
may already be pre-installed). Install
internal blower into blower plate and
secure using (4) screws included with
the blower. See Fig.3B
4. Secure capacitor box connected to
the provided cable to the blower
plate using (2 type B) screws inclu-
ded with the blower. See.Fig.4

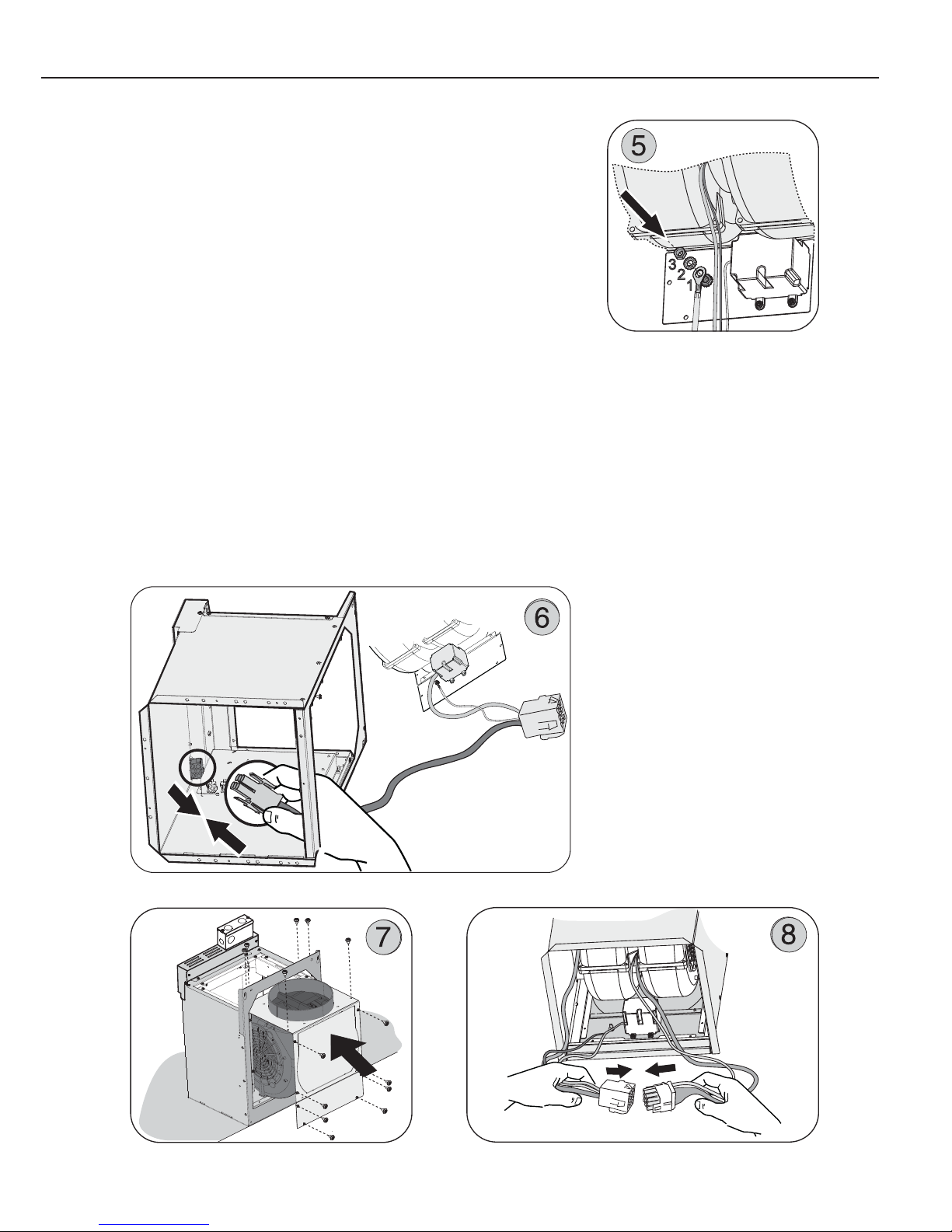

5. Secure Green/Yellow ground wire
connected to the cable to the provi-
ded capacitor to blower plate.Fig.5
(type A)
- 16 -

6. Attach the 6 pin male molex connector from blower
wire to the 6 pin female molex connector located
inside the blower housing. See Fig.6
7. Install blower and blower plate into blower housing
by following the reverse instructions from step 2
then use the screws provided to complete installa-
tion. (Tot. 14 type B). See Fig.7
8. Connect 9 pin male molex connector from blower wire to 9 pin female molex
connector on the capacitor wire. See Fig.8
WARNING! Place electrical wiring inside the motor housing.
The hood is now ready to be installed on the wall.
Installation - Internal Blower
- 17 -

www.zephyronline.com
The following instructions are for preparing the hood for use with an ex-
ternal or in-line blowers models CBE-1000 or PBN-1000A.
CAUTION: To reduce the risk of re and electric
shock, install this rangehood only with remote
blowers rated maximum 6.2 A.
For internal blower instructions please turn to
page 16.
1. Remove the (6) screws securing the blower pla-
te to the blower housing and remove blower
plate. See.Fig.1
2. Detach rectangular metal plate from blower
plate. See Fig. 2A Flip blower plate 90 degrees
and attach rectangular plate to blower plate side
with round knock-out.See Fig.2B
3. Re-install blower plate into blower housing by
following reverse instructions from step 1 then
use the screws provided to complete installa-
tion. (Tot.14 type B)
4. Remove top knock-out plate and remote blower
knock-out plate by using a at head screwdriver.
See Fig. 3 and Fig. 4

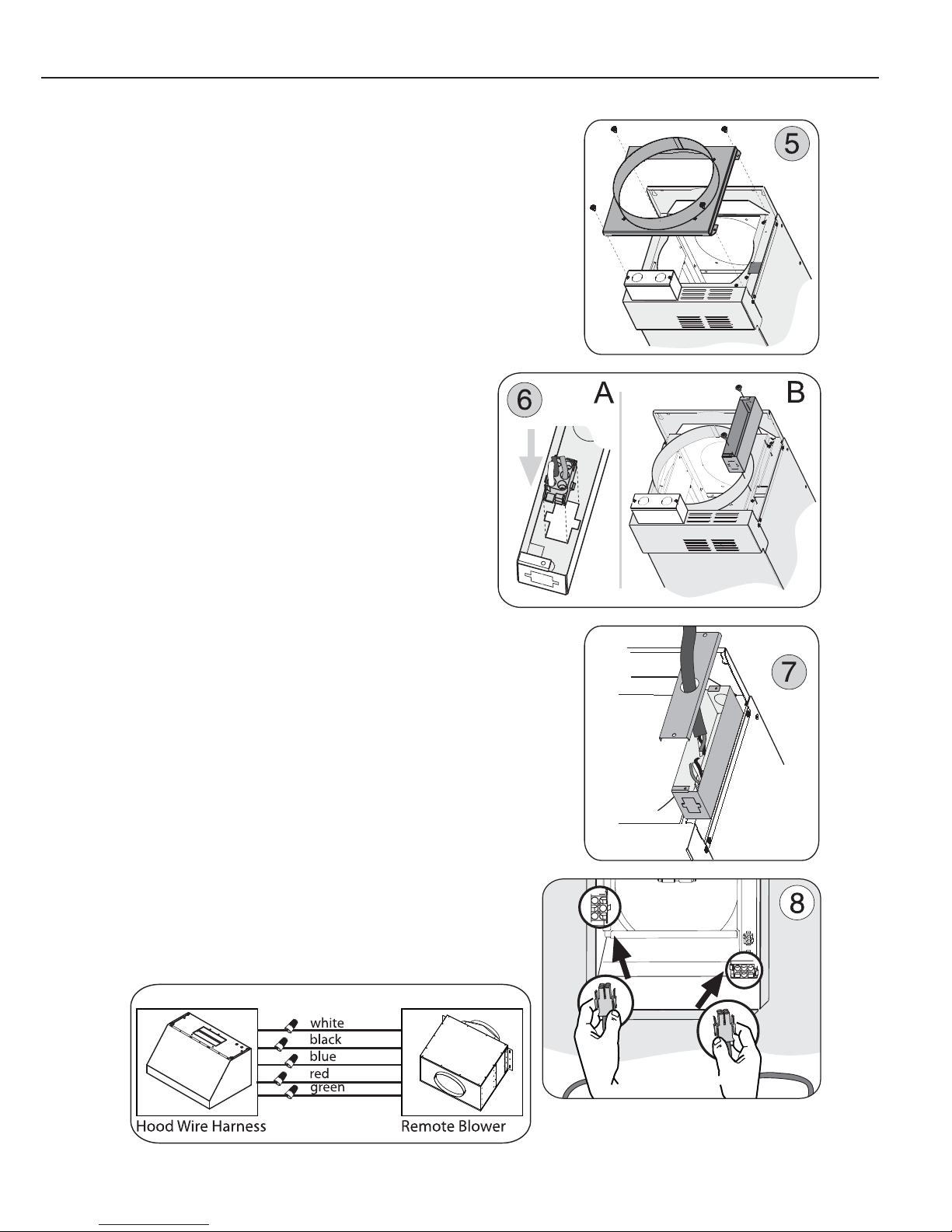

5. Secure 8” round blower collar to top of blower
housing using (4 type B) screws. See Fig. 5
Installation - External & In-Line Blower Preparation
- 18 -

6. Insert the 6 pin female molex connector into the
junction box. See Fig. 6A. Secure remote blower
junction box to top of blower housing using (2)
screws. See Fig. 6B
7. Feed remote blower wire harness through remote
blower junction box cover and Connect the wires
with those inside the junction box. See Fig. 7
Note: Carry out the power supplly con-
nection in accordance with the natio-
nal electric code, ANSI/NFPA 70-1999.
8.Secure cover to junction box using (2)
screws.
Note1: A cable lock (not included) may
be required by local codes. Please
review local codes for more informa-
tion.
9. Attach 6 pin male molex connectors to 6 pin fe-
male molex connectors inside blower housing.
See Fig. 8
Note2: Check local codes to determine minimum
wire gauge.
See manual included with external and in-line
blower for instructions on installing the
blower.
Installation - External & In-Line Blower Preparation
- 19 -

www.zephyronline.com
WARNING FIRE HAZARD
NEVER exhaust air or terminate duct work into spaces between walls, crawl
spaces, ceiling, attics or garages.
All exhaust must be ducted to the outside, unless using the recirculating op-
tion.
Use single wall rigid Metal ductwork only.
Fasten all connections with sheet metal screws and tape all joints w/ certif ed
Silver Tape or Duct Tape.
Some Ducting Options
Installation - Ducting Options
- 20 -
