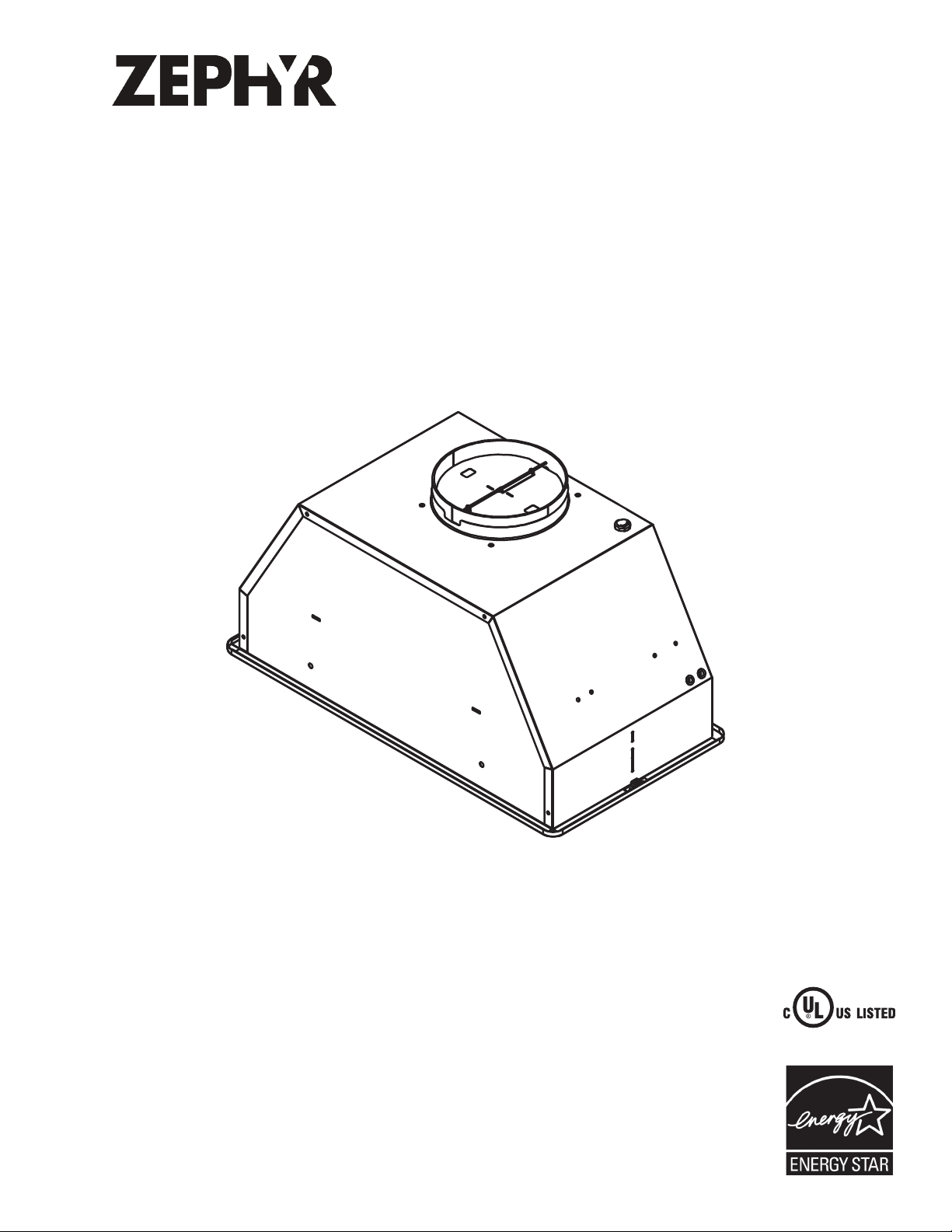

Zephyr Tornado Mini AK8400BS-ES Installation guide

WWW.ZEPHYRONLINE.COM
FEB23.0101
Tornado Mini
AK8400BS-ES
EN Use, Care, and Installation Guide
FR Guide d’utilisation, d’entretien et d’installation

2Tornado Mini Use, Care, and Installation Guide
TORNADO MINI
INSERT
CORE

3
Tornado Mini Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Contents
Page
Safety Information ............................................................................ 4-6
Types of Safety Warnings................................................................... 4
General Safety ..................................................................................4-5
Operation........................................................................................... 6
Electrical Requirements ...................................................................... 6
List of Materials................................................................................... 7
Installation Instructions.....................................................................8-13
Ducting Calculation Sheet.................................................................. 8
Mounting Height, Clearance, & Ducting ............................................. 9
Ducting Options .................................................................................10
Hood Specifications............................................................................11
Electrical Supply.................................................................................12
Grounding..........................................................................................12
Mounting the Hood.............................................................................13
Features & Controls............................................................................ 14
Slide Controls .....................................................................................14
Maintenance ....................................................................................15-16
Hood & Filter Cleaning..................................................................... 15-16
LumiLight LED ....................................................................................16
Wiring Diagram.................................................................................. 17
Troubleshooting................................................................................18-19
List of Parts & Accessories..................................................................20
Limited Warranty ............................................................................... 21
Product Registration...........................................................................22

4Tornado Mini Use, Care, and Installation Guide
TORNADO MINI
INSERT
CORE
Safety Information
Your safety and the safety of others are very important.
We have provided many important safety messages in this
manual for your appliance. Always read and obey all safety
messages.
This is the Safety Alert Symbol. This symbol alerts you to
potential hazards that can cause severe bodily injury or death.
All safety messages will follow the Safety Alert Symbol and either
the words “DANGER” “WARNING” or “CAUTION”
DANGER
Danger means that failure to heed this safety statement may
result in severe injury or death.
READ AND SAVE THESE INSTRUCTIONS
WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
a) Use this unit only in the manner intended by the
manufacturer. If you have questions, contact the manufacturer.
b) Before servicing or cleaning unit, switch power o at service
panel and lock the service disconnecting means to prevent
power from being switched on accidentally. When the service
disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.
General Safety
WARNING
Warning means that failure to heed this safety statement
may result in extensive product damage, serious personal
injury, or death.
CAUTION
Caution means that failure to heed this safety statement
may result in minor or moderate personal injury, property or
equipment damage.
WARNING
To reduce the risk of fire or electric shock, do not use this fan
with any solid-state control device.
WARNING
CAUTION
For General Ventilating Use Only. Do Not Use To Exhaust
Hazardous Or Explosive Materials And Vapors. Take care
when using cleaning agents or detergents. Suitable for use in
household cooking area.
WARNING
WARNING - TO REDUCE THE RISK OF A RANGE TOP GREASE
FIRE:
a) Never leave surface units unattended at high settings.
Boilovers cause smoking and greasy spillovers that may ignite.
Heat oils slowly on low or medium settings.
b) Always turn hood ON when cooking at high heat or
when flambeing food. (i.e. Crepes Suzette, Cherries Jubilee,
Peppercorn Beef Flambe’).
c) Clean ventilating fans frequently. Grease should not be
allowed to accumulate on fan or filter.
d) Use proper pan size. Always use cookware appropriate for
the size of the surface element.

5
Tornado Mini Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Safety Information
WARNING
READ AND SAVE THESE INSTRUCTIONS
WARNING - TO REDUCE THE RISK OF INJURY TO PERSONS
IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE
FOLLOWING:
a) SMOTHER FLAMES with a close-fitting lid, cookie sheet, or
metal tray, then turn o the burner. BE CAREFUL TO PREVENT
BURNS. If the flames do not go out immediately, EVACUATE AND
CALL THE FIRE DEPARTMENT.
b) NEVER PICK UP A FLAMING PAN – You may be burned.
c) DO NOT USE WATER, including wet dishcloths or towels – a
violent steam explosion will result.
d) Use an extinguisher ONLY if:
1) You know you have a Class ABC extinguisher, and you
already know how to operate it.
2) The fire is small and contained in the area where it
started.
3) The fire department is being called.
4) You can fight the fire with your back to an exit
Based on “Kitchen Firesafety Tips” published by NFPA.
WARNING
WARNING
TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.
CAUTION
To reduce risk of fire and to properly exhaust air outside, do
not vent exhaust air into spaces within walls, ceilings, attics,
crawl spaces, or garages.
WARNING
WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
a) Installation work and electrical wiring must be done by
qualified person(s) in accordance with all applicable codes and
standards, including fire-rated construction.
b) Sucient air is needed for proper combustion and
exhausting of gases through the flue (chimney) of fuel burning
equipment to prevent back drafting. Follow the heating
equipment manufacturer’s guideline and safety standards such
as those published by the National Fire Protection Association
(NFPA), and the American Society for Heating, Refrigeration
and Air Conditioning Engineers (ASHRAE), and the local code
authorities.
c) When cutting or drilling into wall or ceiling, do not damage
electrical wiring and other hidden utilities.
d) Ducted fans must always be vented to the outdoors.
e) If this unit is to be installed over a tub or shower, it must be
marked as appropriate for the application and be connected
to a GFCI (Ground Fault Circuit Interrupter) - protected branch
circuit.
WARNING
Prop. 65 Warning for California Residents: This product may
contain chemicals known to the State of California to cause
cancer, birth defects, or other reproductive harm.

6Tornado Mini Use, Care, and Installation Guide
TORNADO MINI
INSERT
CORE
Safety Information
Operation
►Always leave safety grilles and filters in place. Without these components, operating blowers could catch onto hair, fingers and
loose clothing.
►The manufacturer declines all responsibility in the event of failure to observe the instructions given here for installation,
maintenance and suitable use of the product. The manufacturer further declines all responsibility for injury due to negligence and
the warranty of the unit automatically expires due to improper maintenance.
NOTE: Please check www.zephyronline.com for revisions before doing any custom work.
Electrical Requirements
Important:
►Observe all governing codes and ordinances.
►It is the customer’s responsibility to be aware of these below:
►To contact a qualified electrical installer.
►To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 latest
edition* or CSA standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No.0-M91 - latest edition** and all local codes
and ordinances.
►If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path
is adequate.
►Do not ground to a gas pipe.
►Check with a qualified electrician if you are not sure the range hood is properly grounded.
►Do not have a fuse in the neutral or ground circuit.
►This appliance requires a 120V 60Hz electrical supply and connected to an individual properly grounded branch circuit protected
by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire with ground. Please also refer to Electrical Diagram
on product.
►A cable locking connector (not supplied) might also be required by local codes. Check with local requirements, purchase and
install appropriate connector if necessary.
* National Fire Protection Association Batterymarch Park, Quincy, Massachusetts 02269
** CSA International 8501 East Pleasant Valley Road, Cleveland, Ohio 44131-5575
READ AND SAVE THESE INSTRUCTIONS

7
Tornado Mini Use, Care, and Installation Guide
ZEPHYRONLINE.COM

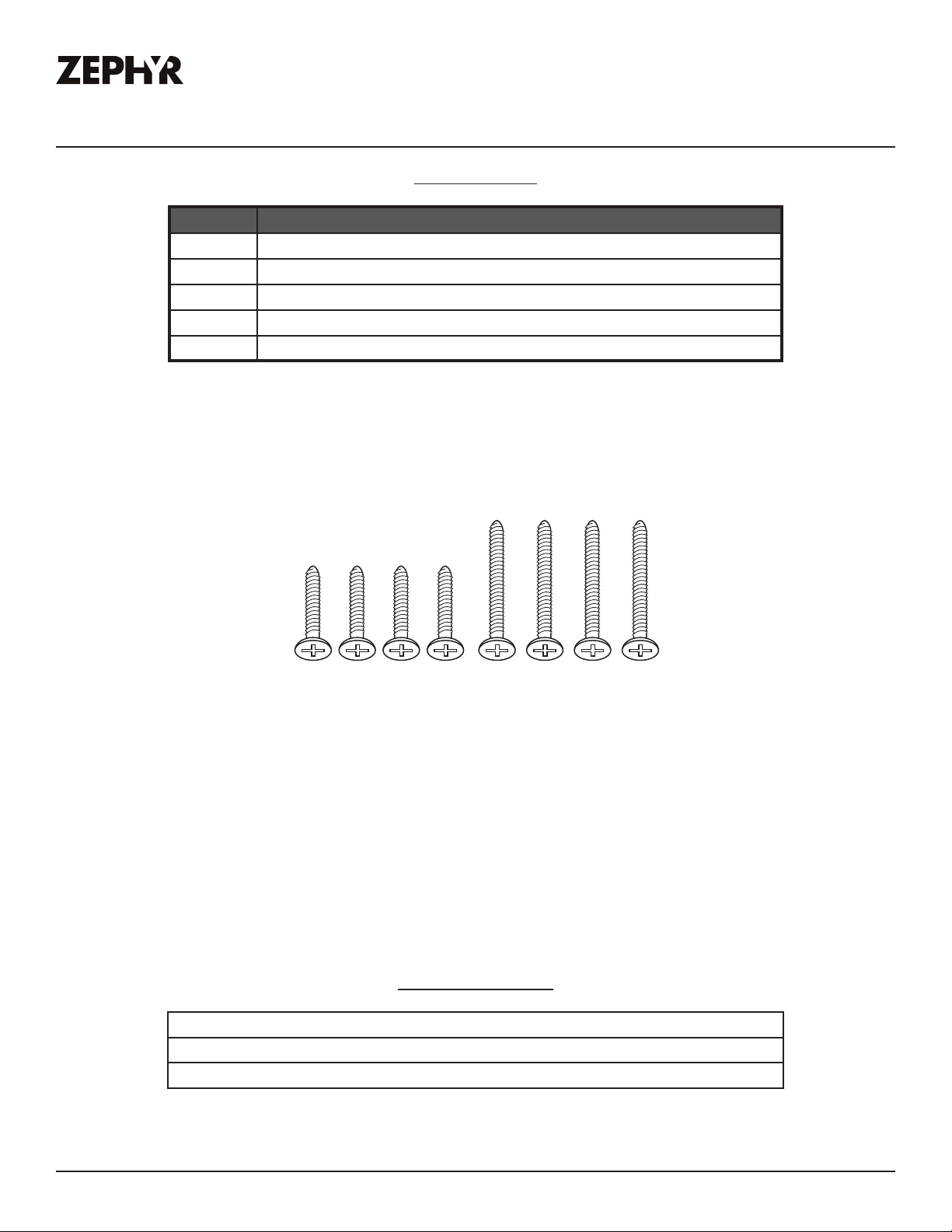

List of Materials
Parts Not Supplied
Ducting, conduit and all installation tools
Cable locking connector (if required by local codes)
Stainless steel liner
Parts Supplied
Quantity Part
1 Power pack hood
1 Aluminum mesh filter
2 LumiLight LED, 7W (pre-installed)
1 Single blower motor (pre-installed)
1 Hardware package
#6 x 1” (4)
#6 x 1-1/2” (4)

8Tornado Mini Use, Care, and Installation Guide
TORNADO MINI
INSERT
CORE

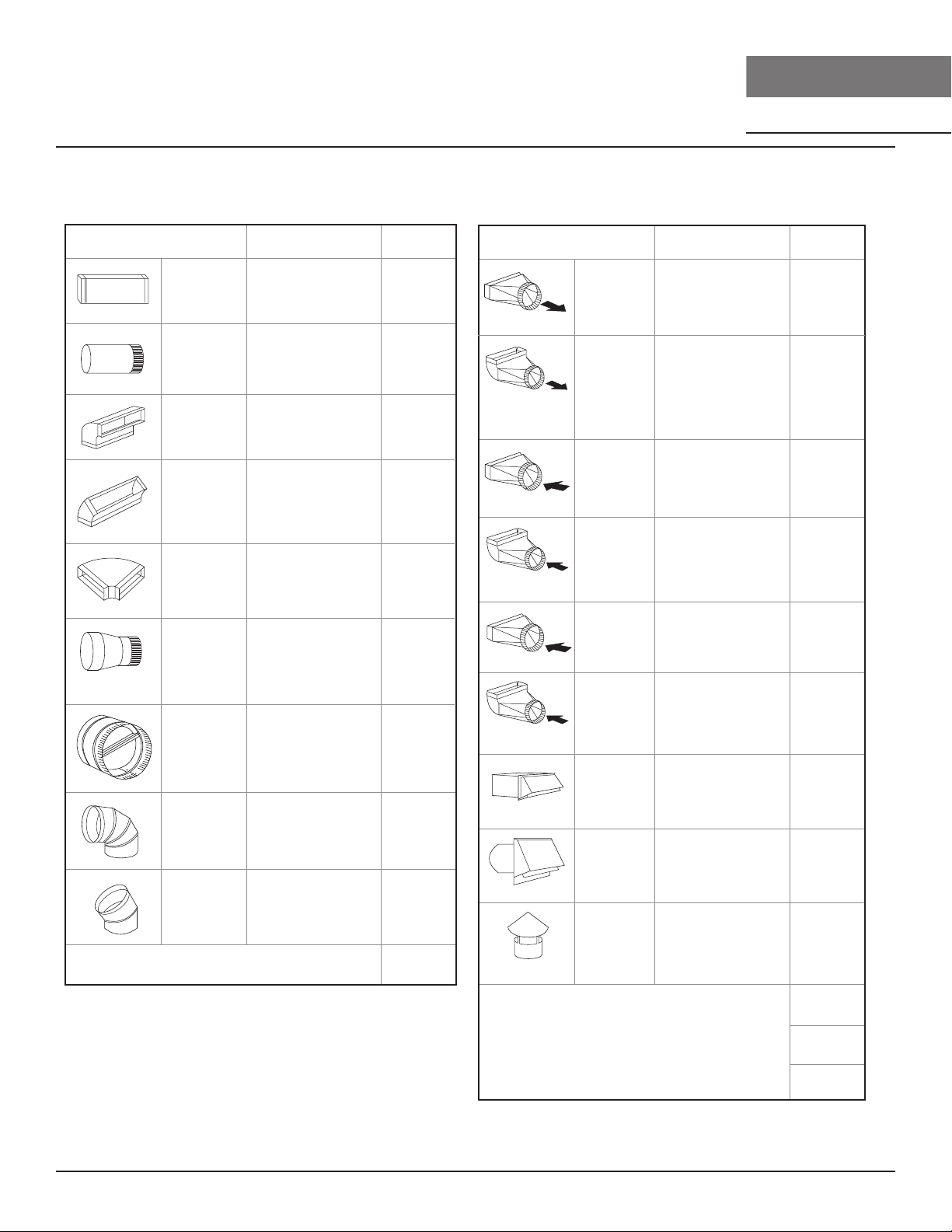

Installation Instructions
Duct pieces To tal
Equivalent number
length x used =
3- 1/ 4” x 10”
Rect.,
straight
1 Ft. x ( ) =Ft.
3- 1/ 4” x 10”
Rect. to
6” round
transition
5 Ft. x ( ) =Ft.
3- 1/ 4” x 10”
Rect. to
6” round
transition
900 elbow
20 Ft. x ( ) =Ft.
6”, 7”, 8”, 10”
Round,
900
15 Ft. x ( ) =Ft.
6”, 7”, 8”, 10”
Round,
450
9 Ft. x ( ) =Ft.
Ft.
6”, 7”, 8”, 10”
Round,
straight
1 Ft. x ( ) =Ft.
Subtotal column1 =
Duct pieces To tal
Equivalent number
length x used =
6”, 7”, 8”, 10”
Round, wall
cap with
damper
30 Ft. x ( ) =Ft.
Ft.
Ft.
Ft.
6”, 7”, 8”, 10”
Round
roof cap
30 Ft. x ( ) =Ft.
Subtotal column2 =
Subtotal column1 =
Total ductwork =
Maximum Duct Length: For satisfactory air movement,
the total duct length
should not exceed 150 equivalent feet.
6” round to
3- 1/ 4” x 10”
rect.
transition
1 Ft. x ( ) =Ft.
6” round to
3- 1/ 4” x 10”
rect.
transition
900 elbow
16 Ft. x ( ) =Ft.
7” round to
3 1/ 4” x 10”
rect.
transition
8 Ft. x ( ) =Ft.
7” round to
3- 1/ 4” x 10”
rect.
transition
900 elbow
23 Ft. x ( ) =Ft.
elbow
elbow
7” to 6” or
8” to 7” Round
tapered
reducer
25 Ft. x ( ) =Ft.
3- 1/ 4” x 10”
Rect. 900
elbow
15 Ft. x ( ) =Ft.
3- 1/ 4” x 10”
Rect. 450
elbow
9 Ft. x ( ) =Ft.
3- 1/ 4” x 10”
Rect. 900
flat elbow
24 Ft. x ( ) =Ft.
3- 1/ 4” x 10”
Rect.
wall cap
with damper
30 Ft. x ( ) =Ft.
Ft. x ( ) =Ft.
15
6”, 7“, 8”
Round
in-line
damper
Ducting Calculation Sheet

9
Tornado Mini Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Installation Instructions

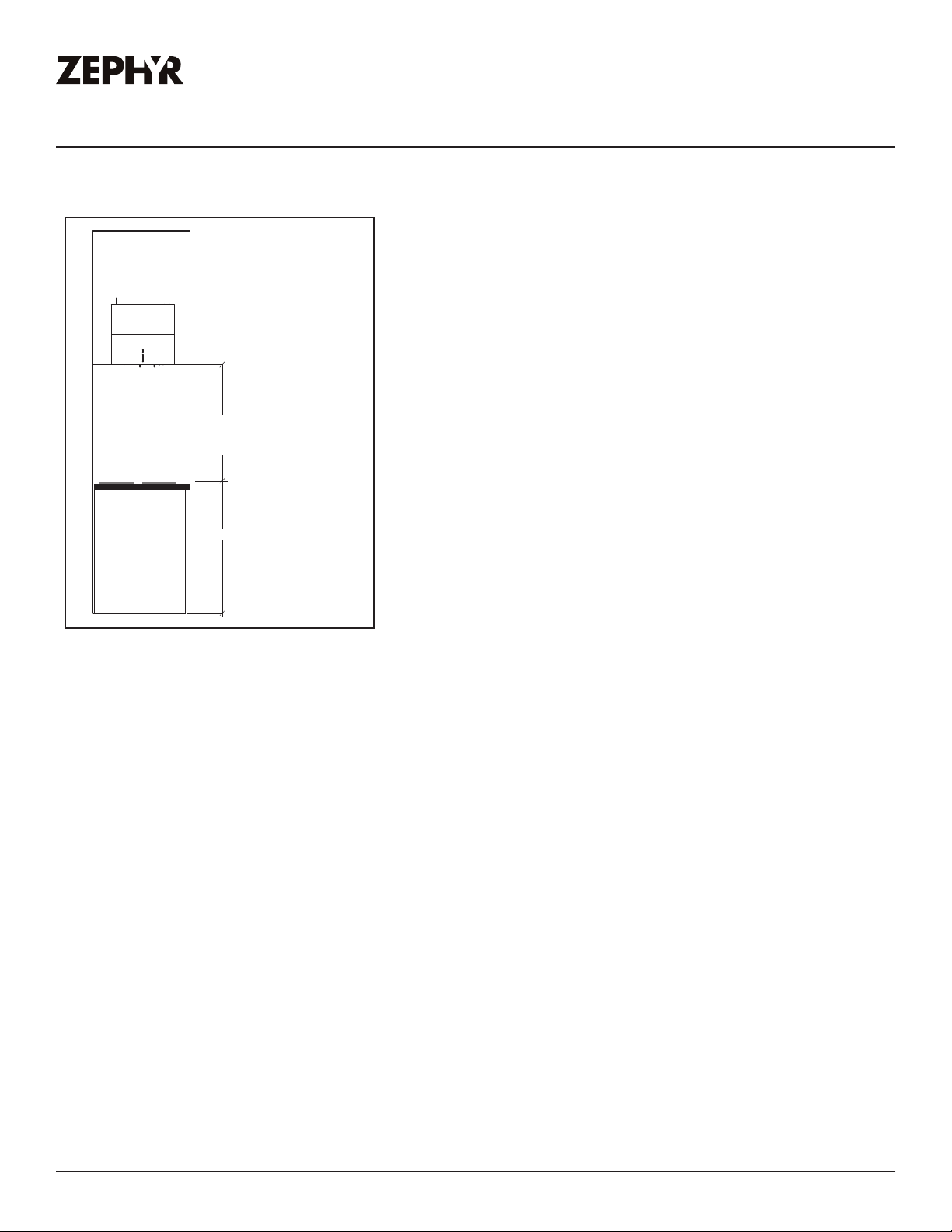

Mounting Height, Clearance, & Ducting
36"
Min 20” - Max 36” (electric cooktops)
Min 24” - Max 36” (gas cooktops)
A minimum of 6” round or 3-1/4” x 10” rectangular duct must
be used to maintain maximum air flow eciency. Ducting
has a strong eect on the air flow, noise, and energy use of
the fan. Use the shortest, straightest duct routing possible for
best performance, and avoid installing the fan with smaller
ducts than recommended. Insulation around the ducts can
reduce energy loss and inhibit mold growth. Fans installed
with existing ducts may not achieve their rated air flow.
Always use rigid type metal ducts only. Flexible ducts could
restrict air flow by up to 50%.
Also use the ducting calculation sheet (on page 8) to
compute total available duct run when using elbows,
transitions and caps.
ALWAYS, when possible, reduce the number or transitions
and turns. If long duct run is required, increase duct size.
If turns or transitions are required; install as far away from
hood duct output and as far apart, between the two as
possible.
Minimum mount height between range top to hood bottom should be no less than 20” for electric
cook tops and 24” for gas cook tops.
Maximum mount height should be no higher than 36”.
It is important to install the hood at the proper mounting height. Hoods mounted too low could result
in heat damage and fire hazard; while hoods mounted too high will be hard to reach and will lose its
performance and eciency.
If available, also refer range manufacturer’s height clearance requirements and recommended hood
mounting height above range. Always check your local codes for any dierences.
For shipment and installation damages:
►Please fully inspect unit for damage before installation.
►If the unit is damaged in shipment, return the unit to the store in which it was bought for repair or
replacement.
►If the unit is damaged by the customer, repair or replacement is the responsibility of the customer.
►If the unit is damaged by the installer (if other than the customer), repair of replacement must be
made by arrangement between customer and installer.

10 Tornado Mini Use, Care, and Installation Guide
TORNADO MINI
INSERT
CORE
Installation Instructions

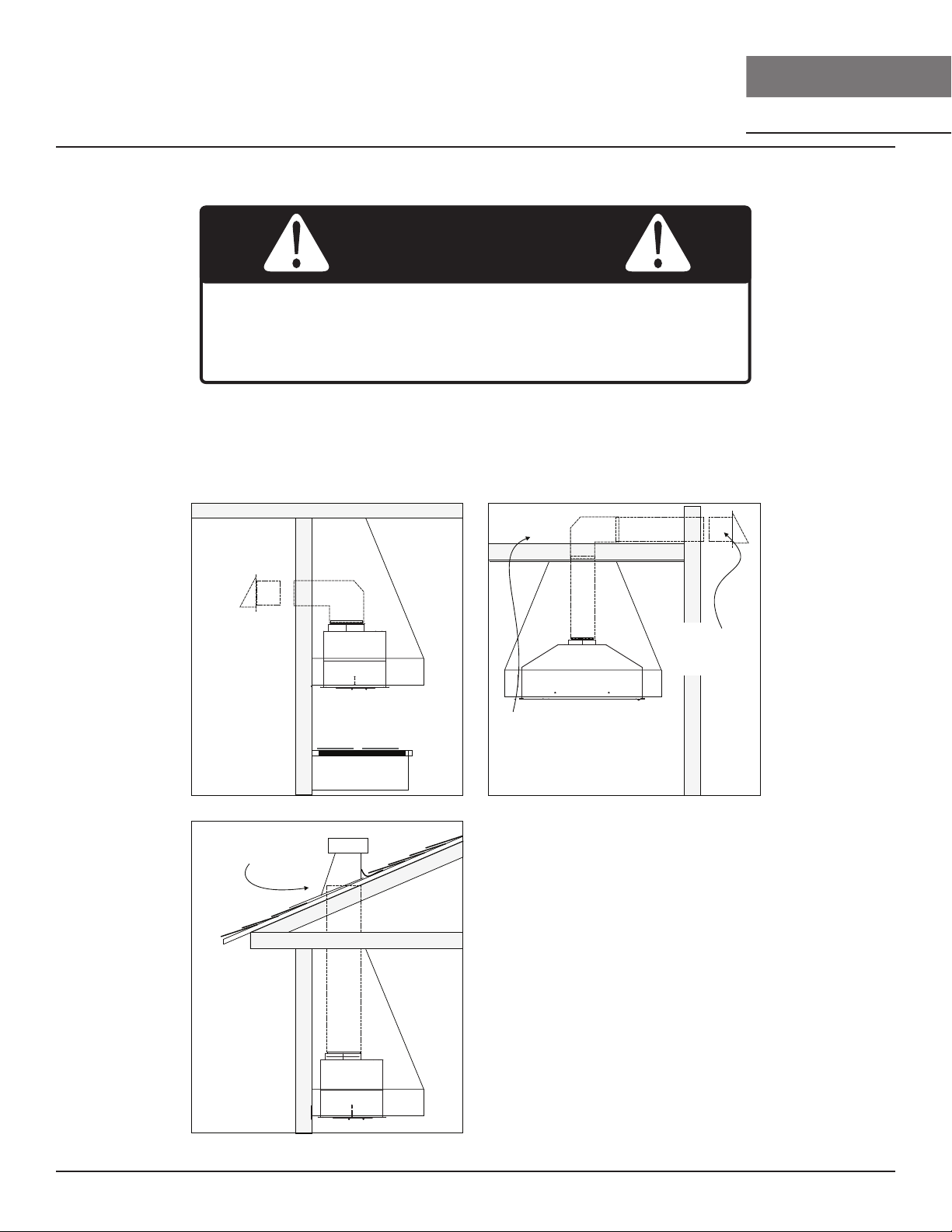

Ducting Options
►Use single wall rigid metal ductwork only.
►Fasten all connections with sheet metal screws and tape all joints w/ certified Silver Tape or Duct
Tape.
Fire Hazard: NEVER exhaust air or terminate ductwork into
spaces between walls, crawl spaces, ceilings, attics, or garages.
All exhaust must be ducted to the outside, unless using the
recirculating option.
WARNING
side wall cap
w/ gravity
damper
Sot or crawl space
Roof Pitch w/
Flashing & Cap
side wall cap
w/ gravity
damper

11
Tornado Mini Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Installation Instructions

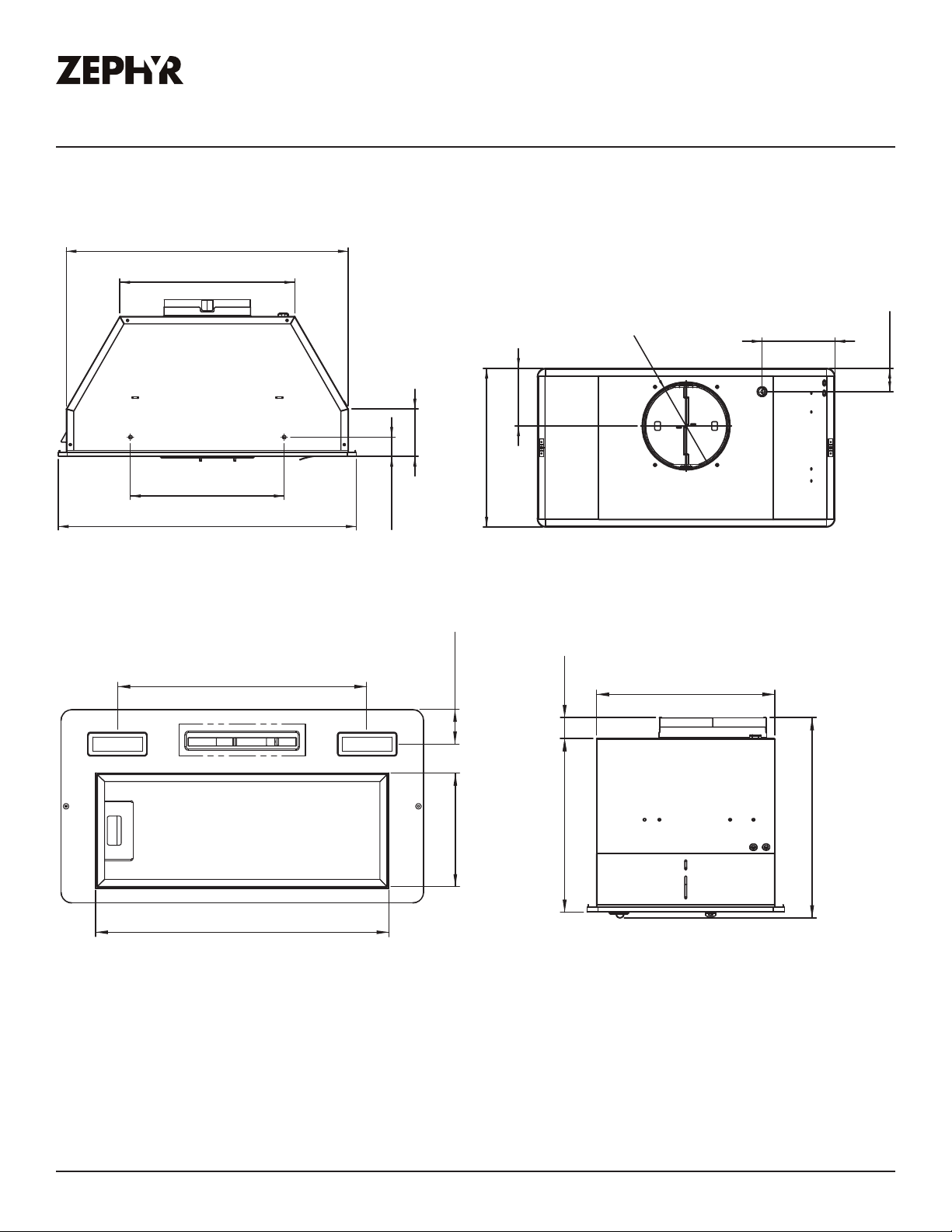

Hood Specications
Top
Side
20-9/16”
10-5/8”
3-1/4”
1-5/16”
19-1/2”
12-1/8”
11”
3-7/16”
6”
5-1/16”
1-5/8”
9-15/16”
1-3/16”9-11/16”
10-3/16”
Front
14-3/16”
1-15/16”
6-7/16”
16-9/16”
Bottom

12 Tornado Mini Use, Care, and Installation Guide
TORNADO MINI
INSERT
CORE
Installation Instructions
Electrical Supply
Electrical wiring must be done by qualified person(s) in
accordance with all applicable codes and standards. Turn o
electrical power at service entrance before wiring.
WARNING
For personal safety, remove house fuse or open circuit breaker before beginning installation. Do not
use extension cord or adapter plug with this appliance.
Follow national electrical codes or prevailing local codes and ordinances.
This appliance requires a 120V 60Hz electrical supply, and connected to an individual, properly
grounded branch circuit, protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring
must be 2 wire w/ ground. Please also refer to the Electrical Diagram labeled on product.
Grounding

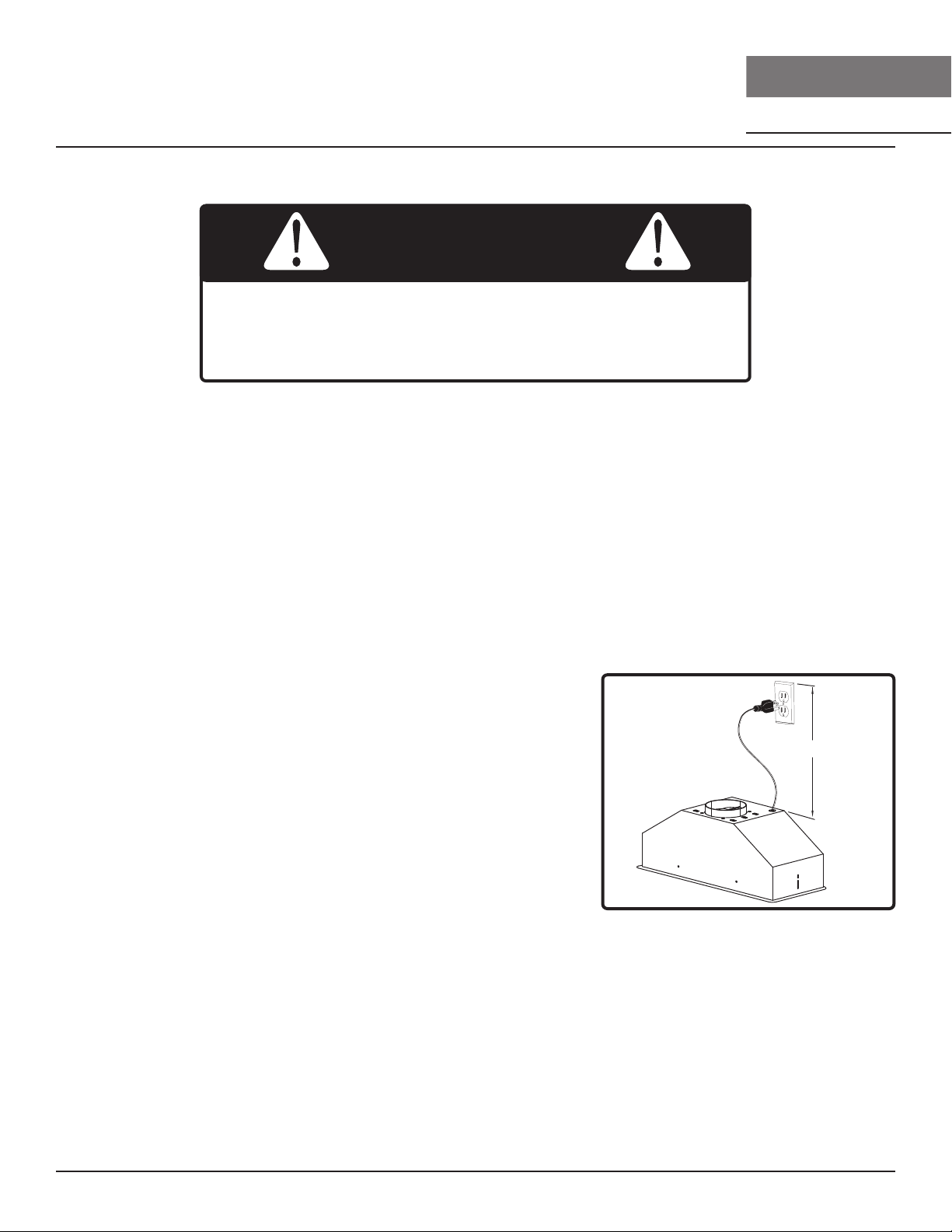

FIG. A
28” Max.
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of an electrical
short circuit, grounding reduces the risk of electric shock by
providing an escape wire for the electric current. This appliance
is equipped with a cord having a grounding wire with a
grounding plug. The plug must be plugged into an outlet that is
properly installed and grounded.
WARNING - Improper grounding can result in a risk of electric
shock.
Consult a qualified electrician if the grounding instructions are
not completely understood, or if doubt exists as to whether the appliance is properly grounded.
Do not use an extension cord. If the power supply cord is too short, have a qualified electrician install
an outlet near the appliance.
Position the electrical outlet within the space covered by or above the decorative canopy housing as
space permits and as to not interfere with the round duct. Make sure the outlet is no further than 28”
from the top of the hood body.

13
Tornado Mini Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Installation Instructions
Mounting the Hood
At least two installers are required due to the weight
and size of the hood.
CAUTION
1. Install optional AK084xAS Stainless Steel Liner.
Review manual included with liner for more details.
2. If no liner is used, cut out an opening in bottom of
the cabinet by following the dimensions in FIG. B.
3. Remove aluminum mesh filter.
4. Lift insert hood into opening and ensure locking clip
has locked into position. (Locking clip is located on
left side of insert hood. FIG. C.
5. Fasten (2) #6 screws into the rear long side of insert
hood. If a liner is used, the screws will go through
the insert hood mounting holes, then the liner and
the wood base. NOTE: Wood blocking may need to
be added to cabinet base if additional support is
needed. See FIG. D and FIG. E.
6. Remove 2 screws from insert hood face plate. The
face plate will drop down and hang by internal
chains. Access to front long side of insert hood is
now available. Fasten (2) #6 screws into the front
long side of insert hood.
7. Re-install insert hood face plate by (4) previously
removed screws.
8. Install duct work and seal all ducting joints and
connections with certified aluminum duct tape.
Install electrical.
9. Remove all packing materials before using insert
hood. Switch power on and check for leaks around
duct tape. Install aluminum mesh filter.
FIG. B
Ductwork
wood base
wood base
2” minimum
secure (2) #6 screws to mounting
holes on each long side of Power Pack
metal or other non
combustible material
FIG. B
FIG. C
FIG. D
FIG. E
locking clip
mounting holes
Front View
Right Side View
Ductwork
cabinet bottom cut-out size
19-3/4”
10-1/4”
Power Pack
Stainless Steel Liner
FIG. C
Ductwork
wood base
wood base
2” minimum
secure (2) #6 screws to mounting
holes on each long side of Power Pack
metal or other non
combustible material
FIG. B
FIG. C
FIG. D
FIG. E
locking clip
mounting holes
Front View
Right Side View
Ductwork
cabinet bottom cut-out size
19-3/4”
10-1/4”
Power Pack
Stainless Steel Liner
FIG. D
Ductwork
wood base
wood base
2” minimum
secure (2) #6 screws to mounting
holes on each long side of Power Pack
metal or other non
combustible material
FIG. B
FIG. C
FIG. D
FIG. E
locking clip
mounting holes
Front View
Right Side View
Ductwork
cabinet bottom cut-out size
19-3/4”
10-1/4”
Power Pack
Stainless Steel Liner
FIG. E
Ductwork
wood base
wood base
2” minimum
secure (2) #6 screws to mounting
holes on each long side of Power Pack
metal or other non
combustible material
FIG. B
FIG. C
FIG. D
FIG. E
locking clip
mounting holes
Front View
Right Side View
Ductwork
cabinet bottom cut-out size
19-3/4”
10-1/4”
Power Pack
Stainless Steel Liner

14 Tornado Mini Use, Care, and Installation Guide
TORNADO MINI
INSERT
CORE
Features & Controls

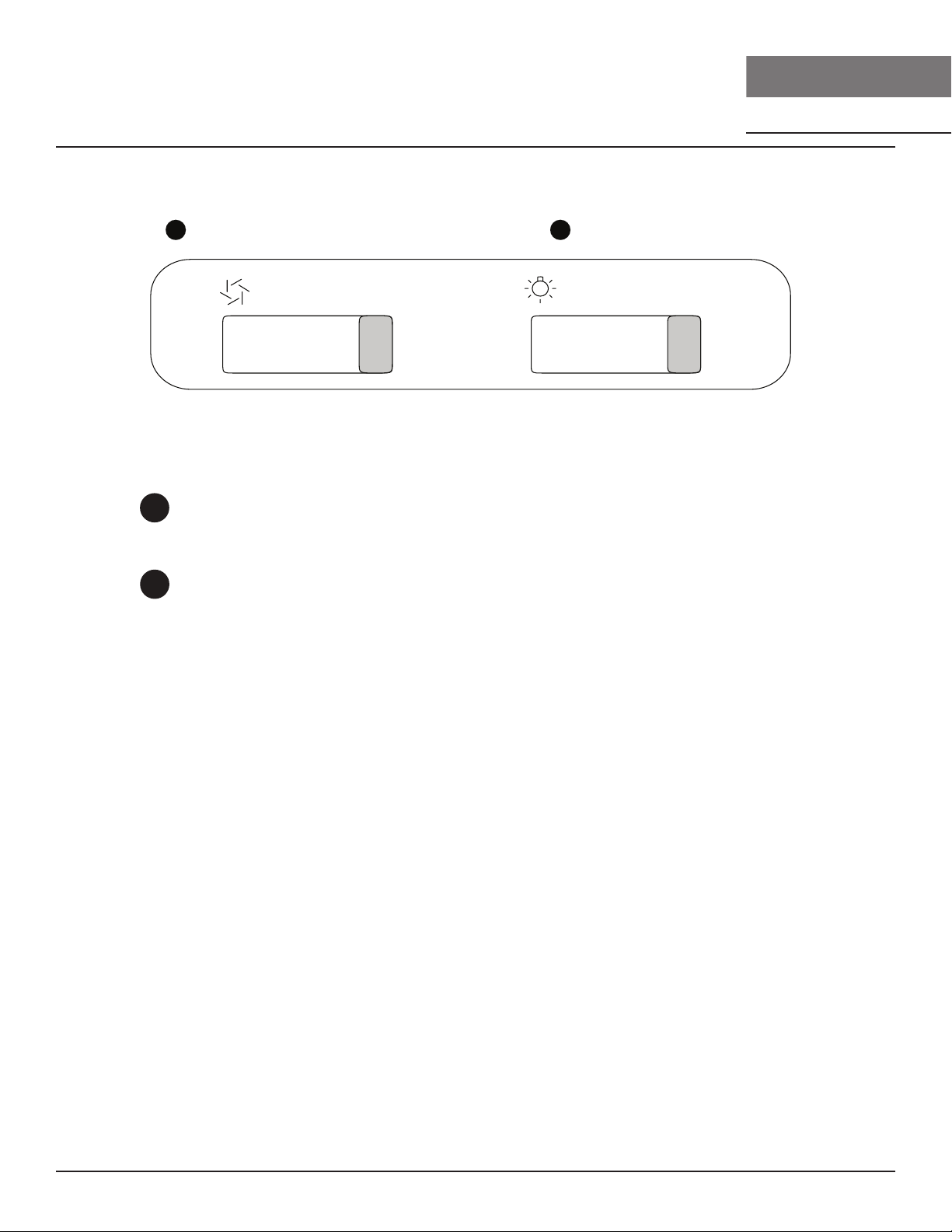

Slide Controls
17
0 I II III
Blower On/O Speed Selection
1Lights O/Dim/Bright
2
0 I II
BLOWER ON/OFF/SPEED SELECTION
0 is o, I is low speed, II is medium speed and III is high speed.
LIGHTS OFF/DIM/BRIGHT
0 is o, I is dim, and II is bright.
1
2

15
Tornado Mini Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Hood & Filter Cleaning
Surface Maintenance
►Do not use corrosive detergents, abrasive detergents or oven cleaners.
►Do not use any product containing chlorine bleach or any product containing chloride.
►Do not use steel wool or abrasive scrubbing pads which will scratch and damage surface.
Cleaning Stainless Steel
Clean periodically with warm soapy water and clean cotton cloth or micro fiber cloth. Always rub
in the direction of the stainless steel grain. To remove heavier grease build up use a liquid degreaser
detergent.
After cleaning use a non-abrasive stainless steel polish/cleaners, to polish and bu out the stainless
luster and grain. Always scrub lightly, with clean cotton cloth or micro fiber cloth and bu in the
direction of the stainless steel grain.
Aluminum Mesh Filters
The aluminum mesh filters installed by the factory are intended to filter out residue and grease from
cooking. They need not be replaced on a regular basis but are required to be kept clean.
Remove and clean by hand or in dishwasher using a non-phosphate detergent. Discoloration of the
filter may occur if using phosphate detergents, or as a result of local water conditions - but this will
not aect filter performance. This discoloration is not covered by the warranty. Spray degreasing
detergent and leave to soak if heavily soiled.
Dry filters and re-install before using hood.
Maintenance

16 Tornado Mini Use, Care, and Installation Guide
TORNADO MINI
INSERT
CORE
Maintenance

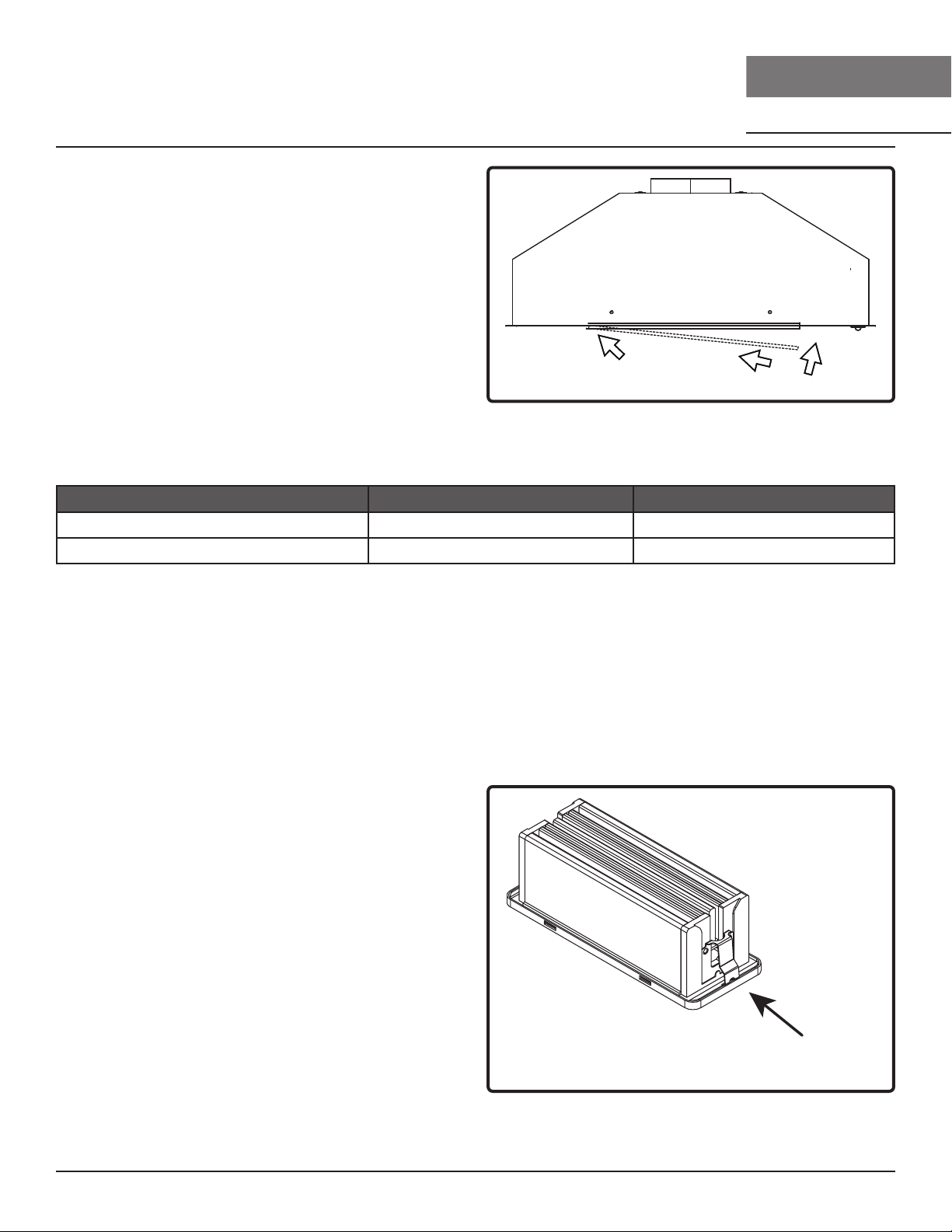

Installing Aluminum Mesh Filters (FIG. G):
1. Place back of filter into channel on left side of
Power Pack.
2. Pull filter handle towards left side of Power
Pack.
3. Pivot filter up and lock into place.
Replacing Aluminum Mesh Filters
Hood Model Part Number Qty. to Order
AK8400BS 50200054 1
AK8400BS290 50200054 1
To order parts, visit us online at http://store.zephyronline.com.
LumiLight LED
In the unlikely event that your LumiLight LED fails, please contact Zephyr to order replacement parts.
See the list of parts and accessories page for part numbers and contact information.
Push the clip
FIG. H
LED Removal (FIG. H):
1. Remove aluminum mesh filter.
2. Remove bottom panel by two screws.
3. Disconnect LED light quick connector.
4. Push in the two side clips on the ends of the
LED light.
5. Push LED light through the light panel opening.
3
2
1
FIG. G

17
Tornado Mini Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Wiring Diagram
AK8400BS-ES
Wiring Diagram
Volts Hz Max Amps
120 60 1.0
REMARKS: CONDENSER 4uF 250V AC FIT AC120V 60Hz
B/W
B/W B/W
MOTOR
LED
LED
BODY
WHITE
YELLOW
BLACK
RED
RED
WHITE
WHITE BLUE
BROWN
GREY
BLACK
WHITE
GREEN

18 Tornado Mini Use, Care, and Installation Guide
TORNADO MINI
INSERT
CORE
Troubleshooting
Possible Problem Possible Cause Solutions
After installation, the
unit doesn’t work.
The power source is not turned
ON.
Make sure the circuit breaker and the
unit’s power is ON.
The power line and the cable
locking connector is not
connecting properly.
Check the power connection with the
unit is connected properly.
The switch board or control board
wirings are disconnected.
Make sure the wirings at the switch
board and control board are connected
properly.
The switch board or control board
is defective.
Change the switch board or control
board.
The wires on control board are
loose.
Make sure the wires on the control board
are connected properly.
Light works, but
blower is not turning.
The thermally protected system
detects if the blower is too hot
to operate and shuts the blower
down.
The blower will function properly after
the thermally protected system cool
down.
Damaged capacitor. Change the capacitor.
The blower is defective, possibly
seized.
Change the blower.
The unit is vibrating. The blower is not secured in place. Tighten the blower in place.
Damaged blower wheel. Replace the blower.
The hood is not secured in place. Check the installation of the hood.
The unit is whistling. A filter is not in the correct
position.
Adjust the filters until the whistling stops.
The duct pipe connections are not
sealed or connected properly.
Check the duct pipe connections to be
sure all connections are sealed properly.
The blower is working,
but the LumiLight
LEDs are not.
The LumiLight LED connector is
disconnected.
Connect the LumiLight LED connector.
Defective LumiLight LED. Change the LumiLight LED.
The switch board or control board
is defective.
Change the switch board or control
board.
LumiLight LEDs flicker
when changing speed
levels.
N/A This is a normal operation and the hood
is working correctly.

19
Tornado Mini Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Troubleshooting
The hood is not
venting out properly.
Using the wrong size of ducting. Change the ducting to the correct size.
The hood might be hanging to
high from the cook top.
Adjust the distance between the cook
top and the bottom of the hood within
20” (electric cook tops) or 24” (gas cook
tops) and 36” range.
The wind from the opened
windows or opened doors in the
surrounding area are aecting
the ventilation of the hood.
Close all the windows and doors to
eliminate the outside wind flow.
Blockage in the duct opening or
ductwork.
Remove all the blocking from the duct
work or duct opening.
Filter is vibrating. Filter is loose. Adjust or change the filter.
Spring clip is broken on the filter. Change the spring clip.
Possible Problem Possible Cause Solutions

20 Tornado Mini Use, Care, and Installation Guide
TORNADO MINI
INSERT
CORE
List of Parts & Accessories
Description Part Number
Replacement Parts
LumiLight LED, 7W Z0B0065
Aluminum Mesh Filter 50200054
Optional Accessories
Replacement Charcoal Filter Z0F-C084
Liner, 30” AK0840AS
Liner, 36” AK0846AS
To order parts, visit us online at http://store.zephyronline.com.
