Zephyr HORIZON DHZ-M90AMWX User manual

www.zephyronline.com
HORIZON
DHZ-M90AMWX
DHZ-M90AMBX
RANGE HOOD - Installation instructions
ENGLISH..........................3
FRANÇAIS.......................29

Table of Contents
SAFETY INSTRUCTIONS..................................................................................................pag. 4
LIST OF MATERIALS...........................................................................................................pag. 8
DUCTING CALCULATION SHEETS...............................................................................pag. 9
HOOD SPECIFICATION..................................................................................................pag. 10
INSTALLATION
- INTERNAL BLOWER.....................................................................................pag. 11
- EXTERNAL & IN-LINE BLOWER PREPARATION...............................pag. 14
- OPTIONAL RECIRCULATION KIT...........................................................pag. 17
- DUCTING OPTIONS.....................................................................................pag. 18
- MOUNTING THE RANGE HOOD.............................................................pag. 19
- POWER SUPPLY CONNECTION..............................................................pag. 21
TOUCH CONTROL............................................................................................................pag. 22
OPTIONAL REMOTE CONTROL..................................................................................pag. 23
MAINTENANCE ................................................................................................................pag. 24
WIRING DIAGRAMS........................................................................................................pag. 25
LIST OF PARTS AND ACCESSORIES ........................................................................pag. 27
WARRANTY .......................................................................................................................pag. 28
- 3 -

IMPORTANT SAFETY INSTRUCTIONS
FOR RESIDENTIAL USE ONLY
READ AND SAVE THESE INSTRUCTIONS
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING.
IMPORTANT: Save these Instructions for the Local Electrical Inspectors use.
INSTALLER: Please leave these Instructions with this unit for the owner.
OWNER: Please retain these instructions for future reference.
Take care when using cleaning agents or detergents.
Suitable for use in household cooking area.
WARNING - To reduce the risk of fire or electric shock, do not use this fan with
any Solid-State Speed Control Device.
CAUTION - To reduce risk of fire and to properly exhaust air, be sure to duct
air outside – Do not vent exhaust air into spaces within walls or ceilings or into
attics, crawl spaces, or garages.
CAUTION - For general ventilating use only. Do not use to exhaust hazardous
or explosive materials and vapors.
CAUTION -To avoid motor bearing damage and noisy and/or unbalanced im-
pellers, keep drywall spray, construction dust, etc. off power unit.
CAUTION - Please read specification label on product for further information
and requirements.
WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO
PERSONS, OBSERVE THE FOLLOWING:
A. Use this unit only in the manner intended by the manufacturer. If you have
questions, contact the manufacturer.
B. Before servicing or cleaning unit, switch power off at service panel and lock
the service disconnecting means to prevent power from being switched on
accidentally. When the service disconnecting means cannot be locked, se-
curely fasten a prominent warning device, such as a tag, to the service panel.
WARNING - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
A. Never leave surface units unattended at high settings. Boilovers cause smok-
Safety instructions 1/4
- 4 -

ing and greasy spillovers that may ignite. Heat oils slowly on low or medium
settings.
B. Always turn hood ON when cooking at high heat or when flambeing foods
( i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambè ).
C. Clean ventilating fans frequently. Grease should not be allowed to accumulate
on fan or filter.
D. Use proper pan size. Always use cookware appropriate for the size of the
surface element.
E. Keep fan, filters and grease laden surface clean.
F. Use high range setting on range only when necessary. Heat oil slowly on low
to medium setting.
G. Don’ t leave range unattended when cooking.
H. Always use cookware and utensils appropriate for the type and amount off
food being prepared.
WARNING – TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A
RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWINGa:
A. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then
turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go
out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
B. NEVER PICK UP A FLAMING PAN – You may be burned.
C. DO NOT USE WATER, including wet dishcloths or towels – a violent steam ex-
plosion will result.
D. Use an extinguisher ONLY if:
1. You know you have a Class ABC extinguisher, and you already know how to
operate it.
2. The fire is small and contained in the area where it started.
3. The fire department is being called.
4. You can fight the fire with your back to an exit.
aBased on “kitchen firesafety tips” published by NFPA
Proper maintenance of the Range Hood will assure proper performance of
the unit.
INSTALLATION INSTRUCTIONS
WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO
PERSONS, OBSERVE THE FOLLOWING:
A. Installation work and electrical wiring must be done by qualified person(s) in
accordance with all applicable codes and standards, including fire-rated con-
struction.
Safety instructions 2/4
- 5 -

B. Sufficientairisneededfor proper combustionandexhaustingofgasesthrough
the flue (chimney) of fuel burning equipment to prevent back drafting. Follow
the heating equipment manufacturer’s guideline and safety standards such as
those published by the National Fire Protection Association (NFPA), and the
American Society for Heating, Refrigeration and Air Conditioning Engineers
(ASHRAE), and the local code authorities.
C. When cutting or drilling into wall or ceiling, do not damage electrical wir-
ing and other hidden utilities.
D. Ducted fans must always be vented to the outdoors.
E. This unit must be grounded.
WARNING - TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.
WARNING - UNDER CERTAIN CIRCUMSTANCES DOMESTIC APPLIANCES MAY
BE DANGEROUS.
A. Do not check filters with hood working.
B. Do not touch the lamps after a prolonged use of the appliance.
C. No food must be cooked flambè underneath the hood.
D. The use of an unprotected flame is dangerous for the filters and could cause
fires.
E. Watch constantly the fried food in order to avoid the cooking oil flares up.
F. Before performing any mainteinance operation, disconnect the hood from
the electrical service.
The manufacturers will not to accept any responsibility for eventual damages,
because of failure to observe the above instructions.
Safety instructions 3/4
Electrical Requirements
Important:
- Observe all governing codes and ordinances.
- It is the customer’s responsibility to be aware of these below:
- To contact a qualified electrical installer.
- To assure that the electrical installation is adequate and in conformance with
National Electrical Code, ANSI/NFPA 70 latest edition* or CSA standards C22.1-
94, Canadian Electrical Code, Part 1 and C22.2 No.0-M91 - latest edition** and
all local codes and ordinances.
- If codes permit and a separate ground wire is used, it is recommended that a
qualified electrician determine that the ground path is adequate.
- Do not ground to a gas pipe.
- Check with a qualified electrician if you are not sure the range hood is pro-
- 6 -

perly grounded.
- Do not have a fuse in the neutral or ground circuit.
- This appliance requires a 120V 60Hz electrical supply and connected to an
individual properly grounded branch circuit protected by a 15 or 20 ampere
circuit breaker or time delay fuse. Wiring must be 2 wire with ground. Please
also refer to Electrical Diagram on product.
- A cable locking connector (not supplied) might also be required by local co-
des. Check with local requirements, purchase and install appropriate connector
if necessary.
* National Fire Protection Association Batterymarch Park, Quincy, Massachusetts
02269
** CSA International 8501 East Pleasant Valley Road, Cleveland, Ohio 44131-5575
Federal Communication Commission Interface Statement
- This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation.
- This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that in-
terference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct
the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
WARNING Prop. 65 Warning for California Residents: This product may
contain chemicals known to the State of California to cause cancer, birth defects,
or other reproductive harm.
Safety instructions 4/4
- 7 -

List of Materials
Control
Glass
Glass
LED Light
Hybrid Baffle
Filters
Top Cover
Box marked
'120 VAC input'
Remote Blower
Wiring Harness Remote Blower
Wiring Extension
Remote Blower
Box
Electrical
System Box
Remote Blower
Collar with Damper
Hardware
- 8 -

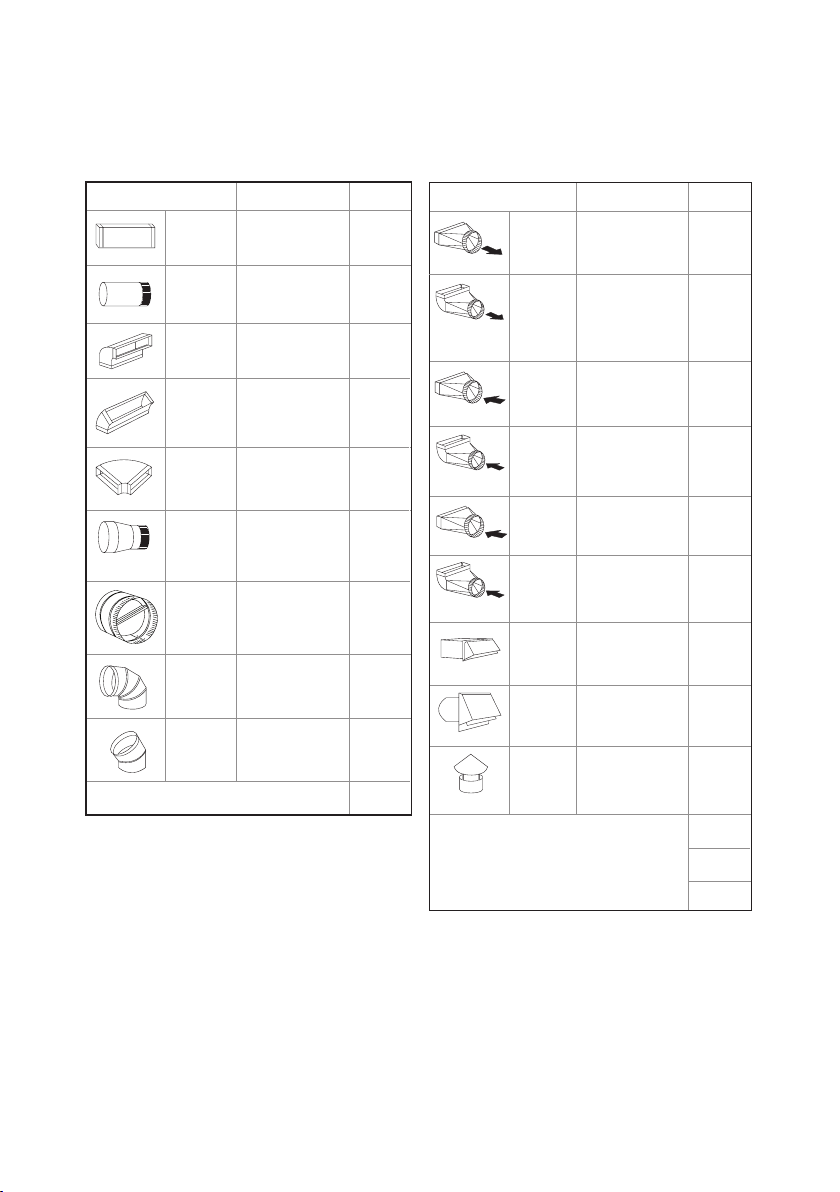

Ducting Calculation Sheet
Duct pieces To tal
Equivalent number
length x used =
3-1/ 4” x 10”
Rect.,
straight
1 Ft. x ( ) = Ft.
3-1/ 4” x 10”
Rect.to
6” round
transition
5 Ft. x ( ) = Ft.
3-1/ 4” x 10”
Rect.to
6” round
transition
900 elbow
20 Ft. x ( ) = Ft.
6”, 7”, 8”, 10”
Round,
900
15 Ft. x ( ) = Ft.
6”, 7”, 8”, 10”
Round,
450
9 Ft. x ( ) = Ft.
Ft.
6”, 7”, 8”, 10”
Round,
straight
1 Ft. x ( ) = Ft.
Subtotal column 1 =
Duct pieces To tal
Equivalent number
length x used =
6”, 7”, 8”, 10”
Round, wall
cap with
damper
30 Ft. x ( ) = Ft.
Ft.
Ft.
Ft.
6”, 7”, 8”, 10”
Round
roof cap
30 Ft. x ( ) = Ft.
Subtotal column 2 =
Subtotal column 1 =
Totalductwork =
Maximum Duct Length: For satisfactory air movement,
the total duct length
should not exceed 150 equivalent feet.
6” round to
3-1/ 4” x 10”
rect.
transition
1 Ft. x ( ) = Ft.
6” round to
3-1/ 4” x 10”
rect.
transition
900 elbow
16 Ft. x ( ) = Ft.
7” round to
3 1/ 4” x 10”
rect.
transition
8 Ft. x ( ) = Ft.
7” round to
3-1/ 4” x 10”
rect.
transition
900 elbow
23 Ft. x ( ) = Ft.
elbow
elbow
7” to 6” or
8” to 7” Round
tapered
reducer
25 Ft. x ( ) = Ft.
3-1/ 4” x 10”
Rect.900
elbow
15 Ft. x ( ) = Ft.
3-1/ 4” x 10”
Rect.450
elbow
9 Ft. x ( ) = Ft.
3-1/ 4” x 10”
Rect.900
flat elbow
24 Ft. x ( ) = Ft.
3-1/ 4” x 10”
Rect.
wall cap
with damper
30 Ft. x ( ) = Ft.
Ft. x ( ) = Ft.
15
6”, 7“, 8”
Round
in-line
damper
- 9 -

35-3/8
15
32-7/8
R6-1/8
10-13/16
1-3/4
14
9-1/8
20-1/8
90
R6-1/8
27-1/8
33-1/2
OPTIONAL DUCT
COVER
17-5/16
16-9/16
11-7/16
= =
13
31-5/16
8-3/89
3-1/4 x 10
= =
6-1/86-1/8
6-1/811-1/4
1/2
HOLES FOR
WALL FIXING
BACK OUTLET
Ø 8''
EXT BLOWER KO
ELEC. K/O
HOLES FOR
WALL FIXING
C/L

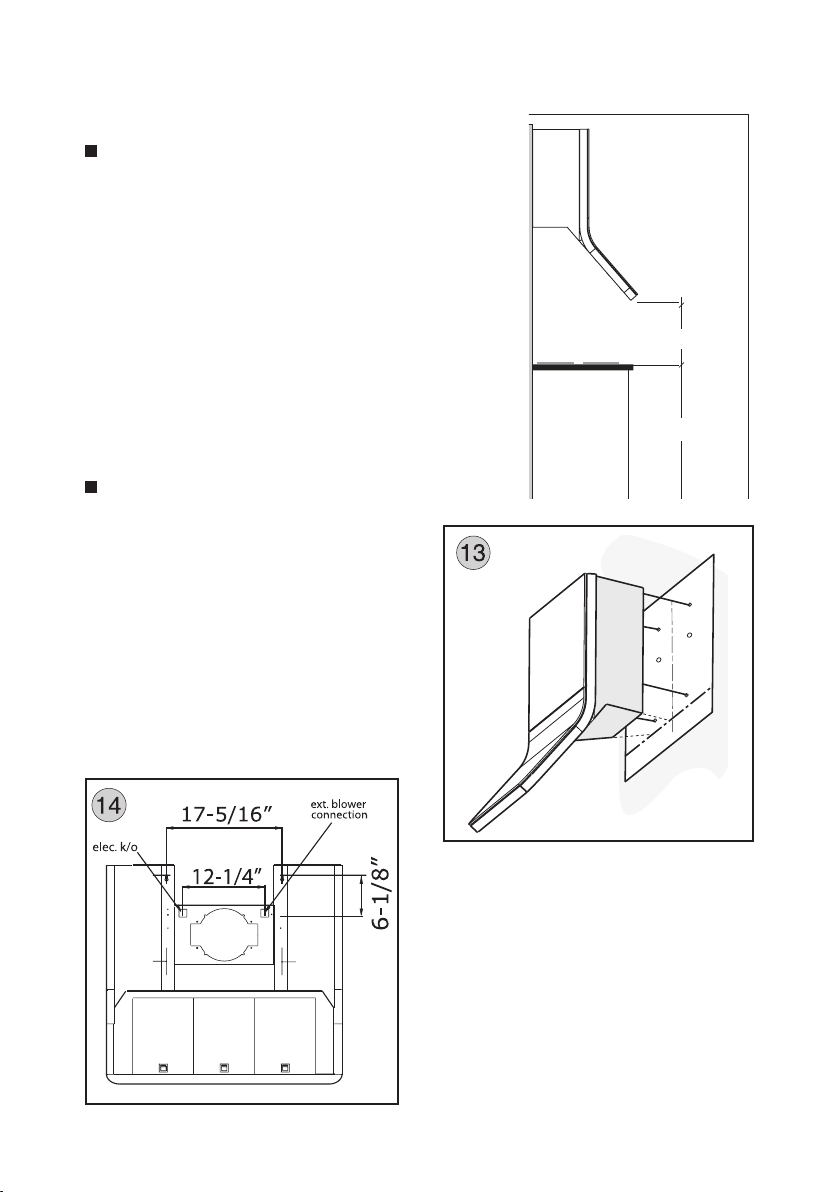

Hood Specifications
front of hood
side of hood
back of hood
- 10 -

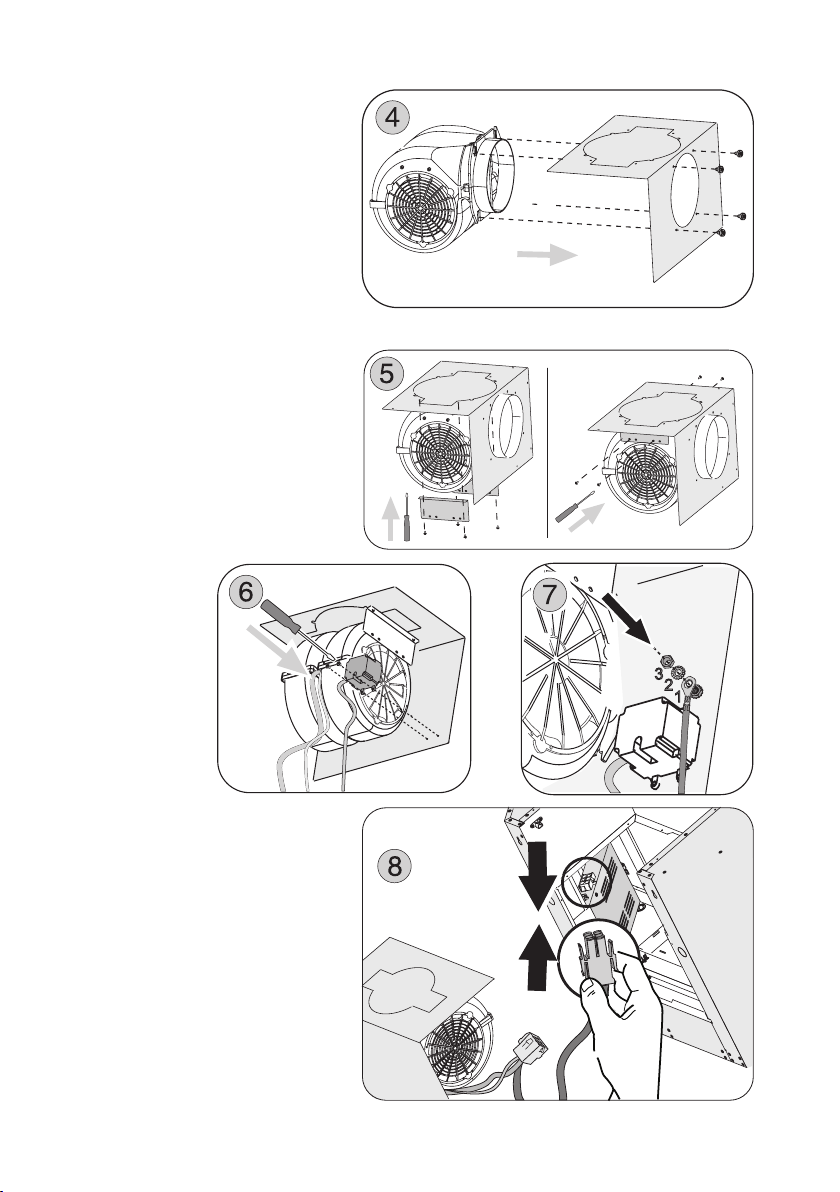

Installation - Internal Blower
NOTE!The device in this version (with
internal suction blower) is equipped for
rear discharge of exhaust air. However,
if required, it is possible to have the
exhaust air discharged from the top.
This can be accomplished by carrying
out the steps indicated in the following
paragraphs; upon reaching step 4, the
motor plate must not be rotated.
The following instructions are for installing the internal blower.
CAUTION: To reduce the risk of fire and electric shock, install this rangehood
only with internal blower models CBI-290A or CBI-600A.
For external and in-line blower preparation please turn to page 14.
1. Unclip the top cover. Fig.1
2. Remove the 6” round metal knockout
plate from the blower plate by using a
flat head screwdriver. See.Fig.2
3. Remove the (6) screws securing the blo-
wer plate to the blower housing and re-
move blower plate. See. Fig.3
- 11 -

4. Rotate the blower plate
(Note! If air is discharged
from the top, do not rota-
te the plate). Install internal
blower into blower plate and
secure using (4) screws in-
cluded with the blower. See
Fig.4
5. Fasten the two brackets to
the sides of the blower by
fixing them onto the blower
plate with the (4) screws, and
to the sides of the blower
with other (4) screws. Fig 5
6. Secure capacitor box con-
nected to the provided
cable to the blower plate
using (2) screws included
with the blower. See.Fig.6
7. Secure Green/Yellow ground
wire connected to the cable
to the provided capacitor to
blower plate. Fig.7
- 12 -

8. Attach the 6 pin male molex con-
nector from blower wire to the 6
pin female molex connector lo-
cated inside the blower housing.
See Fig.8
9. Install the blower and plate on
the inside of the blower housing:
carry out the instructions at step
3 in reverse order then use the
screws provided to complete installation.
(Tot. 12). Fig.9
10. Open the flap Fig.10. Connect 9 pin male
molex connector from blower wire to 9 pin
female molex connector on the capacitor
wire. See Fig.11
WARNING! Place electrical wiring
inside the blower housing.
11. Close the flap until it clicks into
place and put the top cover back
on.
The hood is now ready to be installed on the wall.
- 13 -

NOTE! The device in this version
(with external blower) is equipped for
rear discharge of exhaust air. However,
if required, it is possible to have the
exhaust air discharged from the top.
This can be accomplished by carrying
out the steps indicated in the follow-
ing paragraphs; upon reaching step 5,
the blower plate must be rotated and
installed in the opposite direction.
The following instructions are for preparing the hood for use with an ex-
ternal or in-line blowers models CBE-1000 or PBN-1000A.
CAUTION: To reduce the risk of fire and electric shock, install this rangehood
only with remote blowers rated maximum 6.2 A.
For internal blower instructions please turn to page 11.
1. Unclip the top cover. Fig.1
2. Remove the metal blower plate by
striking it with the aid of a slotted
screwdriver Fig.2
3. Remove the (6) screws securing the
blower plate to the blower housing
and remove blower plate. See.Fig.3
4. Install the flange and fix it to the blower
plate with the (4) screws. Fig 4
Installation - External & In-Line Blower
Preparation
- 14 -

5. Install the plate with the flange facing
the wall, inside the motor casing: carry
out the instructions at stage 3 in re-
verse order then use the screws provi-
ded to complete installation. (Tot. 12).
(Note! If air is discharged from the top,
rotate the plate and install it in the op-
posite direction with the flange facing
upwards) Fig.5
6. Put the top cover back on.
7. Open the flap Fig.6

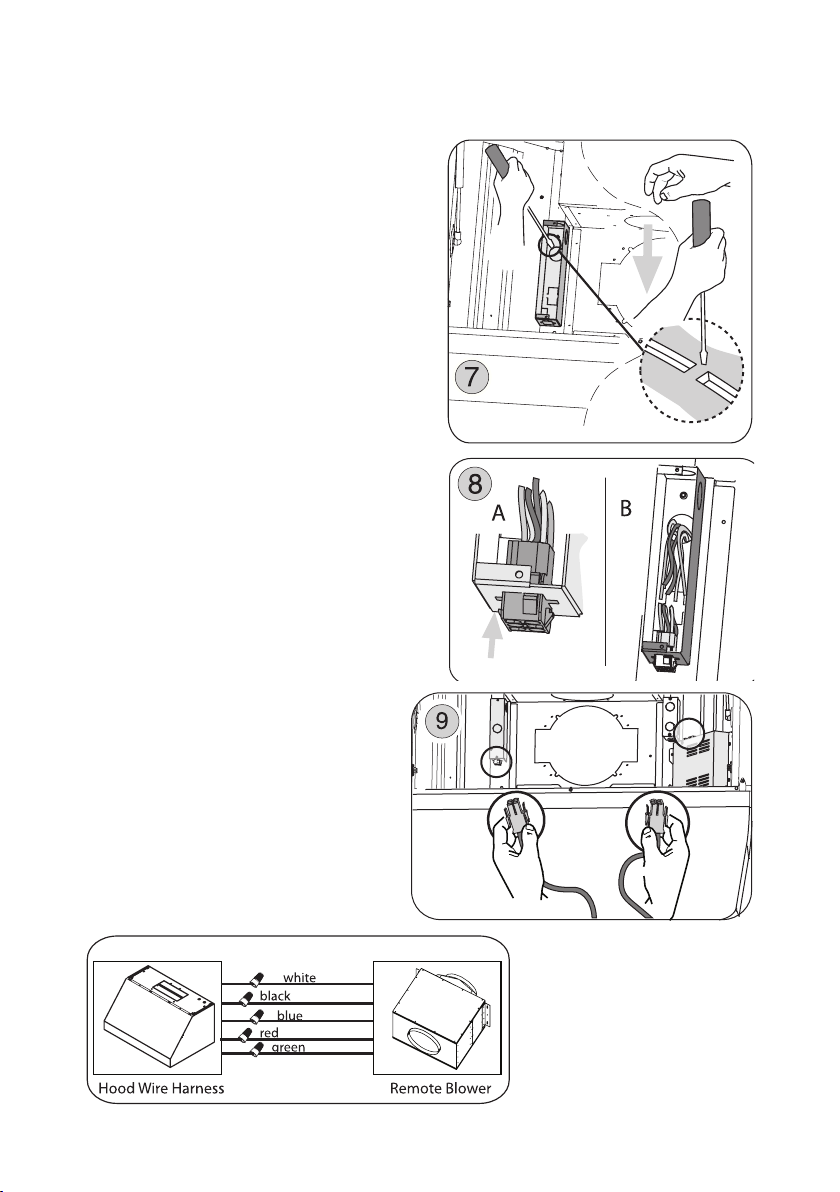

8. With the aid of a slotted screwdriver,
break the grommet of circular hole
through which the wires pass. Fig. 7
9. Insert the female connector in the
terminal box already attached to the
hood. Fig. 8A
- 15 -

Pass the wires of the remote motor throu-
gh the terminal box hole and connect
them to the connector wires. Fig.8B
Note: Carry out the power supplly con-
nection in accordance with the natio-
nal electric code, ANSI/NFPA 70-1999.
Note1: A cable lock (not included) may
be required by local codes. Please re-
view local codes for more information.
10. Attach 6 pin male molex connectors
to 6 pin female molex connectors insi-
de blower housing. See Fig. 9
Note2: Check local codes to determine
minimum wire gauge.
See manual included with exter-
nal and in-line blower for instruc-
tions on installing the blower.
- 16 -

12
Installation - Recirculating Kit
To obtain a ductless recirculation, use
the optional accessory Z0F-C010 and
install the couple of Charcoal filters as
show in the figure below:
- 17 -

WARNING FIRE HAZARD
NEVER exhaust air or terminate duct work into spaces between walls, crawl
spaces, ceiling, attics or garages.
All exhaust must be ducted to the outside, unless using the recirculating op-
tion.
Use single wall rigid Metal ductwork only.
Fasten all connections with sheet metal screws and tape all joints w/ certified
Silver Tape or Duct Tape.
Some Ducting Options
Installation - Ducting Options
- 18 -

Installation - Mounting the Range Hood
MOUNTING HEIGHTS
The range hood must be installed at a minimum
height of 22 inches (56 cm) from the cooking
surface. If a connecting duct work composed of
two parts is used, the upper part must be placed
outside the lower part. Do not connect the range
hood duct to the same duct used to exhaust hot
air or fumes from another appliance. Before pro-
ceeding with the assembly instructions remove the
decorative mesh filters so that the range hood is
easier to handle.
MOUNTING TO THE WALL
1. Place the paper template included with
your hood on the wall to determine
where to add the screws for mounting
the hood. Make sure that the line at
the bottom of the template is aligned
with the edge of the rear lower corner
of the hood. Fig. 13
Note! Cut out holes for ducting if ven-
ting out the back. Drill holes for the
power supply and the remote blower
power supply (if required), using the
measurements indicated in Fig.14

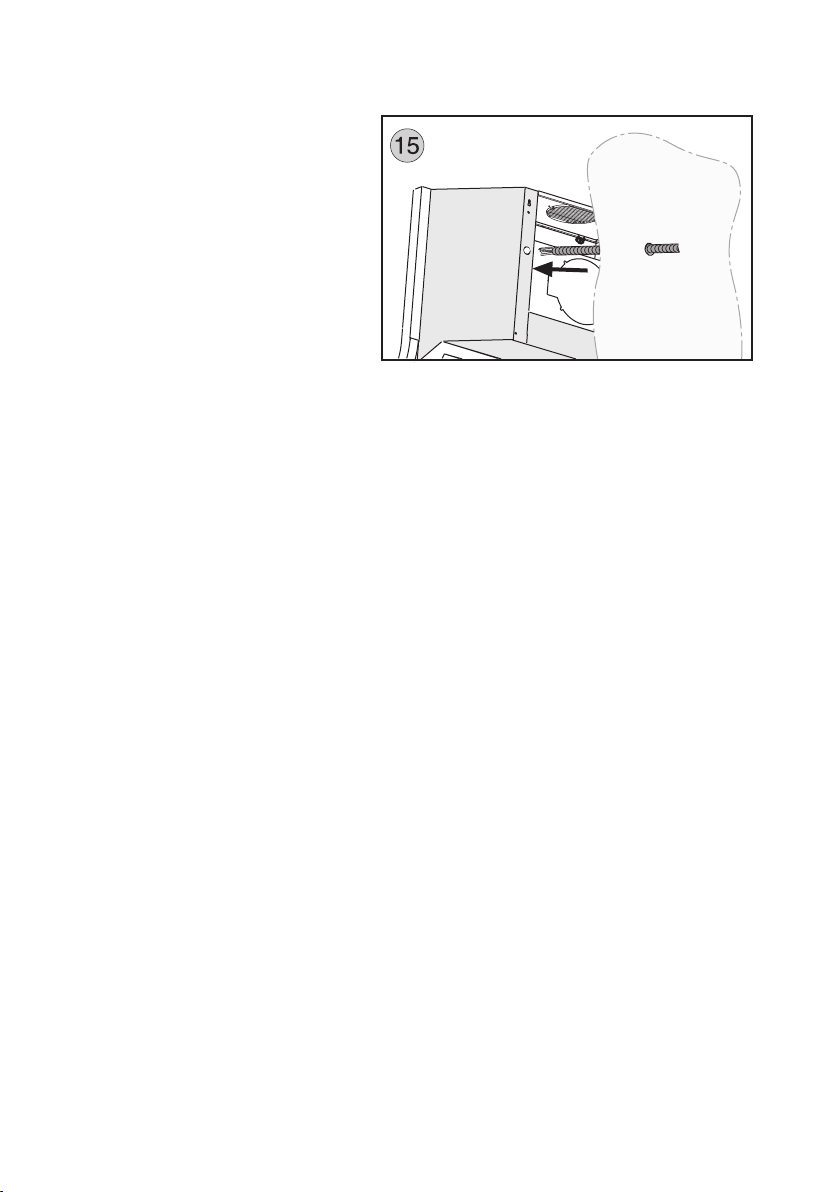

2. Fix the power supply conduit to the
hole on the hood. If the hood has an
external motor, fix the motor’s power
supply conduit to the hole on the hood
as well. Fig.15


- 19 -

3. Lift the hood onto the screws
and adjust to make sure the
hood is level.
4. When the hood has been
adjusted tighten the screws
to secure the hood in place.
NOTE: Screws must be fastened into wooden studs so wood blocking may be
necessary. If using wall anchors make sure to check your local codes for suita-
bility and type of anchors to use.
NOTE1: For the various installations use screws and screw anchors suited to the
type of wall (minimum screw size: 1/4" diameter x 2-3/4" length).
NOTE2: The following Duct Cover kit is available as acessory: Z1C-01HZ.
- 20 -
