Zephyr Typhoon AK2100CS Installation guide

WWW.ZEPHYRONLINE.COM
JAN21.0101
Typhoon
AK2100CS, B, W
AK2136CS, B, W
AK2142CS
AK2148CS
EN Use, Care, and Installation Guide
FR Guide d’utilisation, d’entretien et d’installation
Hurricane
AK2500CS, B, W
AK2536CS, B, W
Cyclone
AK6500CS, B, BS, W
AK6536CS, B, BS, W
AK6542CS
Airflow Control Technology
TM
C
C
Airflow Control Technology
TM
C
C

2Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide
TYPHOON, HURRICANE
& CYCLONE
UNDERCABINET
CORE

3
Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Contents
Page
Safety Information ............................................................................ 4-6
Types of Safety Warnings................................................................... 4
General Safety ..................................................................................4-5
Operation........................................................................................... 6
Electrical Requirements ...................................................................... 6
List of Materials................................................................................... 7
Installation Instructions.................................................................... 8-20
Ducting Calculation Sheet.................................................................. 8
Mounting Height, Clearance, & Ducting ...........................................9-10
Ducting Options ................................................................................. 11

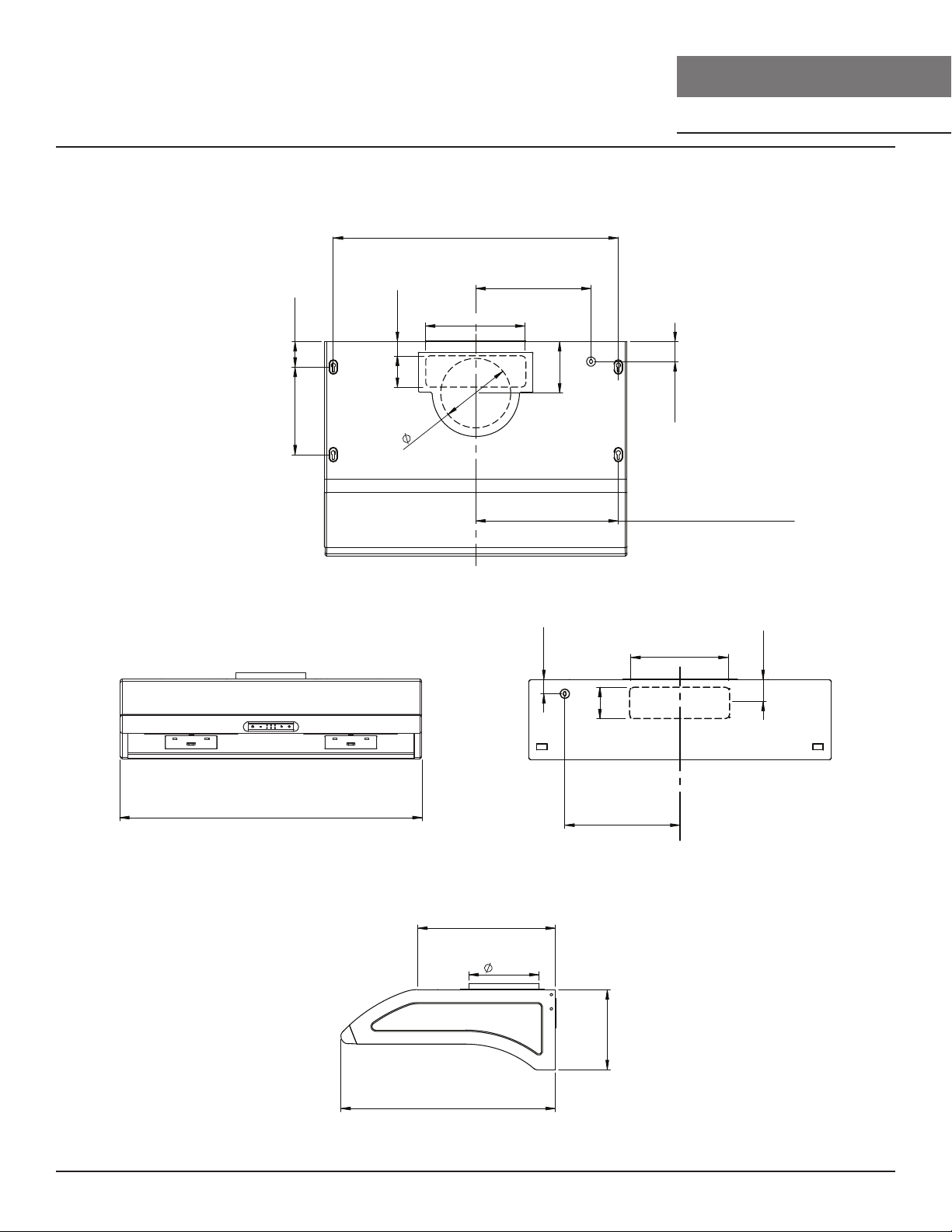

AK21 Hood Specifications ...................................................................12

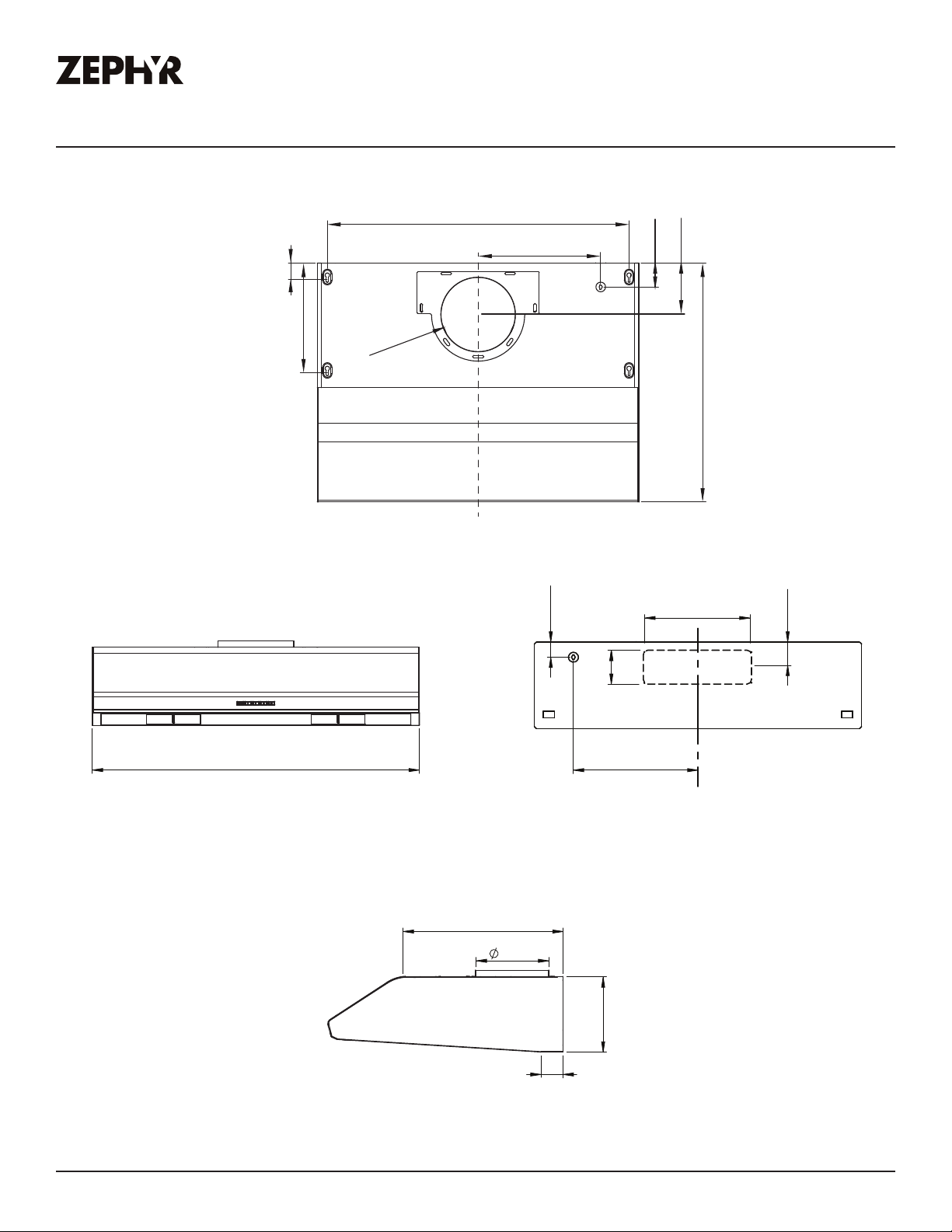

AK25 Hood Specifications...................................................................13
AK65 Hood Specifications...................................................................14
Electrical Supply.................................................................................15
Cable Lock .........................................................................................15
Rectangular Vertical Ducting Preparation ..........................................16
Rectangular Horizontal Ducting Preparation ....................................17-18
Mounting the Hood..........................................................................19-20
Features & Controls..........................................................................21-23
AK21 Capacitive Touch .......................................................................21
AK25 Electronic Touch ....................................................................... 22
AK65 Mechanical Slide ...................................................................... 23
Maintenance ................................................................................... 24-27
Hood & Filter Cleaning.....................................................................24-26
LumiLight LED ................................................................................... 27
ACT™ Conversion............................................................................ 28-30
Airflow Control Technology (ACT™) ................................................... 28
Enabling ACT™................................................................................29-30
Wiring Diagram.................................................................................. 31
Troubleshooting.................................................................................. 32
List of Parts & Accessories .................................................................. 33
Notes.................................................................................................. 34
Limited Warranty ............................................................................... 35
Product Registration........................................................................... 36

4Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide
TYPHOON, HURRICANE
& CYCLONE
UNDERCABINET
CORE
Safety Information
Your safety and the safety of others are very important.
We have provided many important safety messages in this
manual for your appliance. Always read and obey all safety
messages.
This is the Safety Alert Symbol. This symbol alerts you to
potential hazards that can cause severe bodily injury or death.
All safety messages will follow the Safety Alert Symbol and either
the words “DANGER” “WARNING” or “CAUTION”
DANGER
Danger means that failure to heed this safety statement may
result in severe injury or death.
READ AND SAVE THESE INSTRUCTIONS
WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
a) Use this unit only in the manner intended by the
manufacturer. If you have questions, contact the manufacturer.
b) Before servicing or cleaning unit, switch power o at service
panel and lock the service disconnecting means to prevent
power from being switched on accidentally. When the service
disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.
General Safety
WARNING
Warning means that failure to heed this safety statement
may result in extensive product damage, serious personal
injury, or death.
CAUTION
Caution means that failure to heed this safety statement
may result in minor or moderate personal injury, property or
equipment damage.
WARNING
To reduce the risk of fire or electric shock, do not use this fan
with any solid-state control device.
WARNING
CAUTION
For General Ventilating Use Only. Do Not Use To Exhaust
Hazardous Or Explosive Materials And Vapors. Take care
when using cleaning agents or detergents. Suitable for use in
household cooking area.
WARNING
WARNING - TO REDUCE THE RISK OF A RANGE TOP GREASE
FIRE:
a) Never leave surface units unattended at high settings.
Boilovers cause smoking and greasy spillovers that may ignite.
Heat oils slowly on low or medium settings.
b) Always turn hood ON when cooking at high heat or
when flambeing food. (i.e. Crepes Suzette, Cherries Jubilee,
Peppercorn Beef Flambe’).
c) Clean ventilating fans frequently. Grease should not be
allowed to accumulate on fan or filter.
d) Use proper pan size. Always use cookware appropriate for
the size of the surface element.

5
Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Safety Information
WARNING
READ AND SAVE THESE INSTRUCTIONS
WARNING - TO REDUCE THE RISK OF INJURY TO PERSONS
IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE
FOLLOWING:
a) SMOTHER FLAMES with a close-fitting lid, cookie sheet, or
metal tray, then turn o the burner. BE CAREFUL TO PREVENT
BURNS. If the flames do not go out immediately, EVACUATE AND
CALL THE FIRE DEPARTMENT.
b) NEVER PICK UP A FLAMING PAN – You may be burned.
c) DO NOT USE WATER, including wet dishcloths or towels – a
violent steam explosion will result.
d) Use an extinguisher ONLY if:
1) You know you have a Class ABC extinguisher, and you
already know how to operate it.
2) The fire is small and contained in the area where it
started.
3) The fire department is being called.
4) You can fight the fire with your back to an exit
Based on “Kitchen Firesafety Tips” published by NFPA.
WARNING
WARNING
TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.
CAUTION
To reduce risk of fire and to properly exhaust air outside, do
not vent exhaust air into spaces within walls, ceilings, attics,
crawl spaces, or garages.
WARNING
WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
a) Installation work and electrical wiring must be done by
qualified person(s) in accordance with all applicable codes and
standards, including fire-rated construction.
b) Sucient air is needed for proper combustion and
exhausting of gases through the flue (chimney) of fuel burning
equipment to prevent back drafting. Follow the heating
equipment manufacturer’s guideline and safety standards such
as those published by the National Fire Protection Association
(NFPA), and the American Society for Heating, Refrigeration
and Air Conditioning Engineers (ASHRAE), and the local code
authorities.
c) When cutting or drilling into wall or ceiling, do not damage
electrical wiring and other hidden utilities.
d) Ducted fans must always be vented to the outdoors.
e) If this unit is to be installed over a tub or shower, it must be
marked as appropriate for the application and be connected
to a GFCI (Ground Fault Circuit Interrupter) - protected branch
circuit.
WARNING
Prop. 65 Warning for California Residents: This product may
contain chemicals known to the State of California to cause
cancer, birth defects, or other reproductive harm.

6Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide
TYPHOON, HURRICANE
& CYCLONE
UNDERCABINET
CORE
Safety Information
Operation
ŹAlways leave safety grilles and filters in place. Without these components, operating blowers could catch onto hair, fingers and
loose clothing.
ŹThe manufacturer declines all responsibility in the event of failure to observe the instructions given here for installation,
maintenance and suitable use of the product. The manufacturer further declines all responsibility for injury due to negligence and
the warranty of the unit automatically expires due to improper maintenance.
NOTE: Please check www.zephyronline.com for revisions before doing any custom work.
Electrical Requirements
Important:
ŹObserve all governing codes and ordinances.
ŹIt is the customer’s responsibility to be aware of these below:
ŹTo contact a qualified electrical installer.
ŹTo assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 latest
edition* or CSA standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No.0-M91 - latest edition** and all local codes
and ordinances.
ŹIf codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path
is adequate.
ŹDo not ground to a gas pipe.
ŹCheck with a qualified electrician if you are not sure the range hood is properly grounded.
ŹDo not have a fuse in the neutral or ground circuit.
ŹThis appliance requires a 120V 60Hz electrical supply and connected to an individual properly grounded branch circuit protected
by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire with ground. Please also refer to Electrical Diagram
on product.
ŹA cable locking connector (not supplied) might also be required by local codes. Check with local requirements, purchase and
install appropriate connector if necessary.
* National Fire Protection Association Batterymarch Park, Quincy, Massachusetts 02269
** CSA International 8501 East Pleasant Valley Road, Cleveland, Ohio 44131-5575
READ AND SAVE THESE INSTRUCTIONS

7
Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide
ZEPHYRONLINE.COM
List of Materials
Parts Supplied
Quantity Part
1Hood
2 Safety grilles
2 LumiLight LED
1 Hardware package
#6 x 1” (4)
Safety Grille
Screws (2)
#6 x 1-1/2” (4) Wire Caps (3)
7” Round transition adapter (AK21, AK25)
6” Round transition adapter (AK65)
(pre-installed on top of hood)
3-1/4”x10” rectangular cover plate
(pre-installed on back of hood) 3-1/4”x10” rectangular vertical
transition adapter
3-1/4”x10” rectangular
starting collar
Washer (4)
Parts Not Supplied
Ducting, conduit and all installation tools
Backdraft damper
Philips head screwdriver with minimum 8” long shaft (required to install
AK2100)
Cable locking connector (if required by local codes)

8Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide
TYPHOON, HURRICANE
& CYCLONE
UNDERCABINET
CORE

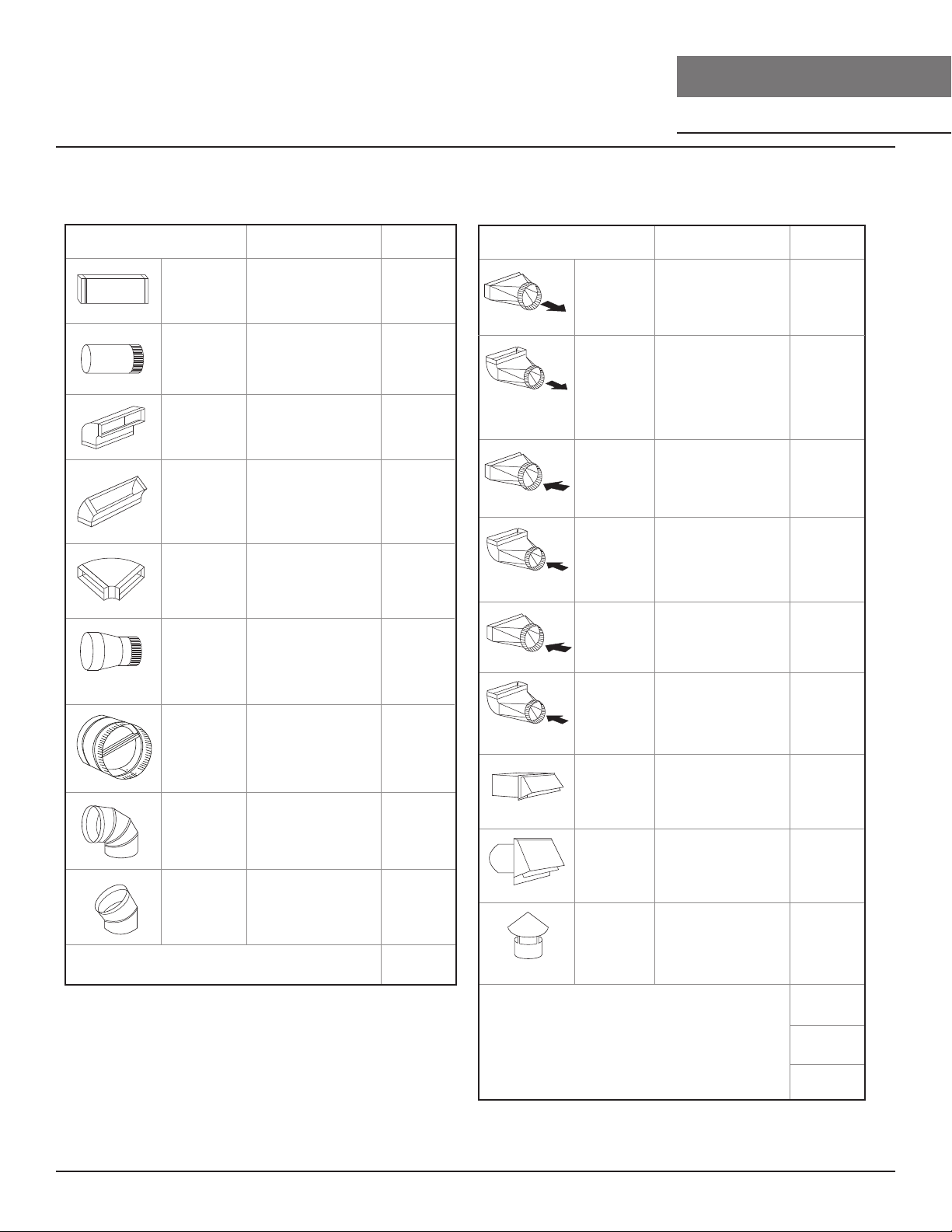

Installation Instructions
Duct pieces To t al
Equivalent number
length x used =
3-1/ 4” x 10”
Rect.,
straight
1 Ft. x ( ) =Ft.
3-1/ 4” x 10”
Rect. to
6” round
transition
5 Ft. x ( ) = Ft.
3-1/ 4” x 10”
Rect. to
6” round
transition
900 elbow
20 Ft. x ( ) = Ft.
6”, 7”, 8”, 10”
Round,
900
15 Ft. x ( ) = Ft.
6”, 7”, 8”, 10”
Round,
450
9 Ft. x ( ) = Ft.
Ft.
6”, 7”, 8”, 10”
Round,
straight
1 Ft. x ( ) =Ft.
Subtotal column1 =
Duct pieces To t al
Equivalent number
length x used =
6”, 7”, 8”, 10”
Round, wall
cap with
damper
30 Ft. x ( ) = Ft.
Ft.
Ft.
Ft.
6”, 7”, 8”, 10”
Round
roof cap
30 Ft. x ( ) = Ft.
Subtotal column2 =
Subtotal column1 =
Total ductwork =
Maximum Duct Length: For satisfactory air movement,
the totalductlength
should not exceed 150 equivalent feet.
6” roundto
3-1/ 4” x 10”
rect.
transition
1 Ft. x ( ) = Ft.
6” roundto
3-1/ 4” x 10”
rect.
transition
900 elbow
16 Ft. x ( ) = Ft.
7” roundto
3 1/ 4” x 10”
rect.
transition
8 Ft. x ( ) = Ft.
7” roundto
3-1/ 4” x 10”
rect.
transition
900 elbow
23 Ft. x ( ) = Ft.
elbow
elbow
7” to 6” or
8” to 7” Round
tapered
reducer
25 Ft. x ( ) = Ft.
3-1/ 4” x 10”
Rect. 900
elbow
15 Ft. x ( ) =Ft.
3-1/ 4” x 10”
Rect. 450
elbow
9 Ft. x ( ) =Ft.
3-1/ 4” x 10”
Rect. 900
flatelbow
24 Ft. x ( ) = Ft.
3-1/ 4” x 10”
Rect.
wall cap
with damper
30 Ft. x ( ) = Ft.
Ft. x ( ) = Ft.
15
6”, 7“, 8”
Round
in-line
damper
Ducting Calculation Sheet

9
Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Installation Instructions
Mounting Height, Clearance, & Ducting
36” 24” min.
32” max.

10 Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide
TYPHOON, HURRICANE
& CYCLONE
UNDERCABINET
CORE
Installation Instructions
Mounting Height, Clearance, & Ducting
A minimum of 6” round for AK65 and 7” round for AK21 and AK25 or 3-1/4” x 10” rectangular duct
must be used to maintain maximum air flow eciency for vertical ducting. For horizontal ducting,
3-1/4” x 10” rectangular duct is the minimum size.
Always use rigid type metal ducts only. Flexible ducts could restrict air flow by up to 50%.
Use calculation worksheet to compute total available duct run when using elbows, transitions, and
caps.
ALWAYS, when possible, reduce the number or transitions and turns. If long duct run is required,
increase duct size from 6” to 7” or 7” to 8”.
If turns or transitions are required: Install as far away from duct opening and as far apart between
the two transitions as possible.
Minimum mount height between range top to hood bottom should be no less than 24”.
Maximum mount height should be no higher than 32”.
It is important to install the hood at the proper mounting height. Hoods mounted too low could result
in heat damage and fire hazard; while hoods mounted too high will be hard to reach and will loose
performance and eciency.
If available, also refer to range manufacturer’s height clearance requirements and recommended
hood mounting height above range. Always check your local codes for any dierences.
For shipment and installation damages:
ŹPlease fully inspect unit for damage before installation.
ŹIf the unit is damaged in shipment, return the unit to the store in which it was bought for repair or
replacement.
ŹIf the unit is damaged by the customer, repair or replacement is the responsibility of the customer.
ŹIf the unit is damaged by the installer (if other than the customer), repair of replacement must be
made by arrangement between customer and installer.

11
Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Installation Instructions
Ducting Options
ŹUse single wall rigid metal ductwork only.
ŹFasten all connections with sheet metal screws and tape all joints w/ certified Silver Tape or Duct
Tape.
Fire Hazard: NEVER exhaust air or terminate ductwork into
spaces between walls, crawl spaces, ceilings, attics, or garages.
All exhaust must be ducted to the outside, unless using the
recirculating option.
WARNING
side wall cap
w/gravity damper
cabinet
cabinet
sot or crawl space
side wall cap
w/gravity damper
3-1/4”x10” rear
ducting w/side
wall gravity damper
roof pitch w/
flashing & cap

12 Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide
TYPHOON, HURRICANE
& CYCLONE
UNDERCABINET
CORE
Installation Instructions
śŚŮ
3 1/16”1 7/16”
9 15/16”
(30”) 28 1/16”, (36”) 34”
(42”) 39 3/4”, (48“) 45 3/4”
5 1/16”
2 3/4”
8 5/8”
(30”) 11 5/16”, (36”) 12 1/2”
(42”) 12 1/2”, (48“) 12 1/2”
1 15/16”
elec
k/o
(30”) 29 3/4”, (36”) 35 3/4”
(42”) 41 3/4”, (48“) 47 11/16”
(30”) 14”, (36”) 17”
(42”) 19 7/8”, (48“) 22 7/8”
C/L
13 9/16”
20 3/4”
7 7/8”
1 3/8”
9 15/16”
21/2”
(30”) 11 5/16”
(36”) 12 1/2”
(42”) 12 1/2”
(48“) 12 1/2”
C/L
3 1/16”
6 7/8”
6 7/8”
elec
k/o
TOP
SIDE
FRONT BACK

13
Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Installation Instructions
śŞŮ
(30”) 29 3/4”, (36”) 35 3/4”
14 5/8”
7 1/8”
1 7/8”
11 1/4”
33/4”
11 7/8”
C/L
3 3/4”
6 7/8”
elec
k/o
TOP
SIDE
FRONT BACK
8 5/8”1 1/8”
Ø 6 7/8”
(30”) 27 7/8” (36”) 33 7/8”
C/L
11 7/8”
2”
5 1/4”
22 1/8”
2 1/8”

14 Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide
TYPHOON, HURRICANE
& CYCLONE
UNDERCABINET
CORE
Installation Instructions
şŞŮ
3 1/16”1 7/16”
9 15/16”
(30”) 27 7/8”, (36”) 33 7/8”, (42”) 39 7/8”
4 1/2”
1 3/16”
8 5/8”
11 7/8”
2”
elec
k/o
(30”) 29 3/4”, (36”) 35 3/4”, (42”) 41 3/4”
(30”) 14”, (36”) 17”, (42”) 20”
C/L
15 3/8”
22 1/4”
6 5/16”
1 3/16”
9 15/16”
21/16”
C/L
3 1/16”
6”
6”
elec
k/o
TOP
SIDE
FRONT BACK
11 7/8”
5 1/2”

15
Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Installation Instructions
Electrical Supply
Electrical wiring must be done by qualified person(s) in
accordance with all applicable codes and standards. Turn o
electrical power at service entrance before wiring.
WARNING
For personal safety, remove house fuse or open circuit breaker before beginning installation. Do not
use extension cord or adapter plug with this appliance.
Follow national electrical codes or prevailing local codes and ordinances.
This appliance requires a 120V 60Hz electrical supply, and connected to an individual, properly
grounded branch circuit, protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring
must be 2 wire w/ ground. Please also refer Electrical Diagram labeled on product.
Cable Lock
A cable locking connector (not supplied) might be required by local codes. Check with local
requirements and codes, purchase and install appropriate connector if necessary. (FIG. A)
Cable Lock
FIG. A

16 Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide
TYPHOON, HURRICANE
& CYCLONE
UNDERCABINET
CORE
Installation Instructions
Rectangular Vertical Ducting Preparation
ŹBy default the Typhoon and Hurricane are pre-configured for 7” round vertical ducting.
ŹBy default the Cyclone is pre-configured for 6” round vertical ducting.
1. Using a Philips-head screwdriver
remove the screws and round vertical
transition adapter from top of hood
body.
2. Replace round vertical transition
adapter with rectangular transition
adapter. Do not secure to hood body
yet.
3. Place 3-1/4"x10" rectangular collar
on top of rectangular transition
adapter. Secure rectangular adapter
and rectangular collar to hood body
using the previously removed screws
from step 1.

17
Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Installation Instructions
Rectangular Horizontal Ducting Preparation
ŹBy default the Typhoon and Hurricane are pre-configured for 7” round vertical ducting.
ŹBy default the Cyclone is pre-configured for 6” round vertical ducting.
1. Using a Philips-head screwdriver
remove the screws and round vertical
transition adapter from the top of the
hood.
3. Typhoon ONLY. Remove the two
plastic air diverter blocks. The blocks
are located in the hood and can be
accessed from the top when the round
transition adapter is removed.
2. Using a Philips-head screwdriver,
remove the screws and 3-1/4"x10"
rectangular cover plate from back of
hood.

18 Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide
TYPHOON, HURRICANE
& CYCLONE
UNDERCABINET
CORE
Installation Instructions
4. Replace round vertical transition
adapter with rectangular transition
adapter. Do not secure to hood body
yet.
6. Place 3-1/4"x10" rectangular collar
on back of hood and secure using the
screws that previously secured the
rectangular cover plate.
5. Place 3-1/4"x10" rectangular cover
plate over the rectangular opening
on top of hood from step 4. Secure
rectangular transition adapter and
cover plate to hood body using the
previously removed screws from step 1.

19
Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Installation Instructions
Mounting the Hood
bottom panel &
lighting harness
wood blocking
installation screws
and key-holes
duct work
residue cups &
safety grilles
electrical
duct tape
LumiLight LED
FIG. B

20 Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide
TYPHOON, HURRICANE
& CYCLONE
UNDERCABINET
CORE
Hood is designed for installation under a kitchen cabinet (FIG. B)
1. Prepare duct location on hood (vertical or horizontal) Refer to Pages 11 for ducting options.
2. Measure and cut out duct and electrical openings in cabinet or wall to match up with the hood.
Ducting and electrical dimensions can be found on Pages 12-14. Note: Make sure duct opening is
large enough to apply aluminum duct tape.
3. Reinforce cabinet bottom with wood strips if additional strengthening is required or if cabinets are
framed.
4. Remove bottom panel from hood using a Philips head screwdriver to remove each of the screws.
Also disconnect lighting harness by pressing in on the clip to release the lights from the internal
wiring. Use caution when removing bottom panel. Take care not to scratch side panels during
removal.
5. Install (4) wood screws to cabinet bottom by following the installation screw hole dimensions on
Page 12-14. These screws will be used to secure the hood to the cabinet.
6. Lift hood onto screws located on cabinet bottom and lock into place. Make sure all (4) key-holes
cover the screws. Tighten each screw to secure hood to cabinet. Note: For 30” Typhoon models
you will need an 8” - 10” long shaft for your screwdriver/drill to reach the front screws.
7. Install electrical.
8. Install duct work and seal with aluminum duct tape.
9. Power up hood and check for leaks around duct tape and test all functions.
10. Reinstall bottom panel and re-connect lighting harness. Use caution when installing bottom panel.
Take care not to scratch side panels during installation.
11. Slide residue cups into their openings on the bottom of the hood. Install safety grilles over each
blower opening and secure with the two safety grille screws.
Installation Instructions
Mounting the Hood
