Zida P845SD User manual

USER’S
MANUAL
More compatible, more functional and more competitive.
Excellent quality and faster response.
Supporting Intel Pentium IV FC-PGA2 Processor in the 478Pin package.
UDMA33/66/100, PC133 SDRAM
Quality, Performance Mainboards

No part of this manual, including the products and software described in it, may be
reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any
language in any form or by any means, except documentation kept by the purchaser for
backup purposes, without the express written permission of MANUFACTURER.
MANUFACTURER PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF
ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE.
IN NO EVENT SHALL MANUFACTURER, ITS DIRECTORS, OFFICERS, EMPLOYEES
OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,
LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND
THE LIKE), EVEN IF MANUFACTURER HAS BEEN ADVISED OF THE POSSIBILITY
OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THlS MANUAL
OR PRODUCT.
Products and corporate names appearing in this manual may or may not be registered
trademarks or copyrights of their respective companies, and are used only for
identification or explanation and to the owners benefit, without intent to infringe.
Intel, Celeron, Pentium are registered trademark of Intel Corporation.
Intel is a registered trademark of Intel Corporation.
IBM, IBM PC, IBM PC/AT, PC-DOS, OS/2 and OS/2 WARP are registered trademarks
of International Business Machines Corporation.
Ms-DOS, Windows, Windows NT, Windows 95, Windows 98, Windows 2000 and
WindowsME are registered trademarks of Microsoft Corporation.
AMI BIOS is a product of American Megatrends, Inc.
AWARD BIOS is a product of Award Software Inc.
Third-party brands and names mentioned in this User’s Manual are the property of
their respective owners.
The product name and revision number are both printed on the board itself. Manual
revisions are released for each board design represented by the digit before and after
the period of the manual revision number. Manual updates are represented by the third
digit in the manual revision number.
SPECIFlCATlONS AND INFORMATION CONTAINED IN THIS MANUAL ARE
FURNISHED FOR INFORMATION USE ONLY, AND ARE SUBJECT TO CHANGE
AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS
A COMMITMENT BY MANUFACTURER. MANUFACTURER ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT
MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE
DESCRIBED IN IT.
Copyright © 2001 Manufacturer All Rights Reserved.
Manual Revision: 1.00 Release Date: August 2001
Part No: 90-P845SD1-00-00
Page 2 Mainboard User's Manual

Contents
Table Of Contents
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Fast Start Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Checking the Package Contents . . . . . . . . . . . . . . . . . . . . .7
Mainboard Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Jumper Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
7 Quick Steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Installing the CPU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Installing the Memory . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Attaching ATX Power Supply . . . . . . . . . . . . . . . . . . . . 14
Floppy Disk Drive Connector . . . . . . . . . . . . . . . . . . . . 15
IDE Device Connector . . . . . . . . . . . . . . . . . . . . . . . . . 15
Mounting Mainboard to chassis . . . . . . . . . . . . . . . . . . 16
Installing Add-in Boards . . . . . . . . . . . . . . . . . . . . . . . . 17
BIOS Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
CD Driver & Software Installation Guide . . . . . . . . . . . . . . 52
Norton AntiVirus OEM Version Setup Guide . . . . . . . . .. 53
INSTANT ON Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
Mainboard User's Manual Page 3
Table of Contents

Overview
Thank You for purchasing our High Performance Mainboard.
Our advanced technology mainboard is designed for processing
speeds of 1.7G or above and is upgradeabled for future
processors.
The Intel Mainboard Utilizes 82845 and ICH2 chipset provide
an Integrated Bus Mastering IDE controller with two high
performance IDE interfaces for up to four UDMA IDE devices
(hard drives, or CD-ROM's). The LPC(Low-pin count) I/O
controller integrates a floppy drive interface, two enhanced
16C550 compatible serial ports, one parallel port and one
consumer infra red compatible interface.The ICH2 I/O controller
integrates two USB 1.1 compliant controllers.
Intel 845 chipset support Pentium IV FC-PGA2 Processor on
the 478Pin Package. with 133 SDRAM DIMM.
Two DIMM slots support up to 2GB Memory Capacity.
WAKEUP-LINK Header supports Wake-On-LAN.
Integrated AC97 2.1 Compliant Codec with 3D Stereo
enhancement (optional). Award 2M bits Firmware Hub compliant
with PC99,ACPI/DMI power management.
Micor ATX 245mm X 211mm.
Mainboard User's Manual Page 5
Overview

Page 6 Mainboard User's Manual
Fast Start
Installation
This section will aid you in quickly setting up the Mainboard.
Be sure to take caution to avoid personal injury or damage
to wiring due to sharp pins on connectors, printed circuit
assemblies, rough edges and corners and hot components.
Your Location Requirements Are:
• A sturdy, level surface for placement
• Space allowance around mainboard
• A stable environment with no abrupt temperature or humidity
changes
• No exposure to chemicals or direct sunlight
• Line voltage and frequency not varying more than + or -10% from
the value stated on the package or nameplate (located on the
back, opposite the power plug)

Checking
The Package Contents
Remove the items from the box and make sure you have
the following items before beginning. If any of the items
below are missing, please contact the representative for part
replacement.
Micro ATX Box Standard Package
1) Mainboard
2) Driver CD with Norton AntiVirus 2001 OEM Version
3) User Manual
4) IDE Hard Drive Ribbon Cable
5) Floppy Drive Ribbon Cable
Installation
Mainboard User's Manual Page 7

Page 8 Mainboard User's Manual
Mainboard
Diagram

Before we begin installing your series Mainboard, we have provided you with a diagram of the Mainboard to
help you locate the appropriate “connectors”. The letters below describe the key Mainboard components.
Page number in the right hand column will direct you to detailed description of the component.
P845SD Option : AC97 2.1 Compliant 3D Audio
Onboard
COMPONENT PAGE
A- PS/2 Mouse & Keyboard Connector . . . . . . . . . . . . . . . . . . 45
B- ATX Power Supply + 4Pin extend +12V Connector . . . . . . 45
C- Universal Serial Bus (USB) Connector . . . . . . . . . . . . . . . 46
c- Universal Serial Bus (USB) Header . . . . . . . . . . . . . . . . . . 46
D- Serial (COM1 & 2) Connector . . . . . . . . . . . . . . . . . . . . . . . 46
E- Infra-Red (IR) Header . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
F- Memory Module Sockets . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
G- Parallel Port Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
H- Accelerated Graphics Port (AGP) Connector . . . . . . . . . . 48
I- Lithium Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
J- PCI Add-in Board Connector . . . . . . . . . . . . . . . . . . . . . . . 48
M- Front Panel Function Connector . . . . . . . . . . . . . . . . . . . . . 48
N- Flash BIOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
O- Floppy Drive Header . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
P- IDE Device Header . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Q- WAKEUP-LINK Header . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
r- CNR add-in Board Connector . . . . . . . . . . . . . . . . . . . . . . . 50
S- CPU Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
T- CPU / SYSTEM & AUXILIARY FAN Connector . . . . . . . . . 50
U- Audio & Joystick Connectors . . . . . . . . . . . . . . . . . . . . . . . 51
X- CD Audio Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Y- Auxiliary Audio Connector . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Mainboard User's Manual Page 9
Installation

Page 10 Mainboard User's Manual
Jumper settings
Set the Jumper
JP2 [1-2] Normal; [2-3] to clear CMOS.

7 Quick
Steps
Please follow these steps in order to assure that your series
of Mainboard installation is successful. Please refer to the
back chapters for further information regarding boot-up and
configurations. An anti-static wrist band is recommended when
handling electronic components, be sure your work area is
static free before you begin this section.
Page 11 Mainboard User's Manual

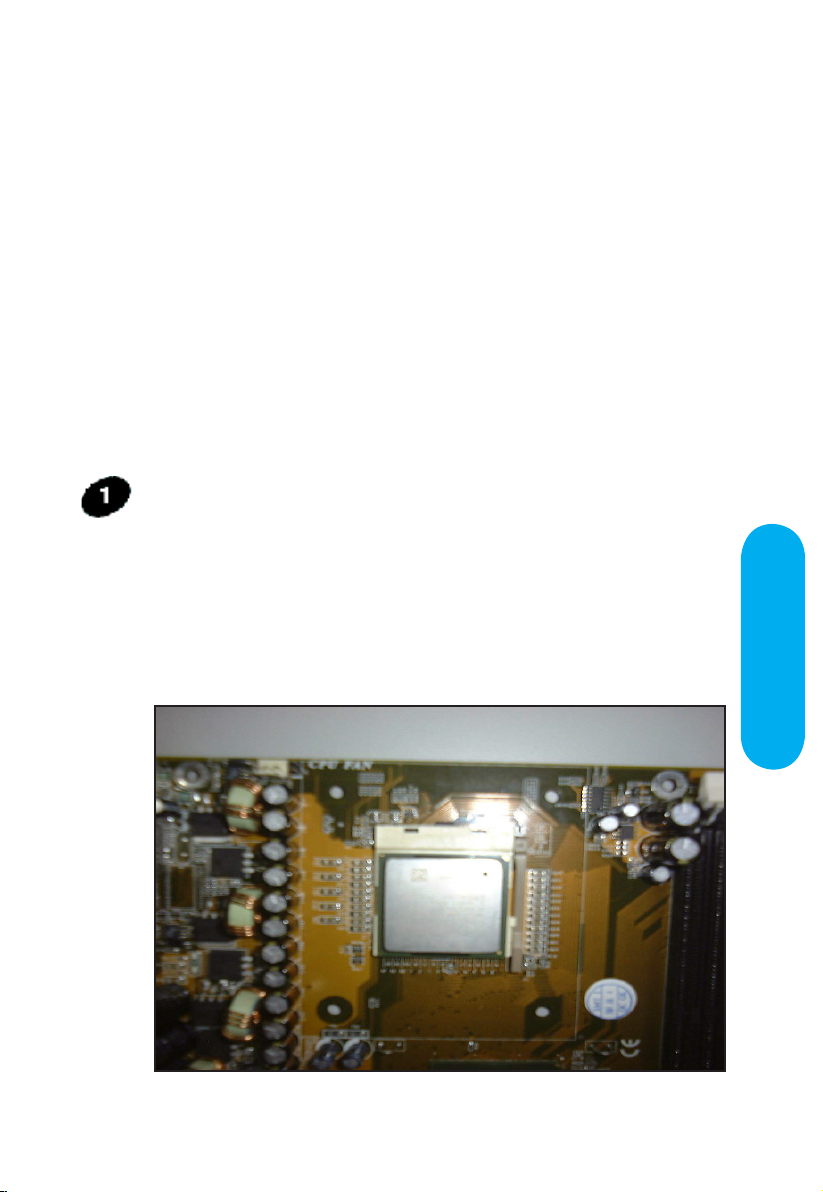

The Mainboard provides a 478 pins, mPGA478B Socket.
The CPU should have a fan attached to prevent overheating.
If a fan is not present, user should purchase a fan prior
to turning on the system. The recommended heatsinks for
the mPGA478B processor are those with three-pin fans that
can be connected to the fan connectors on the Mainboard.
It provides the +12 Volts DC for your CPU cooling fan.
Installing the CPU
7 Quick Steps

CAUTION!
Be sure that this MB cann't support Cyrix sufficient air
circulation must be available across the processor’s heatsink.
Without sufficient circulation, the processor could overheat
and damage both the processor and the mainboard. You
may install an auxiliary fan if necessary.
Mainboard User's ManualPage 12

7 Quick Steps
Page 13 Mainboard User's Manual
After you have set the DIMM firmly into its socket, snap the
white chip holders up to lock in the DIMM.

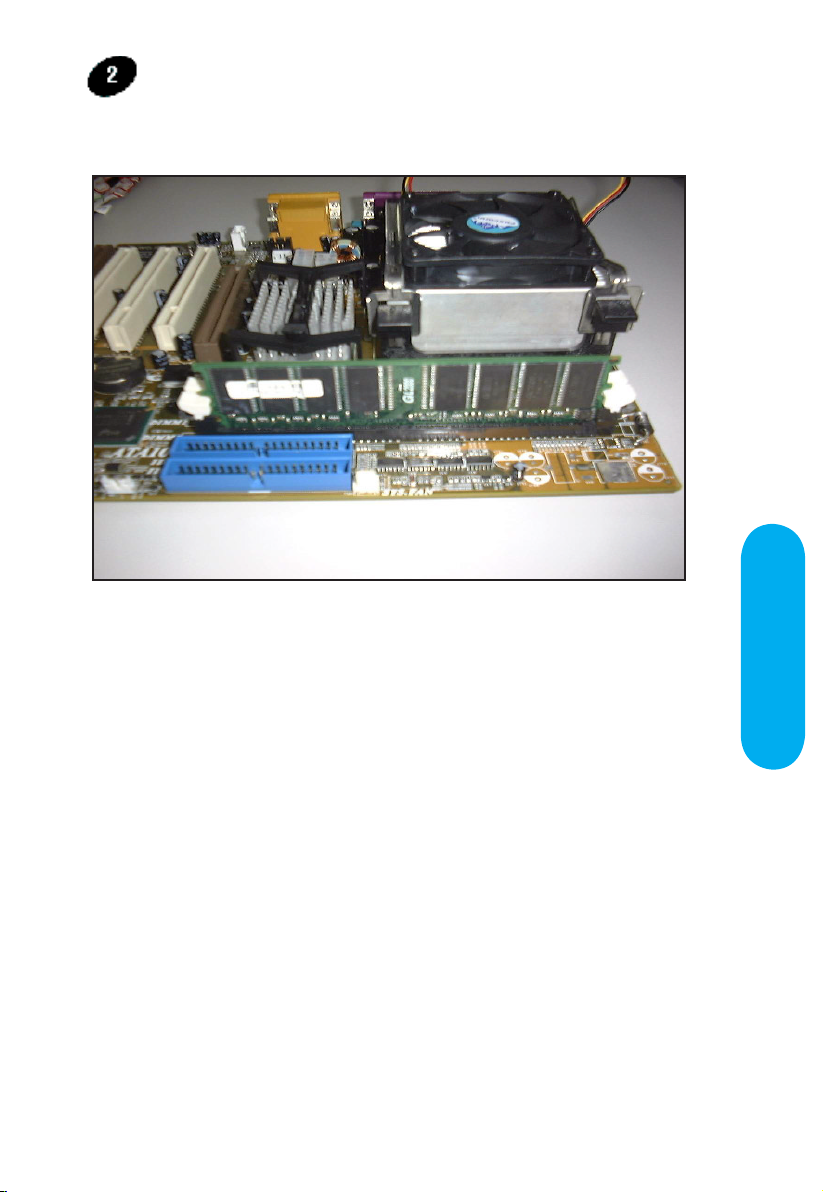

Installing the Memory
Memory is installed in DIMM Sockets 1-2 (F Mainboard
in diagram) as follows :

Mainboard User's ManualPage 14
ATX Power Supply Connector (20-pin ATX PWR and 4Pin
+12V).
The single 20-pin connector (B in mainboard diagram)
incorporates standard +/-5V and +/-12V, with a standby 5V
and +3.3V. With a power supply that supports remote power
on/off, the mainboard can turn off the system power through
the software control, such as the shutdown in Windows 95
Start Menu. The BIOS system will turn the system power
off when it receives the proper APM command from the OS.
APM must be enabled in the BIOS and OS systems in order
for the soft-off feature to work properly.the 4Pin Connector
Provide extend +12V for P4 Mainboard.
Attaching the power supply wire
IMPORTANT: Wire should always be connected with the red
stripe on the Pin 1 side of the connector. The four corners of
the connector's are labeled on the mainboard.
ATX Power Connector
Attaching ATX Power Supply.
12V Connector

7 Quick Steps
Page 15 Mainboard User's Manual
Floppy Disk Drive Connector (34-pin FLOPPY).
This is a 34-pin connector that supports the provided floppy
drive ribbon cable. After connecting the single end to the
on-board “FLOPPY” connector, (O in mainboard diagram)
connect the remaining plugs on the other end to the
corresponding floppy drives.
IDE Device Connector.
The on-board IDE connectors (P in mainboard diagram)
support the provided 40/80-pin IDE hard disk ribbon cable.
After connecting the single end to the mainboard, connect
the remaining plugs at the other end of your hard disk(s).
If you install hard disks, you must configure the drives by
setting its jumpers according to the documentation of your
hard disk.
Also, you may connect the hard disk drives so that both
become Masters, using one ribbon cable on the primary IDE-
connector, and the other on the secondary IDE connector.
NOTE: For the flat ribbon cable connection, please make
sure that the pin 1 of the ribbon cable (the red wire side of
the cable) is correctly connected to the on-board connector's
pin 1 as shown on the “mainboard diagram”.
Floppy connection
IDE connection

Mainboard User's ManualPage 16
Mounting Mainboard to chassis
Snap black mounting pins onto the mainboard as shown.
Carefully install the mainboard into the computer chassis and
align the corresponding mounting holes on the mainboard
with the holes on you chassis. While chassis design varies
you may need to refer to the chassis manual for the mainboard
mounting area. Insert white pins through the chassis and
through the mounting holes on the mainboard into the black
pin making sure they are snapped fully into place.
Black mounting pin
Insert into chassis
Insert white mounting pin

7 Quick Steps
Page 17 Mainboard User's Manual
PCI Board Installation
Installing Add-in Boards
First read your expansion card documentation for hardware and
software settings that may be required to set up your specific
card. Set any necessary jumpers on your expansion card and
remove the cover plate on your computer case at the slot
you intend to use. Keep the plate for possible future use.
Carefully align the card's connector and press firmly. Secure
the card on the slot with the screw you removed from the
cover plate.

Mainboard User's ManualPage 18
I/O connectors aligned
with openings
Make sure to align rear external I/O connector's with
the corresponding openings in chassis shown below
(A,C & G in mainboard diagram)
You can now attach the Front Panel
Function Connector (M in mainboard
diagram) wires and Keyboard,
Mouse and Monitor cables to the
appropriate ports. Connect the main
power cable and boot your system.
Press the DEL key when prompted
and continue BIOS configurations
discussed in the next chapter.

BIOS
Setup

Mainboard User's ManualPage 20
Sets time, date, hard disk type, types of floppy drive.
Monitor type, and if keyboard is installed.
Sets Typematic Rate and Delay, Above 1 MB Memory
Test, Memory Test Tick Sound, Hit <Del> Message
Display, System Boot Up Sequence, and many
others.
Sets chipset - specific options and features
Controls I/O Controller - related features
Controls power savings options
Sets options related to PCI bus and Plug and Play
options.
Display CPU or System Temperature, Fan Speed.
Control CPU's Clock
Load Fail-Safe Defaults
Load Optimized Defaults
Change/Set/Disabled Password
Change/Set/Disabled Password
Save Data to CMOS
Abandon all Saving
Standard CMOS Features
Advanced BIOS Features
Advanced Chipset Features
Integrated Peripherals
Power Management Setup
PnP/PCI Configurations
PC Health Status
Frequency / Voltage Control
Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
Set User Password
Save & Exit Setup
Exit Without Saving
Award BIOS Setup
