Thank You for purchasing our High Performance Mainboard.
Our advanced technology mainboard is designed for processing
speeds of 600MHz to 1000MHz or above and is upgradeabled
for future processors.
The VIA Mainboard Utilizes VIA's VT8365 and VT82C686A
chipset provide an Integrated Bus Mastering IDE controller
with two high performance IDE interfaces for up to four UDMA
IDE devices (hard drives, or CD-ROM's). It's I/O controller
integrates floppy drive interface, two FIFO serial ports, one
parallel port and Consumer Infra Red compatible interface.
VIA VT8365 Chipset supports AMD Duron®, Thunderbird®
Processors on Socket A with 200MHz Processor Front-side
Bus. Supports 100/133MHz PC100/133 SDRAM DIMM.
AGP Graphics Controller Integrated inside VIA VT8365 Chipset.
Dynamic Graphics Memory Allocation on System Memory.
128-bit Single Cycle 2D/3D Graphics Engine. Supports 2
to 32 Mbytes of Frame Buffer. Real Time DVD MPEG-2
and AC-3 Playback. Extended Screen Resolutions up to
1600x1200.Extended Text Modes 80 or 132 columns by
25/30/43/60 rows. Full Support for Microsoft Direct 3D and
Direct Draw.
Two DIMM slots support up to 1GB Memory Capacity. Four
USB ports support USB Devices. WAKEUP-LINK Header
supports Wake-On-LAN.
Integrated AC97 2.1 Compliant Codec with 3D Stereo
enhancement (optional). Award 2Mbit BIOS, PC99/ACPI/DMI
Compliant.
MicroATX 240mm x 220mm.
Mainboard User's Manual Page 5
Overview

Page 6 Mainboard User's Manual
Fast Start
Installation
This section will aid you in quickly setting up the Mainboard.
Be sure to take caution to avoid personal injury or damage
to wiring due to sharp pins on connectors, printed circuit
assemblies, rough edges and corners and hot components.
Your Location Requirements Are:
• A sturdy, level surface for placement
• Space allowance around mainboard
• A stable environment with no abrupt temperature or humidity
changes
• No exposure to chemicals or direct sunlight
• Line voltage and frequency not varying more than + or -10% from
the value stated on the package or nameplate (located on the
back, opposite the power plug)

Checking The Package Contents
Remove the items from the box and make sure you have
the following items before beginning. If any of the items
below are missing, please contact the representative for part
replacement.
Micro ATX Box Standard Package
1) Mainboard
2) Driver CD with Norton AntiVirus 2001 OEM Version
3) User Manual
4) IDE Hard Drive Ribbon Cable
5) Floppy Drive Ribbon Cable
6) VGA Port cable for VGA
7) USB Cable for onboard USB Header ( Optional )
Installation
Mainboard User's Manual Page 7

Page 8 Mainboard User's Manual
Before we begin installing your series Mainboard, we have provided you with a diagram of the Mainboard to
help you locate the appropriate “connectors”. The letters below describe the key Mainboard components.
Page number in the right hand column will direct you to detailed description of the component.
PG133 Option : AC97 2.1 Compliant 3D Audio
Onboard
COMPONENT PAGE
A- PS/2 Mouse & Keyboard Connector . . . . . . . . . . . . . . . . . . 41
B- ATX Power Supply Connector . . . . . . . . . . . . . . . . . . . . . . 41
C- Universal Serial Bus (USB) Connector . . . . . . . . . . . . . . . . 42
D- Serial (COM1 & 2) Connector . . . . . . . . . . . . . . . . . . . . . . . 42
E- Infra-Red (IR) connector . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
F- Memory Module Sockets . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
G- Parallel Port Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
H- Accelerated Graphics Port (AGP) Connector . . . . . . . . . . 43
I- Lithium Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
J- PCI Add-in Board Connector . . . . . . . . . . . . . . . . . . . . . . . 44
M- Front Panel Function Connector . . . . . . . . . . . . . . . . . . . . . 44
N- Flash BIOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
O- Floppy Drive Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
P- IDE Device Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Q- WAKEUP-LINK Header . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
S- CPU Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
T- CPU / SYSTEM FAN Connector . . . . . . . . . . . . . . . . . . . . . 46
t- VGA Header . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
U- Audio Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
V- TV-Out Daughter Board . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
X- CD Audio Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Y- Auxiliary Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Z- Telephony Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

BIOS
PCI 2
PCI 3
CPU SOCKET
BOTTOM:
PS/2
KEYBOARD
USB 0,1
COM2 COM1
TOP:
PS/2
MOUSE
ATX POWER CONNECTOR
FLOPPY
SECONDARY IDE
PRIMARY IDE
DIMM1
AUDIO CONNECTOR
IDE1 IDE2
INFRARED
M-In L-In L-Out
A
CB
G
U
J
M
T
S
F
O
E
CPU FAN
Y
CD_IN
Socket 462
T
PCI 1
PARALLEL
Buzzer
DIMM2
WOL1
Front Pannel
RESET PW-BT
EXTSMI
FDD
IR1
P
SW1
JBAT1
1-2:NORMAL
2-3:CLEAR CMOS
SYSTEM FAN
HD-LED
PW-LED
1 1 1
1
1
1
1
1
Q
USB2,3
BATTERY
AGP
1
AUX_IN
I
SPEAKER
SLP-BN
N
X
TEL
1
Z
H
v
1TV OUT
VGA HEADER
1
t
c
D
D
Mainboard User's Manual Page 9
Installation
Mainboard
Diagram

Page 10 Mainboard User's Manual
CPU Frequency Jumper Settings Table
Duron / Thunderbird X = OPEN O = SHORT
CPU PCI 1-2 3-4 5-6 7-8
90.00 30.00 O O O O
95.00 31.67 O O X O
101.00 33.67 O O O X
102.00 34.00 O O X X
100.90 33.57 X O O O
103.00 34.33 X O X O
105.00 35.00 X O O X
100.00 33.33 X O X X
107.00 35.67 O X O O
109.00 36.33 O X X O
110.00 36.67 O X O X
111.00 37.00 O X X X
113.00 37.67 X X O O
115.00 38.33 X X X O
117.00 39.00 X X O X
133.30 33.33 X X X X
Clear CMOS
Set the Jumper JBAT1 to [2-3] to clear CMOS
Remember: Please set it back to normal [1-2] after clear CMOS

8 Quick
Steps
Please follow these steps in order to assure that your series
of Mainboard installation is successful. Please refer to the
back chapters for further information regarding boot-up and
configurations. An anti-static wrist band is recommended when
handling electronic components, be sure your work area is
static free before you begin this section.
Page 11 Mainboard User's Manual
The mainboard provides a 462 pins, Socket A. The CPU
should have a fan attached to prevent overheating. If a
fan is not present, user should purchase a fan prior to
turning on the system. The recommended heatsinks for the
Socket A processor are those with three-pin fans that can
be connected to the fan connectors on the motherboard. It
provides the +12 Volts DC for your CPU cooling fan.

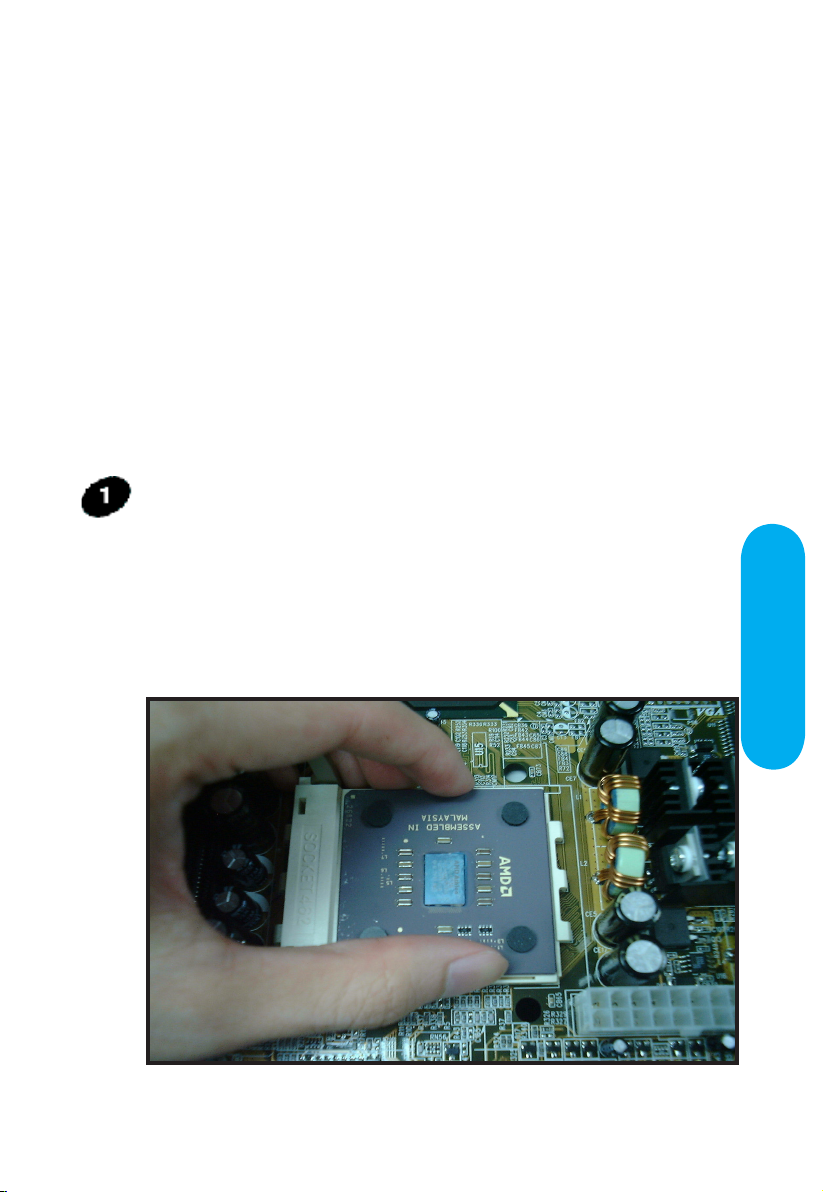

Installing the Central Processing Unit (PGA CPU)
8 Quick Steps

Set the suitable Jumper Settings according to the
Jumper settings Table.
CAUTION! Be sure that sufficient air circulation must be
available across the processor’s heatsink. Without sufficient
circulation, the processor could overheat and damage both
the processor and the motherboard. You may install an
auxiliary fan if necessary.
Mainboard User's ManualPage 12

8 Quick Steps
Page 13 Mainboard User's Manual
After you have set the DIMM firmly into its socket, snap the
white chip holders up to lock in the DIMM.
Installing the Memory
Memory is installed in DIMM Sockets 1-2 (F in diagram)
as follows :

Mainboard User's ManualPage 14
ATX Power Supply Connector (20-pin ATXPWR)
The single 20-pin connector (B in diagram) incorporates
standard +/-5V and +/-12V, with a standby 5V. With a power
supply that supports remote power on/off, the mainboard
can turn off the system power through the software control,
such as the shutdown in Windows 95 Start Menu. The BIOS
system will turn the system power off when it receives the
proper APM command from the OS. APM must be enabled
in the BIOS and OS systems in order for the soft-off feature
to work properly.

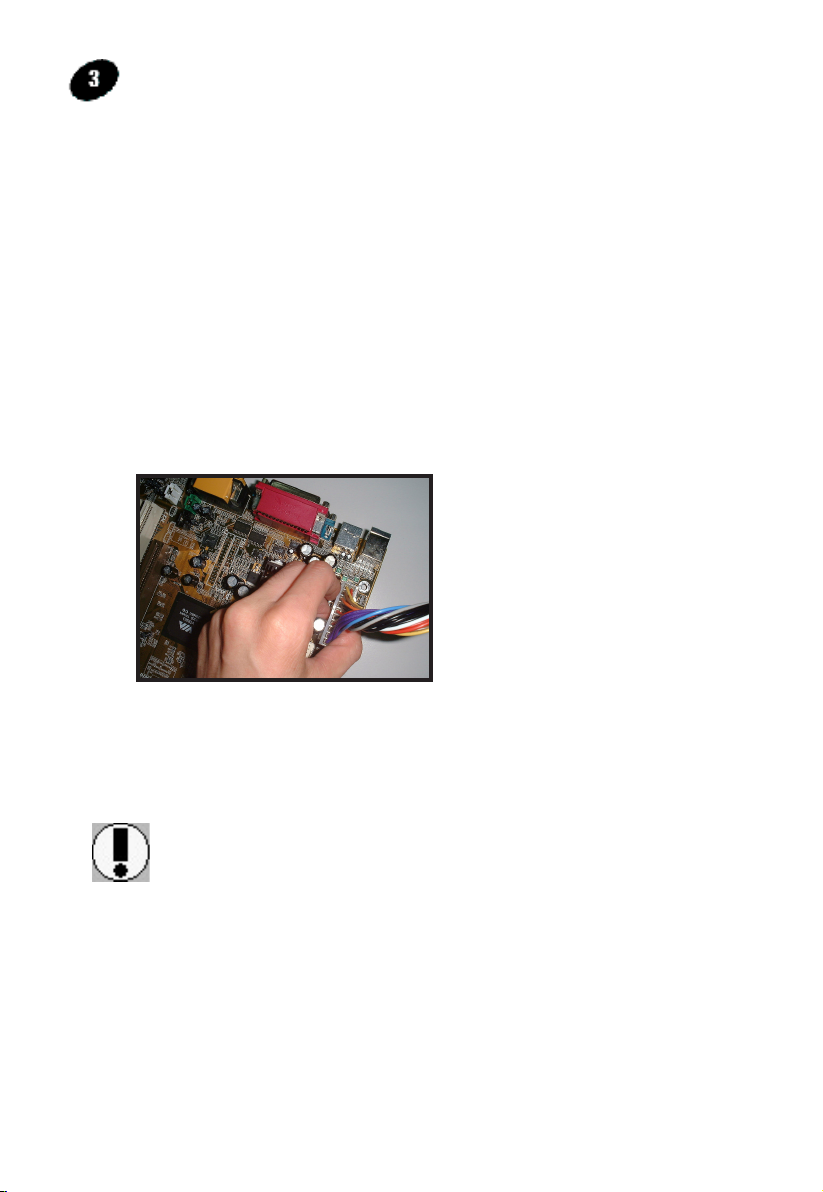

Attaching the power supply ribbon cable
IMPORTANT: Ribbon cables should always be connected
with the red stripe on the Pin 1 side of the connector.
The four corners of the connector's are labeled on the
motherboard.
ATX Power Connector
Attaching ATX Power Connector.

8 Quick Steps
Page 15 Mainboard User's Manual
Floppy Disk Drive Connector (34-pin FLOPPY).
This is a 34-pin connector that supports the provided floppy
drive ribbon cable. After connecting the single end to the
on-board “FLOPPY” connector, (O in diagram) connect the
remaining plugs on the other end to the corresponding
floppy drives.
IDE Device Connector.
The on-board IDE connectors (P in diagram) support the
provided 40/80-pin IDE hard disk ribbon cable. After connecting
the single end to the mainboard, connect the remaining plugs
at the other end of your hard disk(s). If you install hard disks,
you must configure the drives by setting its jumpers according
to the documentation of your hard disk.
Also, you may connect the hard disk drives so that both
become Masters, using one ribbon cable on the primary IDE-
connector, and the other on the secondary IDE connector.
NOTE: For the flat ribbon cable connection, please make
sure that the pin 1 of the ribbon cable (the red wire side of
the cable) is correctly connected to the on-board connector's
pin 1 as shown on the “ the mainboard diagram”.
Floppy connection
IDE connection

Mainboard User's ManualPage 16

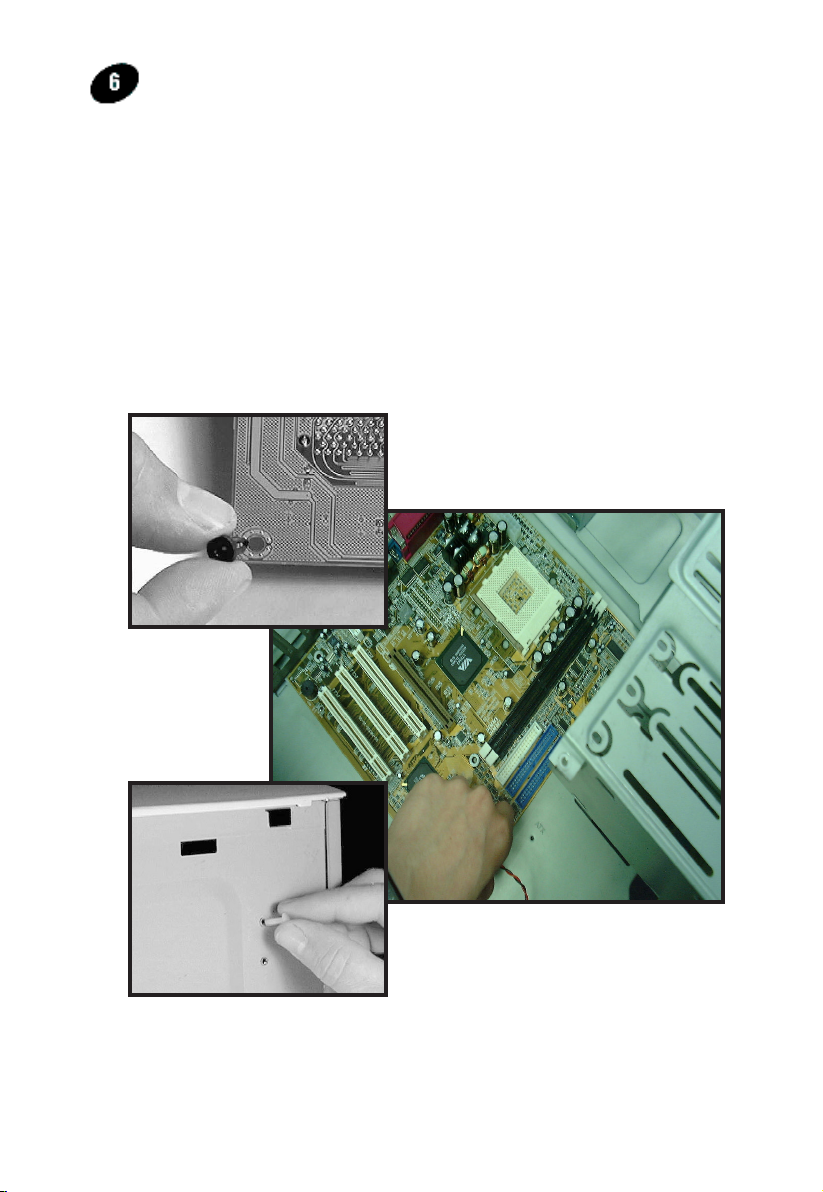

Installing the mainboard into your computer chassis
Snap black mounting pins onto the mainboard as shown.
Carefully install the mainboard into the computer chassis and
align the corresponding mounting holes on the mainboard
with the holes on you chassis. While chassis design varies
you may need to refer to the chassis manual for the mainboard
mounting area. Insert white pins through the chassis and
through the mounting holes on the mainboard into the black
pin making sure they are snapped fully into place.
Black mounting pin
Insert into chassis
Insert white mounting pin

8 Quick Start
Page 17 Mainboard User's Manual
PCI Board Installation
Installing PCI Add-on Boards
First read your expansion card documentation for hardware and
software settings that may be required to set up your specific
card. Set any necessary jumpers on your expansion card and
remove the cover plate on your computer case at the slot
you intend to use. Keep the plate for possible future use.
Carefully align the card's connector and press firmly. Secure
the card on the slot with the screw you removed from the
cover plate.
VGA Connector (16-pin VGA).
This is a 16-pin connector that supports the provided VGA
ribbon cable. After connecting the single end to the on-board
“VGA” connector, connect the remaining plugs on the other
end to the corresponding VGA monitor.
VGA connection

Mainboard User's ManualPage 18

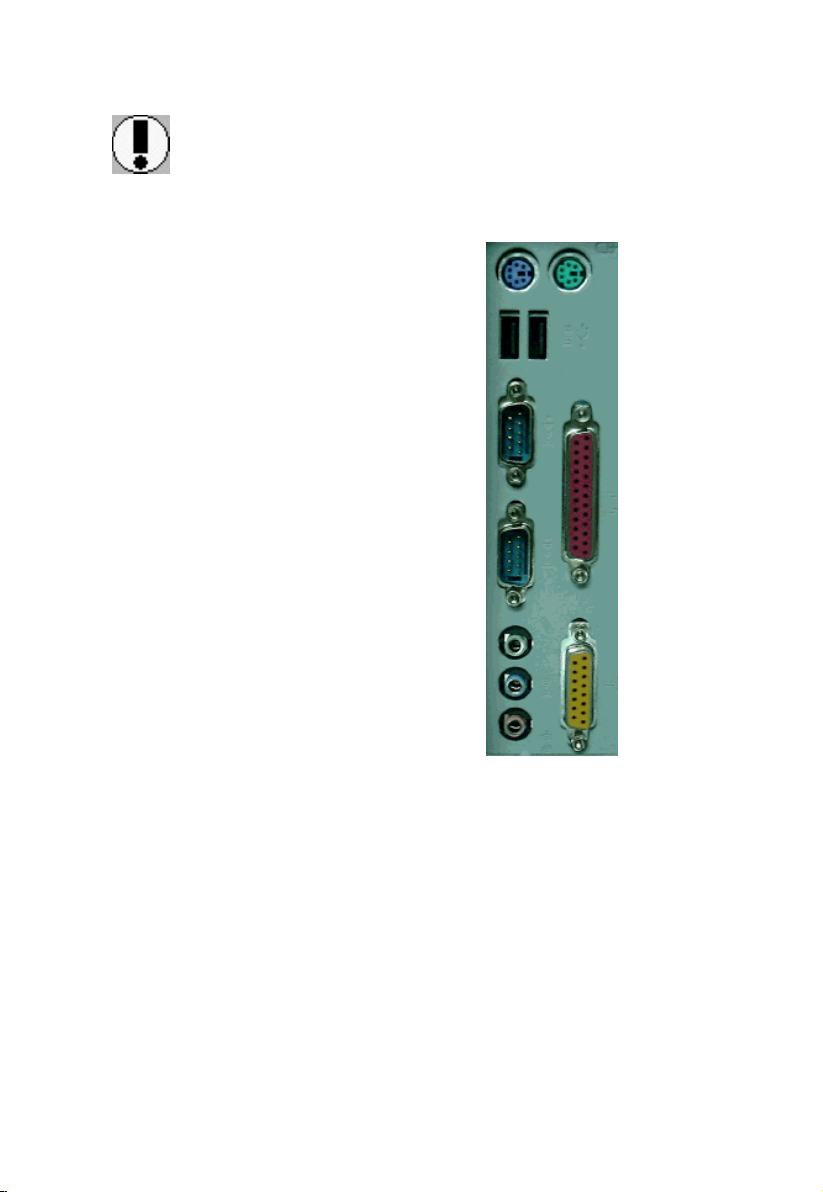

I/O connectors aligned
with openings
Make sure to align rear external I/O connector's with
the corresponding openings in chassis shown below
(A,C & G in mainboard diagram)
You can now attach the Front
Panel Function Connector (M in
mainboard diagram at P.9 ) wires
and Keyboard, Mouse and Monitor
cables to the appropriate serial
ports. Connect the main power
cable and boot your system.
Press the DEL key when prompted
and continue BIOS configurations
discussed in the next chapter.

BIOS
Setup

Mainboard User's ManualPage 20
Standard CMOS Features
Advanced BIOS Features
Advanced Chipset Features
Integrated Peripherals
Power Management Setup
PnP/PCI Configurations
PC Health Status
Frequency/ Voltage Control
Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
Set User Password
Save & Exit Setup
Exit Without Saving
Sets time, date, hard disk type, types of floppy drive,
Monitor type, and if keyboard is installed.
Sets Typematic Rate and Delay, Above 1 MB Memory
Test, Memory Test Tick Sound, Hit <Del> Message
Display, System Boot Up Sequence, and many
others.
Sets chipset-specific options and features.
Controls I/O Controller- related options.
Controls power savings options.
Sets options related to PCI bus and Plug and Play
options.
Display CPU or System Temperature, Fan Speed
Control CPU's Clock & Voltage
Load Fail-Safe Defaults
Load Optimized Defaults
Change/Set/Disable Password
Change/Set/Disable Password
Save Data to CMOS
Abandon all Saving
Award BIOS Setup
