Overview
Thank You for purchasing our High Performance Mainboard.
Our advanced technology mainboard is designed for processing
speeds of 1000MHz or above and is upgradeabled for future
processors.
The Mainboard Utilizes SIS 630E and ITE8705 chipset provide
an Integrated Bus Mastering IDE controller with two high
performance IDE interfaces for up to four UDMA IDE devices
(hard drives, or CD-ROM's). It's I/O controller integrates floppy
drive interface, two FIFO serial ports, one parallel port and
Consumer Infra Red compatible interface.
SIS 630E Chipset supports SOCKET 370 Processors with
100/100/133MHz Front-side Bus. Supports 100/133MHz
PC100/133 SDRAM DIMM.
Two DIMM slots support up to 1GB Memory Capacity. Four
USB ports support USB Devices. WAKEUP-LINK Header
supports Wake-On-LAN.
Integrated AC97 2.1 Compliant Codec with 3D Stereo
enhancement (optional). Award 2Mbit BIOS, PC99/ACPI/DMI
Compliant.
BabyAT 220mm x 220mm.
Mainboard User's Manual Page 5
Overview

Page 6 Mainboard User's Manual
Fast Start
Installation
This section will aid you in quickly setting up the Mainboard.
Be sure to take caution to avoid personal injury or damage
to wiring due to sharp pins on connectors, printed circuit
assemblies, rough edges and corners and hot components.
Your Location Requirements Are:
• A sturdy, level surface for placement
• Space allowance around mainboard
• A stable environment with no abrupt temperature or humidity
changes
• No exposure to chemicals or direct sunlight
• Line voltage and frequency not varying more than + or -10% from
the value stated on the package or nameplate (located on the
back, opposite the power plug)

Checking The Package Contents
Remove the items from the box and make sure you have
the following items before beginning. If any of the items
below are missing, please contact the representative for part
replacement.
Baby ATX Box Standard Package
1) Mainboard
2) Driver CD with Norton AntiVirus 2001 OEM Version
3) User Guide
4) IDE Hard Drive Ribbon Cable
5) Floppy Drive Ribbon Cable
6) USB Cable for onboard USB Header ( Optional )
7) Audio / Game Cable
8) LAN Module (Optional)
9) VGA Cable
10) COM X LPT Cable
11) PS/2 Cable
Installation
Mainboard User's Manual Page 7

Page 8 Mainboard User's Manual
Before we begin installing your series Mainboard, we have provided you with a diagram of the Mainboard to
help you locate the appropriate “connectors”. The letters below describe the key Mainboard components.
Page number in the right hand column will direct you to detailed description of the component.
V630E Option : AC97 2.1 Compliant 3D Audio
Onboard
COMPONENT PAGE
A- AT Keyboard Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
a- PS/2 Mouse Header . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
B- ATX Power Supply Connector . . . . . . . . . . . . . . . . . . . . . . 37
b- AT Power Supply Connector . . . . . . . . . . . . . . . . . . . . . . . . 38
C- Universal Serial Bus (USB) Header . . . . . . . . . . . . . . . . . . 38
D- Serial (COM 1 & 2) Headers . . . . . . . . . . . . . . . . . . . . . . . . 39
E- Infra-Red (IR) Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
F- Memory Module Sockets . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
G- Parallel Port Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
I- Lithium Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
J- PCI Add-In Board Connector . . . . . . . . . . . . . . . . . . . . . . . 40
M- Front Panel Function Connector . . . . . . . . . . . . . . . . . . . . . 40
N- Flash BIOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
O- Floppy Drive Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
P- IDE Device Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Q- WAKEUP-LINK Header . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
q- LAN Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
r- Audio Modem Riser (AMR) Connector . . . . . . . . . . . . . . . . . 42
S- CPU Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
T- CPU / SYSTEM FAN Connector . . . . . . . . . . . . . . . . . . . . . 43
U- Game & Audio Header . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
V- VGA Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
X- CD Audio Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Y- Auxiliary Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
y- Video Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Mainboard User's Manual Page 9
Mainboard Diagram
Mainboard
Diagram

Page 10 Mainboard User's Manual
Clear CMOS
Set the Jumper JP4 to [1-2] to clear CMOS
Remember: Please set it back to normal [2-3] after clear CMOS

7 Quick
Steps
Please follow these steps in order to assure that your series
of Mainboard installation is successful. Please refer to the
back chapters for further information regarding boot-up and
configurations. An anti-static wrist band is recommended when
handling electronic components, be sure your work area is
static free before you begin this section.
Page 11 Mainboard User's Manual

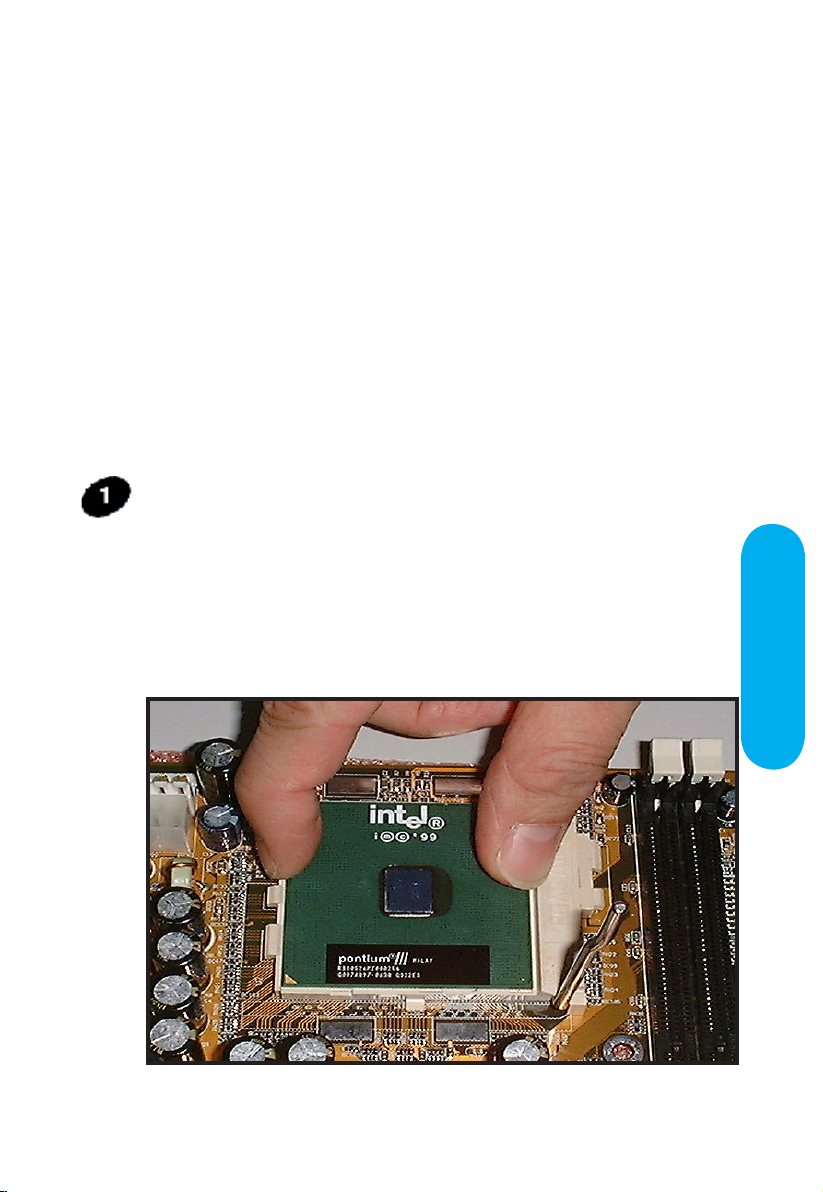

The Mainboard provides a 370 pins, Socket . The CPU
should have a fan attached to prevent overheating. If a
fan is not present, user should purchase a fan prior to
turning on the system. The recommended heatsinks for the
Socket 370 processor are those with three-pin fans that can
be connected to the fan connectors on the Mainboard. It
provides the +12 Volts DC for your CPU cooling fan.
Installing the Central Processing Unit (PGA CPU)
7 Quick Steps

Set the suitable Jumper Settings according to the
Jumper settings Table.
CAUTION! Be sure that sufficient air circulation must be
available across the processor’s heatsink. Without sufficient
circulation, the processor could overheat and damage both
the processor and the mainboard. You may install an
auxiliary fan if necessary.
Mainboard User's ManualPage 12

7 Quick Steps
Page 13 Mainboard User's Manual
After you have set the DIMM firmly into its socket, snap the
white chip holders up to lock in the DIMM.
Installing the Memory
Memory is installed in DIMM Sockets 1-2 (F in diagram)
as follows :

Mainboard User's ManualPage 14
ATX Power Supply Connector (20-pin ATXPWR)
The single 20-pin connector (B in diagram) incorporates
standard +/-5V and +/-12V, with a standby 5V. With a power
supply that supports remote power on/off, the mainboard
can turn off the system power through the software control,
such as the shutdown in Windows 95 Start Menu. The BIOS
system will turn the system power off when it receives the
proper APM command from the OS. APM must be enabled
in the BIOS and OS systems in order for the soft-off feature
to work properly.
For AT power supply, short all the jumper from J2(1-2),J2(3-
4),J2(5-6)
For ATX power supply, open all the jumper J2(1-2), J2(3-4),
J2(5-6).
Attaching the power supply ribbon cable
IMPORTANT: Ribbon cables should always be connected
with the red stripe on the Pin 1 side of the connector.
The four corners of the connector's are labeled on the
mainboard.
ATX Power Connector
Attaching ATX Power Connector.

7 Quick Steps
Page 15 Mainboard User's Manual

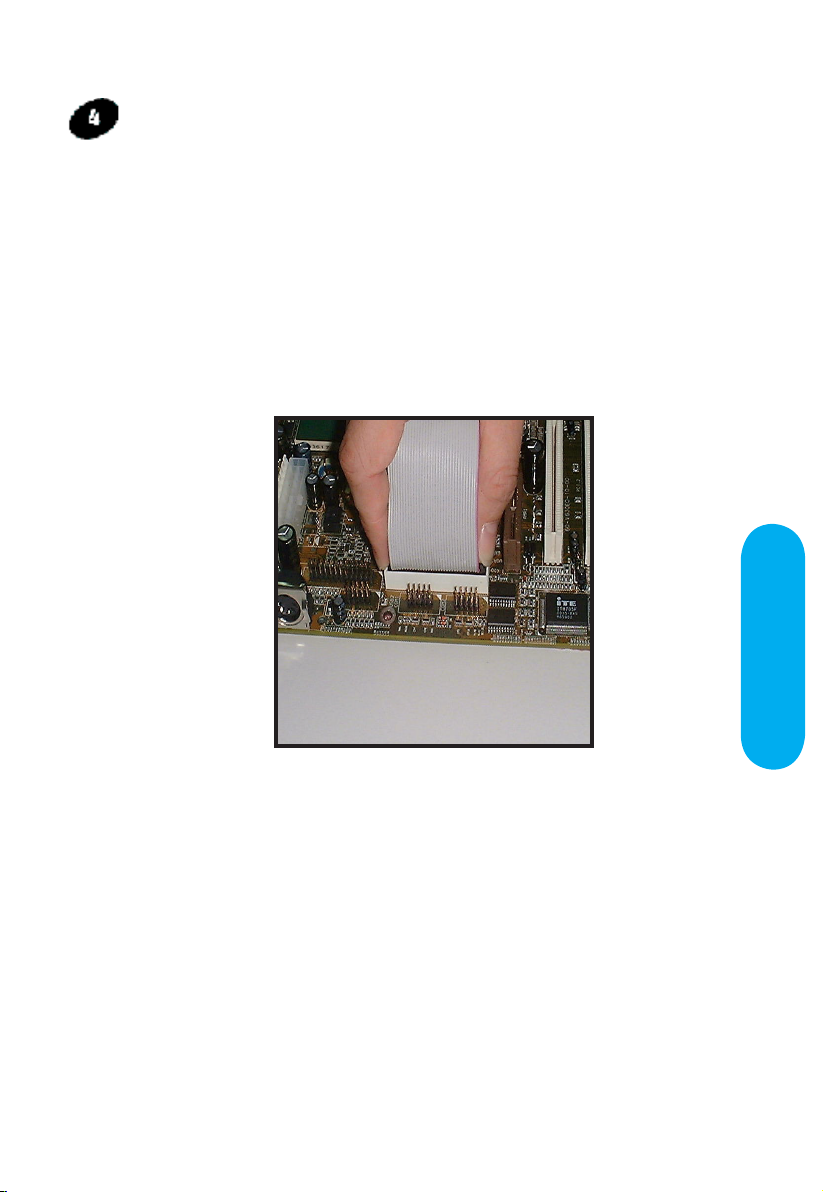

Floppy Disk Drive Connector (34-pin FLOPPY).
This is a 34-pin connector that supports the provided floppy
drive ribbon cable. After connecting the single end to the
on-board “FLOPPY” connector, (O in diagram) connect the
remaining plugs on the other end to the corresponding
floppy drives.
Floppy connection

Mainboard User's ManualPage 16
IDE Device Connector

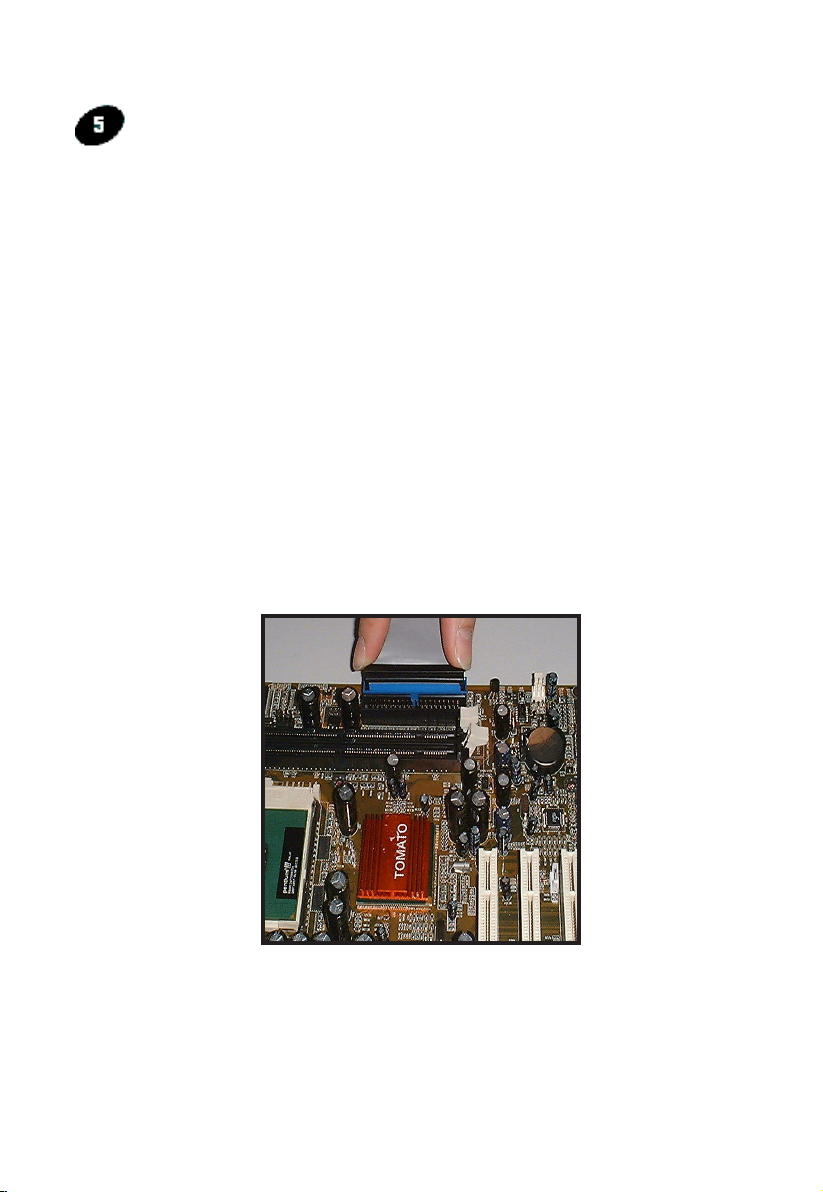

The on-board IDE connectors (P in diagram) support the
provided 40/80-pin IDE hard disk ribbon cable. After connecting
the single end to the mainboard, connect the remaining plugs
at the other end of your hard disk(s). If you install hard disks,
you must configure the drives by setting its jumpers according
to the documentation of your hard disk.
Also, you may connect the hard disk drives so that both
become Masters, using one ribbon cable on the primary IDE-
connector, and the other on the secondary IDE connector.
NOTE: For the flat ribbon cable connection, please make
sure that the pin 1 of the ribbon cable (the red wire side of
the cable) is correctly connected to the on-board connector's
pin 1 as shown on the “ the mainboard diagram”.
IDE connection

7 Quick Steps
Page 17 Mainboard User's Manual
Installing the mainboard into your computer chassis

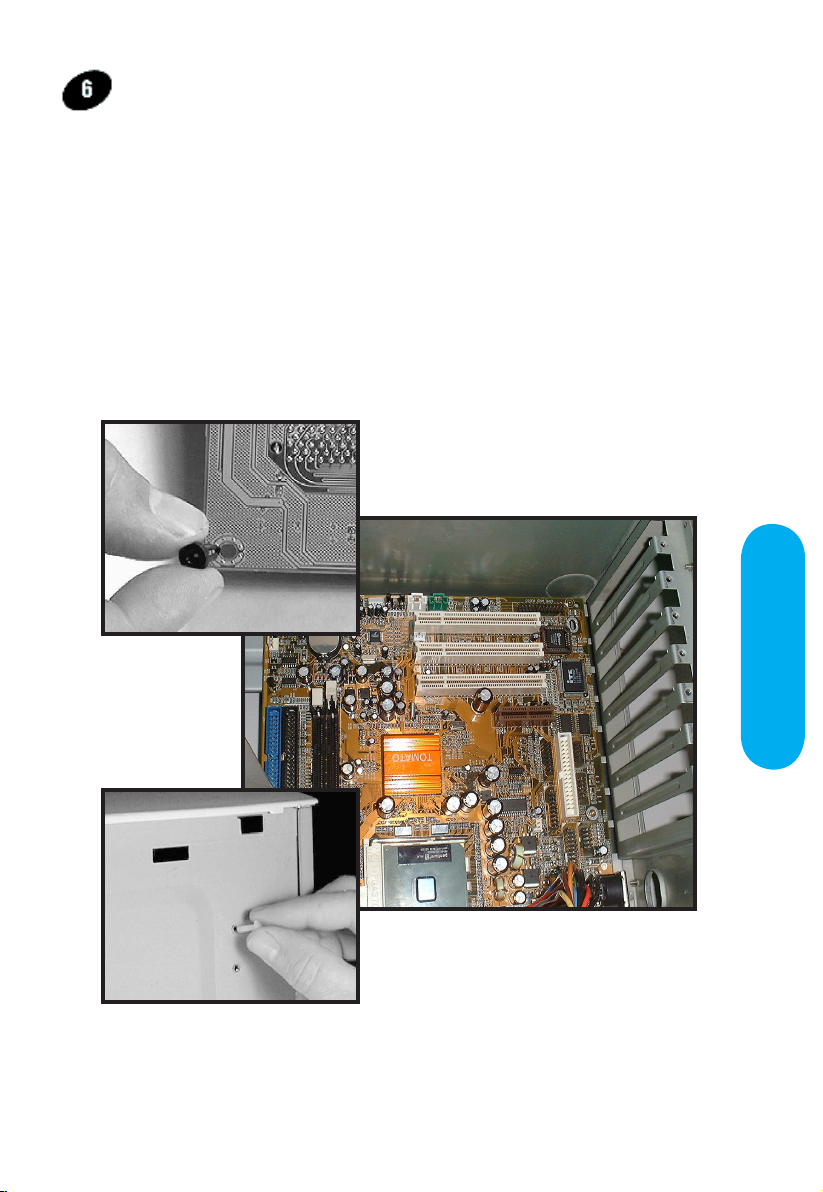

Snap black mounting pins onto the mainboard as shown.
Carefully install the mainboard into the computer chassis and
align the corresponding mounting holes on the mainboard
with the holes on your chassis. While chassis design varies
you may need to refer to the chassis manual for the mainboard
mounting area. Insert white pins through the chassis and
through the mounting holes on the mainboard into the black
pin making sure they are snapped fully into place.
Black mounting pin
Insert into chassis
Insert White mounting pin

Mainboard User's ManualPage 18
PCI Board Installation
Installing PCI Add-on Boards
First read your expansion card documentation for hardware and
software settings that may be required to set up your specific
card. Set any necessary jumpers on your expansion card and
remove the cover plate on your computer case at the slot
you intend to use. Keep the plate for possible future use.
Carefully align the card's connector and press firmly. Secure
the card on the slot with the screw you removed from the
cover plate.

BIOS
Setup

Mainboard User's ManualPage 20

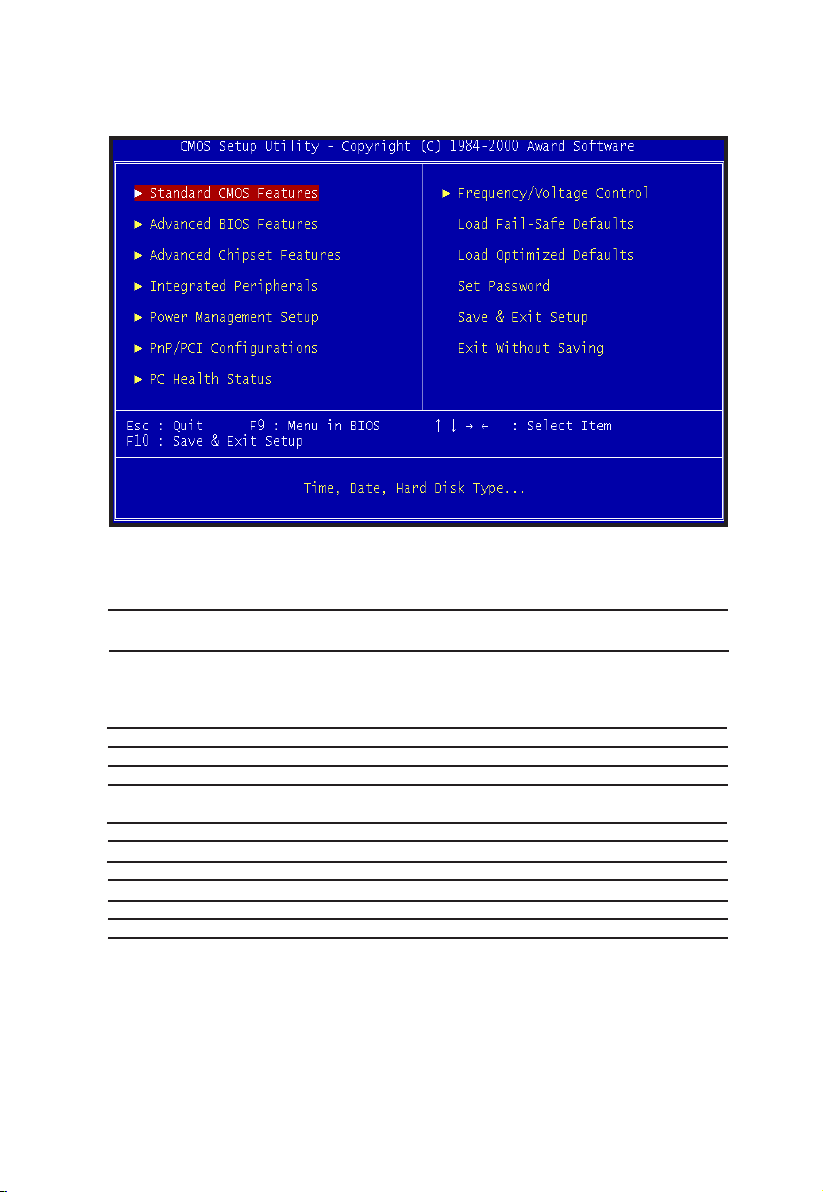

Standard CMOS Features
Advanced BIOS Features
Advanced Chipset Features
Integrated Peripherals
Power Management Setup
PnP/PCI Configurations
PC Health Status
Frequency/ Voltage Control
Load Fail-Safe Defaults
Load Optimized Defaults
Set Password
Save & Exit Setup
Exit Without Saving
Sets time, date, hard disk type, types of floppy drive,
Monitor type, and if keyboard is installed.
Sets Typematic Rate and Delay, Above 1 MB Memory
Test, Memory Test Tick Sound, Hit <Del> Message
Display, System Boot Up Sequence, and many
others.
Sets chipset-specific options and features.
Controls I/O Controller- related options.
Controls power savings options.
Sets options related to PCI bus and Plug and Play
options.
Display CPU or System Temperature, Fan Speed
Control CPU's Clock & Voltage
Load Fail-Safe Defaults
Load Optimized Defaults
Change/Set/Disable Password
Save Data to CMOS
Abandon all Saving
Award BIOS Setup
