ZKTeco BG1000 Series User manual

BG1000 Series Barrier Gate (APP Version) User Manual
P a g e |1Copyright©2021 ZKTECO CO., LTD. All rights reserved.
Thank you for choosing our product. Please read the instructions carefully
before operation. Follow these instructions to ensure that the product is
functioning properly. The images shown in this manual are for illustrative
purposes only.
For further details, please visit our Company’s website
www.zkteco.com.

BG1000 Series Barrier Gate (APP Version) User Manual
P a g e |1Copyright©2021 ZKTECO CO., LTD. All rights reserved.
Copyright © 2021 ZKTECO CO., LTD. All rights reserved.
Without the prior written consent of ZKTeco, no portion of this manual can be copied or
forwarded in any way or form. All parts of this manual belong to ZKTeco and its subsidiaries
(hereinafter the "Company" or "ZKTeco").
Trademark
is a registered trademark of ZKTeco. Other trademarks involved in this manual are
owned by their respective owners.
Disclaimer
This manual contains information on the operation and maintenance of the ZKTeco equipment.
The copyright in all the documents, drawings, etc. in relation to the ZKTeco supplied
equipment vests in and is the property of ZKTeco. The contents hereof should not be used or
shared by the receiver with any third party without the express written permission of ZKTeco.
The contents of this manual must be read as a whole before starting the operation and
maintenance of the supplied equipment. If any of the content(s) of the manual seems unclear
or incomplete, please contact ZKTeco before starting the operation and maintenance of the
said equipment.
It is an essential pre-requisite for the satisfactory operation and maintenance that the operating
and maintenance personnel are fully familiar with the design and that the said personnel have
received thorough training in operating and maintaining the machine/unit/equipment. It is
further essential for the safe operation of the machine/unit/equipment that personnel has read,
understood and followed the safety instructions contained in the manual.
In case of any conflict between terms and conditions of this manual and the contract
specifications, drawings, instruction sheets or any other contract-related documents, the
contract conditions/documents shall prevail. The contract specific conditions/documents shall
apply in priority.
ZKTeco offers no warranty, guarantee or representation regarding the completeness of any
information contained in this manual or any of the amendments made thereto. ZKTeco does
not extend the warranty of any kind, including, without limitation, any warranty of design,
merchantability or fitness for a particular purpose.
ZKTeco does not assume responsibility for any errors or omissions in the information or
documents which are referenced by or linked to this manual. The entire risk as to the results
and performance obtained from using the information is assumed by the user.

BG1000 Series Barrier Gate (APP Version) User Manual
P a g e |2Copyright©2021 ZKTECO CO., LTD. All rights reserved.
ZKTeco in no event shall be liable to the user or any third party for any incidental,
consequential, indirect, special, or exemplary damages, including, without limitation, loss of
business, loss of profits, business interruption, loss of business information or any pecuniary
loss, arising out of, in connection with, or relating to the use of the information contained in or
referenced by this manual, even if ZKTeco has been advised of the possibility of such damages.
This manual and the information contained therein may include technical, other inaccuracies or
typographical errors. ZKTeco periodically changes the information herein which will be
incorporated into new additions/amendments to the manual. ZKTeco reserves the right to add,
delete, amend or modify the information contained in the manual from time to time in the
form of circulars, letters, notes, etc. for better operation and safety of the
machine/unit/equipment. The said additions or amendments are meant for improvement
/better operations of the machine/unit/equipment and such amendments shall not give any
right to claim any compensation or damages under any circumstances.
ZKTeco shall in no way be responsible (i) in case the machine/unit/equipment malfunctions
due to any non-compliance of the instructions contained in this manual (ii) in case of operation
of the machine/unit/equipment beyond the rate limits (iii) in case of operation of the machine
and equipment in conditions different from the prescribed conditions of the manual.
The product will be updated from time to time without prior notice. The latest operation
procedures and relevant documents are available on http://www.zkteco.com.
If there is any issue related to the product, please contact us.
ZKTeco Headquarters
Address ZKTeco Industrial Park, No. 32, Industrial Road,
Tangxia Town, Dongguan, China.
Phone +86 769 - 82109991
Fax +86 755 - 89602394
For business-related queries, please write to us at [email protected].
To know more about our global branches, visit www.zkteco.com.

BG1000 Series Barrier Gate (APP Version) User Manual
P a g e |3Copyright©2021 ZKTECO CO., LTD. All rights reserved.
About the Company
ZKTeco is one of the world’s largest manufacturer of RFID and Biometric (Fingerprint, Facial,
Finger-vein) readers. Product offerings include Access Control readers and panels, Near & Far-
range Facial Recognition Cameras, Elevator/floor access controllers, Turnstiles, License Plate
Recognition (LPR) gate controllers and Consumer products including battery-operated
fingerprint and face-reader Door Locks. Our security solutions are multi-lingual and localized in
over 18 different languages. At the ZKTeco state-of-the-art 700,000 square foot ISO9001-
certified manufacturing facility, we control manufacturing, product design, component
assembly, and logistics/shipping, all under one roof.
The founders of ZKTeco have been determined for independent research and development of
biometric verification procedures and the productization of biometric verification SDK, which
was initially widely applied in PC security and identity authentication fields. With the
continuous enhancement of the development and plenty of market applications, the team has
gradually constructed an identity authentication ecosystem and smart security ecosystem,
which are based on biometric verification techniques. With years of experience in the
industrialization of biometric verifications, ZKTeco was officially established in 2007 and now
has been one of the globally leading enterprises in the biometric verification industry owning
various patents and being selected as the National High-tech Enterprise for 6 consecutive years.
Its products are protected by intellectual property rights.
About the Manual
This manual introduces the operations of BG1000 Series Barrier Gate (APP Version).
All figures displayed are for illustration purposes only. Figures in this manual may not be exactly
consistent with the actual products.

BG1000 Series Barrier Gate (APP Version) User Manual
P a g e |4Copyright©2021 ZKTECO CO., LTD. All rights reserved.
Document Conventions
Conventions used in this manual are listed below:
GUI Conventions
For Software
Convention
Description
Bold font
Used to identify software interface names e.g., OK,Confirm,Cancel.
>
Multi-level menus are separated by these brackets. For example, File >
Create > Folder.
For Device
Convention
Description
< >
Button or key names for devices. For example, press <OK>.
[ ]
Window names, menu items, data table, and field names are inside
square brackets. For example, pop up the [New User] window.
/
Multi-level menus are separated by forwarding slashes. For example,
[File/Create/Folder].
Symbols
Convention
Description
This represents a note that needs to pay more attention to.
The general information which helps in performing the operations
faster.
The information which is significant.
Care taken to avoid danger or mistakes.
The statement or event that warns of something or that serves as a
cautionary example.

BG1000 Series Barrier Gate (APP Version) User Manual
P a g e |5Copyright©2021 ZKTECO CO., LTD. All rights reserved.
Table of Contents
1 OVERVIEW................................................................................................................................. 7
2 FEATURES AND FUNCTIONALITIES........................................................................................ 7
3 APPEARANCE AND DIMENSIONS........................................................................................... 8
4 SPECIFICATIONS....................................................................................................................... 8
5 INSTALLATION PROCEDURE................................................................................................... 9
INSTALLATION PRECAUTIONS..................................................................................................9
CABLE EMBEDDING................................................................................................................9
BOOM ARM INSTALLATION...................................................................................................11
5.3.1 BOOM ARM INSTALLATION PROCEDURE................................................................................. 11
6 LEFT AND RIGHT DIRECTIONS.............................................................................................. 12
7 MAINBOARD WIRING INSTRUCTIONS................................................................................. 12

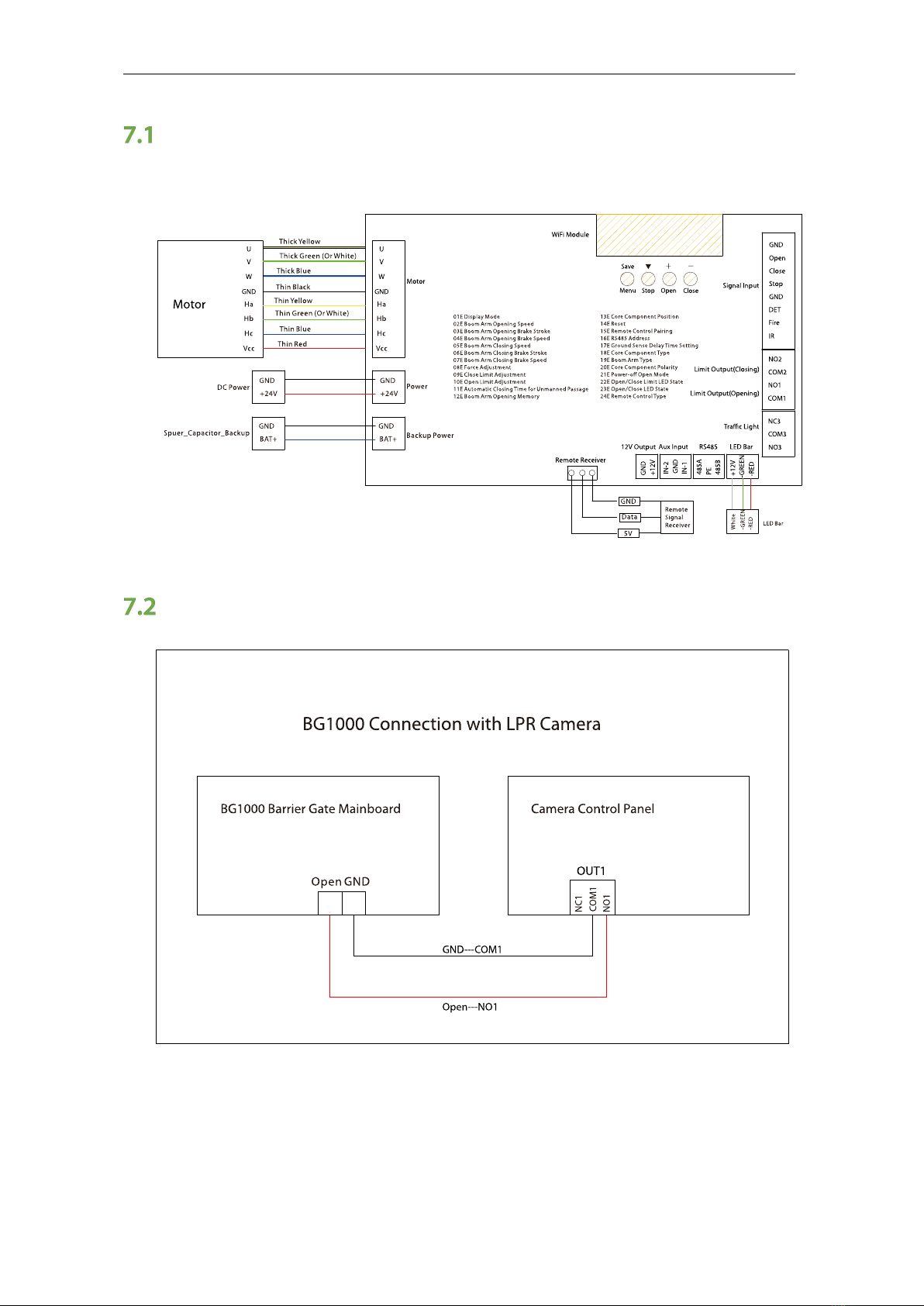

WIRE CONNECTION OF THE NEW MAINBOARD....................................................................... 13
CONNECTION WITH LPR CAMERA......................................................................................... 13
CONNECTION WITH UHF CONTROLLER..................................................................................14
CONNECTION WITH LOOP DETECTOR.....................................................................................14
CONNECTION WITH VR10 RADAR SENSOR.............................................................................15
CONNECTION WITH INFRARED/PHOTOCELL DETECTOR............................................................ 16
CONNECTION WITH DEVICE’SWI-FI...................................................................................... 17
8 FUNCTIONAL PARAMETER SETTINGS..................................................................................19
MAINBOARD PARAMETER SETTINGS...................................................................................... 19
8.1.1 OPERATING PROCEDURE......................................................................................................19
PARAMETER SETTINGS DESCRIPTION..................................................................................... 20
ERROR CODE.......................................................................................................................24
REMOTE CONTROL PAIRING AND UNPAIRING......................................................................... 25
8.4.1 PAIRING........................................................................................................................... 25
8.4.2 UNPAIRING....................................................................................................................... 25
SET DELAY FOR AUTOMATIC CLOSING AFTER OPENING THE BOOM ARM.................................. 25
9 BOOM ARM ADJUSTMENTS.................................................................................................. 26
DIMENSIONS....................................................................................................................... 26
HORIZONTAL AND VERTICAL ANGLE ADJUSTMENT OF BOOM ARM (MECHANICAL ADJUSTMENT)
26

BG1000 Series Barrier Gate (APP Version) User Manual
P a g e |6Copyright©2021 ZKTECO CO., LTD. All rights reserved.
DIRECTION INTERCHANGE OF THE BOOM ARM....................................................................... 28
SPRING ADJUSTMENT.......................................................................................................... 29
10 PRODUCT PACKING LIST.................................................................................................. 29
11 TROUBLESHOOTING......................................................................................................... 30
12 SAFETY PRECAUTIONS..................................................................................................... 31
13 TRANSPORTATION AND STORAGE................................................................................. 31
14 WARRANTY.........................................................................................................................31

BG1000 Series Barrier Gate (APP Version) User Manual
P a g e |7Copyright©2021 ZKTECO CO., LTD. All rights reserved.
1Overview
BG1000 series barrier gate is a high-performance barrier gate that adopts ZKTeco’s
interactive LED chassis design. It controls the flow of the traffic in and out of the premises
providing maximum security at a low cost. It adopts ARM7 embedded system control core,
brushless DC motor, and SCM421 material gear transmission structure to offer maximum
efficiency.
It has the advantages of high speed, efficiency, stable quality, user-friendly customization,
comprehensive performance, and so on. It can be used in real-time application areas such
as offices, hospitals, public places, residential areas to ease traffic issues.
2Features and Functionalities
The operating speed is 1.5s, and the speed can be adjusted according to different
boom arm lengths.
Reversible left and right directions.
The transmission mechanism is simple, compact, and easy to install on-site.
Interactive and stylish chassis LED design.
Equipped with digital control monitoring, thus supports delay in automatic close,
automatic test, rise/fall output status display.
Supports automatic power-off, manual rise of the boom arm, anti-smash, and fire
linkage functions.
The angle of rise/fall of the arm can be adjusted, and the digital encoder is adopted to
limit the position automatically, thus replacing the traditional limiting procedure. The
position control is accurate.
24V backup battery can be used to ensure the normal operation of the barrier when
power is off.
The chassis is made of a 2.0mm metal sheet through an electrophoretic and powder
spraying process.
The boom will bounce back when it is blocked.

BG1000 Series Barrier Gate (APP Version) User Manual
P a g e |8Copyright©2021 ZKTECO CO., LTD. All rights reserved.
3Appearance and Dimensions
4Specifications
Model
BG1030L/R
BG1045L/R
BG1060L/R
BG1045L/
R-LED
BG1145L/
R-90
Operating Speed
1.5s
2.5s
5s
2.5s
2.5s
Boom Arm Length
3m
4.5m
6m
4.5m
4.5m
Boom Arm Type
Straight
boom
Telescopic boom
Straight
boom with
LED
Folding
boom
Chassis Dimension
(W*L*H)
350*300*1020 (mm)
Motor Type
DC 24V brushless motor
Output Power
120W
Rated Current
6A
Power Supply
AC 220V, 50Hz / AC 110V, 60Hz
Operating
Temperature
-35°C to 70°C
Operating Humidity
<90%
Motor MCBF
3 million times
Remote Control
Distance
≤30m
Chassis Weight
45kg

BG1000 Series Barrier Gate (APP Version) User Manual
P a g e |9Copyright©2021 ZKTECO CO., LTD. All rights reserved.
5Installation Procedure
Installation Precautions
1. Install the parking barrier on a flattened ground. A cement foundation is required
before installation if the ground is not solid and flat.
2. It is possible to reduce the length of the boom arm, but it cannot be increased. After
the boom arm has been cut, it is important to set the spring balance again to achieve
a new balance. The bottom of the spring contains two plastic nuts designed to adjust
the new balance.
3. When powered on, do not change the wire connection inside.
4. Connect the GND to the cabinet for ensured protection.
Cable Embedding
1. A φ25 protective sleeve and a cable are required.
2. The route cables must pass through the protective sleeves.
3. Use a tool to open the cable tray on the ground.
Minimum
depth:100mm

BG1000 Series Barrier Gate (APP Version) User Manual
P a g e |10 Copyright©2021 ZKTECO CO., LTD. All rights reserved.
Dimensions

BG1000 Series Barrier Gate (APP Version) User Manual
P a g e |11 Copyright©2021 ZKTECO CO., LTD. All rights reserved.
Boom Arm Installation
5.3.1 Boom Arm Installation Procedure
1. Separate the secondary boom arm from the upper boom arm and fasten it with two
screws., as shown in Figure 1.
2. The procedure of installing the boom arm to the chassis is shown in Figure 2.
Figure 1 Connect the main boom arm with the Secondary arm together by 2 screws
Figure 2 Install the Boom Arm to the Chassis
Note:
1) Before the barrier is powered on to run the test process, be sure to install the barrier
boom arm of the corresponding length for the test. If the barrier boom arm is not
installed, please adjust and remove the spring under the guidance of a professional.
2) If the length of the barrier boom arm is cut and adjusted, the tightness of the spring
and the position of the hanging hole need to be adjusted accordingly to avoid the
abnormal working status that cannot drop the boom.

BG1000 Series Barrier Gate (APP Version) User Manual
P a g e |12 Copyright©2021 ZKTECO CO., LTD. All rights reserved.
6Left and Right Directions
7Mainboard Wiring Instructions
1. Please disconnect the power supply before wiring.
2. To Please note that to change the input voltage, you must set the DIP switch to 110V
as shown in the below image:
3. Check carefully whether the terminals are tightened and whether the wiring is firm.

BG1000 Series Barrier Gate (APP Version) User Manual
P a g e |13 Copyright©2021 ZKTECO CO., LTD. All rights reserved.
Wire Connection of the New Mainboard
Wiring diagram of new control board of the app version:
Connection with LPR Camera

BG1000 Series Barrier Gate (APP Version) User Manual
P a g e |14 Copyright©2021 ZKTECO CO., LTD. All rights reserved.
Connection with UHF Controller
(Note: The Reader1 and 2 of Inbio260 Controller corresponds to LOCK1, Reader3 and 4
corresponds to LOCK2)
Connection with Loop Detector
Anti-smash and Auto-close function

BG1000 Series Barrier Gate (APP Version) User Manual
P a g e |15 Copyright©2021 ZKTECO CO., LTD. All rights reserved.
Coil Circumference
Coil Number
3m
Based on requirements, ensure that the inductance is
between 100μH and 200μH
3m to 6m
5 to 6 turns
6m to 10m
4 to 5 turns
10m to 25m
3 turns
25m
2 turns
Connection with VR10 Radar Sensor
Anti-smash and Auto-close function

BG1000 Series Barrier Gate (APP Version) User Manual
P a g e |16 Copyright©2021 ZKTECO CO., LTD. All rights reserved.
Connection with Infrared/Photocell Detector
Anti-smash function
Anti-smash and Auto-close function

BG1000 Series Barrier Gate (APP Version) User Manual
P a g e |17 Copyright©2021 ZKTECO CO., LTD. All rights reserved.
Connection with Device’s Wi-FI
The Wi-Fi function is automatically turned on after the device is powered , and the phone
can also be connected to the Wi-Fi hotspot of the device after setting the function and
parameters of the device through the ZKbarrier APP. It Supports both Android and iOS
systems. Operation details are as follows:
1. Open the ZKBarrier APP, click Wi-Fi Connection, and then enter the connection
page.
2. You can choose either Manual Connection or Scan to Connect, here take Manual
Connection as an example, click Manual Connection, select the "ZKBarrier-XXXXXX"
Wi-Fi name of the corresponding device, and then enter the default password
1234567890.
Note: For security reasons, it is recommended that you change the Wi-Fi connection
password of your device after the first successful connection.

BG1000 Series Barrier Gate (APP Version) User Manual
P a g e |18 Copyright©2021 ZKTECO CO., LTD. All rights reserved.
3. After successful connection, you can implement some functions and parameter
settings on the APP according to the actual installation of the equipment in the field.

BG1000 Series Barrier Gate (APP Version) User Manual
P a g e |19 Copyright©2021 ZKTECO CO., LTD. All rights reserved.
8Functional Parameter Settings
After the initial installation, and first power-on, you must use the "Open" and "Close"
buttons on the mainboard to complete the self-check process and learn the description of
the menu.
Mainboard Parameter Settings
Menu/Save: Menu options/Confirm and Save.
Stop/▼:Stop the boom arm /Flip down the parameter
Open/+: Increase parameter/value
Close/-: Decrease parameter/value
8.1.1 Operating Procedure
