Zline ATTAINABLE LUXURY RBIVZ-BS-60-G User manual

DUAL BUILT-IN
REFRIGERATOR
www.zlinekitchen.com
Installation Manual

ZLINE Kitchen and Bath provides Attainable Luxury, where the kitchen and bath of your dreams
is never out of reach. Through our unique designs and unparalleled quality, we’re dedicated to
providing you an elevated experience in the heart of your home. With an endless selection of
features and finishes, our inspiration is your reality.

WARNING: This product can expose you to chemicals including nickel, which is known to the
State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
ZLINE is fueled by a passion for innovation; A relentless pursuit of bringing the highest end luxury
designs and professional features into everyone’s homes. Because we continually strive to improve
our products, we may change specifications and designs without prior notice.

TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS 1
BEFORE INSTALLATION 6
INSTALLATION 10
WARRANTY 20

1
IMPORTANT SAFETY INSTRUCTIONS
PLEASE READ THIS MANUAL BEFORE INSTALLING AND USING THE PRODUCT
• Please note that the installation process for your dual built-in refrigerator requires
combining two RBIV-30 model refrigerators to create one RBIV-60 unit.
• Always follow allow applicable safety instructions in this manual as well as the
manuals for ZLINE's built-in refrigeration models (RBIV-30 and RBIV-36).
• IMPORTANT: This is a complex installation procedure that should only be per-
formed by qualified professionals and technicians.
• The manufacturer will not be responsible for any damage to property or to per-
sons caused by incorrect installation, improper use of the appliance, or failure to
heed the warnings listed.
R600A REFRIGERANT: This product contains R600a isobutane
refrigerant, which is a very eco-friendly natural gas. However, it is also
flammable. Please follow the warnings and installation instructions below.
• If the products have been transported horizontally, you must wait a minimum of 4
hours after standing them upright before plugging it in.
• Cut-out dimensions of the installation area must be suitable to safely fit the
product for full installation.
• Dimensions, features, and position of objects used to support and affix the
product to this area must be suitable.
• Minimum clearances between product parts and surrounding structures must be
suitable; minimum dimensions and proper organization of ventilation holes must
be observed.
• The product must be connected to the main power outlet, and corresponding
connections of other components must be suitable.
• The product must be able to be disconnected from the power supply if needed
after installation; the outlet or fuse must be accessible to disconnect the product.
• Extension cables or ungrounded (two-terminal) adapters must not be used.
WARNING
ATTENTION
You must wear gloves and eye protectors when installing the product.
You must also take measures against high noise levels when using a
drill to drill into the floor or wall.
ATTENTION
The product must be installed by a qualified technician according to
the installation instructions.
Refrigerant Safety

2
Disposing of Materials
IMPORTANT SAFETY INSTRUCTIONS
DISPOSING OF THE PACKAGING MATERIALS
• The package has been designed to protect the product during transport and
shipping. The packaging materials used are designed to not harm the environment
and should be recycled after the appliance is installed.
• All plastic packaging materials, bags, etc., must be disposed of safely and kept
out of the reach of children.
COMPLIANCE WITH THE WEEE DIRECTIVE AND DISPOSING OF EWASTE:
• This product conforms to the EU WEEE Directive (2012/19 EU).
• This product bears a classification symbol for "waste electrical and electronic
equipment," otherwise known as WEEE.
• This product has been manufactured from high-quality parts and materials that
can be reused and are suitable for recycling.
• Therefore, do not dispose of the product with normal domestic waste or other
waste at the end of its service life.
• Take it to a collection center for recycling electrical and electronic equipment.
• Please consult your local government authority to learn about appropriate
collection center location.
This manual has been prepared to help qualified professionals with
installation of the appliance. The User and Installation manuals for
ZLINE's built-in refrigeration models (RBIV-30 and RBIV-36) must also
be taken into consideration, as they contain important information
about operation and safety. You may get seriously injured and your
products damaged if you ignore the warnings given in these manuals.
WARNING
The products may tip over since they are quite heavy. For this reason,
safety precautions must be taken. The doors must be kept closed until
the combined product reaches the final install destination, and must be
transported in accordance with the installation instructions.
WARNING

3
IMPORTANT SAFETY INSTRUCTIONS
INSTALLATION ENCLOSURE REQUIREMENTS
• The floor on which the dual refrigerator will be installed must be capable of
bearing a minimum of 2,400 pounds (1,089 kg).
• The kitchen floor and bottom of the product must be level. Otherwise, air flow for
the unit's cooling system may be impeded or reduced. Use a level to be sure.
• There must be no objects preventing installation of the product to the back and
side walls of the product's cut-out installation area.
• Cut-out dimensions of the cabinets where the product will be installed must be in
strict conformity with the dimensions given in the manual.
• Do not install the refrigerator directly adjacent to another refrigerator. Otherwise,
condensation and damage may occur
• The installation area must not be subjected to direct sunlight and it must be away
from heat sources, such as microwaves, ovens, radiators, etc.
• The ambient temperature must be between 61°F (16°C) and 100°F (38°C),
depending on where the unit is installed. Otherwise, function errors may occur
when the product is running.
• If it is not possible to avoid installing the product near a heat source, the minimum
clearances given below must be maintained:
• 1 3/16" (30 mm) from electric ranges or ovens.
• 12" (305 mm) from gas or fuel operated ranges or ovens.
• The dedicated circuit breaker for this unit must be easily accessible in case of an
emergency; it must not be hidden behind the product.
• The electrical plugs and cords must not touch the back surface of the product.
Otherwise, they may get damaged due to the vibration of the product.
• If the humidity level is high where the product is used, corrosion may occur on the
outer surface of the product. Keep the area where the unit will be installed dry and
well-cleaned to avoid corrosion.
Preparing the Refrigerator Enclosure

4
Preparing the Refrigerator Enclosure
IMPORTANT SAFETY INSTRUCTIONS
CABINETS
Make sure that the cabinets where you will install the appliance have been safely
mounted in your kitchen. Your cabinets must be securely connected to the floor and
walls properly and with suitable connections.
For the best installation, clearances between cabinets and the product must be in
compliance with the values specified in this manual and in the Installation Manual for
ZLINE's built-in refrigeration models (RBIV-30 and RBIV-36).
Side walls must be free of any obstructions and their surfaces must be flat. Note:
Minimum thickness of the side walls is 5/8" (16 mm). The minimum thickness of the
doors to be attached to the product must be 3/4" (19 mm).
VENTILATION
Ventilation panels where the air enters and exits the unit must not be blocked or
obstructed. In addition, you must periodically clean the dust and dirt that accumulates
on the vent holes to ensure adequate ventilation.
ATTENTION
Failure to follow these instructions may result in death, fire,
or electric shock. Connecting the grounding conductor of the
equipment to an improper place may lead to electric shock.
Please have the grounding checked by a qualified electrician or
service technician.
Installation, repair, and other procedures performed by
unqualified persons may cause danger. Before installing the
appliance, make sure that the voltage, load, and circuit current
parameters on the data plate are in compliance with the power
mains in your house.
If the electrical wiring or power supply of the house needs
alteration, the necessary procedures must be performed by
a qualified electrician. The plugs must be installed only by a
licensed electrician.

5
IMPORTANT SAFETY INSTRUCTIONS
ELECTRICAL CONNECTION
• Never use an extension cable or cord with this unit.
• The dedicated electrical outlet receptacle(s) for this unit must be grounded and checked
by an authorized electrician.

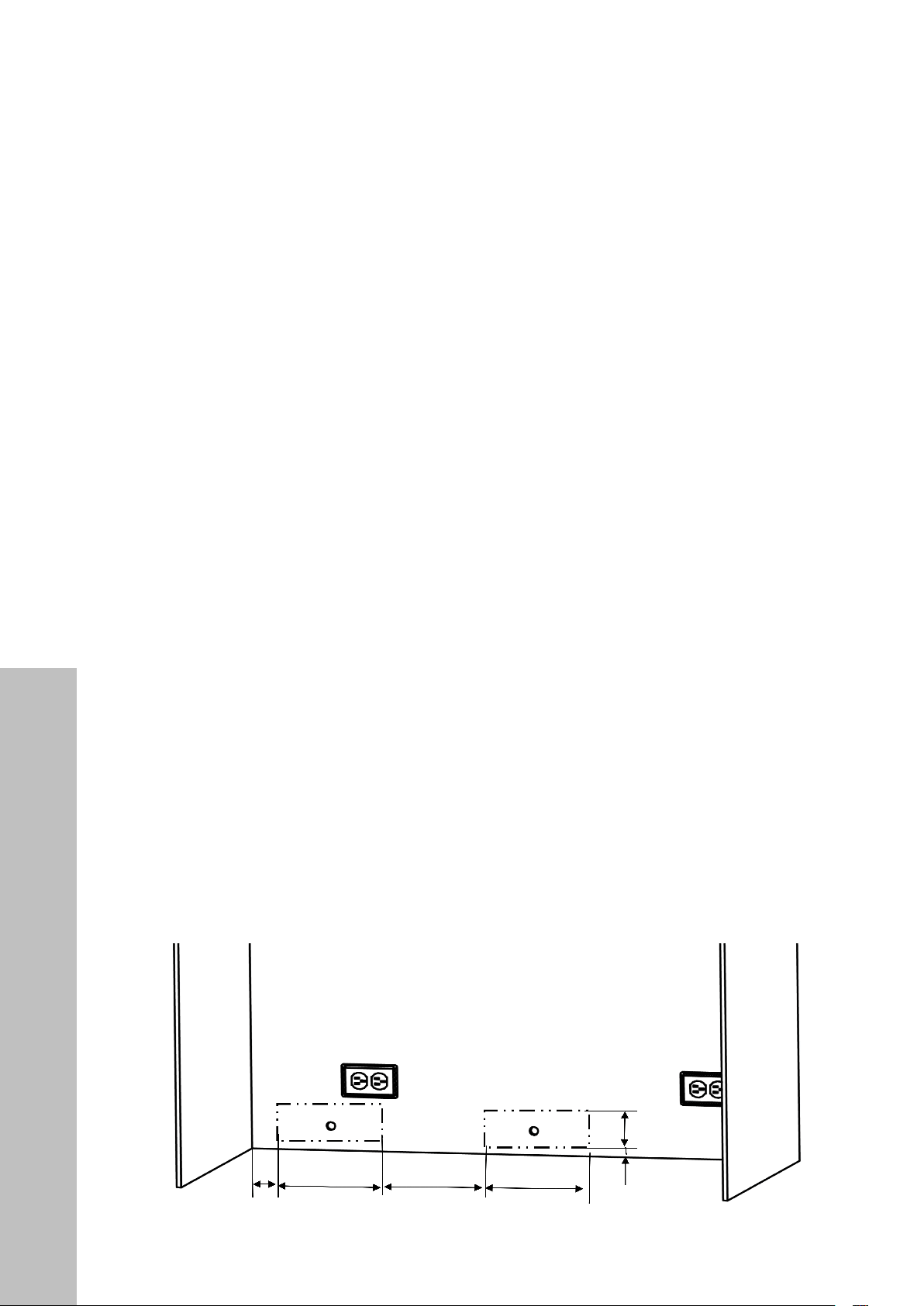

• The location of the electrical wiring must comply with the dimensions specified in
this installation manual.
Please wait 3-6 hours after installing the unit before plugging it in to
protect it against possible damages. This way, the refrigerant and the
lubricants in the system are given proper time to balance.
WARNING
WATER CONNECTION
• The pressure of the main water supply must be in compliance with the values
specified in this manual, and the location of the water system must comply with the
dimensions specified in this manual.
CAUTION
RISK OF ELECTRIC SHOCK
Electrical grounding is necessary. This appliance is equipped with two
3-pin plugs to protect you against possible electric shocks.
• Do not remove the round grounding terminal from the plugs.
• Do not use 2-pin grounding adapters.
• Do not use extension cables or cords to energize the product.
ATTENTION
Do not connect the grounding cable to any gas pipes. Please have the
grounding checked by a qualified electrician if you are not sure about
the grounding of the product. Do not install a fuse on the neutral line
or grounding circuit.
iA bypass is recommended for the water filtering system if a reverse
osmosis system is used.
INFO
Preparing the Refrigerator Enclosure

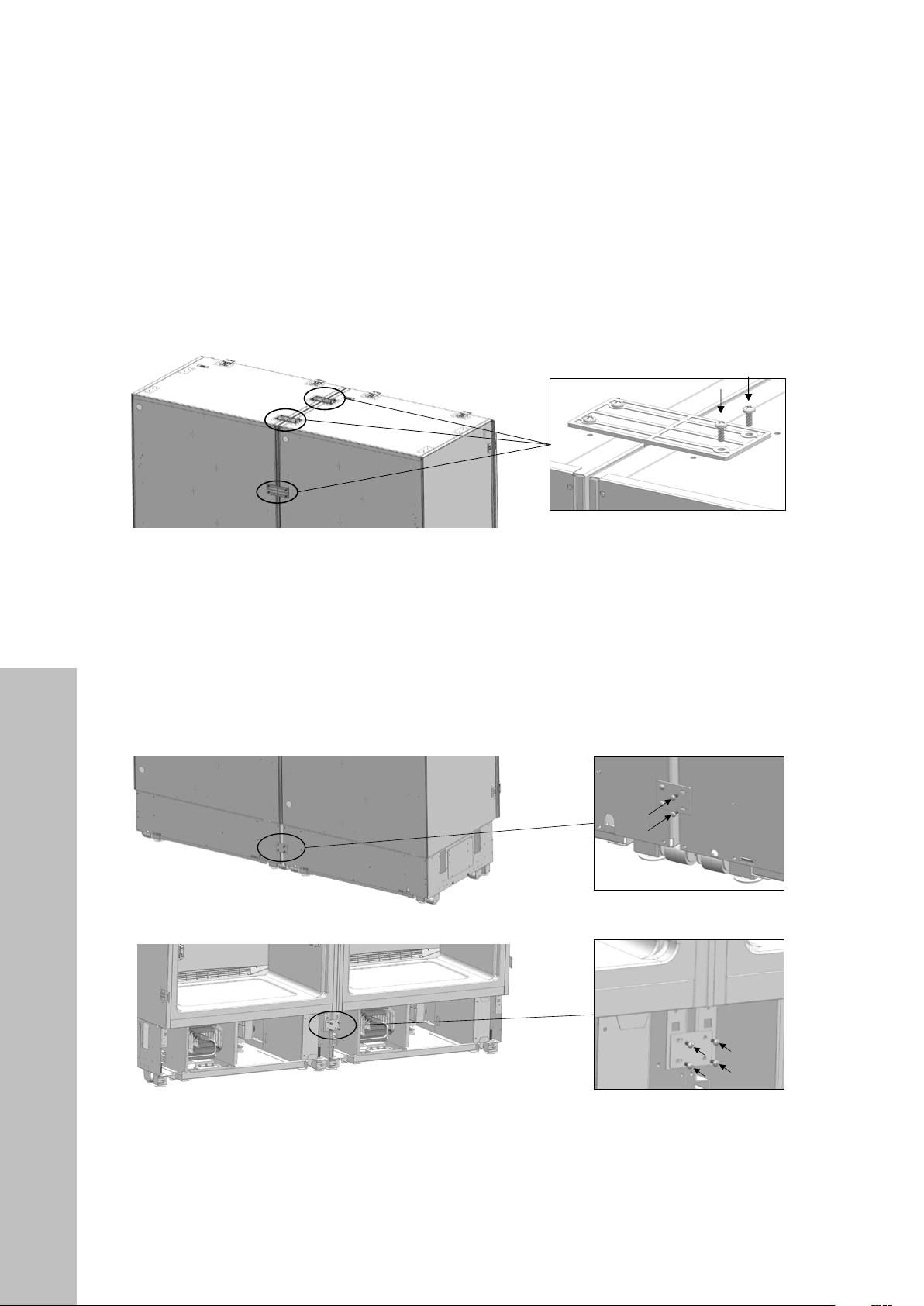

The installation process for your dual built-in refrigerator requires
combining two RBIV-30 model refrigerators to create one RBIV-
60 unit. Scan the QR code to access the Installation Manual for
ZLINE's built-in refrigeration models (RBIV-30 and RBIV-36).

6

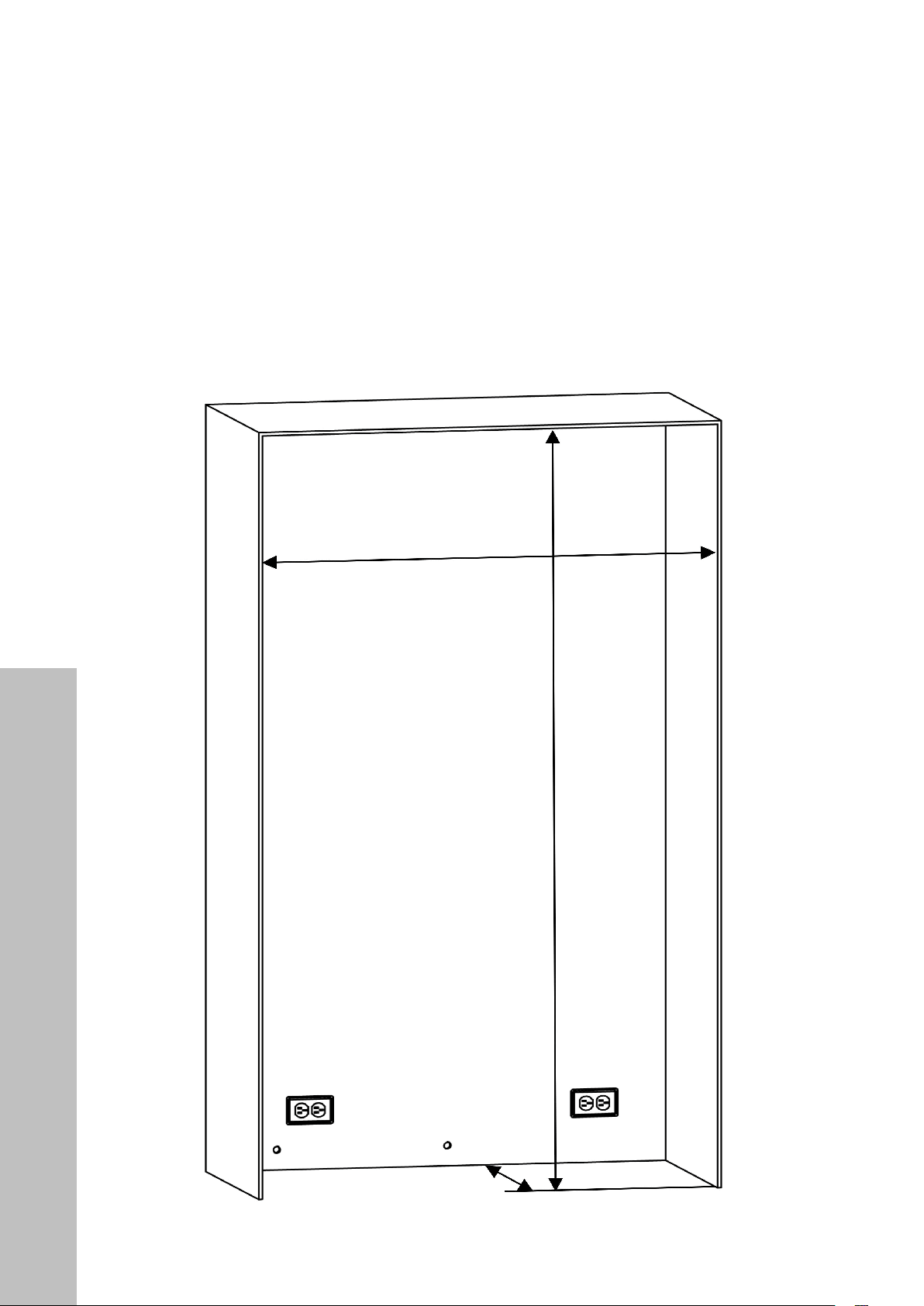

Cabinet Cutout Dimensions
BEFORE INSTALLATION
CABINET DIMENSIONS

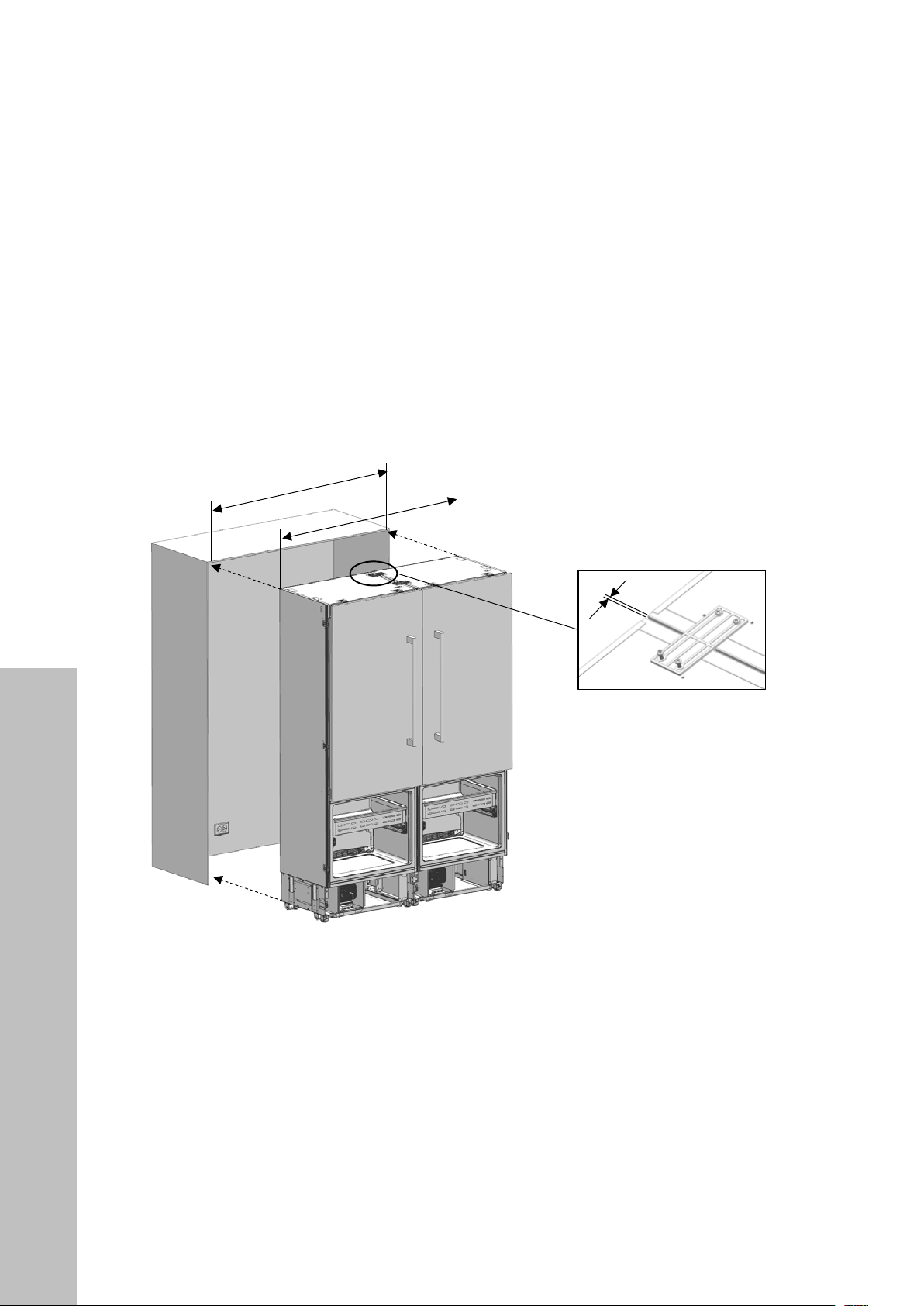

• Much like ZLINE's RBIV-30 and RBIV-36 built-in refrigerators, the RBIV-60 model is
a panel-ready appliance designed to be a permanent fixture in your custom kitchen;
therefore, precise cabinet cutouts and superior attention to detail are required for
seamless integration.
• Since all kitchen layouts vary, the dimensions below must be checked by a qualified
professional before starting installation.
25” (635 mm)
60” (1524 mm)
84” (2134 mm)
