Zline RBIV-304-36 User manual

BUILT-IN REFRIGERATORS
www.zlinekitchen.com
User Manual

ZLINE Kitchen and Bath provides Attainable Luxury, where the kitchen and bath of your dreams
is never out of reach. Through our unique designs and unparalleled quality, we’re dedicated to
providing you an elevated experience in the heart of your home. With an endless selection of features
and finishes, our inspiration is your reality.
ZLINE is fueled by a passion for innovation; A relentless pursuit of bringing the highest end luxury
designs and professional features into everyone’s homes. Because we continually strive to improve our
products, we may change specifications and designs without prior notice.
WARNING: This product can expose you to chemicals including nickel, which is known to the
State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

COVERAGE
ZLINE Kitchen and Bath refrigerators have a one year parts and service warranty and a
five year parts warranty on the sealed system. This is from the original purchase date for the
original purchaser of the product.
TERMS
This warranty applies only to the original purchaser of the product installed for normal
residential use. This is defined as a single-family, residential dwelling in a non-commercial
setting. Commercial settings include but are not limited to: schools, churches, hotels,
restaurants, vacation rentals such as Airbnb, day care centers, private clubs, fire stations,
common areas in multi-family dwellings, nursing homes, food service locations, and
institutional food service locations such as hospitals or correction facilities. This warranty is
non-transferable and will not be extended based on the date of installation. The warranty
applies only to products installed in the continental United States and the District of Columbia.
Warranty shall not apply and ZLINE Kitchen and Bath is not responsible for damage resulting
from negligence, improper maintenance, misuse, abuse, alteration of or tampering with
the appliance, accident, natural disaster, improper electric supply, unauthorized service or
repair, improper installation, or installation not in accordance with the instructions contained
in the manual or the local codes.
WHAT IS NOT COVERED
1. Start-up damages or problems caused by improper installation or use.
2. Damage related to unauthorized service or unauthorized parts.
3. Installation in any commercial or non-residential application.
4. Aesthetic damage, scratches, or natural wear caused by normal use.
5. Second-hand, open box products, or products purchased from an unauthorized retailer.
INSTALLATION SAFETY INSTRUCTIONS 1
OPERATION 9
CARE AND CLEANING 23
TROUBLESHOOTING 25
WARRANTY TABLE OF CONTENTS

• Always have the Authorized Service Provider install the product and establish its
electrical connections.
• The manufacturer cannot be held responsible for damages caused by procedures
performed by unauthorized persons.
• Do not eat cone ice cream or ice cubes immediately after you take them out of the freezer
compartment! This may cause frostbite in your mouth!
• Do not touch frozen food with wet hands! They may stick to your hand!
• Do not put bottled or canned liquid beverages in the freezer compartment. They may
burst!
1
General Safety
2
General Safety
IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS
This chapter contains safety information that will help you avoid the risk personal injury or
property damage. Failure to follow these instructions shall render any product warranty void.
General Safety
• This product can be used by children at age 8 and above and those people who have
limited physical, sensory or mental capabilities and people who lack experience and
information on the condition that they have been given the instructions about the safe use
of the product, they are supervised and the risks have been eliminated.
• Children should not play with the product.
• Cleaning and care should not be performed by children unless they are supervised by an
adult.
• Unplug the product if you encounter a failure during use.
• If the product malfunctions, it must not be operated until repaired by the authorized
service provider. Risk of electric shock!
• Plug the product into a grounded socket protected by a fuse that corresponds to the value
on its nameplate.
• Have a qualified electrician ground the product.
• Our company cannot be held responsible for damages resulting from the failure to use
the product with a grounded socket pursuant to local regulations.
• Unplug the product when not in use.
• Never wash the product by spreading or pouring water onto it! Risk of electric shock!
• Never touch the plug with wet hands!
• Never unplug the product by pulling the cable.
• Always pull the plug by holding the socket
• Do not plug the refrigerator if the wall socket is loose.
• Never connect your refrigerator to energy saving devices.
• Such systems are harmful to your product.
• Unplug the product during installation, care, cleaning and repairing procedures.

• Never use steam or steam cleaners to clean or defrost the refrigerator.
• Steam gets into contact with the live parts in your refrigerator, causing short circuit or
electric shock!
• Do not use mechanical devices or other means to accelerate the defrosting process other
than those recommended by the manufacturer.
• Never use the parts in your refrigerator such as the door and drawer as a means of
support or step. This may cause the product to tip over or damage the parts of it.
• Do not damage the parts where the refrigerant is circulating with drilling or cutting tools.
• The refrigerant that might blow out when the gas channels of the evaporator, pipe
extensions or surface coatings are punctured causes skin irritations and eye injuries.
• Do not cover or block the ventilation holes in your refrigerator with any object.
• Place the beverage with higher proofs tightly closed and vertically.
• Do not use gaseous sprays near the product since there is the risk or fire or explosion!
• Flammable items or products that contain flammable gases (e.g. spray) as well as
explosive materials should never be kept in the appliance.
• Do not place containers filled with liquid onto the product. Splashing water on an
electrical part may cause electric chock or the risk of fire.
• Do not store items that need precise temperature adjustment (such as vaccines, heat-
sensitive medication, science materials etc.) in the refrigerator.
• If you are not going to use the product for a long time, unplug it and remove the food in it.
• If there is a blue light on the refrigerator, do not look at this light with optical tools.
• Exposing the product to rain, snow, sun or wind is dangerous in terms of electrical safety.
• In products with mechanical control (thermostat), wait for 5 minutes to plug in the product
again after unplugging.
• Do not overload the refrigerator. Objects in the refrigerator may fall down when the door
is opened, causing injury or damage.
• Similar problems may arise if any object is placed onto the product.
• If the product has a door handle, do not pull the handle when re-locating the product. The
handle might be loose.
• Be careful not to jam your hand or any other body part in the moving parts of the
refrigerator.
• Do not put your hand or any other foreign materials into the ice machine while it is
operating.
Intended Use
• This product has been designed for domestic use. It is not suitable for commercial use and
it must not be used out of its intended use. It must be used only for storing food.
• The manufacturer will not take any responsibility for damages resulting from improper use
or transport.
Children's Safety
• If there is a lock on the door of the product, the key should be kept out of the reach of
children.
• Do not let children play with the product.
WARNING
Before disposing your old refrigerator or freezer:
• Ensure that children are not inside.
• Leave the shelves to prevent children from getting inside the
product easily.
• Remove the doors.
3
General Safety
4
General Safety
IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS

Compliance with the RoHS Directive:
The unit you have purchased conforms to the EU RoHS Directive (2011/65/AB).
It does not contain harmful or prohibited materials specified in the Directive.
Packaging Information
• Packaging materials of the product have been manufactured from recyclable materials in
accordance with our National Environment Regulations.
• Do not dispose the packaging materials with normal domestic waste or other types of
waste.
• Take these materials to a recycling point designated by local authorities.
Hydrocarbon (HC) Warning
• If your product's cooling system contains R600a. This gas is flammable. Therefore, pay
attention not to damage the cooling system or the piping during use and transportation.
• If damaged, keep the product away from potential fire sources that may cause it to catch
fire and ventilate the room where the product is placed.
WARNING
DANGER:
Risk of Fire or Explosion:
• This product uses flammable refrigerant.
• Do not use mechanical devices to defrost the refrigerator.
• Do not use chemicals for cleaning.
• Do not pierce the refrigerant pipe.
• If the refrigerant pipe is pierced, it must be repaired only by
licensed service personnel.
• Please consult the repair/user manual before cleaning the
product.
All safety instructions must be followed.
• Dispose the product according to federal or local regulations.
ATTENTION
If the product is damaged and if you see gas leak, please keep
away from the gas. It may cause frostbite when it gets into contact
with the skin (including R600a.)
ATTENTION
Type of gas used in the product is stated on the type plate which is
on the left wall inside the refrigerator.
WARNING Never throw the product into fire for disposal.
• Operating pressure for cold water inlet is between 14.5-80 psi. If the water pressure
exceeds 80 psi (5.5 bars), install a pressure limiting valve to your mains system.
• If the water pressure is lower than 14.5 psi, you can use an auxiliary pump to compensate
the low pressure.
• If you do not know how to check the water pressure, please consult a professional
plumber.
• If there is a risk of water impact in your installation, always use a water impact protection
equipment in that installation.
• Please consult professional plumbers if you are not sure if there is water impact in your
installation.
• Do not install on the hot water inlet.
5
General Safety
6
Water Pressure
IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS

Energy saving tips
WARNING
Connecting your refrigerator to systems that save energy is
dangerous as they may cause damage on the product.
• Do not leave the doors of your refrigerator open for a long time.
• Do not put hot food or drinks in your refrigerator.
• Do not overload the refrigerator. Cooling capacity will fall when the air circulation in the
refrigerator is hindered.
• Do not place the refrigerator in places subject to direct sunlight. Install the product at least
11 13/16" away from heat sources such as hobs, ovens, heater units and stoves and at
least 2" away from electrical ovens.
• Pay attention to store your food in refrigerator in closed containers.
• You can remove the drawer shelf of the freezer compartment to fill the freezer
compartment with maximum amount of food. The given energy consumption value of
the refrigerator has been determined with the freezer compartment shelf or the drawer
removed and the refrigerator filled with maximum amount of food. There is no harm in
using a shelf or drawer according to the shapes and sizes of food to be frozen.
• Thawing the frozen foods in the fridge compartment both saves energy and reserves the
quality of the foods
ATTENTION
Temperature of the room where your refrigerator is located should
at least be 16°C/61°F. Operating your refrigerator under cooler
conditions is not recommended with regard to its efficiency.
ATTENTION
Inside of your refrigerator must be cleaned thoroughly.
ATTENTION
If two coolers are to be installed side by side, there should be at least
1 1/2" distance between them.
Recommendations About the Fresh Food Compartment
• Make sure that the food does not touch the temperature sensor in fresh food
compartment. To allow the fresh food compartment to keep its ideal storage temperature,
the sensor must not be hindered by food.
• Do not place hot foods or beverages inside the product.
Initial use
• Before using the product, make sure that all preparations have been made in accordance
with the instructions given in the "Important instructions regarding safety and environment"
and "Installation Instruction" chapters.
• Clean the interior of the refrigerator as recommended in the “Maintenance and cleaning”
section. Before you start the refrigerator, make sure that the interior is dry.

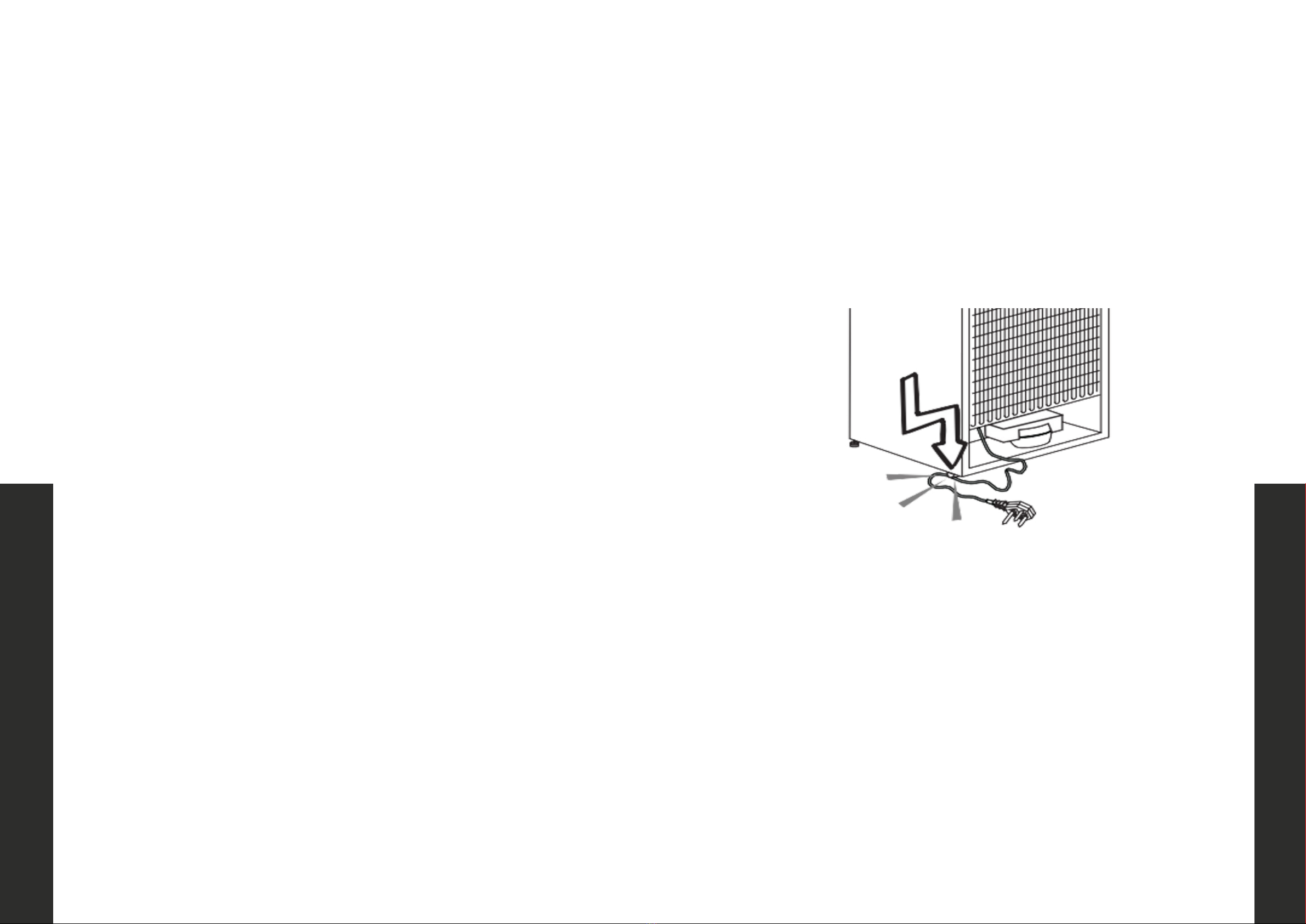

• Plug the refrigerator in a grounded socket. The interior illumination is lit when the door of
the refrigerator is opened.
• Operate the refrigerator for 6 hours without placing any food in it and do not open its
door unless it is necessary.
ATTENTION
You will hear a noise when the compressor starts up. The liquids and
gases sealed within the refrigeration system may also give rise to
noise, even if the compressor is not running and this is quite normal.
ATTENTION
Front edges of the refrigerator may feel warm. This is normal. These
areas are designed to be warm to avoid condensation.
• Take the necessary measures against the freezing risk of the hoses.
• The water temperature operating range must be 0.6°C (33°F) minimum and 38°C
(100°F) maximum.
WARNING
Never connect the product to a cold water mains with a pressure of
5.5 bars (80 psi) and above.
7
Energy Saving Tips
8
Initial Use
IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS

1. Water filter
2. Door bin
3. Body shelf (adjustable height)
4. Water dispenser
5. Gallon door bin (adjustable height)
6. Odor filter
7. Crisper
8. Control display
9. Flex drawer
10. Ice machine
11 . Icebox applies to high spec models
12. Upper drawer
13. Lower drawer
14. Condenser cover
1. Water filter
2. Door bin
3. Body shelf (adjustable height)
4. Water dispenser
5. Gallon door bin (adjustable height)
6. Odor filter
7. Crisper
8. Control display
9. Flex drawer
10. Ice machine
11 . Icebox applies to high spec models
12. Condenser cover
13. Upper drawer
14. Lower drawer
9
Product Specifications
10
Product Specifications
OPERATION 30" REFRIGERATORS OPERATION 36" REFRIGERATORS

iFigures in this user manual are schematic and may not match the product
exactly. If your product does not have the relevant parts, the information
applies to other models.
INFO

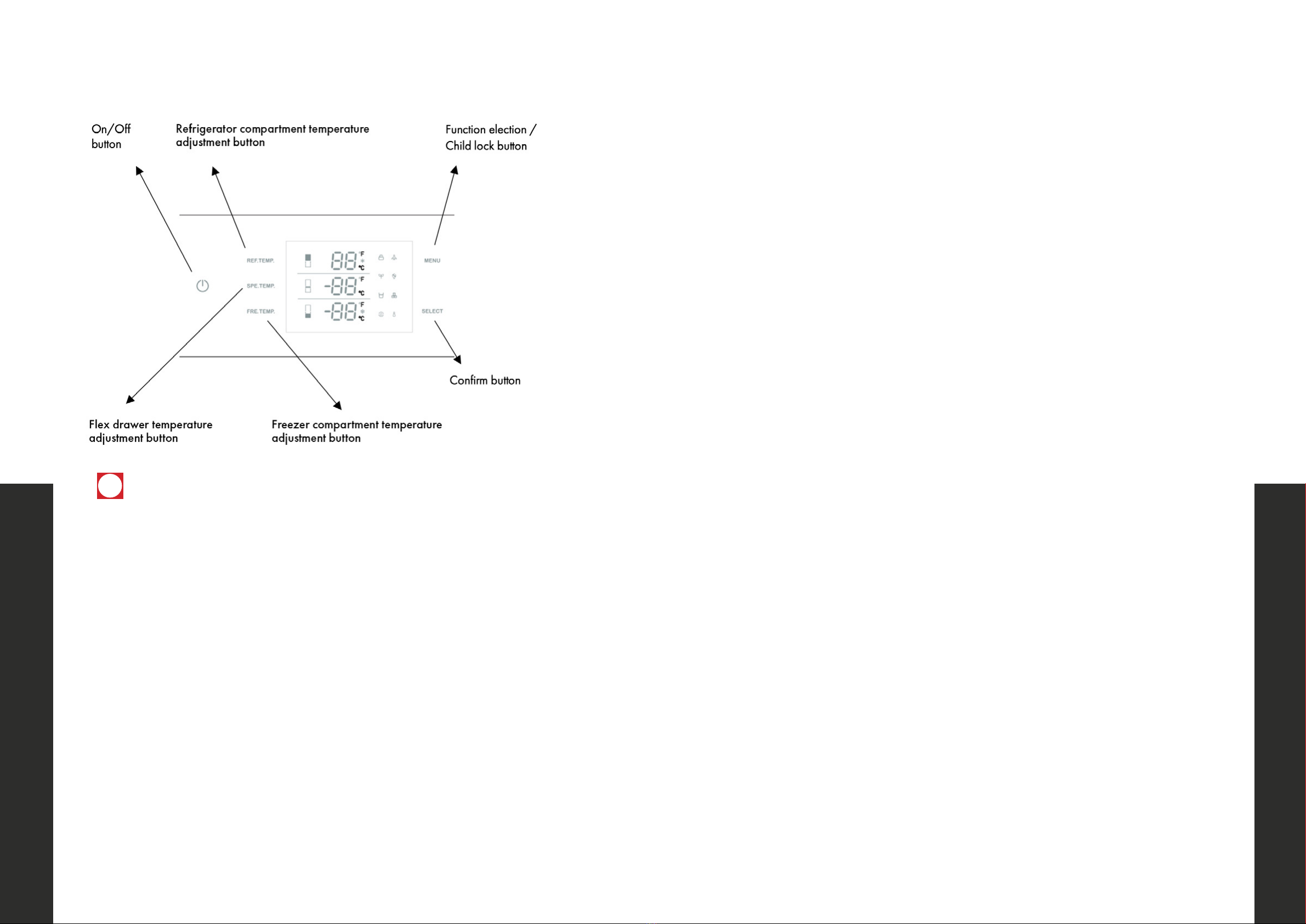

On/Off button
• Serves to switch the whole appliance On and Off. Press the button to switch on the
product, the product will be switched on in 5 seconds. Press the on/off button for 1.5
seconds to switch off.
Function election / Child lock button
• The child lock is a feature for preventing children from changing the product settings. by
pressing MENU button for 3 seconds, you may lock/unlock the control panel.
• The lock symbol will illuminate on the display when this function is enabled.
Refrigerator compartment temperature adjustment button
• Press the REF TEMP button to adjust the temperature from 36°F (2°C) to 46°F (8°C).
• Super Cool function will be enabled if button is pressed after 36F. When the snow symbol
illuminates on the display, the Super Cool function will be enabled.
• The best temperature for fresh food compartment is 39°F (4°C).
Flex drawer temperature adjustment button
• Press the SPE TEMP button to change the flex drawer temperature from 30°F (-1°C) to
41°F (5°C)
Freezer compartment adjustment button
• Press the FRE TEMP button to change the freezer compartment temperature from 5°F
(-15°C) to -11°F (-24°C)
• Super Freeze function will be enabled if the button is pressed after -11°F (-24°C).
• When the snow symbol illuminates on the display, the Super Freeze function will be
enabled.
11
Keys and Controls
12
Keys and Controls
OPERATION OPERATION

Vacation Mode
• Press the MENU button until the vacation symbol illuminates, then press the SELECT button
to enable the function.
• When the Vacation Mode function is enabled, the fridge temperature will be set at 63°F
(17°C) and freezer temperature set at 0°F (-18°C) automatically.
Note: Do not place food in the fresh food compartment when Vacation Mode
is enabled.
Sabbath Mode
Press the MENU button till the Sabbath mode symbol illuminates, then press the SELECT
button to enable the function. When the Sabbath mode function is enabled, all lights,
buzzers, display panels will be switch off.
Eco Mode
Press the MENU button till the Eco Mode illuminates, then press the SELECT button to enable
the function. When the Eco Mode function is enabled, the fridge temperature will be set at 46
°F (8 °C) and freezer temperature set at 5 °F (-15 °C) automatically
Water Dispenser (if applicable)
Press the MENU button till the water dispenser symbol illuminates, then press the SELECT
button to enable the function. When the water dispensing function is enabled, fresh water can
be provided from the dispenser fitted on the internal wall.
Ice Making (if applicable)
Press the MENU button till the ice making symbol illuminates, then press the SELECT button to
enable the function.
When the ice making function is enabled, ice maker will be automatically operating, and the
ice cubes will be accumulated in the ice tray.
Note: Prepare the water filter for use before using the ice. After connecting
the refrigerator to a water source or after replacing the water filter, fill and
discard two full containers of ice.
Water filter replacement (if applicable)
The water filter symbol flashes and beeps to advise the user to replace the water filter.
After the replacement is completed, press the SELECT button for 5 seconds to reset. The set
replacement time is 130 days. To replacet the water filter, search for RBIV-205A on
www.zlineparts.com, ZLINE's official parts distribution partner.
Celsius and Fahrenheit selection
Press the MENU button till the Celsius and Fahrenheit selection symbol illuminates to change
between Celsius and Fahrenheit. After that press the SELECT button to confirm.
13
Models and features
14
Models and Features
