PLEASE READ THIS MANUAL BEFORE USING THE PRODUCT
• Always follow the applicable safety instructions.
• The installer should leave these instructions with the consumer who should retain
for local inspectors’ use and for future reference.
• Please read all other documents provided with this product.
• Please keep in mind this manual may apply to several product models.
• This manual expressly indicates the differences between various models.
Symbols used in the installation manual are as follows.
iImportant information and useful hints.
INFO
Conditions that may damage the product or its operating functions.
WARNING
ATTENTION
Conditions containing serious injury risk.
CAUTION
Conditions containing electric shock risk.
Scan the QR code to watch an installation video.
IMPORTANT SAFETY INSTRUCTIONS
1
General Safety

2
R600A REFRIGERANT
This product contains R600a isobutane refrigerant, which is a very eco-
friendly natural gas. However, it is also flammable. Please follow the
warnings and installation instructions below:
• If the product has been transported horizontally, you must wait a
minimum of 4 hours after standing it upright before plugging it in.
• Cut-out dimensions of the installation area must be suitable to
safely fit the product for full installation.
• Dimensions, features, and position of objects used to support and
affix the product to this area must be suitable.
• Minimum clearances between product parts and surrounding
structures must be suitable.
• Minimum dimensions and proper organization of ventilation holes
must be observed.
• The product must be connected to the main power outlet, and
corresponding connections of other components must be suitable.
• The product must be able to be disconnected from the power
supply if needed after installation.
• The outlet or fuse must be accessible to disconnect the product.
• Extension cables or ungrounded (two-terminal) adapters must not
be used with this unit.
WARNING
ATTENTION
You must wear gloves and eye protectors when installing the product.
You must also take measures against high noise levels when using a drill
to drill into the floor or wall.
ATTENTION
Make sure that your product is suitable for your local codes.
ATTENTION
The product must be installed by a qualified technician according to the
installation instructions.
The product may tip over since it is quite heavy. For this reason, safety
precautions must be taken. The doors of the product must be kept closed
until it reaches the destination, and it must be transported in accordance
with the installation instructions.
WARNING
IMPORTANT SAFETY INSTRUCTIONS
2
Refrigerant Safety

3
IMPORTANT SAFETY INSTRUCTIONS
DISPOSING OF THE PACKAGING MATERIALS
The package has been designed to protect the product during transport and shipping.
The packaging materials used are designed to not harm the environment and should
be recycled after the appliance is installed.
All plastic packaging materials, bags, etc., must be disposed of safely and kept out of
the reach of children.
COMPLIANCE WITH THE WEEE DIRECTIVE AND DISPOSING OF EWASTE:
• This product conforms to the EU WEEE Directive (2012/19 EU).
• This product bears a classification symbol for "waste electrical and electronic
equipment," otherwise known as WEEE.
• This product has been manufactured from high-quality parts and materials that
can be reused and are suitable for recycling.
• Therefore, do not dispose of the product with normal domestic waste or other
waste at the end of its service life.
• Take it to a collection center for recycling electrical and electronic equipment.
• Please consult your local government authority to learn about appropriate
collection center location.
This Installation Manual has been prepared to help qualified
professionals with installation of the appliance. The User Manual
provided with the product must also be taken into consideration, as it
contains important information about operation and safety. You may get
seriously injured and your product may get damaged if you ignore the
warnings given in this manual. Please read the following carefully.
WARNING
3
Disposing of Materials

4
CLIMATE CLASS
CLIMATE RANGE AMBIENT TEMPERATURE
OF THE ROOM This appliance has been
designed to be used in
certain climate ranges
(ambient temperatures).
It must not be used out of
this range.
Northern Hemisphere Between 61oF (16oC) and
90oF (32oC)
Southern Hemisphere Between 61oF (16oC) and
100oF (38oC)
PRODUCT WEIGHT
CATEGORY RBIV-30 RBIV-36
PRODUCT WEIGHT 342 Ibs (155 kg) 355 Ibs (161kg)
LOAD BEARING CAPACITY OF THE DOORS
MAX LOAD RBIV-30 RBIV-36
REFRIGERATOR DOOR 55 Ibs (25 kg) 22 Ibs (10 kg)
FREEZER DOOR 22 Ibs (10 kg) 22 Ibs (10 kg)
RBIV-30 RBIV-36
BEFORE INSTALLATION
4
Climate Class and Weight

5

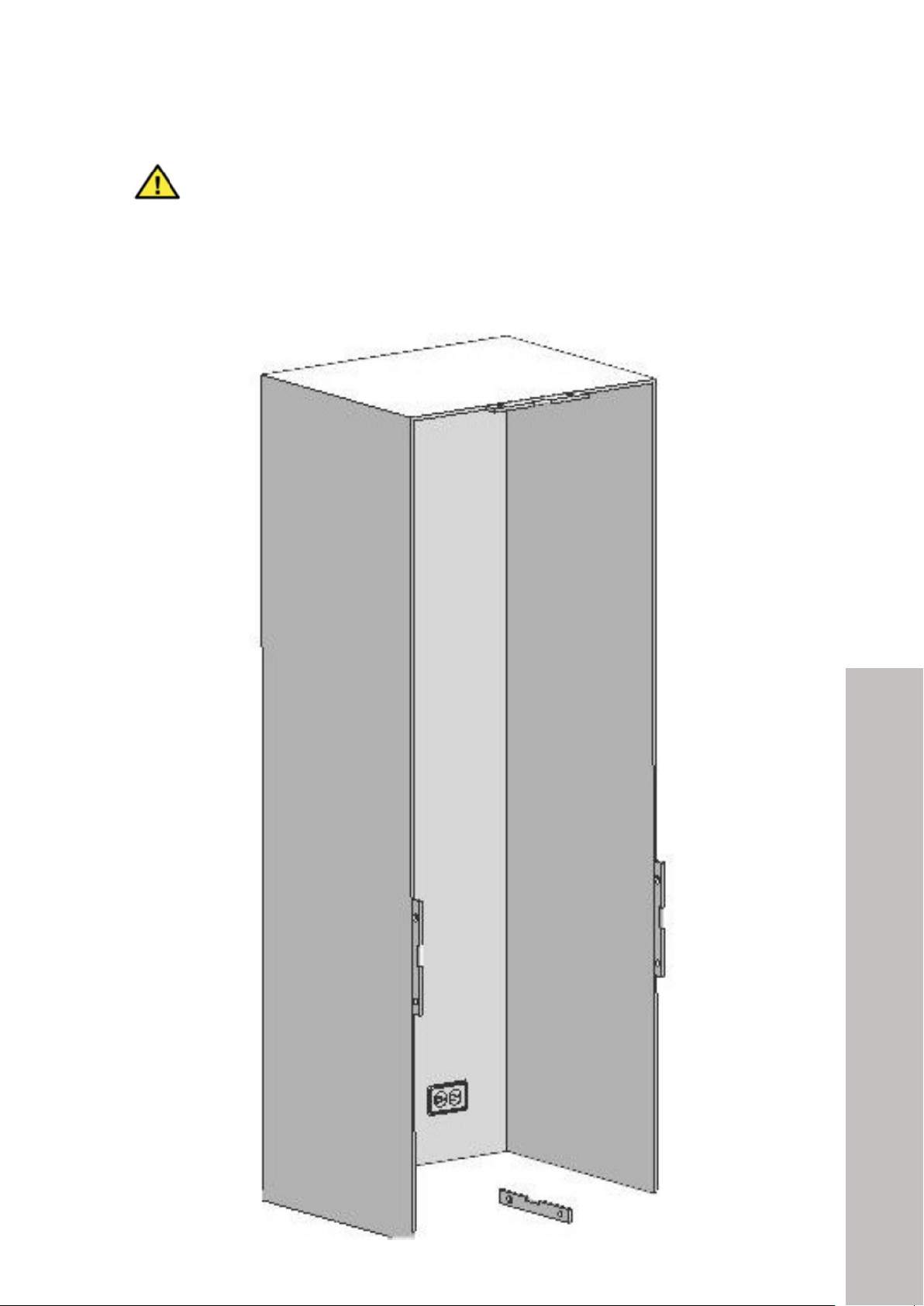

INSTALLATION ENCLOSURE
You must follow the instructions below:
• The floor on which the product will be installed must be capable of bearing a
minimum of 1,200 pounds (544 kg).
• The kitchen floor and bottom of the product must be at the same level. Otherwise,
the air flow for the unit's cooling system may be impeded or reduced.
• There must be no objects preventing installation of the product to the back and
side walls of the product's cut-out installation area.
• The electrical outlet receptacle must be properly located and easily accessed.
• Cut-out dimensions of the cabinets where the product will be installed must be in
strict conformity with the dimensions given in the manual.
• Do not install the refrigerator directly adjacent to another refrigerator. Otherwise,
condensation and damage may occur. (Please see "Dual Cabin Installation" on
page 10 for imagery)
• Check if the floor where the product will be installed is level. Use a level when
doing so to be sure.
• The installation area must not be subjected to direct sunlight and it must be away
from heat sources, such as microwaves, ovens, radiators, etc.
• The ambient temperature must be between 61°F (16°C) and 100°F (38°C),
depending on where the unit is installed. Otherwise, function errors may occur
when the product is running.
• If it is not possible to avoid installing the product near a heat source, the minimum
clearances given below must be maintained:
• 1 3/16" (30mm) from electric hobs or ovens.
• 12" (305mm) from gas or fuel operated hobs or ovens.
BEFORE INSTALLATION
5
Preparing the Refrigerator Enclosure

6
BEFORE INSTALLATION
Please observe the following rules:
• The dedicated circuit breaker for this unit must be easily accessible in case of an
emergency; it must not be hidden behind the product.
• The electrical plug and cord must not touch the back surface of the product.
Otherwise, it may get damaged due to the vibration of the product.
• Do not connect the plugs of other appliances behind this product.
• If the humidity level is high where the product is used, corrosion may occur on the
outer surface of the product. Keep the area where the unit will be installed dry
and well-cleaned to avoid corrosion.
To avoid the risk of electric shock:
• Connect the plug to a dedicated grounded electrical outlet.
• Do not remove the ground terminal of the plug.
• Do not use adapters.
• Do not use extension cables or cords.
6
Preparing the Refrigerator Enclosure

7
BEFORE INSTALLATION
CABINETS
Make sure that the cabinets where you will install the appliance have been safely mounted
in your kitchen. Your cabinets must be securely connected to the floor and walls properly
and with suitable connections.
For the best installation, clearances between the cabinets and the product must be in
compliance with the values specified in the installation instructions of this manual.
Side walls must be free of any obstructions and their surfaces must be flat. Note: Minimum
thickness of the side walls is 5/8" (16mm). The minimum thickness of the doors to be
attached to the product must be 3/4" (19mm).
ATTENTION
Failure to follow these instructions may result in death, fire, or electric
shock. Connecting the grounding conductor of the equipment to an
improper place may lead to electric shock. Please have the grounding
checked by a qualified electrician or service technician.
Installation, repair, and other procedures performed by unqualified
persons may cause danger. Before installing the appliance, make sure
that the voltage, load, and circuit current parameters on the data plate
are in compliance with the power mains in your house.
The appliance is provided with a NEMA 5-15P plug and a 3-pin power
cable, which is in the UL list and ready to be connected to a 120VAC,
60HZ power supply. The fuse is 15 amps, and the appliance must be
connected to a dedicated electrical outlet. If combining two RBIV-30
units into an RBIV-60 model, both need to be plugged in independently.
They can be plugged into the same dedicated receptacle, and a 15-
amp breaker is the recommended breaker size for both together.
If the electrical wiring or power supply of the house needs alteration, the
necessary procedures must be performed by a qualified electrician. The
plug must be installed only by a licensed electrician.
ATTENTION
Do not install your refrigerator:
• In open areas
• In environments where water is dripping
• In environments where temperature is lower than 61° F (16°C)
7
Preparing the Refrigerator Enclosure

8
VENTILATION
Ventilation panels where the air enters and exits the unit must not be blocked or
obstructed. In addition, you must periodically clean the dust and dirt that accumulates
on the vent holes to ensure adequate ventilation.
ELECTRICAL CONNECTION
• Never use an extension cable or cord with this unit.
• The dedicated electrical outlet receptacle for this unit must be grounded and checked
by an authorized person.
• The location of the electrical wiring must comply with the dimensions specified in
this installation manual.
Please wait 3-6 hours after installing the unit before plugging it in to
protect it against possible damages. This way, the refrigerant and the
lubricants in the system are given proper time to balance.
WARNING
WATER CONNECTION
• The pressure of the main water supply must be in compliance with the values
specified in this manual, and the location of the water system must comply with the
dimensions specified in this manual.
CAUTION
RISK OF ELECTRIC SHOCK
Electrical grounding is necessary. This appliance is equipped with a
3-pin plug to protect you against possible electric shocks.
• Do not remove the round grounding terminal from the plug.
• Do not use 2-pin grounding adapters.
• Do not use extension cables or cords to energize the product.
ATTENTION
Do not connect the grounding cable to any gas pipes. Please have the
grounding checked by a qualified electrician if you are not sure about
the grounding of the product. Do not install a fuse on the neutral line or
grounding circuit.
iA bypass is recommended for the water filtering system if a reverse
osmosis system is used.
INFO
BEFORE INSTALLATION
8
Electrical Connection

9
TOOL LIST
Tools to be used when installing the product are as follows (additional tools that may
assist in installation are not listed here):
TOOLS REQUIRED (NOT PROVIDED)
• Cordless Drill
• Safety Goggles
• 1/2" Wrench
• Hammer
• Ladder
• 3/32" Drill Bit
• 5/16" Drill Bit
• Box Cutter
• Safety Gloves
• Tape Measure
• 1/4" Torx Bit
• 1/4" Wrench Flat
• Level
• Dolly or Hand Truck
• Tape
ALTERNATIVES FOR INSTALLATION
The product can be placed in various ways based on the kitchen design. It must be
installed at a place where it is ensured that the door can be opened and closed
properly. If the doors cannot be opened 90° at least, you cannot completely open
the drawers inside the product. Note: The unit's hinges are designed to allow doors to
open up to 115°.
• Single cabin installation methods
INSTALLATION
9
Preparing the Refrigerator Enclosure

10
• Dual cabin installation methods
Scan the QR code for the Dual
Built-In Refrigerator manual.
Scan the QR code to watch an
installation video.
INSTALLATION
10
Preparing the Refrigerator Enclosure

11
PREPARATION FOR INSTALLATION
The instructions below have been prepared for a built-in type of refrigerator defined
as: the appliance and panels are flush with the front and side of the cabinetry. The
most common installation scenario is the refrigerator is mounted in its own box
between two kitchen cabinets or decorative columns.

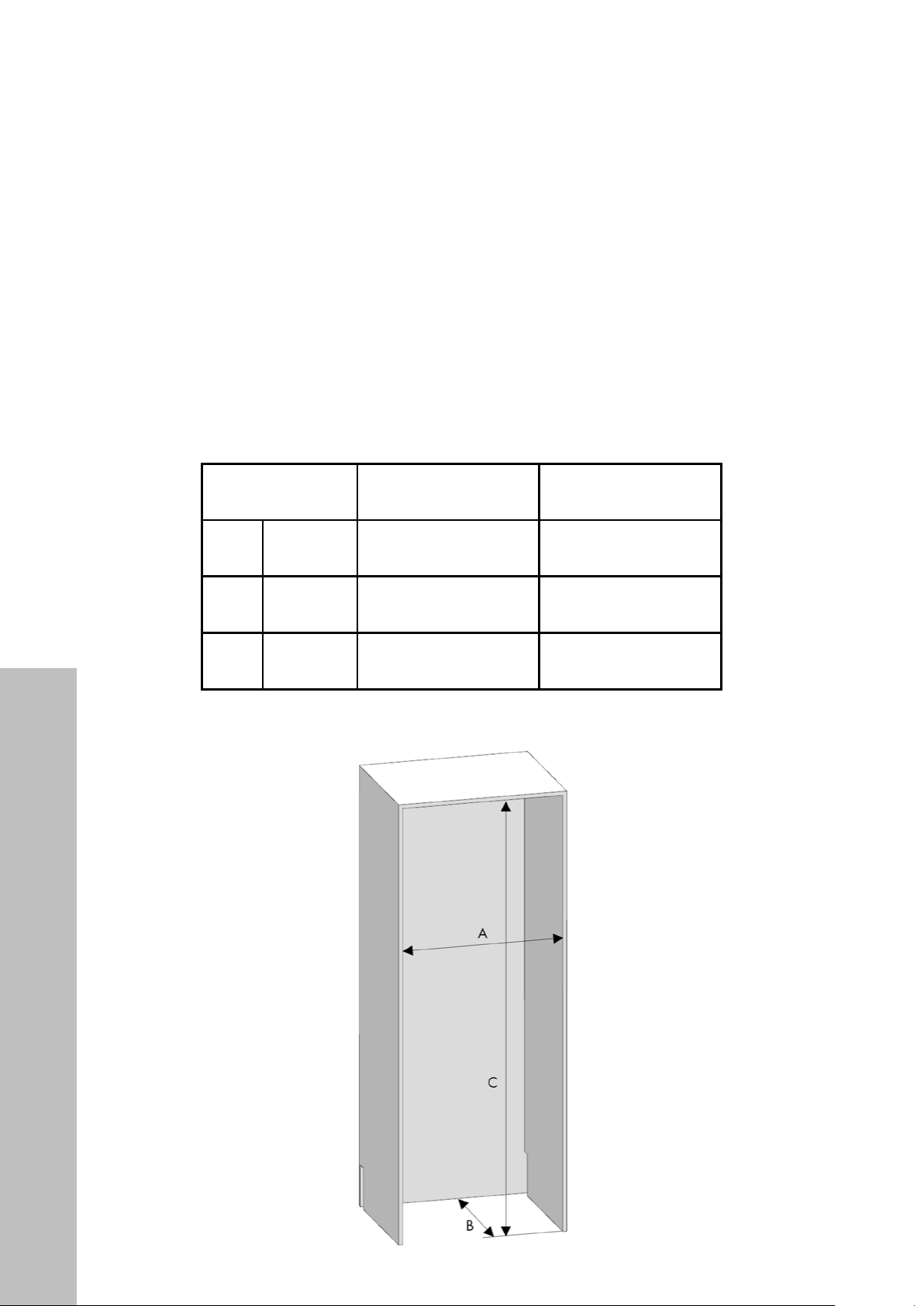

CABINET DIMENSIONS
Cabinet dimensions below must be confirmed before starting the installation.
CATEGORY RBIV30 RBIV36
A Width 30 3/16" (767mm) 36 3/16" (919mm)
B Depth 25" (635mm) 25" (635mm)
C Height 84" (2134mm) 84" (2134mm)
INSTALLATION
11
Preparing the Refrigerator Enclosure

12
LOCATION OF THE ELECTRICAL WIRING
The location of the electrical wiring must be within the range provided below.
CAUTION
Do not use extension cables or cords or 2-pin adaptors, and do not
remove the ground terminal of the grounding cable.
CAUTION
A qualified electrician must ensure that the poles of the socket are
connected correctly. A qualified electrician must also verify that the
grounding of the socket is correct.
INSTALLATION
12
Location of Electrical Wiring

13
INSTALLATION
LOCATION OF THE WATER SYSTEM
• The water connected to the water mains must be potable.
• The location of the water system must be within the range provided below.
• The unit's water system must be connected to the main water system in the house. The
user must be able to switch the water system on/off with a valve when necessary.
• Objects that may pierce the water hoses or cause them to twist must not be
present where the water line is installed.
• Pressure of the water system must be between 25-80 psi (1.7-5.5 bars).
• If the water pressure exceeds 80 psi, install a pressure-limiting device or water
pressure protector to the inlet valve. Never install or operate the appliance if it's
possible for the water pressure to exceed 120 psi.
• Make sure there is no water leakage when making the water
connections. Otherwise, there will be water on the floor and the
cabinets may get damaged.
• You will need a hose with a minimum length of 60" and a diameter
of 1/4" for water connections of the product during installation.
• A connector that has a thread with an external diameter of 1/4"
must be used to connect the hose end to the product.
• Before completing installation, make sure the water flows and there
is no water leakage. Damage may occur if leaks are present.
WARNING
13
Location of Water System

14
• Check if the floor where the appliance will be installed is perfectly
level. Use a level.
• Check if the cabinet flanges are upright and straight using a level.
• If the product is not level and plumb, problems may arise with
installation and eventual operation of the unit.
WARNING
INSTALLATION
14
Preparing the Refrigerator Enclosure

15
INSTALLATION
PRODUCT DIMENSIONS

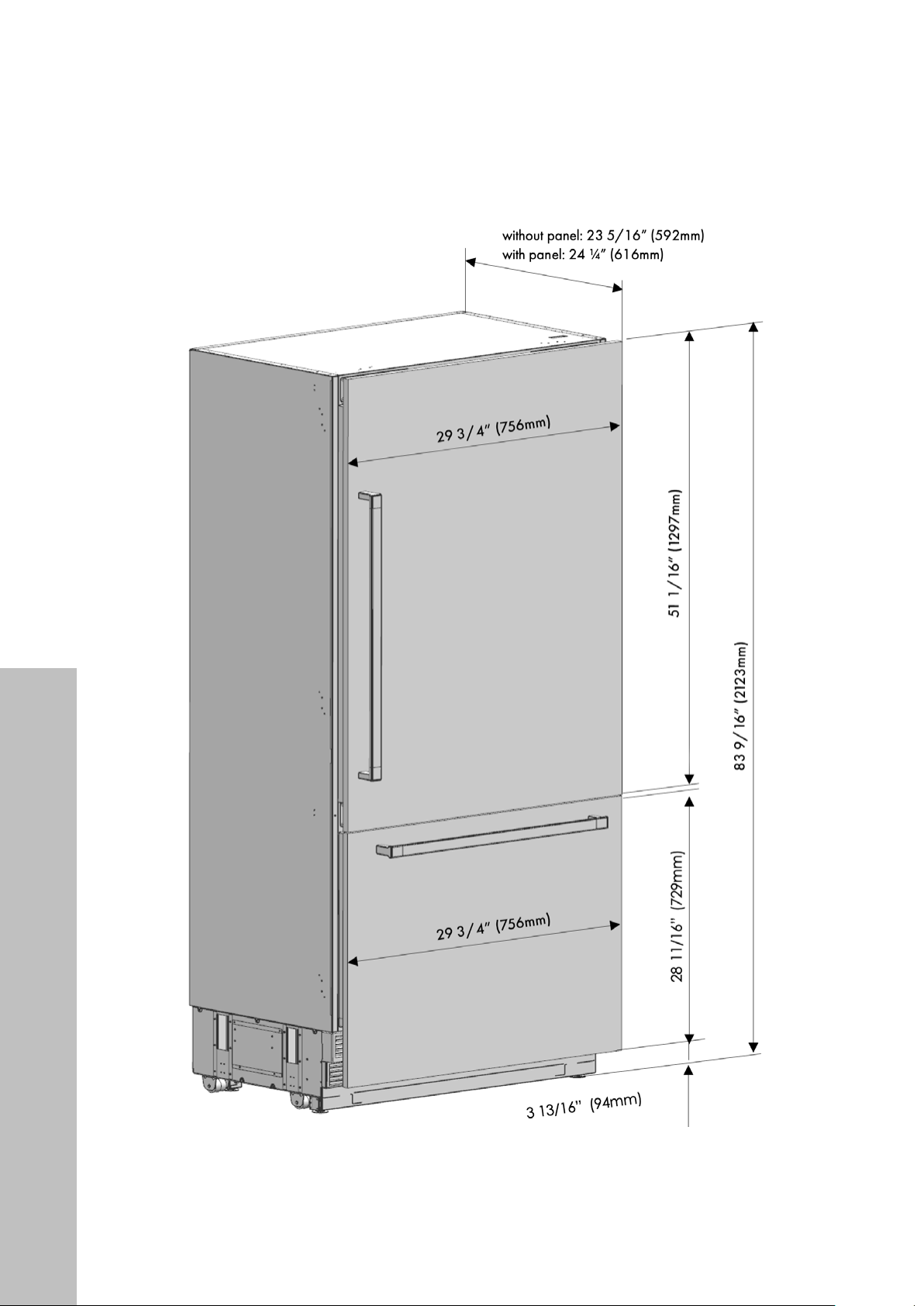

RBIV-30
15
Product Specifications

16

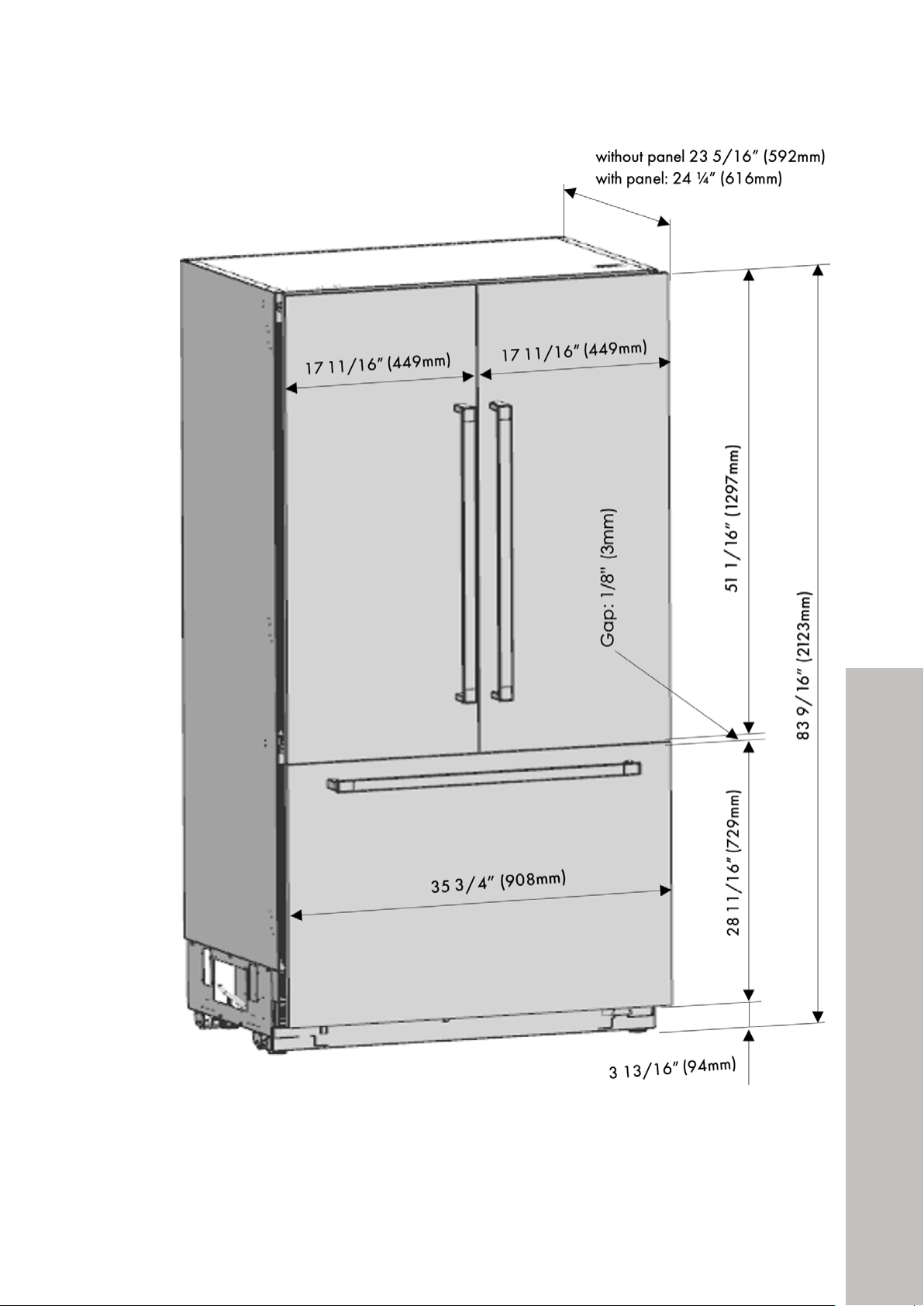

RBIV36
INSTALLATION
16
Product Specifications
