Zline Rbiv-30 User manual

BUILT-IN REFRIGERATORS

www.zlinekitchen.com

Installation Manual

Built-In Refrigerator - Installation Manual - English - USA - June 2023 - PRINT.indd 1Built-In Refrigerator - Installation Manual - English - USA - June 2023 - PRINT.indd 1 7/5/23 10:11 AM7/5/23 10:11 AM

ZLINE Kitchen and Bath provides Attainable Luxury, where the kitchen and bath of your dreams

is never out of reach. Through our unique designs and unparalleled quality, we’re dedicated to

providing you an elevated experience in the heart of your home. With an endless selection of

features and ﬁnishes, our inspiration is your reality.

Built-In Refrigerator - Installation Manual - English - USA - June 2023 - PRINT.indd 2Built-In Refrigerator - Installation Manual - English - USA - June 2023 - PRINT.indd 2 7/5/23 10:11 AM7/5/23 10:11 AM

ZLINE is fueled by a passion for innovation; A relentless pursuit of bringing the

highest end luxury designs and professional features into everyone’s homes.

Because we continually strive to improve our products, we may change

speciﬁcations and designs without prior notice.

Scan the QR code to view the most up-to-date version of the Installation

Manual and User Manual.

WARNING: This product can expose you to chemicals including nickel, which is known to the

State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Built-In Refrigerator - Installation Manual - English - USA - June 2023 - PRINT.indd 3Built-In Refrigerator - Installation Manual - English - USA - June 2023 - PRINT.indd 3 7/5/23 10:11 AM7/5/23 10:11 AM

Built-In Refrigerator - Installation Manual - English - USA - June 2023 - PRINT.indd 4Built-In Refrigerator - Installation Manual - English - USA - June 2023 - PRINT.indd 4 7/5/23 10:11 AM7/5/23 10:11 AM

TABLE OF CONTENTS

IMPORTANT SAFETY INSTRUCTIONS 1

BEFORE INSTALLATION 9

• Tools Required

• Electrical Wiring and Water Line Location

• Product Speciﬁcations

• Unpacking

• Parts Provided

INSTALLATION 30

• Removing The Freezer

• Anti-Tip Brackets

• Cabinet Cut-Out Preparation

• Refrigerator Door Panel Preparation

• Refrigerator Door Panel Installation

• Freezer Panel Installation

• Replacing The Freezer

• Hinge Adjustment

• Changing The Door Swing

WARRANTY 88

Built-In Refrigerator - Installation Manual - English - USA - June 2023 - PRINT.indd 5Built-In Refrigerator - Installation Manual - English - USA - June 2023 - PRINT.indd 5 7/5/23 10:11 AM7/5/23 10:11 AM

PLEASE READ THIS MANUAL BEFORE INSTALLING AND USING THE PRODUCT

• Always follow the applicable safety instructions.

• The installer should leave these instructions with the consumer who should retain

for local inspectors’ use and for future reference.

• Please read all other documents provided with this product.

• Please keep in mind this manual may apply to several product models.

• This manual expressly indicates the differences between various models.

• IMPORTANT: This is a complex installation procedure that should only be

performed by qualiﬁed professionals and technicians.

• The manufacturer will not be responsible for any damage to property or to

persons caused by incorrect installation, improper use of the appliance, or failure

to heed the warnings listed.

Symbols used in the installation manual are as follows.

iImportant information and useful hints.

INFO

Conditions that may damage the product or its operating functions.

WARNING

ATTENTION

Conditions containing serious injury risk.

CAUTION

Conditions containing electric shock risk.

IMPORTANT SAFETY INSTRUCTIONS

General Safety

R600A REFRIGERANT

This product contains R600a isobutane refrigerant, which is a very eco-

friendly natural gas. However, it is also ﬂammable. Please follow the

warnings and installation instructions below:

• If the product has been transported horizontally, you must wait a

minimum of 4 hours after standing it upright before plugging it in.

• Cut-out dimensions of the installation area must be suitable to

safely ﬁt the product for full installation.

• Dimensions, features, and position of objects used to support and

afﬁx the product to this area must be suitable.

• Minimum clearances between product parts and surrounding

structures must be suitable.

• Minimum dimensions and proper organization of ventilation holes

must be observed.

• The product must be connected to the main power outlet, and

corresponding connections of other components must be suitable.

• The product must be able to be disconnected from the power

supply if needed after installation.

• The outlet or fuse must be accessible to disconnect the product.

• Extension cables or ungrounded (two-terminal) adapters must not

be used with this unit.

WARNING

ATTENTION

You must wear gloves and eye protectors when installing the product.

You must also take measures against high noise levels when using a

drill to drill into the ﬂoor or wall.

ATTENTION

Make sure that your product is suitable for your local codes.

ATTENTION

The product must be installed by a qualiﬁed technician according to

the installation instructions.

The product may tip over since it is quite heavy. For this reason,

safety precautions must be taken. The doors of the product must be

kept closed until it reaches the ﬁnal install destination, and it must be

transported in accordance with the installation instructions.

WARNING

IMPORTANT SAFETY INSTRUCTIONS

Refrigerant Safety

IMPORTANT SAFETY INSTRUCTIONS

DISPOSING OF THE PACKAGING MATERIALS

• The package has been designed to protect the product during transport and

shipping. The packaging materials used are designed to not harm the environment

and should be recycled after the appliance is installed.

• All plastic packaging materials, bags, etc., must be disposed of safely and kept

out of the reach of children.

COMPLIANCE WITH THE WEEE DIRECTIVE AND DISPOSING OF EWASTE:

• This product conforms to the EU WEEE Directive (2012/19 EU).

• This product bears a classiﬁcation symbol for "waste electrical and electronic

equipment," otherwise known as WEEE.

• This product has been manufactured from high-quality parts and materials that

can be reused and are suitable for recycling.

• Therefore, do not dispose of the product with normal domestic waste or other

waste at the end of its service life.

• Take it to a collection center for recycling electrical and electronic equipment.

• Please consult your local government authority to learn about appropriate

collection center location.

This Installation Manual has been prepared to help qualiﬁed

professionals with installation of the appliance. The User Manual

provided with the product must also be taken into consideration, as it

contains important information about operation and safety. You may

get seriously injured and your product may get damaged if you ignore

the warnings given in this manual. Please read the following carefully.

WARNING

Disposing of Materials

CLIMATE CLASS

CLIMATE RANGE AMBIENT TEMPERATURE

OF THE ROOM This appliance has been

designed to be used in

certain climate ranges

(ambient temperatures).

It must not be used out of

this range.

Northern Hemisphere Between 61oF (16oC) and

90oF (32oC)

Southern Hemisphere Between 61oF (16oC) and

100oF (38oC)

PRODUCT WEIGHT

CATEGORY RBIV-30 RBIV-36

PRODUCT WEIGHT 342 Ibs (155 kg) 355 Ibs (161 kg)

LOAD BEARING CAPACITY OF THE DOORS

MAX LOAD RBIV-30 RBIV-36

REFRIGERATOR DOOR 55 Ibs (25 kg) 22 Ibs (10 kg)

FREEZER DOOR 22 Ibs (10 kg) 22 Ibs (10 kg)

RBIV-30 RBIV-36

IMPORTANT SAFETY INSTRUCTIONS

Climate Class and Weight

INSTALLATION ENCLOSURE

You must follow the instructions below:

• The ﬂoor on which the product will be installed must be capable of bearing a

minimum of 1,200 pounds (544 kg).

• The kitchen ﬂoor and bottom of the product must be at the same level. Otherwise,

the air ﬂow for the unit's cooling system may be impeded or reduced.

• There must be no objects preventing installation of the product to the back and

side walls of the product's cut-out installation area.

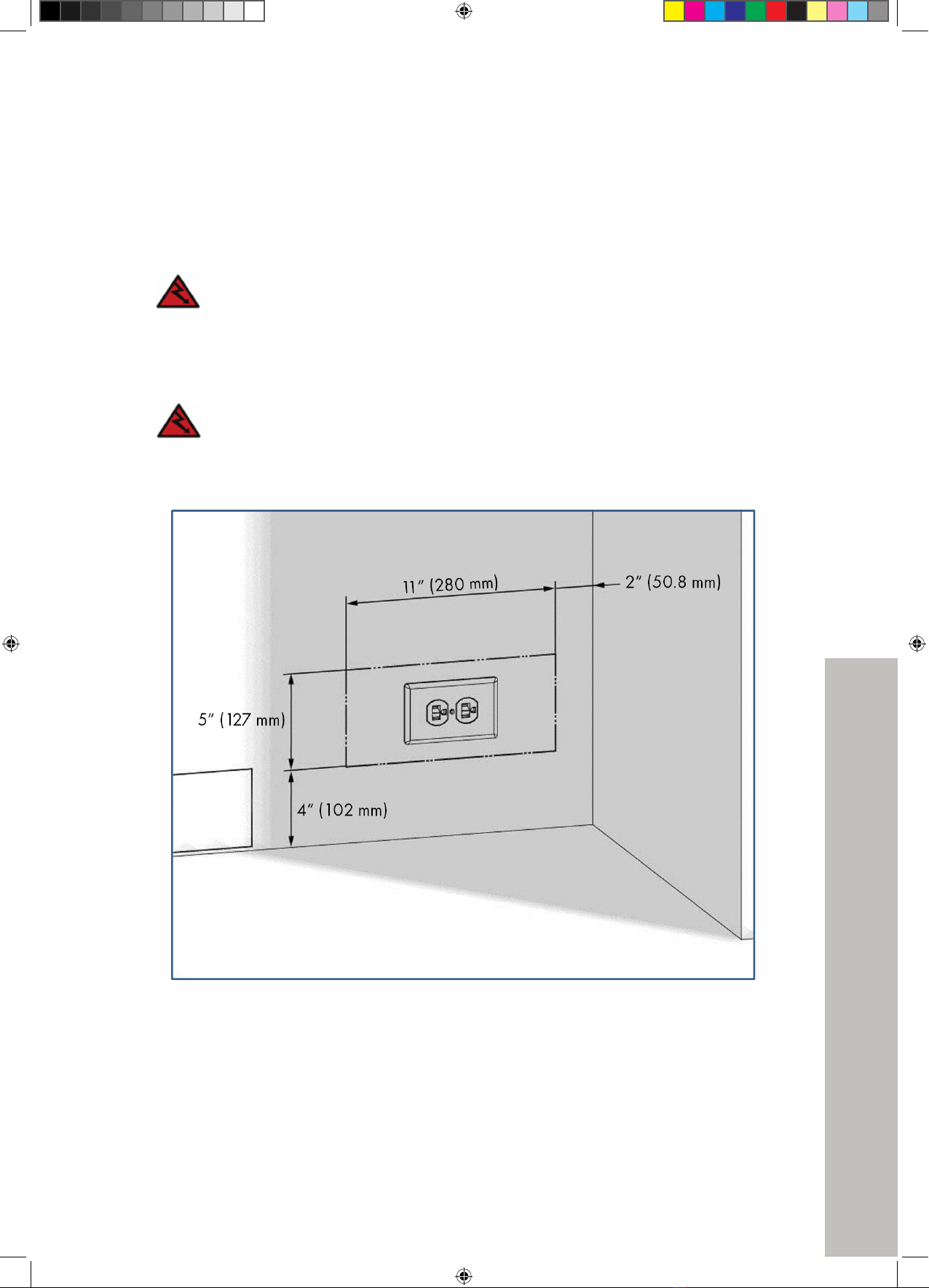

• The electrical outlet receptacle must be properly located and easily accessed.

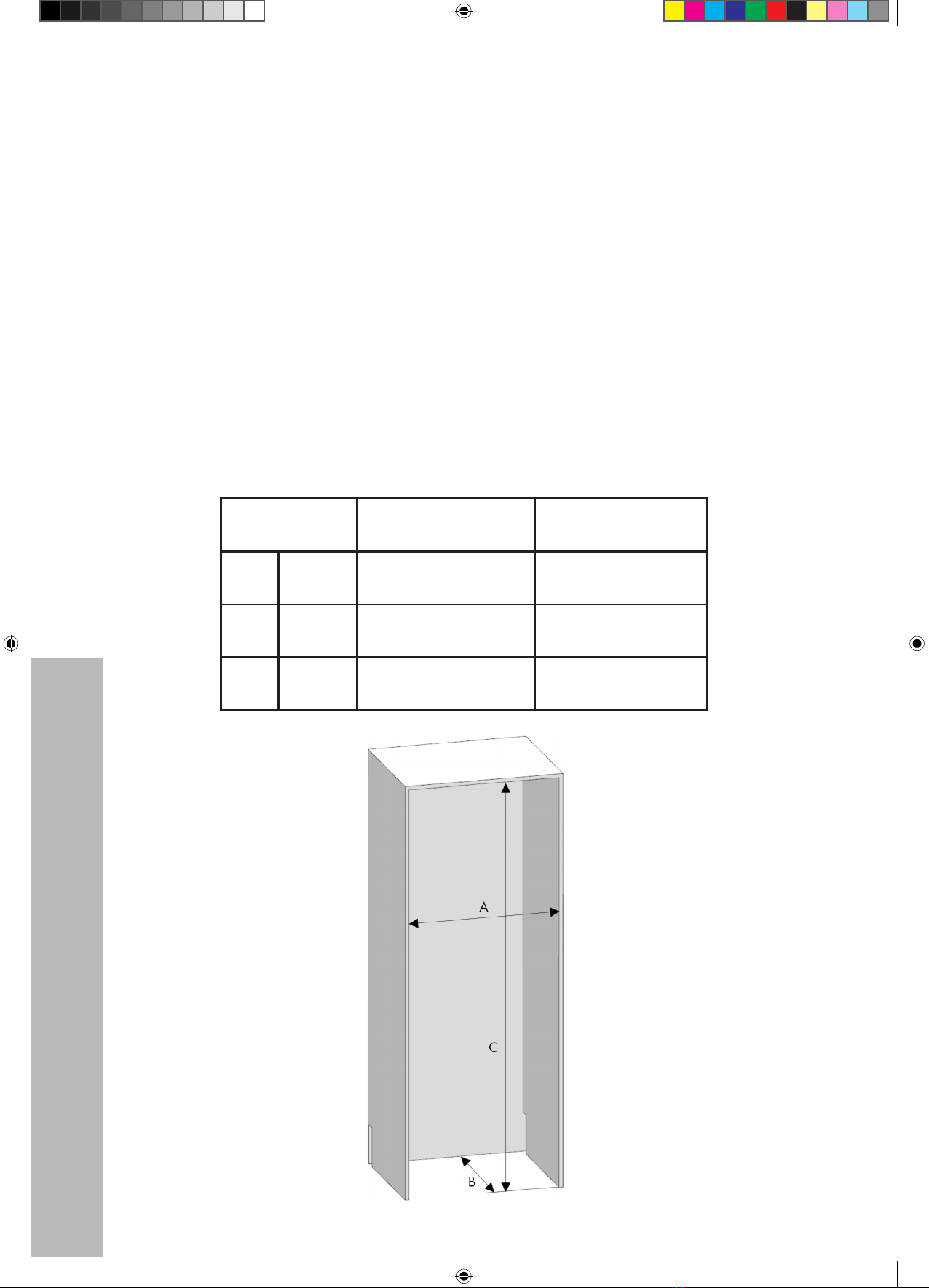

• Cut-out dimensions of the cabinets where the product will be installed must be in

strict conformity with the dimensions given in the manual.

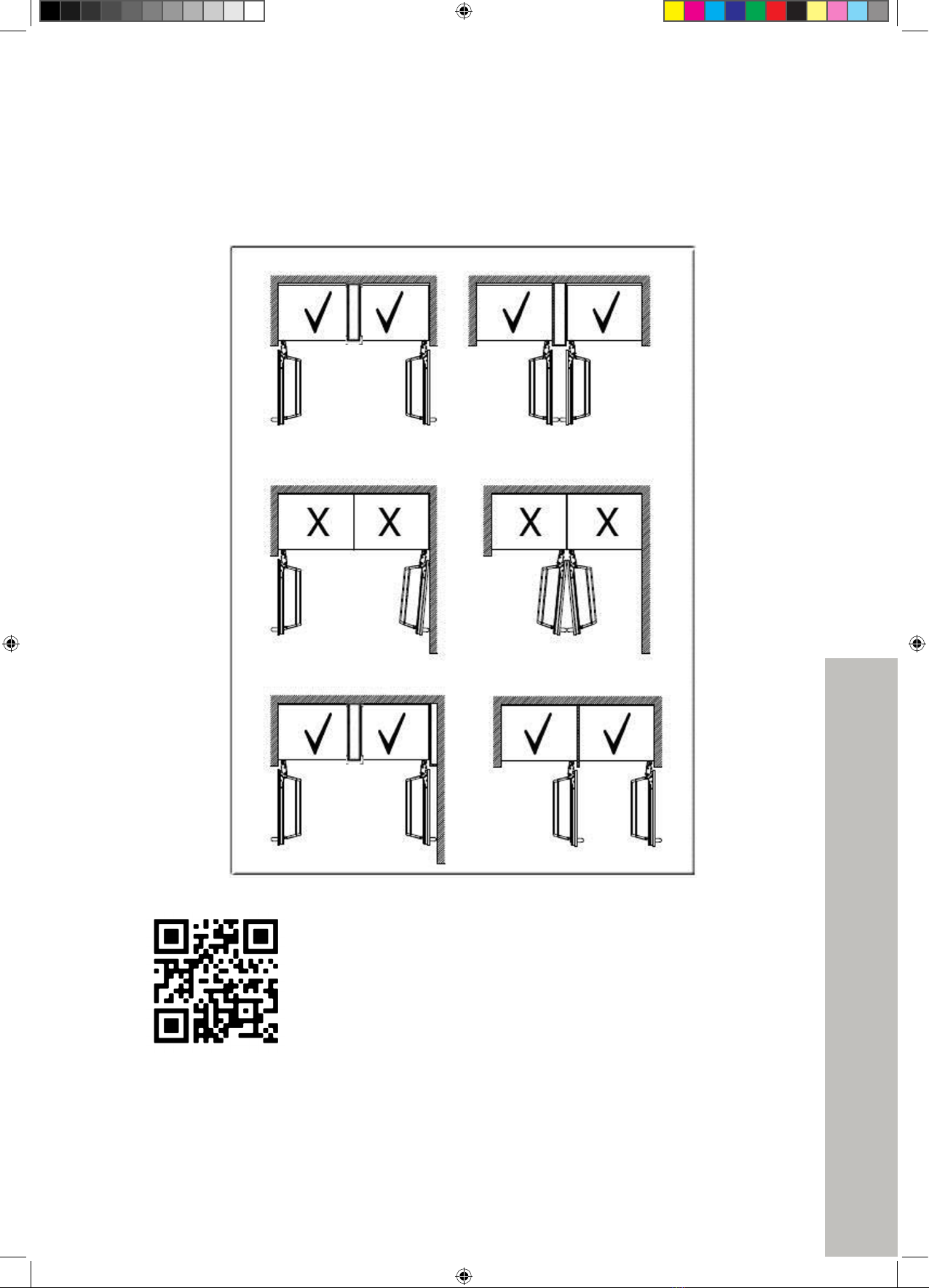

• Do not install the refrigerator directly adjacent to another refrigerator. Otherwise,

condensation and damage may occur. (Please see "Dual Cabin Installation" on

page 10 for imagery)

• Check if the ﬂoor where the product will be installed is level. Use a level when

doing so to be sure.

• The installation area must not be subjected to direct sunlight and it must be away

from heat sources, such as microwaves, ovens, radiators, etc.

• The ambient temperature must be between 61°F (16°C) and 100°F (38°C),

depending on where the unit is installed. Otherwise, function errors may occur

when the product is running.

• If it is not possible to avoid installing the product near a heat source, the minimum

clearances given below must be maintained:

• 1 3/16" (30 mm) from electric ranges or ovens.

• 12" (305 mm) from gas or fuel operated ranges or ovens.

IMPORTANT SAFETY INSTRUCTIONS

Preparing the Refrigerator Enclosure

IMPORTANT SAFETY INSTRUCTIONS

Please observe the following rules:

• The dedicated circuit breaker for this unit must be easily accessible in case of an

emergency; it must not be hidden behind the product.

• The electrical plug and cord must not touch the back surface of the product.

Otherwise, it may get damaged due to the vibration of the product.

• Do not connect the plugs of other appliances behind this product.

• If the humidity level is high where the product is used, corrosion may occur on the

outer surface of the product. Keep the area where the unit will be installed dry and

well-cleaned to avoid corrosion.

CAUTION

To avoid the risk of electric shock:

• Connect the plug to a dedicated grounded electrical outlet.

• Do not remove the ground terminal of the plug.

• Do not use adapters.

• Do not use extension cables or cords.

ATTENTION

Do not install your refrigerator:

• In open areas.

• In environments where water is dripping.

• In environments where temperature is lower than 61°F (16°C).

Preparing the Refrigerator Enclosure

Built-In Refrigerator - Installation Manual - English - USA - June 2023 - PRINT.indd 6Built-In Refrigerator - Installation Manual - English - USA - June 2023 - PRINT.indd 6 7/5/23 10:11 AM7/5/23 10:11 AM

IMPORTANT SAFETY INSTRUCTIONS

CABINETS

• Make sure that the cabinets where you will install the appliance have been safely

mounted in your kitchen. Your cabinets must be securely connected to the ﬂoor and

walls properly and with suitable connections.

• For the best installation, clearances between the cabinets and the product must be in

compliance with the values speciﬁed in the installation instructions of this manual.

• Side walls must be free of any obstructions and their surfaces must be ﬂat.

• NOTE: Minimum thickness of the side walls is 5/8" (16 mm). The minimum thickness

of the doors to be attached to the product must be 3/4" (19 mm).

ATTENTION

Failure to follow these instructions may result in death, ﬁre, or electric

shock. Connecting the grounding conductor of the equipment to an

improper place may lead to electric shock. Please have the grounding

checked by a qualiﬁed electrician or service technician.

Installation, repair, and other procedures performed by unqualiﬁed

persons may cause danger. Before installing the appliance, make sure

that the voltage, load, and circuit current parameters on the data plate

are in compliance with the power mains in your house.

The appliance is provided with a NEMA 5-15P plug and a 3-pin

power cable, which is in the UL list and ready to be connected to a

120VAC, 60Hz power supply. The fuse is 15 amps, and the appliance

must be connected to a dedicated electrical outlet.

If combining two RBIV-30 units into an RBIV-60 model, ZLINE

recommends both be plugged into independent circuits. They can be

plugged into the same outlet, but the circuit must have a dedicated

15-amp breaker.

If the electrical wiring or power supply of the house needs alteration,

the necessary procedures must be performed by a qualiﬁed

electrician. The plug must be installed only by a licensed electrician.

Preparing the Refrigerator Enclosure

Built-In Refrigerator - Installation Manual - English - USA - June 2023 - PRINT.indd 7Built-In Refrigerator - Installation Manual - English - USA - June 2023 - PRINT.indd 7 7/5/23 10:11 AM7/5/23 10:11 AM

VENTILATION

Ventilation panels where the air enters and exits the unit must not be blocked or

obstructed. In addition, you must periodically clean the dust and dirt that accumulates

on the vent holes to ensure adequate ventilation.

ELECTRICAL CONNECTION

• Never use an extension cable or cord with this unit.

• The dedicated electrical outlet receptacle for this unit must be grounded and checked

by an authorized electrician.

• The location of the electrical wiring must comply with the dimensions speciﬁed in

this installation manual.

Please wait 3-6 hours after installing the unit before plugging it in to

protect it against possible damages. This way, the refrigerant and the

lubricants in the system are given proper time to balance.

WARNING

WATER CONNECTION

• The pressure of the main water supply must be in compliance with the values

speciﬁed in this manual, and the location of the water system must comply with the

dimensions speciﬁed in this manual.

CAUTION

RISK OF ELECTRIC SHOCK

Electrical grounding is necessary. This appliance is equipped with a

3-pin plug to protect you against possible electric shocks.

• Do not remove the round grounding terminal from the plug.

• Do not use 2-pin grounding adapters.

• Do not use extension cables or cords to energize the product.

ATTENTION

Do not connect the grounding cable to any gas pipes. Please have the

grounding checked by a qualiﬁed electrician if you are not sure about

the grounding of the product. Do not install a fuse on the neutral line

or grounding circuit.

iA bypass is recommended for the water ﬁltering system if a reverse

osmosis system is used.

INFO

IMPORTANT SAFETY INSTRUCTIONS

Electrical Connection

Built-In Refrigerator - Installation Manual - English - USA - June 2023 - PRINT.indd 8Built-In Refrigerator - Installation Manual - English - USA - June 2023 - PRINT.indd 8 7/5/23 10:11 AM7/5/23 10:11 AM

TOOLS REQUIRED

Tools to be used when installing the product are as follows (additional tools that may

assist in installation are not listed here):

TOOLS REQUIRED (NOT PROVIDED)

• Cordless Drill

• Safety Goggles

• 1/2" Wrench

• Hammer

• Ladder

• 3/32" Drill Bit

• 5/16" Drill Bit

• Box Cutter

• Socket Wrench

• Safety Gloves

• Tape Measure

• 1/4" Torx Bit

• 1/4" Flat Wrench

• 1/4" Hex Bit

• Level

• Dolly or Hand Truck

• Tape

ALTERNATIVES FOR INSTALLATION

• The product can be placed in various ways based on the kitchen design. It must be

installed at a place where it is ensured that the door can be opened and closed

properly.

• If the doors cannot be opened 90° at least, you cannot completely open the

drawers inside the product. Note: The unit's hinges are designed to allow doors to

open up to 115°.

SINGLE CABIN INSTALLATION METHODS

BEFORE INSTALLATION

Tools Required

Built-In Refrigerator - Installation Manual - English - USA - June 2023 - PRINT.indd 9Built-In Refrigerator - Installation Manual - English - USA - June 2023 - PRINT.indd 9 7/5/23 10:11 AM7/5/23 10:11 AM

DUAL CABIN INSTALLATION METHODS (RBIV60)

Scan the QR code to view the most up-to-date version of our

RBIV-60 Dual Built-In Refrigeration Installation Manual.

BEFORE INSTALLATION

Preparing the Refrigerator Enclosure

Built-In Refrigerator - Installation Manual - English - USA - June 2023 - PRINT.indd 10Built-In Refrigerator - Installation Manual - English - USA - June 2023 - PRINT.indd 10 7/5/23 10:11 AM7/5/23 10:11 AM

PREPARATION FOR INSTALLATION

ZLINE built-in refrigerators are panel-ready appliances designed to be a permanent

ﬁxture in your custom kitchen; therefore, precise cabinet cutouts and superior attention

to detail are required for seamless integration. The most common installation scenario

is the refrigerator is mounted between two kitchen cabinets or decorative columns.

CABINET DIMENSIONS

IMPORTANT: Kitchen layouts may vary, so the dimensions below must be conﬁrmed

by a qualiﬁed technician before starting the installation.

CATEGORY RBIV30 RBIV36

A Width 30 3/16" (767 mm) 36 3/16" (919 mm)

B Depth 25" (635 mm) 25" (635 mm)

C Height 84" (2134 mm) 84" (2134 mm)

BEFORE INSTALLATION

Preparing the Refrigerator Enclosure

Built-In Refrigerator - Installation Manual - English - USA - June 2023 - PRINT.indd 11Built-In Refrigerator - Installation Manual - English - USA - June 2023 - PRINT.indd 11 7/5/23 10:11 AM7/5/23 10:11 AM

LOCATION OF THE ELECTRICAL WIRING

The location of the electrical outlet must be within the range provided below.

CAUTION

Do not use extension cables or cords or 2-pin adapters, and do not

remove the ground terminal of the grounding cable.

CAUTION

A qualiﬁed electrician must ensure that the poles of the socket are

connected correctly. A qualiﬁed electrician must also verify that the

grounding of the socket is correct.

BEFORE INSTALLATION

Location of Electrical Wiring

Built-In Refrigerator - Installation Manual - English - USA - June 2023 - PRINT.indd 12Built-In Refrigerator - Installation Manual - English - USA - June 2023 - PRINT.indd 12 7/5/23 10:11 AM7/5/23 10:11 AM

BEFORE INSTALLATION

LOCATION OF THE WATER SYSTEM

• The water connected to the refrigeration unit must be potable.

• The location of the water system must be within the range provided below.

• The unit's water system must be connected to the main water system in the house. The

user must be able to switch the water system on/off with a valve when necessary.

• Objects that may pierce the water hoses or cause them to twist must not be

present where the water line is installed.

• Pressure of the water system must be between 25-80 psi (1.7-5.5 bars).

• If the water pressure exceeds 80 psi, install a pressure-limiting device or water

pressure protector to the inlet valve. Never install or operate the appliance if it's

possible for the water pressure to exceed 120 psi.

• Make sure there is no leakage when making water connections.

Otherwise, there will be water on the ﬂoor and the cabinets may

get damaged.

• You will need a hose with a minimum length of 60" (1524 mm)

and a diameter of 1/4" (6.4 mm) for water connections of the

product during installation.

• A connector that has a thread with an external diameter of 1/4"

(6.4 mm) must be used to connect the hose end to the product.

• Before completing installation, make sure water ﬂows and there is

no leakage. Damage may occur if leaks are present.

WARNING

Location of Water System

Built-In Refrigerator - Installation Manual - English - USA - June 2023 - PRINT.indd 13Built-In Refrigerator - Installation Manual - English - USA - June 2023 - PRINT.indd 13 7/5/23 10:11 AM7/5/23 10:11 AM

• Check if the ﬂoor where the appliance will be installed is perfectly

level. Use a level as shown below.

• Check if the cabinet ﬂanges are upright and straight using a level.

• If the product is not level and plumb, problems may arise with

installation and eventual operation of the unit.

WARNING

BEFORE INSTALLATION

Preparing the Refrigerator Enclosure

Built-In Refrigerator - Installation Manual - English - USA - June 2023 - PRINT.indd 14Built-In Refrigerator - Installation Manual - English - USA - June 2023 - PRINT.indd 14 7/5/23 10:11 AM7/5/23 10:11 AM

BEFORE INSTALLATION

PRODUCT DIMENSIONS

RBIV-30

Product Speciﬁcations

Built-In Refrigerator - Installation Manual - English - USA - June 2023 - PRINT.indd 15Built-In Refrigerator - Installation Manual - English - USA - June 2023 - PRINT.indd 15 7/5/23 10:11 AM7/5/23 10:11 AM
