Zline RBIV-30 Assembly instructions

Built-in
RefRigeRatoRs
Installation Guide
and Users Manual

ITALIAN BURNERS
PHILOSOPHY
ZLINE Kitchen and Bath provides Attainable Luxury®, where the kitchen and bath of your dreams is never out of reach.
Through our unique designs and unparalleled quality, we’re dedicated to providing you an elevated experience in the heart
of your home. With an endless selection of features and finishes, our inspiration is your reality.
PHILOSOPHY
GAS FUEL STAYPUT HINGES
GAS FUEL
ZLINE
REGISTERING YOUR PRODUCT
Please register your ZLINE appliance. Begin the simple registration
process by scanning the QR code.
By registering your appliance, you will have easy and accurate
access to:
• Technical Support
• Warranty Service
• Tracking your support inquiries
WARNING: This product can expose you to chemicals including nickel, which is known to the
State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
SCAN ME

ITALIAN BURNERS
PHILOSOPHY
ZLINE Kitchen and Bath provides Attainable Luxury®, where the kitchen and bath of your dreams is never out of reach.
Through our unique designs and unparalleled quality, we’re dedicated to providing you an elevated experience in the heart
of your home. With an endless selection of features and finishes, our inspiration is your reality.
PHILOSOPHY
GAS FUEL STAYPUT HINGES
GAS FUEL
ZLINE
ZLINE Kitchen and Bath provides Attainable Luxury, where the kitchen and bath of your
dreams is never out of reach. Through our unique designs and unparalleled quality, we’re
dedicated to providing you an elevated experience in the heart of your home. With an
endless selection of features and finishes, our inspiration is your reality.
ZLINE is fueled by a passion for innovation; A relentless pursuit of bringing the highest end
luxury designs and professional features into everyone’s homes. Because we continually strive
to improve our products, we may change specifications and designs without prior notice.

WARRANTY
COVERAGE
ZLINE Kitchen and Bath refrigerators have a one year parts and service warranty
and a five year parts warranty for a sealed system. This is from the original purchase
date for the original purchaser of the product.
TERMS
This warranty applies only to the original purchaser of the product installed for
normal residential use. This is defined as a single-family, residential dwelling in a
non-commercial setting. Commercial settings include but are not limited to: schools,
churches, hotels, restaurants, vacation rentals such as Airbnb, day care centers,
private clubs, fire stations, common areas in multi-family dwellings, nursing homes,
food service locations, and institutional food service locations such as hospitals or
correction facilities. This warranty is non-transferable and will not be extended based
on the date of installation. The warranty applies only to products installed in the
continental United States and the District of Columbia. Warranty shall not apply and
ZLINE Kitchen and Bath is not responsible for damage resulting from negligence,
improper maintenance, misuse, abuse, alteration of or tampering with the appliance,
accident, natural disaster, improper electric supply, unauthorized service or repair,
improper installation, or installation not in accordance with the instructions contained
in the manual or the local codes.
WHAT IS NOT COVERED
1. Start-up damages or problems caused by improper installation or use.
2. Damage related to unauthorized service or unauthorized parts.
3. Installation in any commercial or non-residential application.
4. Aesthetic damage, scratches, or natural wear caused by normal use.
5. Second-hand, open box products, or products purchased from an unauthorized
retailer.

TABLE OF CONTENTS
INSTALLATION SAFETY INSTRUCTIONS 1
PRE-INSTALLATION PROCEDURES 4
INSTALLATION 9
OPERATIONAL SAFETY INSTRUCTIONS 81
OPERATION 89
CARE AND CLEANING 103
TROUBLESHOOTING 105

PLEASE READ THIS MANUAL BEFORE USING THE PRODUCT
• Always follow the applicable safety instructions.
• Keep the user manual in an easily accessible place for further use.
• Please read all the other documents provided with the product.
• Please keep in mind that this manual may apply to several product models.
• This manual expressly indicates the differences between various models
IMPORTANT SAFETY INSTRUCTIONS
Symbols used in the installation manual are as follows.
iImportant information and useful hints.
INFO
Conditions that may damage the product or its operating functions
WARNING
ATTENTION
Conditions containing serious injury risk
CAUTION
Conditions containing electric shock risk
Packaging materials of the product have been manufactured from
recyclable materials in accordance with our National Environment
Regulations.
Safety Symbols
1

2
Refrigerant
IMPORTANT SAFETY INSTRUCTIONS
R600A REFRIGERANT
This product contains R600a isobutane refrigerant, which is a very eco-
friendly natural gas. However, it is also flammable. Please follow the
warnings given below:
• If the product has been transported horizontally, you must wait for
4 hours minimum before plugging it in.
• The following instructions must be followed during installation:
• Dimensions of the installation area must be suitable.
• Dimensions, features and position of the object used to support and
fix the product to this area must be suitable.
• Minimum clearances between product parts and surrounding
structures must be suitable.
• Minimum dimensions and proper organization of ventilation holes
must be observed.
• The product must be connected to the mains power, and
corresponding connections of other components must be suitable.
• The product must be disconnectable from the power supply after
installation.
• The socket or fuse must be accessible to de-energize the product.
• Extension cables or ungrounded (two-terminal) adapters must not
be used.
WARNING
ATTENTION
You must wear gloves and eye protectors when installing the product.
You must also take measures against high noise levels when drilling the
floor or using a drill.
ATTENTION
Make sure that your product is suitable for your local codes.
ATTENTION
The product must be installed by a qualified technician according to the
installation instructions.
The product may tip over since it is quite heavy. For this reason,
precautions must be taken against tipping over. The doors of the product
must be kept closed until it reaches the destination and it must be
transported in accordance with the installation instructions.
WARNING

3
Disposing of Materials
IMPORTANT SAFETY INSTRUCTIONS
DISPOSING OF THE PACKAGING MATERIALS
The package has been designed to protect the product during transport.
The packaging materials used for the product do not harm the nature during disposal
and they need to be recycled.
All plastic packaging materials, bags etc. must be disposed safely and kept out of the
reach of children.
Please return the packaging to your dealer.
COMPLIANCE WITH THE WEEE DIRECTIVE AND DISPOSING THE WASTE
PRODUCT:
This product conforms to the EU WEE Directive (2012/19 EU).
This product bears a classification symbol for waste electrical and electronic
equipment (WEEE).
This product has been manufactured from high quality parts and materials which can
be reused and are suitable for recycling.
Therefore, do not dispose the product with normal domestic waste or other waste at
the end of its service life.
Take it to a collection center for recycling electrical and electronic equipment.
Please consult local authorities to learn about the locations of such collection center.
This installation manual has been prepared to help installation teams.
The User Manual provided with the product must also be taken into
consideration.
You may get seriously injured and your product may get damaged if
you ignore the warnings given in this manual. Please read the following
carefully.
WARNING

4
General Safety
BEFORE INSTALLATION
CLIMATE CLASS
CLIMATE RANGE AMBIENT TEMPERATURE
OF THE ROOM
This appliance has been
designed to be used in
certain climate ranges
(ambient temperatures).
It must not be used out of
this range.
SN Between +50oF (10oC) and
+90oF (32oC)
NBetween +60oF (16oC) and
+90oF (32oC)
ST Between +60oF (16oC) and
+ 11 0 oF (38oC)
TBetween +60oF (16oC) and
+ 12 0 oF (43oC)
PRODUCT WEIGHT
CATEGORY RBIV-30 RBIV-36
PRODUCT
WEIGHT 361Ibs (164kg) 355IIbs (161kg)

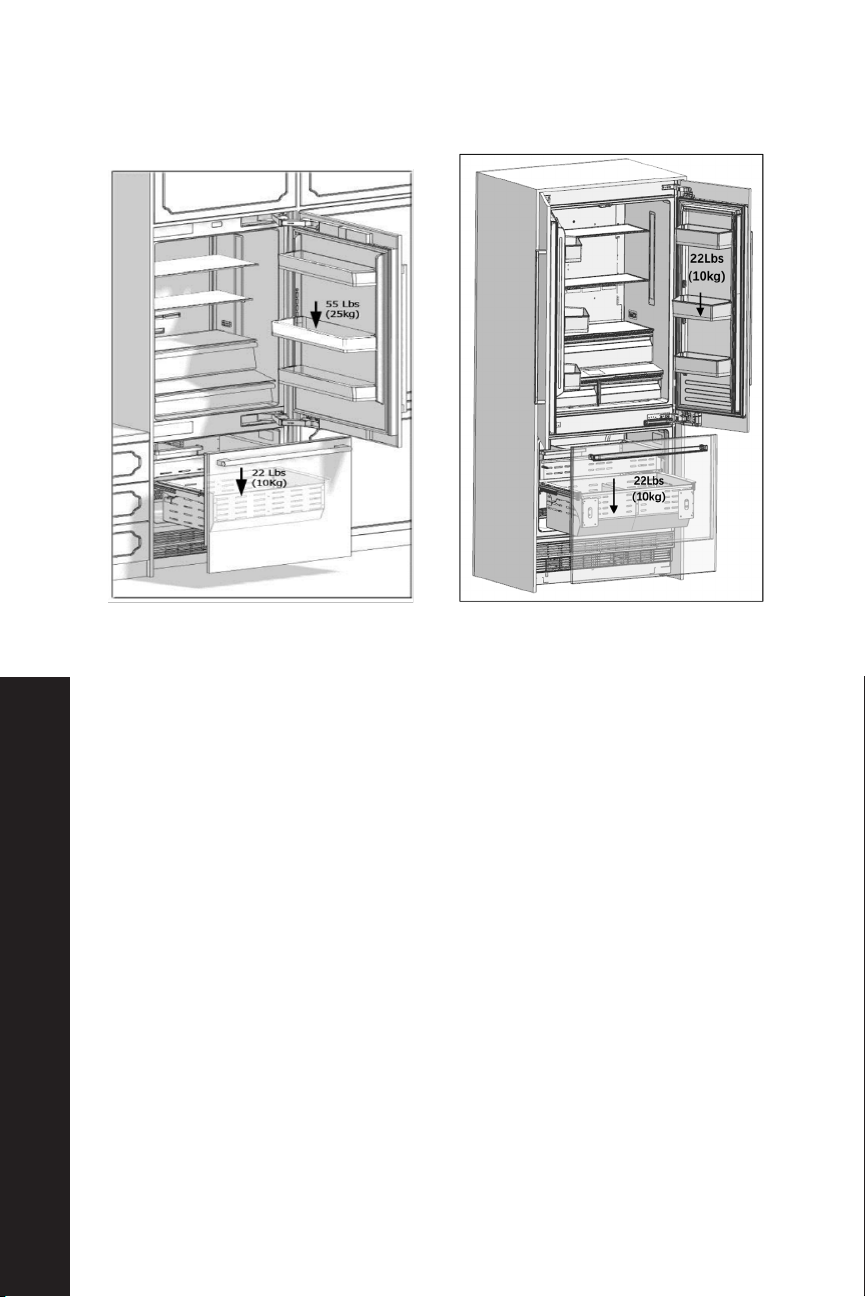

LOAD BEARING CAPACITY OF THE DOORS
MAX LOAD RBIV-30 RBIV-36
FRIDGE DOOR 55Ibs (25kg) 22Ibs (10kg)
FREEZER DOOR 22Ibs (10kg) 22Ibs (10kg)

5
General Safety
BEFORE INSTALLATION
RBIV-30 RBIV-36

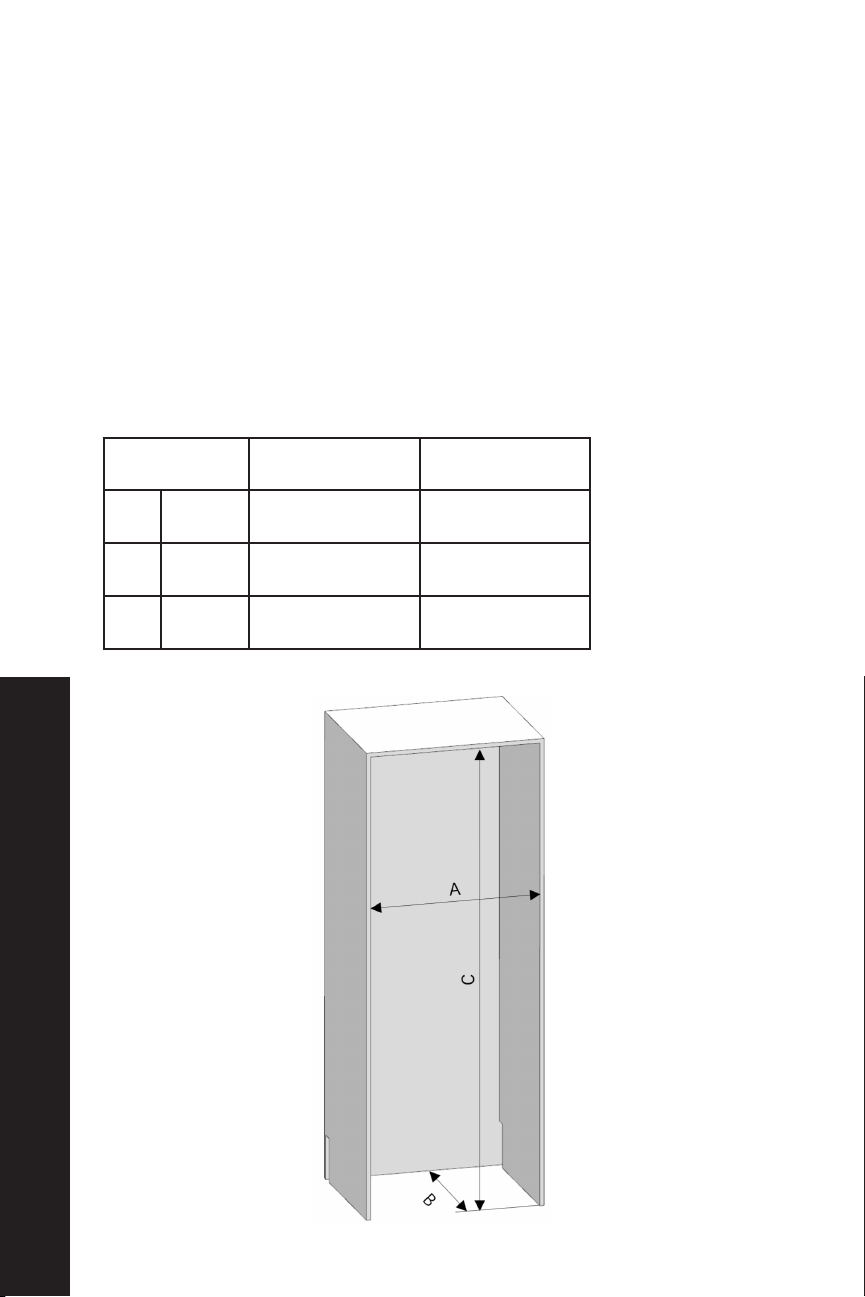

INSTALLATION ENCLOSURE
You must follow the instructions below:
• The floor on which the product will be installed must be capable of bearing
1,200 pounds (544 kg) minimum.
• Kitchen floor and the bottom of the product must be at the same level. Otherwise,
problems may occur with the air suction of the product.
• There must be no objects preventing the installation of the product at the back
and on the side walls of the product's installation place.

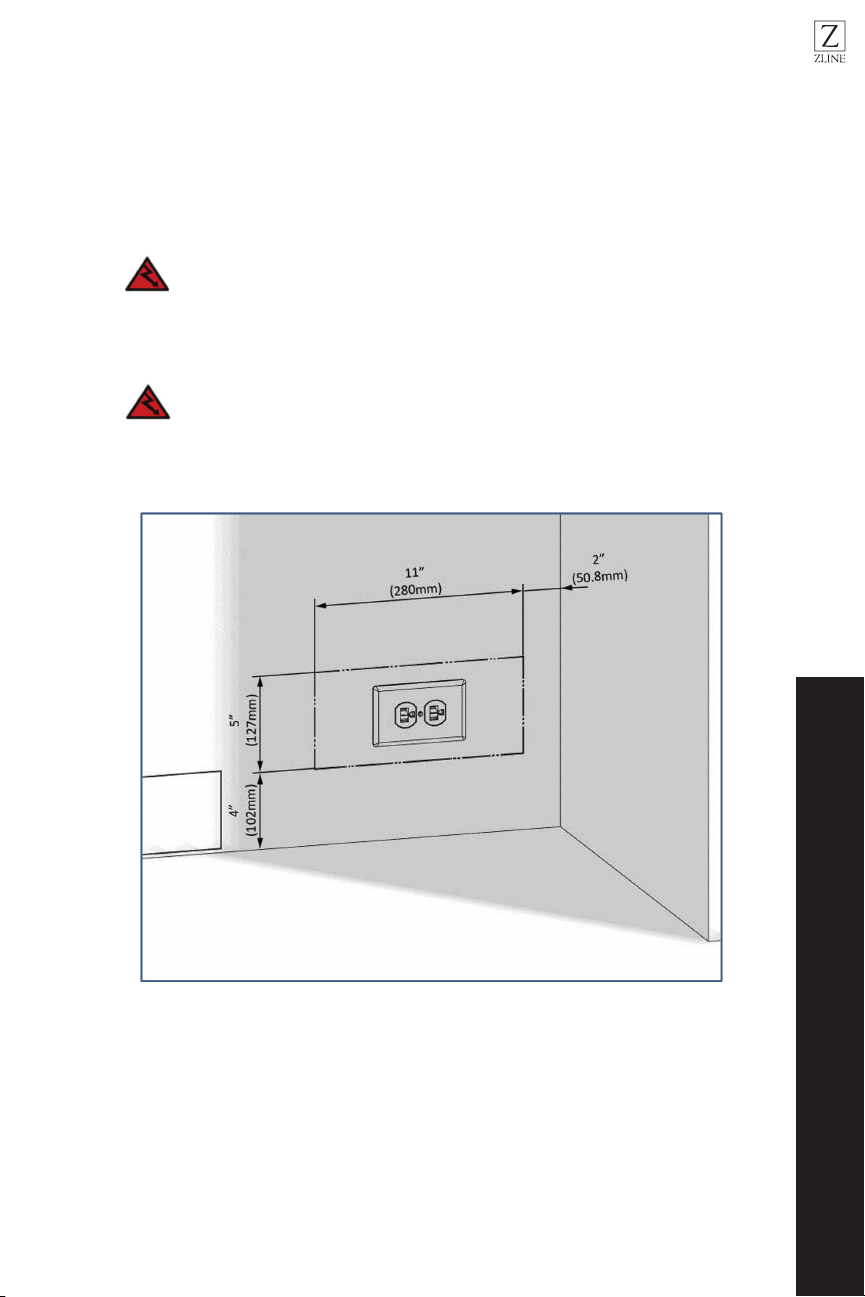

• The electrical outlet receptacle must be at the correct place.
• Dimensions of the cabinets where the product will be installed must be in strict
conformity with the dimensions given in the manual.

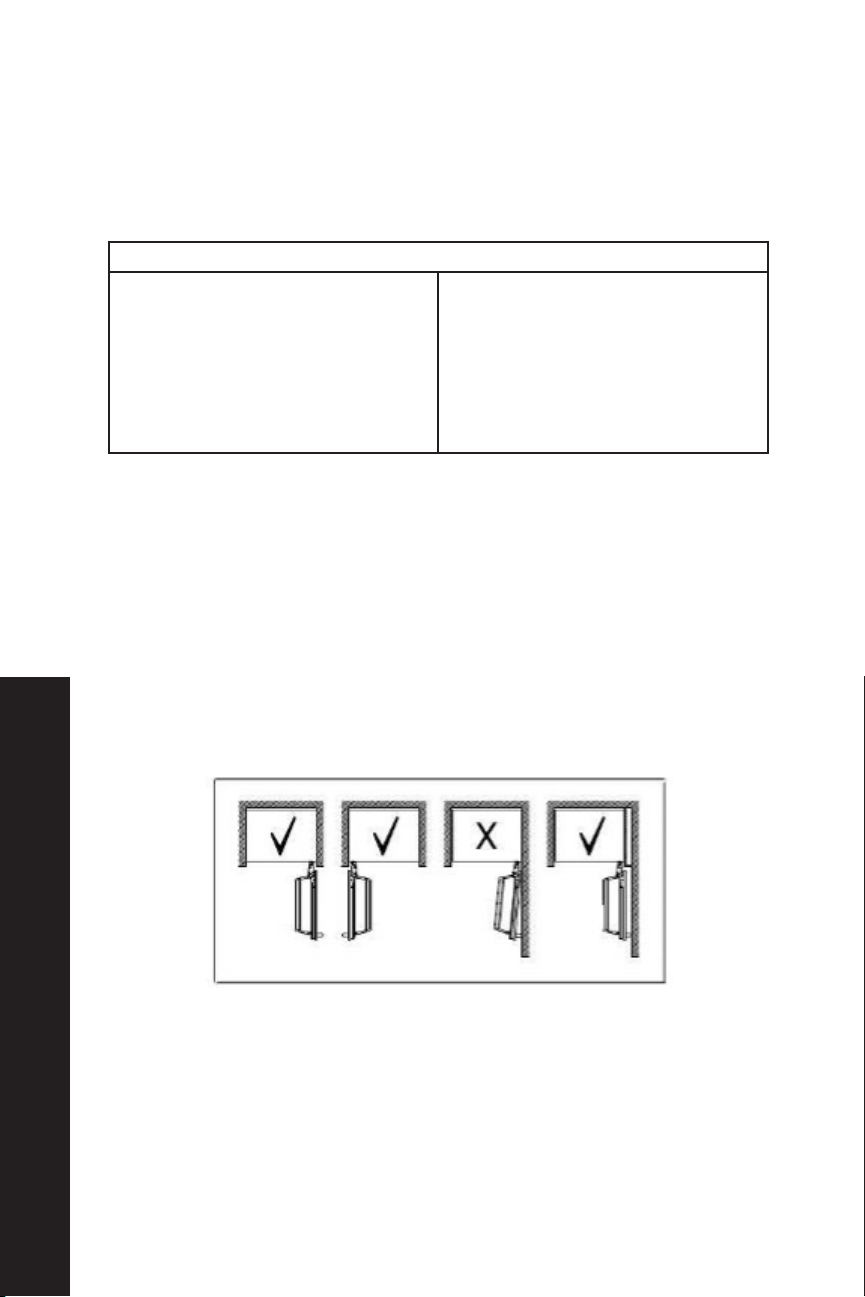

• Do not install the product with the fridge and the freezer are adherent next to
each other. Otherwise, condensation and damage may occur in the product.
(Please see "Dual Cabin Installation" for detailed information)

6
General Safety
BEFORE INSTALLATION
• Check if the floor where the product will be installed is level. Use a level.
• Installation area must not be subjected to direct sunlight and it must be away
from heat sources, ovens, radiators etc.
• The ambient temperature must be between 55°F (13°C) and 110°F (43°C).
Otherwise, function errors may arise when the product is running.
• If it is not possible to avoid installing the product near a heat source, the minimum
clearances given below must be maintained between the product and the said
source:
• 1 3/16" (3 cm) from electric hobs or ovens
• 12" (30 cm) from gas or fuel operated hobs or ovens
Please observe the following rules:
• The dedicated breaker must be easily accessible in case of an emergency; it must
not be hidden behind the product.
• Plug or cable must not touch the back surface of the product. Otherwise, it may
get damaged due to the vibration of the product.
• Do not connect the plugs of other appliances behind this product.
• If the humidity level is high where the product is used, corrosion may be seen on
the outer surface of the product. Keep the installation room dry and well-cleaned
to avoid corrosion.
To avoid the risk of electric shock:
• Connect the plug to a grounded electrical outlet receptacle.
• Do not remove the ground terminal of the plug.
• Do not use adapters.
• Do not use extension cables.

7
General Safety
CABINETS
Make sure that the cabinets where you will install the appliance has been safely
mounted in your kitchen. Your cabinets must be connected to the floor and the wall
properly and with suitable connections.
For the best installation, clearances between the cabinets and the product must be in
compliance with the values specified in the installation instructions.
Side walls must be free of clearances and their surfaces must be flat. Minimum
thickness of the side walls must be 5/8" (16 mm).
Minimum thickness of the doors to be attached to the product must be ¾" (19 mm).
ATTENTION
Failure to follow these instructions may result in death, fire or electric
shock. Connecting the grounding conductor of the equipment to an
improper place may lead to electric shock. Please have the grounding
checked by a qualified electrician or service technician if you have any
doubt about the proper grounding of the product.
Installation, repair and other procedures performed by unqualified
persons may cause danger. Before installing the appliance, make sure
that the voltage, load and circuit current parameters on the data plate
are in compliance with the power mains in your house.
The appliance is provided with a NEMA 5-15 P plug and a 3-pin
power cable which is in the UL list and ready to be connected to a 120
V, 60 Hz power supply. Fuse is 15 A. The appliance must be connected
to an electrical outlet receptacle. The plug must be installed only by a
licensed electrician.
If the electrical wiring or the electric power supply of the house needs
alteration, the necessary procedures must be performed by a qualified
electrician.
ATTENTION
Do not install your refrigerator:
• In open areas
• In environments where water is dripping
• In environments where temperature is lower than 55° F (0°C)
BEFORE INSTALLATION

8
General Safety
VENTILATION
Vent holes where the air enters and exits the unit must not be blocked or obstructed. In
addition, you must periodically clean the dust and dirt that accumulate on these holes
in time.
ELECTRICAL CONNECTION
• Never use an extension cable.
• The electrical outlet receptacle must be grounded and checked by an authorized
person.
• Location of the electrical wiring must comply with the dimensions specified in the
manual.
Please wait for 3-6 hour before energizing the product to protect it
against possible damages. This way, the refrigerant and the lubricants in
the system get balanced.
WARNING
WATER CONNECTION:
• Pressure of the mains water must be in compliance with the values specified in
the manual.
• Location of the water system must comply with the dimensions specified in the manual.
CAUTION
RISK OF ELECTRIC SHOCK
Electrical grounding is necessary. This appliance is equipped with a
three-pin plug to protect you against possible electric shocks.
• Do not remove the round grounding terminal from the plug.
• Do not use two-pin grounding adapters.
• Do not use extension cables to energize the product.
ATTENTION
Do not connect the grounding cable to the gas pipe. Please have the
grounding checked by a qualified electrician if you are not sure about
the grounding of the product. Do not install a fuse on the neutral line or
grounding circuit.
iBypass is recommended for the water filtering system if a reverse
osmosis system is used.
INFO
BEFORE INSTALLATION

9
Preparing the Refrigerator Enclosure
INSTALLATION
TOOL LIST
Tools to be used when installing the product are as follows:
TOOLS REQUIRED (NOT PROVIDED)
• Cordless Drill
• Safety Goggles
• 1/2" Wrench
• Hammer
• Ladder
• 3/32" Drill bit
• 5/16" Drill bit
• Box Cutter
• Safety Gloves
• Tape measure
• 1/4" Torx
• 1/4" Wrench Flat
• Level
• Dolly
• Tape
ALTERNATIVES FOR INSTALLATION
The product can be placed in various ways based on the kitchen design. It must be
installed at a place where it is ensured that the door can be opened and closed
properly. If the doors cannot be opened 90 degrees at least, you cannot completely
open the drawers inside the product.
• Single cabin placement methods

10
Preparing the Refrigerator Enclosure
INSTALLATION

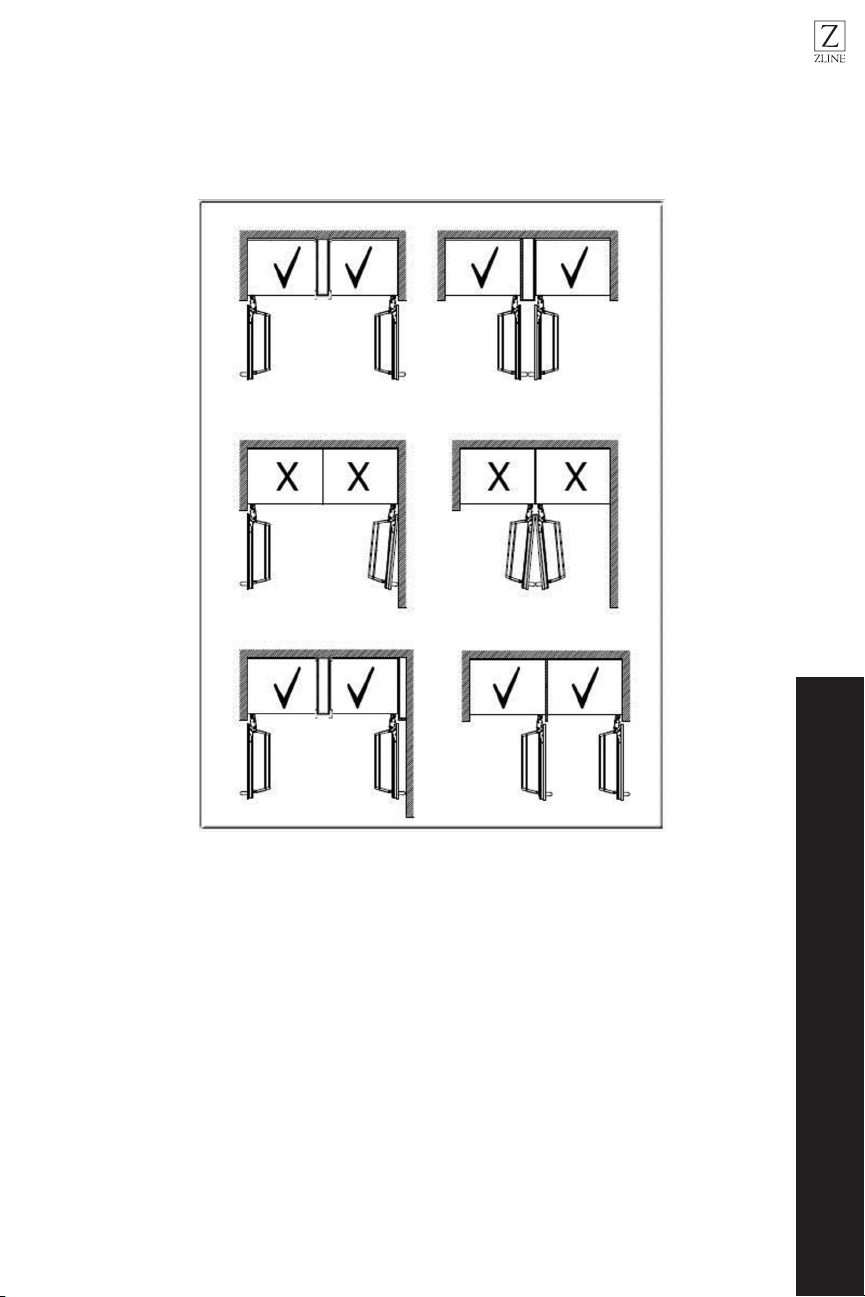

• Dual cabin placement methods

11
Preparing the Refrigerator Enclosure
INSTALLATION
PREPARATION FOR INSTALLATION
The instructions below have been prepared according to Built-in type.
Built-in: The appliance and panels fully seat into the gap, and a material that can be
their own box is jammed between the two kitchen cabinets or decorative columns.
This is the most common installation scenario.
CABIN DIMENSIONS
Cabin dimensions below must be checked before starting the installation.
CATEGORY RBIV30 RBIV36
A Width 30" (762mm) 36" (914mm)
B Depth 25" (635mm) 25" (635mm)
C Height 84" (2134mm) 84" (2134mm)

12
Preparing the Refrigerator Enclosure
INSTALLATION
LOCATION OF THE ELECTRICAL WIRING
Location of the electrical wiring must be within the range given below.
CAUTION
Do not use extension cables or two-pin adaptors and do not remove the
ground terminal of the grounding cable.
CAUTION
A qualified electrician must ensure that the poles of the socket are
connected correctly.
Verify that the grounding of the socket is correct.

13
Preparing the Refrigerator Enclosure
LOCATION OF THE WATER SYSTEM
The water connected to the water mains must be potable.
Location of the water system must be within the range given below.
Water system of the refrigerator must be connected to the water mains system in the house.
The user must be able to switch it on/off with the valve when necessary.
Objects that might pierce the water hoses or cause them to twist must not be present
where the water line is installed.
Pressure of the water system must be between 25-80 psi (1.7-5.5 Bar).
If the water pressure exceeds 80 psi, install a pressure limiting device or water impact
protector to the inlet valve. Never install the product or operate the appliance if it is
possible for the water pressure to exceed 120 psi.
Make sure that there is no water leakage when making the water
connections. Otherwise, there will be water on the floor and the
cabinets will get damaged.
You will need a hose with a minimum length of 60" (1.5 meters) and a
diameter of ¼" for water connections of the product during installation.
A connector that has a thread with an external diameter of ¼ must be
used to connect the hose end to the product.
Before completing the installation, make sure that water flows and there
is no water leakage. Damage may occur if leaks are present.
WARNING
INSTALLATION

14
Preparing the Refrigerator Enclosure
• Check if the floor where the product will be installed is level. Use a
level.
• Check if the cabinet flanges are upright and straight using a level.
• If the product is not level and plumb, problems may arise with the
installation.
WARNING
INSTALLATION

15
Preparing the Refrigerator Enclosure
PRODUCT DIMENSION
CATEGORY RBIV30 RBIV36
A 29 3/4” (756mm) -
INSTALLATION
