Zodiac NZO 700 User manual

Page 1/68
E
N
G
L
I
S
H
Owner's Manual
Volume 2

Page 2/68
VOLUME 2
DESCRIPTION - BUOYANCY CHAMBER
PROPULSION SYSTEM
INSTALLATION AND CIRCUITS
WARNING
zREAD THIS MANUAL CAREFULLY BEFORE USING YOUR BOAT.
zTHE OWNER'S MANUAL COMES IN TWO VOLUMES THAT
SHOULD BE KEPT TOGETHER.
NOTE:
THE OWNER'S MANUAL IS DIVIDED INTO TWO VOLUMES:
- VOLUME 1
DEALS IN GENERAL WITH THE OPERATING PRECAUTIONS
AND SAFETY RECOMMENDATIONS TO BE OBSERVED
ONBOARD THE BOAT AND ON THE WATER.
- VOLUME 2
DEALS WITH TECHNICAL SPECIFICATIONS AND ASSEMBLY
PROCEDURE OF THE BOAT AND ITS EQUIPMENT.

Page 3/68
E
N
G
L
I
S
H
TABLE OF CONTENTS
PAGE
ÖI - GENERAL DESCRIPTIONS
I-1-Technical characteristics -------------------------------------------------- 5
I-2-Technical description------------------------------------------------------- 8
I-3-Location of items------------------------------------------------------------ 10
I-4-Handling ---------------------------------------------------------------------- 18
ÖII - BUOYANCY CHAMBER
II-1-Assembling the buoyancy chamber on the hull---------------------- 21
II-2-Fixing at the front---------------------------------------------------------- 22
II-3-Inflation system------------------------------------------------------------- 23
II-4-Pressure ---------------------------------------------------------------------- 25
ÖIII - PROPULSION SYSTEM
27
ÖIV - INSTALLATION AND CIRCUIT
IV-1- Fuel-------------------------------------------------------------------------- 28
IV-2-Electricity------------------------------------------------------------------- 32
IV-3-Water installation -------------------------------------------------------- 51
IV-4-Gas--------------------------------------------------------------------------- 52
IV-5-Toilet------------------------------------------------------------------------- 53
IV-6-Draining--------------------------------------------------------------------- 55
IV-7-Steering---------------------------------------------------------------------- 57
IV-8-Fire--------------------------------------------------------------------------- 58
IV-9-Anchoring/Mooring------------------------------------------------------- 59
IV-10-Cabin door lock ---------------------------------------------------------- 60
ÖV – INFORMATION AND IDENTIFICATION PLATES
V-1-Position of safety labels and registration plates---------------------- 61
V-2-Description of safety labels and registration plates ----------------- 62
ÖVI – LOCATION / INSTALLATION OF OPTIONAL ACCESSORIES
VI-1-Installation of engine ----------------------------------------------------- 64
VI-2-Ski mast--------------------------------------------------------------------- 65

Page 4/68
VI-3-Plotter, VHF---------------------------------------------------------------- 66
VI-4-220V connector------------------------------------------------------------ 67
VI-5-Windlass console control------------------------------------------------ 67
VI-6-Installation of radio and LS---------------------------------------- 68

Page 5/68
E
N
G
L
I
S
H
DESCRIPTION - Technical Characteristics
I-1-TECHNICAL CHARACTERISTICS Hull
(m) 6.99
(ft) 22’11”
(m) 6.37
(ft) 20’11”
(m) 3.22
(ft) 10’7”
(m) 2.01
(ft) 6’7’’
(m) 0.65
(ft) 2’2”
Design category
(Directive 94/25/EC) B / C
Capacity
(ISO) B=7 C=12
Maximum Kg (1) 1661 2036
lb.(1) 3661 4488
Kg (2) 1489 1489
lb.(2) 3282 3282
Compartment
2x3
Engine configuration
Shaft length SINGLE ENGINE TWIN ENGINE
XXL XL
Minimum power
recommended HP(3) 200 2 x 100
KW (3) 147 2 x 74
Maximum power
recommended HP 300 2 x 150
kW 220 2 x 110
Maximum power
allowed HP(3) 300 2 x 150
kW(3) 220 2 x 110
Maximum
Maximum engine
weight Kg 373 468
Lbs 822 1032
Hull dimensions (excluding options)
(m)
a(4)
(ft)
6.95
22’80”
(m)
b(4)
(ft)
2.40
7’87”
(m)
c(4)
(ft)
2.19
7’18”
B A
C

Page 6/68
DESCRIPTION - Technical Characteristics
Design category: Your boat is designed for category B or C sailing, which implies different
loading cases and a different accessory layout (see previous table).
As regards category B, the maximum number of people authorized is 7 and the deck layout
must allow all passengers to be seated and hold on.
- Categories B and C
The number of people in category B is limited to 7, all seated.

Page 7/68
E
N
G
L
I
S
H
DESCRIPTION - Technical Characteristics
NOTE
(
1
)
The maximum authorized load was calculated to standard ISO 6185.
Navigate carefully when the boat carries the maximum load.
(2) Weight shown not including accessories
(3) The recommended power corresponds to optimum operation of the
boat's capabilities for an average load.
(4) Hull dimensions without buoyancy chamber.
The maximum authorized power, when greater than the maximum
recommended power, must be used with extreme caution. It is intended
for experienced users, using their boat under very specific conditions
(transport of heavy loads, etc.). See the "Sailing advice" chapter in
Volume 1 of the manual.
CAUTION
DO NOT EXCEED THE MAXIMUM LOAD INDICATED ON
THE MANUFACTURER'S PLATE. THE MAXIMUM LOAD
INCLUDES THE WEIGHT OF THE ENGINE(S), FUEL,
ACCESSORIES, PASSENGERS AND THEIR EQUIPMENT AND
ANY OTHER TYPE OF LOAD.
CAUTION
DO NOT STORE FLAMMABLE PRODUCTS IN THE AFT
COMPARTMENT. IT IS STRICTLY FORBIDDEN TO STORE A
JERRYCAN.
CLEANING THE BUOYANCY CHAMBER
Your boat's buoyancy chamber is made of Hypalon Neoprene fabric
NOTE
Dimension tolerance: +/- 3%
Weight tolerance: +/- 5%

Page 8/68
TECHNICAL DESCRIPTION
I-2-INVENTORY
Hull
•Polyester hull
•Aft cabin upholstery and bolster
•Rubbing strake for bow protection
•10 kg anchor
•1 anchor protection plate
•1 bow roller
•1 bow chainplate
•1 bow inspection hatch
•1 freshwater pump
•2 battery trays
•1 water container, 70 litres
•1 petrol filter
•1 electric control panel
•1 battery cut-off and 2 battery couplers
•2 Bilge pumps
•1 engine protection plateBUOYANCY CHAMBER
•Removable buoyancy chamber in Hypalon Neoprene fabric
•6 Semi-built in valves
•Anti-chafing band with ultra-wide profile
•6 External handles
•2 Truncated cones DECK
•2 flush-fitting cleats
•1 two-colour light
•2 pulpits
•Chain pulley block or windlass
•1 petrol plug
•1 petrol gauge
•6 Switches
•1 steering wheel
•1 cigar lighter
•1 windscreen
•cabin handrail
•1 fire-extinguisher bracket
•1 bolster protection plate
•1 plastic container or refrigerator
•2 courtesy lights

Page 9/68
E
N
G
L
I
S
H
DESCRIPTION - Functional Items
* For more information on available optional accessories, see your ZODIAC dealer.
•Aft cabin upholstery and bolster
•Side bench with locker
•2 lockable chests: beneath bolster and aft
•1 aft protection hatch
•1 navigation light
•1 folding boarding ladder
•1 wash basin plus shower
•2 aft fairleads
•1 handle for boarding ladder CABIN
•1 large hatch and 2 portholes
•Interior cabin floor
•4 interior LED lamps
•Wooden ceiling
•3 lockers
•1 toilet door
•Cabin door secured with a bolt VERSION
•Sun lounger*
•1 cabin interior mirror*
•1 interior table with 1 table stand *
•2 wooden steps for descending into cabin*
•Interior cabin upholstery with seat backs*
•Electric toilet*
•Teak floor*
•Cabin upholstery seatback and bolster*
•1 gas stove in case*
•1 outside table and 1 table stand*
•1 ski mast*
•

Page 10/68
DESCRIPTION - Functional Items
I-3-LOCATION OF FUNCTIONAL ITEMS
REFERENCE DESIGNATION
1 Shower
2 Anchoring bollard
3 Water filler cap
4 Ventilation grille
5 Buoyancy chamber
6 Cabin door
7 Bolt for cabin door
8 Cabin handrail
9 Sunbathing deck (Optimum )*
10 Pulpit
11 Deck hatch
12 Fairlead
13 Through-hull
14 Logo N-Zo
15 Ski mast *
16 Side bench
17 Windscreen
18 Two-colour light
19 Flush-fitting cleat
20 Logo N-Zo
* For more information on available optional accessories, see your ZODIAC dealer.
12 15 17
11854
2 3 6
14
7
16
1
13 18
910
19 20

Page 11/68
E
N
G
L
I
S
H
DESCRIPTION - Functional Items

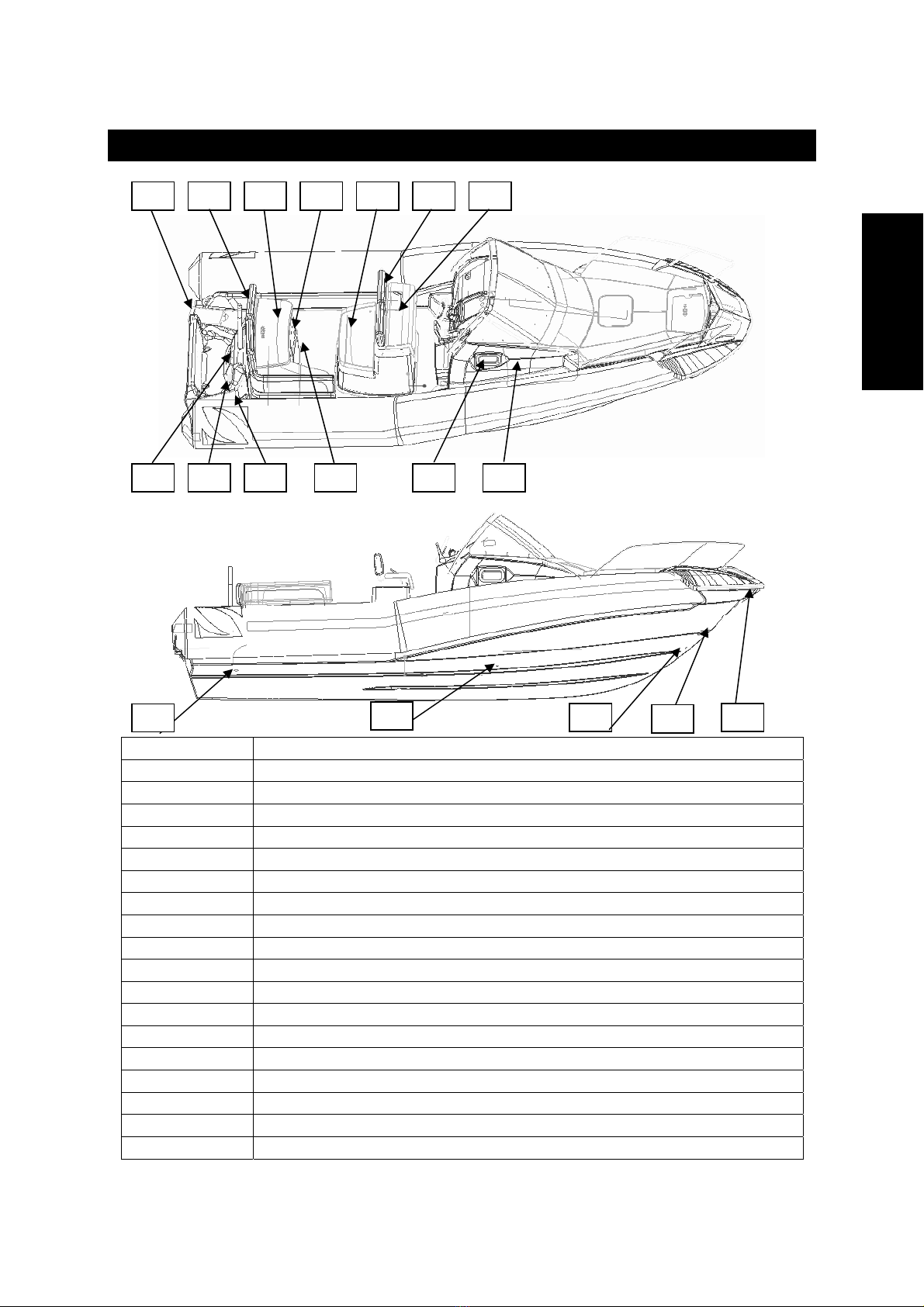

REFERENCE DESIGNATION
21 Boarding ladder
22 Aft cabin upholstery seatback
23 Aft cabin upholstery
24 Courtesy lights
25 Bolster aft upholstery
26 Bolster upholstery seatback
27 Bolster upholstery
28 Bilge pump drainage
29 Protection for engine cable
30 Navigation light
31 Teak floor (Premium version)
32 Portholes
33 Logo N-Zo
34 Through-hull toilet evacuation (Optimum version)*
35 Through-hull toilet water inlet (Optimum version)*
36 Scupper
37 Chain plate
38 Anchor protection plate
* For more information on available optional accessories, see your ZODIAC dealer.
21 22 23 24 25 26 27
28 29 30 32 3331
36 38
37
34 35

Page 12/68
DESCRIPTION - Functional Items
REFERENCE DESIGNATION
39 Aft door
40 Table stand (Optimum version)*
41 Exterior table (Optimum version)*
42 Fire extinguisher bracket
43 Rubbing strake
44 Cabin sink waste / bolster
45 10 kg anchor (Optimum version)*
* For more information on available optional accessories, see your ZODIAC dealer.
4445
3940414243

Page 13/68
E
N
G
L
I
S
H
DESCRIPTION - Functional Items
REFERENCE DESIGNATION
46 Bilge pump
47 Battery tray
48 Water tank
49 Water pump
50 Inspection hatch
51 Cabin interior upholstery (Optimum / Premium version)
52 Bow inspection hatch
53 Channel plate for buoyancy fixing
54 Cabin floor
55 Toilet (Optimum version)
56 Toilet hatch
57 Toilet switch (Optimum version)
58 Electric busbar
59 Petrol filter
* For more information on available optional accessories, see your ZODIAC dealer.
59 55 54 565758
48 5351 5250494746

Page 14/68
DESCRIPTION - Functional Items
REFERENCE DESIGNATION
60 Bow roller
61 Chainlocker
62 Wood cover
63 Wood cover
64 Wood cover
65 Table stand *
66 Interior table *
67 Wooden step, lower cabin *
68 Wooden step, upper cabin *
69 Toilet fixed bulkhead
70 Toilet door
71 Toilet fixed bulkhead
72 Cabin interior upholstery seatback (Optimum version)*
73 Mirror (Optimum version)*
* For more information on available optional accessories, see your ZODIAC dealer.
60 61 62 63 64 65 66 67 68
70717273 69

Page 15/68
E
N
G
L
I
S
H
DESCRIPTION - Functional Items
REFERENCE DESIGNATION
74 Port cover plate
75 LED light
76 FWD ceiling
77 LED light
78 AFT ceiling, starboard
79 AFT ceiling, port
80 Switch
81 LED light
82 Stbd cover plate
83 Stern channel plate
84 Engine protection plate
85 Boarding ladder handle
86 Through-hull
87 Hull water evacuation plug hole
81
87
74 75 76 77 78 79 80
82
83
85
86
84

Page 16/68
DESCRIPTION - Functional Items
REFERENCE DESIGNATION
88 Chainlocker cover
89 Chainlocker bolt
90 Remote-control connector (Optimum version)
91 Windlass remote-control bracket (Optimum version)
92 Chain pulley block or windlass (Optimum version)
93 Side bench cover bolt
94 Side bench cover
95 Aft bench locker
96 Aft bench locker
97 Bolster aft cover
98 Bolster cover
99 Storage access door
88
89
90
91
92
93 94 95 96
97
98
99

Page 17/68
E
N
G
L
I
S
H
DESCRIPTION - Functional Items
REFERENCE DESIGNATION
100 Gas fire protection plate
101 Plastic container or refrigerator *
102 Tank access hatch
103 Bolster sink tap
104 Bolster sink
105 Petrol fill plug hole
106 Switchboard
107 Battery cut-off / Battery coupler
108 Ski mast bracket *
109 Compass (option)
110 Speedometer (motorised version)
111 Fuel gauge
112 Switches
113 Flywheel
114 Cabin doorstop
115 Cigar lighter
116 Engine starter panel (motorised version)
117 Engine control (motorised version)
118 Driver station foot rest
* For more information on available optional accessories, see your ZODIAC dealer.
106
107
108
105
109
110
111
112
113
114
115
116
117
100
101
102
103
104
118

Page 18/68
DESCRIPTION - Handling
I-4-HANDLING
I-4-1-Transport
yThe trailer installation recommendations are specified in VOLUME I of the owner's manual.
I-4-2-Storage
CAUTION
THE BOAT MUST REST ON THE KEEL
(SEE SKETCH BELOW).
I-4-3-Lifting The boat has no lifting devices.
WARNING
THE BOAT HAS NO LIFTING DEVICES.
IT IS ESSENTIAL THAT SUITABLE LIFTING STRAPS,
PASSED BENEATH THE HULL (AT 2 METRES AND 6
METRES FROM THE TRANSOM), ARE USED TO LIFT
THE BOAT.
FOR THIS OPERATION USE PROFESSIONAL LIFTERS.
DEFLATE THE BUOYANCY CHAMBER FOR THIS
OPERATION.
CAUTION
NO PASSENGERS ON BOARD WHILE LIFTING
Section Section

Page 19/68
E
N
G
L
I
S
H
WARNING
ALL EQUIPMENT MUST BE UNLOADED FROM THE
BOAT FOR LIFTING.
BEFORE LAUNCHING THE BOAT, OPEN THE DRAIN
HOLE (34) TO DRAIN ANY RAINWATER FROM THE
COCKPIT (CLOSE THE DRAIN HOLE AGAIN BEFORE
LAUNCHING))

Page 20/68
DESCRIPTION - Sailing
I-4-4-Sailing
WARNING
DO NOT USE THE FORWARD SUNBATHING DECK
WHEN SAILING IN ORDER TO PREVENT ANY RISK OF
FALLING OVERBOARD.
WARNING
DO NOT CLIMB ONTO THE TTOP, IN ORDER TO
PREVENT ANY RISK OF FALLING.
AVOID USING THE WINDLASS WHEN THE ENGINE IS
NOT RUNNING, AS OTHERWISE THERE IS A RISK OF
DISCHARGING THE BATTERIES.
CAUTION
WHEN SAILING, KEEP PORTHOLES, WINDOWS AND
REMOVABLE HATCHES CLOSED.
BREAKING WAVES CAN POSE SIGNIFICANT DANGERS
FOR STABILITY AND FLOODING. IN HEAVY SEAS,
CLOSE DOORS AND COMPANIONWAYS.
