Congratulations! You are now the proud
owner of the Manta II from ZODIAC,
the automatic cleaner specially
designed for all regularly shaped pools.
ZODIAC, MASTERING THE ELEMENTS.
Renowned worldwide for the quality and
reliability of its products in the aeronautical
and marine sectors, Zodiac has now brought
its expertise to swimming pools, to bring
you a full range of pools, automatic pool
cleaners and water treatment systems.
Backed by Baracuda technology, expertise
and experience, Zodiac brings you
the reassurance of top quality equipment
in terms of both design and performance.
A real guarantee of efficiency
and peace of mind!

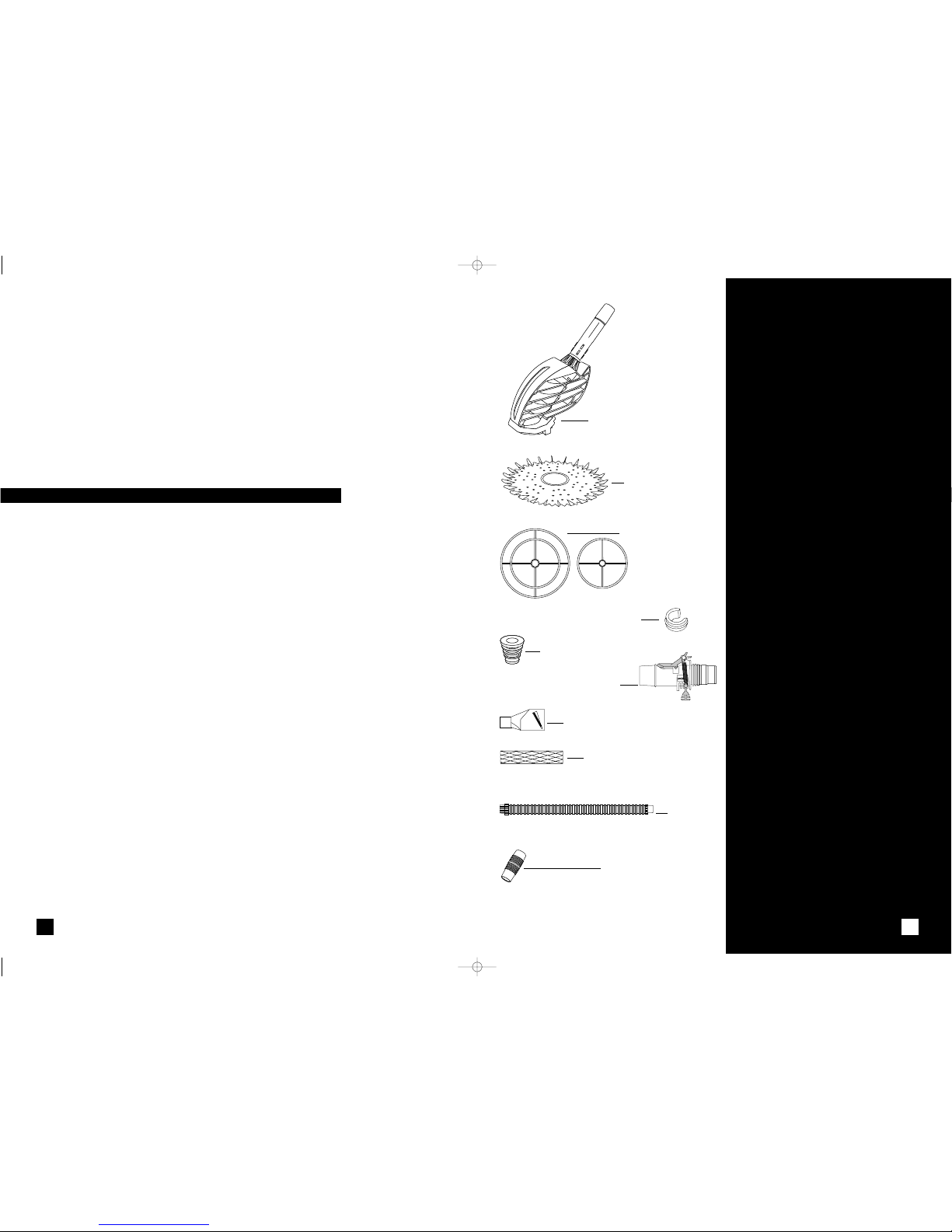

The items included in the package
and needed to install your Manta II
are listed below:
manta
T M I
I
The Manta II cleaner
1 disc
2 deflector wheels
1 hose weight
1 weir adapter
1 automatic flow
control valve
1 pool pulse
1 one hose protective
mesh
10 x 1 m
hose
sections
(female side) (male side)*
* (male side = smallest diameter)
(female side)
(male side)
1 hose connector
Automatic suction cleaner
CONTENTS
PART LIST PAGE 15
ADVICE PAGE 16
ASSEMBLY PAGE 16
FITTING THE HOSE PAGE 17
INSTALLATION PAGE 18
CONNECTION PAGE 18
FLOW TEST PAGE 19
WINTER STORAGE PAGE 19
PROBLEM SOLVING PAGE 20
CHANGING THE DIAPHRAGM PAGE 20
GUARANTEE PAGE 24
14
8082/Notice Manta II A4 13/10/04 14:46 Page 14

1716
ADVICE
During the season, you are advised to leave your Manta II
in the pool.
If you wish to remove it while bathing, remove
the hose, but do not roll it up. (1)
Never expose the hose to direct sunlight.

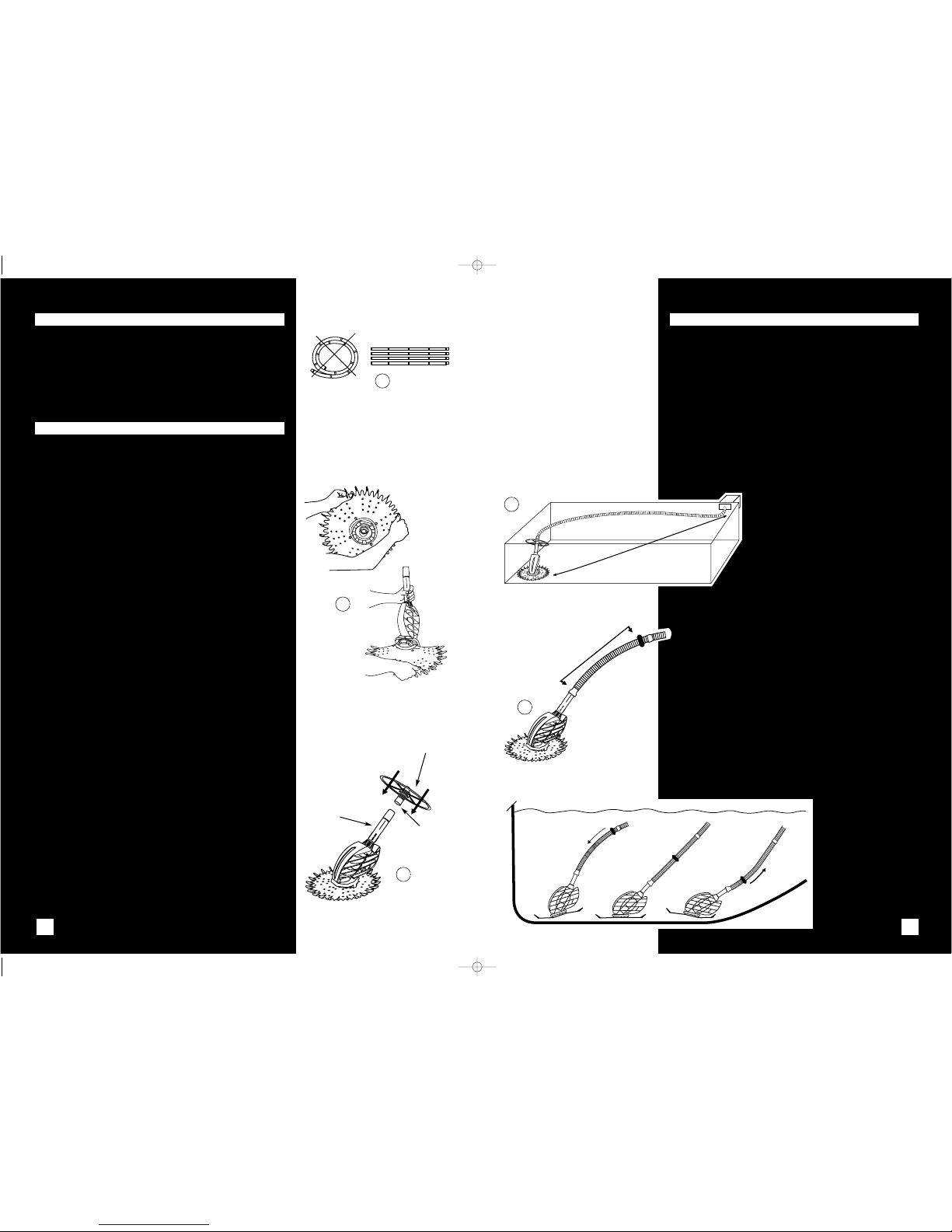

ASSEMBLY
This unit comes fully assembled.
All you have to do is fix it:
• the grey disk, with the face marked “Top” uppermost,
on the flexible foot. The disk must be correctly
positioned in the throat of the flexible foot and
should be able to rotate freely. (2)
• the small available circular deflector
using the hose adapter as shown
in the diagram opposite. (3)
FITTING THE HOSE
Your Manta II hose is made up of 10 x 1 m sections.
• The ideal hose length for your pool is the greatest
distance your Manta II will reach from the point
of connection plus one hose section, i.e. the skimmer
or vacuum point, to the furthest lower corner of your
pool. (4)
• After calculating the correct overall length, assemble
your hose by fitting the sections together.
• A hose weight is provided to reduce the buoyant effect
of the hose. The buoyancy of the hose tends to lift
the Manta II especially in deeper water.
Ensure the disc sets flat on the pool surface
by adjusting the hose weight about 0,5 m from
the automatic pool cleaner. (5)
Connect the hose to the automatic pool cleaner.
Maximum distance to be covered
Length of hose = maximum distance
+ 1 section of 1 metre
1
incorrect
correct
incorrect
Hose adapter
(female end)
Outer extension
hose
Small deflector
wheel
2
3
4
50 cm
Hose weight
5
8082/Notice Manta II A4 13/10/04 14:46 Page 16

19
18
INSTALLATION
• Make sure the skimmer, pump basket and filter
are clean.
• Adjust the inlet jets so that they point towards the
bottom of the pool.
• Close the main drain on the bottom of your pool.
• Turn on the pool drain.
• Fill the Manta II hose with water using the flow from
the inlet jets ensuring that the hose remains beneath
the surface of the water during and after these
procedures. (6)
IMPORTANT:
You can connect your Manta II to a (or the) skimmer
point, or to the vacuum point. You are strongly
advised to connect it to a skimmer point for
maximum cleaning efficiency.
CONNECTION
• Pools with one skimmer and no vacuum point
In pools fitted with only one skimmer it is advisable
to use a flow control valve.
Use a weir adapter to fit the automatic flow control
valve to the skimmer (7).
IMPORTANT : The automatic flow adjustment valve is
pre-set in the factory to number 3, the most suitable
position for European pools. For an optimal performance
from your cleaner, we recommend that you do not move
the valve from this position. Secondly, always check that
the valve’s dark grey flap is not held in the open position
by the red lever – otherwise your cleaner cannot function.
IMPORTANT:
The valve must be under the water at all times,
otherwise air will be sucked into the pump.
• Pools with two skimmers
Connect the hose or skimmer socket located in the main
part of the pool. Then adjust the suction of the shallow
end skimmer so that the automatic pool cleaner will
move around at normal speed 5 to 6 meters per minute).
• Pools with vacuum point
Connect the automatic pool cleaner to the vacuum
point and then adjust the flow using the skimmers
as described above.
FLOW TEST
You can always check the flow rate, particularly if you
have doubts about the suction power of your pump.
N.B. : all these operations must be carried out under
water so that the pump does not take in air.
1. Remove the Manta II from the hose and replace
with the pool pulse. (8)
2. Note the zone indicated on the tester :
“Ideal”:
the flow rate is ideal for running your Manta II. Remove
the tester and connect the appliance to the hose.
”Min”:
increase the flow by closing the valve or flap of the
skimmer or skimmers until the tester indicator moves
into the ideal zone. Remove the tester and connect
the appliance to the hose.
“Max”:
reduce the flow by opening the valve or flap
of the skimmer or skimmers until the tester indicator
moves into the ideal zone. Remove the tester
and connect the appliance to the hose.
WINTER STORAGE
Clean the entire unit and the hoses with clean water.
Allow to dry and store them in a dry frost-protected
area.
6
7
8082/Notice Manta II A4 13/10/04 14:46 Page 18

21
Stage 2 : Adjusting the special Manta II diaphragm
If the opening of the diaphragm’s cavity is too large
(over 4 mm), but the diaphragm is not damaged or torn,
you can solve the problem by leaving one ridge
of the diaphragm exposed from the cassette chamber.
This may eradicate any performance-related problems –
cleaner stopping, coverage problems. (13)
Stage 3 : Re-fitting the diaphragm
1. Fit the diaphragm to the inner extension pipe.
If it is a new diaphragm, do not forget to put
the retaining ring in place. (14)
2. Slide the upper part of the inner extension pipe
(end opposite the diaphragm) into the lower part
of the cassette. The diaphragm must fit perfectly
into the lower part of the cassette. (15)
3. Screw the cassette chamber to the cleaner’s outer
extension pipe. Do not over tighten.
4. Reinsert the cassette into the body and tighten
the outer extension pipe / cassette unit,
until it has clicked into place. (16)
20
PROBLEM SOLVING
To be checked
• Check that your filtration system is working properly
and that the multiport valve is in the filtration position.
• Check whether the filter and the skimmer baskets are
clean.
• Make sure the main drain is fully closed.
• Shut down the other suction lines to increase the flow
into the automatic pool cleaner.
• Check the power of your pump: the minimum flow
necessary is approximately 5m3/hour.
• Check whether the diaphragm of the automatic pool
cleaner is obstructed by debris or is damaged.
CHANGING THE DIAPHRAGM
Stage 1 : Removing the diaphragm
1. Hold the main body of the Manta II and disconnect
the cassette from the body. Remove the cassette from
the body of the Manta II. (9)
2. Whilst holding the outer extension pipe with one
hand, unscrew the cassette chamber completely. (10)
3. Take hold of the diaphragm and remove it
from its cassette. (11)
4. Withdraw the diaphragm from the inner extension
pipe without removing the retaining ring on the
diaphragm. (12)
9
10
11
12
14
16
15
13
Problem
The Manta II will not function:
8082/Notice Manta II A4 13/10/04 14:46 Page 20

23
PROBLEM SOLVING
To be checked
• Check the system is tight: between the automatic pool
cleaner and hose, between each of the hose sections,
between the hose and the valve, between the valve
and the skimmer.
The problem is undoubtedly because the Manta II is not
assembled in the way best suited to the shape and
obstructions in your pool.
You have four options:
• Lastly, you can fit the large circular deflector to the
hose adapter after the short hose fixed to the cleaner
(20),
If none of these options resolves the problem,
connect the hose to the vacuum point the furthest away
from the steps, or shorten the hose to prevent it from
coming to rest on the steps.
• You can also fit the small circular deflector to the hose
adapter, after the short hose fixed to the cleaner (19),
• You can fit the large circular deflector instead of the
small one with the hose adapter immediately after the
cleaner (18),
Problem
The Manta II moves very slowly
and air bubbles appear
in the flow:
The Manta II jams against
the ladder or steps:
Problem
The Manta II does not clean
all parts of the pool:
The Manta II will not stay
on the bottom of the pool:
The Manta II jams
on the main sump:
The Manta II jams
against the light:
The Manta II is over
the water line:
The Manta II lies down:
PROBLEM SOLVING
To be checked
• To ensure that the entire pool is cleaned the filtration
system operating time can be reduced. For example,
6 hours filtration in two hour sessions will give better
coverage of the pool than single 6 hour filtering
session.
• Make sure your hose is long enough and add sections
if necessary.
• Direct the inlet jets towards the bottom of the pool.
• Check the condition of the hose (see storage advice
page 16).
• Make sure the hose weight is correctly installed
(see diagram 5).
• Close the main drain.
• Check whether the main drain grill is properly fixed.
• Fit the light correctly.
• Use the control valve or adjust the opening of the
skimmers to regulate the flow of water passing
through the automatic pool cleaner.
• If the automatic pool cleaner is unbalanced, the Manta II
must be returned to the manufacturer for repair.
1
19
20
22
• You can fit the small circular deflector to the hose
adapter immediately after the cleaner (17),
17
8082/Notice Manta II A4 13/10/04 14:46 Page 22

25
24
GARANTEE
CONDITIONS
All our technical experience and concern for quality have
been used in the manufacture of ZODIAC automatic pool
cleaners. All our cleaners are subject to quality control
tests and are guaranteed against manufacturing defects.
If, in spite of all the care and know-how used in the
manufacture of our products, you were to have need
of the guarantee, please be aware that it only applies
to the free replacement of faulty parts.
Our models are regularly updated and improved
to make the most of technological advances. It is
understood that these improvements cannot be added
to previous models within the context of our guarantee.
THE GUARANTEE DOES NOT COVER
THE FOLLOWING
• accidents, crushing, deterioration and breakage
due to impacts or causes unrelated to, or independent
of, the fault found.
• in the event of the cleaner being worked on
or tampered with by a third party not known to our
workshops or by a repair technician not approved by
us, or if modifications have been carried out without
our written agreement.
• in the event that the cleaner has been damaged as
a result of incorrect usage on the part of the customer
or usage that does not comply with the instructions
provided with the cleaner in its packaging.
• in the event that the appliance, its components or
sections of hose have been subjected to prolonged
exposure to the sun.
• in the event that the cleaner, its components or
sections of hose have been damaged as a result
of a chemical imbalance in the pool water.
Any claims under guarantee should be addressed
to your retailer.
PERIOD OF GUARANTEE
The period of the guarantee is fixed at 2 years for
the Manta II, from the date of invoicing the first user.
The diaphragm, the result of Baracuda patented
technology, benefits from an unconditional guarantee
of 2 years.
Under no circumstances can repairs or replacements
made as part of the guarantee prolong the appliance's
guarantee period.
OBJECT OF THE GUARANTEE
During the guarantee period defined above, any part
recognised as faulty will be mended or exchanged by
the manufacturer with a new part or in correct operating
condition. This guarantee covers all faults relating to
conformity existing at the time the article is delivered.
In the event of a return to the workshop, return
transport costs will be the responsibility of the user,
but labour costs remain the responsibility of the retailer.
The immobilisation and the prevention of possession
of an appliance in the event of any necessary repairs
cannot give rise to compensation. In all circumstances,
the legal guarantee of the seller continues to be applied
in accordance with article 4 of decree n° 78- 464
of 24 March 1978.
The legal guarantee of article 1641 of the civil code
is applied.
THIS GUARANTEE APPLIES PENDING STATUTORY
PROVISIONS COMING INTO FORCE THAT HAVE NOT
AS YET BEEN PUBLISHED AT THE TIME OF THESE
CONDITIONS GOING TO PRESS.
TRANSPORT DAMAGE
Appliances always travel at the risk and peril of the user.
It is up to the user, before taking delivery of the
appliance, to check that it is in perfect condition.
Under no circumstances can we be held responsible
for transport damage.
For further information please contact your dealer
or write to us at:
ZODIAC POOL CARE EUROPE
Z.I. Est - 34, rue Francine Fromont
69120 VAULX-EN-VELIN - France
www.zodiac-poolcare.com
8082/Notice Manta II A4 13/10/04 14:46 Page 24
