2 PURPOSE
This manual provides information to assist service personnel in performing maintenance, and repair procedures
that may be required to support z.onepro Ultrasound System.
The ZONARE z.onepro is used for ultrasound evaluation of the following applications: Fetal, Abdominal,
Intraoperative, Pediatric, Ophthalmic, Small Organ/Parts (breast/testes, thyroid, etc), Transvaginal, Transrectal,
Transcranial, OB/GYN, Cardiac, Pelvic, Neonatal/Adult Cephalic, Vascular, Tissue Elasticity, Contrast
Imaging, Musculoskeletal, Superficial Musculoskeletal and Peripheral Vascular applications. Users include
ultrasound imaging technicians (sonographers) and physicians. ZONARE Ultrasound Imaging Systems may be
used in a hospital (e.g. imaging laboratory, emergency room, patient bedside, operating room), medical clinic,
physician’s office or a mobile imaging center. Please refer to the z.onepro Ultrasound Platform Instructions For
Use for more information.

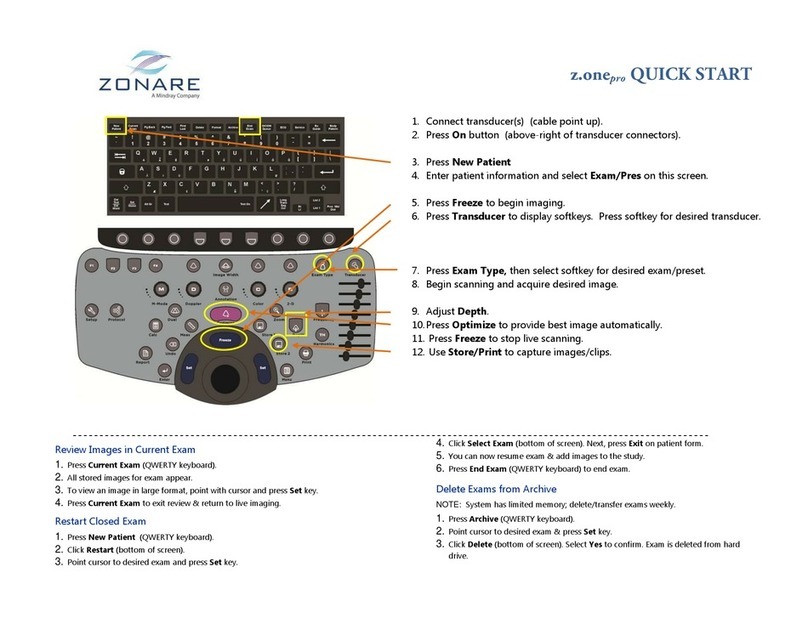

The z.onepro consists of two major components: 1) Cart; and, 2) Transducer(s). The Cart contains the software
driven imaging electronics and user interfaces (keyboard, monitor, handles, etc.). It houses the microprocessor,
memory, amplifiers and power supplies for the microprocessor. It sends electrical currents to and receives
electrical pulses from the compatible ZONARE transducers. The Cart performs the calculations involved in
processing the data to produce the displayed ultrasound images. Cart options include, but are not limited to,
echocardiography (which includes continuous wave (CW), physiologic signals (ECG and respiration) and the
cardiac calculation package), advanced vascular (which includes CW) and the streamlined Special Procedures
user interface.
Available with the system are one or more ZONARE Curvilinear, Endocavity, Linear, or Phased array
transducers allowing for many clinical applications. Accessories include, but are not limited to the ZONARE
ZPAK Battery and off-the-shelf components: bar code reader, foot pedal, printers, biopsy guides, ECG cables
and a wireless Ethernet interface. Case studies can be stored to USB memory stick, DVD, and other industry
standard archiving devices.
Note: The availability of options may be limited based on country or region of use.
Product Overview
The system consists of a limited number of Field Replaceable Units (FRU’s). The FRU’s for this unit are:
17” Display
User Interface Assembly
System Module
Power Module
Z-PAK Battery Pack
Misc cables and mechanical assemblies
Definitions/Acronyms
2D:.................. Two dimensional (B-Mode, Color mode)
