Zoomax Snow 7 HD User manual

www.ActiveForever.com | [email protected]
p: 1-800-377-8033 | f: 602-296-0297

ZOOMAX
Snow? HD
Content
Accessories ................ , .......... ,. .............. » ••••••••••• , •••••••••••••••• ., •••••••••• " ................................................ 1
Compositions ................ "' ... "'."' .. "'."' ...................................... , ............. , , .... , .................................... 2
Operation ....... , ...................................... "' ......................................................................................... 4
Charge the battery ...........................................................
, ........................................................... 4
Turn on/off ....................................................................................................................................
6
Adjust magnification ..................................................................................................................... 7
Select color mode ....................................................................................................................... , 8
Freeze ........................................................................................................................................
10
Writing instruction ....................................................................................................................... 11
Tum on/off the sound ................................................................................................................. 12
Turn on/off the LED lights ........................................................................................................... 13

ZOOMAX Soow 7 HD
Adjust the screen brightness ........... , .... , .... , . ,, ,, ... , ......... , .. , , . , .......... , ....... , ........ , ...... , , .. , ....... 14
Connect to
TV /monitor .......... , ........ ,., ..... ,,,,,.,,.,,,,., .. ,,,.,.,., ............... ,,, ..... , ....... , ............ 15
Power saving function ...................................................... , ........ ,. ...... ························"··············· 15
Setting memory function, ........ ,, .. ,.,,,,,, .. ,,,,,,.,,, ...... ,.,, ... ,,,,.,.,.,,., .. ,., .. ,., ......... , .. ,, .. ,,. 16
Close/Far view function
.. , . , , , ... , ... , , .. , . ,, , , .. , , , , , , , . , , , , ,, . , , , , , . , . , . , , , ..... , . , , ... , . , ......... , . , . , . , , 16
Select the system , . , ...... , .. , , ... , .. , , . , . , , , , . , , .... , , , , , , . , , , , , , ,, , , , .. , , , . , , . , , , . , .. , . , ....... , ... , . , . , , ...... , , ...... , 1 7
Troubleshooting,
.. , .... ,,.,.,,, ........ ,,., .. ,,,,.,, .. , ... , ...... , ..... ,,, ... ,,.,,, ..... ,,., ...... ,., .. ,., .. ,.,,, ..... ,, ...... , 18
Safety....................................................,............ ., ....'"......, ............................................................ 20
Technical specifications ....... ,., ..... ,,,,,,, ................. ,,, .... , .. ,.,, .. ,,, ............... ,, ... , ...... , ..... , . , . , .. 21
··-··~--·''~"~"-"'""""'"'"'~!ii!II!W!IIIII!iiliN-•-•••-m•'"'

ZOOMAX
Snow? HD
-------------------------------------
Accessories
ZOO MAX Snow 7 HD package contains the followings:
1. Snow 7 HD video magnifier
2. Protective pouch
3. User's guide
4. HDMI cable
5. Power adapter
6. One piece of cleaning cloth

ZOO MAX
Compositions
Color Mode Button
I
Freeze Button
Snow7 HD
'7-\nch LCD Screen
Power Button
'
-·~----·~~., ..... .._. __ ~~llll'!llll ............... - ............... ---------------------

ZOOMAX ---·--·-----·--··- __
---~Snow 7 HD
.---,,,.l<:lo,;e View Switch Button
-·--- HDMI Port
USB Port (for software update only)
.~----Power Input Port
3

?-O_O_MI\)(-'--
---------------
Snow 7 HD
---------
Operation
Charge the battery
-The battery MUST be fully charged prior to FIRST using Snow 7 HD.
-Connect the supplied power adapter to the Power Input Port, and then plug the other end of
Power Adapter into power outlet The Power Indicator is red while charging.
'

ZOOM AX Snow 7 HD
·-··----·····---·-·---------·
j
, -When the battery is fully charged, the Power Indicator turns off.
I

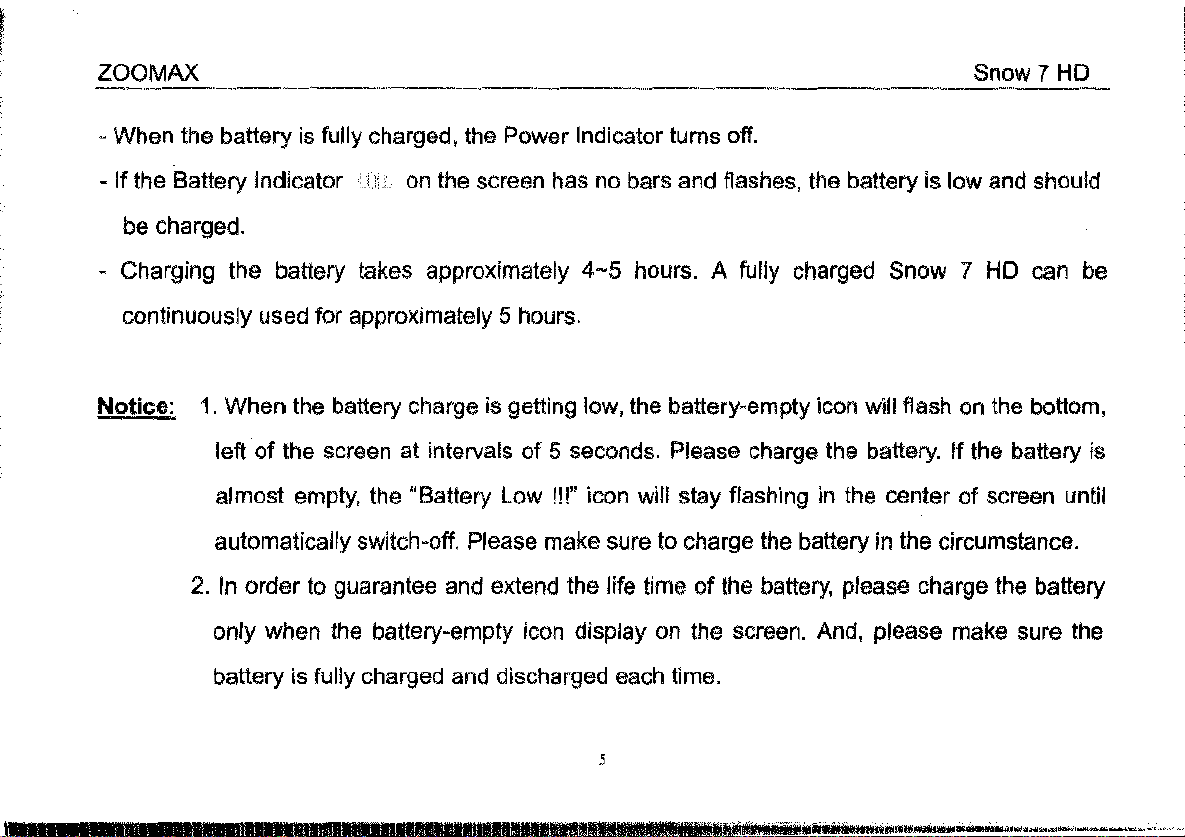

-If the Battery Indicator ''·"' on the screen has no bars and flashes, the battery is low and should
be charged.
Charging the battery takes approximately 4-5 hours. A fully charged Snow 7 HD can be
continuously used for approximately 5 hours.
Notice: 1. When the battery charge is getting low, the battery-empty icon will flash on the bottom,
left of the screen at intervals of 5 seconds. Please charge the battery. If the battery is
almost empty, the "Battery Low !!!" icon will stay flashing in the center of screen until
automatically switch-off. Please make sure to charge the battery
in the circumstance.
liB
2. In order to guarantee and extend the life time of the battery, please charge the battery
only when the battery-empty icon display on the screen. And, please make sure the
battery
is fully charged and discharged each time.

ZOOM AX
Turn on/off
Power Button
-Press and hold the Power Button lor 2 seconds while the Power Indicator turns green. The Snow
7 HD enters into video magnifier mode directly.
-Press
and hold Power Button for 2 seconds to turn off the unit while the Power Indicator turns off.
- To save power, the unit automatically turns off alter 3 minute In case no any operation on it.
6

ZOO MAX Snow7 HD

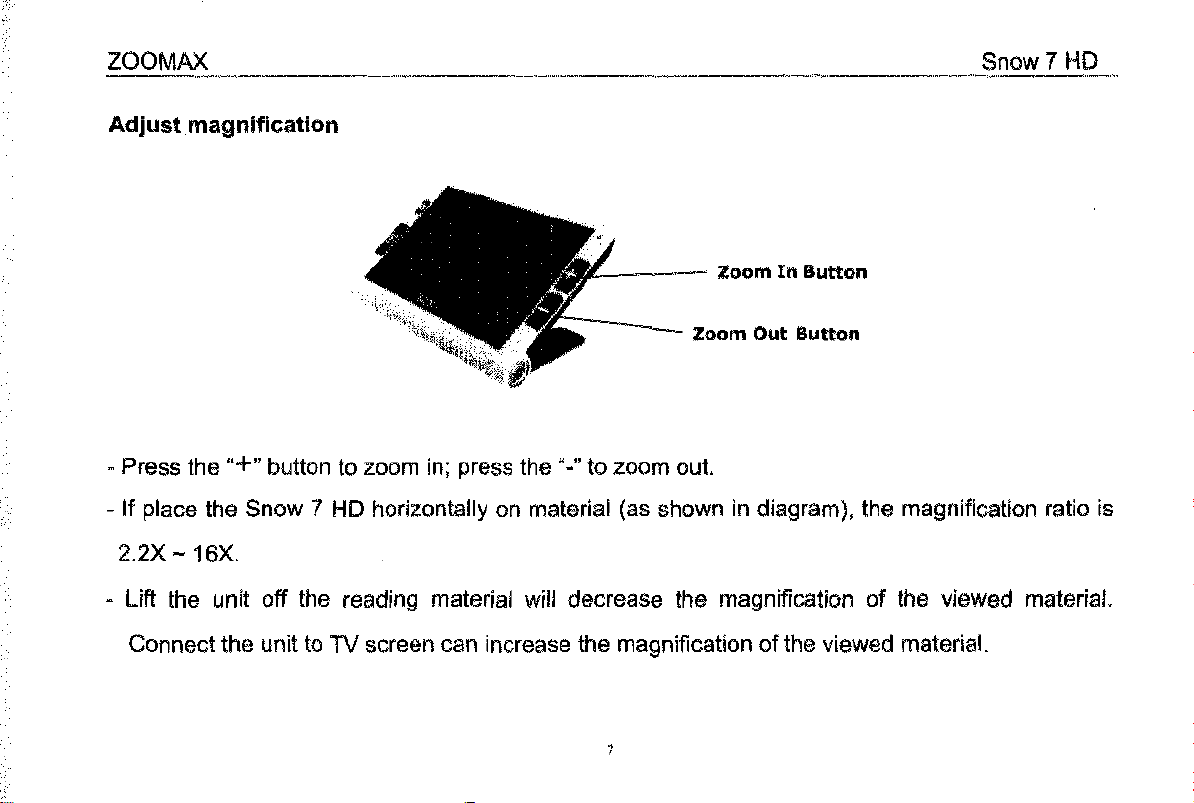

Adjust magnification
m Press the "+" button to zoom in; press the ~-"to zoom out.
-If place the Snow 7 HD horizontally on material (as shown
in diagram), the magnification ratio is
2.2X- 16X.
Lift the unit off the reading material will decrease the magnification of the viewed materiaL
Connect the unit to TV screen can increase the magnification of the viewed material.
'

ZOOMAX Snow? HD
--------- -- ----------------------------
Select color mode
1_ Normal mode
Press Color Mode Button in the Normal mode, then 12 high contrast color modes below can
be
your selection:
-Full color
-Grey mode
-High contrast white text on black background mode
•
'~~- -------··-···------------

ZOOMAX __ Snow 7 HD
-High contrast black text on white background mode
-High contrast white text on blue background mode
-High contrast blue text on white background mode

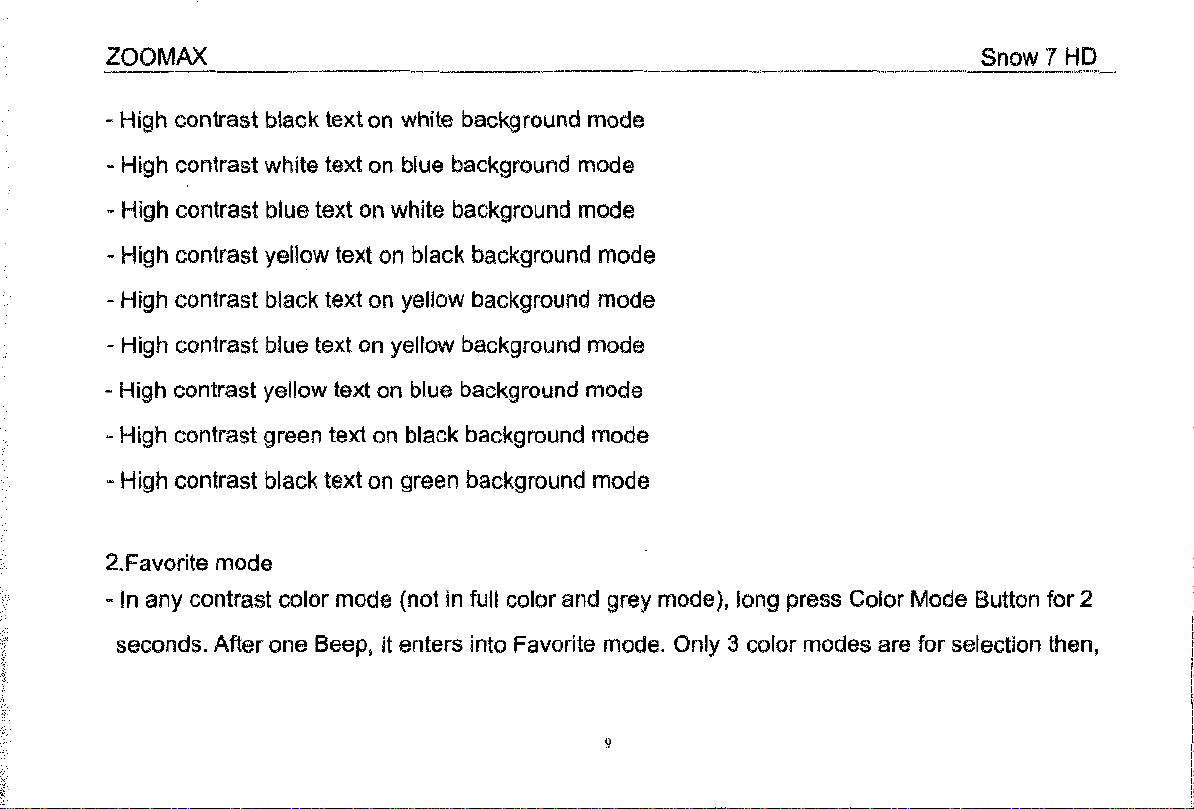

-High contrast yellow text on black background mode
-High contrast black text on yellow background mode
-High contrast blue text on yellow background mode
- High contrast yellow text on blue background mode
-High contrast green text on black background mode
-High contrast black text on green background mode
2.Favorite mode
-In any contrast color mode (not in full color and grey mode), long press Color Mode Button for 2
seconds. After one Beep, it enters into Favorite mode. Only 3 color modes are for selection then,
Q

ZOO MAX
Snow? HD
including full color, the favorite contrast color you choose and its reverse color mode (such as
while
on blue & blue on white).
~To exit from the Favorite mode, long press the Color Mode Button for 2 seconds until you hear one
Beep.

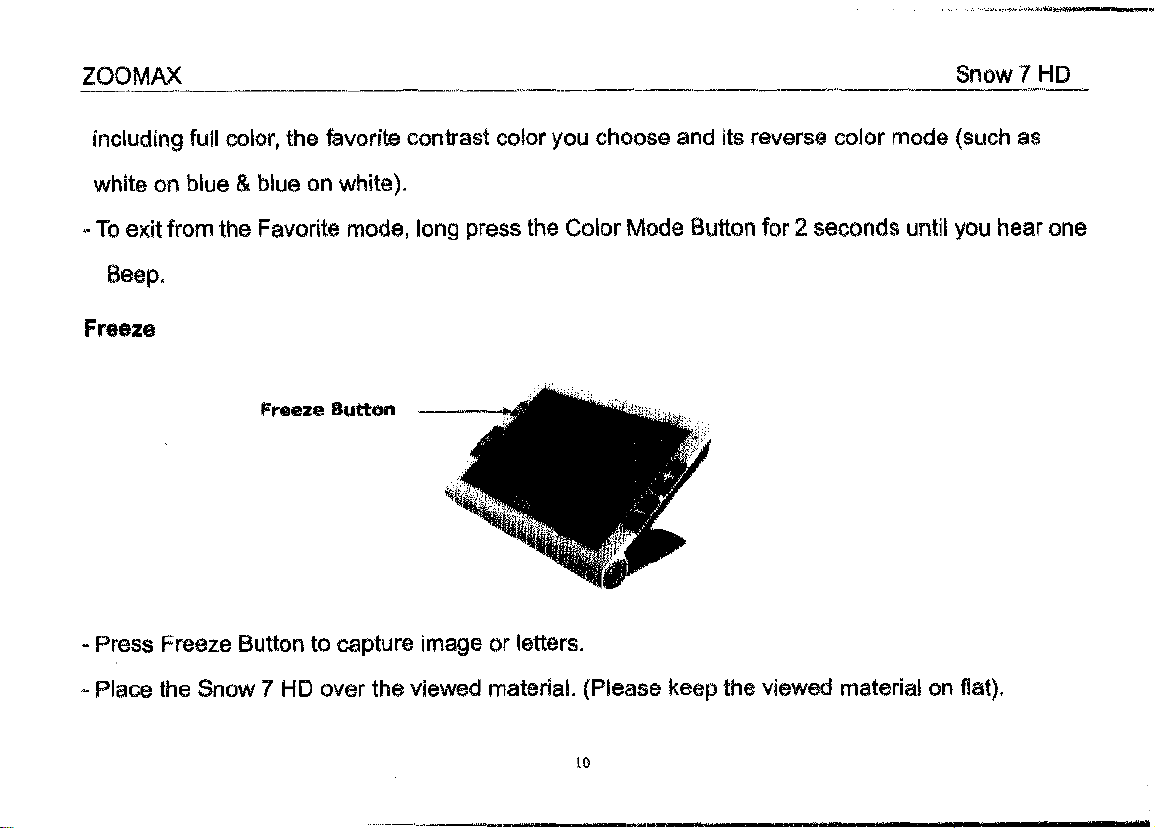

Freeze
freeze Button
-Press Freeze Button to capture image
or letters.
-Place the Snow 7 HD over the viewed material. (Please keep the viewed material on flat).
lO
---------·--------------------

ZOO MAX Snow 7 HD
-Press Freeze Button.
-Take the unit closer to look at the Image. The image can be zoomed in/out or changed color mode.
-Press Freeze Button again to unfreeze.

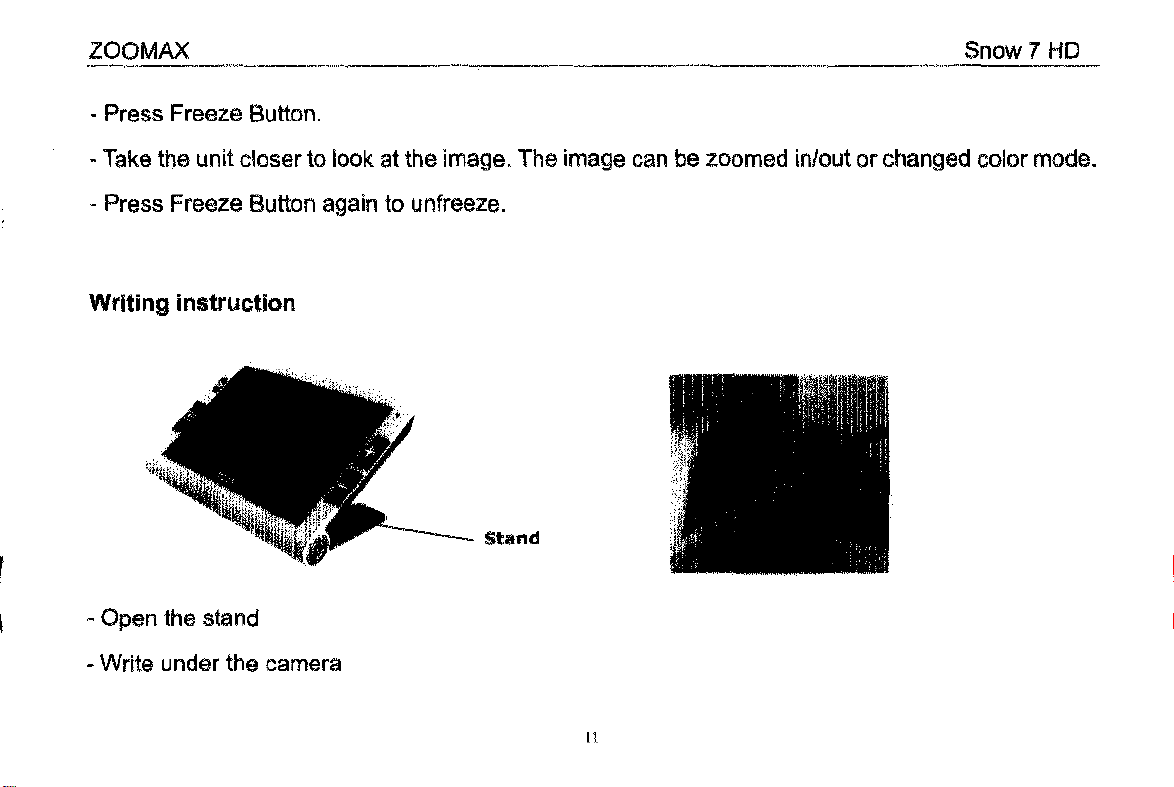

Writing instruction
r
\ - Open the stand
-Write under the camera
ll

ZOO MAX
-----·---------------------·--------·--------
___ ::::Snow 7 HD
Turn on/off the sound
-By default, the button sound is off.
-To turn on the button sound, long press the"-" button for 5 seconds until Beep goes once.
-To turn off the button sound, long press the "-" button for 5 seconds until Beep goes twice.
Notice: Turning the sound on/off should be at the lowest magnification mode.
12

Snow 7 HD
Turn on/off the LED lights
- By default, the LED lights are on.
- To tum off LED light, long press Color Made Button for 5 second until Beep goes twice separately
(one beep at first and then the second follows after a few seconds).
' - To tum on LED light, lang press Color Mode Button for 5 second until Beep goes twice separately
I (one beep at first and then the second follows after a few seconds).
ll

ZOOMAX Snow 7 HD
..... -- ... ·------····------------· -·-------------------
Adjust the screen brightness
-Press the Freeze Button and Zoom ln Button simultaneously until the brightness bar appears.
Then press the"+" to increase the brightness; Press the u_" to decrease the brightness.
Press the Color Mode Button to confirm the suitable brightness and exit; Or, it will exit
automatically after 5 seconds if
no button being pressed.
-------~-----m--.•nomn.-.a .. .--. .... RRRRRRRR .. IRIRIRIRIRIRIRIIIIIIIIIIIIIIIIII

ZOO MAX Snow 7
HD
-"·-··----------···------···--·--·~-·-···---·---···-····--·--···-··---------------·--·-
Connect to TV/monitor
-Plug HDMI cable into the Snow 7 HD and TV. Then, the screen of Snow 7 HD will turn off
autorna!ically and switch to HDMI output mode.
Power saving function
- In magnifier mode, the unit turns off automatically after 3 minutes If no any operation on it.

?-_O_O_MAX ____ ··---·---··------·---·····
Snow 7 HD
Setting memory function
-When you turn off Snow 7 HD, the most recent settings will be saved automatically (e.g. color
mode, magnification, video output format, button beeps, brightness, favorite mode, normal
mode) .So you can easily use the memorized settings while power on the unit again.
Close/Far view function
Fai'/CioseView Switch Button
(Picture 1)
-Switch the Far/Close View Button view close/far. (See Picture 1)
l6
-----·---------------------..1

ZOO MAX Snow 7 HD
-Move the button to the right direction to view close.
- Move the button to the left direction to view far.
-Tum the unit upside down to view far more comfortably. (See Picture 2 )
Select the system
While being used indoor, the impact of AC power in some countries may cause flash on unit screen.
It can be solved by selecting suitable system.
-Long press Freeze Button for 3 seconds to enter into PAL I NTSC system selection. Press"+" and
"-" to cycle systems and confirm the suitable system by pressing Color Mode Button. The system
setting will be saved and memorized. So you don't need to set it again any more for your next use.
"
