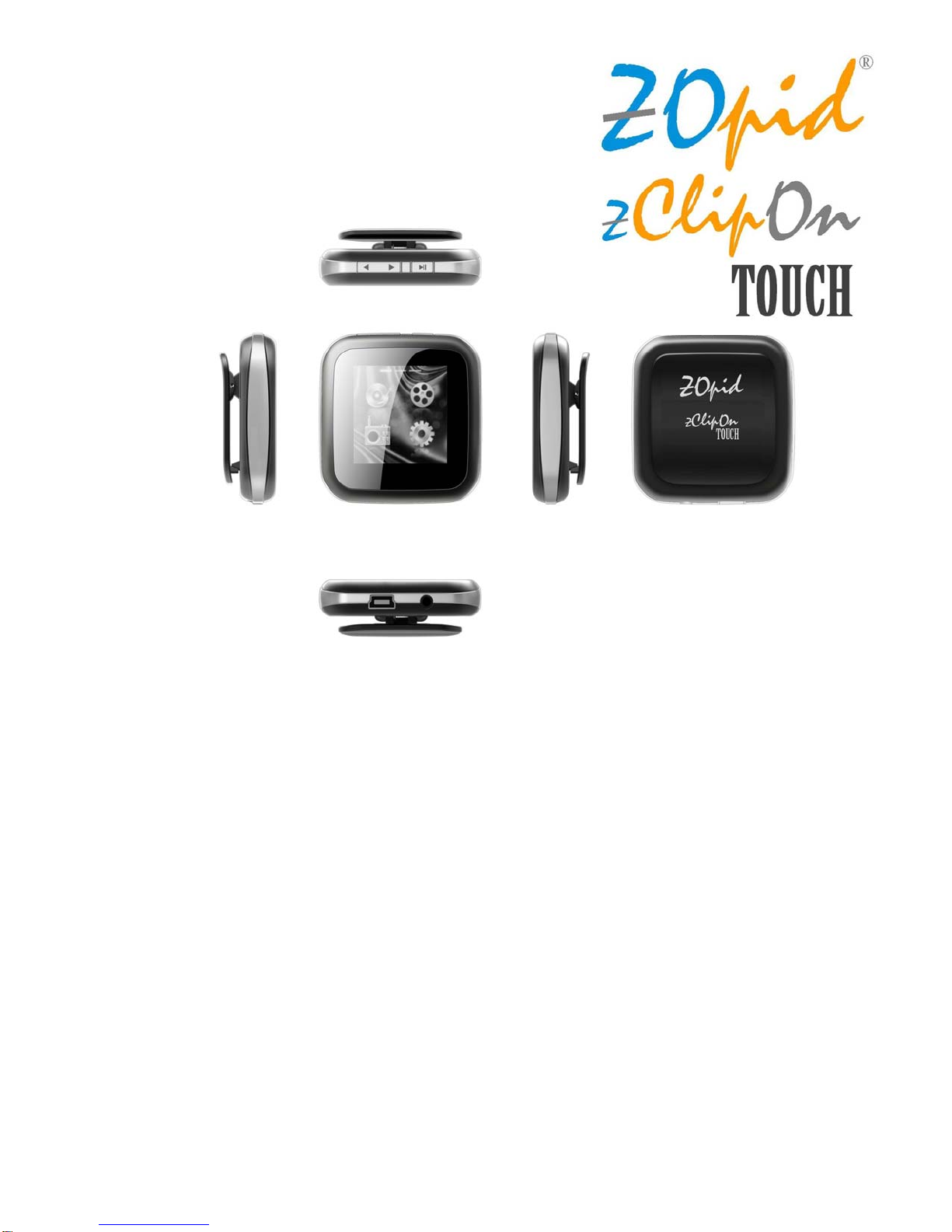

ZOpid zClipOn Touch User manual

USER MANUAL
The pictures, diagrams, and certain functions described in this
manual may differ from the actual product due to different models
Visit www.hittusa.com to download user manual or check FAQs
and troubleshooting tips

Page 1
PREFACE
We express our sincere thanks for purchasing our MP3 Player! Before operating this MP3 Player, be
sure to read this user manual carefully. After reading it, please keep it in a safe place for future reference.
We reserve the right to make changes to this MP3 Player and/or this user manual without notice.
Please visit our support website www.hittusa.com for additional product information and/or updates.
NOTE: The pictures, diagrams, and certain functions described in this manual may differ from the actual
product due to different models.
SAFETY AND GENERAL INFORMATION
READ THIS INFORMATION BEFORE USING THIS MP3 PLAYER
A. Loud music may harm your hearing if you listen to it for a long time.
B. New battery can reach its best performance after it has completely charged and discharged for two
or three times.
C. Please charge the new battery for no less than 10 hours for the first three times you are charging,
then from the fourth time on, just charge it for six hours and it can reach its best performance.
D. Do not operate this MP3 Player in extremely cold, hot, dusty or damp environment.
E. Avoid putting this MP3 Player under direct sunlight
F. Do not scrub this MP3 Player with a hard object; it may result in scratches on the screen and/or
damage to the hardware. Use a damp cotton cloth to gently wipe the shell of the player. Using other
chemical cleaning solutions is strictly prohibited.
G. Keep this MP3 Player and all accessories out of children’s reach under 3 years old.
H. Charge the MP3 Player when:
The battery capacity icon is empty and flashing
The MP3 Player powers off automatically, immediately after it is turned on.
I. Avoid operating this MP3 Player under very dry environment to prevent damage from static-shock.
J. Do not disconnect the USB cable while formatting, uploading or downloading files; disconnecting
USB cable will result in file corruption and may require reformatting – resulting in data loss.
K. When used as a removable disk, users should backup important data. Our company is not
responsible for loss of data.
L. This MP3 Player does not have any user-serviceable parts or accessories. DO NOT TRY TO
DISASSEMBLE THIS MP3 Player. Use an AC charger with 5V & 500mA output.
M. Use battery charger and accessories permitted by the manufacturer. Using other accessories or
charger may be a safety hazard or affect product performance and/or void product warranty.
N. Please properly dispose of the obsolete player and its accessories following your local environmental
laws.
O. If you have any problem using this player, please visit www.hittusa.com or email [email protected]
for help
NOTE: Please charge the player for at least 10 hours BEFORE first time use.

Page 2
NOTES REGARDING FCC COMPLIANCE
Users are not permitted to make changes or modify the device in any way. Changes or
modifications that are not authorized by the party responsible for compliance could void the user’s
authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
This device many not cause harmful interference, and
This device must accept any interference received, including interference that may cause
undesired operation.

Page 3
TABLE OF CONTENT
PRODUCT FEATURES……………………………………………………………………..4
KNOW THE PLAYER………………………………………………………………………..4
Buttons and Ports………………………………………………………………………………4
Turning player ON or OFF……………………………………………………………………..4
Touch Screen Navigation……………………………………………………………………...5
Navigation Buttons……………………………………………………………………………..5
Battery…………………………………………………………………………………………….5
Connecting player to a computer and copying files..……………………………………5
Adjusting Volume……………………………………………………………………………….5
MAIN MENU…………………………………………………………………………………..6
MUSIC……………………………………………………………………………………………..6
MOVIE……………………………………………………………………………………………..8
PEDOMETER…………………………………………………………………………………….10
RADIO……………………………………………………………………………………………..11
BROWSER………………………………………………………………………………………..12
CALENDAR……………………………………………………………………………………….13
MEMORY…………………………………………………………………………………………..13
SETTINGS…………………………………………………………………………………………14
PHOTOS…………………………………………………………………………………………...15
E-BOOK……………………………………………………………………………………………16
RECORD…………………………………………………………………………………………..17
VOICE………………………………………………………………………………………………19
USB DISK……………………………………………………………………………………...20
TROUBLESHOOTING……………………………………………………………………….21
TECHNICAL SPECIFICATIONS……………………………………………………………21
WARRANTY INFORMATION………………………………………………………………..22

Page 4
PRODUCT FEATURES
●Clip-on design with 1.5 inch TFT full color Touch Screen display
●Multi file format support - supports MP3, WMA (non-DRM) & WAV audio files - AVI & AMV
(128x128 resolution only) video files – BMP, JPG & GIF picture files (up to 12 Mega Pixels)
●FM Radio - with 20 channels preset and FM recording
●e-Documents - Read text files (.TXT)
●Voice Recorder - Voice can be recorded and saved in WAV file format
●Equalizer Settings - 7 Equalizer settings - Natural, Rock, Pop, Classic, Soft, Jazz & DBB – Also
included is SRS-WOW for user selectable 3D and TruBass effects
●Music Play Mode Settings - Once, Repeat One, Folder, Repeat Folder, Repeat All, Random and
Intro
●Power Save Mode - User selectable sleep (power save) and shut down timings
●Graphic User Interface - Menu with icons for a user-friendly interface
●Pedometer – Enable this feature to measure distance traveled and Calories burnt while walking or
running
●The Player can be charged by connecting the USB cable to computer’s USB port or an optional
Power Charger
KNOW THE PLAYER
Buttons and Ports
Turning Player ON or OFF
Press and hold button to turn player ON or OFF
If player is not in use, the player will turn off automatically after preset time, if Auto
Shutdown under Settings is enabled

Page 5
Touch Screen Navigation
Slide finger from Right to Left or Left to Right on the Main Menu screen to view
various Menu options
Slide finger from Top to Bottom or Bottom to top to view list of sub-Menu options
Touch Menu options and screen buttons and icons to make selection
Slide finger from Left to Right on the screen while in play mode to display functions
supported in that mode
Slide finger from Right to Left to go back to the previous screen
Press icon on the screen to go back to the previous screen
Slide finger, while in play mode, from Top to Bottom or Bottom to Top to decrease or
increase the volume respectively
Slide finger, while adjusting values in setup mode, from Top to Bottom or Bottom to
Top to decrease or increase the value e.g. adjusting time settings, or weight or step
size for Pedometer settings
Navigation Buttons
In addition to touch screen, use navigation keys or to select menu options, and when
playing music, to select Previous or Next song, and Fast Rewind or Fast Forward
Press key to confirm selection and also to Play and Pause
Battery: The Player can be charged by connecting the USB cable to computer’s USB port or an
optional Power Charger
Solid battery icon means the battery is fully charged; as the player is used the battery level
indicator will be partially filled
Blank battery indicator means the battery charge is low and must be plugged in to charge
the battery.
Connecting player to a computer & Copying files: Insert smaller end of the USB cable in
the USB port on the player and the bigger end into an available USB port on your computer.
Once recognized as a USB device the following icons will be displayed on the player’s screen:
Once player is recognized as a removable disk, users can copy files from computer’s hard disk to
player’s memory using file manager application from the computer.
Adjusting Volume
In play mode touch icon or slide finger up or down to adjust volume level, from 0 – 40 or
touch or icons to adjust the volume NOTE: After adjusting volume press button to
exit volume adjust mode or player will automatically exit volume adjust mode after 5 seconds

Page 6
MAIN MENU
Use or button, or slide finger from Right to Left or Left to Right on the screen to display the
following three Main Menu screens
MUSIC
Use or button, or slide finger from Right to Left or Left to Right on the Main Menu screen
to display and select Music icon in the Main Menu
Press button or touch the music icon to enter Music Play mode.
Press button or touch Play icon on the screen to play music file
In music mode press or button, or touch or icon to choose next or previous
music file.
In play mode press and hold or button or touch and hold or icon to fast forward

Page 7
or rewind song currently playing
In play mode touch icon or slide finger up or down to adjust volume level, from 0 – 40 or
touch or icons to adjust the volume NOTE: After adjusting volume press button to
exit or player will automatically exit volume adjust mode after 5 seconds.
File Management Sub-Menu
When player is in Pause Mode slide finger left to right on screen to display file management sub
menu
NOTE: Use , and buttons or slide your finger up or down and touch the menu option for
navigation and selection
Local folder (use this option to select different file or folder from player’s memory)
Delete file
Delete folder
Exit
NOTE: Slide finger right to left on screen or touch icon to go back to the previous screen
Music Settings Sub-Menu
When player is in Play Mode slide finger left to right on screen to display Music Settings sub
menu
NOTE: Use , and buttons or slide your finger up or down and touch the menu option for
navigation and selection
Repeat [Normal, Repeat One, Folder, Repeat Folder, Repeat All, Random, Intro], or
touch icon to display Repeat Mode sub menu.
Equalizer [Natural, Rock, Pop, Classic, Soft, Jazz, DBB], or touch icon to display
Equalizer sub menu.
SRS WOW [SRS WOW, User Setting (SRS 3D, TRUBASS, FOCUS, Exit), Disable SRS
WOW]
Exit
NOTE: Slide finger right to left on screen or touch icon to go back to the previous screen
Lyrics synchronization
The player supports *.lrc lyric files to display synchronized lyrics. If lyric file is found, the lyrics
are displayed on the screen

Page 8
MOVIE
Use or button, or slide finger from Right to Left or Left to Right on the Main Menu screen
to display and select Movie icon in the Main Menu
Press button or touch the movie icon to enter movie mode.
Press button or touch Play icon on the screen to play .AMV movie files
In AMV (Movie) mode press or button, or touch or icon to choose next or
previous .AMV video file.
In play mode press and hold or button or touch and hold or icon to fast forward
or rewind video currently playing
In play mode touch icon or slide finger up or down to adjust volume level, from 0 – 40 or
touch or icons to adjust the volume NOTE: After adjusting volume press button to
exit or player will automatically exit volume adjust mode after 5 seconds.
File Management Sub-Menu
When player is in Pause Mode slide finger left to right on screen to display file management sub
menu
NOTE: Use , and buttons or slide your finger up or down and touch the menu option for
navigation and selection

Page 9
●Local folder (use this option to select different file or folder from player’s memory)
●Delete file
●Delete folder
●Exit
NOTE: Slide finger right to left on screen or touch icon to go back to the previous screen
Convert AVI and other formats video files to AMV format file
This player can only play video files in AMV format with 128 x 128 resolution. To convert files
from other video file formats to AMV file in 128 x 128 resolution, please visit our support website
www.hittsa.com and download a file conversion utility. Click on “Manuals & Downloads” and
look for model number zClipOn-Touch under MP3 & Media Players.
1. Download and install the conversion utility on your PC – Click on Help link to see online user
manual to use the utility.
2. Choose a video file to convert to .AMV format (make sure the file resolution is set to 128x128)
3. Click “Convert” button, the conversion starts
4. Copy converted .AMV file to player’s memory to play it on the player

Page 10
PEDOMETER
Use or button, or slide finger from Right to Left or Left to Right on the Main Menu screen
to display and select Pedometer icon in the Main Menu
Press button or touch the Pedometer icon to enter Pedometer mode
NOTE: Pedometer function is also accessible directly from Music, Movie, Radio and Voice
modes by touching icon on the screen
Touch “OFF” icon or press button to start pedometer function, number of steps taken,
the time spent and calories burnt is show on the screen when walking and running
Touch “ON” or press button to stop Pedometer function.
Slide finger right to left on screen or touch icon to go back to the previous screen

Page 11
NOTE: Step size, Weight and Units can be setup from Pedometer Set option under Settings in
the Main Menu
RADIO
Use or button, or slide finger from Right to Left or Left to Right on the Main Menu screen
to display and select Radio icon in the Main Menu
Press button or touch the Radio icon to enter FM Radio mode
Press or button or touch or to change radio-frequency, Press and hold or
button for a couple of seconds to start auto scan and search channels
Press and release or button to stop auto search
Touch to switch to the next saved channel NOTE: This icon will appear after at least one
channel is saved.
In Radio mode touch icon or slide finger up or down to adjust volume level, from 0 – 40 or
touch or icons to adjust the volume NOTE: After adjusting volume press button to
exit or player will automatically exit volume adjust mode after 5 seconds
NOTE: Slide finger right to left on screen or touch icon to go back to the previous screen
FM Radio Settings Sub-Menu
When player is in Radio Mode slide finger left to right on screen to display Radio Settings sub
menu

Page 12
NOTE: Use , and buttons or slide your finger up or down and touch the menu option for
navigation and selection
Save (Save a radio channel as a Preset)
Record (Record what’s currently playing on the radio)
Delete (Delete a Preset channel)
Delete All (Delete all Preset channels)
Auto Search (Start channel Auto Search – same as pressing and holding or button
for a couple of seconds to auto scan for radio channels – Press and release or
button to stop auto scan
Normal Band (select this option if using this player in Americas & Europe (Radio
Frequency between 87MHz and 108Mhz)
Japan Band (Select this option if using this player in Japan – Radio Frequency between
76MHz and 90MHz)
Exit
NOTE: Slide finger right to left on screen or touch icon to go back to the previous screen
BROWSER
Use or button, or slide finger from Right to Left or Left to Right on the Main Menu screen
to display and select Browser icon in the Main Menu
Press button or touch the Browser icon to enter Browser mode
Use , and buttons or slide your finger up or down and touch the menu option for
navigation and selection
Touch Local Folder to display content of the built in memory – This option displays all files and
folders on the player’s memory Enter into card folder can choose any files, the function is
available. NOTE: Touch/Select top-most entry in the file/folder list to go back to the previous
folder – ROOT is the top-most level
NOTE: Slide finger right to left on screen or touch icon to go back to the previous screen

Page 13
CALENDAR
Use or button, or slide finger from Right to Left or Left to Right on the Main Menu screen
to display and select Calendar icon in the Main Menu
Press button or touch the Calendar icon to view Calendar
To u c h or button or touch or icon to choose previous or next calendar day.
NOTE: Slide finger right to left on screen or touch icon to go back to the previous screen
MEMORY
Use or button, or slide finger from Right to Left or Left to Right on the Main Menu screen
to display and select Memory icon in the Main Menu
Press button or touch the Memory icon to view player’s built-in memory information
like Total Storage Capacity and Space Used

Page 14
NOTE: Slide finger right to left on screen or touch icon to go back to the previous screen
SETTTINGS
Use or button, or slide finger from Right to Left or Left to Right on the Main Menu screen
to display and select Settings icon in the Main Menu
Press button or touch the Settings icon to enter player’s Setup menu
Use , and buttons or slide your finger up or down and touch the menu option for
navigation and selection
NOTE: Slide finger right to left on screen or touch icon to go back to the previous screen
System time
oTo u c h or to select year, month day, hour, minute and second
oPress or button to adjust these values
oTo u c h icon to save system time
Power Save – Display black screen to extend battery usage - Use or button to

Page 15
adjust time between 0 to 50 seconds –to disable this feature change setting to 0)
Language - (see Technical Specifications for list of languages)
Auto Shut Down - (Automatically turn of the player if it’s not in use - Use or  button
to adjust time between 0 to 200 seconds –to disable this feature change setting to 0)
Lock Screen - (Automatically locks the screen after inactivity time setup in this option has
passed - Use or  button to adjust time between 0 to 60 seconds –to disable this
feature change setting to 0) – When the screen lock is activated “Please drag the slider
to the right to unlock” message is displayed when any button is pressed or the screen
is touched
Time format – Select 12 hour or 24 hour time format (time display feature not supported
in this firmware version)
Format Device – Use this option to format built-in memory – WARNING: using this option
will delete all the data on the player’s memory
Firmware Version
Firmware Upgrade (not currently supported)
Pedometer set – Use this option to change pedometer settings
oStep size – adjust step size (inches or centimeters) by sliding finger top to bottom or
bottom to top on the screen
oWeight - adjust weight (pounds or kilograms) by sliding finger top to bottom or
bottom to top on the screen
oUnits – Select either Imperial system (inches and Pounds) or Metric system
(Centimeters and Kilograms) for Step size and Weight
oExit - Touch this option or Slide finger right to left on screen or touch icon to
go back to the previous screen
Touch screen calibration – Use this option to calibrate touch screen – touch “+” symbol
on the screen when displayed in different parts of the screen to calibrate the screen
oExit - - Touch this option or Slide finger right to left on screen or touch icon
to go back to the previous screen
PHOTOS
Use or button, or slide finger from Right to Left or Left to Right on the Main Menu screen
to display and select Photos icon in the Main Menu

Page 16
Press button or touch the Photos icon to display list of picture files
Use , and buttons or slide your finger up or down on the screen and touch the file name
to display that picture
When player is in Photos Mode slide finger left to right on screen to display Photo settings
sub-menu
Photo Settings Sub-Menu
Use , and buttons or slide your finger up or down and touch the menu option for
navigation and selection
Local Folder (use this option to select different file or folder from player’s memory)
Playback Set
oManual Play
oAuto Play (Slide show mode - Set each picture display time from 1 to 10 seconds)
Delete File
Delete All
Exit
NOTE: Slide finger right to left on screen or touch icon to go back to the previous screen
E-BOOK
Use or button, or slide finger from Right to Left or Left to Right on the Main Menu screen
to display and select E-book icon in the Main Menu
Press button or touch the E-book icon to display list of text files
Use , and buttons or slide your finger up or down and touch a file name to display the

Page 17
text file
When player is in E-book Mode slide finger left to right on screen to display File management
sub-menu
File Management Sub-Menu
Use , and buttons or slide your finger up or down and touch the menu option for
navigation and selection
Local Folder (use this option to select different file or folder from player’s memory)
Playback Set
oManual Play
oAuto Play (Automatically go to next page - Set each page display time from 1 to 10
seconds)
Delete File
Delete All
Exit
NOTE: Slide finger right to left on screen or touch icon to go back to the previous screen
When player is in Text file View Mode slide finger left to right on the screen to display Music
Settings sub menu
e-Book Settings Sub-Menu
Use , and buttons or slide your finger up or down and touch the menu option for
navigation and selection
Bookmark Select (View list of saved bookmarks)
Bookmark Delete (Delete saved bookmarks)
Bookmark Add (Save a new bookmark)
Exit
NOTE: Slide finger right to left on screen or touch icon to go back to the previous screen
RECORD (Voice Recording)
Use or button, or slide finger from Right to Left or Left to Right on the Main Menu screen
to display and select Record icon in the Main Menu

Page 18
Press button or touch the Record icon to enter Voice Recording mode
Press or touch icon to start, pause and restart recording
To save recording press and hold button for a couple of seconds or slide finger right to left
on the screen or touch icon
Touching icon automatically saves recording and exit to the main menu.
When player is in stop or pause mode, slide finger left to right on the screen to display Record
Settings sub menu
Record Settings Sub-Menu
Use , and buttons or slide your finger up or down and touch the menu option for
navigation and selection
REC type (determines quality of recorded voice file)
o28 Kbps (approximately 60 hours of recording per GB of memory)
o64 Kbps (approximately 30 hours of recording per GB of memory)
o128 Kbps (approximately 15 hours of recording per GB of memory)
Exit
NOTE: Slide finger right to left on screen or touch icon to go back to the previous screen

Page 19
VOICE (Listen to Voice-Recording files)
Use or button, or slide finger from Right to Left or Left to Right on the Main Menu screen
to display and select Voice icon in the Main Menu
Press button or touch the Voice icon to enter Voice-Recording play mode
Press button or touch Play icon on the screen to play music file
In play mode press or button, or touch or icon to choose next or previous voice
file.
In play mode press and hold or button or touch and hold or icon to fast forward
or rewind voice file currently playing
In play mode touch icon or slide finger up or down to adjust volume level, from 0 – 40 or
touch or icons to adjust the volume NOTE: After adjusting volume press button to
exit or player will automatically exit volume adjust mode after 5 seconds.
File Management Sub-Menu
When player is in Pause Mode slide finger left to right on screen to display file management sub
menu
NOTE: Use , and buttons or slide your finger up or down and touch the menu option for
navigation and selection
●Local folder (use this option to select different file or folder from player’s memory)
●Delete file
●Delete all
