ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM
1
ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM
User’s Manual
No part of this manual, including the products and software described in it, may
be reproduced, transmitted, transcribed, stored in a retrieval system, or translated
into any language in any form or by any means, except documentation kept by the
purchaser for backup purposes, without the express written permission of ZOTAC.
Products and corporate names mentioned in this manual may be registered
trademarks or copyrights of their respective companies, and are used for identication
purposes only. All trademarks are the property of their respective owners.
Every effort has been made to ensure that the contents of this manual are correct and
up to date. However, the manufacturer makes no guarantee regarding the accuracy of
its contents, and reserves the right to make changes without prior notice.
CAUTION:
Risk of explosion if the battery is replaced with an incorrect type. Batteries should be
recycled where possible. Disposal of used batteries must be in accordance with local
environmental regulations.

ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM
2
Table of Contents
Product specications ----------------------------------------------------------------------------------------3
Safety information ----------------------------------------------------------------------------------------------9
Setting up your system-------------------------------------------------------------------------------------9
Care during use ----------------------------------------------------------------------------------------------9
Welcome -----------------------------------------------------------------------------------------------------------10
Package contents -------------------------------------------------------------------------------------------10
Getting to know your ZOTAC GAMING MEK Ultra PC Gaming System-----------------------11
Top view--------------------------------------------------------------------------------------------------------11
Rear view ------------------------------------------------------------------------------------------------------12
Installing the glass side cover------------------------------------------------------------------------------16
Congure your ZOTAC GAMING MEK Ultra PC Gaming System -------------------------------19
Conguring a wireless connection ----------------------------------------------------------------------19
Conguring a wired connection --------------------------------------------------------------------------19
Using a static IP----------------------------------------------------------------------------------------------19
Conguring audio output-----------------------------------------------------------------------------------20

ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM
3
Product specications
For GU208TS901B(i9-RTX2080Ti)
qMicroprocessor Support
vIntel Core i9-7900X (ten-core 3.3GHz, up to 4.5GHz)
qOnboard Graphics Support
vZOTAC GAMING GeForce RTX 2080Ti 11GB GDDR6
qInternal Expansion:
v 32GB DDR4 Memory (max 128GB)
v 500GB NVMe M.2 SSD
v 32GB Intel Optane Memory
v 4TB 3.5-inch HDD
q Networking
v Gigabit LAN (10/100/1000Mbps)
v Killer AC WiFi
vBluetooth 5
qAudio
v Onboard 7.1 Channel with Optical output
qI/O
v 3x DisplayPort 1.4, 1x HDMI 2.0b, 1x USB Type-C (max 4 displays)
vMic/Headphone
v2x USB 3.1 Gen1 Ports (1x Type-C), 6x USB 3.0 Ports, 4x USB 2.0 Ports
qPower Supply
v 1000W
qOS Pre-installed
v Windows 10 Home Edition, 64-bit

ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM
4
For GU208TC701B(i7-RTX2080Ti)
qMicroprocessor Support
vIntel Core i7-8700K (six-core 3.7GHz, up to 4.7GHz)
qOnboard Graphics Support
vZOTAC GAMING GeForce RTX 2080Ti 11GB GDDR6
qInternal Expansion:
v 32GB DDR4 Memory (max 64GB)
v 500GB NVMe M.2 SSD
v 4TB 3.5-inch HDD
q Networking
v Gigabit LAN (10/100/1000Mbps)
v Killer AC WiFi
vBluetooth 5
qAudio
v Onboard 7.1 Channel with Optical output
qI/O
v 3x DisplayPort 1.4, 1x HDMI 2.0b, 1x USB Type-C (max 4 displays)
vMic/Headphone
v2x USB 3.1 Gen1 Ports (1x Type-C), 6x USB 3.0 Ports, 2x USB 2.0 Ports
qPower Supply
v 1000W
qOS Pre-installed
v Windows 10 Home Edition, 64-bit

ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM
5
For GU208TC702B(i7-RTX2080Ti)
qMicroprocessor Support
vIntel Core i7-8700K (six-core 3.7GHz, up to 4.7GHz)
qOnboard Graphics Support
vZOTAC GAMING GeForce RTX 2080Ti 11GB GDDR6
qInternal Expansion:
v 32GB DDR4 Memory (max 64GB)
v 500GB NVMe M.2 SSD
v 2TB 3.5-inch HDD
q Networking
v Gigabit LAN (10/100/1000Mbps)
v Killer AC WiFi
vBluetooth 5
qAudio
v Onboard 7.1 Channel with Optical output
qI/O
v 3x DisplayPort 1.4, 1x HDMI 2.0b, 1x USB Type-C (max 4 displays)
vMic/Headphone
v2x USB 3.1 Gen1 Ports (1x Type-C), 6x USB 3.0 Ports, 2x USB 2.0 Ports
qPower Supply
v 1000W
qOS Pre-installed
v Windows 10 Home Edition, 64-bit

ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM
6
For GU2080C701B(i7-RTX2080)
qMicroprocessor Support
vIntel Core i7-8700K (six-core 3.7GHz, up to 4.7GHz)
qOnboard Graphics Support
vZOTAC GAMING GeForce RTX 2080 8GB GDDR6
qInternal Expansion:
v 16GB DDR4 Memory (max 64GB)
v 240GB NVMe M.2 SSD
v 2TB 3.5-inch HDD
q Networking
v Gigabit LAN (10/100/1000Mbps)
v Killer AC WiFi
vBluetooth 5
qAudio
v Onboard 7.1 Channel with Optical output
qI/O
v 3x DisplayPort 1.4, 1x HDMI 2.0b, 1x USB Type-C (max 4 displays)
vMic/Headphone
v2x USB 3.1 Gen1 Ports (1x Type-C), 6x USB 3.0 Ports, 2x USB 2.0 Ports
qPower Supply
v 1000W
qOS Pre-installed
v Windows 10 Home Edition, 64-bit

ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM
7
For GU2070C701B(i7-RTX2070)
qMicroprocessor Support
vIntel Core i7-8700K (six-core 3.7GHz, up to 4.7GHz)
qOnboard Graphics Support
vZOTAC GAMING GeForce RTX 2070 8GB GDDR6
qInternal Expansion:
v 16GB DDR4 Memory (max 64GB)
v 240GB NVMe M.2 SSD
v 2TB 3.5-inch HDD
q Networking
v Gigabit LAN (10/100/1000Mbps)
v Killer AC WiFi
vBluetooth 5
qAudio
v Onboard 7.1 Channel with Optical output
qI/O
v 3x DisplayPort 1.4, 1x HDMI 2.0b, 1x USB Type-C (max 4 displays)
vMic/Headphone
v2x USB 3.1 Gen1 Ports (1x Type-C), 6x USB 3.0 Ports, 2x USB 2.0 Ports
qPower Supply
v 1000W
qOS Pre-installed
v Windows 10 Home Edition, 64-bit

ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM
8
For GU2070B702B(i7-RTX2070)
qMicroprocessor Support
vIntel Core i7-8700K (six-core 3.7GHz, up to 4.7GHz)
qOnboard Graphics Support
vZOTAC GAMING GeForce RTX 2070 8GB GDDR6
qInternal Expansion:
v 16GB DDR4 Memory (max 64GB)
v 240GB NVMe M.2 SSD
v 2TB 3.5-inch HDD
q Networking
v Gigabit LAN (10/100/1000Mbps)
v Killer AC WiFi
vBluetooth 5
qAudio
v Onboard 7.1 Channel with Optical output
qI/O
v 3x DisplayPort 1.4, 1x HDMI 2.0b, 1x USB Type-C (max 4 displays)
vMic/Headphone
v2x USB 3.1 Gen1 Ports (1x Type-C), 6x USB 3.0 Ports, 2x USB 2.0 Ports
qPower Supply
v 650W
qOS Pre-installed
v Windows 10 Home Edition, 64-bit

ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM
9
Safety information
Your ZOTAC GAMING MEK Ultra PC Gaming System is designed and tested to meet the latest
standards of safety for information technology equipment. However, to ensure your safety, it is
important that you read the following safety instructions.
Setting up your system
Read and follow all instructions in the documentation before operating your system.
Do not use this product near water or a heat source such as a radiator.
Set up the system on a stable surface.
Openings on the chassis are for ventilation. Do not block or cover these openings. Make sure
you leave plenty of space around the system for ventilation. Never insert objects of any kind into
the ventilation openings.
Use this product in environments with ambient temperatures between 0℃and 35℃.
 If you use an extension cord, please use the UL listed cord and make sure that the total
ampere rating of the devices plugged into the extension cord does not exceed its ampere
rating.
Care during use
Do not walk on the power cord or allow anything to rest on it.
Do not spill water or any other liquids on your system.
When the system is turned off, a small amount of electrical current still ows. Always unplug all
power, modem, and network cables from the power outlets before cleaning the system.
If you encounter the following technical problems with the product, unplug the power cord and
contact a qualied service technician or your retailer.
¾The power cord or plug is damaged.
¾Liquid has been spilled onto the system.
¾The system does not function properly even if you follow the operating instructions.
¾The system was dropped or the cabinet is damaged.

ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM
10
Welcome
Congratulations on your purchase of the ZOTAC GAMING MEK Ultra PC Gaming System. The
following illustration displays the package contents of your new MEK Ultra PC Gaming System. If any
of the below items is damaged or missed, contact your retailer.
Package contents
• 1 x ZOTAC GAMING MEK Ultra PC Gaming System
• 1 x Glass Side Cover
• 1 or 2 x Power Cord (depends on region)
• 2 x WiFi Antenna
• 1 x Windows Recovery DVD (Optional; depends on region)
• 1 x USB Flash Drive with Windows Recovery Image and Windows Drivers
• 1 x User Manual & Warranty Card
• 1 x Quick Start Guide

ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM
11
Getting to know your ZOTAC GAMING MEK Ultra PC Gaming
System
Top view

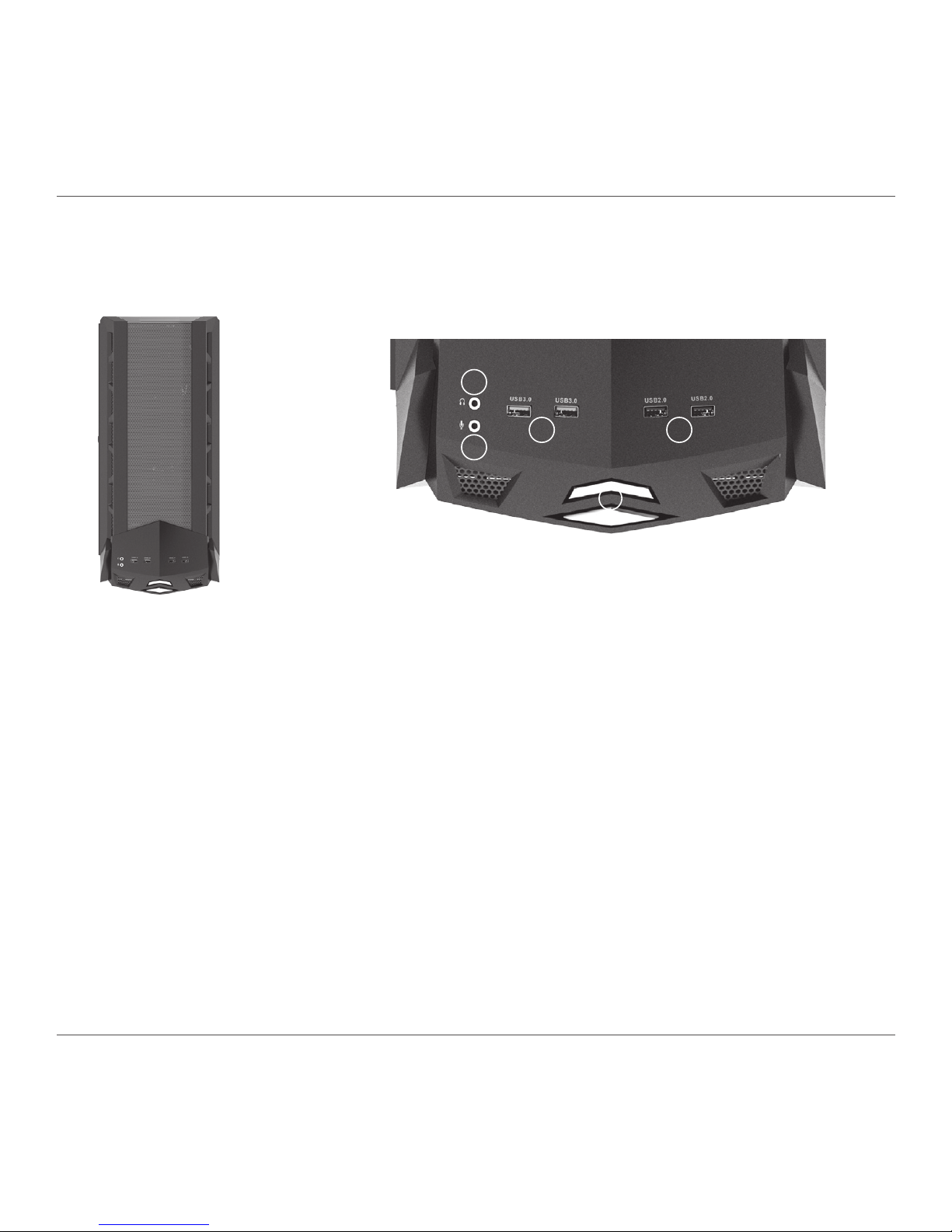

Refer to the diagram below to identify the components on this side of the system
1. Headphone/Audio Out jack
The stereo headphone jack (3.5mm) is used to connect the system’s audio out signal to
gaming headset.
2. Microphone jack
The microphone jack is designed to connect the microphone used for easy connection with
gaming headset.
3. USB 3.0 ports
The USB 3.0 port supports the SuperSpeed USB 3.0 devices and is backwards compatible
with USB 2.0/1.1 devices. Use this port for USB 3.0 devices for maximum performance with
USB 3.0 compatible devices.
4. USB 2.0 ports
The USB (Universal Serial Bus) port is compatible with USB devices such as keyboards,
mice, cameras and hard disk drives.
5. Power button
The power button turns the system ON and OFF.
1
23 4
5

ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM
12

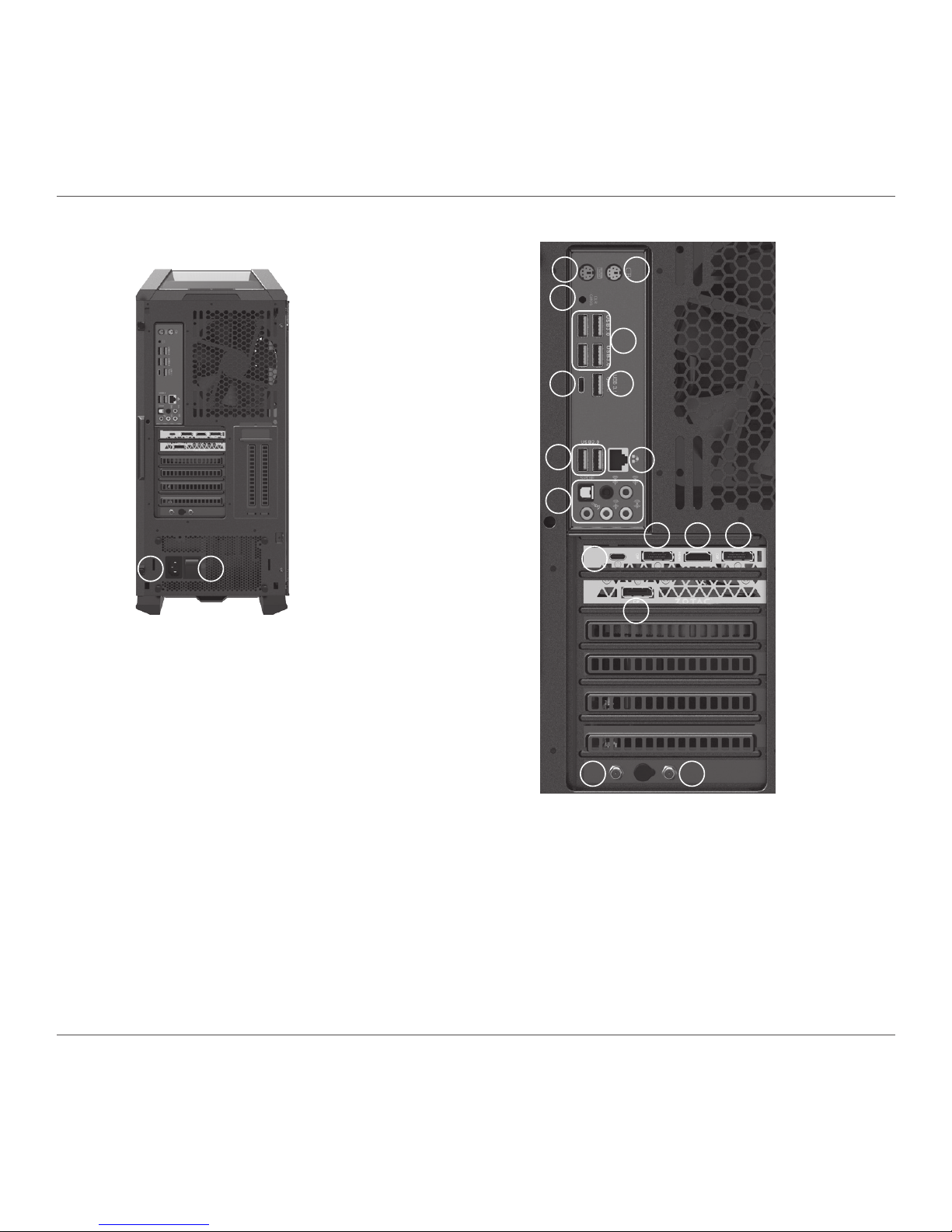

Rear view (i9)
1. PS2 keyboard port
The PS/2 port is used to connect with keyboard.
2. PS2 mouse port
The PS/2 port is used to connect with mouse.
3. Clear CMOS button
Press the button for 3 seconds to clear CMOS.
4. USB 3.0 ports
The USB 3.0 port supports the SuperSpeed USB 3.0 device. Use this port for USB 3.0 devices
for maximum performance with USB 3.0 compatible devices.
13
1 2
3
4
5 6
78
9
5
10 10
10
11
12 12
14

ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM
13
5. USB 3.1 Type-C ports
The type-C USB 3.1 port supports the SuperSpeed USB 3.1 devices. Use this port for USB
3.1 devices for maximum performance with USB 3.1 compatible devices.
6. USB 3.1 port
The USB 3.1 port supports the SuperSpeed USB 3.1 devices. Use this port for USB 3.1
devices for maximum performance with USB 3.1 compatible devices.
7. USB 2.0 ports
The USB (Universal Serial Bus) port is compatible with USB devices such as keyboards,
mice, cameras and hard disk drives.
8. LAN port
The eight-pin RJ-45 LAN port support standard Ethernet cables for connection to a local
network.
9. Audio ports with SPDIF-out
Use the ve audio ports to connect audio devices. The pink jack is for microphone. The green
jack is for front speaker out signal. The blue jack is for side speaker out signal. The orange
jack is for rear speaker out signal. The black jack is for center/subwoofer signal. The optical
S/PDIF output enables connectivity with digital audio receivers and speakers for crystal clear
digital audio and surround sound from compatible soundtracks.
10. DisplayPorts
DisplayPorts supports both external (box-to-box) and internal (laptop LCD panel) display
connections.
11. HDMI port
The HDMI (High Denition Multimedia Interface) port supports a UHD device such as an LCD
TV or monitor to allow viewing on a larger external display.
12. WiFi antenna connectors
The WiFi antenna connector supports the included WiFi antenna.
13. Power input (IEC C20 or C14, standard power cord connection)
Connected with power cord to mains for AC input.
14. Power switch
The power button turns the system ON and OFF.
Do not block ventilation outlet for warm air exhaust.

ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM
14
Rear view (i7)
1. WiFi antenna connectors
The WiFi antenna connector supports the included WiFi antenna.
2. USB 3.0 ports
The USB 3.0 port supports the SuperSpeed USB 3.0 device. Use this port for USB 3.0 devices
for maximum performance with USB 3.0 compatible devices.
3. PS2 keyboard/mouse port
The PS/2 port is used to connect with keyboard/mouse.
4. USB 3.1 Type-C ports
The type-C USB 3.1 port supports the SuperSpeed USB 3.1 devices. Use this port for USB
3.1 devices for maximum performance with USB 3.1 compatible devices.
5. USB 3.1 port
The USB 3.1 port supports the SuperSpeed USB 3.1 devices. Use this port for USB 3.1
devices for maximum performance with USB 3.1 compatible devices.
1
23
45
6
7
8 9
10
2
11
48
8

ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM
15
6. LAN port
The eight-pin RJ-45 LAN port support standard Ethernet cables for connection to a local
network.
7. Audio ports with SPDIF-out
Use the ve audio ports to connect audio devices. The pink jack is for microphone. The green
jack is for front speaker out signal. The blue jack is for side speaker out signal. The orange
jack is for rear speaker out signal. The black jack is for center/subwoofer signal. The optical
S/PDIF output enables connectivity with digital audio receivers and speakers for crystal clear
digital audio and surround sound from compatible soundtracks.
8. DisplayPorts
DisplayPorts supports both external (box-to-box) and internal (laptop LCD panel) display
connections.
9. HDMI port
The HDMI (High Denition Multimedia Interface) port supports a UHD device such as an LCD
TV or monitor to allow viewing on a larger external display.
10. Power input (IEC C20 or C14, standard power cord connection)
Connected with power cord to mains for AC input.
11. Power switch
The power button turns the system ON and OFF.
Do not block ventilation outlet for warm air exhaust.

ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM
16
Installing the glass side cover
The MEK Ultra PC gaming system is pre-installed with an iron side cover, users can also install
the glass side cover in accessories. Please follow the instructions below to install the glass side
cover.
1. Rotate and remove the two screws securing the iron side cover.



ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM
17
2. Gently push the iron side cover and remove it as shown below.
3. Insert the glass side cover to the side of the MEK Ultra PC Gaming system, and ensure that
the installation is in place.

ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM
18
4. Use a coin to turn the screw to secure the glass side cover.

ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM
19
Conguring your ZOTAC GAMING MEK Ultra PC Gaming System
Conguring a wireless connection
Please follow the instructions below to connect to a wireless network:
1. Double-click the wireless network icon (pic) in the notication area.
2. Select the wireless network you want to connect to from the list and
click Connect.
3. After connection is established, you will see “Connected.”
Note 1: For security concerns, Do NOT connect to an unsecured network,
otherwise, the transmitted information without encryption might be visible to
others.
Note 2: Enter the network security key if necessary.
Conguring a wired connection
Using a static IP
1. Connect one end of the Ethernet cable to
your Internet Service Provider (ISP)
modem/router.
2. Connect the other end to the Ethernet port in
the rear of the MEK Ultra PC Gaming System.
3. Highlight “Internet Protocol (TCP/IP)” and
click “Properties”.
4. Select “Use the following IP address”.
5. Enter your IP address, subnet mask and
Default gateway.
6. Enter the preferred DNS server address if
necessary.
7. After entering all of the related values, click “OK” to nish the conguration.
