Zotac ZBOX nano XS User manual

1
ZOTAC ZBOX nano XS
ZOTAC ZBOX nano XS
User’s Manual
No part of this manual, including the products and software described in it,
may be reproduced, transmitted, transcribed, stored in a retrieval system,
or translated into any language in any form or by any means, except
documentation kept by the purchaser for backup purposes, without the
express written permission of ZOTAC.
Products and corporate names mentioned in this manual may not be reg-
istered trademarks or copyrights of their respective companies, and are
used for identication purposes only. All trademarks are the property of their
respective owners.
Every effort has been made to ensure that the contents of this manual are cor-
rect and up to date. However, the manufacturer makes no guarantee regard-
ing the accuracy of its contents, and reserves the right to make changes
without prior notice.
CAUTION:
Risk of explosion if the battery is replaced with an incorrect type. Batteries
should be recycled where possible. Disposal of used batteries must be in
accordance with local environmental regulations.

2
ZOTAC ZBOX nano XS
Table of Contents
Product specications -------------------------------------------------------------------------- 3
Safety information -------------------------------------------------------------------------------- 4
Setting up your system ----------------------------------------------------------------------- 4
Care during use -------------------------------------------------------------------------------- 4
Welcome --------------------------------------------------------------------------------------------- 5
Package contents ------------------------------------------------------------------------------ 5
Getting to know your ZOTAC ZBOX nano XS-------------------------------------------- 6
Front view ---------------------------------------------------------------------------------------- 6
Rear view----------------------------------------------------------------------------------------- 7
How to disable the ring LED indicator ----------------------------------------------------- 8
Customizing the ZOTAC ZBOX nano XS -------------------------------------------------- 9
Installing a memory module ----------------------------------------------------------------- 10
Installing an mSATA --------------------------------------------------------------------------- 11
Connecting a SPDIF cable ------------------------------------------------------------------ 12
Setting up the ZOTAC ZBOX nano XS------------------------------------------------------ 13
Positioning the ZOTAC ZBOX nano XS ---------------------------------------------------- 14
Mounting the ZOTAC ZBOX nano XS to an LCD monitor --------------------------- 14
Installing drivers and software --------------------------------------------------------------- 16
Installing an operating system -------------------------------------------------------------- 16
Installing system drivers---------------------------------------------------------------------- 16
Using your ZOTAC ZBOX nano XS ---------------------------------------------------------- 17
Conguring wireless connection ----------------------------------------------------------- 17
Conguring wired connection --------------------------------------------------------------- 17
Using a static IP ---------------------------------------------------------------------------- 17
Using a dynamic IP (PPPoE connection) -------------------------------------------- 18
Conguring audio output via an HDMI device ------------------------------------------ 18

3
ZOTAC ZBOX nano XS
Product specications
Processor
• Intel Core i3-4030U Processor (dual core, 1.9GHz)
Product Dimensions
• 106mm x 106mm x 45mm
Onboard graphics
• Intel HD Graphics 4400
• HDMI 1.4a (max resolutions: 4096×2160 @24Hz)
• Mini DP 1.2 (max resolutions: 3840x2160 @30Hz)
Memory support
• 2 204-pin DDR3L-1600 SO-DIMM slots
• Up to 16 GB of memory
USB ports
• 2 USB 2.0 ports & 2 USB 3.0 ports
Storage support
• 1 mSATA 6.0 Gb/s SSD slot
Network support
• Gigabit (10/100/1000Mbps) LAN
• IEEE 802.3 compatible
Wi-Fi support
• 802.11ac Wi-Fi (dual-band)
• Bluetooth 4.0
Audio
• Digital 8 Channel Audio (LPCM/bitstream via HDMI)
• SPDIF output
Operating System support
• Windows 7 32bit/64bit, Windows 8 32bit/64bit and Windows 8.1 32bit/64bit

4
ZOTAC ZBOX nano XS
Safety information
Your ZOTAC ZBOX nano XS is designed and tested to meet the latest standards of safety
for information technology equipment. However, to ensure your safety, it is important that
you read the following safety instructions.
Setting up your system
Read and follow all instructions in the documentation before you operate your system.
Do not use this product near water or a heat source such as a radiator.
Set up the system on a stable surface with the provided stand. Never use the system
alone without the stand.
Openings on the chassis are for ventilation. Do not block or cover these openings.
Make sure you leave plenty of space around the system for ventilation. Never insert
objects of any kind into the ventilation openings.
Use this product in environments with ambient temperatures between 0℃ and 35℃.
If you use an extension cord, please use the UL listed cord and make sure that
the total ampere rating of the devices plugged into the extension cord does not
exceed its ampere rating.
Care during use
Do not walk on the power cord or allow anything to rest on it.
Do not spill water or any other liquids on your system.
When the system is turned off, a small amount of electrical current still ows. Always
unplug all power, modem, and network cables from the power outlets before cleaning
the system.
If you encounter the following technical problems with the product, unplug the power
cord and contact a qualied service technician or your retailer.
¾The power cord or plug is damaged.
¾Liquid has been spilled into the system.
¾The system does not function properly even if you follow the operating instructions.
¾The system was dropped or the cabinet is damaged.
¾The system performance changes.
,

5
ZOTAC ZBOX nano XS
Welcome
Congratulations on your purchase of the ZOTAC ZBOX nano XS mini-PC. The following
illustration displays the package contents of your new ZOTAC ZBOX nano XS. Please
contact your retailer If any of the below items are damaged or missed.
Package contents
• 1 x ZOTAC ZBOX nano XS mini-PC
• 1 x ZOTAC VESA mount
• 4 x Mount screws
• 1 x AC Adapter
• 1 x Power Cord
• 1 x Headphone/SPDIF adapter
• 1 x WiFi antenna
• 1 x USB ash drive with OS drivers
• 1 x User Manual
• 1 x Quick Start Guide
• 1 x Support DVD

6
ZOTAC ZBOX nano XS
Getting to know your ZOTAC ZBOX nano XS
Front view
Refer to the diagram below to identify the components on this side of the system
1. Power button
The power button turns the mini-PC ON and OFF.
2. Power status indicator
The power LED is red when connecting the AC adapter to the mini-PC, and it is
green when power is on.
3. USB 2.0 ports
The USB (Universal Serial Bus) 2.0 ports are compatible with USB 2.0 devices
such as keyboards, mice, cameras and hard disk drives.
4. Memory card reader
The built-in memory card reader reads SD/SDHC/SDXC cards used in devices
such as digital cameras, MP3 players, mobile phones and PDAs.
5. Wi-Fi status indicator
The Wi-Fi LED blinks when data is being transfered over Wi-Fi.
6. HDD status indicator
The hard disk LED blinks when data is being written onto or read from the hard
disk drive.
7. Combo analog/mini-Optical S/PDIF output
The Combo analog/mini-Optical S/PDIF output (3.5mm) is used to connect the
system’s audio out signal to amplied speakers or headphones. It also supports
SPDIF output with the headphone/SPDIF adapter included in the package. The
optical SPDIF output enables connecting the ZBOX nano XS to digital audio
receivers and speakers for crystal clear digital audio and surround sound from
compatible soundtracks.
8. Microphone input
The microphone input is designed to connect a microphone for video conferencing,
voice narrations or simple audio recordings.
1
2
3
4
5
6
37
8

7
ZOTAC ZBOX nano XS

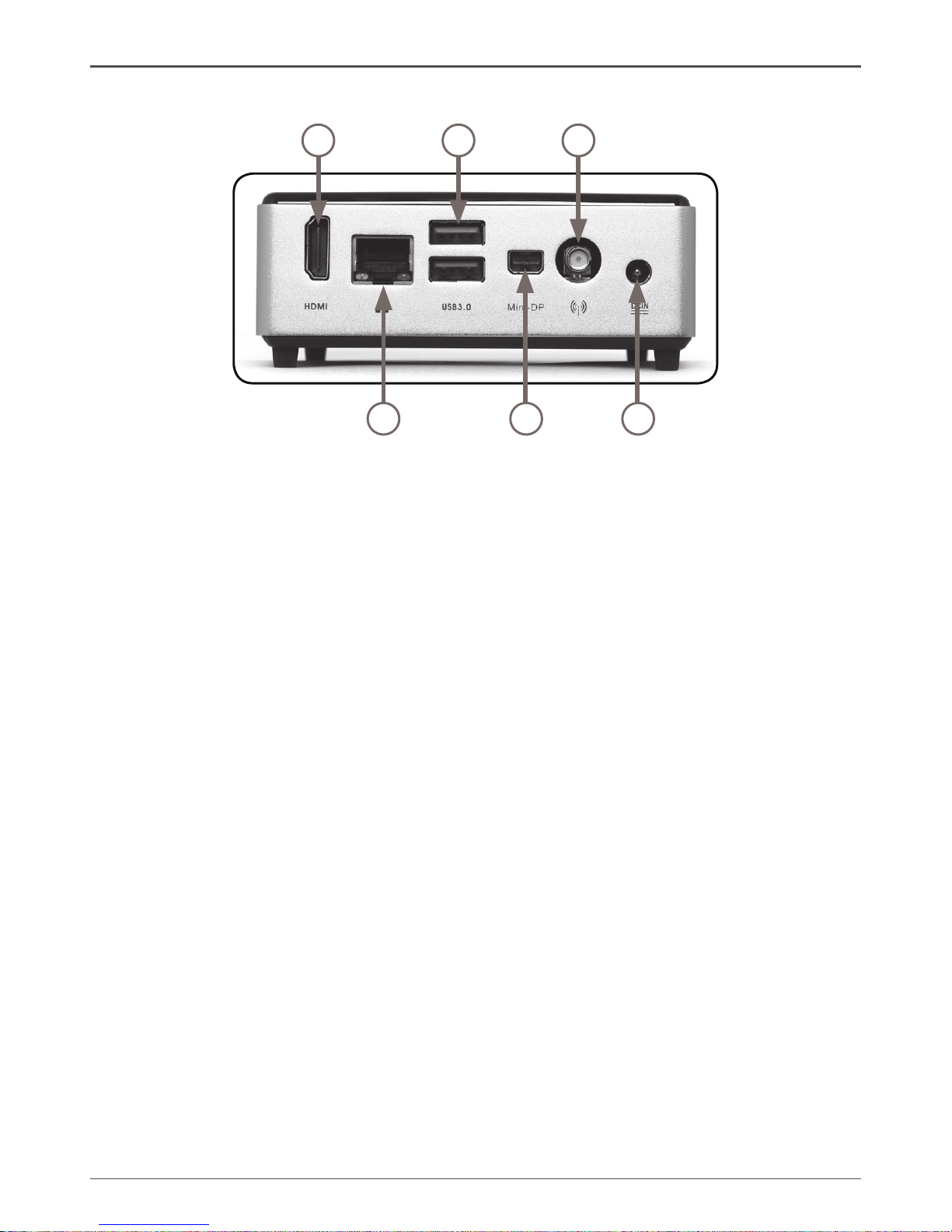

Rear view
Refer to the diagram below to identify the components on this side of the system.
1. HDMI output
The HDMI (High Denition Multimedia Interface) output supports Full HD 1080p
displays such as an HDTV or monitor.
2. Ethernet port
The eight-pin RJ-45 LAN port supports standard Ethernet cable for connection to a
local area network (LAN) with speeds of 10/100/1000Mbps.
3. USB 3.0 ports
The USB 3.0 ports support the SuperSpeed USB 3.0 devices and are backwards
compatible with USB 2.0/1.1 devices. Use the ports for USB 3.0 devices for
maximum performance with USB 3.0 compatible devices.
4. Mini-DisplayPort output
The mini-DisplayPort outputs support displays with resolutions up to 3840x2160
@30Hz.
5. Wi-Fi antenna connector
The Wi-Fi antenna connector supports the included Wi-Fi antenna.
6. Power input (DC19V)
The supplied power adapter converts AC power to DC power for use with this jack.
Power supplied through this jack supplies power to the mini-PC. To prevent damage
to the mini-PC, always use the supplied power adapter.
Note 1: The power adapter may become warm to hot when in use. Do not cover the adapter and keep it
away from your body.
Note 2: Due to the special design for easy upgrade, some connectors are placed upside down.
1
2
3
4
5
6

8
ZOTAC ZBOX nano XS
How to disable the ring LED indicator
1. Turn on the ZBOX nano XS mini-PC, then press <Delete> to enter the BIOS
SETUP UTILITY.
2. Use the arrow keys to navigate to the Power menu and select Logo
indicator.
3. Press <Enter> and select Turn off.
4. Press F10 to save the conguration and exit.

9
ZOTAC ZBOX nano XS
Customizing the ZOTAC ZBOX nano XS
Please follow the instructions below to remove the cover of the ZOTAC ZBOX nano
XS before customizing.
1. Loosen the 4 screws securing the bottom cover into place.
2. Gently remove the cover.

10
ZOTAC ZBOX nano XS
Installing a memory module
1. Locate the SO-DIMM memory slot and insert a SO-DIMM memory module
into the slot at a 45 degree angle.
2. Gently press down on the memory module until it locks into place by the arms
of the memory slot.

11
ZOTAC ZBOX nano XS
Installing an mSATA
1. Insert the mSATA into the slot and gently slide into the connector.
2. Gently press down on the mSATA module until it locks into place.

12
ZOTAC ZBOX nano XS
Connecting a SPDIF cable
1. Connect the SPDIF cable to the headphone/SPDIF adapter correctly.
2. Locate the front panel and connect the headphone/SPDIF adapter to the
headphone/SPDIF jack.

13
ZOTAC ZBOX nano XS
Setting up the ZOTAC ZBOX nano XS
Please connect the peripherals before using the ZOTAC ZBOX nano XS.
1. Connecting to an HDMI display
Connect one end of an HDMI cable to the HDMI port on the system rear panel and
the other end to an HDMI-compatible display such as an HDTV or monitor.
2. Connecting to a home network
Connect one end of a network cable to the LAN port on the system rear panel and
the other end to a network hub, switch or router.
3. Connecting USB 3.0 device
Connect USB 3.0 devices such as external hard drives, SSDs and ash drives to
the USB 3.0 port.
4. Connecting a mni-DisplayPort display
Connect the mini-DisplayPort connector to the mini-DP port of the monitor or display.
5. Connecting the Wi-Fi antenna
Connect the Wi-Fi antenna to the Wi-Fi antenna connector.
6. Connecting the power adapter and turning on the ZBOX nano XS
Connect the supplied AC adapter to the DC IN jack on the system rear panel and
then press the power switch on the front panel to turn on the system.
1
23456

14
ZOTAC ZBOX nano XS
Positioning the ZOTAC ZBOX nano XS
• Do not cover or block the ventilation holes on ZOTAC ZBOX nano XS. To ensure
proper operation and reliability, leave aproximately 4 inches (10 cm) of spacing in
front of the ventilation holes.
• ZOTAC ZBOX nano XS mini-PC systems provide ample expansion in a miniature
form factor, please use connectors and cables that are appropriate in size to avoid
interference.
Mounting the ZOTAC ZBOX nano XS to an LCD monitor
The ZOTAC ZBOX nano XS is monitor-mountable using the included VESA mount.
1. Secure the VESA mount to the LCD monitor using screws (not included).
Disclaimer: ZOTAC cannot be held liable for damages resulting from an improper installation.
2. Align the ZOTAC ZBOX nano XS mounting holes to the VESA mount attachment
pegs. Attach the ZOTAC ZBOX nano XS to the VESA mount and gently press
down to secure the ZBOX nano XS to the mount.

15
ZOTAC ZBOX nano XS
3. Connect the ZOTAC ZBOX nano XS to your LCD monitor with an HDMI cable.

16
ZOTAC ZBOX nano XS
Installing drivers and software
Installing an operating system
The ZOTAC ZBOX nano XS does not ship with an operating system preinstalled. An
operating system must be installed before the ZOTAC ZBOX nano XS can be used.
The following operating systems are supported:
• Windows 7
• Windows 8
Follow the instructions below to install an operating system:
1. Insert disk for operating system into the optical drive.
2. Wait for the ZOTAC ZBOX nano XS to boot from the disk.
3. Follow the onscreen directions to install the operating system.
4. Install system drivers to gain full functionality of the ZOTAC ZBOX nano XS
hardware and features.
Note: For best compatibility, please only use the eSATA or USB 2.0 ports as the OS
installation source drive connection.
Installing system drivers
Before you can use the full features of the ZOTAC ZBOX nano XS, the system
drivers must be installed. The following types of operating systems are supported by
the ZOTAC ZBOX nano XS driver DVD and USB ash drive:
• Windows 7
• Windows 8
Follow the instructions below to install the system drivers:
1. Insert the ZOTAC ZBOX nano XS driver DVD or USB ash drive. If autorun is
enabled, the driver installation main menu will show up automatically.
Note: If autorun is disabled, you can click the le Launch.EXE to bring up the driver installation main
menu.
2. The following drivers are available on the DVD and USB ash drive:
• Intel Chipset Driver
• HDA Sound Driver
• Intel Graphics Driver
• Ethernet PCI-E Driver
• USB 3.0 Controller Driver
• Intel Management Engine
• Wireless Network Driver
• Bluetooth Driver
• MassStorage Driver
• USB Charger (optional)

17
ZOTAC ZBOX nano XS
Using your ZOTAC ZBOX nano XS
Conguring wireless connection
Please follow the instructions below to connect to a wireless network:
1. Double-click the crossed wireless network icon (pic) in the
notication area.
2. Select the wireless network you want to connect to from the
list and click Connect.
3. After connection was established, you will see “Connected”.
Note 1: For security concerns, Do NOT connect to an unsecured network,
otherwise, the transmitted information without encryption might be visible to
others.
Note 2: Enter the network security key if necessary.
Conguring wired connection
Using a static IP
1. Right-click the network icon in the
notication area and select “Open
Network Connections”.
2. Right-click “Local Area Connection” and
select “Properties”.
3. Highlight “Internet Protocol (TCP/IP)”
and click “Properties”.
4. Select “Use the following IP address”.
5. Enter your IP address, subnet mask and
Default gateway.
6. Enter the preferred DNS server address if necessary.
7. After entering all of the related values, click “OK” to nish the conguration.
Note: If you want to use USB charger for iPhone/iPad, please install the driver
at X:\Utility\Software\Usb Charger\setup.exe (X: your driver disk letter).
Each driver must be installed individually to ensure proper operation of the
ZOTAC ZBOX.
3. Select the driver you want to install. The driver installer should launch.
4. Follow the onscreen instructions to install the drivers.
5. Restart the system.

18
ZOTAC ZBOX nano XS
Using a dynamic IP (PPPoE connection)
1. Repeat Step 1-3 in the previous section.
2. Select “Obtain an IP address automatically” and click “OK”.
3. Click “Create a new connection” to start the NEW Connection Wizard.
4. Click “Next”.
5. Select “Connect to the Internet” and click “Next”.
6. Select “Set up my
connection manually”.
7. Select your connection
type and click “Next”.
8. Enter your ISP Name and
click “Next”.
9. Enter your User name and
Password. Click “Next”.
10. Click “Finish” to nish the
conguration.
11. Enter your user name and password. Click
“Connect” to connect to the internet.
Note: Contact your internet Service Provider (ISP) if you have problems connecting to the network.
Conguring audio output via an HDMI device
Follow the steps below to enable audio output via HDMI when connecting the
ZOTAC ZBOX nano to a TV or receiver via HDMI.
1. Access the Sound settings via the system
Control Panel.
2. Under Playback devices, click the display
device that corresponds with your HDMI
audio compatible display
3. Click the “Set Default” button in the lower
right hand corner.
4. Click “OK” to exit the setup.

19
ZOTAC ZBOX nano XS
