ZyXEL Communications ZyAIR G-3000 User manual

ZyAIR G-3000
802.11g Business Access Point/Bridge/Repeater
Quick Start Guide
Version 3.50
1/2005

ZyAIR G-3000 Quick Start Guide
3
Table of Contents
1 Introducing the ZyAIR ................................................................................................................ 4
2 Hardware Connections .............................................................................................................. 4
2.1 Side Panel and Connections ................................................................................................. 4
2.2 The LED Display.................................................................................................................... 5
3 Set Up Your Computer’s IP Address......................................................................................... 8
3.1 Windows 2000/NT/XP ........................................................................................................... 8
3.2 Checking/Updating Your Computer’s IP Address ................................................................ 10
3.3 Testing the Connection to the ZyAIR ................................................................................... 10
4 Configure the ZyAIR..................................................................................................................11
4.1 Accessing the ZyAIR via the Web Configurator ...................................................................11
4.2 Common Screen Command Buttons................................................................................... 13
5 Configuring the ZyAIR Using the Wizard ............................................................................... 14
6 Hardware Installation ............................................................................................................... 17
6.1 Attaching Antennas.............................................................................................................. 17
6.2 Hardware Mounting Installation ........................................................................................... 17
7 Troubleshooting ....................................................................................................................... 20

ZyAIR G-3000 Quick Start Guide
4
1 Introducing the ZyAIR
The ZyAIR G-3000 is a wireless access point with two WLAN interfaces that are compliant with both
IEEE802.11g and IEEE802.11b standards. It is suitable for wireless connections to the wired network in
small office environments and businesses. The key features of the ZyAIR are the dual WLAN interface,
internal RADIUS server, PoE (Power over Ethernet), wireless security, and WDS (Wireless Distribution
System). See your User’s Guide for more details on all ZyAIR features. To view a product’s
certification(s):
1. Go to www.zyxel.com.
2. Select your product from the drop-down list box on the ZyXEL home page to go to that product's page.
3. Select the certification you wish to view from this page.
2 Hardware Connections
2.1 Side Panel and Connections

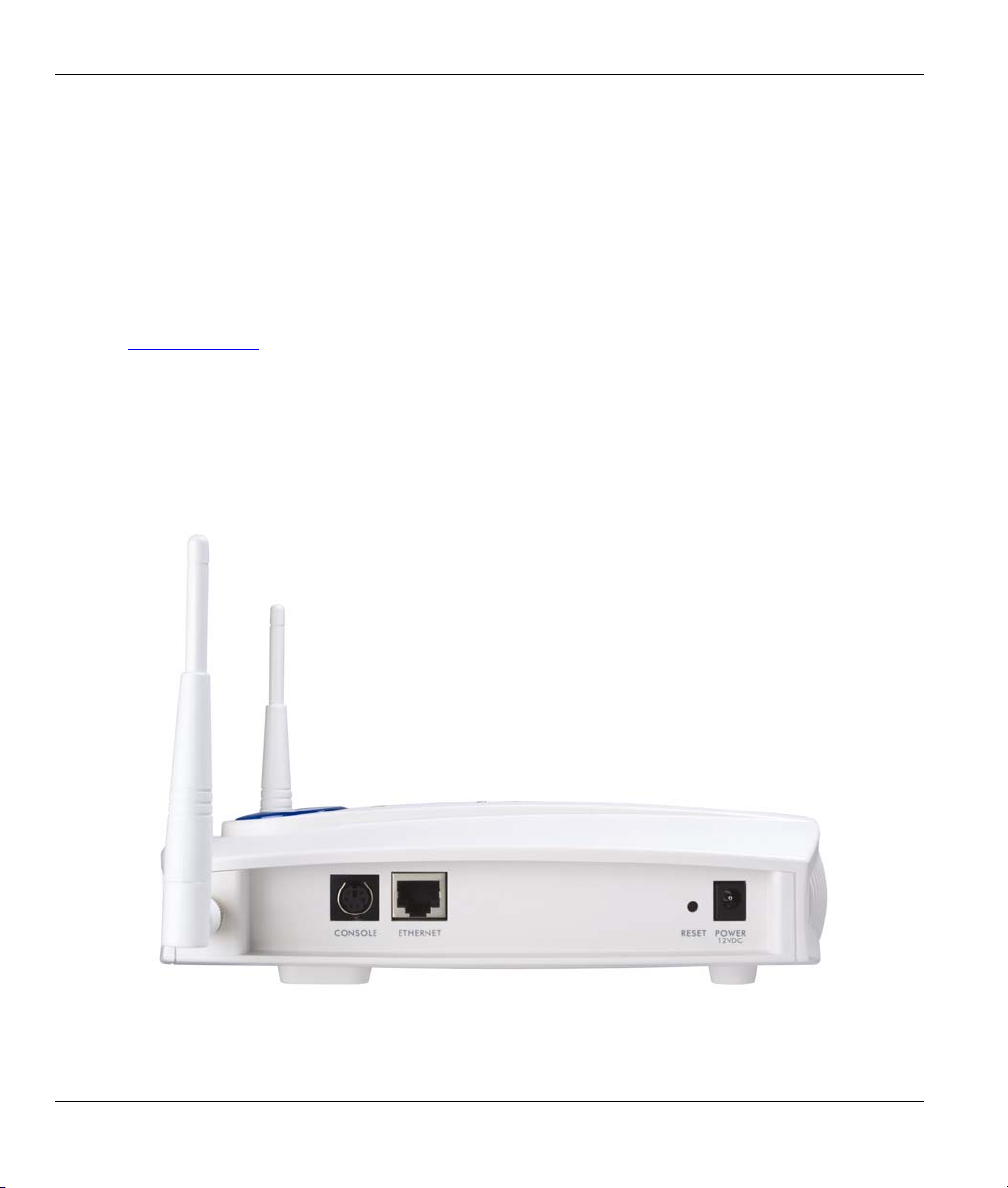

Figure 1 ZyAIR Side Panel and Connections

ZyAIR G-3000 Quick Start Guide
5
LABEL DESCRIPTION
CONSOLE Only connect this port if you want to configure the ZyAIR using the SMT (System
Management Terminal) via console port; see your User’s Guide for details.
Connect PS/2 end of the console cable to the console port of the ZyAIR and the other
end to a serial port (COM1, COM2 or other COM port) on your computer. Your computer
should have a terminal emulation communications program (such as HyperTerminal) set
to VT100 terminal emulation, no parity, 8 data bits, 1 stop bit, no flow control and 9600
bps port speed.
ETHERNET Use an Ethernet cable to connect a computer (with an Ethernet card) or switch to the
ETHERNET port. The port is auto-negotiating (can connect at 10 or 100Mbps) and auto-
crossover (automatically adjusts to the type of Ethernet cable you use (straight-through
or crossover)).
RESET You only need to use this button if you’ve forgotten the ZyAIR’s password. It returns the
ZyAIR to the factory defaults (password is 1234 and LAN IP address 192.168.1.2). Refer
to the User’s Guide.
POWER
12VDC
Connect the end of the included power adaptor to this power socket. You only need to
connect the external power adaptor if you are not using PoE. If you simultaneously use
both PoE and the external power adaptor, the ZyAIR will draw power from the PoE
connection only.
Use only the included power adaptor.
EXTENSION
CARD SLOT
This slot allows you to add an IEEE802.11g or IEEE802.11b WLAN card adaptor. You
must have a WLAN card inserted before you can configure it.
The ZyAIR also contains a built-in wireless card.
2.2 The LED Display
When the power is connected the PWR, ZyAIR,SYS,WLAN LEDs turn on in that order. The ETHN
LED turns on, if the ETHERNET port is properly connected. See the ZyAIR Front Panel LED Description
table for more information.

ZyAIR G-3000 Quick Start Guide
6

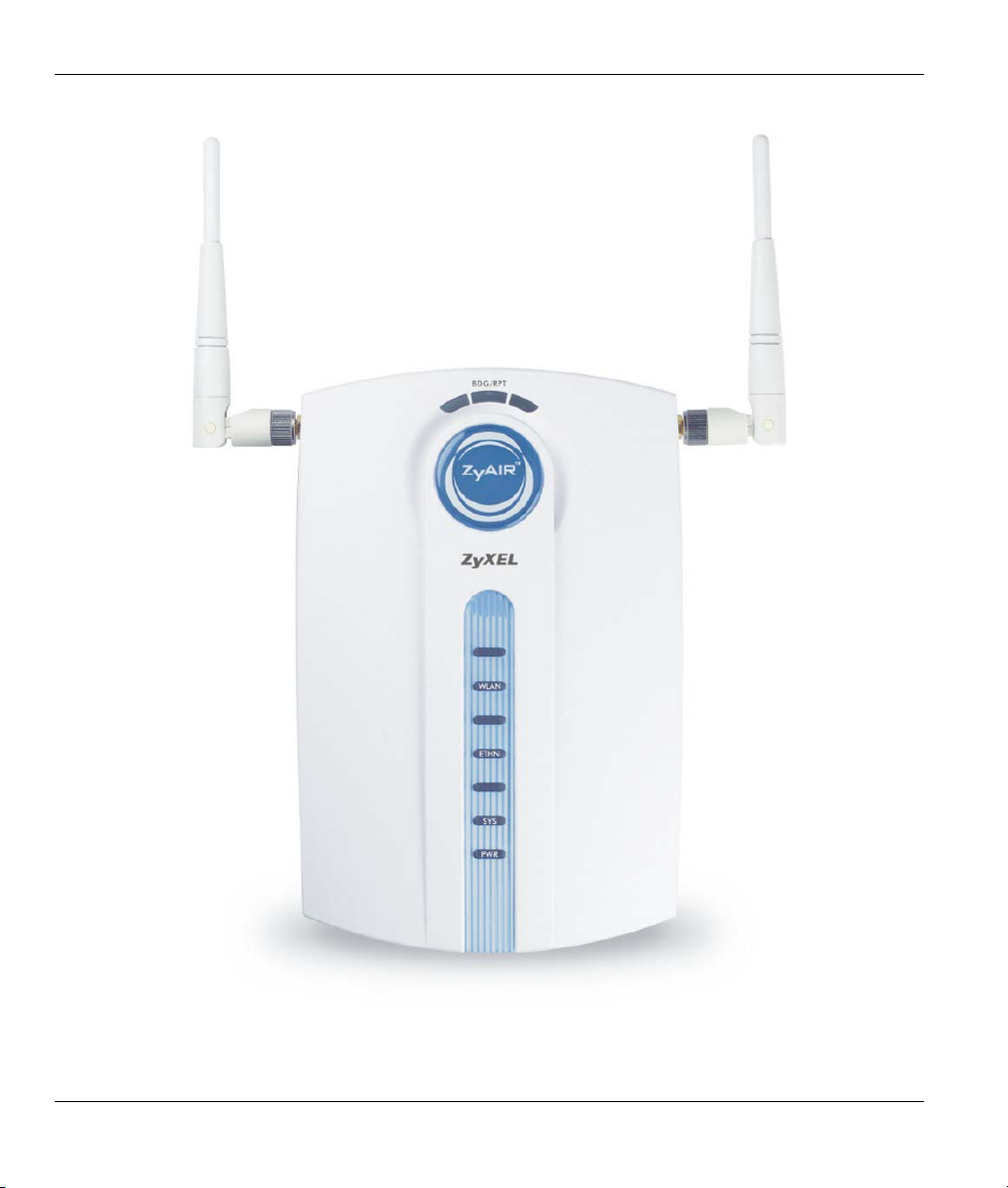

Figure 2 ZyAIR Front Panel

ZyAIR G-3000 Quick Start Guide
7
Table 1 ZyAIR Front Panel LED Description
LED COLOR STATUS DESCRIPTION
Blinking The ZyAIR is not ready or is rebooting in AP+Bridge or
Bridge/Repeater mode.
Red
Off The ZyAIR has a successful reboot in AP+Bridge or
Bridge/Repeater mode.
On The ZyAIR is set up as an AP+Bridge or Bridge/Repeater.
BDG/RPT
Green
Off The ZyAIR is set up as an Access Point.
Blinking
(Breathing)
ZyAIR is sending/receiving data through the wireless LAN.
On The ZyAIR is ready, but is not sending/receiving data.
ZyAIR Blue
Off The LED has been disabled in the web configurator or SMT.
Off Neither of the WLAN interfaces is communicating successfully with
another device.
On Both or one of the WLAN interfaces is communicating successfully
with another device.
WLAN
Green
Blinking TX/RX packets are being sent through the ZyAIR.
Off The Ethernet connection is not ready, or has failed.
On The ZyAIR has a successful 10Mbps Ethernet connection.Green
Blinking The ZyAIR is sending/receiving data.
On The ZyAIR has a successful 100Mbps Ethernet connection.
ETHN
Orange
Blinking The ZyAIR is sending/receiving data.
Off The ZyAIR is not receiving power.
On The ZyAIR is receiving power.Green
Blinking The ZyAIR is receiving power but is not ready.
SYS
Orange On The ZyAIR is receiving low power.
Off The ZyAIR is not receiving power.
Green On The ZyAIR is receiving power.
PWR
Red On The ZyAIR is receiving power over the Ethernet cable.

ZyAIR G-3000 Quick Start Guide
8
To access the ZyAIR, configure your computer’s IP address and subnet mask to be in the same range as the
ZyAIR’s.
The default IP address of the ZyAIR is 192.168.1.2.
3 Set Up Your Computer’s IP Address
Skip this section if your computer’s IP address is already in the range of
192.168.1.3 ~ 192.168.1.254 with subnet mask 255.255.255.0.
Your computer must have a network card and TCP/IP installed. TCP/IP should already be installed on
computers using Windows NT/2000/XP, Macintosh OS 7 and later operating systems. Refer to the Setting
Up Your Computer’s IP Address appendix for other operating systems.
3.1 Windows 2000/NT/XP
The following example figures use the default Windows XP GUI theme.

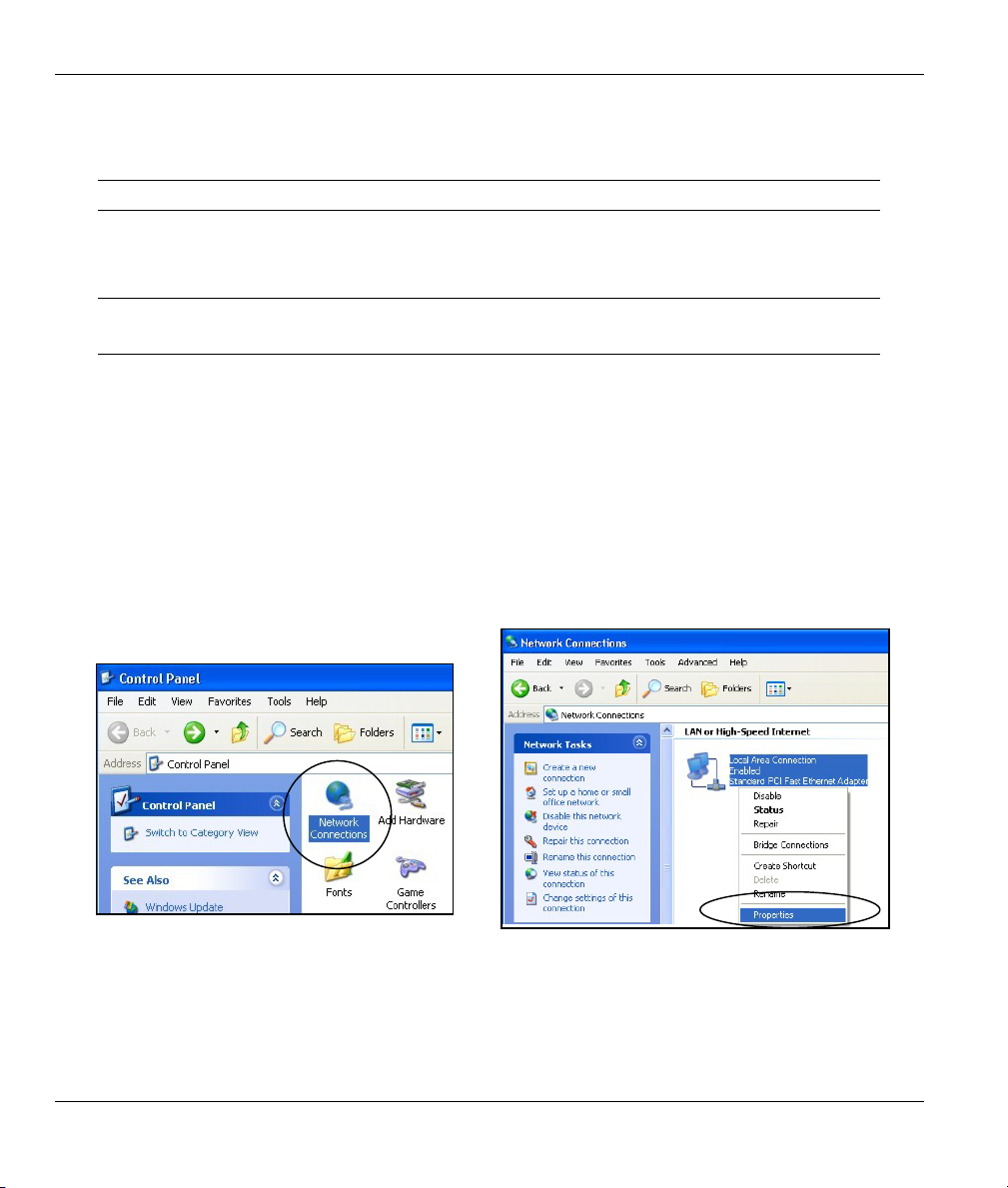

1. Click start (Start in Windows 2000/NT), Settings, Control Panel.
2. In the Control Panel, double-click Network
Connections (Network and Dial-up
Connections in Windows 2000/NT).
Figure 3 Control Panel
3. Right-click Local Area Connection and then
Properties.
Figure 4 Network Connection

ZyAIR G-3000 Quick Start Guide
9

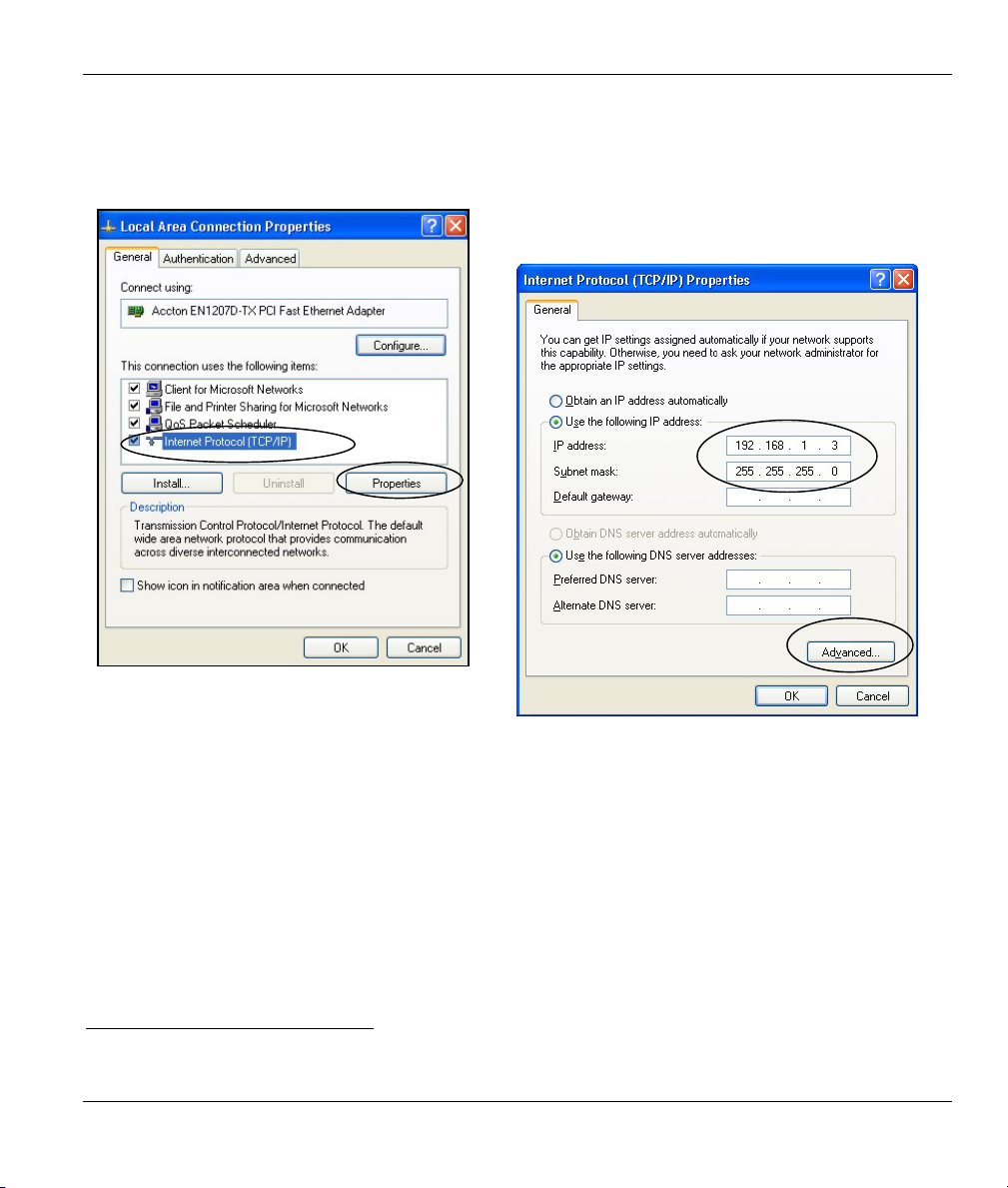

4. Select Internet Protocol (TCP/IP) and then
click Properties.
Figure 5 Local Area Connection
Properties
5. Select Use the following IP Address and fill
in an IP address (between 192.168.1.3 and
192.168.1.254).
6. Type 255.255.255.0 as the Subnet mask.
7. Click Advanced.1
Figure 6 Internet Protocol Properties
8. Remove any previously installed gateways in the IP Settings tab and click OK to go back to the
Internet Protocol TCP/IP Properties screen.
1See the appendices for information on configuring DNS server addresses.

ZyAIR G-3000 Quick Start Guide
10

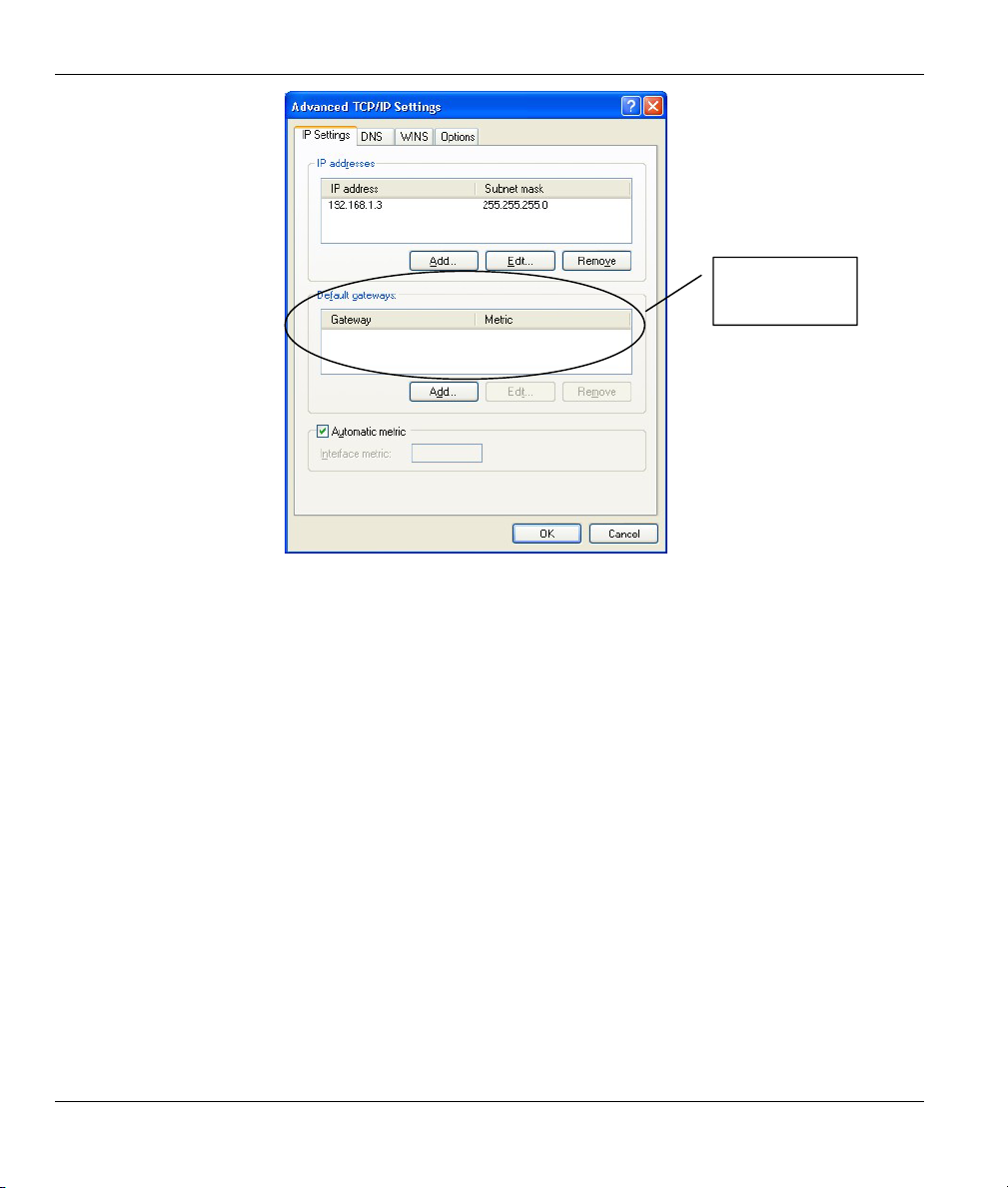

Figure 7 Advanced TCP/IP Settings
9. Click OK to close the Internet Protocol (TCP/IP) Properties window.
10.Click Close (OK in Windows 2000/NT) to close the Local Area Connection Properties window.
11.Close the Network Connections window (Network and Dial-up Connections in Windows 2000/NT).
3.2 Checking/Updating Your Computer’s IP Address
1. In the computer, click Start, (All) Programs, Accessories and then Command Prompt.
2. In the Command Prompt window, type "ipconfig" and then press ENTER to verify that your
computer’s static IP address is in the correct subnet (in the range between 192.168.1.3 and 192.168.1.254
if using the default ZyAIR LAN IP address). Alternatively, to have the ZyAIR assign your computer a
new IP address (from the IP pool), make sure your ZyAIR is turned on, type "ipconfig/renew" and then
press ENTER.
3.3 Testing the Connection to the ZyAIR
1. Click Start, (All) Programs, Accessories and then Command Prompt.
2. In the Command Prompt window, type "ping 192.168.1.2” followed by a space and the IP address of
the ZyAIR (192.168.1.2 is the default).
No gateways
configured.

ZyAIR G-3000 Quick Start Guide
11
3. Press ENTER. The following screen displays.
Your computer can now communicate with the ZyAIR via the ETHERNET port.
4 Configure the ZyAIR
This Quick Start Guide introduces the ZyAIR and shows you how to use
the web configurator Wizard. See your User’s Guide for configuration
details and background information on all ZyAIR features using the SMT
(System Management Terminal) and web configurator.
4.1 Accessing the ZyAIR via the Web Configurator

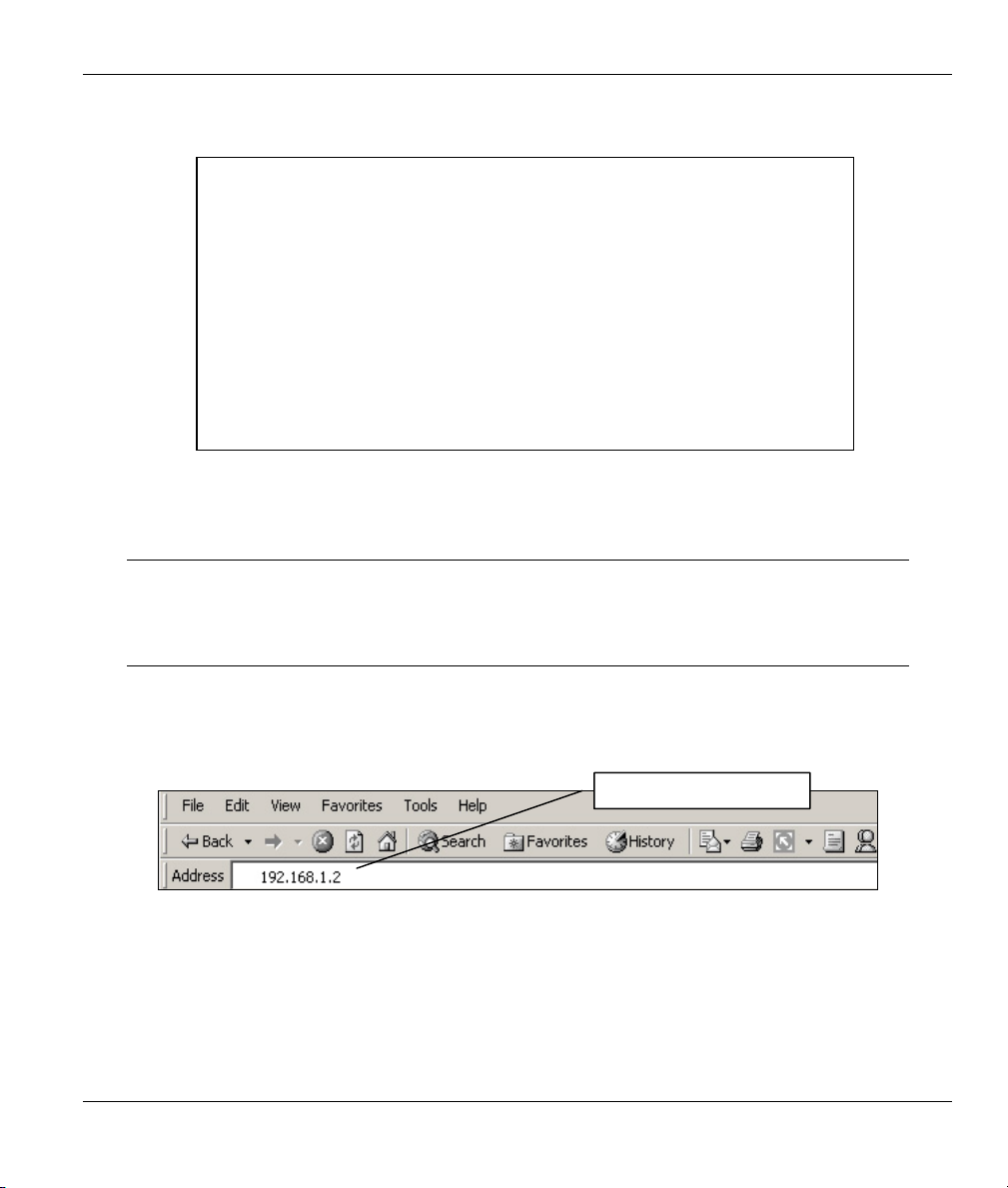

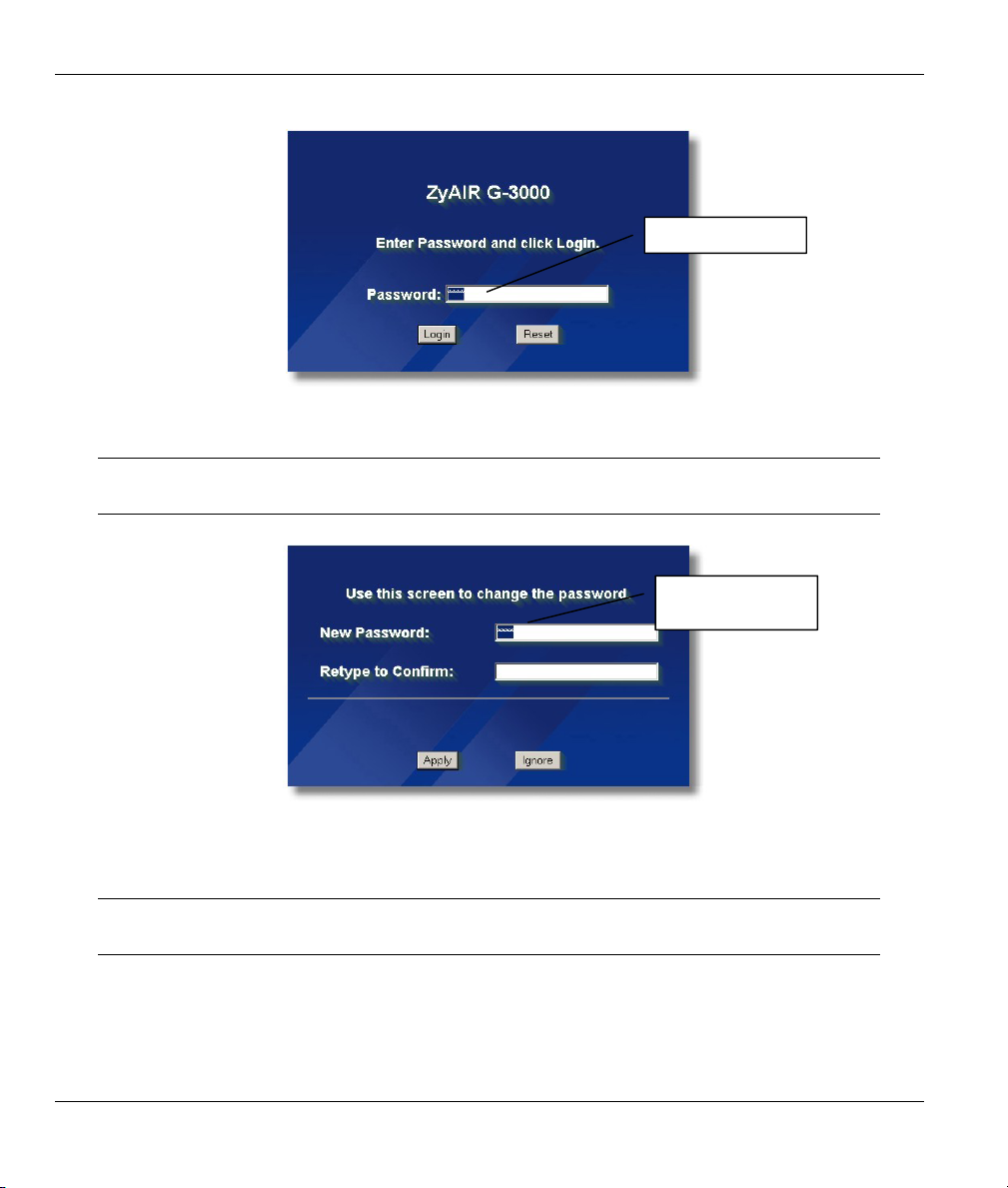

1. Launch your web browser. Enter “192.168.1.2” as the web site address.
2. The default password (“1234”) is already in the password field (in non-readable format). Click Login to
proceed to a screen asking you to change your password. Click Reset to revert to the default password in
the password field.
Default ZyAIR IP address.
C:\>ping 192.168.1.2
Pinging 192.168.1.2 with 32 bytes of data:
Reply from 192.168.1.2: bytes=32 time=10ms TTL=254
Reply from 192.168.1.2: bytes=32 time<10ms TTL=254
Reply from 192.168.1.2: bytes=32 time<10ms TTL=254
Reply from 192.168.1.2: bytes=32 time<10ms TTL=254
Ping statistics for 192.168.1.2:
Packets: Sent = 4, Received = 4, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
Minimum = 0ms, Maximum = 10ms, Average = 2ms
C:\>

ZyAIR G-3000 Quick Start Guide
12
3. It is highly recommended you change the default password! Enter a new password, retype it to confirm
and click Apply; alternatively click Ignore to proceed to the Replace Factory Default Certificate screen.
If you do not change the password, the following screen appears every
time you login.
4. Click Apply in the Replace Factory Default Certificate screen to create a certificate using your
ZyAIR’s MAC address that will be specific to this device; alternatively click Ignore to proceed to the
MAIN MENU screen if you do not want to change the certificate now.
If you do not replace the default certificate here or in the CERTIFICATES
screen, this screen displays every time you access the web configurator.
Default password.
Change default
password.

ZyAIR G-3000 Quick Start Guide
13

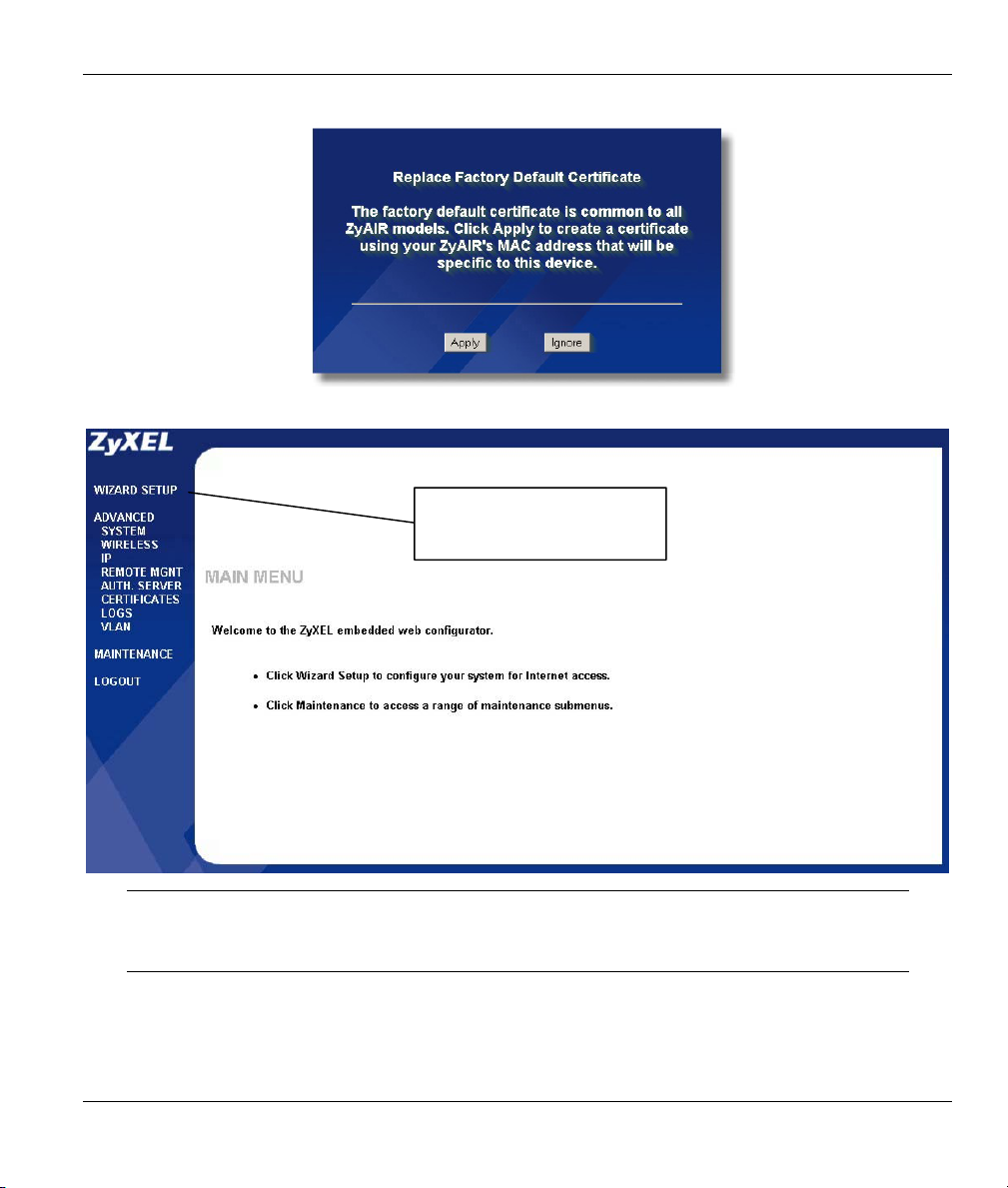

5. You should now see the web configurator MAIN MENU screen.
The management session automatically times out when the time period
set in the Administrator Inactivity Timer field expires (default five minutes).
Simply log back into the ZyAIR if this happens to you.
4.2 Common Screen Command Buttons
The following table shows common command buttons found on many web configurator screens.
Click WIZARD SETUP to help
you configure your ZyAIR to
set up a wireless network.

ZyAIR G-3000 Quick Start Guide
14
Back Click Back to return to the previous screen.
Apply Click Apply to save your changes back to the ZyAIR.
Reset Click Reset to begin configuring this screen afresh.
5 Configuring the ZyAIR Using the Wizard
The wizard consists of a series of screens to help you configure your ZyAIR for wireless stations to access
your wired LAN. Refer to your User’s Guide for more background information.

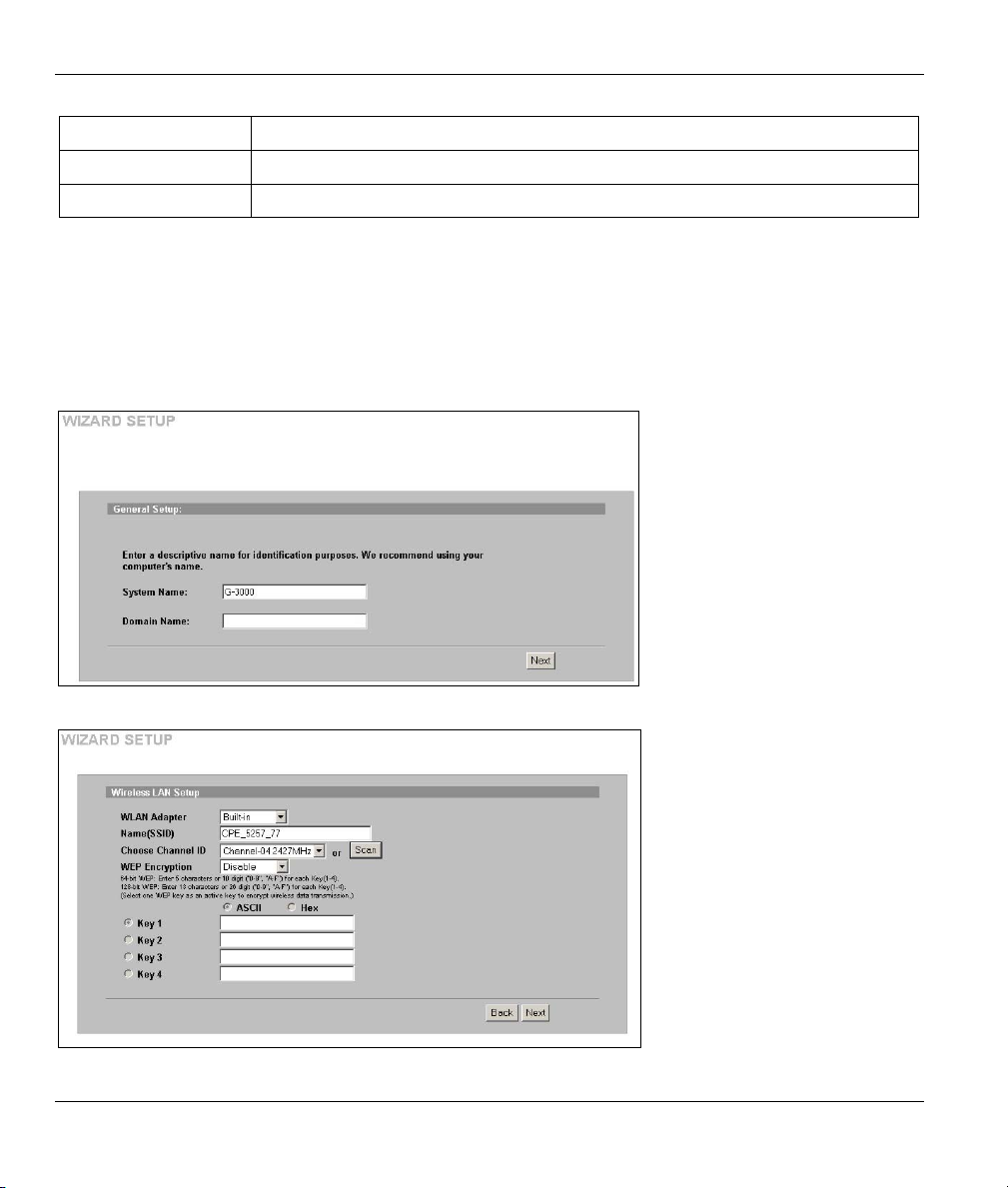

1. Click WIZARD SETUP in the main menu to display the first wizard screen shown next.
System Name is a unique name
to identify the ZyAIR. Enter a
descriptive name.
Enter a Domain Name if your
ISP requires a domain name for
authentication; otherwise leave it
blank. Click Next to continue
2. Use the second wizard screen to set up the wireless LAN.
The WLAN Adapter field is only
available when you have an
external wireless card inserted in
the ZyAIR. Select Built-in to use
the internal WLAN card.
Name (SSID) is a unique name
to identify the ZyAIR in the
wireless LAN. Enter a descriptive
name.
A channel is the range of radio
frequencies used by IEEE
802.11b and 802.11g wireless
devices.
Click Scan to have the ZyAIR
automatically select a channel.
The selected channel
automatically appears in the
Channel ID field.

ZyAIR G-3000 Quick Start Guide
15
WEP (Wired Equivalent Privacy) encrypts data frames before transmitting over the wireless network. Select either 64-
bit or 128-bit from the WEP Encryption drop-down list box to activate WEP encryption. Select Disable to turn off
WEP data encryption.
Select ASCII or HEX WEP key input method and then follow the on-screen instructions to set up the WEP keys.
Click Next to continue.
The wireless stations and ZyAIR must use the same Name (SSID), channel
ID and WEP encryption key (if WEP is enabled) for wireless
communication.

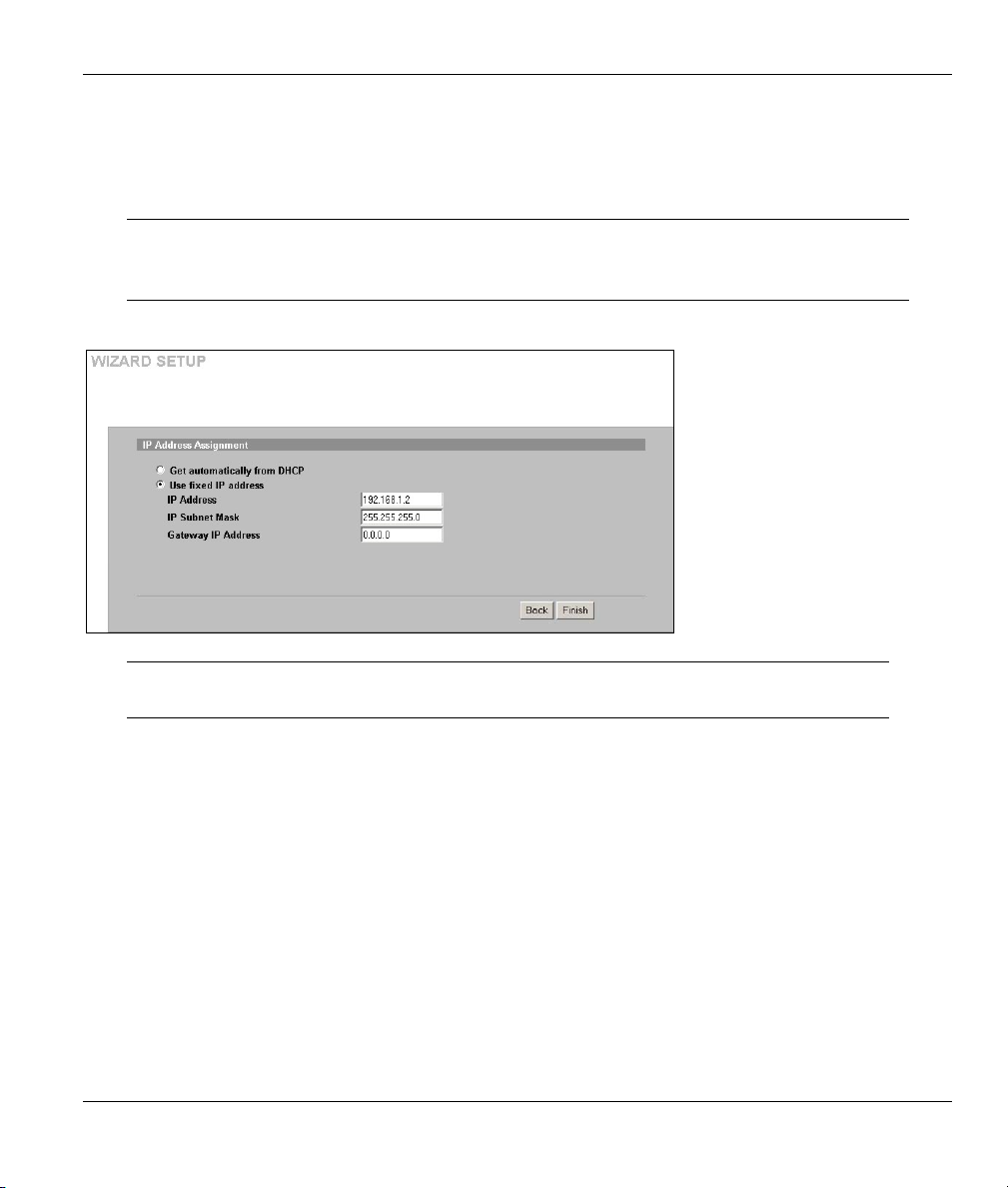

3. Fill in the fields in the last wizard configuration screen.
Select Get automatically from
DHCP to have the ZyAIR obtain
an IP address from a DHCP
server.
You must know the IP address
assigned to the ZyAIR (by the
DHCP server) to access the
ZyAIR again.
Select Use fixed IP address to
give the ZyAIR a fixed, unique IP
address. Enter a subnet mask
appropriate to your network and
the gateway IP address if
applicable.
Click Finish.
If you change the ZyAIR’s IP address, you must use the new IP address
if you want to access the web configurator again.
Change the wireless parameter settings in the wireless stations to match those of the ZyAIR. Refer to the
User’s Guide for your wireless adapter.

ZyAIR G-3000 Quick Start Guide
16

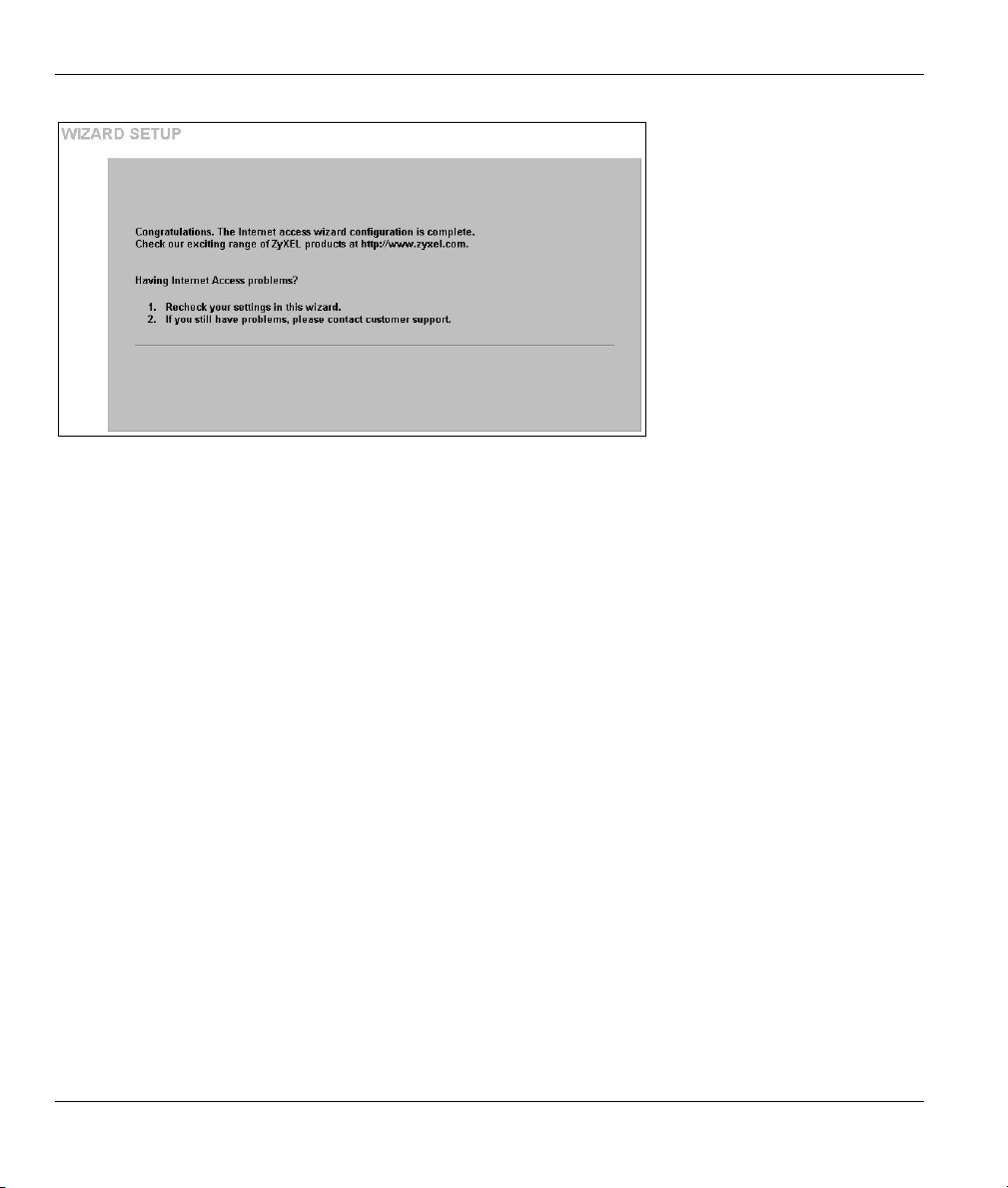

This is the final wizard screen.
You may return to the Main
Menu and continue to configure
your ZyAIR.

ZyAIR G-3000 Quick Start Guide
17
6 Hardware Installation
6.1 Attaching Antennas
Follow the steps below to connect the supplied antennas.
1. Locate the antenna connectors on the sides of your ZyAIR.
2. Screw the antennas clockwise onto the antenna connectors. The antennas should be perpendicular
to the ground and parallel to each other.
Make sure the antennas are securely screwed onto the antenna
connectors.

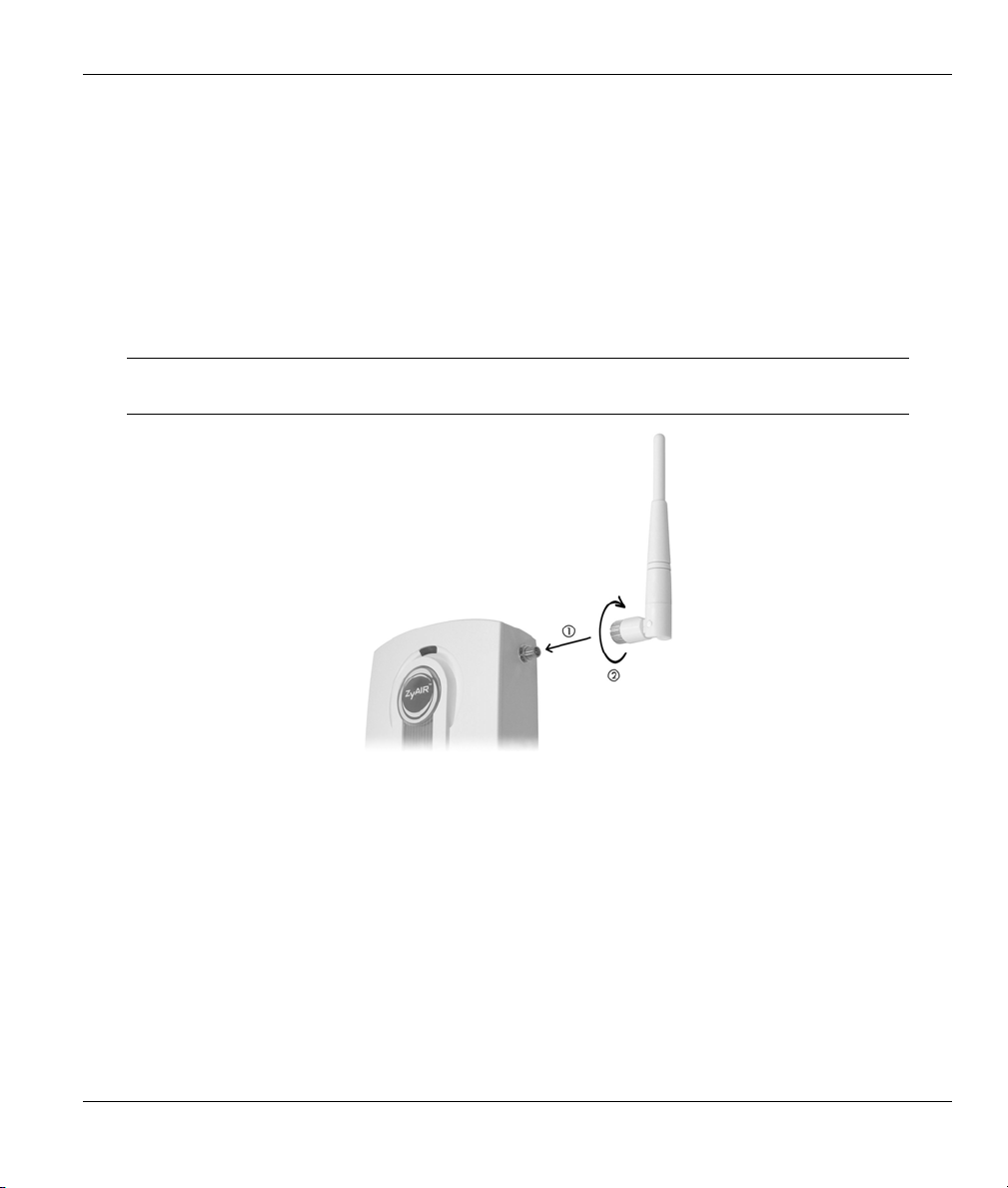

Figure 8 Attaching Antennas
6.2 Hardware Mounting Installation
In general, the best location for the access point is at the center of your intended wireless coverage area. For
better performance, mount the ZyAIR high up free of obstructions.
Free-standing
Place your ZyAIR on a flat, level surface (on a desk or shelf) that is strong enough to support the weight of
the ZyAIR with connection cables.
Follow the steps to position your ZyAIR on a level surface. You can use the diagrams below for
instructions on how to do this.

ZyAIR G-3000 Quick Start Guide
18
1. Connect the screw (included) to the support holder.
2. Connect the support holder to the ZyAIR but do not tighten the screw.
3. Twist the support holder to the side.
4. Run the connection wires through the gap in the support holder

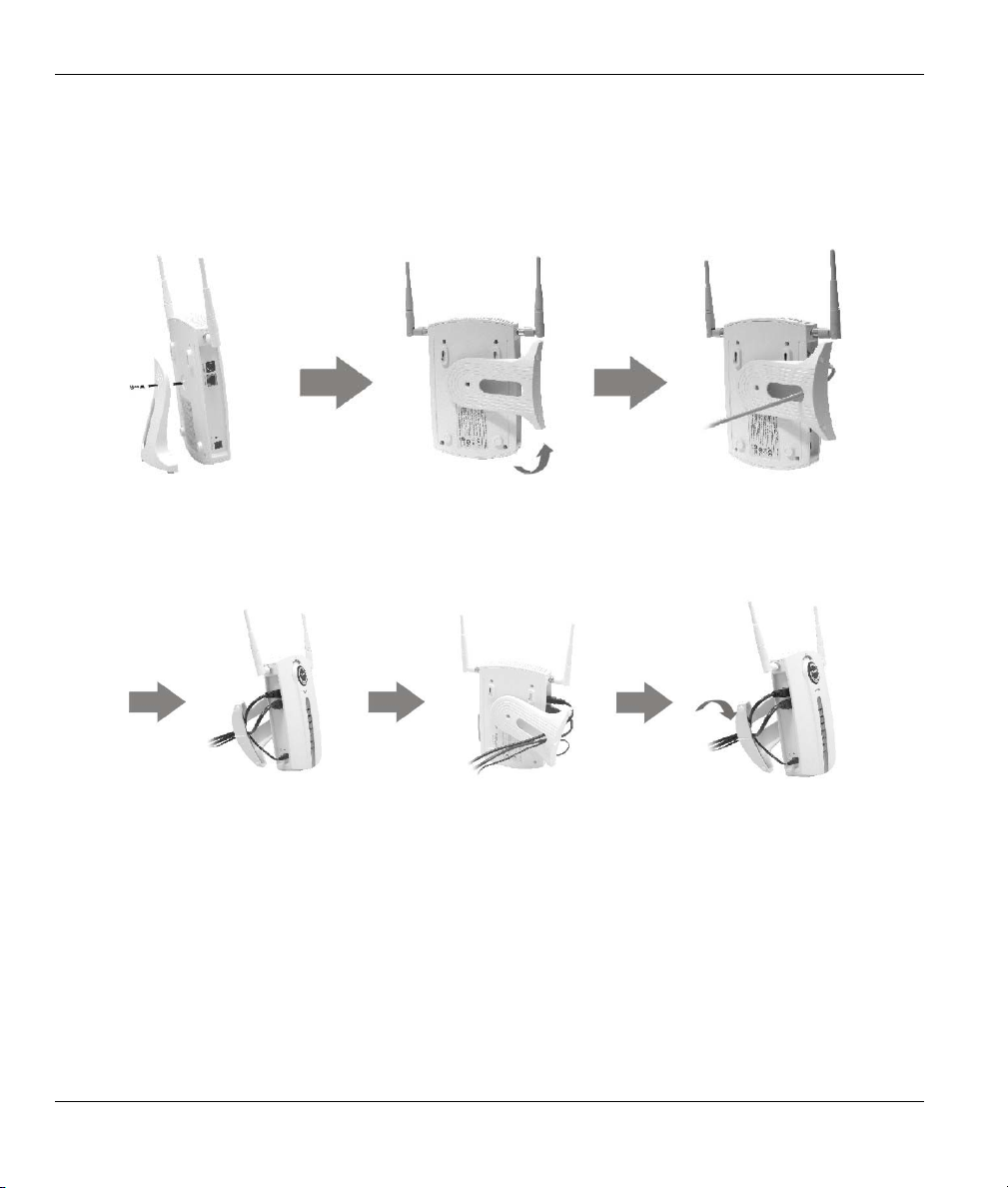

Figure 9 Support Holder Connections
5. Twist the support holder back to the vertical position and tighten the screw that connects the
support holder to the ZyAIR.
Figure 10 Support Holder Connection Pass Through
Wall-mounted
Follow the steps to attach your ZyAIR to a wall.
1. Locate a high position on the wall that is free of obstructions.
2. Connect two screws (not included) in the wall 80mm apart. You can use the diagram at the end of
this guide to help you mark the screw holes correctly. Use screws with 6mm ~ 8mm (0.24" ~
0.31") wide heads.

ZyAIR G-3000 Quick Start Guide
19
Make sure the screws are securely fixed to the wall and strong enough to
hold the weight of the ZyAIR with the connection cables.
3. Adjust the cables.
4. Align the holes on the back of the ZyAIR with the screws on the wall. Hang the ZyAIR on the
screws.

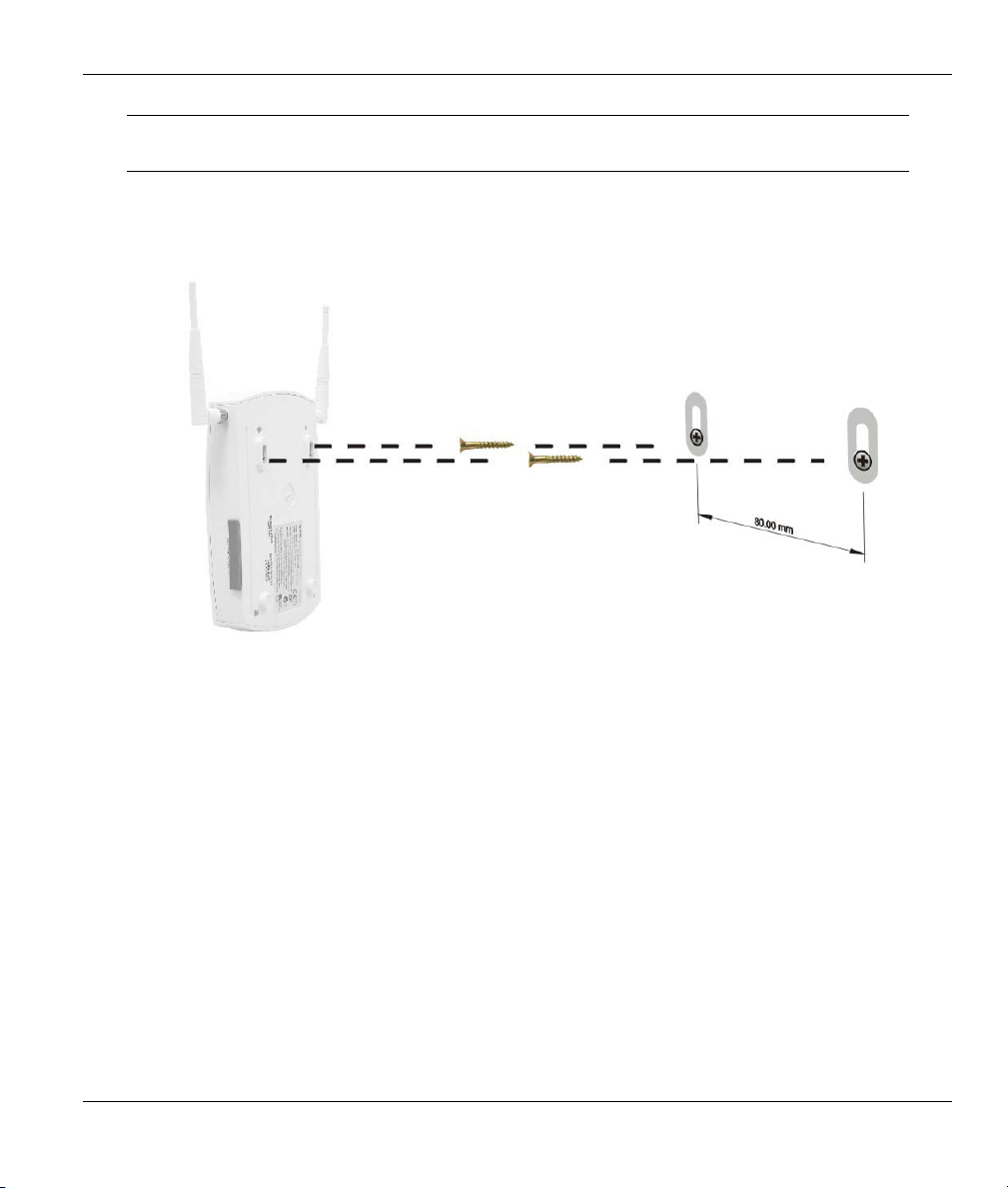

Figure 11 Wall Mounting the ZyAIR

ZyAIR G-3000 Quick Start Guide
20
7 Troubleshooting
Make sure you are using the correct power adaptor and the power adaptor is plugged into an appropriate
power supply.
PROBLEM CORRECTIVE ACTION
The PWR LED is
off.
Make sure you are using the correct power adaptor and the power adaptor is
plugged into an appropriate power supply.
Unplug the power adaptor and plug it in again. If the error persists you should
contact your vendor.
The BDG/RPT
LED is off.
If the LED is off then maybe the ZyAIR is set up to communicate in Access Point
mode and is not in AP+Bridge mode or Bridge/Repeater mode.
Make sure that the access point and the associated computers are turned on and
working properly.
Move your computer closer to the access point or the peer computer(s) within the
transmission range.
The ZyAIR LED
is off.
Unplug the power adaptor and plug it in again. If the error persists, you may have a
hardware problem. In this case, you should contact your vendor.
Make sure that the access point and the associated computers are turned on and
working properly.
Move your computer closer to the access point or the peer computer(s) within the
transmission range.
The WLAN LED
is off.
There is too much radio interference (for example microwave or another access
point) around your wireless network. Relocate or reduce the radio interference.
Optimize the performance of the WLAN by ensuring that the distance between
access points is not too far. In most buildings, most WLAN adapters operate within a
range of 100 ~ 300 feet, depending on the thickness and structure of the walls.
Radio waves can pass through walls and glass but not metal. If there is interference
in transmitting through a wall, it may be that the wall has reinforcing metal in its
structure. Install another access point to circumvent this problem.
Floors usually have metal girders and metal reinforcing struts that interfere with
WLAN transmission.
The ETHN LED is
off.
Check the wired connection between the ZyAIR ETHERNET port and your computer
or hub.
Make sure your computer’s network card is working properly.
