2SAN ADR-7104 User manual

Quick Installation Guide
Version 1.0
Copyright © 2007 2SAN INC.
Release: September 2007
Digital Video Recorder
ADR-7104

Copyright and Trademark
The information of the product in this quick guide is subject to change without prior notice and does
not represent a commitment on the part of vendor, who assumes no liability or responsibility for any
errors that may appear in this quick guide.
2SAN is the trademark of 2SAN Inc. Windows is the trademark of Microsoft Corporation. All brands
and trademarks are the properties of their respective owners.
This quick guide contains materials protected under International Copyright Laws. All rights
reserved. No part of this quick guide may be reproduced, transmitted or transcribed without the
written consent of the manufacturer.

WEEE Statement English
In order to cope with the increasing waste electrical and electronic equipment, reduce the use of landfill and
incinerator, and prevent the harmful matter of waste equipment from entering the environment, the European
Union (EU) has set the Directive on Waste Electrical and Electronic Equipment (WEEE) asking manufacturers
to collect, recycle and treat waste electrical and electronic equipment properly. Member nations already
established their free of charge recycle systems of WEEE before August 13, 2005. Accordingly, 2SAN has to
be responsible for recycling all products exported to Germany. You can return your 2SAN product that needs
recycling to a local collector.
WEEE Erklärung German
Mit dem Ziel die steigende Menge elektrischer und elektronischerAltgeräte zu bewältigen ohne hierzu unnötig
Mülldeponien und Verbrennungsanlagen zu belasten und um die Verschmutzung der Umwelt durch
freiwerdende Stoffe aus den Altgeräten zu vermeiden, hat die Europäische Union (EU) die Richtlinie über
Elektro- und Elektronik-Altgeräte erlassen. Die Richtlinie verpflichtet Hersteller, elektrische und elektronische
Altgeräte umweltgerecht einzusammeln, zu recyceln und zu entsorgen. Die Mitgliedsstaaten der EU haben
bereits ihre kostenfreien Recyclesysteme konform der WEEE vor dem 13. August 2005 eingerichtet.
Entsprechend der Richtlinie ist 2SAN verantwortlich für die umweltgerechte Entsorgung aller nach
Deutschland exportierten 2SAN Produkte. Sie können Ihr zu entsorgendes 2SAN Produkt zu Ihrer örtlichen
Sammelstelle bringen.
AEEAverklaring Dutch
Met het doel de stijgende hoeveelheid afgedankte elektrische en elektronische apparatuur te beheersen
zonder hiervoor onnodig stortplaatsen en verbrandingsovens te belasten en om de vervuiling van het milieu
door vrijkomende stoffen uit de afgedankte apparatuur te voorkomen, heeft de Europese Unie (EU) de richtlijn
betreffende afgedankte elektrische en elektronische apparatuur besloten. Deze richtlijn verplicht fabrikanten
afgedankte elektrische en elektronische apparatuur in te zamelen, te recyclen en te verwijderen. De lidstaten
van de EU hebben reeds de kosteloze recyclesystemen volgens de AEEAvóór de 13 augustus 2005 ingericht.
Conform de richtlijn is 2SAN verantwoordelijk voor de verwijdering van alle naar Nederland geëxporteerde
2SAN producten. U kunt uw afgedankt 2SAN product naar uw locale inzamelplaats brengen.
Elektrik ve Elektronik Madde AtıklarıDemeci Turkish
Elektrik ve electronik madde atıklarının yukselmesiyle basedebilmek ,arazi doldurma ve cop yakma fırını
kullanımınıazaltmak,atık madde zararlarının cevreye yayılmasınıonlemek icin Avrupa Birligi
(AB),ureticilerden elektrik ve elektronik madde atıklarınıgerektigi gibi toplamalarını,geri donusturmelerini ve
kimyasal isleme tabi tutmalarınıtalep etmek icin Elektrik ve Elektronik Madde Atıklarıuzerine bir direktif
hazırladı.Topluluk uyeleri,13 Agustos 2005' ten once elektrik ve elektronik madde atıklarının ucretsiz geri
donusum sistemlerini coktan olusturmuslardı.Bundan dolayı, 2SAN, Almanya'ya ihrac ettigi butun urunlerin
geri donusumunden sorumludur. 2SAN urunleri geri donusum gerektirirse yerel toplayıcılara geri
verebilirsiniz.

WEEE бюлетень Russian
Чтобы справиться сувеличивающимся ненужным электрическим иэлектронным
оборудованием, уменьшите использование закапывания мусора ииспользования установки
для сжигания отходов, препятствуйте вредному выбросам загрязнять окружающую среду,
Европейский союз (ЕС)установил Директиву по Ненужному Электрическому и
Электронному Оборудованию (WEEE) для того, чтобы изготовителей собрали,
перерабатывали ивообще проявили внимание кненужному электрическому иэлектронному
оборудованию должным образом. Члены нации установили бесплатную систему переработки
WEEE до 13 августа 2005. Соответственно, 2SAN обязан быть ответственным за то, что
переработал все продукты, экспортируемые вГерманию. Вы можете возвратить ваш продукт
2SAN, который нуждается врециркуляции местному сборщику.
WEEE Statement French
Afin de gérer la quantité croissante de déchets électriques et électroniques, de réduire l’utilisation des
décharges et des incinérateurs et d’éviter que des déchets nocifs ne polluent l’environnement, l’Union
Européenne a publié la directive WEEE sur les déchets électriques et électroniques. Celle-ci spécifie que les
fabricants doivent collecter, recycler et traiter l’équipement électronique et électrique usagé. Depuis le 13 août
2005, les pays membres ont mis en place un système de recyclage gratuit selon le WEEE.
De ce fait, 2SAN est responsable du recyclage de tous les produits exportés vers l’Allemagne. Vous pouvez
mettre au rebut votre équipement 2SAN usagé dans votre centre local de recyclage.
Pour plus d’informations sur les lieux de mise au rebut des équipements usagés destinés au recyclage,
veuillez contacter votre mairie, votre service de traitement des déchets ménagers ou le magasin où vous avez
acheté le produit.
RAEE Spanish
Con la finalidad de reducir el incremento de residuos eléctricos y de material electrónico, reduciendo el uso
de los vertederos e incineradoras y prevenir el preocupante aumento del contacto de estos residuos con el
medio ambiente. Por este motivo la Unión Europea ha fijado la Directiva de Residuos de Aparatos Eléctricos
y Electrónicos (RAEE) solicitando a los fabricantes la recolección, reciclaje y tratamiento de ests residuos
correctamente. Los paises miembros ya han establecido su sistema de reciclaje gratuito de RAEE antes del
13 de Agosto del 2005. Por este motivo 2SAN es el responsable del reciclaje de todos los productos
exportados aAlemania. Usted puede devolver su producto 2SAN a un punto de recogida local cuando desee
reciclarlo.
DichiarazioneWEEE Italian
Per far fronte all’aumento dei residui delle apparecchiature elettriche ed elettroniche, ridurre l'uso di materiale
di riporto e degli inceneritori, ed impedire che il materiale nocivo delle apparecchiature residue entri a contatto
con l'ambiente, l’ Unione Europea (UE) ha stabilito le Direttive sui Residui delle apparecchiature Elettriche ed
Elettroniche (WEEE) chiedendo ai fornitori di raccogliere correttamente, riciclare e trattare le apparecchiature
elettriche ed elettroniche residue. Le nazioni facenti parte dell’ Unione Europea hanno già stabilito il loro
sistema gratuito di riciclaggio di questo materiale (WEEE) prima del 13 agosto 2005. Di conseguenza, 2SAN
è responsabile del riciclaggio di tutti i prodotti esportati in Germania. Potete restituire il vostro prodotto
acquistato da 2SAN che deve essere riciclato da un’ azienda specifica locale.

Table of Contents
1. PRODUCT OVERVIEW ...........................................................................................................6
2. PACKAGE CONTENTS............................................................................................................6
3. PRODUCT SPECIFICATION ..................................................................................................6
4. QUICK INSTALLATION..........................................................................................................7
5. APPEARANCE.........................................................................................................................11
6. TIME SETTING.......................................................................................................................14
7. RECORD ...................................................................................................................................15
8. PLAYBACK...............................................................................................................................15

6
1. Product Overview
Digital technology for DVR (Digital Video Recorder) represents the better recording quality, control and
functionality as well as remote viewing. Unlike PC-based DVR, 2SAN’s embedded DVR enjoys much
more benefits that contain NO software at all on the hard disks, but being installed in the flash memory
on the board. It indicates more stability and reliability.
2. Package Contents
Check the following items
 Digital Video Recorder ADR-7104
 Power Adapter
 Quick Guide
 IR Remote Controller
3. Product Specification
 Video Input：4
 Video Output：CVBS, S video & VGA (optional)
 Recording Resolution：NTSC 720 x 480 / PAL 720 x 576
 Recording Rate：30 / 25 fps (NTSC / PAL)
 Recording Mode：Manual, Motion Detection,Alarm & Schedule
 Playback Search：Time, Event & Urgent Search
 Hard Disk：2 SATA HDDs (1 hot-swappable HDD)
 User Input Device：Front panel keypad, Mouse & Remote Controller
 Archive：USB device (for instance, USB flash disk, HDD and DVD writer) & Network backup
 External Interface：e.SATA & USB

7
4. Quick Installation
Installation Steps:
Step 1. Install camera
Connect cameras to the video BNC inputs marked Video In 1~4.
Step 2. Install monitor
Connect a monitor to one of the connectors marked CVBS, S-Video or VGA (optional).
Step 3. Install SATA hard drive
 Install Hot-Swap HDD：
1. Slightly press the blue plastic tenon (joint) downward, the silver shaft will spring out.
2. Pull the silver shaft forward slightly to the end, and the hot-swap tray will slide a bit.
BNC Cable

8
3. Hold the silver shaft, and pull the whole hot-swap tray out of case.
4. Install SATA HDD into the Hot-swap tray, and use screws to tighten it.
5. Insert the hot-swap tray into the case, and push to the end.
6. Follow the direction to get silver shaft & blue tenon geared. After a “click”, DONE.

9
 Install Internal HDD：
1. Remove the cover and pull the hot-swap HDD tray out.
2. Disconnect the SATA cable & 4-pin HDD power cord.
3. Loosen the screws and take the HDD bracket out.
4. Install the HDD into the lower part of the HDD bracket and tighten it. Make sure the HDD is firmly
connected with SATA connector.
5. Put the HDD bracket back, and make sure to fasten the screws firmly.
6. Put the hot-swap HDD tray back.

10
Step 4. Install e.SATA device (optional)
1. Use ACARD e.SATA RAID Tower ANS-9050E as an example.
2. Connect the e.SATA RAID Tower to the DVR with an e.SATA cable.
Step 5. Install Power Cord.
1. Connect the power adapter to the connector marked DC-12V.
2. The DVR system will boot up and then start recording automatically.

11
5. Appearance
 Front panel
No. Name Function
1 Hot-swap HDD Tray For hot-swap HDD
2 LCD Panel Indicates the system status
3 Setup Used for quick selecting the setup menu
4  
Arrow Key Used for changing the settings or for moving the cursor
up/down/left/right.
5 ESC Back to the previous menu.
REC Shows the recording status
LOCK Lights when all buttons are locked
ALARM Lights when event occurs
NET Indication light for network
HDD Indication light for hard disk
6
POWER Shows power on/off status
7 USB Port For USB mouse use, archive, and firmware update
(REC) Record: emergency recording
（FR）Used for quick backward search in playback
 (PLAY / PAUSE) Pauses and resumes the video recording in playback
（STOP）Ends search during playback
（FF）Used for quick forward search in playback
LOCK Press to lock all buttons
FREEZE Runs the FREEZE function in live mode
SEARCH Popup the search menu to search the video
MODE Press to change different display modes
8
ROTATE The single channel mode switches according to the specified
time on the menu
9 PTZ Used for PTZ camera control
10 ? (HELP) Q & A
0 ～9 (Channel Key) Press the button to display the single channel.
F+ / F- Used for PTZ camera control: Focus In & Out.
11
Z+ / Z- Used for PTZ camera control: Zoom In & Out
○
1
○
2
○
6
○
5
○
3
○
7
○
8
○
4
○
9
○
10
○
11

12
 Rear panel
`
Video In & Loop RS485 & Alarm In / Out Power Fan
Audio In & Out Video Input Ethernet
e.SATA port
Power

13

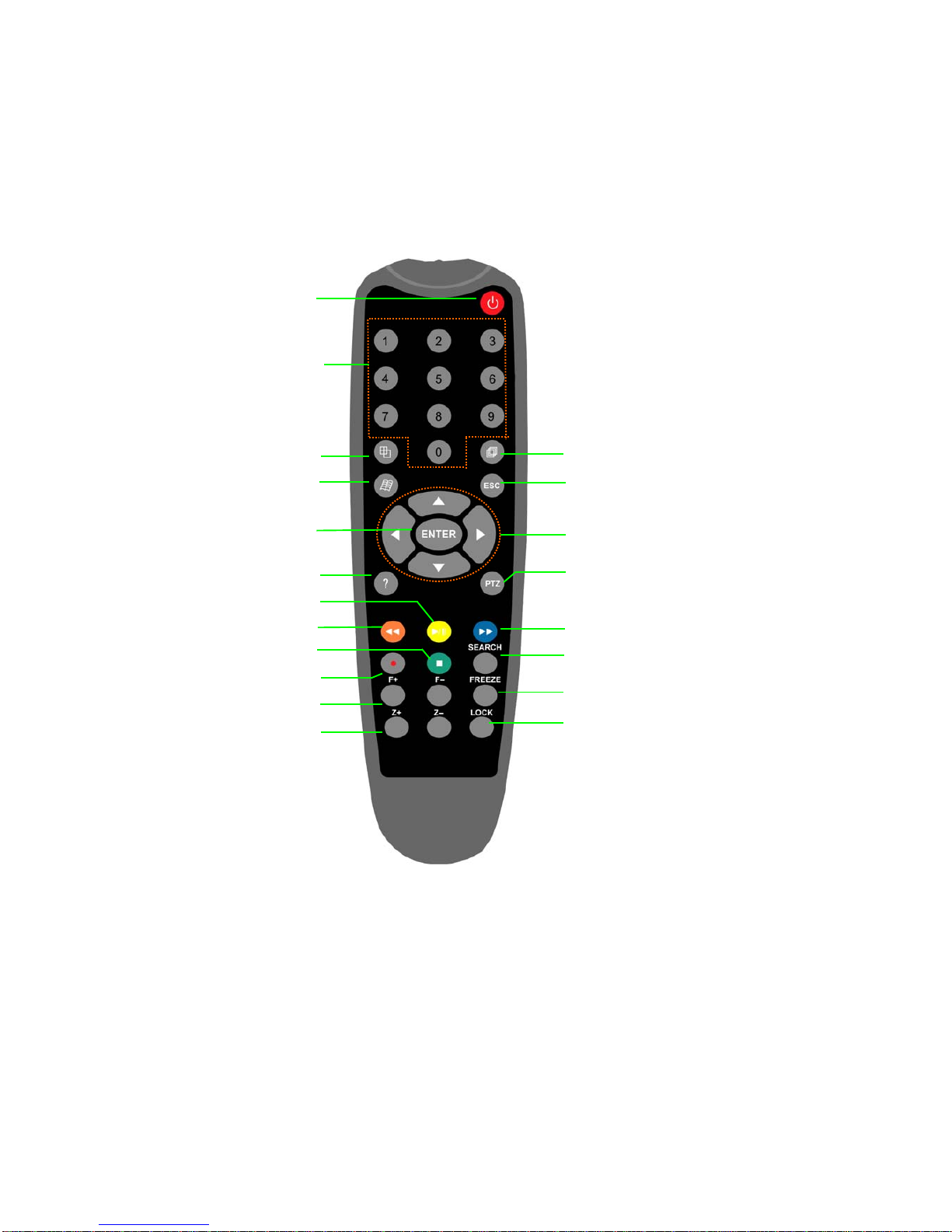

 IR Remote Controller
1. POWER
Power off.
2. CHANNEL KEY
Press the button to display
the single channel.
3. PIP
Picture in Picture function
4. SETUP
Used for quick selecting
the setup menu.
5. ENTER
Either goes to the system
menu or confirms the
settings.
6. HELP
Q & A
7. 
PLAY / PAUSE：pauses
and resumes the video
recording in playback.
8. （FR）
Used for quick backward
search in playback
9. （STOP）
Ends search during
playback.
10. （REC）
Emergency recording
11. F+ / F-
Used for PTZ camera
control：Focus In & Out
12. Z+ / Z-
Used for PTZ camera
control：Zoom In & Out
13. ROTATE
The single channel mode
switches according to the
specified time on the menu.
14. ESC
Back to the previous menu.
15.  
Used for changing the
settings or for moving the
cursor up/down/left/right.
16. PTZ
Used for PTZ camera contro
17. （FF）
Used for quick forward
search in playback.
18. SEARCH
Popup the search menu to
search history recordings.
19. FREEZE
Runs the FREEZE function
in live mode.
○
1
○
2
○
3
○
4
○
5
○
6
○
7
○
8
○
9
○
10
○
11
○
12
○
13
○
14
○
15
○
16
○
17
○
18
○
19
○
20

14

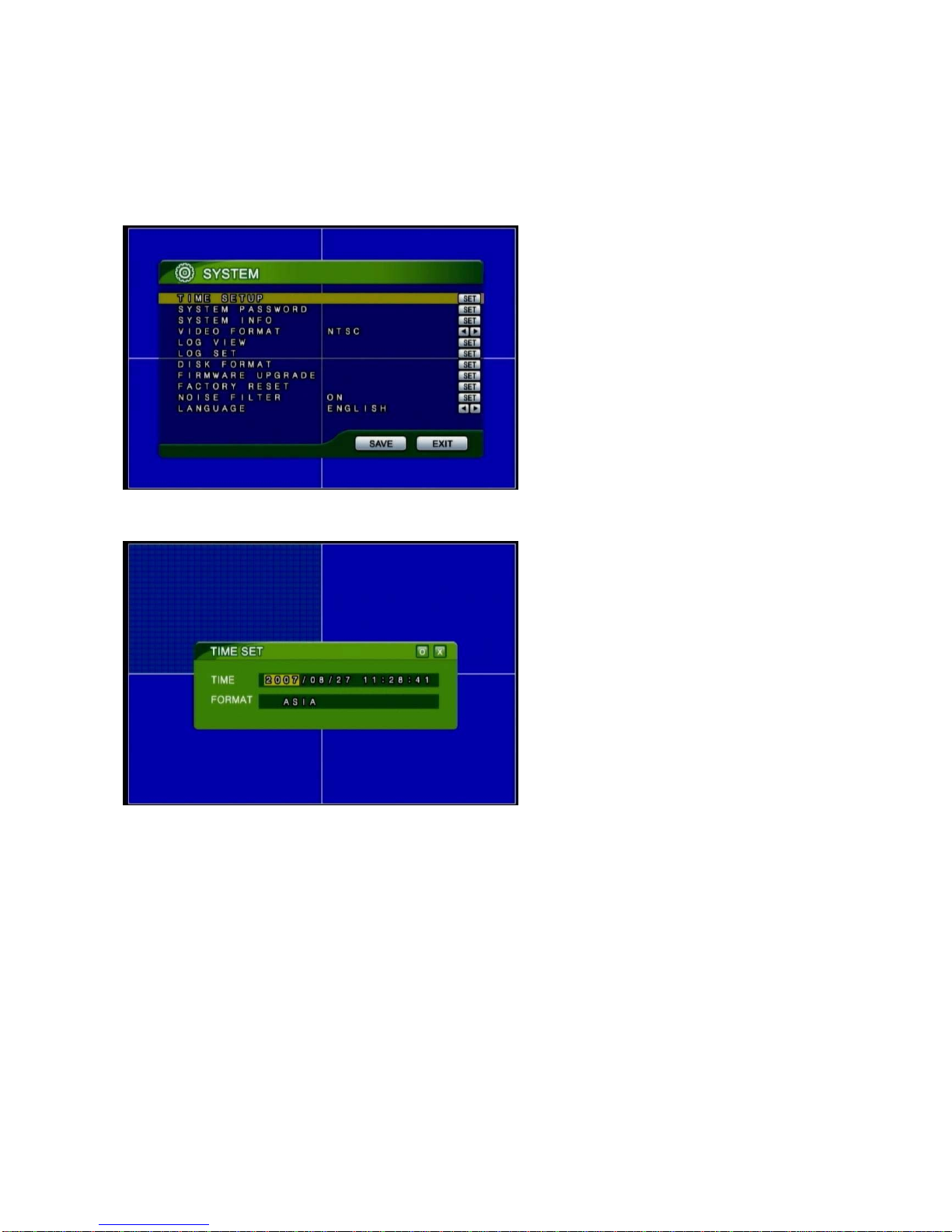

6. Time Setting
Step 1. Click SETUP on the MENU.
Step 2. Click SYSTEM.
Step 3. TIME SETUP.
(NOTE - TIME: Year / Month / Hour / Minute / Second; FORMAT:ASIA / EURO / US)

15
7. Record
Power on the DVR system to let it start recording automatically. Meanwhile, the REC LED will indicate the
recording status.

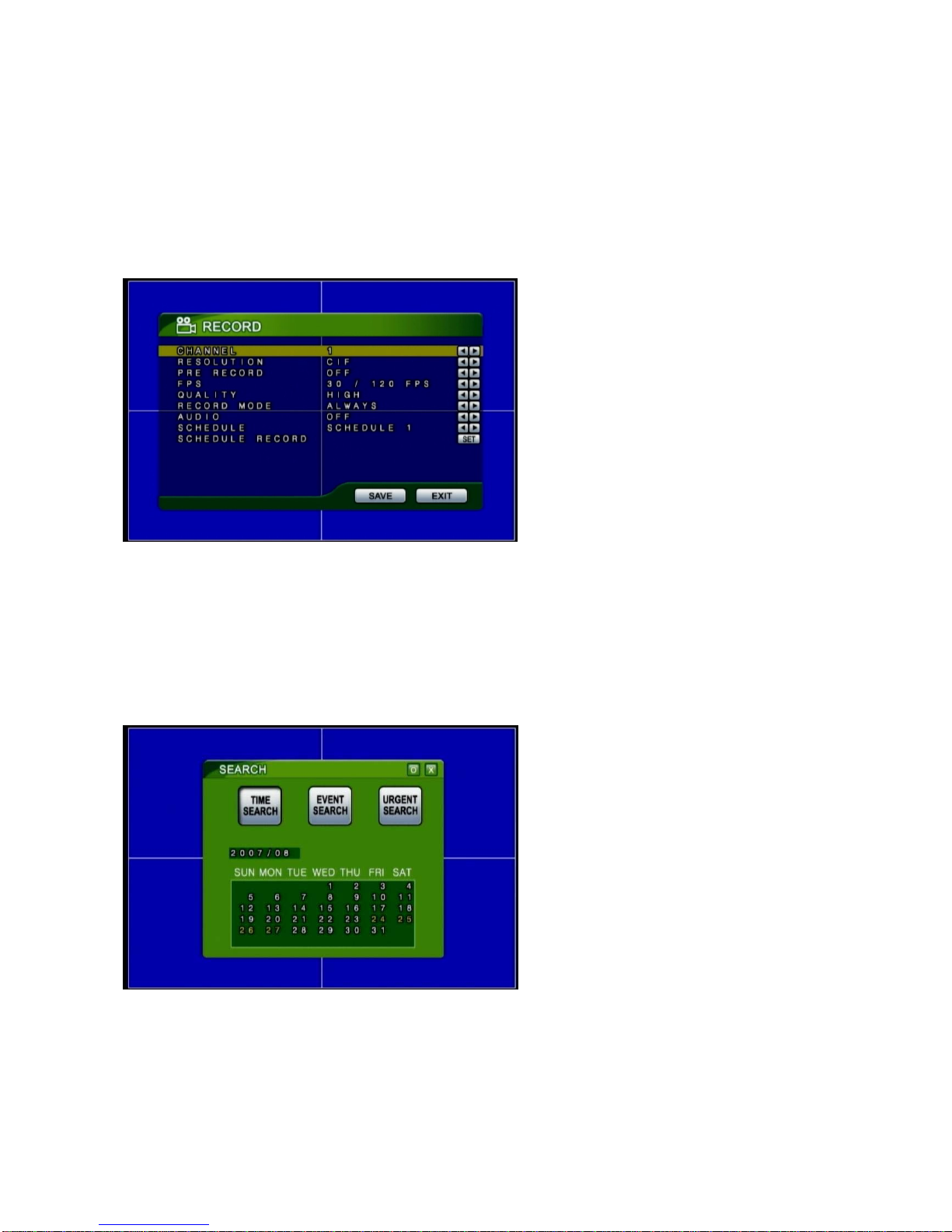

You might want to change the recording mode. Follow the instructions below:
Step 1. Click SETUP on the MENU.
Step 2. Click RECORD.
Step 3. Click RECORD MODE to choose one of the recording modes.
8. Playback
Press SEARCH button on the front panel or remote controller. The following message appears on the screen.
Choose one of the search modes, TIME SEARCH, EVENTSEARCH or URGENT SEARCH depending on the
different circumstances.
