2VV IC3-CONTROL User manual

IC3-CONTROL EN
INSTALLATION
AND OPERATION MANUAL
ver.1 11-12-2019

45
2 VV. Creating innovative solutions for you and your business since 1995.
1. BEFORE STARTING
The following symbols in the manual serve for better guidance. The following table describes the symbols and their mea-
ning.
Before beginning with the installation, read carefully the instructionsto safely and properly use the product.
Symbol Meaning
ATTENTION!
PLEASE NOTE!
YOU WILL NEED
TECHNICAL INFORMATION
Warning or Caution
Important instructions
Practical tips and information
󰀨
Detailed technical information
This manual provides instructions on how to properly install the regulator. Before installing the regulator, read carefully the entire
manual. The manufacturer reserves the right to make changes, including in the technical documentation, without prior notice. Keep
the manual in a safe place for future reference. The manual is an integral part of the product.
Declaration of conformity
The product has been designed, produced an marketed in compliance with all the applicable provisions, and abides to the provisions
                   
conditions and under the conditions laid down by the manual. The assessment was conducted pursuant to harmonized European
standards included in the relevant EC Declaration of Conformity. The current and full version of the EC Declaration of Conformity can
be found at www.2vv.cz

45
2 VV. Creating innovative solutions for you and your business since 1995.
PLEASE NOTE!
• If the product was shipped at below 0°C temperatures, let it
rest for at least 2 hours, without turning it on, so that its inner
temperature can match the surroundings.
2. UNPACKING
2.1 CONTROL THE DELIVERY
PLEASE NOTE!
• Unpack the product upon delivery and control for damages.

•            
disregarded later.
• Check that you have received the model ordered. Shou-
󰀨
unpack the unit and notify the supplier immediately.
• After unpacking, check that the product and the accessories
are in good order. Contact the supplier in case of any doubt.
• Do not attempt to commission a damaged product.
• If the product is not unpacked upon delivery, it must be sto-
red in a dry room with a temperature range of +5 °C to +40
°C.
• This product must not be used by persons (incl. minors)
󰀩-
ce or knowledge in the safe use thereof, unless they are
supervised or instructed on how to use the product by a
person responsible for their safety.
• Do no let children play with the unit.
+5 oC
+40 oC
All the packing material is
environmentally friendly and can be
reused or recycled. Please, contribute
actively to the protection of the
environment and procure the regular
disposal or recycling of packing
materials.
2.2 UNPACKING THE UNIT
Regulator IC3-C-AC
Regulator IC3-S-AC
Regulator IC-C2-EC
Regulator IC3-S-EC
1X
1X
1X
1X
4X
4X
1X
1X
1X
1X
5X
3X
1X
1X
1X
1X
14X
14X
5X
3X

67
2 VV. Creating innovative solutions for you and your business since 1995.
3. MAIN PARTS
Regulator lid
Cable glands
Connector terminal
block
Control electronics
Grounding bridge
(PE) Null bridge (N)
Source
AC module
Regulator IC3-*-AC
Regulator IC3-*-EC
Regulator lid
Cable glands
Connector terminal
block
Control electronics
Source

67
2 VV. Creating innovative solutions for you and your business since 1995.
Regulator IC3-*-EC
4. DIMENSIONS
* – Dimensions to install the regulator on a wall
* – Dimensions to install the regulator on a wall
Regulator IC3-*-AC
* *
**
*
*
239,7
87,4 260,5
239,9
210
230
B
F
E
A
C
D
A3
8
5 7
6 2 4
3 1
C
E
D
F
A
B
4
1 3
6 8
5
2
7
DATUM:
ISO 8015
ISO 1302 Ra
R
DRSNOST:
SCHVÁLIL:
ČÍSLO MATERIÁLU:
VERZE
2VV s.r.o., Poděbradská 289
CZ-530 09 PARDUBICE
002
NÁZEV
ČÍSLO
2-602-S06285
PROMÍTÁNÍ
KRESLIL:
MĚŘÍTKO
1:2
HMOTNOST ČISTÁ:
TOLEROVÁNÍ:
PŘESNOST:
DATUM:
DŮVOD ZMĚNY:
NÁZEV MATERIÁLU:
David Špráchal
16.3.2016
Josef Řezníček A
14.3.2016
ISO 2768 - mK
OE-M-AC5
-
3.68 kg
239,7
87,4 260,5
239,9
210
230
B
F
E
A
C
D
A3
8
5 7
6 2 4
3 1
C
E
D
F
A
B
4
1 3
6 8
5
2
7
DATUM:
ISO 8015
ISO 1302 Ra
R
DRSNOST:
SCHVÁLIL:
ČÍSLO MATERIÁLU:
VERZE
2VV s.r.o., Poděbradská 289
CZ-530 09 PARDUBICE
002
NÁZEV
ČÍSLO
2-602-S06285
PROMÍTÁNÍ
KRESLIL:
MĚŘÍTKO
1:2
HMOTNOST ČISTÁ:
TOLEROVÁNÍ:
PŘESNOST:
DATUM:
DŮVOD ZMĚNY:
NÁZEV MATERIÁLU:
David Špráchal
16.3.2016
Josef Řezníček A
14.3.2016
ISO 2768 - mK
OE-M-AC5
-
3.68 kg
*
*

89
2 VV. Creating innovative solutions for you and your business since 1995.
Type Supply [V/Hz] 
of AC fans [A]
Electrical protection
[IP] Weight [kg]

EC fans [pcs]
IC3-C-AC5-04
230 / 50~60 465 13,5 ---
IC3-C-AC5-07
230 / 50~60 765 15 ---
IC3-C-AC5-16
230 / 50~60 16 65 23 ---
IC3-S-AC5-04
230 / 50~60 465 13,5 ---
IC3-S-AC5-07
230 / 50~60 765 15 ---
IC3-S-AC5-16
230 / 50~60 16 65 23 ---
IC3-C-EC 115~230 / 50~60 --- 40 310
IC3-S-EC 115~230 / 50~60 --- 40 3 5
01/10 str.02
M-04.0102-01
2.5 KONTROLA
DODÁVKY
Po dodání ihned zkontrolujte zda není jednotka ani
ovladač poškozen. V případě poškození jednotku dále
nerozbalujte a závadu nahlaste dodavateli. V případě
poškození obalu přizvěte dopravce. Zkontrolujte zda
souhlasí Vámi objednaný typ jednotky s dodaným. Typový
štítek je umístěn na boku skříně regulátoru. Dálkový
ovladač s 5m komunikačním kabelem je umístěn v
jednotce.
Součástí dodávky řídicí jednotky jsou:
o regulátor
o dálkový ovladač s kabelem
o návod
Nebude-li reklamace uplatněna včas, nelze případné
nároky uplatnit v budoucnosti.
2.6 VYBALENÍ Vyjměte regulátor z obalu a pootočením šroubů ji otevřete.
Uvnitř naleznete dálkový ovladač a návod k použití, který uschovejte.
Všechny použité obalové materiály jsou ekologické a lze je znovu použít nebo recyklovat.
Přispějte aktivně k ochraně životního prostředí a dbejte na správnou likvidaci a znovu zhodnocení obalových materiálů.
3 INSTALACE
Montáž a hlavně zapojení řídicí jednotky může provést pouze proškolená osoba s příslušným oprávněním pro
zapojování elektrických zařízení, která má k dispozici vhodné nářadí a prostředky. Při montáži je nutné
dodržovat veškeré pokyny a doporučení uvedené v tomto návodu.
3.1 MONTÁŽ DO
PRACOVNÍ POLOHY
Regulátor a ovladač se instaluje na stěnu nebo přímo na
ovládané zařízení ve svislé nebo vodorovné poloze.
Regulátor musí být instalován tak, aby mohl okolo proudit
vzduch a nedocházelo k jeho přehřívání.
Dodržujte minimální doporučené odstupové vzdálenosti.
Regulátor i dálkový ovladač musejí být instalovány tak,
aby k nim byl dostatečný přístup v případě údržby, servisu
nebo demontáže.
Regulátor a dálkový ovladač se připevňují pomocí vrutů a
hmoždinek na zeď a nebo pomocí šroubů přímo na plášť
clony.
Do vzdálenosti 100 mm od regulátoru jednotky se nesmí
nacházet žádné hořlavé hmoty.
Minimální vzdálenost od stavební konstrukce
min.
100 mm
min.
100 mm
3.2 PŘIPOJENÍ
ELEKTROINSTALACE
Regulátor a dálkový ovladač musejí být vždy před jakýmkoliv zásahem odpojeny od hlavního přívodu el. energie.
Při zapojení řídicí jednotky musí být dodrženy pokyny uvedené v tomto návodu a příslušné národní předpisy a směrnice.
Všechny fáze elektrického přívodu do regulátoru musí být připojeny přes ochranný výkonový jistič odpovídajícího
proudu a typu.
Vzdálenost mezi rozpojenými kontakty musí být větší než 3 mm.
Jmenovité hodnoty elektrických parametrů jednotky jsou uvedeny na výrobním štítku.
Dálkový ovladač se připojí k regulátoru pomocí přiloženého komunikačního kabelu.
Hlavní přívod el. energie, spínané prvky a příslušenství se připojí dle schéma zapojení.
Pokud není regulátor dostatečně dimenzován pro ovládané zařízení, je možné zařízení ovládat pomocí většího
množství regulátorů propojených datovým kabelem řetězení.
Řetězení lze použít např. pro připojení přívodního a odvodního ventilátoru.
Při řetězení však nelze připojit jeden ventilátor na dvě řídicí jednotky!
Připojené ventilátory nesmí překročit jmenovitou hodnotu proudu řídicí jednotky!
Jakékoliv zásahy a změny ve vnitřním zapojení řídicí jednotky nejsou povoleny a vedou ke ztrátě záruky.
Regulátor je vybaven tavnou pojistkou, která je přístupná po odmontování víka skříně regulátoru.
V případě požáru je nutné zařízení hasit práškovým nebo CO2 hasícím přístrojem.
min.
500 mm
5. TECHNICAL PARAMETERS
6. INSTALLATION
6.1 CHOOSING THE PLACE
The installation and main connection may be done only by a trained person with the appropriate qualicati-
ons, who has adequate tools and means. During the installation, observe all the instructions and recommen-
dations in this manual.
TECHNICAL INFORMATION
The regulator must be operated in a place with the appropriate IP protection.
6.2 INSTALLATION
The regulator is installed on a wall, in a vertical position

Observe the minimum recommended distances.
The regulator must be installed allowing adequate access in case of maintenance, service or disassembly.



89
2 VV. Creating innovative solutions for you and your business since 1995.
TECHNICAL INFORMATION

1. 2.
6.3.ELECTRIC INSTALLATION AND WIRING
ATTENTION!
• The regulator must be disconnected from the main supply before any intervention.
• The installation might be done only by a professional with qualications in electricity.
• The manual must observed, together with the laws and regulations applicable in the country.
• The unit must be connected to the main power source with an isolated cable with a heat resistance in compliance with
the diameter and the applicable laws and regulations of the country.
• All the phases of the power supply must be connected through circuit breakers of appropriate current and type.
• The distance between open contacts must be greater than 3 mm.
• The rated values of the electrical parameters of the unit are found on the nameplate.
• The main supply, the switching components and accessories must be connected according the wiring diagram.
• 
• Alterations of the internal wiring of the unit are not permitted and will result in the loss of warranty.
• 
• The regulator must be connected in a way that it can be disconnected from the power supply with one piece.
Recommended breakers:
Table of minimum sizes of breakers according to the model of the regulator

only.
AC-C
IC3-C-AC5-04 6A
IC3-C-AC5-07 10A
IC3-C-AC5-16 20A
• 
• To keep the IP protection, use screws and the supplied
washers
• Drill
• 4 screws
• 4 wall plugs
• 4 sealing washers (included)
The regulator must be installed as shown in the gures, with
the cable glands downwards.
Connection of the control
* Recommended UTP CAT5 data cable (twisted pair)
1. 2. 3. 4.
5. 6.
CANL (30) CANH (29) +12V (27) GND (28)
AC-S
IC3-S-AC5-04 6A
IC3-S-AC5-07 10A
IC3-S-AC5-16 20A
EC
IC3-C-EC 2A
IC3-S-EC 2A
6. INSTALLATION

10 11
2 VV. Creating innovative solutions for you and your business since 1995.
IC3-C-AC
7 8 9 10
Run Error
contact
11 12
Watter
pump
13 14
Door
contact
15 16
Room
thermostat
17 18

NIGHT
REDUCTION
63
25
A
AB BGND
GND
66
66
64
26
20
20
L-in
L-in
L-out
L-out
63
CANH
A
CANL
GND
+12V
B A B
+12V
GND
6465 66
2
1
2
1
ON
ON
SLAVE UNIT
MODBUS
RTU
6. INSTALLATION
LL-Fan Heat-1 Heat-2 N
TK
+24GND TK
0-10V
+
Heat
RJ45 - Ethernet,
Modbus TCP,
BACnet

10 11
2 VV. Creating innovative solutions for you and your business since 1995.
IC3-S-AC
79
24 23 22
11
810 8
Door
contact
5 6
Room
thermostat
17 18

control
2
1
2
1
Recommended
Alarm Heater
wiring
Safety
Thermostat
overheat
Thermostat
overheat
Thermostat L
N
osazovat ažna lince
osazovat
ažna lince
legenda: faston 6,3
faston 6,3 s krytkou f-oko
platípro:
osazovat ažna lince
osazovat
ažna lince
legenda: faston 6,3
faston 6,3 s krytkou f-oko
platípro:
osazovat ažna lince
osazovat
ažna lince
legenda: faston 6,3
faston 6,3 s krytkou f-oko
platípro:
A
B
B
A
GND
GND
Slave unit
MASTER UNIT
LL-Fan Heat-1 Heat-2 N
TK
+24GND TK
0-10V
+
Heat

12 13
2 VV. Creating innovative solutions for you and your business since 1995.
7 8
Run
11 12
Watter
pump
13 14
Door
contact
15 16
Room
thermostat
17 18

/ NIGHT
REDUCTION
L-in
L-out
4131 4232
EC FAN - MAX 5 EC FAN - MAX 5
PWM 10V
PWM 10V
GND
GND
GND
GND
TACHO/RPM - MOTOR 1
TACHO/RPM - MOTOR 2
TACHO/RPM - MOTOR 3
TACHO/RPM - MOTOR 4
TACHO/RPM - MOTOR 5
TACHO/RPM - MOTOR 6
TACHO/RPM - MOTOR 7
TACHO/RPM - MOTOR 8
TACHO/RPM - MOTOR 9
TACHO/RPM - MOTOR 10
Heater control
DIGITAL
56
L-out (Heat 2)
L-out (Heat 1)
63
CANH
A
CANL
GND
+12V
B A B
+12V
GND
6465 66
IC3-C-EC 1
2
3
1
2
3
ON
ON
9 10
Error
contact
L-in
L-out
63
A B GND
66
64 20
SLAVE UNIT
25
A B GND
66
26 20
MODBUS
RTU
N N L
L-Fan
+24V
GND 0-10V
+
Heat
RJ45 - Ethernet,
Modbus TCP,
BACnet

12 13
2 VV. Creating innovative solutions for you and your business since 1995.
7 8
Door
contact
5 6
Room
thermostat
17 18

control
SLAVE
UNIT
Heater control
Digital
16 22
9
17 23
10
18 24
11
L-in
L-out (Heat 1)
L-out (Heat 1)
heater alarm
Master UNIT
GND
GND
TACHO/RPM - MOTOR 1
TACHO/RPM - MOTOR 2
TACHO/RPM - MOTOR 3
TACHO/RPM - MOTOR 4
TACHO/RPM - MOTOR 5
TACHO/RPM - MOTOR 6
TACHO/RPM - MOTOR 7
TACHO/RPM - MOTOR 8
TACHO/RPM - MOTOR 9
TACHO/RPM - MOTOR 10
IC3-S-EC 1
23
2
3
Recommended
Alarm Heater
wiring
Safety
Thermostat
overheat
Thermostat
overheat
Thermostat L
N
osazovat ažna lince
osazovat
ažna lince
legenda: faston 6,3
faston 6,3 s krytkou f-oko
platípro:
osazovat ažna lince
osazovat
ažna lince
legenda: faston 6,3
faston 6,3 s krytkou f-oko
platípro:
osazovat ažna lince
osazovat
ažna lince
legenda: faston 6,3
faston 6,3 s krytkou f-oko
platípro:
GND
GND
A
B
B
A
1
N N L
L-Fan
+24V
GND 0-10V
+
Heat
3

14 15
2 VV. Creating innovative solutions for you and your business since 1995.
Max 150m
MASTER SLAVE no.1
The total bus length of all chained air curtains must not exceed 150m !!!
CHAINING
SLAVE no.2 SLAVE no.10
SLAVESLAVE
MASTER
A
A
A
A
A
B
B
B
B
B
GND
GND
GND
GND
GND
SLA-
VE
 
 
 
 
 
SLA-
VE
 
 
 
 
 A
SLAVE

14 15
2 VV. Creating innovative solutions for you and your business since 1995.
7. CONTROL
READ CAREFULLY!
Before the initial commissioning, check:
• that the device is well fastened to the support structure,
• that the device is properly closed
• 
• that all the electrical components are securely connected,
• that the installation complies with all the instructions herein,
• that no tool or any other object that may damage the unit remains within.
ATTENTION!
• Interventions or changes to the internal connections are forbidden and shall result in the loss of warranty.
• We recommend the use of accessories supplied by our company. Contact your supplier in case of doubts regarding the use of non-
original accessories.
START-UP
After connecting power supply, the display lights up and the data is loaded.
The device is ready to be activated once the service data has fully loaded.

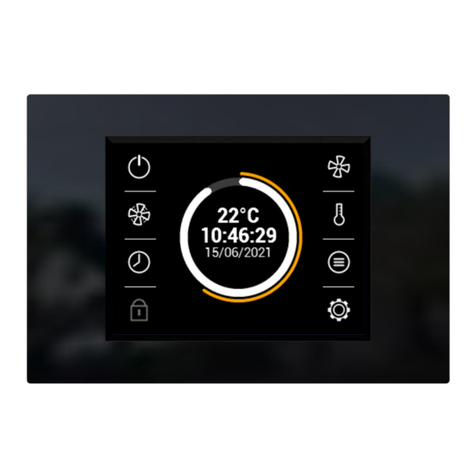

The remote control has a touch
screen. The device is controlled
tapping the symbols on the screen
They only inform about status, not errors.
They inform about errors. Clicking on them opens a screen
with the error report.
The menus are described below
page 15
page 16
page 18
Turn the unit on/o󰀨
(only on stand-by)
Activating/deactivating a
specic Slave unit
Information icons
Warning icons
Description of main screen
Manual start up of
DOOR mode
Timer
Shows current temperature, air ow, hea-
ting level, time and control mode.
Air ow settings
(with closed
doors)
Required temperatu-
re settings
(with closed doors)
Password locked if the
control is unlocked and
MENU USER LOCK is
activated
Detailed informa-
tion on opening’s
status
Device
settings
Night redu-
ction
DOOR mode
Device cooling
Information
icons
Time mode
Warning
icons

16 17
2 VV. Creating innovative solutions for you and your business since 1995.
The settings can be found below, under
“SUBUNITS”
Current status
Settings MENU Required temperature
settings with closed doors
Air ow settings with clo-
sed doors Date and time settings
This screen show the detailed status of the opening and the sensor values:
• 
• 
• Heater output settings (if included)
The information on any connected SLAVE units will be shown here.
It can be accessed moving the screen upwards.
Required temperature
settings
(with closed doors)
Air ow settings
(with closed doors)
Language
Display backlight
Parameters
Date and
time
App
Back to previous
screen

+ return

+ return
Display required air ow (20%
steps)
Reduce or increase
opening’s air ow (with
closed doors)
Display the
current air ow
status
Current date and time
Reduce or increase
required tempe-
rature
Actual temperature
at selected sensor in
menu 09
Required output
Manual mode = %
Automatic mode = °C
If the heating is blocked in summer mode
(MENU - SUMMER HEATING), the screen will show a
“Sun” icon and will not allow to select the output.

+ return Back to main screen
Information on
the type of unit
Indicates heating is blocked
(summer mode)
Back to previous
screen
Green color = active sensor
SP= Temperature setpoint
Room temperature
Inlet temperature
Outside temperature
Fan speed
Heat power
Return water temperature
7. CONTROL

16 17
2 VV. Creating innovative solutions for you and your business since 1995.
Timer Language
Lightning settings
Weekly mode
Annual mode
Activate/deactivate timer
Weekly mode
Select lan-
guage
Annual mode
Copy to
START / STOP interval
Required ventilation rate in manual mode
Only MANUAL
Required heating rate in manual mode
CANCEL

+ return

+ return
Back to main screen
Back to main
screen

selection
󰀨
modes
Tap to add a new time
mode
Button to copy the day
plan to another day
Copy + return
Unless otherwise set, the unit goes on stand-by

There are 5 languages available

+ return
Display backlight when
on
Lightning level on
stand-by
Back to main
screen
7. CONTROL

18 19
2 VV. Creating innovative solutions for you and your business since 1995.
AirGENIO App
Pairing mobile device with unit
using QR code.
QR code for downloading the
AirGENIO application for smart
devices
The IP address and PIN of the unit can be entered manually
or
by using a QR code for quick pairing of the unit.
Pairing smart device:
1. Pairing using QR code:
IC3 gate 1
After scanning QR code
from the controller press
“Save” for saving the unit
to the app.
2. Manual pairing:
IC3 gate 1
00
Enter the IP addre-
ss from controler
Enter the
PIN from the
controller
Device´s
name
After entering all
the information
from the control-
ler press “Save”
for saving the unit
to the app.
7. CONTROL

18 19
2 VV. Creating innovative solutions for you and your business since 1995.
MENU - HW SETTING
Motor 1
In the quantity of the “number of
motors” menu, select the value “1”
Motor 10
..........
GNDGND
Ad 1)
Ad 2)
Ad 3)
Ad 4)
Door contact (NO/NC)

(NO/NC)
Error contact (NO/NC)
Ad 1) - Activation/settings of outer temperature sensor. Available selections:
None - sensor not connected/inactive
EXT-1 (45,46) - sensor connected (must be on connectors 45 and 46)
BMS - temperature sensor active and used from master system

None - inactive
External control
Night reduction - Activation/deactivation of night dimming
(settings described later in this guide)
Ad 3) - Thermostat (NO/NC)
Ad 4) - Number of connected EC motors on regulator: 0-10pcs
Don't forget to connect the speed outputs of the motors to the appropriate connectors
on the panel of the regulator, per the following schematic:
If the situation should occur that it is not required to check the speed output of the motors,
this function can be blocked:
And join the 1+2 connectors per the schematic below.
In this MENU you can set the detailed behaviour of the in-
dividual regulator inputs and outputs
Servicing menu
MENU - MODE
Use code 1616 to access the servicing MENU
1616
Select the
MENU after
scrolling to the
middle of the
page and click-
ing to enter
If you set the function AUTO or MANUAL, certain items can
be enabled/disabled in the servicing MENU
Enter menu
Enter selected menu
Delete/go back
Select MANUAL/AUTOMATIC heating
mode
Activation/deactivation of automatic motor
rotation control by temperature
7. CONTROL

20 21
2 VV. Creating innovative solutions for you and your business since 1995.
MENU - OUTLET TEMP LIMITS
MENU - MODBUS RTU
MENU - NETWORK

IC-C Address:
1~247
Parity:
None
Odd
Even
Enabling/disabling DHCP
Manual entry of regulator
network settings:
IP address
Mask
Gate
Communication speed IC-C:
4800 Bd
9600 Bd
14400 Bd
19200 Bd
38400 Bd
Minimum temperature limit: 15°C - 20°C
        
device
This MENU allows for the setting of communications pa-
rameters for the Modbus RTU
This MENU allows for the setting of communications pa-
rameters for network interfaces
Incorrect settings can lead to inability to communicate
with the regulator
Incorrect settings can lead to inability to communicate
with the regulator
If the MENU TEMPERATURE SENSOR contains the set
value “OUTLET”, the values cannot be set in this MENU,

screen is displayed:
MENU - FILTER TIMER
MENU - EXCHANGERS
MENU - TEMPERATURE SEN-
SOR
Current timer
status
Setting the desired time until
an alert appears on the main
screen of the display
1000h ~ 5000h
Sample display of status

RESET button
(use after replacing

This MENU allows you to set the time (by motor hours)
-


may be set in this MENU.
Available in Automatic Mode only.
In this menu the temperature sensor that will be used for
primary temperature control can be selected
None
Electric
Water
Digital (5&6) - digital output, connectors 5+6
Analog (19) - analog output, connector 19
Only available for “Digital” selection:
1 step (5) - 1 step heating, connector 5
2 step (5&6) - 2 step heating, connectors 5+6
Available selections:
Outlet - 
Inlet - 
Room
Thermostat - Spatial thermostat (functions ON/OFF)
Room BMS - Spatial temperature sensor from master system
7. CONTROL

20 21
2 VV. Creating innovative solutions for you and your business since 1995.
MENU - USER LOCK
Limit level – see Ad1)
Enter PIN 0000~9999
(numeric values only)
Use this menu to set the limits to control the regulator with
a multi-level panel
Options:
None – Limit inactive
On/O󰀨 – 󰀨
On/O󰀨, Temp, Flow – 󰀨
settings can be accessed without password.
Full – Only the information menu can be accessed without password
User mode – Special user mode, see image below
MENU - SUMMER HEATING
Use this menu to set heating limits in summer months
If the outside temperature sensor is not set, the “summer
heating” mode will operate only according to the selected
time and the temperature will not be taken into account
End of winter period
(month number)
Start of winter
period (month number)
Enable/disable
function
Temperature limit – the
heating is disabled if the
temperature on the “Outdoor”
sensor is higher than the one
set here
MENU - Night Reduction
This MENU allows for setting reduced temperatures during night
hours with closed doors.
In this menu, the reduction of temperature may be set

at the set time compared to the
set (required) temperature.
Setting reduced
temperature range -1~-5°C
Setting start time
for reduced
temperature
Setting time for ending
reduced temperature.
Activating function
MENU - DOOR CONTACT
Zapnutí/vypnutí
této funkce
Time interval
This MENU allows for setting the behaviour of the regula-
tor according to doors contact
Mode:
Fixed
Selearning - automation menu

Blower power with open doors
Required temperature with open
doors
Overrun mode:
at a set time, or upon

temperature
7. CONTROL

22 23
2 VV. Creating innovative solutions for you and your business since 1995.
MENU Selearning
Need to set to activate
Selearnig.
Self-learning - available only in automatic mode and active function
(Auto speed control) optimizes the time when the curtain is in operation even when
the vortex is closed.
Temperature
Time of shutter operation per
minimum rotation of the motor
from closed doors.
Time of shutter operation per

from closed doors.
Blower power with open
doors.
The temperature the shutter
attempts to reach with open
doors.
In this menu it is possible to specify which sensor will be active and the temperature the shutter
will attempt to reach after closing doors so as to balance temperature loss.
After reaching the set temperature, the shutter transitions into the selected
automatic/manual mode.

MENU - WATER ANTIFREEZE
Settings

Ventilation rate with open
doors

MENU - SUBUNITS
Use this menu to set the behaviour of the IC-S regulators
connected as SLAVE
Number of SLAVE
regulators:
0 ~ 10
Ad 1)
Ad 2)
Ad 1) – Use one door contact as main. Its status will be sent to the
SLAVE regulators and it will no longer be necessary to connect it to each
regulator, if required.
Not allowed = the door contact will not transmit to the SLAVE regulator from the MASTER
Allowed = the door contact will transmit to the SLAVE regulator from the MASTER
Ad 2) – Activates in the main screen the icon to turn
each SLAVE regulator ON/OFF If inactive, all the SLAVE
󰀨
󰀨
󰀨
form the main screen
Slave address parameter:
ADDRESS SLAVE UNIT ADDRESS SLAVE UNIT
1166
2277
3388
4499
55A10
7. CONTROL
