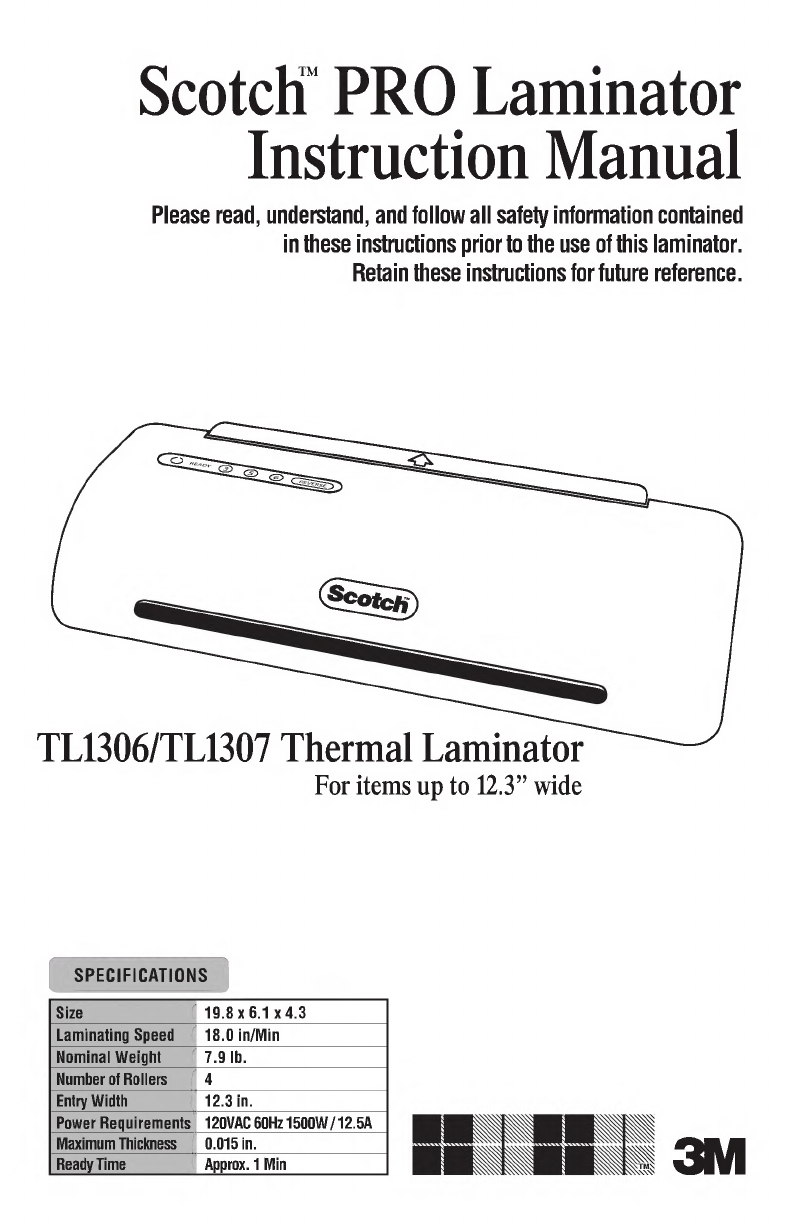

3M Scotch PRO TL1306 User manual

Scotch PRO Laminator
Instruction Manual
Please read, understand, and follow all safety information contained
in these instructions prior to the use of this laminator.
Retain these instructions for future reference.
SPECIFICATIONS
W Hr
Size 19.8x6.1 x 4.3
Laminating Speed 18.0 in/Min
Nominal Weight 7.9 lb.
Number of Rollers 4
Entry Width 12.3 in.
Power Reguirements 120VAC 60Hz 1500W / 12.5A
Maximum Thickness 0.015 in.
Ready Time
Approx. 1 Min

A CAUTION
/i\ WARNING: To reduce the risks
associated with hazardous voltage,
fire and hot surfaces:
- Do not place laminating film or any
items on top of laminator.
^ WARNING: To reduce the risks
associated with hazardous voltage,
fire or malfunction:
- Do not operate the laminator if it has
a damaged power cord or plug, if it
is not working properly, or if it has
been dropped or damaged.
- Keep power cord away from hot
surfaces.
^WARNING: To reduce the risks
associated with hazardous voltage and
fire:
- Do not remove outer housing or
attempt to service or repair the unit
yourself. The laminator does not
contain any user serviceable parts.
- Connect laminator to only a
grounded 120V outlet.
- Unplug the laminator from the outlet
when it is not in use for extended
periods.
- Do not use laminator in wet
environments.
- Indoor use only.
CAUTION:
- The laminator is not intended for use
by unsupervised children.
- Always place the unit on a flat,
secure stable surface.
/i\ CAUTION: To reduce the risks
associated with hot surfaces:
- Allow laminated items to cool
before handling.
- Do not leave laminator unattended
while turned on or in use.
- Allow laminator to cool before
moving or storing.
- Do not cover vent holes on bottom
of machine while the power is on.
Explanation of Signal Word Consequences
A WARNING: Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
& CAUTION: Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury
and/or property damage.
NOTICE: Indicates a situation which, if not avoided, could result in property damage.
Explanation of Safety and Related Symbols
A CAUTION
IQ Double Insulation
© ® (9)
© © © ( reverse y >

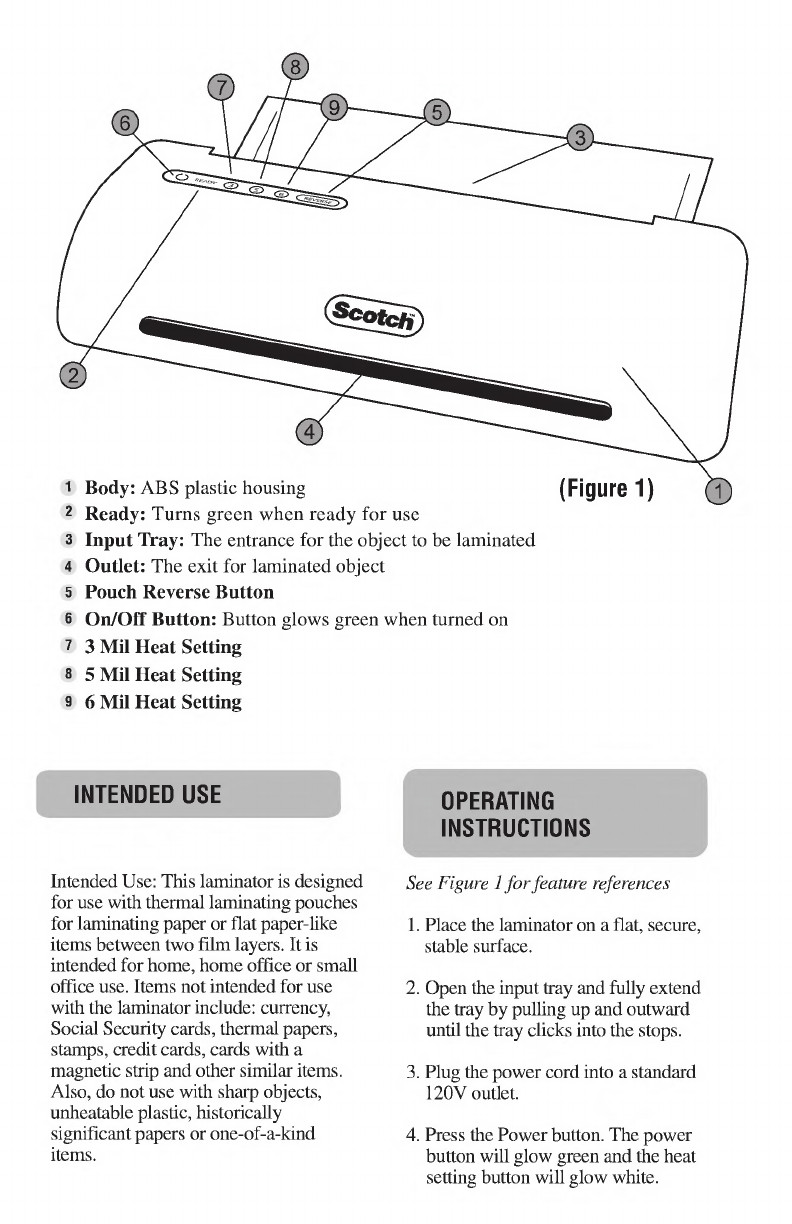

(Figure 1) (T
1 Body: ABS plastic housing
2 Ready: Turns green when ready for use
3 Input Tray: The entrance for the object to be laminated
4 Outlet: The exit for laminated object
5 Pouch Reverse Button
6 On/Off Button: Button glows green when turned on
1 3 Mil Heat Setting
8 5 Mil Heat Setting
9 6 Mil Heat Setting
INTENDED USE
Intended Use: This laminator is designed
for use with thermal laminating pouches
for laminating paper or flat paper-like
items between two film layers. It is
intended for home, home office or small
office use. Items not intended for use
with the laminator include: currency,
Social Security cards, thermal papers,
stamps, credit cards, cards with a
magnetic strip and other similar items.
Also, do not use with sharp objects,
unbeatable plastic, historically
significant papers or one-of-a-kind
items.
OPERATING
INSTRUCTIONS
See Figure 1 for feature references
1. Place the laminator on a flat, secure,
stable surface.
2. Open the input tray and fully extend
the tray by pulling up and outward
until the tray clicks into the stops.
3. Plug the power cord into a standard
120 V outlet.
4. Press the Power button. The power
button will glow green and the heat
setting button will glow white.

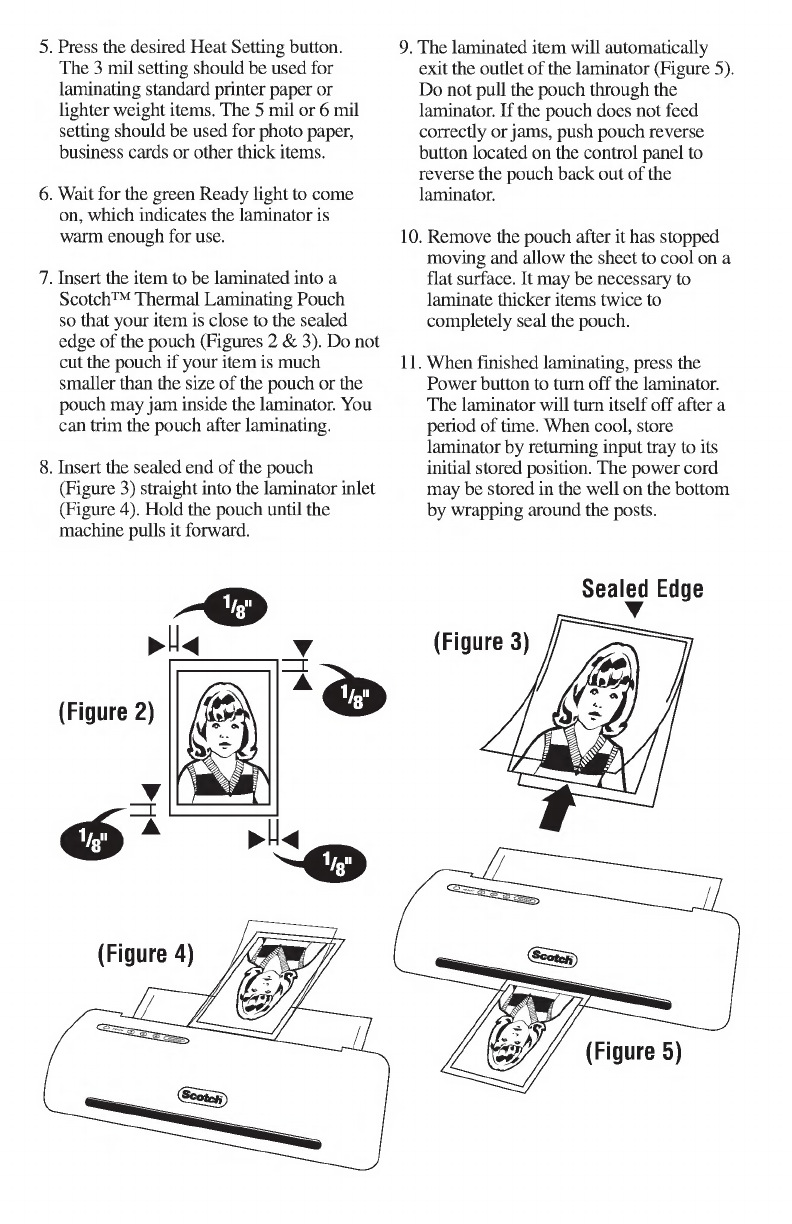

5. Press the desired Heat Setting button.
The 3 mil setting should be used for
laminating standard printer paper or
lighter weight items. The 5 mil or 6 mil
setting should be used for photo paper,
business cards or other thick items.
6. Wait for the green Ready light to come
on, which indicates the laminator is
warm enough for use.
7. Insert the item to be laminated into a
Scotch ™ Thermal Laminating Pouch
so that your item is close to the sealed
edge of the pouch (Figures 2 & 3). Do not
cut the pouch if your item is much
smaller than the size of the pouch or the
pouch may jam inside the laminator. You
can trim the pouch after laminating.
8. Insert the sealed end of the pouch
(Figure 3) straight into the laminator inlet
(Figure 4). Hold the pouch until the
machine pulls it forward.
9. The laminated item will automatically
exit the outlet of the laminator (Figure 5).
Do not pull the pouch through the
laminator. If the pouch does not feed
correctly or jams, push pouch reverse
button located on the control panel to
reverse the pouch back out of the
laminator.
10. Remove the pouch after it has stopped
moving and allow the sheet to cool on a
flat surface. It may be necessary to
laminate thicker items twice to
completely seal the pouch.
11. When finished laminating, press the
Power button to turn off the laminator.
The laminator will turn itself off after a
period of time. When cool, store
laminator by returning input tray to its
initial stored position. The power cord
may be stored in the well on the bottom
by wrapping around the posts.
Sealed Edge
(Figure 5)

M
GENERAL USE
INSTRUCTIONS
1. Use 3 to 6 mil thick pouches. The
laminator is designed to work with
pouches that are a minimum of 3 mils
(1 mil = 0.001 inches) and a maximum
of 6 mils thick. Using pouches that are
thinner or thicker may cause jamming or
may affect lamination quality
(ex. bubbling).
2. If white blotches appear or the laminated
pouch appears hazy, send the item, sealed
end first, through the laminator again.
3. Items must be laminated on both sides.
One side lamination will cause the film to
be rolled up inside the machine, making
the laminating machine unusable.
4. DO NOT insert the open end of the pouch
into the machine to prevent it from being
rolled up into the machine.
5. DO NOT cut the pouch before laminating
to prevent it from being rolled up into the
machine.
CARE AND
MAINTENANCE
1. Wait for the laminator to cool down
and unplug it before cleaning. Wipe
the exterior with a cloth to remove
dust.
2. The roller heater is fragile. DO NOT
DROP machine or otherwise subject
it to impact.
3. Store laminator in a cool dry location.

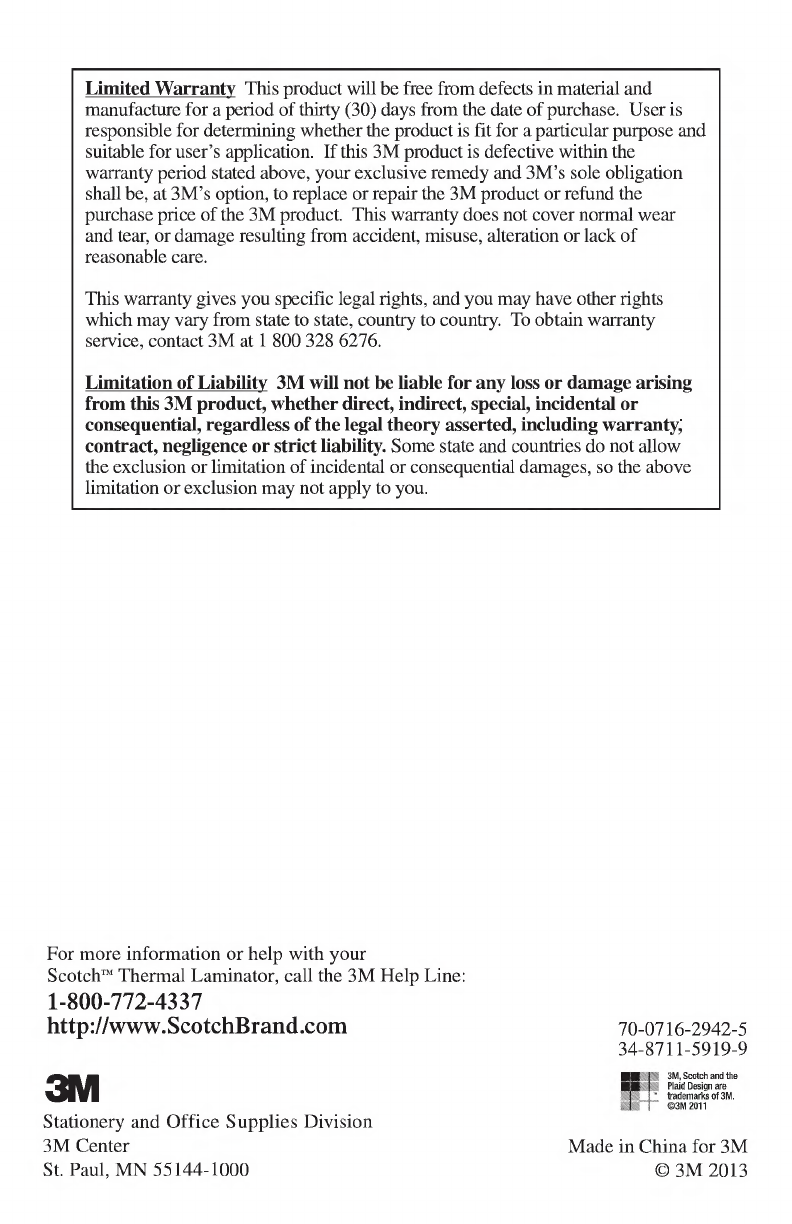

Limited Warranty This product will be free from defects in material and
manufacture for a period of thirty (30) days from the date of purchase. User is
responsible for determining whether the product is fit for a particular purpose and
suitable for user’s application. If this 3M product is defective within the
warranty period stated above, your exclusive remedy and 3M’s sole obligation
shall be, at 3M’s option, to replace or repair the 3M product or refund the
purchase price of the 3M product. This warranty does not cover normal wear
and tear, or damage resulting from accident, misuse, alteration or lack of
reasonable care.
This warranty gives you specific legal rights, and you may have other rights
which may vary from state to state, country to country. To obtain warranty
service, contact 3M at 1 800 328 6276.
Limitation of Liability 3M will not be liable for any loss or damage arising
from this 3M product, whether direct, indirect, special, incidental or
consequential, regardless of the legal theory asserted, including warranty,
contract, negligence or strict liability. Some state and countries do not allow
the exclusion or limitation of incidental or consequential damages, so the above
limitation or exclusion may not apply to you.
For more information or help with your
Scotch ™ Thermal Laminator, call the 3M Help Line:
1-800-772-4337
http://www.ScotchBrand.com
70-0716-2942-5
34-8711-5919-9
3M, Scotch and the
Plaid Design are
trademarks of 3M.
©3M2011
Stationery and Office Supplies Division
3M Center
St. Paul, MN 55144-1000
Made in China for 3M
© 3M 2013
