3M Multimedia Projector X15i Manual

1
X15i
Multimedia Projector
Operator's Guide
Thank you for purchasing this projector.
WARNING ŹBefore using, read the "Product Safety Guide" and these
manuals to ensure correct usage through understanding. After reading, store
them in a safe place for future reference.
About this manual
Various symbols are used in this manual. The meanings of these symbols are
described below.
WARNING This symbol indicates information that, if ignored, could possibly
result in personal injury or even death due to incorrect handling.
CAUTION This symbol indicates information that, if ignored, could result
possibly in personal injury or physical damage due to incorrect
handling.
Please refer to the pages written following this symbol.
NOTE • The information in this manual is subject to change without notice.
• The manufacturer assumes no responsibility for any errors that may appear in this manual.
• The reproduction, transmission or use of this document or contents is not permitted without
express written authority.
Trademark acknowledgment
• VGA and XGA are registered trademarks of the International Business Machines
Corporation.
• Apple and Mac are registered trademarks of Apple Computer, Inc.
• VESA and SVGA are trademarks of the Video Electronics Standard Association.
• Windows is a registered trademark of Microsoft Corporation.
• Internet Explorer is a trademark of Microsoft Corporation.
All other trademarks are the property of their respective owners.
© 3M 2006. All Rights Reserved.

2
About this manual.......... 1
Contents . ................ 2
Projector features.......... 3
About contents of package . . 3
Part names . .............. 4
Projector . .....................4
Controls .......................5
Remote control . ................5
Preparations .............. 6
Fastening the lens cover ..........6
Putting batteries . ...............7
Using the remote control ..........8
$ERXWWKH¿OWHUFRYHUIRUERWWRPXSXVH ....9
Setting up . .............. 10
Arrangement . .................11
Adjusting the projector's elevator ....12

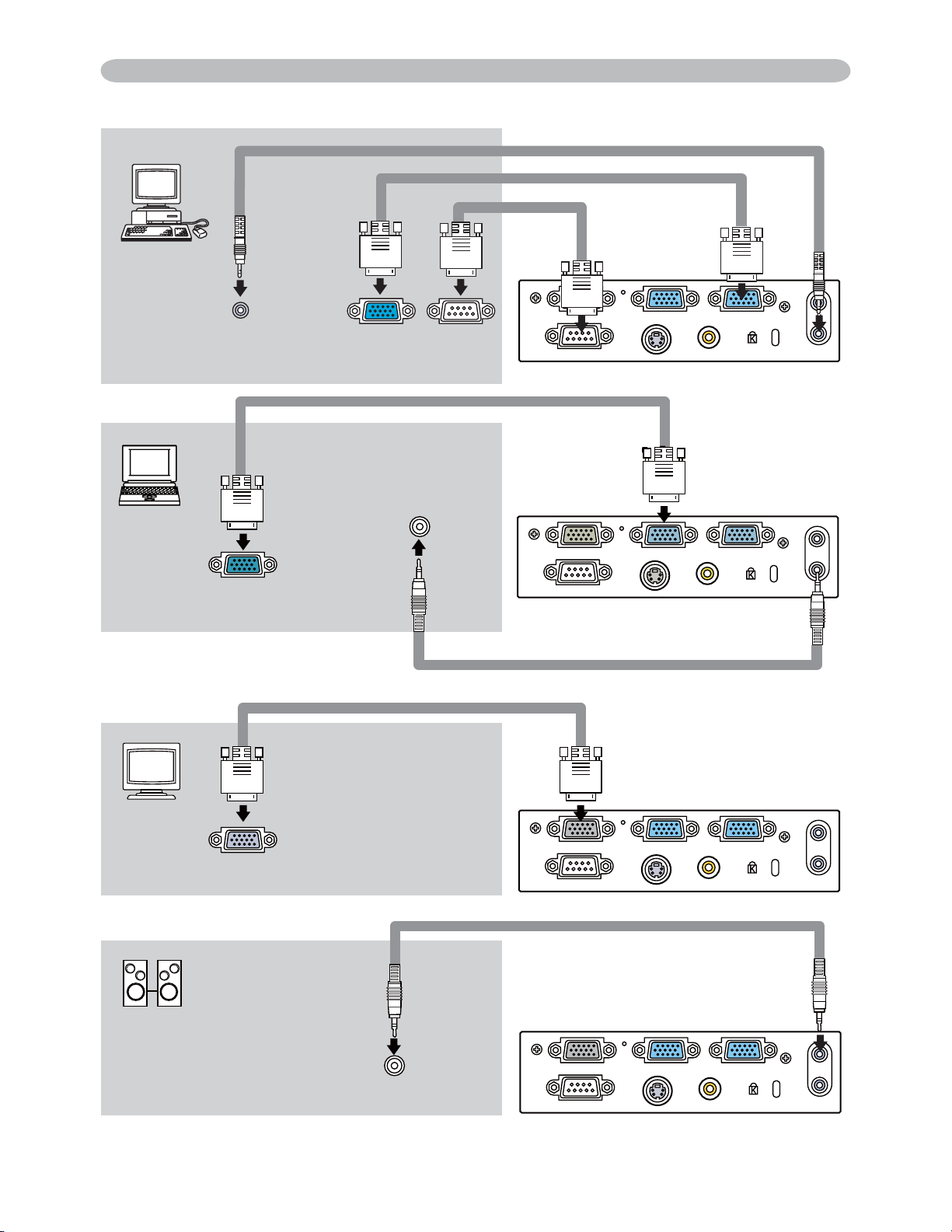

Connecting your devices .........13

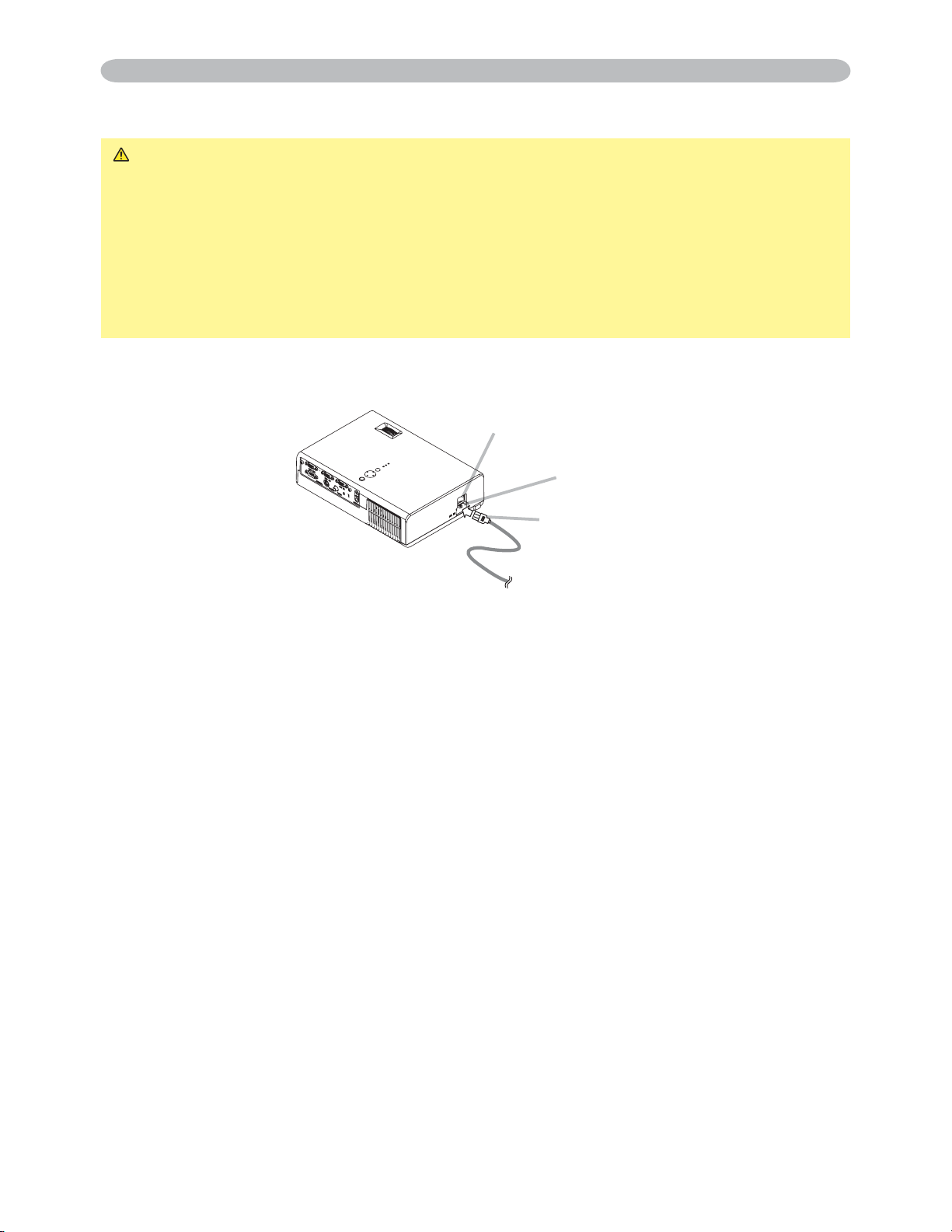

Connecting power supply . .......16
Power on/off . ............ 17
Turning on the power............17
Turning off the power............18
Operating . .............. 19
Adjusting the volume ............19
Temporarily muting the sound .....19
Selecting an input signal .........19
Searching an input signal . .......20
Selecting an aspect ratio .........20
Adjusting the zoom (Optical) ......20
Adjusting the zoom (Digtal) .......20
Adjusting the focus . ............20
Using the automatic adjustment
feature .......................21
Adjusting the position . ..........21
Correcting the keystone distortions ....21
Using the partial magnify feature ....22
Freezing the screen.............22
Temporarily blanking the screen ....22
Multifunctional settings . . . . 23
Using the menu function .........23
Contents
Contents
EASY MENU ..................26
Aspect, Zoom, Keystone, Mode,
Bright, Contrast, Color, Tint,
Sharpness, Whisper, Mirror, Reset,
Filter time, Language,
Go to advanced menu
PICTURE menu................28
Bright, Contrast, Gamma, Color temp,
Color, Tint, Sharpness, Progressive,
My memory
IMAGE menu..................31
Aspect, Over scan, V. position,
H. position, H. phase, H. size,
Auto adjust execute
INPUT menu . .................33
Color space, Video format, Frame lock,
Information
SETUP menu..................35
Zoom, Keystone, Whisper, Mirror,
Volume
SCREEN menu ................36
Language, Menu position, OSD bright,
Blank, Start up, MyScreen,
MyScreen lock, Message
OPTION menu.................39
Auto search, Auto off, Lamp time,
Filter time, Service
Maintenance ............. 42
Lamp........................42
$LU¿OWHr ......................44
Other care ....................46
Troubleshooting . ......... 47
Related messages..............47
Regarding the indicator lamps.....48
Phenomena that may easily be
mistaken for machine defects . ....50
6SHFLÀFDWLRQs............ 52
Technical(English only)
(Please see the end of this book,
although in English.)
 
3M™ Digital Projector X15i
© 3M 2006. All Rights Reserved.

3
Projector features / About contents of package
Projector features
This projector is used to project various computer signals as well as NTSC / PAL
/ SECAM video signals onto a screen. It requires just a little space for installation
and gets a large image from short distance.
High Brightness
Newly developed 165W UHB (Ultra High Brightness) lamp gives you a higher
brightness image on a screen. The image can be still kept as bright and clean
enough for use in bright rooms.
Low Noise
WHISPER mode is equipped for reducing acoustic noise to realize quieter
operation. It is perfect for use in low luminance rooms where low noise is more
important than brightness.
Compact Body
Even with its many features, this projector is extremely compact and slim,
ZKLFKJLYHV\RXPRUHÀH[LELOLW\DQGXVDELOLW\WRXVHLWZKHUH\RXZDQW
About contents of package
Your projector should come with the items shown below. Contact immediately your
dealer if anything is missing.
NOTE • Keep the original packing materials for future reshipment. For
moving the projector, be sure to use the original packing material. Use special
caution for the lens part.
Power cord
(US, UK, EUROPE)
Filter cover
IRUERWWRPXSXVH
VGA cable
Operator's Guide
Product SafetyGuide
Quick Start Guide
Warranty
X15i
Strap
(for Lens cover)
Projector
(with Lens cover)
Remote control
(with two AA batteries)
VIDEO RGB SEARCH
FREEZE
OFF
ON
MAGNIFY
ASPECT
STANDBY/ON
AUTO BLANK
MUTE
VOLUME
KEYSTONE
POSITION
ESC
ENTER
MENU
RESET
ZOOM
+
-
Soft case
3M™ Digital Projector X15i
© 3M 2006. All Rights Reserved.

4
S-VIDEO VIDEO AUDIO IN
OUT
RGB IN2RGB OUT RGB IN1
CONTROL
Part names
Lens (17, 46)
Lens cover (6, 17)
Filter cover (9, 10, 44)
$LU¿OWHUDQGLQWDNHYHQW
are inside.)
Elevator button (12)
Elevator foot (12)
Remote sensor (8)
Focus ring (20)
Vent (10)
AC inlet (16)
Power switch (17, 18)
Elevator button (12)
69,'(2SRUW
(15)VIDEO port (15)
CONTROL port (14)
Part names
Projector
Lamp door (43)
(Lamp unit is inside.)
Elevator foot (12)
Bottom side
Speaker
)URQW5LJKWVLGH
5HDU/HIWVLGH
Control buttons (5)
Ports
(See below.)
Vent (10)
Ports
Restart switch (50)
Kensington lock slot
NOTE (*) About Restart switch: This projector is controlled by an internal
microprocessor. Under certain exceptional circumstances, the projector may not
operate correctly and the microprocessor will need to be reset. In such a case,
please push the Restart switch by using a cocktail stick or similar, and before
turning on again, make the projector cool down at least 10 minutes without
operating. Only push the Restart switch in these exceptional instances.
$8',2287SRUW14)
$8',2,1SRUW14)
RGB IN1 port (14)
RGB IN2 port (14)
RGB OUT port (14)
Zoom ring (20)
3M™ Digital Projector X15i
© 3M 2006. All Rights Reserved.

5

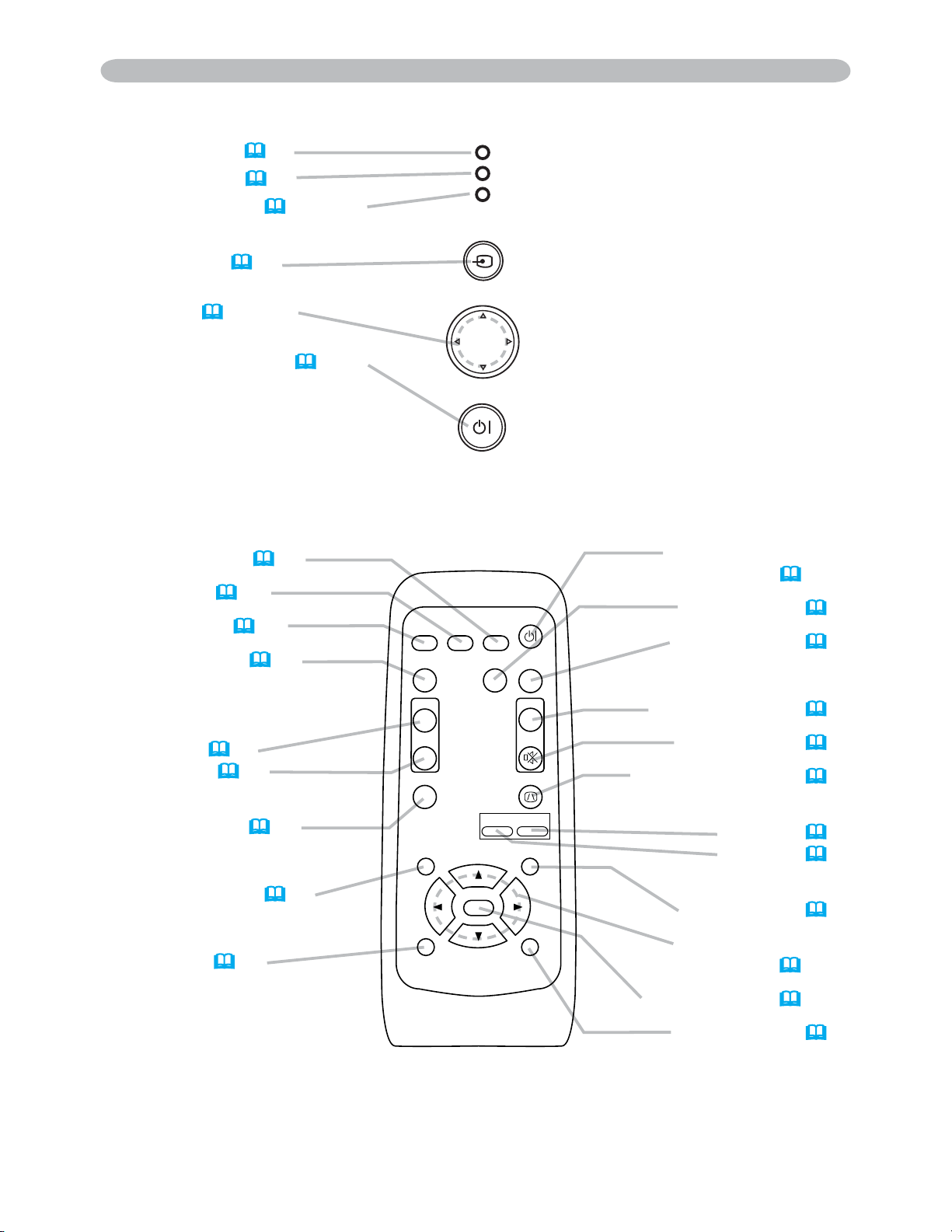

Part names
LAMP indicator (48)
TEMP indicator (48)
POWER indicator (17, 18, 48)
INPUT button (19)
Cursor buttons
ŸźŻŹ19~41)
STANDBY/ON button (17, 18)
Controls
Remote control
SEARCH button (20)
RGB button (19)
VIDEO button (19)
ASPECT button (20)
MAGNIFY
ON button (22)
OFF button (22)
FREEZE button (22)
POSITION button (21)
ESC button (25)
STANDBY/ON button
(17, 18)
AUTO button (21)
BLANK button (22)
VOLUME button (19)
MUTE button (19)
KEYSTONE button (21)
Zoom
+ button (20)
EXWWRQ20)
MENU button (23)
Menu cursor buttons
ŸźŻŹ19~41)
ENTER button (19~41)
RESET button (25)
STANDBY/ON
INPUT
MENU
LAMP
TEMP
POWER
VIDEO RGB SEARCH
FREEZE
OFF
ON
MAGNIFY
ASPECT
STANDBY/ON
AUTO BLANK
MUTE
VOLUME
KEYSTONE
POSITION
ESC
ENTER
MENU
RESET
ZOOM
+
-
3M™ Digital Projector X15i
© 3M 2006. All Rights Reserved.

6
Preparations

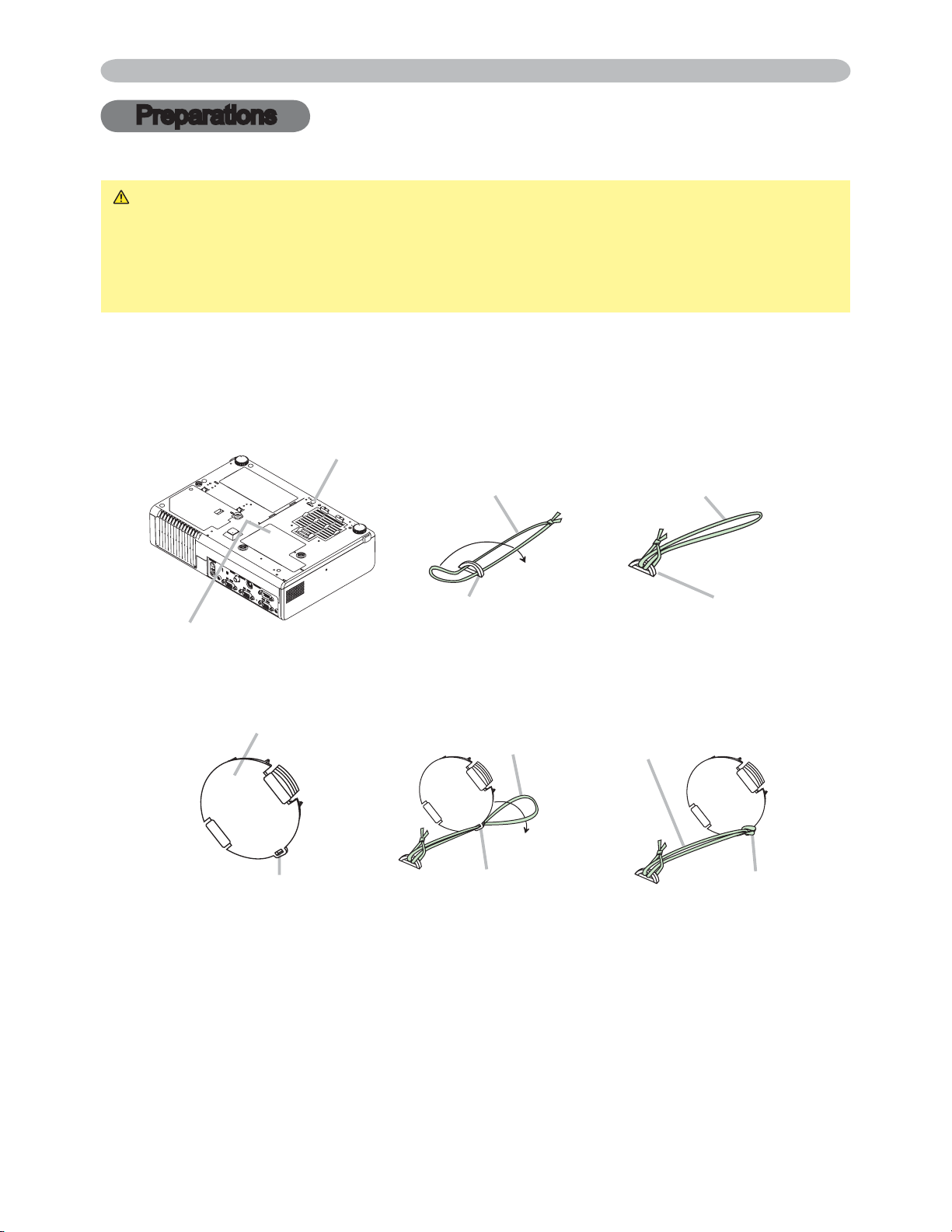

Fastening the lens cover
WARNING ŹDo not fasten the lens cover during use or immediately after
use. Handling while the projector is in a high temperature could cause a burn
and/or malfunction to the projector. Before operating, make sure that the power
switch is off, that the power cord is not plugged in, and that the projector is cool
adequately.
To avoid losing, please fasten the lens cover to the projector using the strap.
1. Slowly turn over the projector, so that the bottom is facing up.
2. Fix the strap to the strap ring of projector.
3. Fix the strap to the strap ring of lens cover.
4. Attach the lens cover to the lens of projector, and slowly turn over the
projector, so that the top is facing up.
Preparations
Strap ring
Projector (Bottom side)
Strap
Strap ring
Strap
Strap ring
(1) (2)
Lens cover
Strap
Strap ring
Strap
Strap ring
(1) (2)
Strap ring
3M™ Digital Projector X15i
© 3M 2006. All Rights Reserved.

7
Preparations

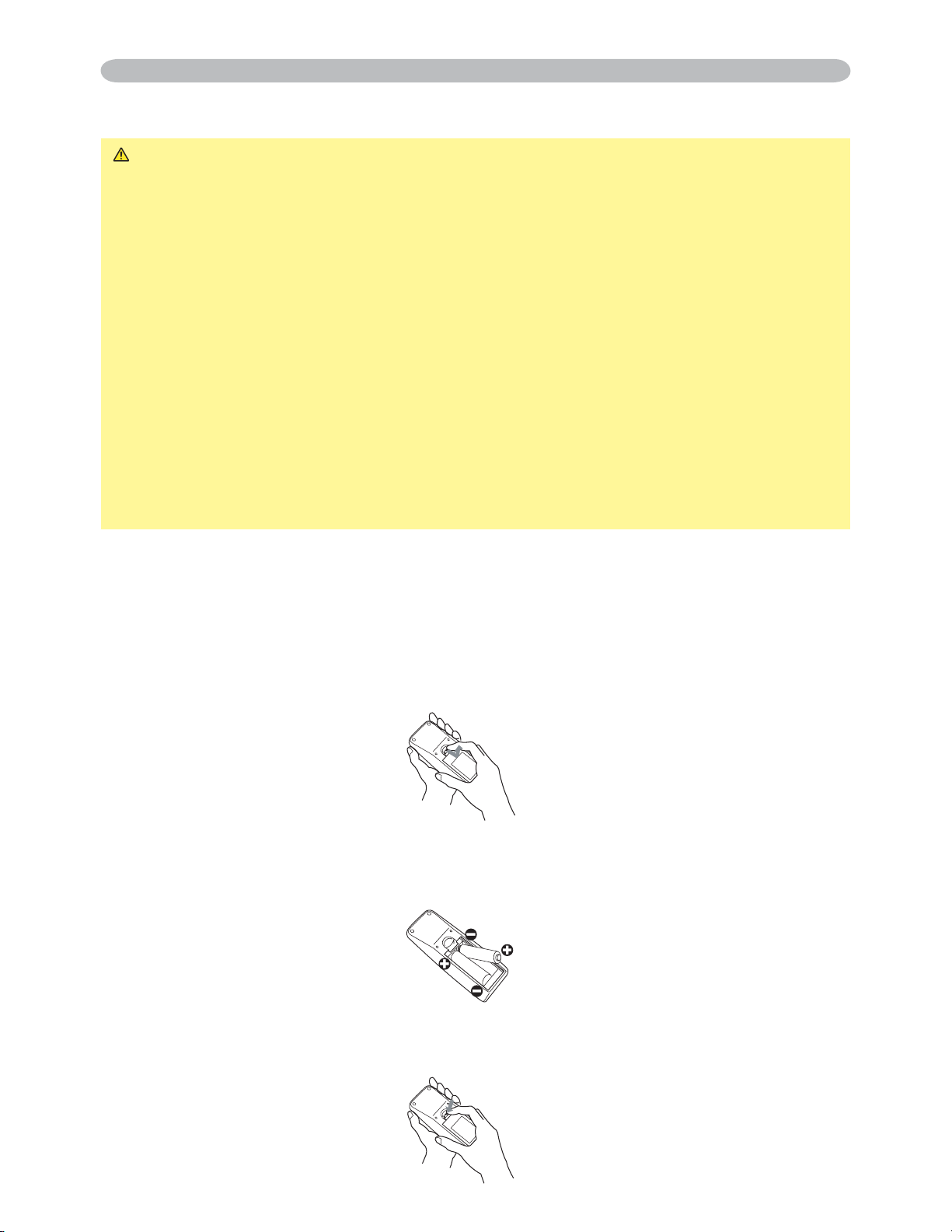

Putting batteries
WARNING ŹAlways handle the batteries with care and use them only as
directed. Improper use may result in battery explosion, cracking or leakage,
ZKLFKFRXOGUHVXOWLQ¿UHLQMXU\DQGRUSROOXWLRQRIWKHVXUURXQGLQJHQYLURQPHQW
%HVXUHWRXVHRQO\WKHEDWWHULHVVSHFL¿HG'RQRWXVHEDWWHULHVRIGLIIHUHQW
types at the same time. Do not mix a new battery with used one.
• Make sure the plus and minus terminals are correctly aligned when loading a
battery.
• Keep a battery away from children and pets.
• Do not recharge, short circuit, solder or disassemble a battery.
'RQRWDOORZDEDWWHU\LQD¿UHRUZDWHU.HHSEDWWHULHVLQDGDUNFRRODQGGU\
place.
• Do not give the battery a physical impact.
,I\RXREVHUYHDOHDNDJHRIDEDWWHU\ZLSHRXWWKHÀRZHUDQGWKHQUHSODFH
DEDWWHU\,IWKHÀRZHUDGKHUHV\RXUERG\RUFORWKHVULQVHZHOOZLWKZDWHU
immediately.
• Obey the local laws on disposing a battery.
To use the remote control, please load the batteries. Whenever the remote control
starts to malfunction, replace the batteries. If you won’t use the remote control for
an extended period, remove the batteries from the remote control and store them
in a safe place.
1. Remove the battery cover.
Slide back and remove the battery cover in the direction of the arrow.
2. Take old batteries out and/or put new batteries in.
When putting in batteries, align and insert the two AA batteries according to
their plus and minus terminals as indicated in the remote control.
3. Close the battery cover.
Replace the battery cover in the direction of the arrow and snap it back into
place.
3M™ Digital Projector X15i
© 3M 2006. All Rights Reserved.

8
Preparations
Using the remote control
CAUTION ŹBe careful in handling the remote control. Incorrect handling
could cause damage or malfunction.
• Do not drop or otherwise expose the remote control to physical impact.
• Do not get the remote control wet or place it on wet objects.
• Remove the batteries from the remote control and store them in a safe place if
you won’t be using the remote control for an extended period.
• Replace the batteries whenever the remote control starts to malfunction.
• When strong lights such as direct sunlight or light from an extremely close
UDQJHVXFKDVIURPDQLQYHUWHUÀXRUHVFHQWODPSKLWWKHSURMHFWRU¶VUHPRWH
sensor, the remote control may not function correctly. Adjust the direction of the
projector to keep light from directly hitting the projector’s remote sensor.
The remote control works with the projector’s remote sensor.
• The range of the remote sensor is 3 meters with a 60 degree range (30 degrees
to the left and right of the remote sensor).
$OVRDUHPRWHVLJQDOUHÀHFWHGLQWKHVFUHHQHWFPD\EHDYDLODEOH,ILWLVGLI¿FXOW
to send a remote signal to the sensor directly, please try.
• Since the remote control uses infrared light to send signals to the projector
(Class1 LED), be sure to use the remote control in an area free from obstacles
that could block the remote control’s output signal to the projector.
approx. 3 meters
30º
30º
3M™ Digital Projector X15i
© 3M 2006. All Rights Reserved.

9
Preparations
$ERXWWKHÀOWHUFRYHUIRUERWWRPXSXVH
WARNING Ź'RQRWUHSODFHWKH¿OWHUFRYHUDQGRUDLU¿OWHUGXULQJXVHRU
immediately after use. Handling while the projector is in a high temperature
could cause a burn and/or malfunction to the projector. Before operating, make
sure that the power switch is off, that the power cord is not plugged in, and that
the projector is cool adequately.
:KHQWKHSURMHFWRULVLQVWDOOHGERWWRPXSSOHDVHXVHWKHDFFHVVRU\¿OWHUFRYHU
IRUERWWRPXSXVH,WLVKLJKHUWKDQXVXDO¿OWHUFRYHUWRNHHSWKHVSDFHIRULQWDNH
ventilation. Please change in the following procedure.
1. Disconnect all the connectors and adapters that were connected to the
SURMHFWRU¶VSRUWV7KHQVORZO\WXUQWKHSURMHFWRUVRWKDWWKHOHQVVLGHLVIDFLQJ
up. Please be careful for a projector not to fall. While the projector is placed
OHQVVLGHXSKROGWKHSURMHFWRU
2. 5HPRYHWKH¿OWHUFRYHUDQGWKHDLU¿OWHU+ROGWKHNQREVZKLOHSXOOLQJRXWLW
3. Slowly turn the projector so that the bottom is facing up.
4. 6HWDQHZRUFOHDQHGDLU¿OWHUWRWKH¿OWHUFRYHUIRUERWWRPXSXVH0DNHWKH
FODZVVOLGHDORQJWKHUDLODQGVHWWKHDLU¿OWHULQWRSODFH
5. ,QWHUORFNLQJWKHWDEVVQDSWKH¿OWHUFRYHUIRUERWWRPXSXVHLQWRSODFH
$LU¿OWHU¶VNQRE
Claws
Filter cover’s knob
5DLORIDLU¿OWHU
)LOWHUFRYHUIRUERWWRPXSXVH
$LU¿OWHU1HZRUFOHDQHG
)LOWHUFRYHUIRUERWWRPXSXVH
ZLWKDQDLU¿OWHU
Tabs
3M™ Digital Projector X15i
© 3M 2006. All Rights Reserved.

10
Setting up
Setting up
WARNING ŹPlace the projector in a stable position horizontally. A fall or
a turnover could cause an injury and/or damage to the projector. Then using
GDPDJHGSURMHFWRUFRXOGUHVXOWLQD¿UHDQGRUDQHOHFWULFVKRFN
• Don’t place the projector on an unstable, slant or vibrant surface such as a
wobbly or inclined stand.
'RQRWSODFHWKHSURMHFWRULQWKHVLGHIURQWUHDUXSSRVLWLRQH[FHSWFDUHRIWKH
DLU¿OWHU
)RUWKHSURMHFWRULQVWDOOHGERWWRPXSXVHWKHDFFHVVRU\¿OWHUFRYHUIRUERWWRP
up use. And in the case of a ceiling installation or the like, contact your dealer
before installation.
Ź3ODFHWKHSURMHFWLRQLQDFRROSODFHDQGSD\DWWHQWLRQHQRXJKWRYHQWLODWLRQ
7KHKLJKWHPSHUDWXUHRIWKHSURMHFWRUFRXOGFDXVHD¿UHDEXUQDQGRU
malfunction to the projector.
• Don’t stop up, block and cover the projector's vents.
• Keep a space of 30 cm or more between the sides and other objects such as
walls.
• Don’t place the projector on a metallic thing or anything weak in heat.
• Don’t place the projector on a carpet, cushion or bedding.
• Don’t place the projector in direct sunlight or near a hot object such as heater.
• Put nothing about lens and vents of the projector. Put nothing on the projector.
• Put nothing that is sucked or sticks to the bottom of projector. This projector
has some intake vents also on the bottom.
Ź'RQRWSODFHWKHSURMHFWRURQWKHSODFHWKDWJHWVZHW'DPSLQJWKHSURMHFWRU
RULQVHUWLQJOLTXLGLQWKHSURMHFWRUFRXOGFDXVHD¿UHDQHOHFWULFVKRFNDQGRU
malfunction to the projector.
• Don’t place the projector in a bathroom or the outdoors.
• Put nothing containing the liquid near the projector.
CAUTION Ź$YRLGDVPRN\KXPLGRUGXVW\SODFH3ODFLQJWKHSURMHFWRU
LQVXFKSODFHFRXOGFDXVHD¿UHDQHOHFWULFVKRFNDQGRUPDOIXQFWLRQWRWKH
projector.
•'RQ¶WSODFHWKHSURMHFWRUQHDUDKXPLGL¿HUDVPRNLQJVSDFHRUDNLWFKHQ
• Put nothing containing the liquid near the projector.
Ź$GMXVWWKHGLUHFWLRQRIWKHSURMHFWRUWRNHHSOLJKWIURPGLUHFWO\KLWWLQJWKH
projector's remote sensor.
3M™ Digital Projector X15i
© 3M 2006. All Rights Reserved.

11
Setting up
(c) up
(c) down
(b)
Arrangement
Refer to the illustrations and tables below to determine
the screen size and projection distance.
The values shown in the table are calculated (±3%)
for a full size screen : 1024x768.
At 16:9 screen
At 4:3 screen
4:3
(a)
16:9
(a)
(a) Screen size
[inch (m)]
(b) Projection distance [m (inch)] (c) Screen height[cm (inch)]
min. max. down up
40 (1.0) 1.2 (47) 1.4 (57) 8.7 (3) 52.3 (21)
50 (1.3) 1.5 (59) 1.8 (71) 10.9 (4) 65.3 (26)
60 (1.5) 1.8 (71) 2.2 (86) 13.1 (5) 78.4 (31)
70 (1.8) 2.1 (83) 2.5 (100) 15.2 (6) 91.4 (36)
80 (2.0) 2.4 (95) 2.9 (115) 17.4 (7) 104.5 (41)
90 (2.3) 2.7 (107) 3.3 (129) 19.6 (8) 117.6 (46)
100 (2.5) 3.0 (119) 3.6 (143) 21.8 (9) 130.6 (51)
120 (3.0) 3.6 (143) 4.4 (172) 26.1 (10) 156.8 (62)
150 (3.8) 4.5 (179) 5.5 (216) 32.7 (13) 195.9 (77)
200 (5.1) 6.1 (239) 7.3 (288) 43.5 (17) 261.3 (103)
250 (6.4) 7.6 (299) 9.1 (360) 54.4 (21) 326.6 (129)
300 (7.6) 9.1 (359) 11.0 (432) 65.3 (26) 391.9 (154)
(a) Screen size
[inch (m)]
(b) Projection distance [m (inch)] (c) Screen height [cm (inch)]
min. max. down up
40 (1.0) 1.3 (51) 1.6 (62) 1.2 (0) 48.6 (19)
50 (1.3) 1.6 (64) 2.0 (78) 1.5 (1) 60.8 (24)
60 (1.5) 2.0 (77) 2.4 (93) 1.8 (1) 72.9 (29)
70 (1.8) 2.3 (91) 2.8 (109) 2.1 (1) 85.1 (34)
80 (2.0) 2.6 (104) 3.2 (125) 2.4 (1) 97.2 (38)
90 (2.3) 3.0 (117) 3.6 (141) 2.7 (1) 109.4 (43)
100 (2.5) 3.3 (130) 4.0 (156) 3.0 (1) 121.6 (48)
120 (3.0) 4.0 (156) 4.8 (188) 3.6 (1) 145.9 (57)
150 (3.8) 5.0 (195) 6.0 (235) 4.4 (2) 182.3 (72)
200 (5.1) 6.6 (261) 8.0 (314) 5.9 (2) 243.1 (96)
250 (6.4) 8.3 (326) 10.0 (392) 7.4 (3) 303.9 (120)
300 (7.6) 9.9 (391) 12.0 (471) 8.9 (4) 364.7 (144)
3M™ Digital Projector X15i
© 3M 2006. All Rights Reserved.

12
Adjusting the projector's elevator
WARNING ŹDo not adjust the projector’s elevator during use or
immediately after use. Handling while the projector is in a high temperature
could cause a burn and/or malfunction to the projector. Before operating, make
sure that the power switch is off, that the power cord is not plugged in, and that
the projector is cool adequately.
CAUTION Ź,I\RXSUHVVWKHHOHYDWRUEXWWRQZLWKRXWKROGLQJWKHSURMHFWRU
WKHSURMHFWRUPLJKWFUDVKGRZQRYHUWXUQVPDVK\RXU¿QJHUVDQGSRVVLEO\
result in malfunction. To prevent damaging the projector and injuring yourself,
always hold the projector whenever using the elevator buttons to adjust the
elevator feet.
Ź([FHSWIRULQFOLQLQJE\WKHHOHYDWRUIHHWDGMXVWPHQWSODFHWKHSURMHFWRU
horizontally.
You can use the elevator feet to make adjustments if the surface on which you
need to set the projector is uneven or if you otherwise need to adjust the angle of
projection. The adjustment range of the elevator feet is 0 to 9 degrees.
1. Press and hold in the elevator buttons while holding the projector.
The elevator buttons and the elevator feet are on the both sides.
2. Raise or lower the projector to the desired height and then release the
elevator buttons.
When you release the elevator buttons, the elevator feet will lock into position.
3. $VQHFHVVDU\\RXFDQDOVR¿QHO\DGMXVWWKHKHLJKWRIWKHSURMHFWRUE\WZLVWLQJ
the elevator feet by hand.
Setting up
Elevator feet Elevator button
3M™ Digital Projector X15i
© 3M 2006. All Rights Reserved.

13
Setting up
Connecting your devices
CAUTION Ź7XUQRIIDOOGHYLFHVSULRUWRFRQQHFWLQJWKHPWRWKHSURMHFWRU
Attempting to connect a live device to the projector may generate extremely
loud noises or other abnormalities that may result in malfunction and/or damage
to the device and/or projector.
Ź8VHWKHDFFHVVRU\FDEOHRUDGHVLJQDWHGW\SHFDEOHIRUWKHFRQQHFWLRQ
Some cables have to be used with core set. A too long cable may cause a
certain picture degradation. Please consult with your dealer for details. For
cables that have a core only at one end, connect the core to the projector.
Ź0DNHVXUHWKDW\RXFRQQHFWGHYLFHVWRWKHFRUUHFWSRUW,QFRUUHFWFRQQHFWLRQ
may result in malfunction and/or damage to the device and/or projector.
NOTE • Whenever attempting to connect a laptop computer to the projector,
be sure to activate the laptop’s RGB external image output (set the laptop to CRT
display or to simultaneous LCD and CRT display). For details on how this is done,
please refer to the instruction manual of the corresponding laptop computer.
• Secure the screws on the connectors and tighten.
• Some computers may have multiple display screen modes. Use of some of
these modes will not be possible with this projector.
• For some RGB signal modes, the optional Mac adapter is necessary.
• When the image resolution is changed on a computer, depending on an input,
automatic adjust function may take some time and may not be completed. In
this case, you may not be able to see a check box to select “Yes/No” for the
new resolution on Windows. Then the resolution will go back to the original.
It might be recommended to use other CRT or LCD monitors to change the
resolution.
$ERXW3OXJDQG3OD\FDSDELOLW\
3OXJDQG3OD\LVDV\VWHPFRPSRVHGRIWKHFRPSXWHULWVRSHUDWLQJV\VWHPDQG
peripheral equipment (i.e. display devices). This projector is compatible with
9(6$''&%3OXJDQG3OD\FDQEHDFKLHYHGE\FRQQHFWLQJWKLVSURMHFWRUWR
computers that are VESA DDC (display data channel) compatible.
• Please take advantage of this function by connecting the accessory RGB
FDEOHWRWKH5*%,1SRUW''&%FRPSDWLEOH3OXJDQG3OD\PD\QRWZRUN
properly if any other type of connection is attempted.
• Please use the standard drivers in your computer as this projector is a
3OXJDQG3OD\PRQLWRU
3M™ Digital Projector X15i
© 3M 2006. All Rights Reserved.

14
S-VIDEO VIDEO AUDIO IN
OUT
RGB IN2RGB OUT RGB IN1
CONTROL
Setting up
Audio out
56& RGB out
Examples of connection with a computer
RGB cable
56&FDEOH
S-VIDEO VIDEO AUDIO IN
OUT
RGB IN2RGB OUT RGB IN1
CONTROL
RGB IN2
RGB OUT
S-VIDEO VIDEO AUDIO IN
OUT
RGB IN2RGB OUT RGB IN1
CONTROL
S-VIDEO VIDEO AUDIO IN
OUT
RGB IN2RGB OUT RGB IN1
CONTROL
RGB in
Stereo mini audio cable
Connecting to a monitor (output)
&RQQHFWLQJWRDVSHDNHUZLWKDPSOL¿HURXWSXW
RGB cable
Audio in
Stereo mini audio cable
RGB out
RGB cable
Audio out
Stereo mini audio cable
3M™ Digital Projector X15i
© 3M 2006. All Rights Reserved.

15
S-VIDEO VIDEO AUDIO IN
OUT
RGB IN2RGB OUT RGB IN1
CONTROL
S-VIDEO VIDEO AUDIO IN
OUT
RGB IN2RGB OUT RGB IN1
CONTROL
S-VIDEO VIDEO AUDIO IN
OUT
RGB IN2RGB OUT RGB IN1
CONTROL
69LGHRRXW
Examples of connection with a VCR/DVD player
Video out
Audio out
Audio out
Component video cable
Audio out
Video cable
69LGHRFDEOH
Component video out
Setting up
Stereo mini audio cable
Stereo mini audio cable
Stereo mini audio cable
3M™ Digital Projector X15i
© 3M 2006. All Rights Reserved.

16
Connecting power supply
WARNING ŹPlease use extra caution when connecting the power cord as
LQFRUUHFWRUIDXOW\FRQQHFWLRQVPD\UHVXOWLQ¿UHDQGRUHOHFWULFDOVKRFN
• Only use the power cord that came with the projector. If it is damaged, contact
your dealer to newly get correct one.
• Only plug the power cord into an outlet rated for use with the power cord's
VSHFL¿HGYROWDJHUDQJH
• Never modify the power cord. Never attempt to defeat the ground connection
RIWKHWKUHHSURQJHGSOXJ
Before connecting, make sure that the power switch is the OFF position (pressed
the side marked “O”).
1. Connect the connector of the power cord to the AC inlet of the projector.
2. Firmly plug the power cord's plug into the outlet.
Setting up
Power switch
AC inlet
Connector of the power cord
3M™ Digital Projector X15i
© 3M 2006. All Rights Reserved.

17
Power on/off
Power on/off
Turning on the power
WARNING ŹWhen the power is on, a strong light is emitted. Do not look
into the lens or vents of the projector.
NOTE • Turn the power on in right order. Please power on the projector before
the connected devices.
STANDBY/ON
button
1. 0DNHVXUHWKDWWKHSRZHUFRUGLV¿UPO\DQGFRUUHFWO\FRQQHFWHGWRWKH
projector and outlet.
2. Open the lens cover, and set the power switch to the ON position.
The power indicator will light to solid orange. Then wait several seconds
because buttons may not function for these several seconds.
3. Press the STANDBY/ON button on the projector or remote control.
The projector lamp will light up and the POWER indicator will begin blinking
green. When the power is completely on, the indicator will stop blinking and
light green.
To display the picture, select an input signal according to the section "Selecting an
input signal" (19).
POWER
(Solid orange)
POWER
(Blinking green)
POWER
(Solid green)
POWER indicator
Power switch
STANDBY/ON
INPUT
MENU
LAMP
TEMP
POWER
VIDEO RGB SEARCH
FREEZE
OFF
ON
MAGNIFY
ASPECT
STANDBY/ON
AUTO BLANK
MUTE
VOLUME
KEYSTONE
POSITION
ESC
ENTER
MENU
RESET
ZOOM
+
-
3M™ Digital Projector X15i
© 3M 2006. All Rights Reserved.

18
Turning off the power
NOTE • Turn the power off in right order. Please power off the projector after the
connected devices.
• Except for an emergency, whenever you turn the projector off, obey the procedure
of the following “Turning off the power”, and do not disconnect the power cord until the
SURFHGXUHLVFRPSOHWHG1HJOHFWFDXVHVDGDPDJHRIWKHHOHFWURGHDQGXQOLJKWLQJRI
the lamp.
• This Projector is controlled by an internal microprocessor. Under certain exceptional
circumstances, the projector may not operate correctly even for turning off the power. In
such a case, please push the restart switch
(4)
by using a pin or similar. After making
sure that the power indicator lights to solid orange, set the power switch to the OFF
position. Only push the restart switch in these exceptional instances.
• When a power supply is shut off with a power failure or the restart switch, before
turning on again, make the projector cool down at least 10 minutes without operating.
1. Press the STANDBY/ON button on the projector or remote control.
The message "Power off?" will appear on the screen for approximately 5
seconds.
2.
Press the STANDBY/ON button on the projector or remote control again while the
message is visible.
The projector lamp will go off, and the POWER indicator will begin blinking orange.
Then the POWER indicator will stop blinking and light to solid orange when the
lamp cooling is complete.
3. Make sure that the power indicator lights to solid orange, set the power switch
to the OFF position. The POWER indicator will go off.
Do not set the power switch to the OFF position while the POWER indicator is
green or blinking.
4. Close the lens cover. For safety purposes, disconnect the power cord if the
projector is not to be used for prolonged periods of time.
Power on/off
Power off?
POWER
(Blinking orange)
POWER
(Solid orange)
POWER
(Solid orange)
3M™ Digital Projector X15i
© 3M 2006. All Rights Reserved.

19
Operating
Operating
Adjusting the volume
1. Press the VOLUME button on the remote control.
A dialog will appear on the screen to aid you in adjusting
the volume.
2. 8VHWKHFXUVRUEXWWRQVŸźWRDGMXVWWKHYROXPH
To close the dialog and complete the operation, press the VOLUME button
again. Even if you don’t do anything, the dialog will automatically disappear
after a few seconds.
Temporarily muting the sound
1. Press the MUTE button on the remote control.
A dialog will appear on the screen indicating that you
have muted the sound.
To restore the sound, press the MUTE button or
VOLUME button. Even if you don’t do anything, the
dialog will automatically disappear after a few seconds.
Selecting an input signal
1. Press the INPUT button on the projector.
Each time you press the button, the projector switches
its input port as below.
RGB1 ÆRGB2 Æ69,'(2ÆVIDEO

1. Press the RGB button on the remote control to select
the RGB port.
RGB1 ÆRGB2

1. Press the VIDEO button on the remote control to select
an input port for video signal.
Each time you press the button, the projector switches
its video input port as below.
69,'(2ÆVIDEO
Ɣ,IWKH9,'(2EXWWRQLVSXVKHGZKHQVZLWFKLQJIURP5*%WR9,'(2VLJQDOV
when TURN ON is selected for the AUTO SEARCH item in the OPTION menu
(39)WKHSURMHFWRUZLOOFKHFNWKH69,'(2SRUW¿UVW
If no input is detected at the
69,'(2SRUWSURMHFWRUZLOOFKHFNWKH9,'(2SRUWDXWRPDWLFDOO\
INPUT
POWER
VIDEO RGB SEARCH
FREEZE
OFF
ON
MAGNIFY
ASPECT
STANDBY/ON
AUTO BLANK
MUTE
VOLUME
KEYSTONE
POSITION
ESC
ENTER
MENU
RESET
ZOOM
+
-
VIDEO RGB SEARCH
ON
MAGNIFY
ASPECT
STANDBY/ON
AUTO BLANK
MUTE
VOLUME
VIDEO RGB SEARCH
FREEZE
OFF
ON
MAGNIFY
ASPECT
STANDBY/ON
AUTO BLANK
MUTE
VOLUME
KEYSTONE
POSITION
ESC
ENTER
MENU
RESET
ZOOM
+
-
FREEZE
OFF
ON
MAGNIFY
ASPECT AUTO BLANK
MUTE
VOLUME
KEYSTONE
VIDEO RGB SEARCH
FREEZE
OFF
ON
MAGNIFY
ASPECT
STANDBY/ON
AUTO BLANK
MUTE
VOLUME
KEYSTONE
POSITION
ESC
ENTER
MENU
RESET
ZOOM
+
-
VIDEO RGB SEARCH
ASPECT
STANDBY/ON
AUTO BLANK
VIDEO RGB SEARCH
FREEZE
OFF
ON
MAGNIFY
ASPECT
STANDBY/ON
AUTO BLANK
MUTE
VOLUME
KEYSTONE
POSITION
ESC
ENTER
MENU
RESET
ZOOM
+
-
VIDEO RGB SEARCH
ASPECT
STANDBY/ON
AUTO BLANK
3M™ Digital Projector X15i
© 3M 2006. All Rights Reserved.

20
Operating
Adjusting the zoom (Digital)
1. 3UHVVWKH=220EXWWRQRQWKHUHPRWHFRQWURO
A dialog will appear on the screen to aid you in
adjusting the zoom.
2. 8VHWKH=220EXWWRQVWRDGMXVWWKH]RRP
To close the dialog and complete this operation, don’t
perform operation for a few seconds.
Searching an input signal
1. Press the SEARCH button on the remote control.
The projector will begin to check its input ports in order
WR¿QGDQ\LQSXWVLJQDOV
Then when an input is found, the projector will stop searching
and display the image. If no signal is found, the projector will
return to the state selected before the operation.
RGB1 ÆRGB2 Æ69,'(2ÆVIDEO
Selecting an aspect ratio
1. Press the ASPECT button on the remote control.
Each time you press the button, the projector switches the modes for aspect
ratio in turn.
At a RGB signal
NORMAL Æ4:3 Æ16:9
At a video signal /no signal
4:3 Æ16:9
Ɣ7KH1250$/PRGHNHHSVWKHRULJLQDODVSHFWUDWLRRIWKHVLJQDO
Ɣ$WD+'79FRPSRQHQWYLGHRVLJQDORILLRUSSRQO\
mode can be selected.
Ɣ3HUIRUPLQJWKHDXWRPDWLFDGMXVWPHQWLQLWLDOL]HVWKHDVSHFWUDWLRVHWWLQJ
Adjusting the focus
1. Use the focus ring to focus on the picture.
Adjusting the zoom (Optical)
1. Use the zoom knob to adjust the screen size.
VIDEO RGB SEARCH
FREEZE
OFF
ON
MAGNIFY
ASPECT
STANDBY/ON
AUTO BLANK
MUTE
VOLUME
KEYSTONE
POSITION
ESC
ENTER
MENU
RESET
ZOOM
+
-
VIDEO RGB SEARCH
ASPECT
STANDBY/ON
AUTO BLANK
VIDEO RGB SEARCH
FREEZE
OFF
ON
MAGNIFY
ASPECT
STANDBY/ON
AUTO BLANK
MUTE
VOLUME
KEYSTONE
POSITION
ESC
ENTER
MENU
RESET
ZOOM
+
-
VIDEO RGB SEARCH
MAGNIFY
ASPECT
STANDBY/ON
AUTO BLANK
VOLUME
VIDEO RGB SEARCH
FREEZE
OFF
ON
MAGNIFY
ASPECT
STANDBY/ON
AUTO BLANK
MUTE
VOLUME
KEYSTONE
POSITION
ESC
ENTER
MENU
RESET
ZOOM
+
-
FREEZE
OFF
MUTE
KEYSTONE
POSITION MENU
ZOOM
+
-
3M™ Digital Projector X15i
© 3M 2006. All Rights Reserved.
