3nStar SC400 Owner's manual

2
Table of Contents
一、Disclaimer ................................................................................................................................................................. 5
二、Revision History ........................................................................................................................................................ 6
1、Chapter 1 Getting Started ........................................................................................................................................... 7
1.1 Introduction ........................................................................................................................................................... 7
1.2 About This Guide ................................................................................................................................................... 8
1.3 Barcode Scanning .................................................................................................................................................. 9
1.4 Barcode Programming ......................................................................................................................................... 10
1.5 Factory Defaults ................................................................................................................................................... 10
2、Chapter 2 Communication Interfaces ....................................................................................................................... 11
2.1 TTL-232 Cable Select ............................................................................................................................................ 11
2.2 TTL-232 Interface ................................................................................................................................................. 12
2.3 Baud Rate ............................................................................................................................................................ 13
2.4 Data Bit & Parity Check& Stop Bit ....................................................................................................................... 14
2.5 USB Interface ....................................................................................................................................................... 15
2.6 USB HID-KBW ....................................................................................................................................................... 15
2.7 USB Country Keyboard Types ............................................................................................................................. 16
2.8 Convert Case ........................................................................................................................................................ 19
2.9 USB COM Port Emulation .................................................................................................................................... 20
3、 Chapter 3 General Configuration ............................................................................................................................. 21
3.1 Trigger Mode ...................................................................................................................................................... 21
3. 4 Video Reverse ..................................................................................................................................................... 24
3. 5 Illumination ......................................................................................................................................................... 24
3.6 Beeper - Good Read .......................................................................................................................................... 24
3.7 Beeper Tone - Good Read .................................................................................................................................. 25
3.8 Beeper During-Good Read .................................................................................................................................. 25
3. 9 Beeper Number-Good Read ............................................................................................................................... 25
3.10 Barcode Scanning Delay .................................................................................................................................... 26
3.11 Ship Image ......................................................................................................................................................... 26
4、Chapter 4 Data Formatting ....................................................................................................................................... 27

3
4.1 General Configuration ......................................................................................................................................... 27
5、Chapter 5 Symbologies ............................................................................................................................................. 32
5.1 General Settings .................................................................................................................................................. 32
5.2 1D Symbologies .................................................................................................................................................... 33
5.3 Code 128 .............................................................................................................................................................. 33
5.4 EAN-8 ................................................................................................................................................................... 34
5.5 ENA/JAN-8 Addenda Separator .......................................................................................................................... 35
5.6 EAN-13 ................................................................................................................................................................. 36
5.7 ENA/JAN-8 Addenda Separator ........................................................................................................................... 37
5.8 ISBN Translate ..................................................................................................................................................... 38
5.9 Interleaved 2 of 5 ................................................................................................................................................ 44
5.10 Matrix 2 of 5 ...................................................................................................................................................... 46
5.11 Industrial 2 of 5 ................................................................................................................................................. 47
5.12 Code 39 .............................................................................................................................................................. 48
5.13 Code 39 Full ASCII ............................................................................................................................................... 50
5.14 Code 93 .............................................................................................................................................................. 52
5.15 Code 32 .............................................................................................................................................................. 55
6.1 2D Symbologies .................................................................................................................................................... 57
6.2 PDF 417 ................................................................................................................................................................ 57
6.3 QR Code ............................................................................................................................................................... 58
6.4 Data Matrix ........................................................................................................................................................... 59
6.5 Maxicode ............................................................................................................................................................. 60
6.6 Aztec .................................................................................................................................................................... 61
6.7 Postal Symbologies ............................................................................................................................................. 63
7 、 Appendix ................................................................................................................................................................... 64
7.1 Appendix 1: Factory Defaults Table ...................................................................................................................... 64
7.2 Appendix 2: AIM ID Table ..................................................................................................................................... 71
7.3 Appendix 3: Code ID Table ................................................................................................................................... 73

4
7.4 Appendix 4: ASCII Table ........................................................................................................................................ 74
7.5 Appendix 5: Digit Barcodes .................................................................................................................................. 78

5
一、Disclaimer
Please read through the manual carefully before using the product and operate it according to the manual. It is advised that you
should keep this manual for future reference.

6
二、Revision History
Vers ion Desc ript ion Date
V1.0.0 Initial release. Jan 13, 2014
V1.0.5 Setting correction. Sep17, 2014
V1.0.6 Add OCR setting, add Index and page number with hyperlink Feb 3, 2015

7
1.1 Introduction
The 2D barcode decoder chip uses advanced chip design & manufacturing, which significantly
simplifies application design and delivers superior performance and solid reliability with low power
consumption.
The SC400 support all mainstream 1D and standard 2D barcode symbologies (e.g., PDF417, QR
Code M1/M2/Micro
and Data Matrix) as well as GS1-DataBarTM (RSS) (Limited/Stacked/Expanded
versions). It can read barcodes on virtually any
medium - paper, plastic card, mobile phones and LCD
displays.
This compact, lightweight engine fits easily into even the most space-constrained equipments such as
data collectors, meter readers, ticket validators and PDAs.
1，Chapter 1 Getting Started

8
1.2 About This Guide
This guide provides programming instructions for the Users can configure the by
scanning the programming barcodes included in this manual
SC400 SC400

9
1.3 Barcode Scanning
The SC400 features fast scanning and decoding accuracy . Barcodes rotated at any angle can still be
read with ease. When scanning a barcode, simply center the aiming beam or pattern projected by
the SC400 over the barcode.

10
1.4 Barcode Programming
1.5 Factory Defaults
Scanning the following barcode can restore the engine to the factory defaults. See Appendix 1: Factory
Defaults Table for more information.
Note: Use this feature with discretion.
Restore All Facto ry Defaults

11
The provides a TTL-232 interface and a USB interface to communicate with the host device. The
host device can receive scanned data and send commands to control the engine or to access/alter the
configuration information of the engine via the TTL-232 or USB interface.

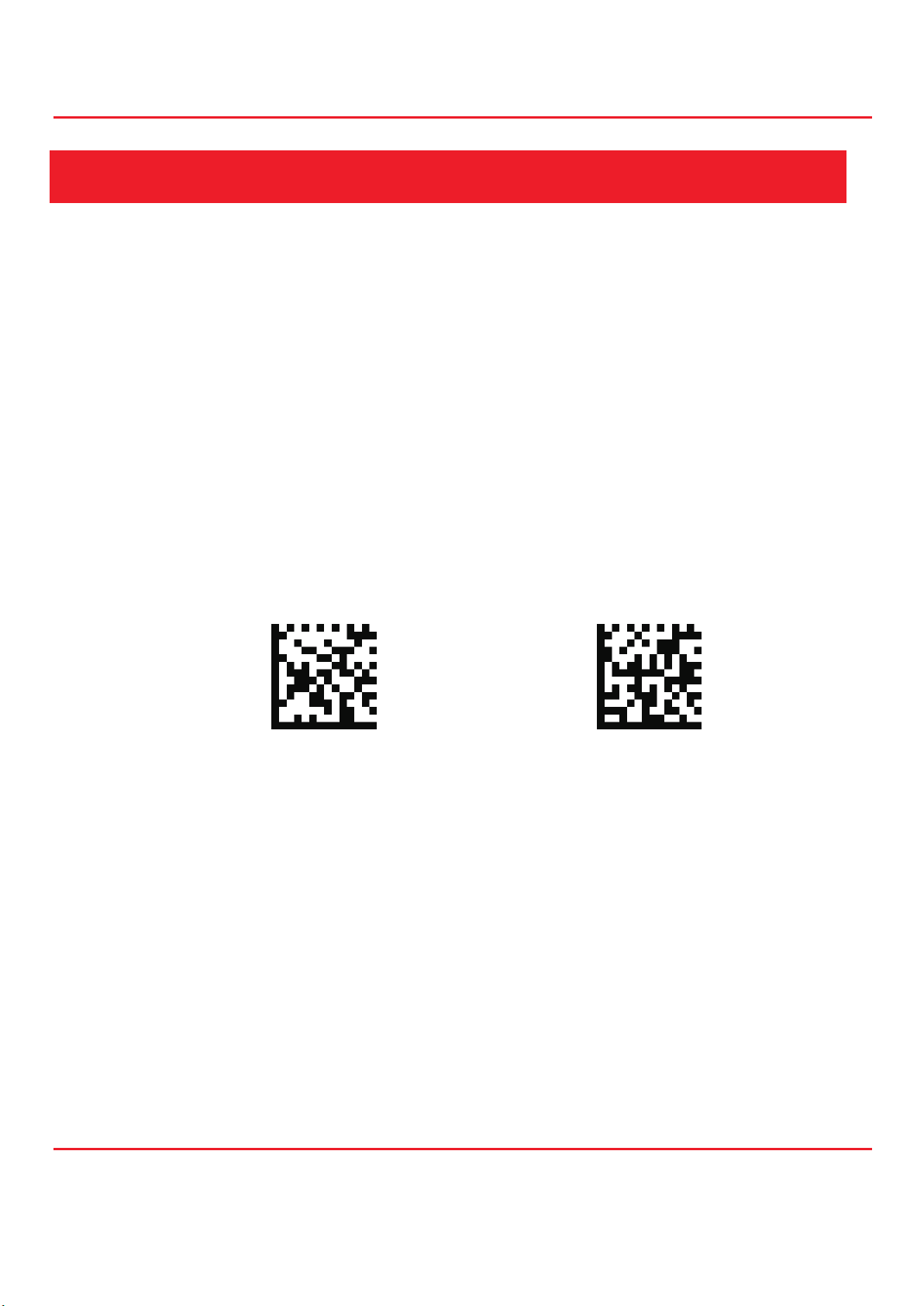

2.1 TTL-232 Cable Select
Before using Serial Communication interface, scanner must be set as TTL-232 cable. Please reset the
scanner after set 232 cable
232 Cable reset
2、Chapter 2 Communication Interfaces
SC400

12
2.2 TTL-232 Interface
Serial communication interface is usually used when connecting the engine to a host device (like PC,
POS). However, to ensure smooth communication and accuracy of data, you need to set communication
parameters (including baud rate, parity check, data bit and stop bit) to match the host device.
The serial communication interface provided by the engine is based on TTL-level signals. TTL-232 can
be used for most application architectures. For those requiring RS-232, an external conversion circuit is
needed. The conversion circuit is available only to some models.
Serial Comm unica tion
Default serial communication parameters are listed below. Make sure all parameters match the host
requirements.
Parameter Factory Defau lt
Serial Communication Standard TTL-232
Baud Rate 115200
Parity Check None
Data Bits 8
Stop Bits 1
Hardware Flow Control None

13

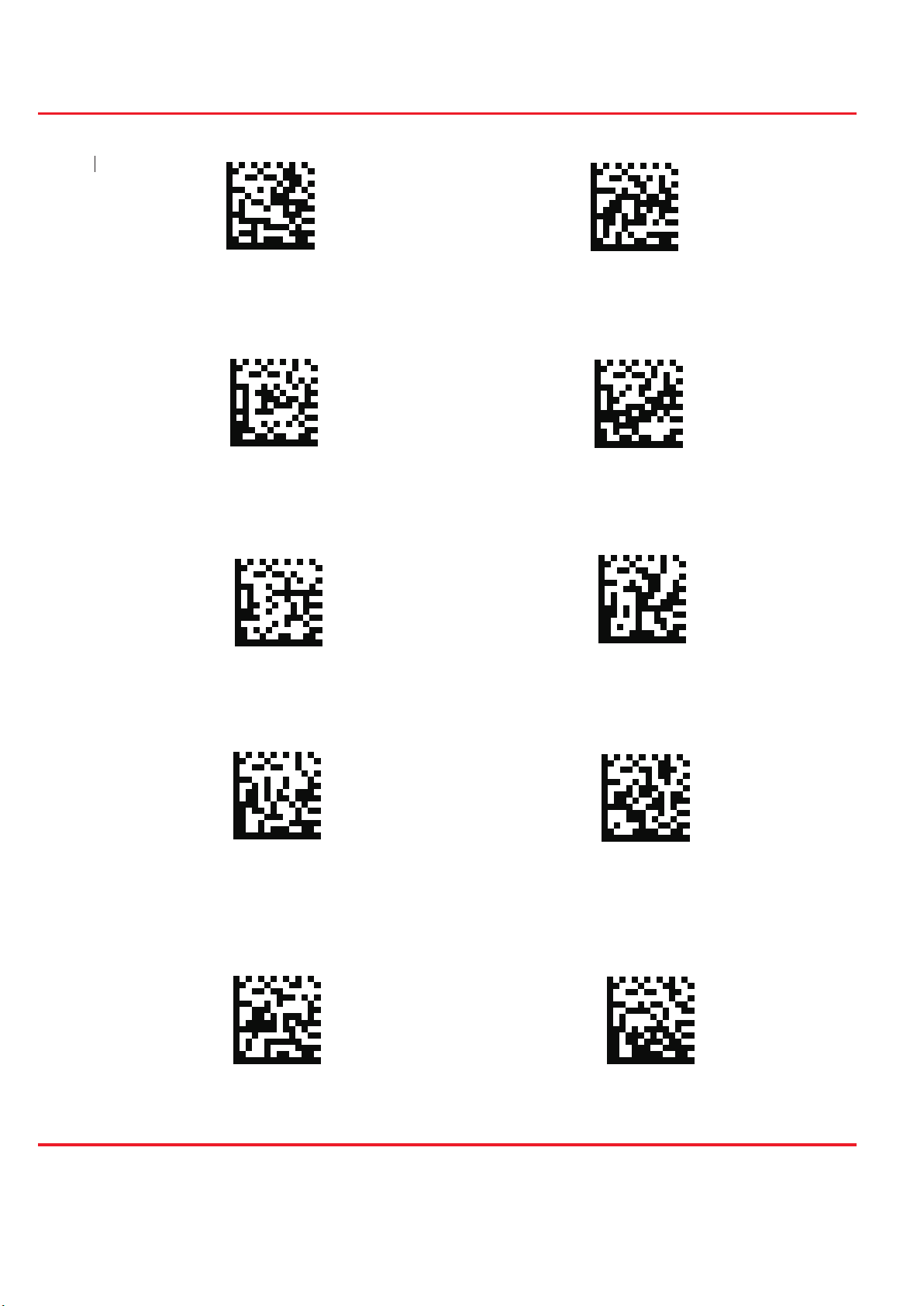

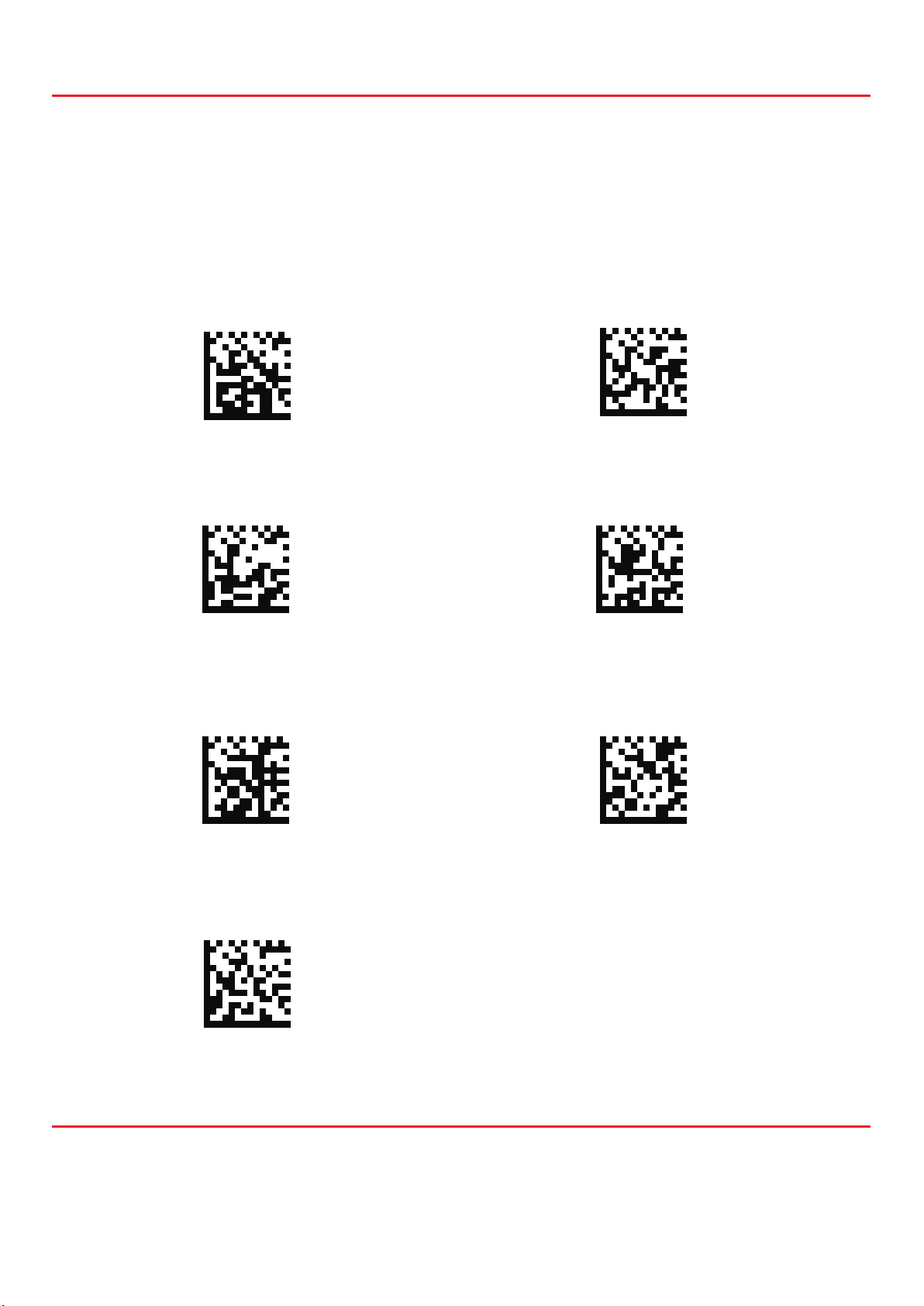

2.3 Baud Rate
Baud rate is the number of bits of data transmitted per second. Set the baud rate to match the Host
requirements.
2400 4800
9600 19200
38400 57600
115200

14

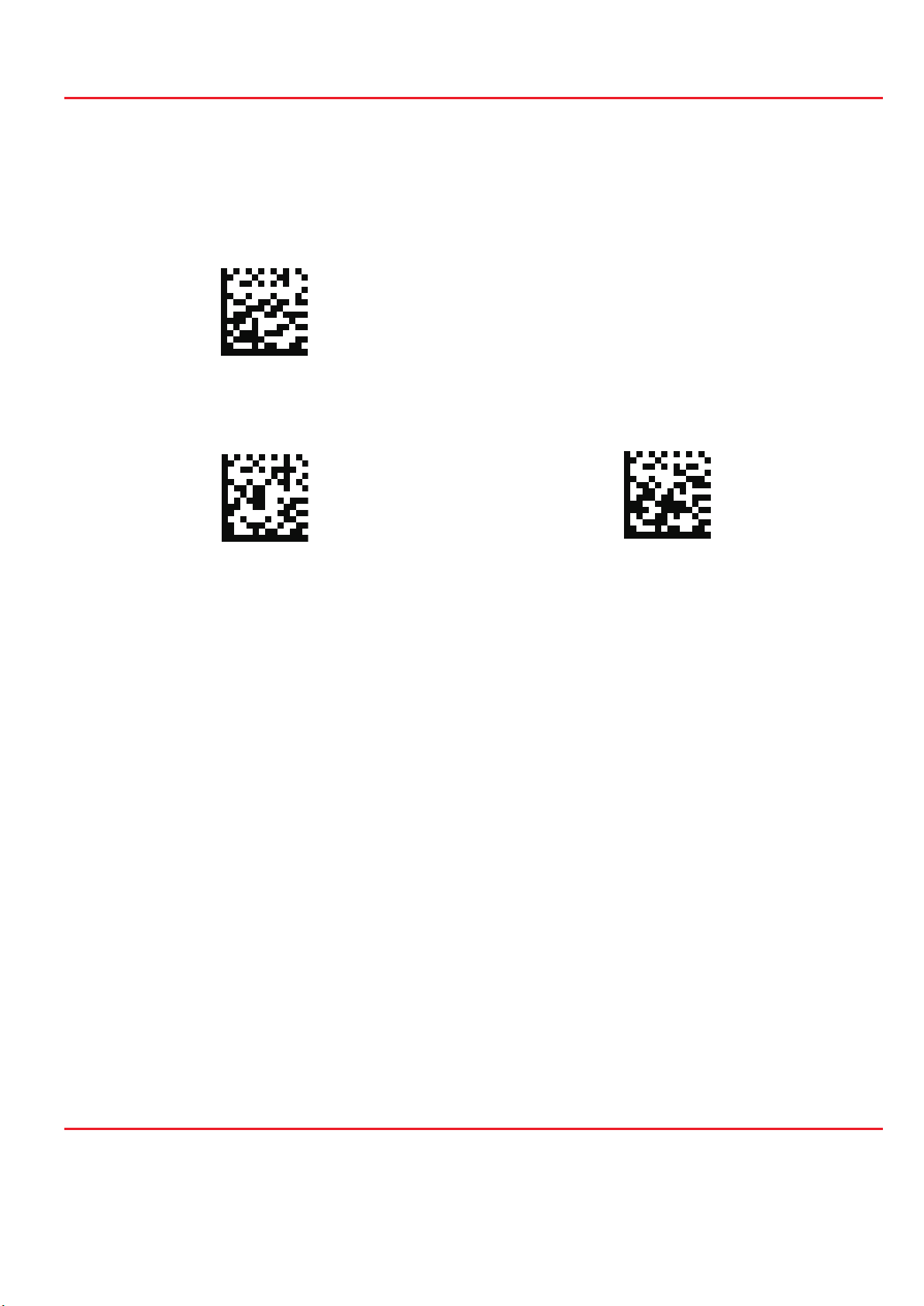

2.4 Data Bit & Parity Check& Stop Bit
None Parity /8 Data Bit s/1 Stop Bit None Parity /7 Data Bit s/1 Stop B it
None Parity /7 Data Bit s/2 Stop Bits Even Parity /8 Data Bit s/1 Stop Bit
Even Parit y /7 Data Bit s/1 Stop Bit Even Parity /7 Data Bit s/2 Stop Bits
Odd Parity /8 Data Bit s/1 Stop Bit Odd Parity /7 Data Bit s/1 Stop Bit
Odd Parity /7 Data Bit s/2 Stop Bit

15
2.5 USB Interface
Before using USB Communication interface, scanner must be set as USB cable. Please reset the scanner after
set USB cable。
USB Cable Reset
2.6 USB HID-KBW
When you connect the engine to the Host via a USB connection, you can enable the USB HID-KBW
feature by scanning the barcode below. Then engine’s transmission will be simulated as USB keyboard
input. The Host receives keystrokes on the virtual keyboard. It works on a Plug and Play basis and no
driver is required.
USB HID-KBW

16
2.7 USB Country Keyboard Types
Keyboard layouts vary from country to country. The default setting is 1-U.S. keyboard.
1 - U.S. 2 – UK
3 - Denmark 4 - France
5 - Finland 6 - Tur key_F
7 - Italy 8 - Norway

17
9 - Albania 10 - Belgium
11 – Bosnia 12 – Brazil
13 – Croatia 14 – Czech
15 –Dutch 16 – Estonia
17 – Germany 18 – Greek

18
19 – Hungary 20 – Irish
21 – Latvia 22-Lithun nia
23 – Macedonia 24 – Spain
25 – Poland 26 –Portugal
27 –Romania 28 –Russia

19
2.8 Convert Case
Scan the appropriate barcode below to convert barcode data to your desired case.
No Case Convers ion
Convert All to Upper Case Con vert All to Low er Case
Example: When the Conv ert All to Lower Case feature is enabled, barcode data “AbC” is transmitted
as “abc”.

20
2.9 USB COM Port Emulation
If you connect the engine to the Host via a USB connection, the USB COM Port Emulation feature
allows the Host to receive data in the way as a serial port does. A driver is required for this feature.
USB COM Port E mulation
