7starlake SCH400-AA User manual

User’s Manual
Revision Date: July.7.2021
SCH400-AA
IEC-61850-3, IEEE-1613 Substation 2U
Computer

SCH400-AA User’s Manual
Revision Date: July.7.2021
1
Safety Information
Electrical safety
To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before
relocating the system.
When adding or removing devices to or from the system, ensure that the power cables for the
devices are unplugged before the signal cables are connected. If possible, disconnect all
power cables from the existing system before you add a device.
Before connecting or removing signal cables from the motherboard, ensure that all power
cables are unplugged.
Seek professional assistance before using an adapter or extension cord. These devices could
interrupt the grounding circuit.
Make sure that your power supply is set to the correct voltage in your area.
If you are not sure about the voltage of the electrical outlet you are using, contact your local
power company.
If the power supply is broken, do not try to fix it by yourself. Contact a qualified service
technician or your local distributor.
Operation safety
Before installing the motherboard and adding devices on it, carefully read all the manuals that
came with the package.
Before using the product, make sure all cables are correctly connected and the power cables
are not damaged. If you detect any damage, contact your dealer immediately.
To avoid short circuits, keep paper clips, screws, and staples away from connectors, slots,
sockets and circuitry.
Avoid dust, humidity, and temperature extremes. Do not place the product in any area where it
may become wet.
Place the product on a stable surface.
If you encounter any technical problems with the product, contact your local distributor
Statement
All rights reserved. No part of this publication may be reproduced in any form or by any
means, without prior written permission from the publisher.
All trademarks are the properties of the respective owners.
All product specifications are subject to change without prior notice

SCH400-AA User’s Manual
Revision Date: July.7.2021
2
Revision History
Revision
Date (yyyy/mm/dd)
Changes
V1.0
2021/07/07
First release
Packing List
Item
Description
Q’ty
1
SCH400-AA IEC-61850-3, IEEE-1613 Substation 2U Computer
1
2
Driver CD
1
Ordering information
SCH400-AA
IEC-61850-3, IEEE-1613 Substation 2U Computer with Intel 10th Gen Xeon® W-1200 or Core™
i9/i7/i5 Processor 2 ×RJ45 GbE, 1 x IPMI, 9~36V DC-IN, TPM support / FTDI By option , 2 x 150W
DC/DC Redundant Power Supply, Operating Temperature -30~+70°C

SCH400-AA User’s Manual
Revision Date: July.7.2021
3
RoHS Compliance
7Starlake RoHS Environmental Policy and Status Update
7Starlake is a global citizen for building the digital infrastructure. We are
committed to providing green products and services, which are compliant
with
European Union RoHS (Restriction on Use of Hazardous Substance in Electronic
Equipment) directive 2011/65/EU, to be your trusted green partner and to protect our
environment.
In order to meet the RoHS compliant directives, 7Starlake has established an engineering
and manufacturing task force to implement the introduction of green products. The task force
will ensure that we follow the standard 7Starlake development procedure and that all the
new RoHS components and new manufacturing processes maintain the highest industry
quality levels for which 7Starlake are renowned.
The model selection criteria will be based on market demand. Vendors and suppliers will
ensure that all designed components will be RoHS compliant

SCH400-AA User’s Manual
Revision Date: July.7.2021
4
Chapter 1 : Production Introduction............................................................................................5
1.1 Specifications........................................................................................................................5
1.2 Front Panel I/O Placement..................................................................................................7
1.3 Rear Panel I/O Placement ..................................................................................................7
1.4 Mechanical Dimensions.......................................................................................................9
Chapter 2 : Rear I/O Ports.............................................................................................................10
2.1 LAN/IPMI port......................................................................................................................10
2.2 VGA/DVI-D/DP port............................................................................................................10
2.3 USB3.2 port.........................................................................................................................10
Chapter 3 : System Setup.............................................................................................................11
3.1 Removing the Top Cover from the Chassis....................................................................11
3.2 Installing PCIe Card...........................................................................................................11
3.3 Install the screws on the upper cover..............................................................................11
3.4 2.5” Easy Swap SSD installation......................................................................................12
Chapter 4: AMI BIOS Utility ..........................................................................................................12
4.1 Starting.................................................................................................................................13
4.2 Navigation Keys..................................................................................................................13
4.3 Main Setup...........................................................................................................................13
4.4 Advanced Setup Configuations........................................................................................16
4.5 Event Logs...........................................................................................................................50
4.6 IPMI.......................................................................................................................................52
4.7 Security ................................................................................................................................55
4.8 Boot.......................................................................................................................................62
4.9 Save & Exit..........................................................................................................................65

SCH400-AA User’s Manual
Revision Date: July.7.2021
5
Chapter 1 : Production Introduction
1.1 Specifications
System
CPU
10th Generation Intel® Xeon® W-1200 Processors
Intel® Xeon® W-1290TE Processor (20M Cache, up to 4.50 GHz)
Intel® Xeon® W-1250TE Processor (12M Cache, up to 3.80 GHz)
10th Generation Intel® Core™ i9/i7/i5 Processors
Intel® Core™ i9-10900TE(20M Cache, up to 4.60 GHz)
Intel® Core™ i7-10700TE(16M Cache, up to 4.50 GHz)
Intel® Core™ i5-10500TE(12M Cache, up to 3.70 GHz)
Memory type
4 x DDR4 up to 128GB
Expansion Slot
1 PCI-E 3.0 x16
2 PCI-E 3.0 x4
Storage Device
4 x 2.5” Easy swap HDD/SSD Tray (Support RAID 0,1,5,10)
Rear I/O
Power Button
1 x w/Indicator LED
USB
2 x USB 2.0
Front I/O
Power Input
9~36V DC IN
LAN
2 x RJ45 GbE LAN ; 2 x RJ45 10GbE LAN (By option) ; 1 x IPMI
USB
4 x USB 3.2
DisplayPort
2 x DP
DVI
1 x DVI-D
VGA
1
Power
Power Input
125V DC-IN, 2 x 200W DC/DC Redundant Power Supply(INRUSH
CURRENT : 45A/110VDC)
Security
TPM
1
Management

SCH400-AA User’s Manual
Revision Date: July.7.2021
6
FTDI
1 (By option)
OS support list
Windows
Windows 10 x64
Linux
Ubuntu, Red Hat
Mechanical and Evvironmental
Dimension
430 x 450 x 88 mm ( W x D x H )
Operating Temp.
-20°C to 60°C
Storage Temp.
-40°C to 85°C
Relative Humidity
5% to 95%, non-condensing
Standards
CE, FCC, MIL-STD 810G Compliance
System Design
Fanless
Mounting
2U Rackmount
MIL-STD-810G
Test
Method 507.5, Procedure II (Temperature & Humidity)
Method 516.6 Shock-Procedure V Non-Operating (Mechanical Shock)
Method 516.6 Shock-Procedure I Operating (Mechanical Shock)
Method 514.6 Vibration Category 24/Non-Operating (Category 20 & 24,
Vibration)
Method 514.6 Vibration Category 20/Operating (Category 20 & 24, Vibration)
Method 501.5, Procedure I (Storage/High Temperature)
Method 501.5, Procedure II (Operation/High Temperature)
Method 502.5, Procedure I (Storage/Low Temperature)
Method 502.5, Procedure II (Operation/Low Temperature)
Method 503.5, Procedure I (Temperature shock)
EMC
CE, FCC compliant
Green Product
RoHS, WEEE compliance

SCH400-AA User’s Manual
Revision Date: July.7.2021
7
1.2 Front Panel I/O Placement
1)
4 x HDD Tray
2)
2 x USB2.0
3)
Power Button
1.3 Rear Panel I/O Placement

SCH400-AA User’s Manual
Revision Date: July.7.2021
8
1)
IPMI
2)
4 x USB3.2
3)
2 x GbE
4)
2 x 10GbE(By option)
5)
VGA
6)
DVI-D
7)
2 x DP
8)
4 x PCIe expansion
9)
2 x DC-IN

SCH400-AA User’s Manual
Revision Date: July.7.2021
9

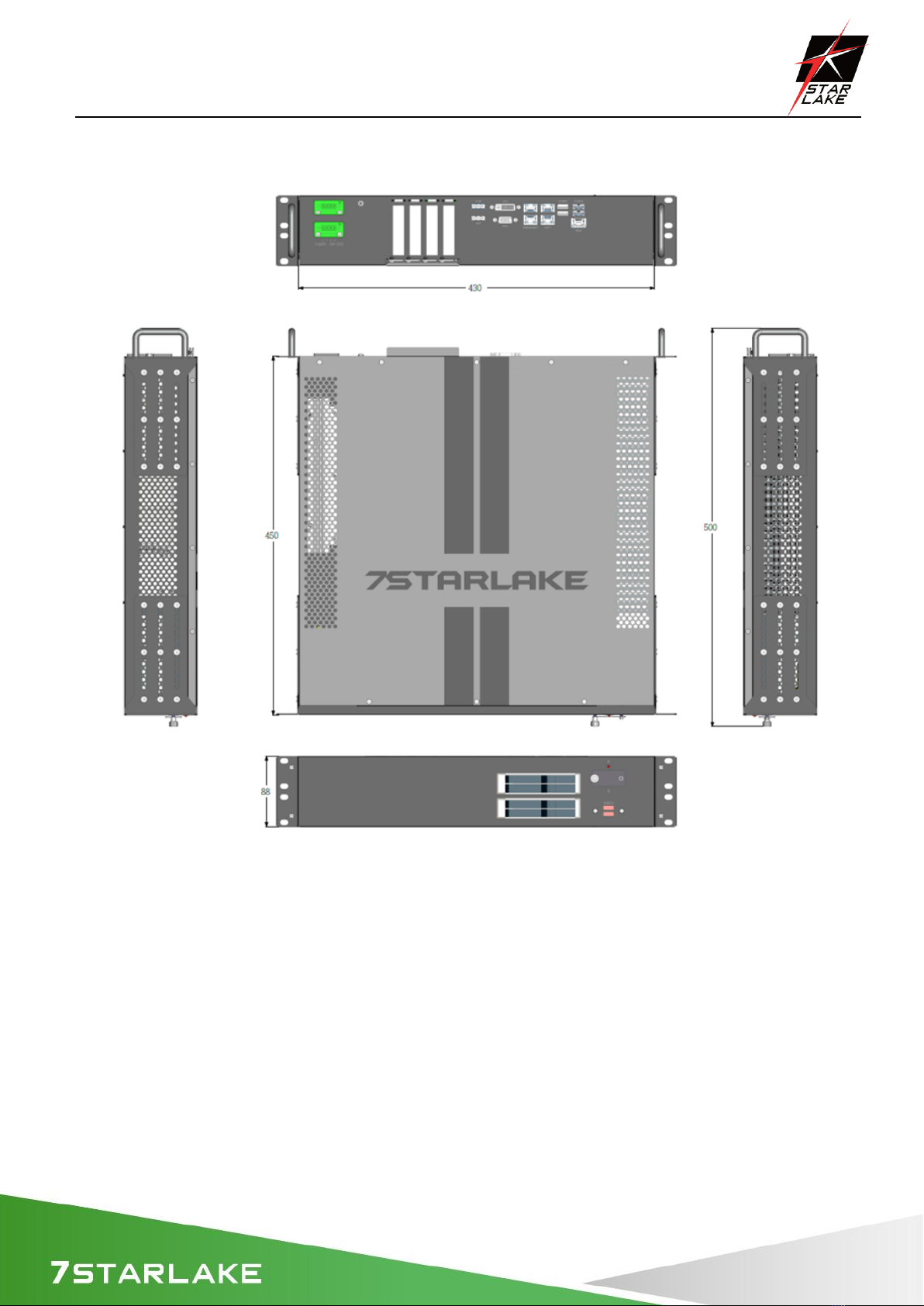

1.4 Mechanical Dimensions

SCH400-AA User’s Manual
Revision Date: July.7.2021
10

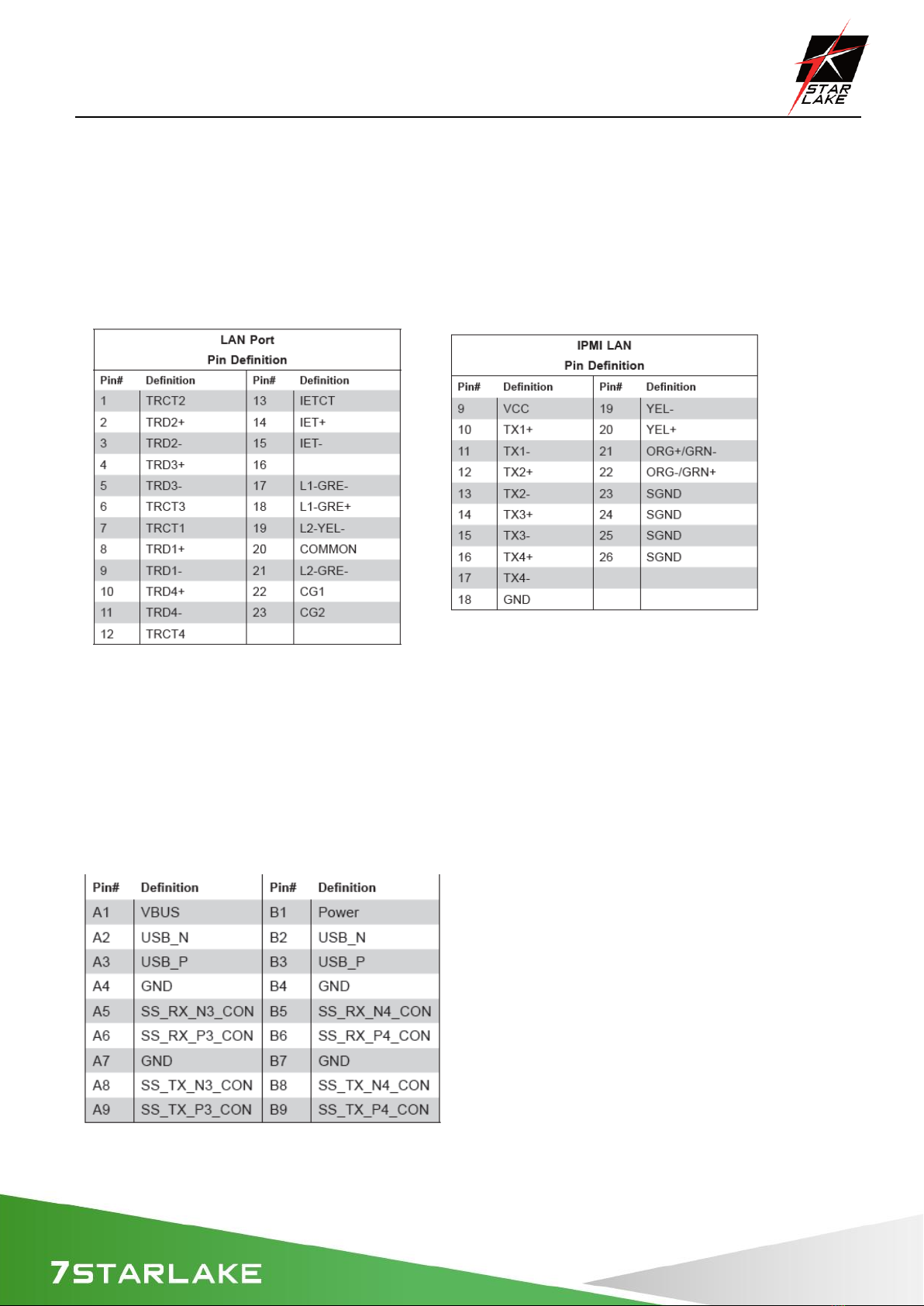

Chapter 2 : Rear I/O Ports
2.1 LAN/IPMI port
2.2 VGA/DVI-D/DP port
A VGA port and a DVI-D port are located next to DisplayPorts 1/2 on the I/O back panel.
Use these connections for VGAand DVI displays. The VGAconnector is on top and the
DVI-D is on the bottom.
There are two DisplayPorts located on the rear I/O back panel. DisplayPort, developed by
the VESAconsortium, delivers digital display and fast refresh rate. It can connect to virtually
any display using a DisplayPort adaptor for devices such as VGA, DVI, or HDMI.
2.3 USB3.2 port

SCH400-AA User’s Manual
Revision Date: July.7.2021
11
Chapter 3 : System Setup

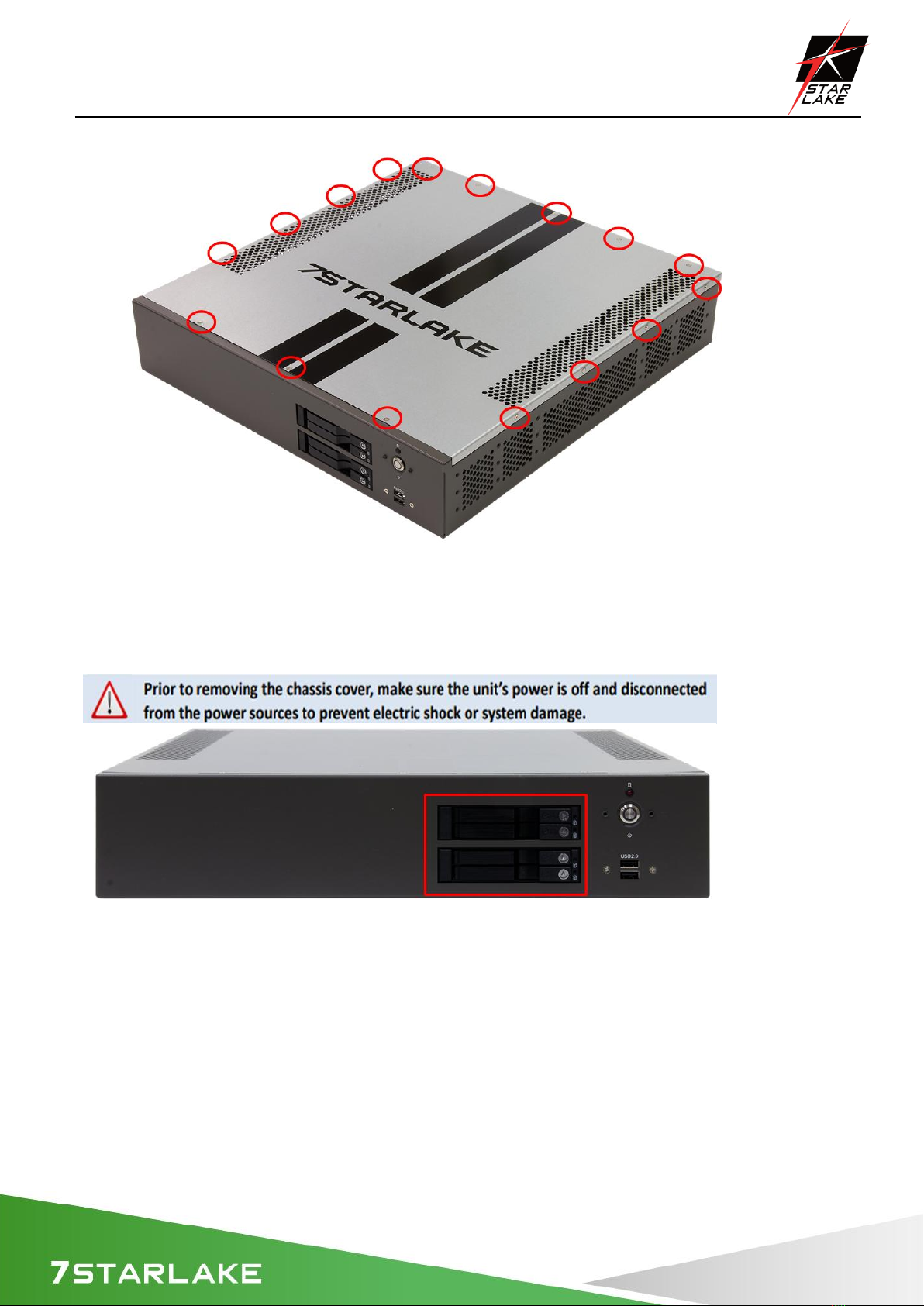

3.1 Removing the Top Cover from the Chassis
The sixteen screws on the top and side are used to secure the cover to the chassis. Remove
these screws and put them in a safe place for later use

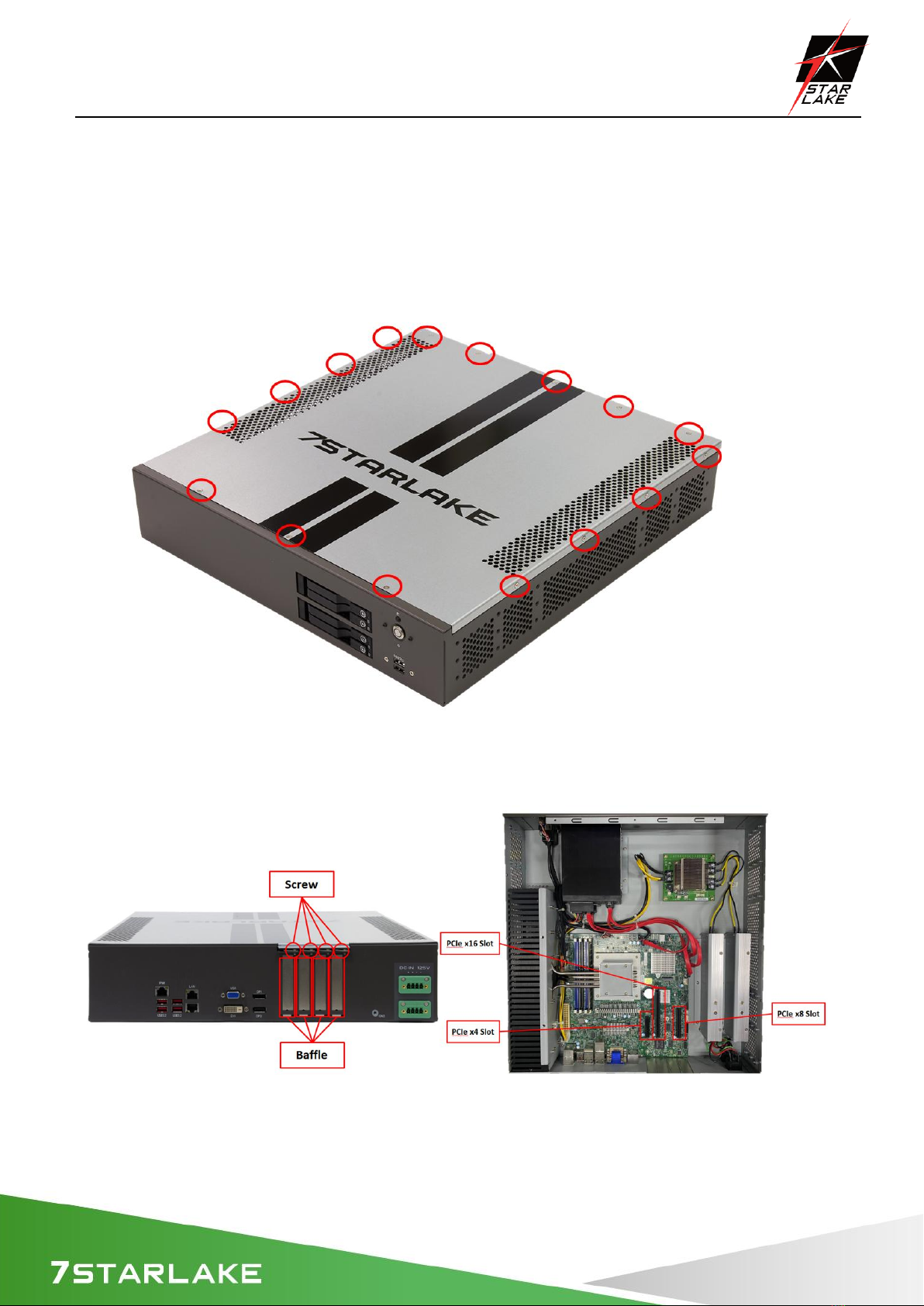

3.2 Installing PCIe Card
First, you need to remove the baffle and screws. There is PCIe x4 / 8/16 slot on the
motherboard, insert the corresponding PCIe Card and lock the screw
3.3 Install the screws on the upper cover
Attach the screws at sixteen locations to complete the installation

SCH400-AA User’s Manual
Revision Date: July.7.2021
12
3.4 2.5” Easy Swap SSD installation
SCH400-AA support four 2.5” Easy Swap SSD
•Use Tri-angle security key to open keylock and pull out the 2.5”SSD tray.
•Put 2.5”SSD on the tray and make sure SSD is fixed and push the tray back.
•Use Tri-angle security key to lock tray door
Chapter 4: AMI BIOS Utility
This chapter provides users with detailed descriptions on how to set up a basic system
configuration through the AMI BIOS setup utility.

SCH400-AA User’s Manual
Revision Date: July.7.2021
13
4.1 Starting
To enter the setup screens, perform the following steps:
• Turn on the computer and press the <Del> key immediately.
• After the <Del> key is pressed, the main BIOS setup menu displays. Other setup screens
can be accessed from the main BIOS setup menu, such as the Chipset and Power menus.
4.2 Navigation Keys
The BIOS setup/utility uses a key-based navigation system called hot keys. Most of the
BIOS setup utility hot keys can be used at any time during the setup navigation process.
Some of the hot keys are <F1>, <F10>, <Enter>, <ESC>, and <Arrow> keys.
Left/Right
The Left and Right <Arrow> keys moves the cursor to select a
menu.
Up/Down
The Up and Down <Arrow> keys moves the cursor to select a
setup screen or sub-screen.
+− Plus/Minus
The Plus and Minus <Arrow> keys changes the field value of a
particular setup setting.
Tab
The <Tab> key selects the setup fields.
F1
The <F1> key displays the General Help screen.
F10
The <F10> key saves any changes made and exits the BIOS
setup
utility.
Esc
The <Esc> key discards any changes made and exits the
BIOS
setup utility.
Enter
The <Enter> key displays a sub-screen or changes a selected
or
highlighted option in each menu.

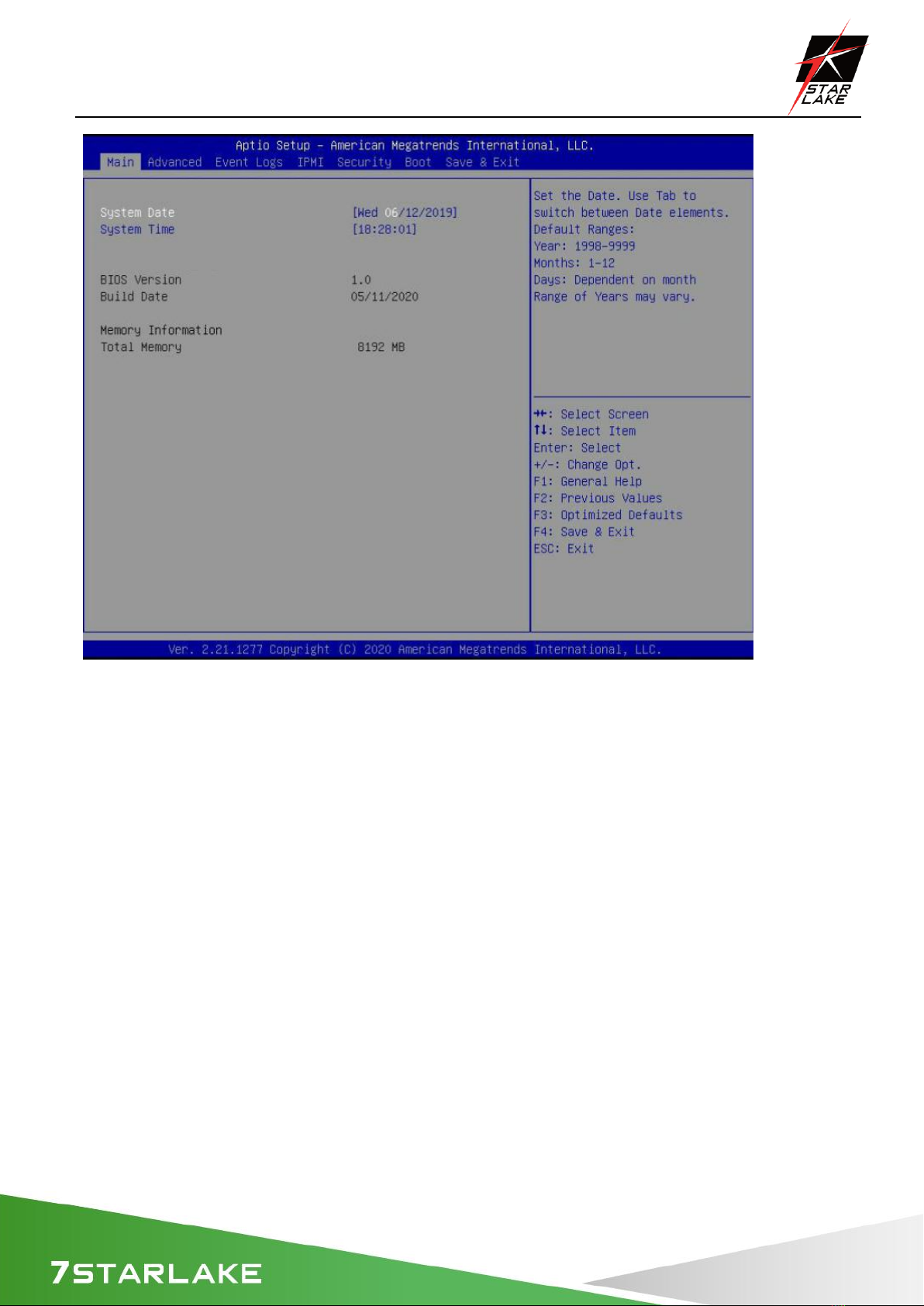

4.3 Main Setup
When you first enter the AMI BIOS setup utility, you will enter the Main setup screen. You
can always return to the Main setup screen by selecting the Main tab on the top of the
screen. The Main BIOS setup screen is shown below and the following items will be
displayed:

SCH400-AA User’s Manual
Revision Date: July.7.2021
14
The Main BIOS setup screen has two main frames. The left frame displays all the options
that can be configured. Grayed-out options cannot be configured; options in blue can. The
right frame displays the key legend. Above the key legend is an area reserved for a text
message. When an option is selected in the left frame, it is highlighted in white. Often a text
message will accompany it.
System Date
Use this function to change the system date.
Select System Date using the Up and Down <Arrow> keys. Enter the new values
through the keyboard. Press the Left and Right <Arrow> keys to move between
fields.
The date setting must be entered in MM/DD/YY format.
System Time
Use this function to change the system time.
Select System Time using the Up and Down <Arrow> keys. Enter the new values
through the keyboard. Press the Left and Right <Arrow> keys to move between

SCH400-AA User’s Manual
Revision Date: July.7.2021
15
fields.
The time setting is entered in HH:MM:SS format.
Note: The time is in 24-hour format. For example, 5:30 A.M. appears as 05:30:00, and 5:30
P.M. as
17:30:00.
BIOS Version
This item displays the version of the BIOS ROM used in the system.
Build Date
This item displays the date when the version of the BIOS ROM used in the system was built.
Memory Information
Total Memory
This item displays the total size of memory available in the system.

SCH400-AA User’s Manual
Revision Date: July.7.2021
16
4.4 Advanced Setup Configuations

SCH400-AA User’s Manual
Revision Date: July.7.2021
17

SCH400-AA User’s Manual
Revision Date: July.7.2021

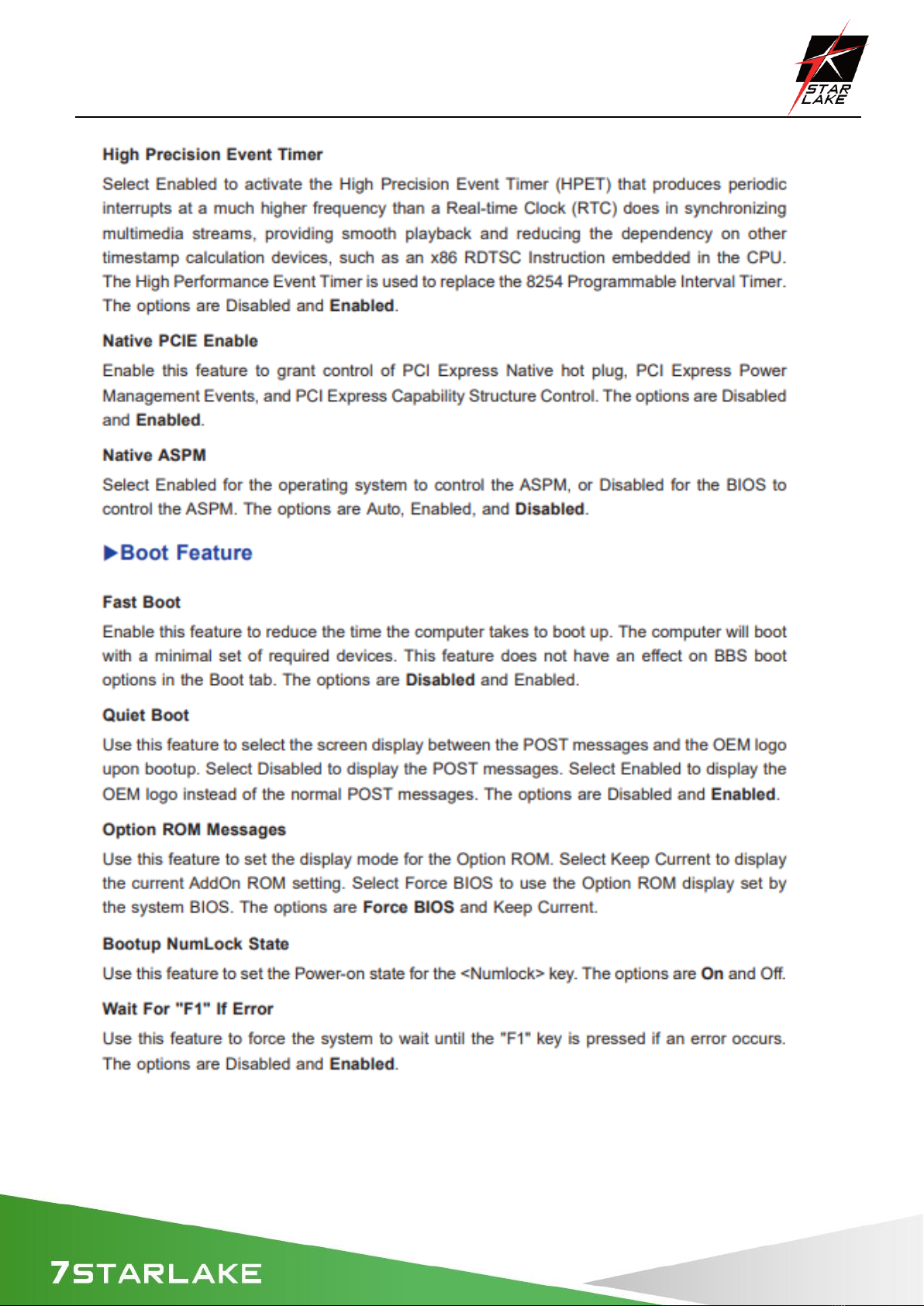

18

SCH400-AA User’s Manual
Revision Date: July.7.2021

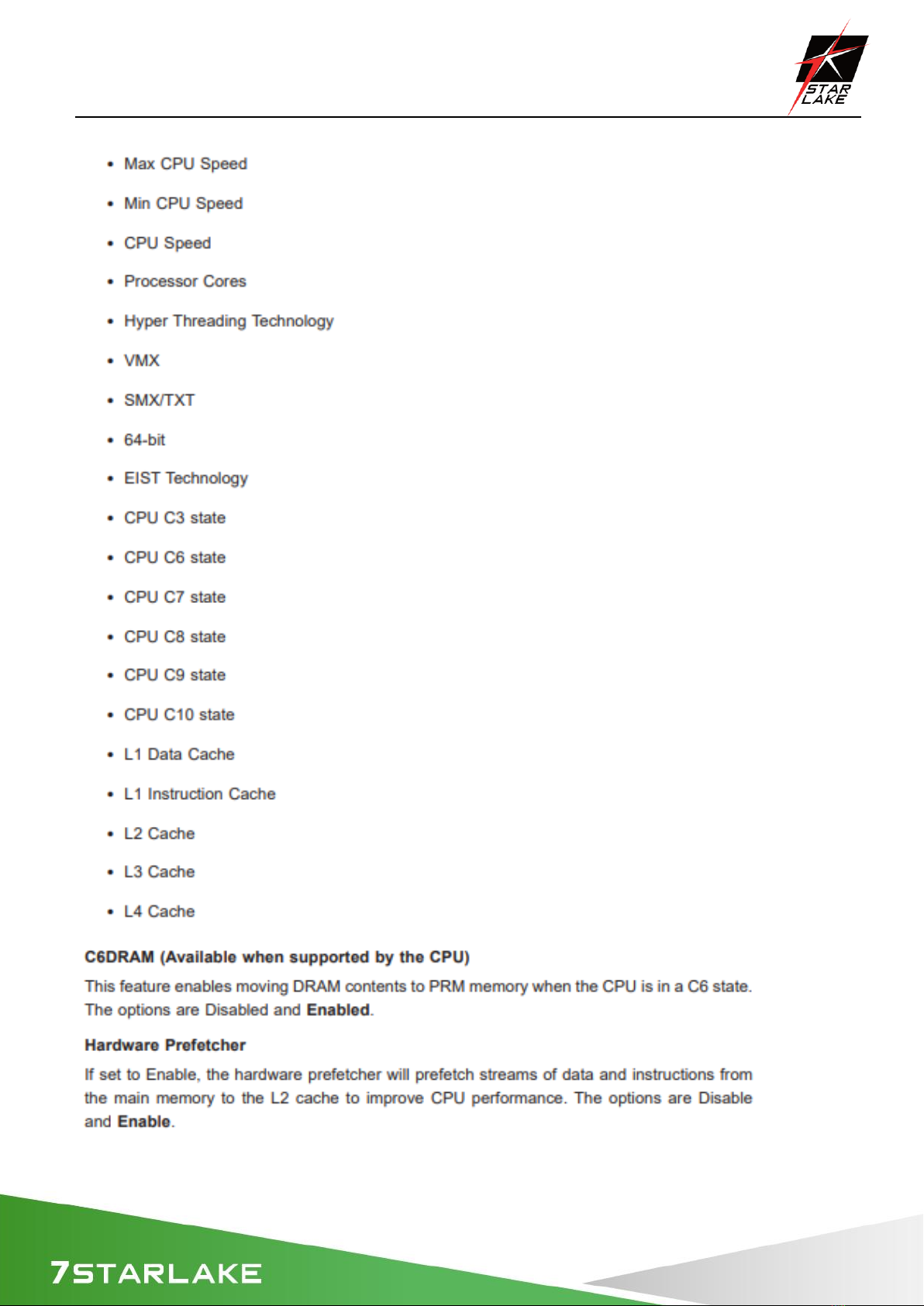

19
