MIRACLE STEAMER
Models MS-250/255
Owner’s Manual
P/N 1010455 Rev. D 03/12
MANUFACTURING
NUMBERS:
9100430
9100435
9100436
9100437
9100438
9100460
9100462
9100466
9100468
A
S
D
L
I
S
T
E
CM
O
I
N
N
I
T
A
T
C
T
I
S
L
US
E
D
D
L
I
S
T
E
C US
I
N
T
E
R
T
E
K
MS-255 Shown

MIRACLE STEAMER
2P/N 1010455 Rev. D 03/12
A.J. Antunes & Co.
OWNER INFORMATION
TABLE OF CONTENTS
IMPORTANT! Keep these instructions for future reference. If the unit changes ownership,
be sure this manual accompanies the equipment.
Owner information .....................................................2
General......................................................................2
Warranty Information .................................................2
Owner information (continued).................................3
Service/Technical Assistance ....................................3
Model Designation.....................................................3
Specifications .............................................................5
Electrical Ratings.......................................................5
Dimensions................................................................5
Electrical Cord & Plug Configurations .......................5
Installation...................................................................6
Unpacking..................................................................6

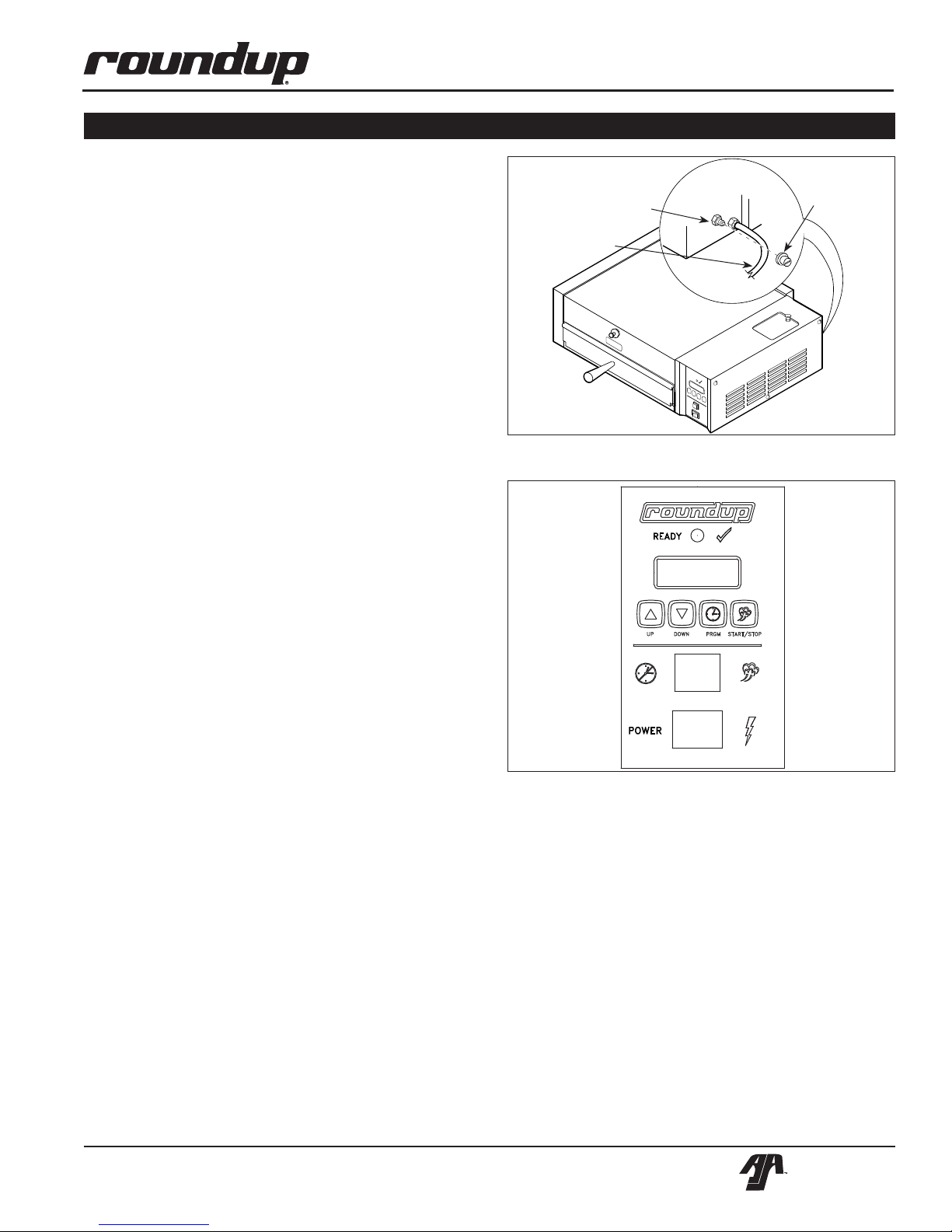

Equipment Setup.......................................................6
Operation.....................................................................9

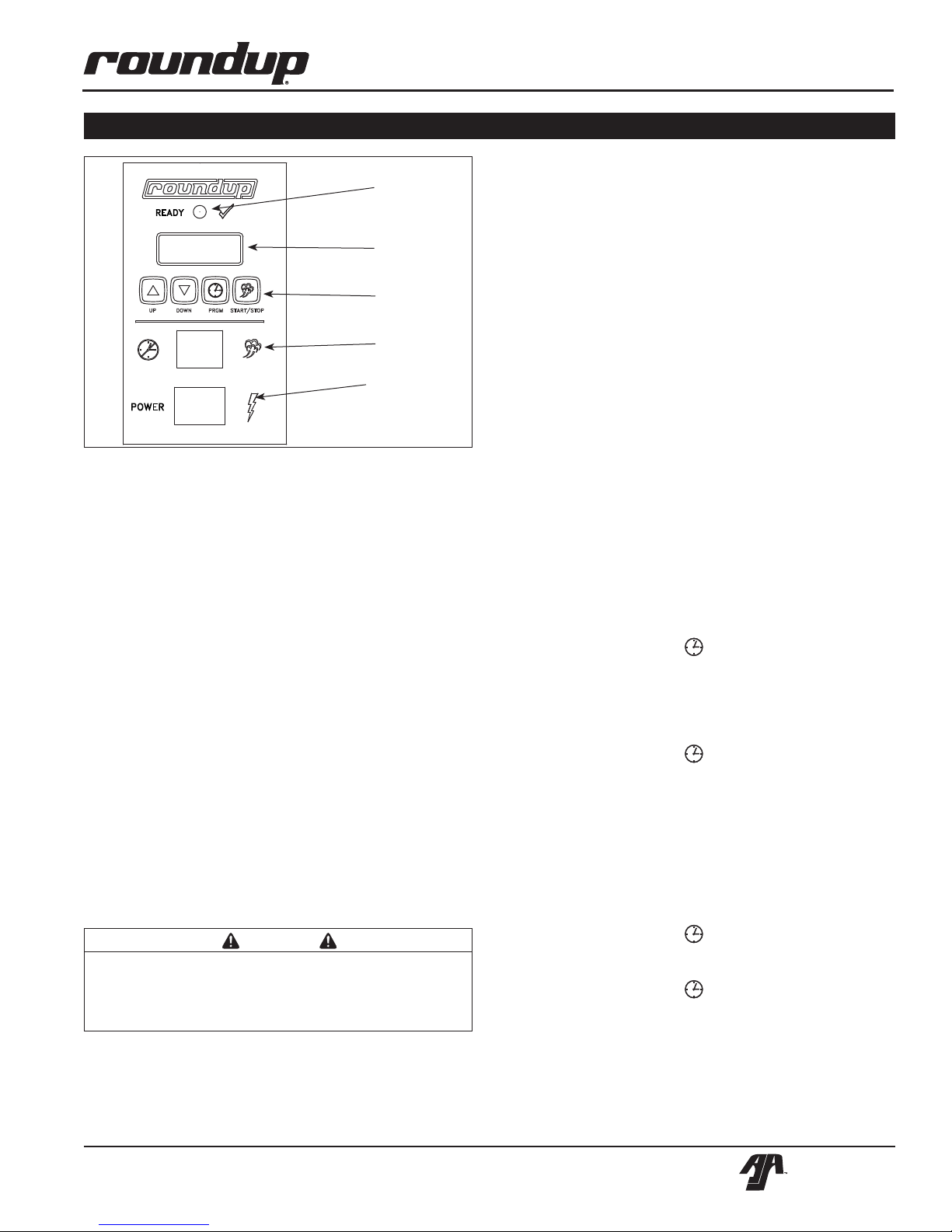

Operating Instructions ...............................................9

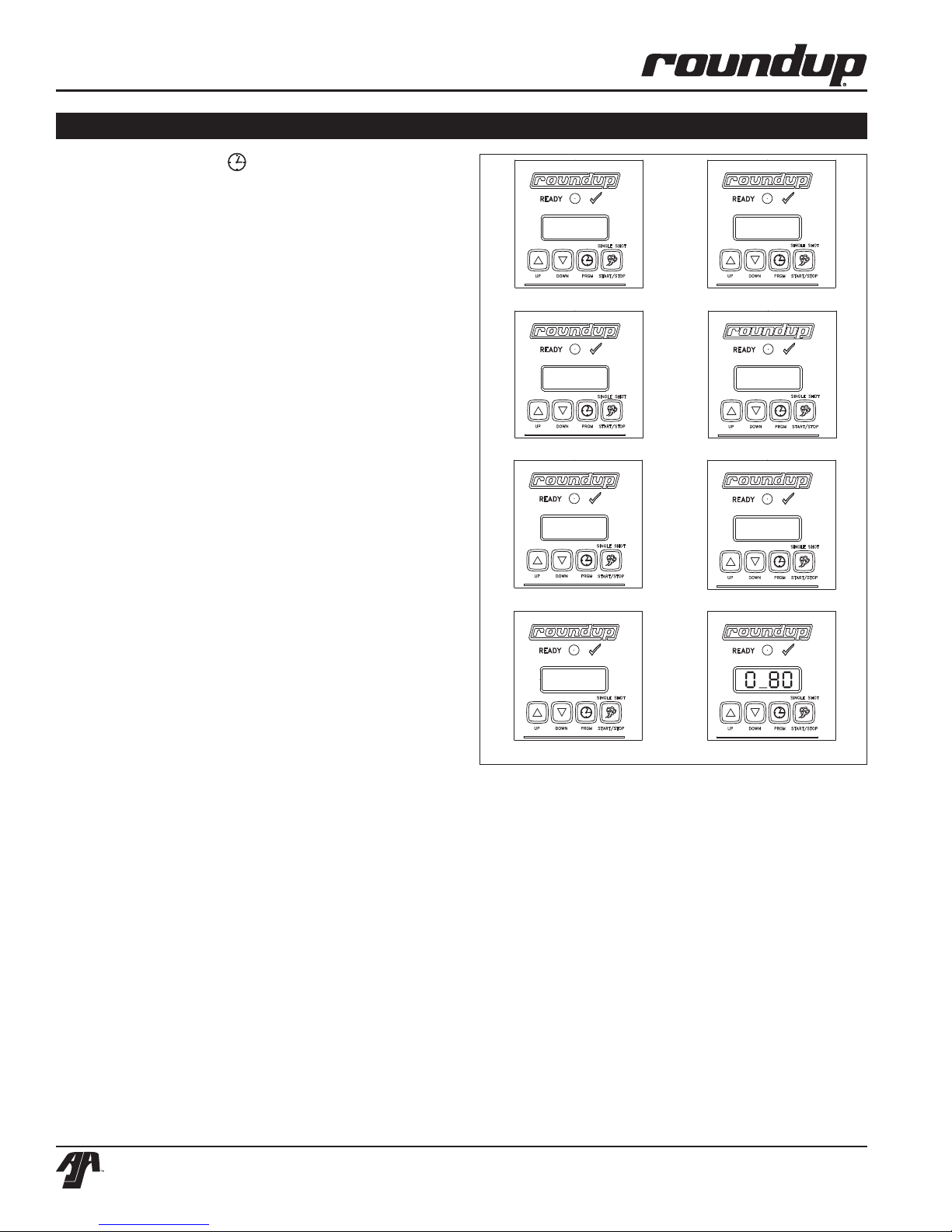

Programming .............................................................9
Hi-Limit Reset Button ..............................................11
Status Indicator LEDs..............................................11
Fault Codes .............................................................11

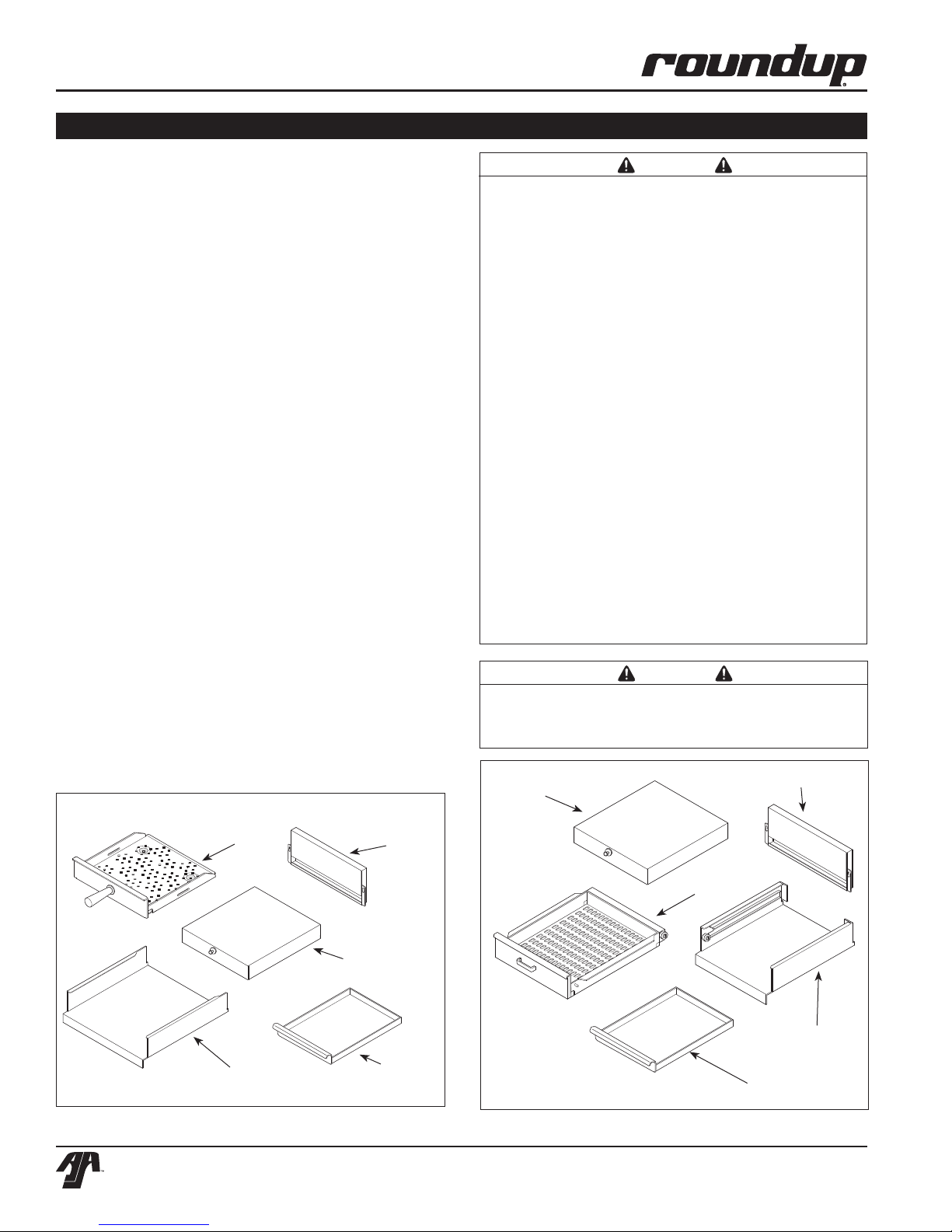

Maintenance..............................................................12
Daily.........................................................................12
Monthly ....................................................................13
Troubleshooting .......................................................15

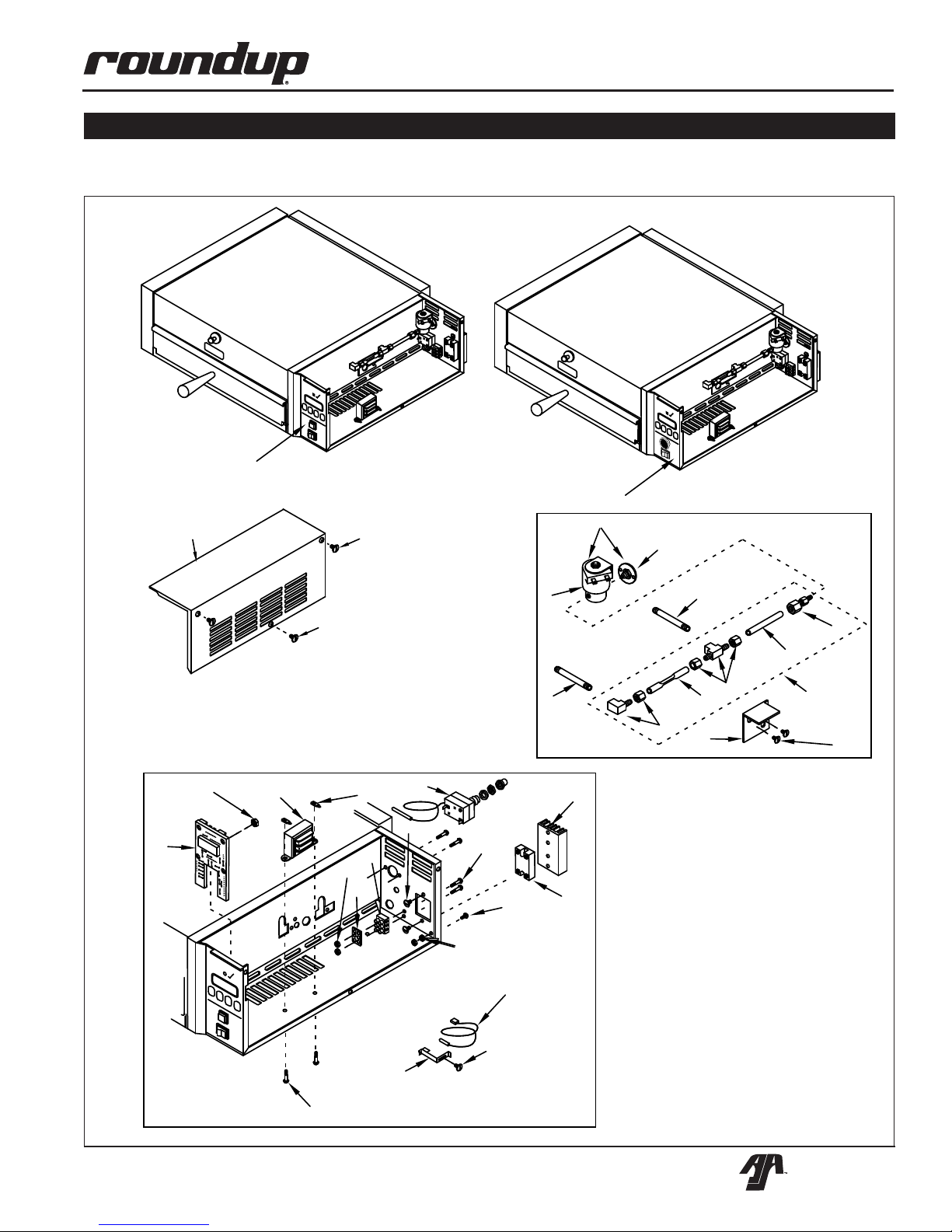

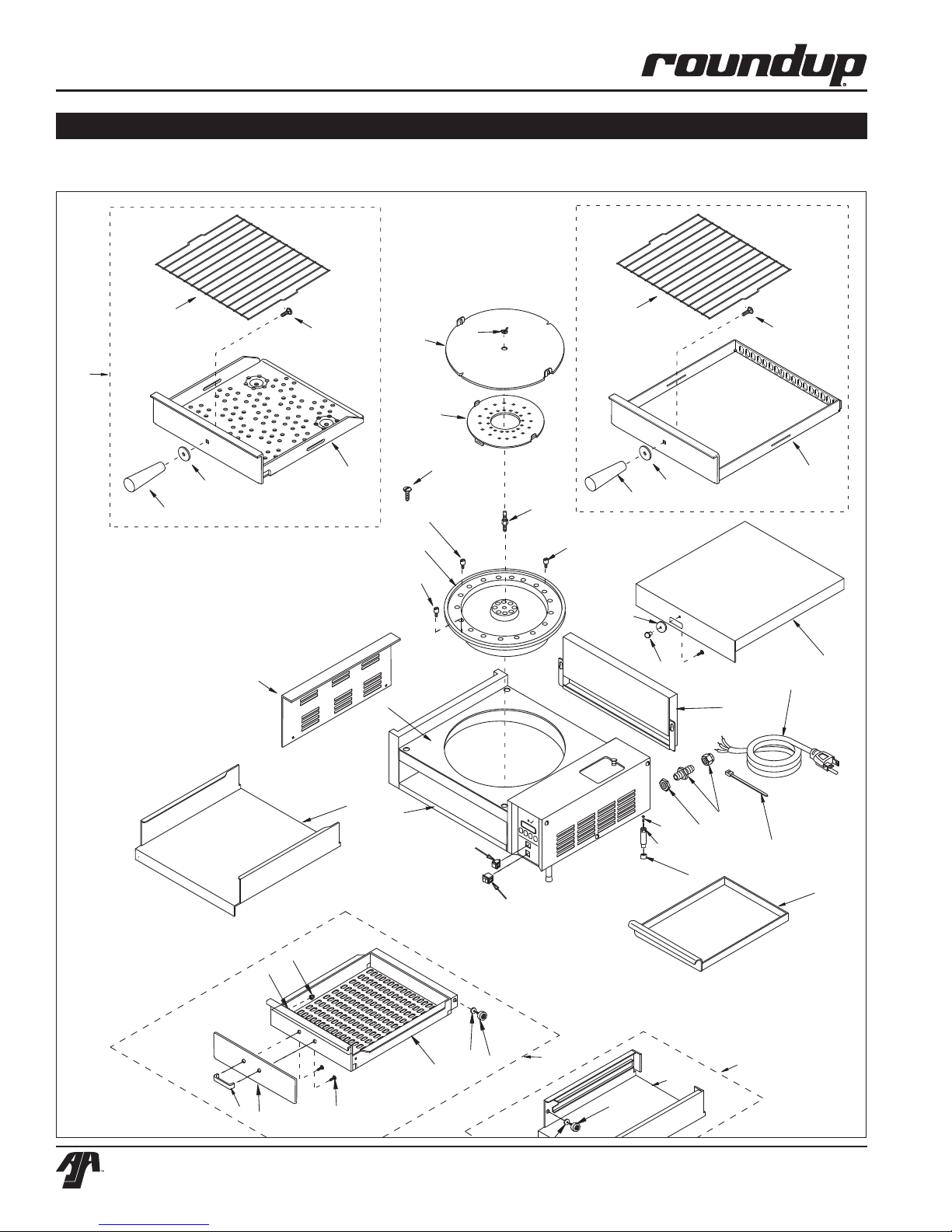

Replacement parts ...................................................18
Wiring Diagrams.......................................................22
LIMITED WARRANTY ...............................................24
General
The Miracle Steamer produces steam using plain tap
water for quick heating and reconstituting of food items.
Simple push-button action delivers a fully adjustable
impulse of steam. Because the amount of steam is
consistent, it removes the guesswork and produces a
uniform finished product from one operator to the next.
This manual provides the safety, installation and oper-
ating procedures for the Miracle Steamer. We recom-
mend that all information contained in this manual be
read prior to installing and operating the unit.
Your Miracle Steamer is manufactured from the finest
materials available and assembled to Roundup’s strict
quality standards. This unit has been tested at the fac-
tory to ensure dependable trouble-free operation.
Warranty Information
Please read the full text of the Limited Warranty in this
manual.
If the unit arrives damaged, contact the carrier imme-
diately and file a damage claim with them. Save all
packing materials when filing a claim. Freight damage
claims are the responsibility of the purchaser and are
not covered under warranty.
The warranty does NOT extend to:
 • Damagescausedinshipmentordamageas
result of improper use.
 • Installationofelectricalservice.
 • Normalmaintenanceasoutlinedinthismanual.
 • Malfunctionresultingfromimpropermaintenance.
 • Damagecausedbyabuseorcarelesshandling.
 • Moisturedamagetoelectricalcomponents.
 • Damagefromtamperingwith,removalof,or
changing any preset control or safety device.

MIRACLE STEAMER
3
P/N 1010455 Rev. D 03/12
A.J. Antunes & Co.
IMPORTANT
A.J. Antunes & Co. reserves the right to change specifications and product design
without notice. Such revisions do not entitle the buyer to corresponding changes,
improvements, additions, or replacements for previously purchased equipment.
Service/Technical Assistance
If you experience any problems with the installation or
operation of your unit, contact your local Authorized
Service Agency. They can be found in the service
agency directory packaged with the equipment.
Fill in the information below and have it handy when
calling your Authorized Service Agency for assistance.
The serial number is on the specification plate located
on the rear of the unit.
Purchased From:
Date of Purchase:
Model No.:
Serial No.:
Mfg. No.:
Refer to the service agency directory and fill in the
information below:
Authorized Service Agency
Name:
Phone No.:
Address:
Use only genuine Roundup replacement parts in this
unit. Use of replacement parts other than those sup-
plied by the manufacturer will void the warranty. Your
Authorized Service Agency has been factory trained
and has a complete supply of parts for this unit.
You may also contact the factory at 1-877-392-7854
or 1-630-784-1000 if you have trouble locating your
Authorized Service Agency.
Model Designation
TYPE OF POWER CORD
H = HARMONIZED
C = COMMERCIAL
TYPE OF PLUG
C = CEE 7/7 Schuko
F NEMA 5-15P
V = NEMA 6-20P
MS-250XX
50 =Timer/Spatula Model
55 = Timer/Drawer Model
2 = Self-Contained Water Tank
OWNER INFORMATION (continued)

MIRACLE STEAMER
4P/N 1010455 Rev. D 03/12
A.J. Antunes & Co.
In addition to the warnings and cautions in this manual,
use the following guidelines to safely operate the unit.
 • Readallinstructionsbeforeusingequipment.
 • Foryoursafety,theequipmentisfurnishedwith
a properly grounded cord connector. Do NOT
attempt to defeat the grounded connector.
 • Installorlocatetheequipmentonlyforitsintend-
ed use as described in this manual. Do NOT use
corrosive chemicals in this equipment.
 • DoNOToperatethisequipmentifithasadam-
aged cord or plug, if it is not working properly, or
if it has been damaged or dropped.
 • Thisequipmentshouldbeservicedbyqualified
personnel only. Contact the nearest Authorized
Service Agency for service.
 • DoNOTblockorcoveranyopeningsontheunit.
 • DoNOTimmersecordorpluginwater.
 • Keepcordawayfromheatedsurfaces.
 • DoNOTallowcordtohangoveredgeoftableor
counter.
The following warnings and cautions appear
throughout this manual and should be carefully
observed:
 • Turnthepoweroff,unplugthepowercord,
and allow the unit to cool down before per-
forming any service or maintenance.
 • Theequipmentshouldbegroundedaccord-
ing to local electrical codes to prevent the
possibility of electrical shock. It requires a
grounded receptacle with separate electrical
lines, protected by fuses or a circuit breaker
of the proper rating.
 • Allelectricalconnectionsmustbeinaccor-
dance with local electrical codes and any
other applicable codes.
 • WARNING ELECTRICAL SHOCK HAZARD.
FAILURE TO FOLLOW THESE INSTRUCTIONS
COULD RESULT IN SERIOUS INJURY OR
DEATH.
- Electrical ground is required on this unit.
- Do NOT modify the power supply cord plug.
If it does not fit the outlet, have a proper
outlet installed by a qualified electrician.
- Do NOT use an extension cord with this
appliance.
- Check with a qualified electrician if you are
unsure if the unit is properly grounded.
 • Thisequipmentistobeinstalledtocom-
ply with the basic plumbing code of the
Building Officials and Code Administrators,
Inc. (BOCA) and the Food Service Sanitation
Manual of the Food and Drug Administration
(FDA).
 • Ifthesupplycordisdamaged,itmustbe
replaced by the manufacturer, its service
agent, or a similarly qualified person.
 • DoNOTcleanthisappliancewithawaterjet.
 • DoNOTuseasanitizingsolutionorabrasive
materials. The use of these may cause dam-
age to the stainless steel finish.
 • Toensurepropersteamingcharacteristics,
some calcium/mineral deposits must be pres-
ent on the Generator surface. If, during clean-
ing, the surface does become free of calcium/
mineral deposits, one approved method is to
add plain tap water to the surface and allow
it to boil off. This will ensure proper steam-
ing characteristics by creating a thin layer of
deposits on the surface.
 • Chlorides or phosphates in cleaning agents
(suchasbleach,sanitizers,degreasers,or
detergents) could cause permanent damage
to stainless steel equipment. The damage is
usually in the form of discoloration, dulling
of metal surface finish, pits, voids, holes, or
cracks. This damage is permanent and not
covered by warranty.
•  Thefollowingtipsarerecommendedformain-
tenance of your stainless steel equipment,
- Always use a soft, damp cloth for cleaning,
rinse with clear water, and wipe dry. When
required, always rub in direction of metal
polish lines.
- Routine cleaning should be done daily
using soap, ammonia detergent, and water.
- Stains and spots should be removed using
a vinegar solution.
- Finger marks and smears should be
rubbed off using soap and water.
- Hard water spots should be removed using
a vinegar solution.
IMPORTANT SAFETY INFORMATION (continued)

MIRACLE STEAMER
5
P/N 1010455 Rev. D 03/12
A.J. Antunes & Co.
SPECIFICATIONS
Electrical Ratings Electrical Cord & Plug Configurations
Model Mfg.
Number
Voltage Watts Amps Hertz
MS-250CV 9100430 208 3300 15.9 50/60
MS-250CV 9100435 208 3300 15.9 50/60
MS-250CV 9100436 230 3300 14.4 50/60
MS-250CV 9100437 230 3300 14.4 50/60
MS-250HC 9100438 230 3300 14.4 50/60
MS-255CV 9100460 208 3300 15.9 50/60
MS-255CF 9100462 120 1800 15.0 50/60
MS-255CV 9100466 230 3300 14.4 50/60
MS-255HC 9100468 230 3300 14.4 50/60
Model and
Mfg. No.
Description Configuration
MS-250HC
9100438
MS-255HC
9100468
CEE 7/7, 16
Amp., 250 VAC
(Assembly
Only).
MS-255CF
9100462
5-15P, 15
Amp., 120
VAC.,
Non–Locking
(Assembly
Only).
MS-250CV
9100430
9100435
9100436
9100437
MS-255CV
9100460
9100466
6-20P,
20 Amp.,
250 VAC.,
Non–Locking
(Assembly
Only).
WHT BLK
GRN
Dimensions
20-3/4”
(527 mm)
17-1/8”
(435 mm)
9-1/2”
(234 mm)

MIRACLE STEAMER
6P/N 1010455 Rev. D 03/12
A.J. Antunes & Co.
Unpacking
1. Remove the unit and all packing materials from
the shipping carton.
2. The unit should come with the items listed below:
• Owner’sManual
• AuthorizedServiceAgencyDirectory
• InletHoseAssembly
• SpatulaAssembly(MS-250only)
• DrawerAssembly(MS-255only)
NOTE: If any parts are missing or damaged, con-
tact A.J. Antunes IMMEDIATELY at 1-800-253-2991
or 1-630-784-1000.
3. Remove all packing materials and protective
coverings from the unit.

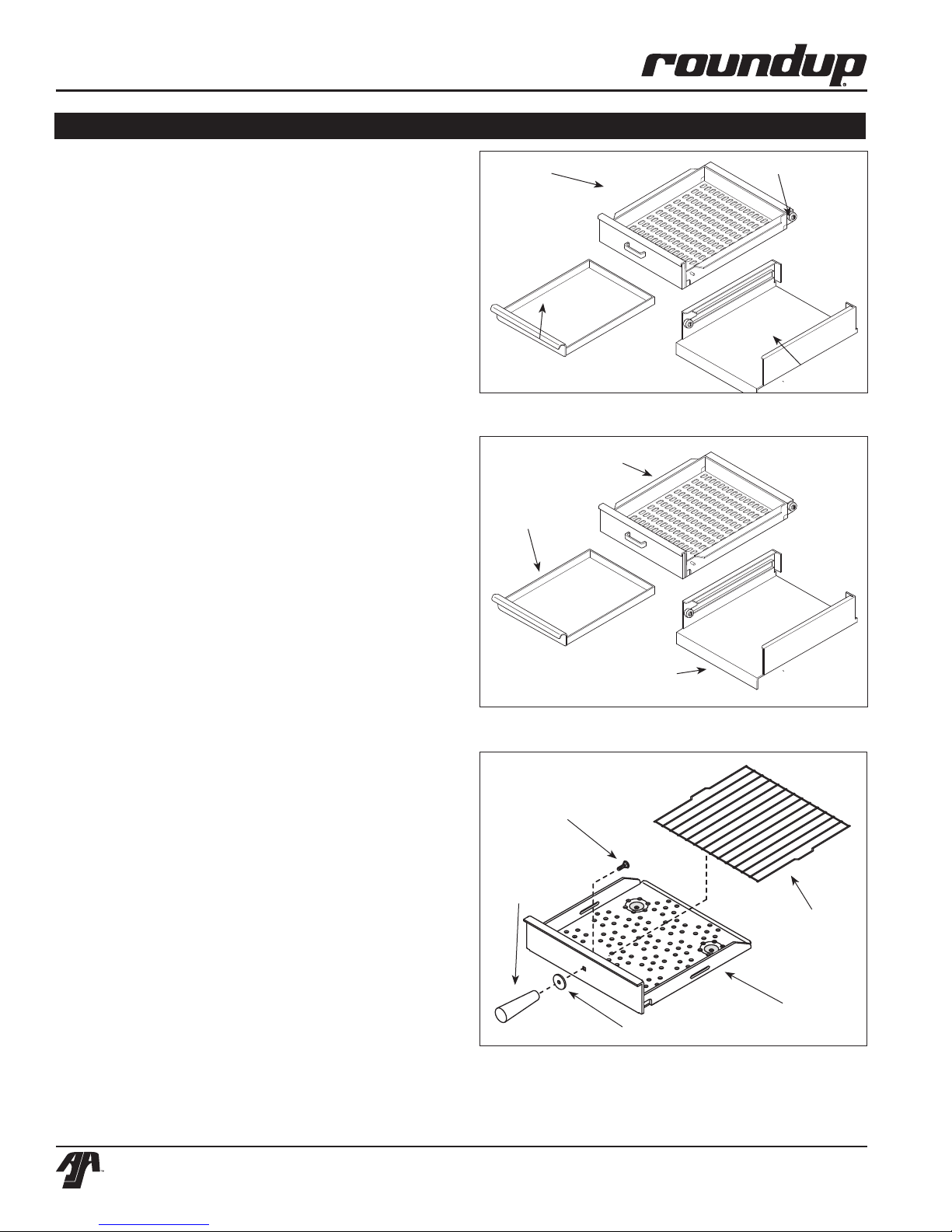

4. MS-250: Remove and wash the Wire Trivet,
Spatula, Spatula Liner, and Drip Pan (Figure 1) in
soap and water. Rinse with clean hot water and
allow to air dry.
MS-255: Remove and wash the Drawer, Drawer
Liner with Rollers, and Drip Pan (Figure 2) in
soap and water. Rinse with clean hot water and
allow to air dry.
5. Wipe all surfaces of the unit with a hot, damp
cloth.
NOTE: Do NOT use a dripping wet cloth. Wring
out before use.
6. MS-250 Models: Assemble the Guard and
Mounting Bolt to the Spatula (Figure 3). Then
install the Wire Trivet into the side slots on the
Spatula.
7. Re-install all removed parts.
Equipment Setup
When placing the unit into service, pay attention to the
following guidelines:
 • Makesurepowerisoffandtheunitisatroom
temperature.
 • DoNOTblockorcoveranyopeningsontheunit.
 • DoNOTimmersecordorpluginwater.
 • Keepcordawayfromheatedsurfaces.
 • DoNOTallowcordtohangoveredgeoftableor
counter.
INSTALLATION
Figure 3. Assembling Handle–MS-250 Only
Bolt
Handle
Spatula
Handle Guard
Wire Trivet
Figure 2. Washing Parts–MS-255 Only
Spatula
Wire Trivet
Spatula Liner
Drip Pan
Figure 1. Washing Parts–MS-250 Only
Drawer
Drip Pan
Drawer Liner
with Rollers

MIRACLE STEAMER
7
P/N 1010455 Rev. D 03/12
A.J. Antunes & Co.
THIS UNIT IS DESIGNED TO
OPERATE ON 208 VOLTS
ONLY. APPLICATION WITH ANY
OTHER VOLTAGE SUPPLY
COMPLETELY VOIDS ALL
WARRANTY. PLEASE CHECK
YOUR LINE VOLTAGE BEFORE
INSERTING THIS PLUG INTO THE
RECEPTACLE.
WARNING WARNING
THIS UNIT IS DESIGNED TO
OPERATE ON 120 VOLTS
ONLY. APPLICATION WITH ANY
OTHER VOLTAGE SUPPLY
COMPLETELY VOIDS ALL
WARRANTY. PLEASE CHECK
YOUR LINE VOLTAGE BEFORE
INSERTING THIS PLUG INTO THE
RECEPTACLE.
WARNING WARNING
120 VAC
ONLY
208 VAC
ONLY
THIS APPLIANCE MUST BE
EARTHED (GROUNDED)
THIS APPLIANCE MUST BE
EARTHED (GROUNDED)
THIS APPLIANCE MUST BE
EARTHED (GROUNDED)
THIS APPLIANCE MUST BE
EARTHED (GROUNDED)
THIS UNIT IS DESIGNED TO
OPERATE ON 220-240 VOLTS
ONLY. APPLICATION WITH ANY
OTHER VOLTAGE SUPPLY
COMPLETELY VOIDS ALL
WARRANTY. PLEASE CHECK
YOUR LINE VOLTAGE BEFORE
INSERTING THIS PLUG INTO THE
RECEPTACLE.
WARNING WARNING
220-240
VAC ONLY
THIS APPLIANCE MUST BE
EARTHED (GROUNDED)
THIS APPLIANCE MUST BE
EARTHED (GROUNDED)
Electrical
1. Place the unit on a sturdy, level table or other
work surface.
2. Ensure that the line voltage corresponds to the
stated voltage on the units specification label and
power cord warning tag. If you are unsure of
your Line Voltage, contact an electrician.
3. Connect the unit to the power supply.
CAUTION
All electrical connections must be in accordance
with local electrical codes and any other appli-
cable codes.
CAUTION
This equipment is to be installed to comply with
the basic plumbing code of the Building Officials
and Code Administrators, Inc. (BOCA) and the
Food Service Sanitation Manual of the Food and
Drug Administration (FDA).
INSTALLATION (continued)
CAUTION
Be sure to follow all safeguards and precautions
in the Important Safety Instructions section of this
manual.

MIRACLE STEAMER
8P/N 1010455 Rev. D 03/12
A.J. Antunes & Co.

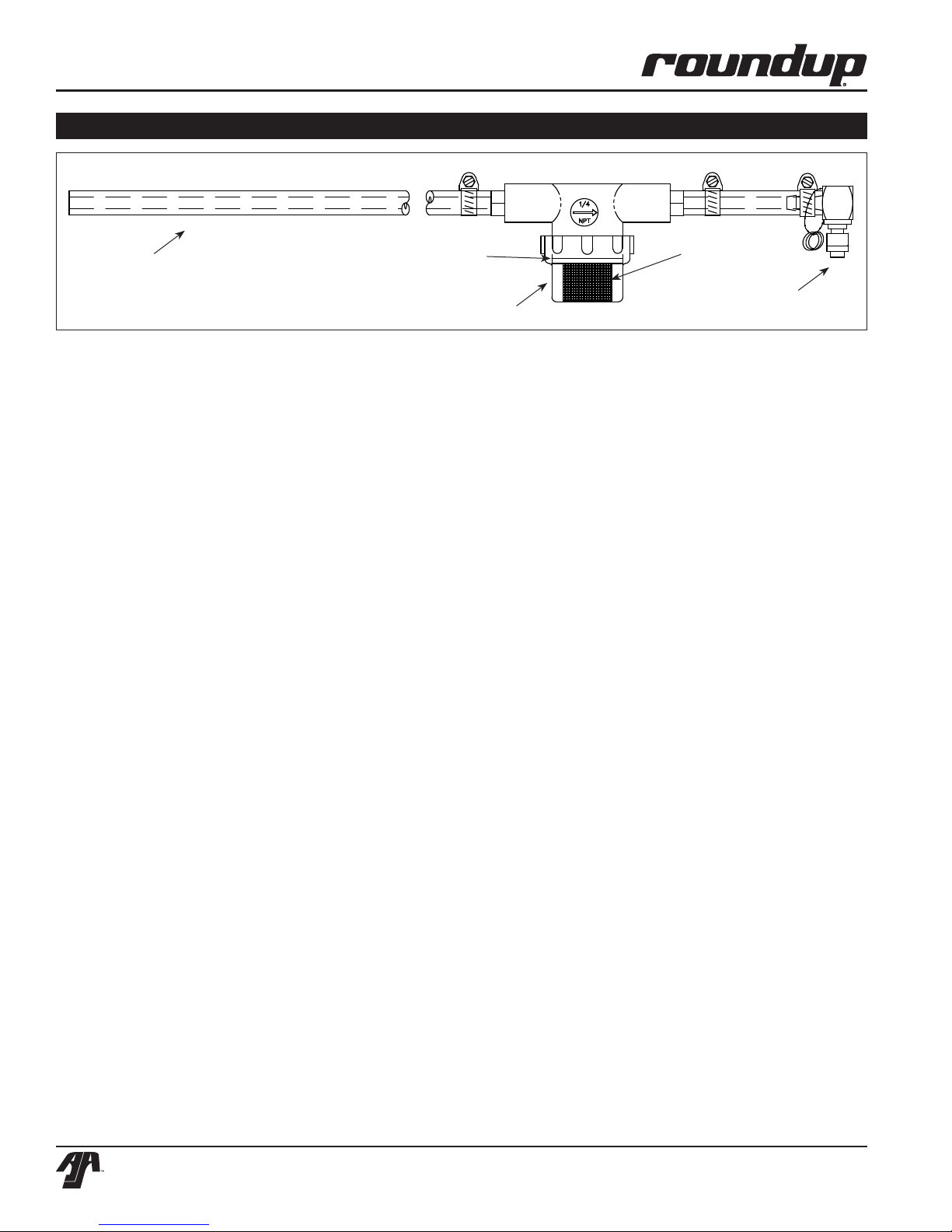

Figure 4. Connecting Water Supply
INSTALLATION (continued)
Plumbing
NOTE: Miracle Steamer models are designed to
use cold tap water. Distilled water may be used to
reduce calcium/mineral deposit buildup and reduce
maintenance costs.
These units require a direct cold water hookup. A Water
Inlet Hose and Strainer Assembly (Figure 4) is supplied.
NOTE: Incoming water is controlled by a normally
closed (NC) solenoid valve located inside the
Steamer’s electrical housing.
1. Turn off the water valve (not supplied) that sup-
plies water to the unit (Figure 4).
2. Connect the 1/4” (6.5 mm) I.D. Flexible Tubing to
the outlet side of the Water Pressure Regulator
and secure using the Worm Clamp (Figure 4).
NOTE: A Water Pressure Regulator must first be
installed (Figure 4). Failure to do so will result
in poor steaming and possible flooding. For a
single steamer, use Water Pressure Regulator P/N
7000314.Fortwoadjacentsteamers,useWater
Pressure Regulator P/N 7000235.
CAUTION
Water pressure must not exceed 30 psi (2.1 kg/cm2
or 207 kPa). Higher pressure may cause poor per-
formance or flooding. To reduce water pressure,
install a Water Pressure Regulator, and set to
20–25 psi (1.4–1.7 kg/cm2or 138–172 kPa).
3. Turn the water valve on.
4. Hold the Quick Disconnect Insert over a bucket,
then press and hold the white plastic tip until
there’s a good, steady water flow. This will purge
all air out of the line.
5. Release the plastic tip and check the pressure on
the Water Pressure Regulator. It should read
20 psi.
a.) If it reads less, increase the water pressure by
pulling the black knob up and turning it clockwise.
b.) If it reads more, decrease the water pressure
by pulling the black knob up and turning it counter
clockwise.
NOTE:Whenadjustingtheknob,relievetheexist-
ing pressure by pressing the plastic tip on the
Quick Disconnect Insert for 3 seconds. The Water
Pressure Regulator will then show the new pressure.
6. Once the regulator reads 20 psi, push the black
knob down to lock it in place.
7. Push the Quick Disconnect Insert into the fitting at
the rear of the unit until it clicks (Figure 4).
Connect Quick
Disconnect
Insert Here
Inlet Hose & Strainer
Assy. (Supplied)
Optional Water Pressure Regulator
with Strainer (P/N 7000314)
Shut Off Valve
(Not Supplied)
Cold
Water
Flow
Flexible Nylon Braided
1/4 " I.D. Tubing (Not Supplied) Quick
Disconnect
Insert
Worm
Clamp
NOTE: The use of only one strainer is
acceptable instead of two.
CAUTION
This equipment is to be installed to comply with
the basic plumbing code of the Building Officials
and Code Administrators, Inc. (BOCA) and the
Food Service Sanitation Manual of the Food and
Drug Administration (FDA).

MIRACLE STEAMER
9
P/N 1010455 Rev. D 03/12
A.J. Antunes & Co.
OPERATION
Operating Instructions
1. Turn the power on and allow the unit to preheat
for approximately 20–30 minutes.
NOTE: Do NOT push any button during warmup
time. The flashing green Ready Light indicates that
the unit is NOT warmed up. The green Ready Light
will become steady when the unit is warmed up.
2. Pull out the Spatula or Drawer Assembly and set
the product to be steamed onto the Spatula.
3. Push the Spatula or Drawer Assembly fully into
the steamer.
4. Single Shot: Press and release the OPERATE
button, then wait 20 seconds for the steam to
penetrate the product.
Timed Cycle: Press the START/STOP button to
begin the steaming cycle. The display will count
down to zero and an audio signal will sound at
the end of the steaming cycle.
5. Remove steamed product.
UP DOWN PRGM START/STOP
POWER
READY
Figure 5. Operating Controls
Ready Light
Power
Switch
Operate
Button
Message
Display
Start/Stop
Button
Programming
CYC (Total Cycle Time) refers to the total pro-
grammed steam time set for the product.
SHO (Shot Interval Time) refers to the time set
between shots of steam during a complete cycle.
H2O setting (Steam Shot Time) refers to the water
volume consumed during each water pump activation.
The amount of steam produced by your Miracle
Steamer depends on the amount of water sprayed onto
the steam generator.
Flooding of the generator may occur if the H2O setting
is too high. To prevent flooding, the Shot Interval Time
(SHO) can be increased to allow more time for genera-
tor heat recovery. Adjustments should be made to both
values to determine the best settings for your cooking
needs.
To program the control, refer to Figure 6 and follow the
procedure below:
1. Turn the unit on. The unit displays the factory
programmed Total Cycle Time in minutes and
seconds (Figure 6, Item A).
2. Press and release to change the control from
OPERATION to PROGRAM mode.
3. To change the Total Cycle Time in minutes, press
▲or▼tochangethetime(Figure6,ItemB).
4. Press and release again,andpress▲or
▼tochangetheTotalCycleTimeinseconds
(Figure 6, Item C).
5. To change the SHO factory settings, make sure
the control is in PROGRAM mode, then press
andholdboth▲and▼simultaneouslyfor1-2
seconds and release. SHO will be displayed
(Figure 6, Item D).
6. Press and release andthenpress▲or▼to
change the SHO in seconds (Figure 6, Item E).
7. Press and release againandpress▲or▼to
change the SHO in minutes (Figure 6, Item F).
WARNING
Toavoidinjury,becarefulwhenpullingthe
Spatula or Drawer out from unit. Be sure to allow
steam to escape before putting hands or face over
the steamer.

MIRACLE STEAMER
10 P/N 1010455 Rev. D 03/12
A.J. Antunes & Co.
8. Press and release again and “H2O” will be
displayed (Figure 6, Item G).
9. To change the H2O (Steam Shot time), press and
release the PROGRAM button again to display
thesetting(Figure6,ItemH).Use▲or▼to
increase or decrease the time.
10. Press the START/STOP or OPERATE buttons
to store the changes, exit the PROGRAM Mode,
and initiate the cooking cycle.
IMPORTANT: 208V and 220/240V Miracle Steamers
are factory programmed for the following recom-
mended settings:
 • Total Cycle Time (CYC) = 15 min., 00 secs.
(Range: 3 seconds to 99 minutes 59 seconds)
 • Shot Interval Time (SHO) = 00 min., 20 secs.
(Range: 3 seconds to 5 minutes 59 seconds)
 • Steam Shot Time (H2O) = 0_70
(Range: 0_10 second to 2_50)
This converts approximately 3/4 oz. (25 milliliters) of
water to steam every 20 seconds for a 15 minute cook-
ing cycle.
IMPORTANT: 120V Miracle Steamer is factory pro-
grammed for the following recommended settings:
 • Total Cycle Time (CYC) = 2 min., 00 secs.
(Range: 3 seconds to 99 minutes 59 seconds)
 • Shot Interval Time (SHO) = 00 min., 20 secs.
(Range: 3 seconds to 5 minutes 59 seconds)
 • Steam Shot Time (H2O) = 0_40
(Range: 0_10 seconds to 2_50)
NOTE: The START/STOP or OPERATE buttons may
be pressed at any time during programming to
store the changes and exit the PROGRAM Mode.
NOTE: If a change is not made within 5 seconds
at any time during the programming process, all
changes made up to that point are stored in memory
and the control reverts to the OPERATION Mode.
OPERATION (continued)
Figure 6. Control Programming Sequence
UP DOWN PRGM
READY
20
SINGLE SHOT
START/STOP
E. SHO Time in Seconds
UP DOWN PRGM START/STOP
READY
00
SINGLE SHOT
F. SHO Time in Minutes
UP DOWN PRGM START/STOP
READY
1500
SINGLE SHOT
A. Total Cycle Time
UP DOWN PRGM START/STOP
READY
15
SINGLE SHOT
B. Total Cycle Minutes
UP DOWN PRGM START/STOP
READY
H20
SINGLE SHOT
UP DOWN PRGM START/STOP
READY
SINGLE SHOT
G. H2O Cycle H. H2O Setting
UP DOWN PRGM START/STOP
READY
00
SINGLE SHOT
UP DOWN PRGM START/STOP
READY
SHO
SINGLE SHOT
C. Total Cycle Seconds D. SHO Cycle

MIRACLE STEAMER
11
P/N 1010455 Rev. D 03/12
A.J. Antunes & Co.
Hi-Limit Reset Button
A hi-limit thermostat turns off electrical power to the
steam generator if it overheats. To reset this thermo-
stat, allow approximately 45 minutes for the unit to
cool down, remove the black cap, and then press the
Hi-Limit Reset button located on the rear of the unit
(Figure 7). If the unit requires continuous resetting,
contact your Authorized Service Agency.
Status Indicator LEDs
The Miracle Steamer’s Control Board has four status
indicator LEDs described below:
Green (Program): When lit, indicates the unit is in
Program mode.
Yellow (Audio): When lit, indicates 10-15 VDC is being
supplied to the audio signal. The audio signal sounds
and the LED lights for approximately 3 seconds.
Red (Heat): When lit, indicates the Control Board is
calling for heat by supplying 10-15 VDC to the Solid
State Relay. When off, indicates that the unit is satis-
fied.
Green (H2O): When lit, indicates that 24 VAC is being
supplied to operate the solenoid valve. This LED is
only lit for approximately 1 second.
Fault Codes
When the programming parameters for Minutes/
Seconds/SHO/H2O have been inadvertently changed
below or above their limits, the unit displays the “ERR”
fault code (Figure 8). If this code appears, clear these
settings using the procedure below:
1. Turn the unit off.
2. Press and hold the PROGRAM and START/
STOP buttons simultaneously
3. Turn the unit on while continuing to hold the
PROGRAM and START/STOP buttons. Release
the buttons when the unit stops beeping,
4. The display will now register the cycle time.
NOTE: Repeat these steps if the unit still displays
the “ERR” fault code.
NOTE: It is recommended that the SHO and H2O
settingsbeadjustedtotherecommendedsettings
shown in the Programming section of this manual.
OPERATION (continued)
RE A DY
Figure 7. Hi-Limit Reset Button
Hi-Limit Reset Button
Power Cord
Cap
UP DOWN PRGM START/STOP
POWER
READY
ERR
Figure 8. The “ERR” Fault Code

MIRACLE STEAMER
12 P/N 1010455 Rev. D 03/12
A.J. Antunes & Co.
Daily
NOTE: Frequency of cleaning is determined by water
conditions, usage, and water filtration systems.
1. Turn the power off, unplug the power cord, and
allow the unit to cool down before proceeding.
2. Check the Water Pressure Regulator gauge and
verify that it reads 20–25 psi (1.4–1.7 kg/cm2
or 138–172 kPa). If not, adjust the pressure as
described in the Installation section of this manual.
3. Check the rear water Quick Disconnect Fitting
and Hose Clamp for leakage. Tighten clamps or
replace parts if needed.
4. MS-250: Remove the Spatula, Spatula Liner, Drip
Pan, Top Cover, and Steam Vent (Figure 9).
MS-255: Remove the Drawer, Drawer Liner with
Rollers, Drip Pan, Top Cover, and Steam Vent
(Figure 10).
5. Wash items in hot, soapy water and then rinse
and wipe dry.
6. Wipe down the food compartment and the entire
exterior of the unit with a clean, hot, damp cloth
(not dripping wet) and wipe dry.
7. Reinstall the Steam Vent first, followed by the
remaining items.
NOTE: Failure to properly clean and dry the items
prior to reassembly may result in the accumulation
of water/moisture overnight. This could permanently
damage of the equipment’s finish and its accesso-
ries. This damage is NOT covered by warranty.
MAINTENANCE
CAUTION
Chlorides or phosphates in cleaning agents (such
asbleach,sanitizers,degreasers,ordetergents)
could cause permanent damage to stainless steel
equipment. The damage is usually in the form of
discoloration, dulling of metal surface finish, pits,
voids, holes, or cracks. This damage is perma-
nent and not covered by warranty. The following
tips are recommended for maintenance of your
stainless steel equipment:
• Always use a soft, damp cloth for cleaning,
rinse with clear water, and wipe dry. When
required, always rub in direction of metal polish
lines.
• Routinecleaningshouldbedonedailyusing
soap, ammonia detergent, and water.
• Stainsandspotsshouldberemovedusinga
vinegar solution.
• Fingermarksandsmearsshouldberubbedoff
using soap and water.
• Hardwaterspotsshouldberemovedusinga
vinegar solution.
CAUTION
If a chemical cleaner is used, be sure it is safe to
use on cast aluminum. Observe all precautions
and warnings on product label.
Drip Pan
Drawer Liner
with Rollers
Drawer
Top Cover Steam Vent
Spatula
Drip Pan
Spatula Liner
Top
Cover
Steam
Vent
Figure 9. Daily Cleaning–MS-250 Figure 10. Daily Cleaning–MS-255

MIRACLE STEAMER
13
P/N 1010455 Rev. D 03/12
A.J. Antunes & Co.
7. Using a sponge or a dry towel, remove the
delimer solution from the Generator surface, then
rinse with clean water.
Monthly
The Miracle Steamer utilizes an open steam Generator.
Water sprayed onto the Generator surface flashes into
steam immediately, but the minerals in the water do not
steam, they stay on the Generator surface. A small
amount of calcium/mineral deposits are needed for
proper operation, but a buildup of excessive calcium/
mineral deposits causes poor steaming efficiency and
excessive moisture (wet steam), which will eventually
severely hinder the steaming action.
CLEANING STEAM GENERATOR
1. Turn the power off, unplug the power cord, and
allow the unit to cool down.
2. Perform the Daily cleaning, but do NOT
reassemble the unit.
3. Remove the Wing Nut, Generator Cover, and
Diffuser (Figure 11). Wash these items in hot,
soapy water, rinse and WIPE DRY.
4. With the unit cool, use a wire brush and/or
scraper to loosen and remove the excessive cal-
cium/mineral deposits from the Generator
surface.
5. Take a wire brush and clean out any buildup from
the 28 Steam Ports (26 vertical and 2 horizontal)
of the Generator (Figure 11). Remove the loose
buildup, wipe the Generator with a clean, damp
cloth, and reassemble the unit.
NOTE: If deposits are still excessive and/or diffi-
cult to remove, refer to Steps 6 and 11.
6. Pour delimer solution (not supplied) onto the
Generator surface. Follow the delimer manufac-
turer’s instructions for proper mixture and use.
CAUTION
If a chemical cleaner/delimer is used, be sure it is
safe to use on cast aluminum. Observe all pre-
cautions and warnings on the product label.
MAINTENANCE (continued)
NOTE: To ensure proper steaming characteristics,
some calcium/mineral deposits must be present on
the Generator surface. If, during cleaning, the sur-
face does become free of calcium/mineral deposits,
add plain tap water to the surface and allow it to
boil off. If necessary, repeat this process to formu-
late a thin coating of calcium/mineral deposits.
NOTE: In soft water areas, it may be necessary
to add a small amount of lime to the Generator to
“season” it. This will ensure proper steaming char-
acteristics by producing a thin coating of calcium/
mineral deposits on the Generator surface.
Seasoning mixture consists of 3/4 ounces (25ml/
25cc) baking soda, 3/4 ounces (25ml/25cc) lime
mixed with 1 quart (950ml/950cc) of water. Stir
mixture and pour 1/4” deep onto the hot Generator
surface. After mixture is converted to steam, the
remaining loose power can be removed.
8. Plug the power cord into the appropriate outlet.
9. Turn the power on and allow the unit to warm up
for approximately 30 minutes.
10. Push and release the OPERATE button or the
START/STOP button several times to operate the
steamer. This purges any remaining delimer
residue from the Generator surface.
11. Turn the power off, reinstall all parts and acces-
sories, and return the unit to service.
READY
Diffuser
Wing Nut
Generator
Cover
Figure 11. Monthly Cleaning
Generator
Steam Ports
(26 vertical and
2horizontal)

MIRACLE STEAMER
14 P/N 1010455 Rev. D 03/12
A.J. Antunes & Co.
Figure 12. Inlet Hose Assembly
Male Quick
Disconnect Insert
Strainer Cup
Tubing
CHECKING AND CLEANING THE WATER STRAINER
The Water Strainer protects your equipment from any
foreign debris in the water line that could get into the
food or damage the unit’s solenoid and cause the unit
to leak or flood. It also protects the equipment’s proper
and consistent operation from interference.
To ensure proper and consistent steaming results,
check the Water Pressure Regulator and Strainer
Cup regularly. If the pressure has dropped, check the
Strainer Cup and clean out the accumulated debris as
follows.
1. Shut off the water supply valve to the unit,
unscrew the clear, plastic Strainer Cup and care-
fully remove the Mesh Screen.
2. At the sink, gently flush all of the accumulated
debris from the Strainer Cup and Mesh Screen.
Be especially careful not to damage the Mesh
Screen.
MAINTENANCE (continued)
Mesh
Screen
O-ring
3 Carefully place the Mesh Screen into its seat at
the bottom of the Strainer Cup and confirm that
the orange O-ring is properly seated in its place
before screwing the Strainer Cup and top back
together.
4. Purge the air out of the strainer and tubing by
disconnecting the Male Quick Disconnect Insert
from the equipment and, over a bucket, push the
white plastic tip in until there is good water flow.
5. Replace damaged or worn parts as needed.
6. Verify that the Water Pressure Regulator is set to
20–25 psi (1.4–1.7 kg/cm2or 138–172 kPa).

MIRACLE STEAMER
15
P/N 1010455 Rev. D 03/12
A.J. Antunes & Co.
TROUBLESHOOTING
WARNING
Toavoidpossiblepersonalinjuryand/ordamagetotheunit,inspection,testandrepairofelectricalequip-
ment should be performed by qualified service personnel. The unit should be unplugged when servicing,
except when electrical tests are required.
Problem Possible Cause Corrective Action
Control Display is blank (power is on
but indicator light is off).
The power cord is not correctly
plugged in.
Plug the power cord into the appro-
priate outlet.
The power cord and/or electrical
plug is damaged.
Inspect electrical wire, plug, and
receptacle.
The main electrical panel circuit
breaker is off or has been tripped.
Reset circuit breaker. Contact your
maintenance person or Authorized
Service Agency if it trips again.
Switch is inoperable. Contact your maintenance person or
Authorized Service Agency for
service.
Control Display is blank (power is on
and indicator light is on).
Control Board is inoperable Contact your maintenance person or
Authorized Service Agency for
service.
Transformer is inoperable.
Loose, burnt, or broken wires in
circuit.
Unit does not heat up (Control
Display is on).
Hi-Limit Thermostat is tripped or
inoperable.
Reset the Hi-Limit Thermostat
according to the Operations sec-
tion of this manual. If the Hi-Limit
Thermostat requires continuous
resetting, contact your Authorized
Service Agency for service.
Solid State Relay is inoperable.
Thermocouple is inoperable.
Control Board is inoperable.
Steam Generator is inoperable.
Loose, burnt, or broken wires in
circuit.
The unit’s main electrical panel
circuit breaker trips.
Damaged receptacle, plug, or cord;
a loose connection; or an internal
component failure.
Turn the unit off, allow it to cool to
room temperature, and then restart.
Contact your maintenance person
or Authorized Service Agency if the
condition repeats.
Water leaking inside electrical
housing.
Loose or damaged water line tubes
and/or fittings inside electrical
housing.
Tighten or replace tubes and/or
fittings.
“ERR” appears in the Control
Display.
Programming and/or SHO and
H2O values were adjusted/changed
improperly.
Reset the Control Board as
described in the Programming sec-
tion of this manual. See Fault Codes.

MIRACLE STEAMER
16 P/N 1010455 Rev. D 03/12
A.J. Antunes & Co.
Problem Possible Cause Corrective Action
Unit heats but there
is little or no steam
produced
and/or
The product requires
more steaming than
usual.
Water Line Valve is closed. Check that the Water Line Valve is open.
Filter Strainer is restricted. Check and clean the Filter Strainer as described in
the Maintenance section of this manual.
Quick Disconnect is not fully
engaged at rear of the unit or is
damaged.
Remove and reengage the Quick Disconnect firmly
until a click is heard. Replace if damaged.
Low or no water pressure in the
water line.
Remove the Quick Disconnect Insert from the rear
of the unit. While holding over an empty cup, press
the white tip. Strong, steady water flow should be
noted. If so, reengage firmly into unit. If not pres-
ent, or pressure is low, contact your maintenance
person or plumber.
Improper water pressure to unit. Verify that a Water Pressure Regulator is installed
and set to 20–25 psi.
Unit is not being cleaned properly
(daily/monthly).
Clean unit daily and monthly as described in the
Maintenance section of this manual.
Programming and/or SHO, H2O
values were adjusted/changed
improperly.
Reprogram the SHO and H2O values as described
in the Programming section of this manual.
Insufficient or excessive calcium/
mineral deposits on the Generator
surface.
Verify that thin layer of calcium/mineral deposits
is present on the Generator surface. Refer to the
Maintenance section of this manual.
Generator surface is bare. Generator surface must have a thin calcium/min-
eral coating for proper steaming. Refer to the
Maintenance section of this manual.
Generator Steam Ports are
restricted.
Clean the Steam Ports as described in the
Maintenance section of this manual.
Generator Cover is warped or loose. Verify that the Generator Cover Wing Nut is tight.
If noticeable steam escapes around the Generator
Cover, replace the cover.
Generator Diffuser is missing. Install Generator Diffuser or replace if missing.
Generator surface temperature is too
low.
Verify Generator surface temperature to be 380–
420°F (193–215°C).
Excessive con-
densation in Food
Compartment.
Water pressure is too high. Verify that the Water Pressure Regulator is set to
20–25 psi. Adjust accordingly.
Programming and/or SHO and H2O
values were adjusted improperly.
Reprogram the SHO and H2O values as described
in the Programming section of this manual.
Steam coming out
around top covers or
sides.
Generator Cover’s Wing Nut is
loose.
Tighten Wing Nut.
Generator Cover is warped. Replace Generator Cover.
TROUBLESHOOTING (continued)

MIRACLE STEAMER
17
P/N 1010455 Rev. D 03/12
A.J. Antunes & Co.
Problem Possible Cause Corrective Action
Unit floods overnight and/or
continues to steam even when
in idle mode.
Solenoid Valve is leaking due
to debris trapped inside the
plunger.
Attempt to flush the debris out of the valve by
rapidly operating the unit on a number of single
shot cycles and then letting it rest. If the unit
still leaks, disassemble the Solenoid Valve
and clean out the plunger. Reassemble unit
and test. If a leak is still present, replace the
Solenoid Valve. Contact your maintenance
person or Authorized Service Agency.
Solenoid Valve is installed
incorrectly.
If the Solenoid Valve was replaced, verify that
the “IN” and “OUT” labels on the valve corre-
spond to the water flow.
There is no pre-strainer or filter
on the water line just before the
unit .
Equipment was supplied with a strainer. If
missing, install strainer.
TROUBLESHOOTING (continued)

MIRACLE STEAMER
18 P/N 1010455 Rev. D 03/12
A.J. Antunes & Co.
REPLACEMENT PARTS
READY
64
17
15
18
20
74
36
22
66
65
6
7
8
10
12
13
24
62
94
35
70
57
54
54
54
42
41
89
81
88
93
81
80
85 79
84
83
82
86
87
85
90
95
98
99
74
36
90
95
21
11

MIRACLE STEAMER
19
P/N 1010455 Rev. D 03/12
A.J. Antunes & Co.
READY
22 55
READY
72
49
48
67
50
71
51
57
55
68
69
19
55
25
59
60
27
29
32
33
23 55
28
46
30
5
55
46
37
2
97
READY
26
34
1
REPLACEMENT PARTS (continued)

MIRACLE STEAMER
20 P/N 1010455 Rev. D 03/12
A.J. Antunes & Co.
1 0011123 Solenoid Valve Assy. (Incl. # 5 & 97) 1
2 7000652 Relay 1
3 0010584 Inlet Hose Assy. w/ strainer 1
5 4040145 Solenoid Valve 24 VAC 1
6 7000237 Top Cover Assy. (Incl. #41 & #42) 1
7 0011314 Steam Vent Assy. 1
8 0021131 Floor/Chassis Weldment 1
10 7000246 Generator, 230V 1
7000245 Generator, 208V 1
7000300 Generator, 120V 1
11 0300129 Stud, Cover Hold Down 1
12 040P138* Locknut, 1/2” 1
13 040K251 StrainRelief(Incl.#12) 1
14 05P2199* Spacer 2
15 0503431 Diffuser, Steam 1
17 0503433 Cover, Generator 1
18 0503434 Cover, End Housing 1
19 0503435 Retainer, Thermocouple 1
21 0021314 Liner, Cavity (MS-250 only) 1
21a 0504081 Liner Cavity (not Shown) 1
For MFg. No. 9100437 only)
22 0503441 Access Cover 1
23 0503472 Bracket, Hi-Limit Support 1
24 0700452 Power Cord, NEMA 6-20P 1
0700453 Power Cord, CEE 7/7 1
0700463 Power Cord, Nema 5-15P 1
26 100P967 Label, Marking 1
27 1001036 Label, Control Panel 1
28 2000203 Tube, Restrictor, 1/4” 1
29 2000207 Tube, Inlet, 1/4 x 2-1/2” Long 1
30 2040103 Connector, Male, 1/4 x 1/8 NPT 1
32 2040145 Elbow, Female, 1/8” x 1/4” 1
33 2040146 Tee, Female, 1/8” x 1/4” 1
34 7000694 WaterFittingKit 1
(Incl. #28, 29, 30, 32, & 33)
35 210K108 Foot,Rubber(4Pack) 1
36 2100119 Handle, Spatula (MS-250 only) 1
37 4050180 Heat Sink 1
41 2100249 Guard,Knob 1
42 2100273 Knob 1
46 7000449 Generator Tube, 4-1/2” Lg. 1
48 300P102* Nut, Speed, “U”, #8-32 2
49 304P105* Nut,Hex,KEPS,#4-40,Zinc 4
50 306P101* Nut, Hex, #6-32 2
51 306P105* Screw, Machine, #6-32 x 1/2” 2
52 306P123* Screw, Machine, #6-32 x 7/8” 2
53 306P130* Nut,Hex,KEPS,#6-32 2
54 306P134* Screw, Machine, #6-32 x 3/8 3
55 308P103* Screw, Machine, #8-32 x 1/4” 6
57 308P105* Screw, Machine, #8-32 x 1/2” 4
58 308P120* Screw, Machine, 4
#8-32 x 5/8” (sltrshd)
59 308P124* Screw, Machine, 1
#8-32 x 1/2” (one-way)
60 308P143* Nut,Hex,KEPS,#8-32 2
61 310P136* Screw, Machine, 4
#10-32 x 1-1/4” (splanhd)
62 310P149* Screw, Machine, 2
#10-32 x 7/8”
64 325P170* Nut, Wing, 1/4-20 1
65 7000542 Rocker Switch, Power On/Off 250V 1
7000543 Rocker Switch, Power On/Off 120V 1
66 4010166 Switch, Momentary (Green) 1
4010190 Switch, Momentary (White) 1
67 7000319 Transformer, 115-230/24V 1
68 7000135 Thermostat, Hi-Limit 1
69 4050214 Thermocouple,Type-K 1
70 406P107 Cable Tie 3
71 7000136 Terminal Block, 3-Pole 1
72 7000317 Control Board, 1
Temperature/Timer, 24V, 50/60 Hz
74 338P102* Bolt, Handle Mounting 1
(MS-250 only)
79 0011471 Drawer Assy. (Incl. #80-87) 1
(MS-255 only)
80 0021283 Drawer Weldment (MS-255 only) 1
81 210K195 Bearing,Roller,SS 4
(MS-255 only) (Incl. #85)
82 2100257 Handle (MS-255 only) 1
83 2100264 Guard, Handle (MS-255 only) 1
84 325P132* Screw, Machine, 1/4-20 x 1/2” 2
(MS-255 only)
85 05P2991 Spacer (MS-255 only) 2
86 306P137* Stud, PEM, #6-32 x 3/8” 2
(MS-255 only)
87 306P107* Acorn Nut, #6-32 (MS-255 only) 2
88 0021237 Liner Weldment (MS-255 only) 1
89 0503536 Drip Pan 1
90 2100118 Guard, Handle 1
91 See page 21 for Strainer Parts Identification.
92 7000139 Quick Disconnect Insert 1
93 0011413 Liner Assy. (MS-255 only) 1
94 0011370 2”LegKit(Incl.#35) 4
94a210K134 4”LegKit(notshown) 1
94b210K123 4”LegKit(optional)(notshown) 1
95 0800359 Trivet, Spatula (MS-250 only) 1
97 7000138 QuickDisconnectFemaleKit 1
98 0503429 Support, Generator Upper. 1
99 7000260 SpatulaKit(Incl.#20,36,74,90,95) 1
(MS-250 only) (9100435/437 Only)
* Only available in quantities of 10.
Item Part No. Description Qty. Item Part No. Description Qty.
REPLACEMENT PARTS (continued)
