Aaeon FOX-120 User manual

Multipurpose & FOX-120
Waterproof Panel PC
FOX-120
Intel®LV Celeron®M Processor
Multipurpose & Waterproof
Panel PC
with 12” TFT LCD
FOX-120 Manual 1st Ed
July 2008

Multipurpose & FOX-120
Waterproof Panel PC
i
Copyright Notice
This document is copyrighted, 2008. All rights are reserved. The
original manufacturer reserves the right to make improvements to
the products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated, or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in
this manual is intended to be accurate and reliable. However, the
original manufacturer assumes no responsibility for its use, or for
any infringements upon the rights of third parties that may result
from its use.
The material in this document is for product information only and is
subject to change without notice. While reasonable efforts have
been made in the preparation of this document to assure its
accuracy, AAEON assumes no liabilities resulting from errors or
omissions in this document, or from the use of the information
contained herein.
AAEON reserves the right to make changes in the product design
without notice to its users.

Multipurpose & FOX-120
Waterproof Panel PC
ii
Acknowledgments
All other products’ name or trademarks are properties of their
respective owners.
x Award is a trademark of Award Software International, Inc.
x Intel®, Celeron®and Pentium®are trademarks of Intel®
Corporation.
x Microsoft Windows®is a registered trademark of Microsoft
Corp.
x IBM, PC/AT, PS/2, and VGA are trademarks of International
Business Machines Corporation.
All other product names or trademarks are properties of their
respective owners.

Multipurpose & FOX-120
Waterproof Panel PC
iii
Packing List
Before you begin operating your PC, please make sure that the
following materials are enclosed:
x 1 USB Cable with water proof Connector
x 2 COM Cables with water proof Connectors
x 1 waterproof Connecter for DC–in (Female)
x 1 waterproof Connecter for LAN (optional)
x 1 waterproof Connecter for audio –Line-out (optional)
x 1 Easy stand
x 1 CD-ROM for manual (in PDF format)
x 1 FOX-120 Multi purpose & Waterproof Panel PC
If any of these items should be missing or damaged, please contact
your distributor or sales representative immediately.

Multipurpose & FOX-120
Waterproof Panel PC
iv
Safety & Warranty
1. Read these safety instructions carefully.
2. Keep this user's manual for later reference.
3. Disconnect this equipment from any AC outlet before cleaning. Do
not use liquid or spray detergents for cleaning. Use a damp cloth.
4. For pluggable equipment, the power outlet must be installed near
the equipment and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a firm surface during installation. Dropping
it or letting it fall could cause damage.
7. The openings on the enclosure are for air convection. Protect the
equipment from overheating. DO NOT COVER THE OPENINGS.
8. Make sure the voltage of the power source is correct before
connecting the equipment to the power outlet.
9. Position the power cord so that people cannot step on it. Do not
place anything over the power cord.
10. All cautions and warnings on the equipment should be noted.
11. If the equipment is not used for a long time, disconnect it from the
power source to avoid damage by transient over-voltage.
12. Never pour any liquid into an opening. This could cause fire or
electrical shock.
13. Never open the equipment. For safety reasons, only qualified
service personnel should open the equipment.
14. If any of the following situations arises, get the equipment
checked by service personnel:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.

Multipurpose & FOX-120
Waterproof Panel PC
v
d. The equipment does not work well, or you cannot get it
to work according to the user’s manual.
e. The equipment has been dropped and damaged.
f. The equipment has obvious signs of breakage.
15. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT
WHERE THE STORAGE TEMPERATURE IS BELOW -20°C
(-4°F) OR ABOVE 70°C (140°F). IT MAY DAMAGE THE
EQUIPMENT.
16. DO NOT OPEN the sealed Enclosure /case of equipment. Once
enclosure is disassembled without approval, it will lead in
abnormal operating of water proof gel. For Guarantee of water
proof function, please make sure configuration/ peripheral
(HDD,RAM, peripherals) has been confirmed to install before
shipping.
FCC Safety
This device complies with Part 15 FCC Rules.
Operation is subject to the following two
conditions: (1) this device may not cause
harmful interference, and (2) this device must
accept any interference received including
interference that may cause undesired
operation.
Caution:
There is a danger of explosion if the battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer. Dispose of used batteries according to the
manufacturer’s instructions and your local government’s recycling or
isposal directives.
d

Multipurpose & FOX-120
Waterproof Panel PC
vi
Below Table for China RoHS Requirements
ѻકЁ᳝↦᳝ᆇ⠽䋼៪ܗ㋴ৡ⿄ঞ৿䞣
AAEON Panel PC/ Workstation
᳝↦᳝ᆇ⠽䋼៪ܗ㋴
䚼ӊৡ⿄ 䪙
(Pb)
∲
(Hg)
䬝
(Cd)
݁Ӌ䫀
(Cr(VI))
໮⒈㘨㣃
(PBB)
໮⒈Ѡ㣃䝮
(PBDE)
ࠋ⬉䏃ᵓ
ঞ݊⬉ᄤ㒘ӊ
h ƻ ƻ ƻ ƻ ƻ
໪䚼ֵো
䖲᥹఼ঞ㒓ᴤ
h ƻ ƻ ƻ ƻ ƻ
໪໇ h ƻ ƻ ƻ ƻ ƻ
Ё༂໘⧚఼
Ϣݙᄬ
h ƻ ƻ ƻ ƻ ƻ
⹀Ⲭ h ƻ ƻ ƻ ƻ ƻ
⎆᱊῵ഫ h ƻ ƻ ƻ ƻ ƻ
ܝ偅 h ƻ ƻ ƻ ƻ ƻ
㾺᥻῵ഫ h ƻ ƻ ƻ ƻ ƻ
⬉⑤ h ƻ ƻ ƻ ƻ ƻ
O
˖㸼⼎䆹᳝↦᳝ᆇ⠽䋼೼䆹䚼ӊ᠔᳝ഛ䋼ᴤ᭭Ёⱘ৿䞣ഛ೼
SJ/T 11363-2006
󰵼ޚ㾘ᅮⱘ䰤䞣㽕∖ҹϟDŽ
X
˖㸼⼎䆹᳝↦᳝ᆇ⠽䋼㟇ᇥ೼䆹䚼ӊⱘᶤϔഛ䋼ᴤ᭭Ёⱘ৿䞣䍙ߎ
SJ/T 11363-2006
󰵼ޚ㾘ᅮⱘ䰤䞣㽕∖DŽ
໛⊼˖
ϔǃℸѻક᠔󰵼⼎П⦃ֱՓ⫼ᳳ䰤ˈ㋏ᣛ೼ϔ㠀ℷᐌՓ⫼⢊މϟDŽ
ѠǃϞ䗄䚼ӊ⠽䋼Ё༂໘⧚఼ǃݙᄬǃ⹀Ⲭǃܝ偅ǃ㾺᥻῵ഫЎ䗝䌁કDŽ

Multipurpose & FOX-120
Waterproof Panel PC
vii
Contents
Chapter 1 General Information
1.1 Introduction................................................................ 1-2
1.2 Features .................................................................... 1-3
1.3 Specification .............................................................. 1-4

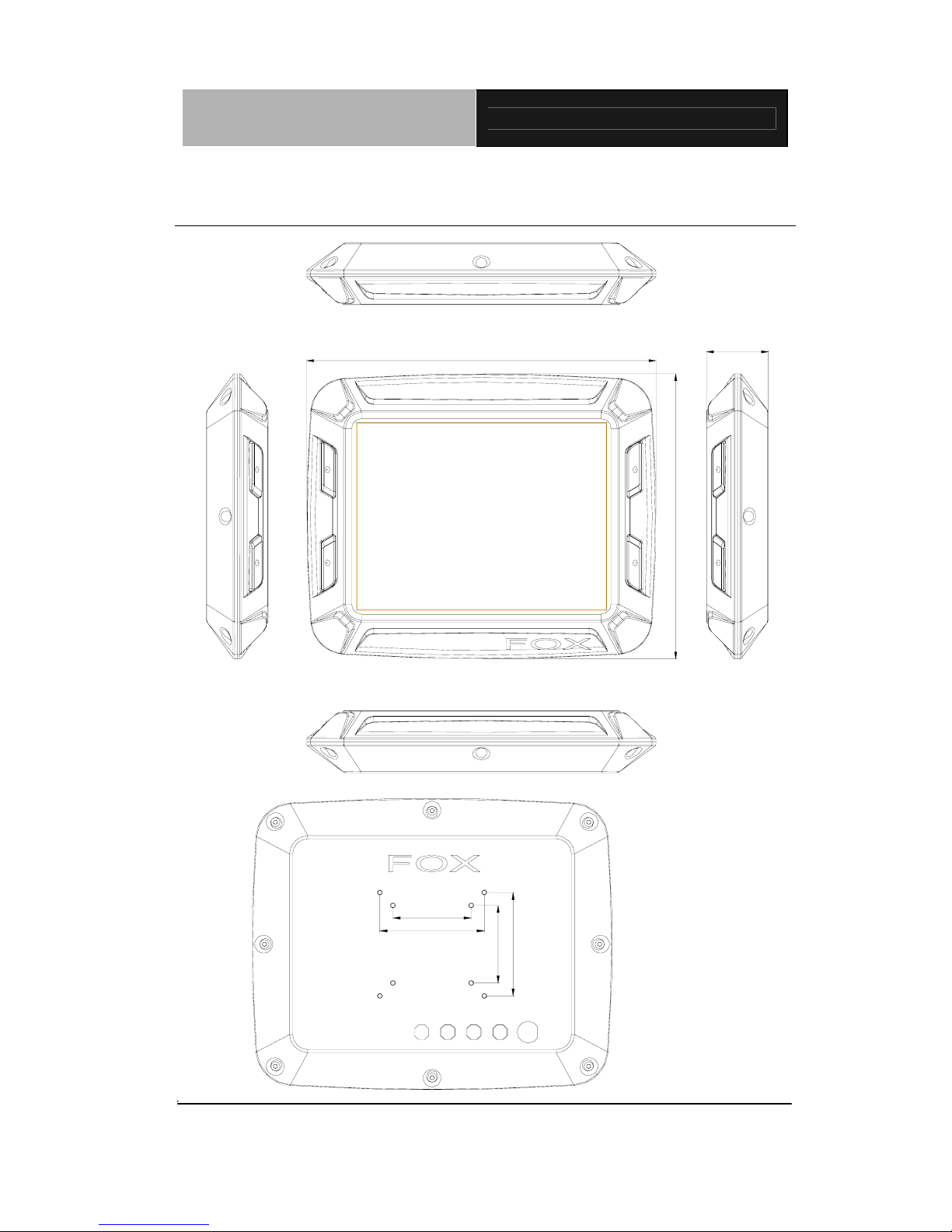

1.4 Dimension ................................................................. 1-6
Chapter 2 Hardware Installation
2.1 USB 1/2 Connecter ................................................... 2-2

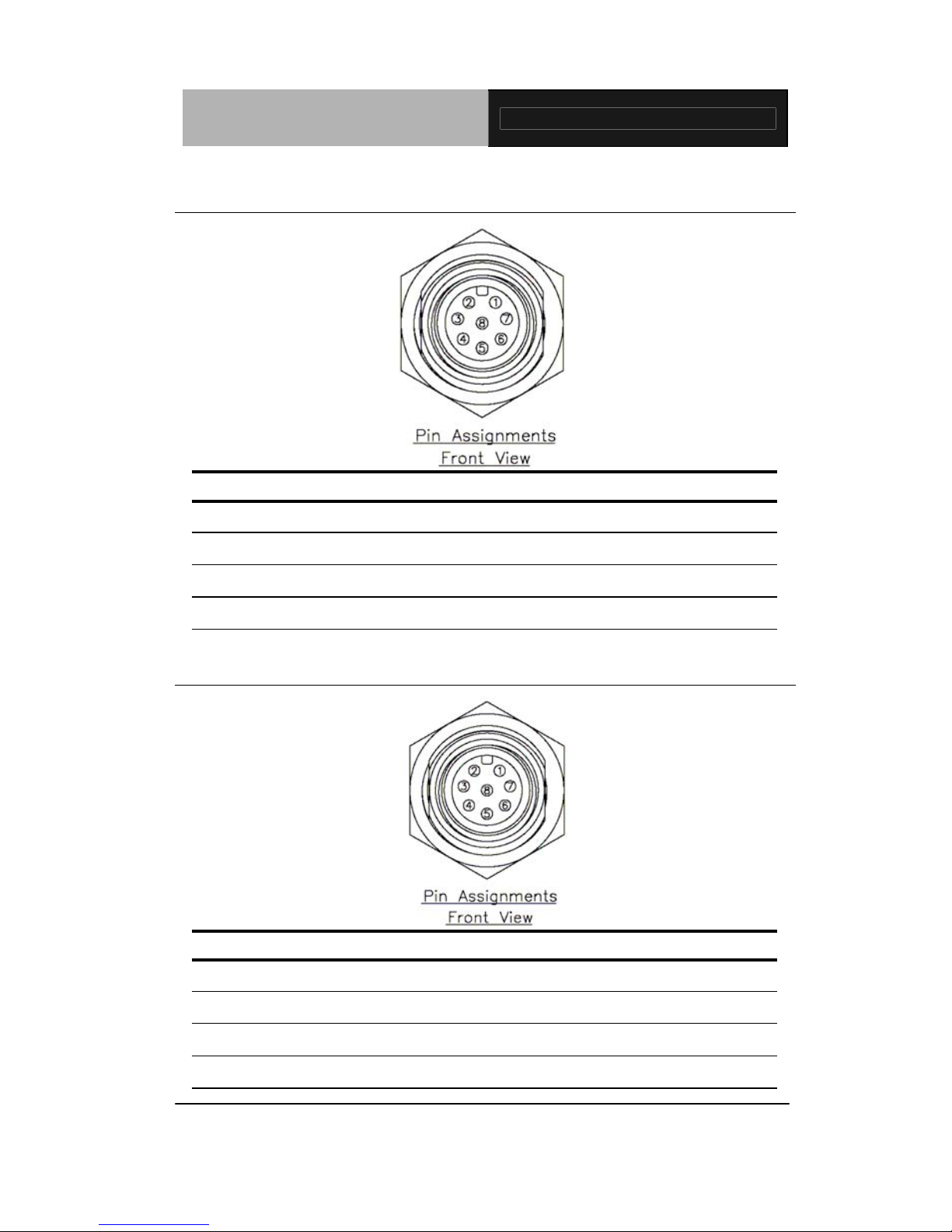

2.2 COM 1 Connector for RS232 .................................... 2-2
2.3 COM 2 Connector for RS232/RS422/RS485............ 2-3

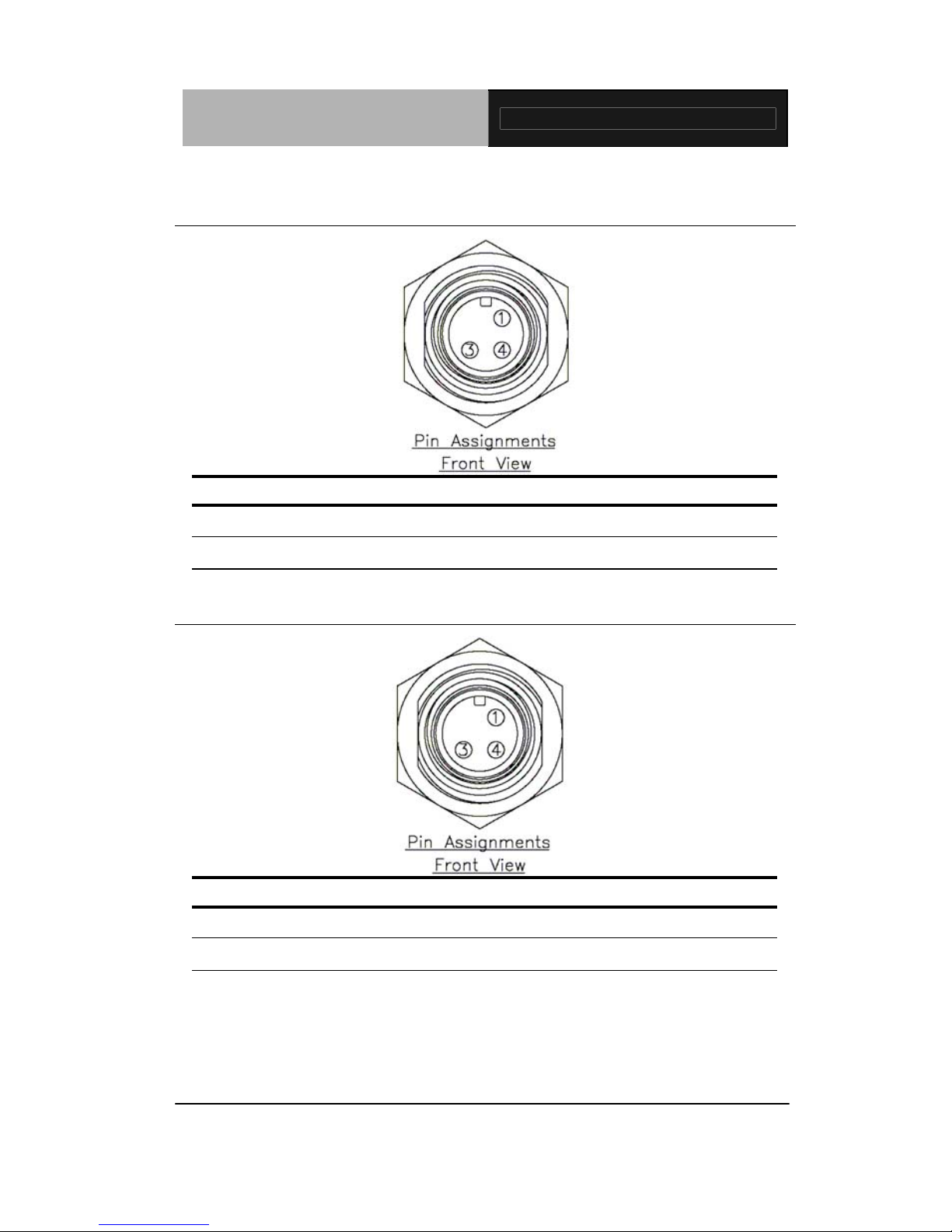

2.4 Audio (Line out) ......................................................... 2-4
2.5 DC-in 9~30V Connector ............................................ 2-4
Chapter 3 Award BIOS set up
3.1 System Test and Initialization ................................... 3-2
3.2 Award BIOS Setup .................................................... 3-3
Chapter 4 Driver Installation
4.1 Installation ................................................................. 4-3
Appendix FAQ
A.1 FAQ........................................................................A-2

Multipurpose &
Waterproof Panel PC FOX-120
Chapter 1 General Information 1- 1
General
Chapter
1
Information

Multipurpose & FOX-120
Waterproof Panel PC
Chapter 1 General Information 1- 2
1.1 Introduction
FOX-120 Multipurpose & Waterproof panel PC is a
high-performance computing and completely fan-less solution for
applications in outdoor, semi-outdoor, and harsh indoor
environment ,that comes with Intel Celeron M Low Power processor,
12” wide View-angle display (with sunlight readability), Sealing
enclosure( 6 sides of IP65 certified) and Water proof I/O connectors
for Ethernet , multi-COM port, audio and USB interfaces. In addition,
with water resistant bottoms on front panel, FOX has user-friendly
interface for brightness control and a variety of optional wireless for
real time communication or navigation.
Besides, for system integrators, a simple, complete, compact and
highly integrated system helps you smoothly build an industrial
grade solution into your applications. By this concept, FOX is
design with valuable features (listed in next section) to serve
various field of markets such as Vehicle, food factory, slaughter
house, Pharmacy Production, Production Plant Hospital Operation
Room, and Outdoor KIOSK Public Information Terminal.
With FOX, we believe the end user can optimize the workflow of
operations and management in daily business.

Multipurpose & FOX-120
Waterproof Panel PC
Chapter 1 General Information 1-3
1.2 Features
z 12" High Brightness & Wide View-Angle LCD Panel
z Polarized Touch Panel Control for Outdoor Readability (Optional)
z Slim, Rugged, Sealing Enclosure with All sides of IP65 Certified
z Supports Windows 2000, XP, XP Embedded
z Wide Operating Temperature Range:
-20oC~60 oC (With W/T CFD ); -20 oC ~55 oC (With W/T HDD )
z Day and Night Mode Display:
Day Mode for Sunlight Readability; Night Mode for Power Saving
z Multi-Wireless Options:
WIFI LAN with Internal Antenna (optional)
GPS Module with Internal Antenna (optional)
z Waterproof Lockable I/O: Standard M12 Waterproof Connector
z User Friendly Bottom Control on Front Panel

Multipurpose & FOX-120
Waterproof Panel PC
Chapter 1 General Information 1- 4
1.3 Specification
System
z CPU Onboard Intel Celeron M 1.5GHz/ ULV
Celeron M 600MHz Processor
z Memory Onboard 256/512MB, up to 1G DDR
SDRAM
z LCD / CRT Controller Intel 852GM
z Ethernet Intel 82562 10/100Base-TX, RJ-45
connector x 1
z M12 water proof I/O Port 2 RS-232
2 USB 2.0 ports,
Audio Line-out (optional)
10/100Base-TX RJ-45 (optional)
z Storage Disk Drive Type II Compact Flash™ internal slot
Anti-vibration 2.5” Hard disk drive bay
z OS Support Windows 2000, XP, XP Embedded
Mechanical
z Construction Metal
z Front Panel Color Silver Gray- RAL9007
z Mounting VESA 75-100mm holes,
Vehicle Mounting
z Dimension 9.65” (W) x 7.2” (H) x 2.37” (D)
(410mm x 336mm x 59.6mm)

Multipurpose & FOX-120
Waterproof Panel PC
Chapter 1 General Information 1-5
z Net Weight
z Gross Weight
9.9 lb (4.5Kg)
12.1 lb (5.5Kg)
Environmental
z Operating Temperature -4л~131л(-20к~55к);
With W/T Hard Disk drive
-4л~140л(-20к~60к)
with W/T CompactFlash™Disk
z Storage Temperature -22л~158л(-30к~70к)
z Operating Humidity 10% to 90%@35к, non-condensing
z Vibration Random Operation 3G, 5-500Hz
z Shock 15G peak acceleration (11 msec.
duration)
z EMC CE/FCC Class A
z Power Supply Input: DC 9~30V
LCD
z Display Type 12” Color TFT LCD
z Max. Resolution 800 x 600
z Max. Colors 262K colors
z Dot Size 0.3075mm x 0.3075mm
z Luminance 450 nits
z Viewing Angle
z Backlight MTBF
140o(H) x 110 o (V)
50,000 hours

Multipurpose & FOX-120
Waterproof Panel PC
Chapter 1 General Information 1- 6
Touch Screen
z Type 8-wire analog resistive
z Light Transmission >74%
z Lifetime 1 million activations
Note: All AAEON's LCD products are manufactured with High precision
technology. However, in all LCD panels there maybe a small number of
defective pixels that do not change color. This is a normal occurrence for
all LCD displays from all manufacturers and should not be noticeable or
objectionable under normal operation. AAEON qualify the LCD panel
following industry standard: total 7 dead pixels on a screen or if there are
3 within 1 inch square area of each other on the display.

Multipurpose & FOX-120
Waterproof Panel PC
Chapter 1 General Information 1-7
1.4 Dimension
345
282
60
75
100
75
100
USB COM2 PowerCOM1 LAN
Unit: mm

Multipurpose & FOX-120
Waterproof Panel PC
Chapter 1 General Information 1- 8

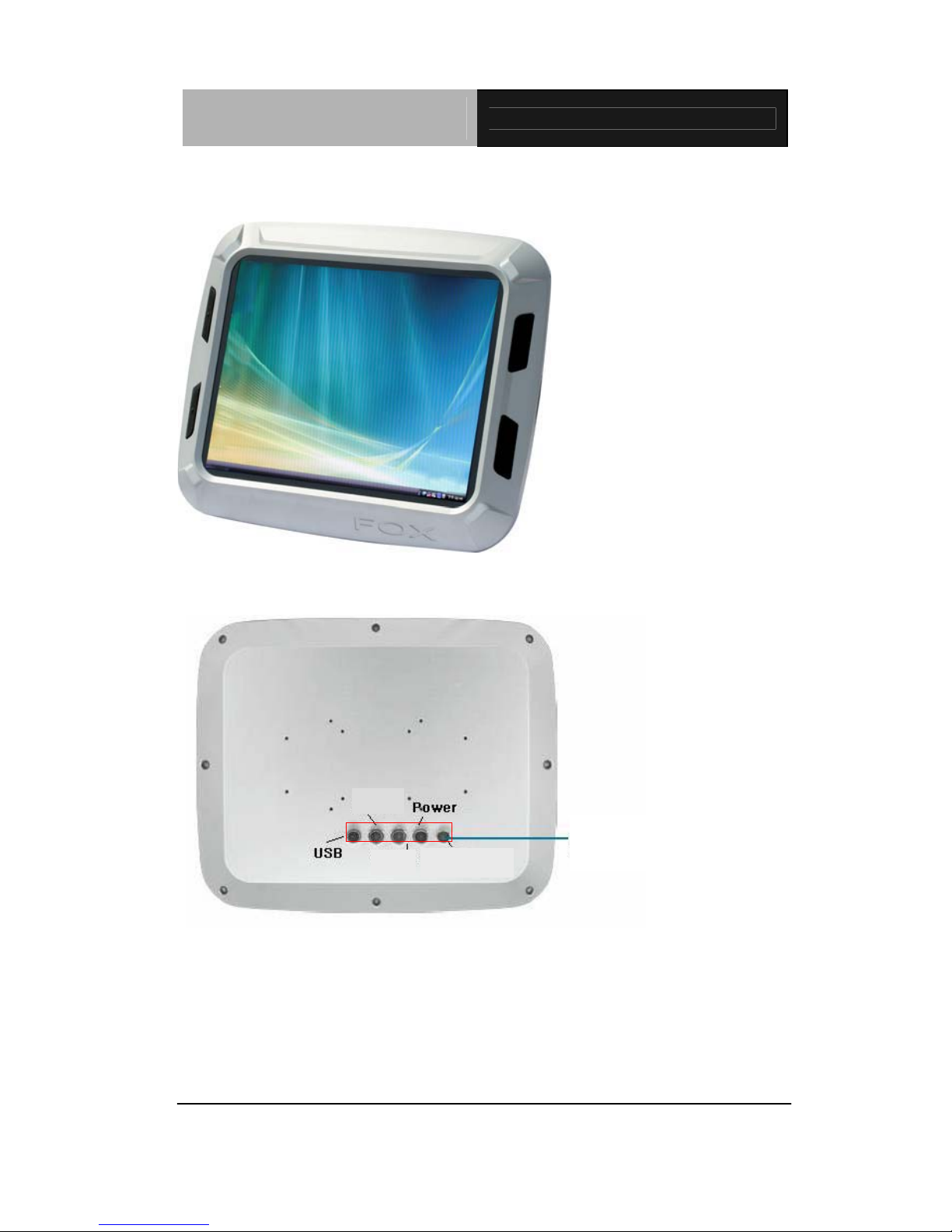

Front side
Side Backs
Wate
r
-Proof
Connectors
COM2
COM1 Optional LAN
or Audio Port

Multipurpose &
Waterproof Panel PC FOX-120
Chapter 2 Quick Installation Guide 2-1
Hardware
Installation
Chapter
2

Multipurpose & FOX-120
Waterproof Panel PC
Chapter 2 Quick Installation Guide 2 - 2
2.1 USB 1/2 Connecter
! !!!!!!
Pin Signal Pin Signal
1 USB V+ 2 USB V+
3 USB D1- 4 USB D1+
5 GND 6 USB D2+
7 USB D2- 8 GND
2.2 COM1 Connector for RS-232
Pin Signal Pin Signal
1 DCD 2 RXD
3TXD 4DTR
5 GND 6 DSR
7 RTS 8 CTS

Multipurpose & FOX-120
Waterproof Panel PC
Chapter 2 Quick Installation Guide
2 - 3
2.3 COM2 Connector for RS232/RS422/RS485
RS-232
Pin Signal Pin Signal
1 DCD 2 RXD
3TXD 4DTR
5 GND 6 DSR
7 RTS 8 CTS
RS-422
Pin Signal Pin Signal
1 TXD- 2 RXD+
3 TXD+ 4 RXD-
RS-485
Pin Signal Pin Signal
1 TXD- 2 NC
3 TXD+ 4 NC

Multipurpose & FOX-120
Waterproof Panel PC
Chapter 2 Quick Installation Guide 2 - 4
2.4 Audio (Line out)
! !!!!!
Pin Signal Pin Signal
1 R-out 2 N/A
3 L-out 4 GND
2.5 DC-IN 9~30V Connecter
Pin Signal Pin Signal
1 DC V+ 2 N/A
3 GND 4 NC
