Aaeon PCM-5895 User manual

Compact Board PCM-5895 Rev.B
PCM-5895 Rev.B
Onboard AMD Geode LX 800/900 Processor
Up to 24-bit LVDS LCD
184-pin DDR 333/400 Memory Up to 1GB
4 USB 2.0 / 8-bit Digital I/O / 4 COM
PCM-5895 Rev.B Manual 2nd Ed.
December 22, 2014

Compact Board PCM-5895 Rev.B
i
Copyright Notice
This document is copyrighted, 2008. All rights are reserved. The
original manufacturer reserves the right to make improvements
to the products described in this manual at any time without
notice.
No part of this manual may be reproduced, copied, translated,
or transmitted in any form or by any means without the prior
written permission of the original manufacturer. Information
provided in this manual is intended to be accurate and reliable.
However, the original manufacturer assumes no responsibility
for its use, or for any infringements upon the rights of third
parties that may result from its use.
The material in this document is for product information only
and is subject to change without notice. While reasonable
efforts have been made in the preparation of this document to
assure its accuracy, AAEON assumes no liabilities resulting
from errors or omissions in this document, or from the use of the
information contained herein.
AAEON reserves the right to make changes in the product
design without notice to its users.

Compact Board PCM-5895 Rev.B
ii
Acknowledgments
All other products’ name or trademarks are properties of their
respective owners.
 Award is a trademark of Award Software International, Inc.
 CompactFlash™ is a trademark of the Compact Flash
Association.
 AMD, the AMD Arrow logo and combinations thereof are
trademarks of Advanced Micro Devices, Inc.
 Microsoft Windows®is a registered trademark of Microsoft Corp.
 ITE is a trademark of Integrated Technology Express, Inc.
 IBM, PC/AT, PS/2, and VGA are trademarks of International
Business Machines Corporation.
 SoundBlaster is a trademark of Creative Labs, Inc.
All other product names or trademarks are properties of their
respective owners.

Compact Board PCM-5895 Rev.B
iii
Packing List
Before you begin installing your card, please make sure that the
following materials have been shipped:
• 1 PCM-5895 Rev.B CPU Card
• 1 Quick Installation Guide
• 1 CD-ROM for manual (in PDF format) and drivers
• 1 9657666600 Jumper Cap
If any of these items should be missing or damaged, please
contact your distributor or sales representative immediately.

Compact Board PCM-5895 Rev.B
iv
Contents
Chapter 1 General Information
1.1 Introduction................................................................1-2
1.2 Features....................................................................1-3
1.3 Specifications............................................................1-4
Chapter 2 Quick Installation Guide
2.1 Safety Precautions....................................................2-2

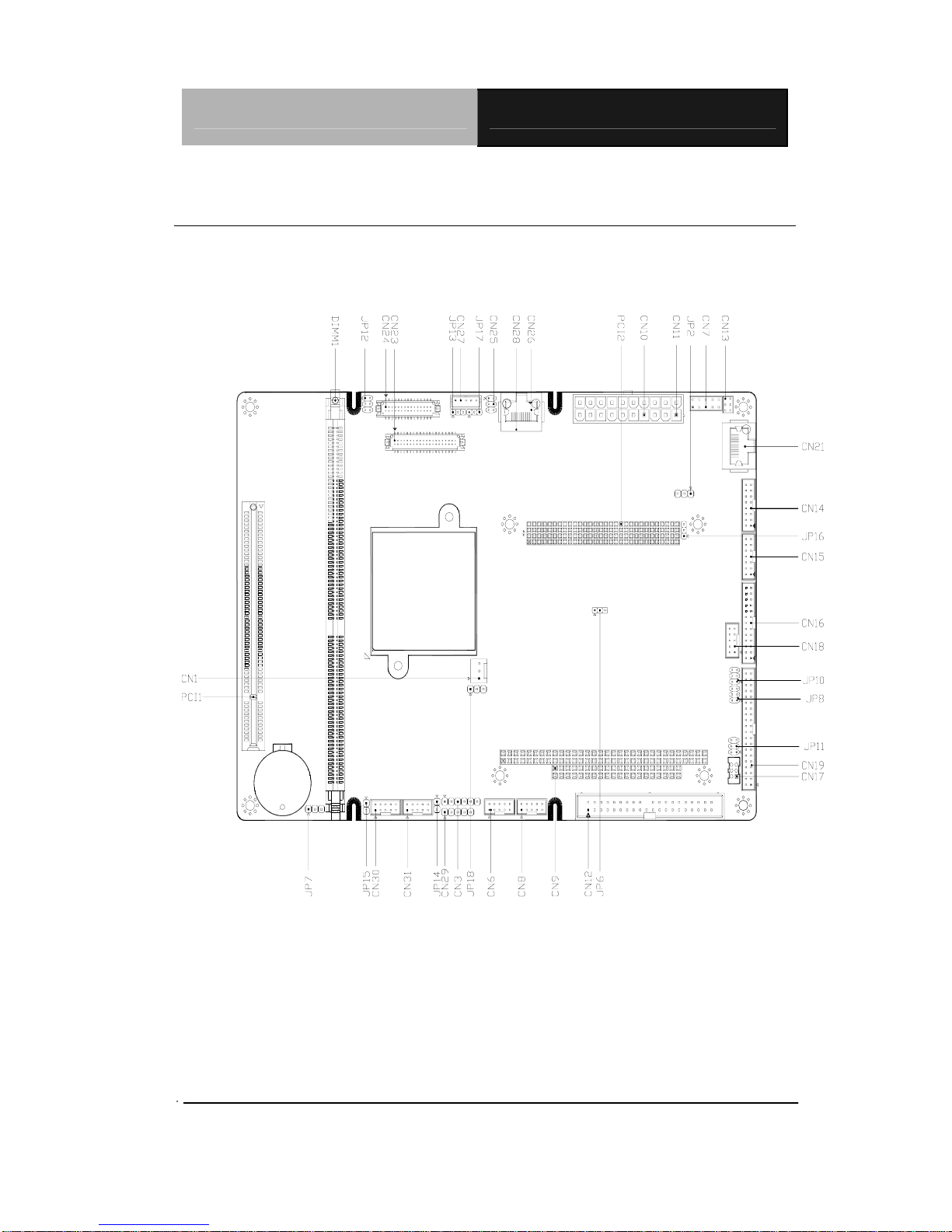

2.2 Location of Connectors and Jumpers .......................2-3

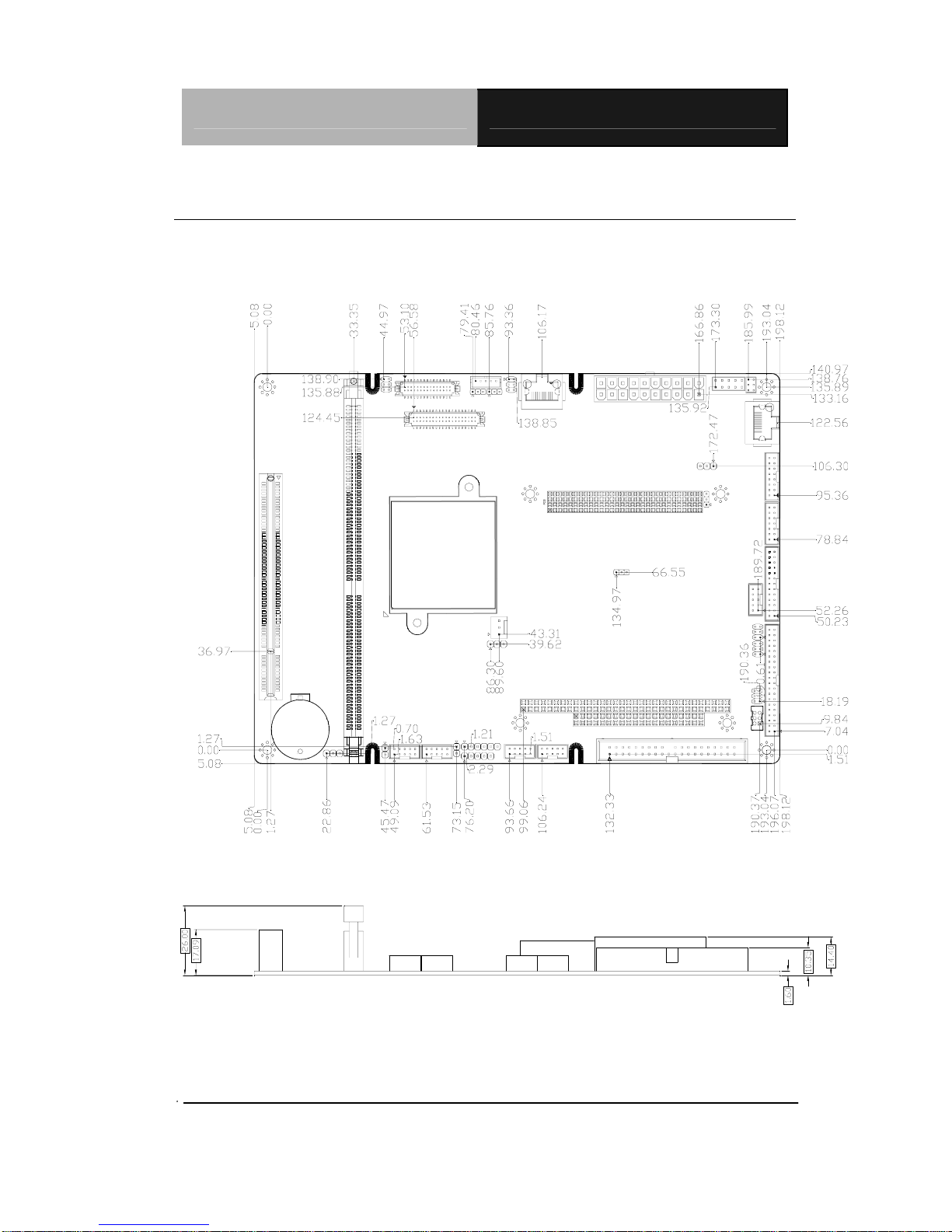

2.3 Mechanical Drawing..................................................2-5
2.4 List of Jumpers..........................................................2-7
2.5 List of Connectors .....................................................2-8
2.6 Setting Jumpers ........................................................2-10
2.7 AT/ATX Power Type Selection (JP2)........................2-11
2.8 CFD Master/ Slave Selection (JP6) ..........................2-11
2.9 Clear CMOS (JP7) ....................................................2-11
2.10 COM Ports RI/+5V/+12V Selection (JP8, JP10, JP11)
.........................................................................................2-11
2.11 LCD Power & Clock Selection (JP12).....................2-12
2.12 Inverter Voltage Selection (JP13) ...........................2-12
2.13 Contrast IC Power Selection (JP17) .......................2-12
2.14 Fan Control Circuit Power Selection (JP18) ...........2-13
2.15 FAN Connector (CN1).............................................2-13
2.16 USB Ports #1 and Port #2 (CN6)............................2-13

Compact Board PCM-5895 Rev.B
v
2.17 Front Panel (CN7)...................................................2-13
2.18 USB Port #3 & Port #4 (CN8)..................................2-14
2.19 PC/104 ISA Interface (CN9)....................................2-14
2.20 ATX Power Socket (CN10) .....................................2-17
2.21 AT Power Socket (CN11)........................................2-18
2.22 IDE Hard Drive (CN12)............................................2-18
2.23 CRT Display (CN 14)...............................................2-19
2.24 Audio Input/ Output/ CD-in/ MIC (CN15).................2-20
2.25 Parallel Port (CN16)................................................2-20
2.26 Keyboard/ Mouse Connector (CN17)......................2-21
2.27 Digital I/O (CN18)....................................................2-21
2.28 Serial Port (CN19)...................................................2-22
2.29 Ethernet 10/100Base-TX RJ-45 Phone Jack (CN21,
CN28)..............................................................................2-23
2.30 LAN LED (CN13, CN25) ........................................2-24
2.31 TFT LCD (CN23) ...................................................2-24
2.32 LVDS (CN24) .........................................................2-26
2.33 Ethernet 10/100Base-TX Connector (CN26) ........2-27
2.34 LCD Inverter (CN27) ..............................................2-27
2.35 IrDA (CN29) ...........................................................2-27
2.36 CAN Bus Connector (CN30, CN31) ......................2-28
2.37 CompactFlash Disk Slot (CFD1) ...........................2-28
2.38 PCI-104 Slot (PCI1) ...............................................2-30
2.39 PCI-104 Slot (PCI2) ...............................................2-30

Compact Board PCM-5895 Rev.B
vi
Chapter 3 Award BIOS Setup
3.1 System Test and Initialization. ..................................3-2
3.2 Award BIOS Setup....................................................3-3
Chapter 4 Driver Installation
4.1 Software Drivers........................................................4-2
4.2 Necessary to Know ...................................................4-3
4.3 Installing VGA Driver.................................................4-4
4.4 Installing AES Driver .................................................4-5
4.5 Installing PCI to ISA Bridge Driver............................4-6
4.6 Installing LAN Driver..................................................4-7
4.7 Ethernet Software Configuration...............................4-7
4.8 Installing Audio Driver ...............................................4-8
4.9 Installing CAN Bus Driver..........................................4-9
Appendix A Programming the Watchdog Timer
A.1 Programming .........................................................A-2
A.2 ITE 8712 Watchdog Timer Initial Program.............A-5
Appendix B I/O Information
B.1 I/O Address Map....................................................B-2
B.2 1st MB Memory Address Map ................................B-2
B.3 IRQ Mapping Chart................................................B-3
B.4 DMA Channel Assignments...................................B-3
Appendix C Mating Connector
C.1 List of Mating Connectors and Cables.................. C-2

Compact Board PCM-5895 Rev.B
Chapter 1 General Information 1- 1
General
Chapter
1
Information

Compact Board PCM-5895 Rev.B
Chapter 1 General Information 1- 2
1.1 Introduction
PCM-5895 Rev.B adopts an onboard AMD Geode LX 800/900
processor. The AMD LX series processors are ideal for
applications that require low power consumption and stable
performance. The system memory features 184-pin DDR DIMM
up to 1GB. Moreover, the PCM-5895 Rev.B supports PCI,
PCI-104 and PC/104 for flexible expansion. Customers are
always eager to find a low-priced, multi-functional product. The
PCM-5895 Rev.B is definitely your best choice.
Regarding the multimedia performance of PCM-5895 Rev.B, it
features CRT/LCD simultaneous display. The LVDS/TTL TFT
LCD is up to 24-bit and the rich audio I/O interface that PCM-5895
Rev.B possesses supports MIC-in, Line-in, Line-out and CD-in
functions. In addition, PCM-5895 Rev.B deploys 4 COM
ports--three RS-232 ports (COM3, 4 only support Tx, Rx) and one
RS-232/422/485 port. Four USB2.0, 8-bit Digital I/O and IrDA
ports make PCM-5895 Rev.B more flexible for the expansion of
system device. Moreover, another key feature of PCM-5895
Rev.B is the two CANBus ports that are an optional feature to
enrich device connections.

Compact Board PCM-5895 Rev.B
Chapter 1 General Information 1- 3
1.2 Features
 Onboard AMD Geode LX 800/900 Processor
 One DIMM DDR 333/400 up to 1GB
 Up to 24-bit LVDS TFT Panel, TTL/LVDS LCD, CRT
 Dual 10/100Base-TX Ethernet
 Supports PC/104+ Expansion Slot
 AC97 2CH Audio
 USB2.0 x 4/ COM x 4/ 8-bit Digital I/O/ IrDA
 Dual CAN Bus (Optional)

Compact Board PCM-5895 Rev.B
Chapter 1 General Information 1- 4
1.3 Specifications
System
 CPU Onboard AMD Geode LX800 (900
optional) Processors
 System Memory 184-pin DDR DIMM x 1,
Max. 1GB (DDR 333/400),
optional onboard memory 256MB
 Chipset AMD Geode LX + CS5536
 I/O Chipset ITE IT8712 +IT8888G
 PCI to ISA Solution ITE8888G
 Ethernet Realtek RTL 8100C,
10/100Base-TX x 2, RJ-45 x 2
 BIOS Award Plug & Play BIOS--1MB
ROM
 Watchdog Timer ITE IT8712 F/KX-L, Generates a
time-out system reset
 H/W status monitoring Supports power supply voltages
and temperature monitoring
functions
 SSD One Type II Compact Flash slot
 Expansion Interface PCI x 1, Optional PC/104+
 Battery Lithium battery
 Operating Temperature 32oF~140oF (0oC~60oC)
 Power Requirement ATX, optional AT

Compact Board PCM-5895 Rev.B
Chapter 1 General Information 1- 5
 Board Size 8”(L) x 5.72” (W) (203mm x
146mm)
 Gross Weight 1.2 lb (0.5 kg)
Display: Supports CRT/LCD Simultaneous display
 Chipset AMD Geode LX800/900
integrated graphics
 Memory Shared system memory up to
254MB
 Resolutions Up to 1920x1440@24-bit for
CRT; Up to 1600x1200@24bit
for LCD
 LCD Interface Up to 24-bit LVDS LCD
I/O
 Storage PATA-100 x 1 (Supports two
ATAPI devices); Type II
CompactFlash
 Serial Port RS-232 x 3 (COM3/4 only support
Tx, Rx), RS-232/422/485 x 1
 Parallel Port Supports SPP/ EPP/ ECP mode
 USB USB2.0 x 4
 PS/2 Port One PS/2 Keyboard and one PS/2
mouse support
 Digital I/O 8-bit Digital I/O (Programmable)

Compact Board PCM-5895 Rev.B
Chapter 1 General Information 1- 6
 IrDA One IrDA Tx/Rx header
 Audio Realtek ALC203 2CH AC97
Codec, Mic-in/ Line-in/ Line-out/
CD-in
 CAN Bus Optional dual CAN Bus

Compact Board PCM-5895 Rev.B
Chapter 2 Quick Installation Guide 2- 1
Chapter
Quick
Installation
2
Guide
Notice:
The Quick Installation Guide is derive
d
f
rom Chapter 2 of user manual. For othe
r
chapters and further installation
instructions, please refer to the use
r
manual CD-ROM that came with th
e
p
roduct.
Part No. 2007589520 Printed in Taiwan Aug. 2008

Compact Board PCM-5895 Rev.B
Chapter 2 Quick Installation Guide 2- 2
2.1 Safety Precautions
Always completely disconnect the power cord
from your board whenever you are working on
it. Do not make connections while the power is
on, because a sudden rush of power can
damage sensitive electronic components.
Always ground yourself to remove any static
charge before touching the board. Modern
electronic devices are very sensitive to static
electric charges. Use a grounding wrist strap at
all times. Place all electronic components on a
static-dissipative surface or in a static-shielded
bag when they are not in the chassis

Compact Board PCM-5895 Rev.B
Chapter 2 Quick Installation Guide 2-3
2.2 Location of Connectors and Jumpers
Component Side

Compact Board PCM-5895 Rev.B
Chapter 2 Quick Installation Guide 2- 4
Solder Side

Compact Board PCM-5895 Rev.B
Chapter 2 Quick Installation Guide 2-5
2.3 Mechanical Drawing
Component Side

Compact Board PCM-5895 Rev.B
Chapter 2 Quick Installation Guide 2- 6
Solder Side

Compact Board PCM-5895 Rev.B
Chapter 2 Quick Installation Guide 2-7
2.4 List of Jumpers
The board has a number of jumpers that allow you to configure your
system to suit your application.
The table below shows the function of each of the board's jumpers:
Jumpers
Label Function
JP2 AT/ATX Power Type Selection
JP6 CFD Master/Slave Selection
JP7 Clear CMOS
JP8, JP10 COM Ports RI/+5V/+12V Selection
JP11 COM Ports +5V/+12V Selection
JP12 LCD Clock and Power Selection
JP13 Inverter Voltage Selection
JP14, JP15 CAN Bus Termination
JP16 PCI 104 Power Selection
JP17 Contrast IC Power Selection
JP18 Fan Control Circuit Power Selection
