Aaeon PCM-5894 User manual

PCM-5894
PCM-5892
All-in-One Single Board Pentium
Computer with SVGA, Ethernet,
and 4 serial ports

FCC STATEMENT
THISDEVICECOMPLIESWITHPART15FCCRULES.OPERA-
TIONISSUBJECTTOTHEFOLLOWINGTWOCONDITIONS:
(1)THISDEVICEMAYNOTCAUSEHARMFULINTERFER-
ENCE.(2)THISDEVICEMUSTACCEPTANYINTERFERENCE
RECEIVEDINCLUDINGINTERFERENCETHATMAYCAUSE
UNDESIREDOPERATION.
THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO
COMPLY WITH THE LIMITS FOR A CLASS"A" DIGITAL
DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.
THESE LIMITS ARE DESIGNED TO PROVIDE REASON-
ABLE PROTECTION AGAINTST HARMFUL INTERFER-
ENCEWHEN THE EQUIPMENT IS OPERATED IN A
COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENER-
ATES,USES, AND CAN RADIATE RADIO FREQUENCY
ENERGYAND, IFNOTINSTATLLEDANDUSED IN ACCOR-
DANCEWITH THE INSTRUCTION MANUAL, MAY CAUSE
HARMFUL INTERFERENCE TO RADIO COMMUNICA-
TIONS.OPERATION OF THIS EQUIPMENT IN A RESIDEN-
TIALAREA IS LIKELY TO CAUSE HARMFUL INTERFER-
ENCE IN WHICH CASE THE USER WILL BE REQUIRED
TOCORRECT THE INTERFERENCE AT HIS OWN EX-
PENSE.

Copyright Notice
This document is copyrighted, 1998. All rights are reserved. The
original manufacturer reserves the right to make improvements to
the products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in
this manual is intended to be accurate and reliable. However, the
original manufacturer assumes no responsibility for its use, nor for
any infringements upon the rights of third parties which may result
from its use.
Acknowledgements
AMD is a trademark of Advanced Micro Devices, Inc.
AMI is a trademark of American Megatrends, Inc.
Award is a trademark of Award Software International, Inc.
Cyrixis a trademark of CyrixCorporation.
IBM, PC/AT, PS/2, and VGA are trademarks of International
Business Machines Corporation.
Intel and Pentium are trademarks of Intel Corporation.
Microsoft Windows®is a registered trademark of Microsoft Corp.
SMC is a trademark of Standard Microsystems Corporation.
RTL is a trademark of Realtek Semi-Conductor Co., Ltd.
C&T is a trademark of Chips and Technologies, Inc.
UMC is a trademark of United Microelectronics Corporation.
ITE is a trademark of Integrated Technology Express, Inc.
SIS is a trademark of Silicon Integrated Systems Corp.
VIA is a trademark of VIA Technology, Inc.
All other product names or trademarks are properties of their
respective owners.
PartNo. 2047589402 Manual PCM-5894/5892 A3.2 3rd Edition
Prepared in Taiwan Feb. 1999

Packing list
Before you begin installing your card, please make sure that the
following materials have been shipped:
• 1 PCM-5894/PCM-5892 All-in-One Single Board Computer
• 1Quick Installation Guide
• 1 CD-ROM contains the followings:
— User’s Manual (this manual in PDF file)
— Ethernet drivers and utilities
— VGA drivers and utilities
— Latest BIOS (as of this product was shipped)
• PC/104 module mounting support kit
The PCM-5894/5892 require several cables for operation. You
can make them yourself or pruchase an optioanl cable kit, PCM-
10489-3 (P/N : 9979048900).
If any of these items are missing or damaged, contact your
distribuitor or sales representative immediately.
Notice
Dear Customer,
Thank you for purchasing the PCM-5894/5892 board. This
user's manual is designed to help you get the most out of the PCM-
5894/5892, please read it thoroughly before you install and use the
board. The product that you have purchased comes with a one-
year limited warranty, but AAEON will not be responsible for
misuse of the product. Therefore, we strongly urge that you first
read the manual before using the product.
To receive the lastest version of the user manual, please visit our
Web site at:
http://www.aaeon.com

The PCM-5894/5892 adopts a "P9" type power connector
for operation.
Please be advised that the PCM-5894/5892 Rev.A3 or higher
revision requires a "P9" power connector for proper operation.
On the standard PS/2 power supplies, there are usually two
similar 6-pin power plugs. P8 has one +5V output while P9 has
three. +5V is normally indicated by red color so you should be
able to distinguish P9 from P8 by counting the number of red
wire. Many times, there are also markings on these two plugs
indicating which is which.
NOTE : Without any aditional devices, PCM-5894/5892
alone is +5V operational. -5V of P9 power
connector is not required.
** PLEASE be absolutely certain that you are using the correct
plug before continuing.
AAEON will not be responsible for any damages caused
by improper power input.
WARNING
ROTCENNOC9P
.ONNIP1-NIP2-NIP3-NIP4-NIP5-NIP6-NIP
langiSDNGDNGV5-V5+V5+V5+
roloCkcalBkcalBetihWdeRdeRdeR

Contents
Chapter 1: General Information .......................... 1
Introduction ............................................................................ 2
Onboard peripheralswith truePCI performance ................ 2
Features ................................................................................... 3
Specifications .......................................................................... 4
Standard SBC functions............................................................ 4

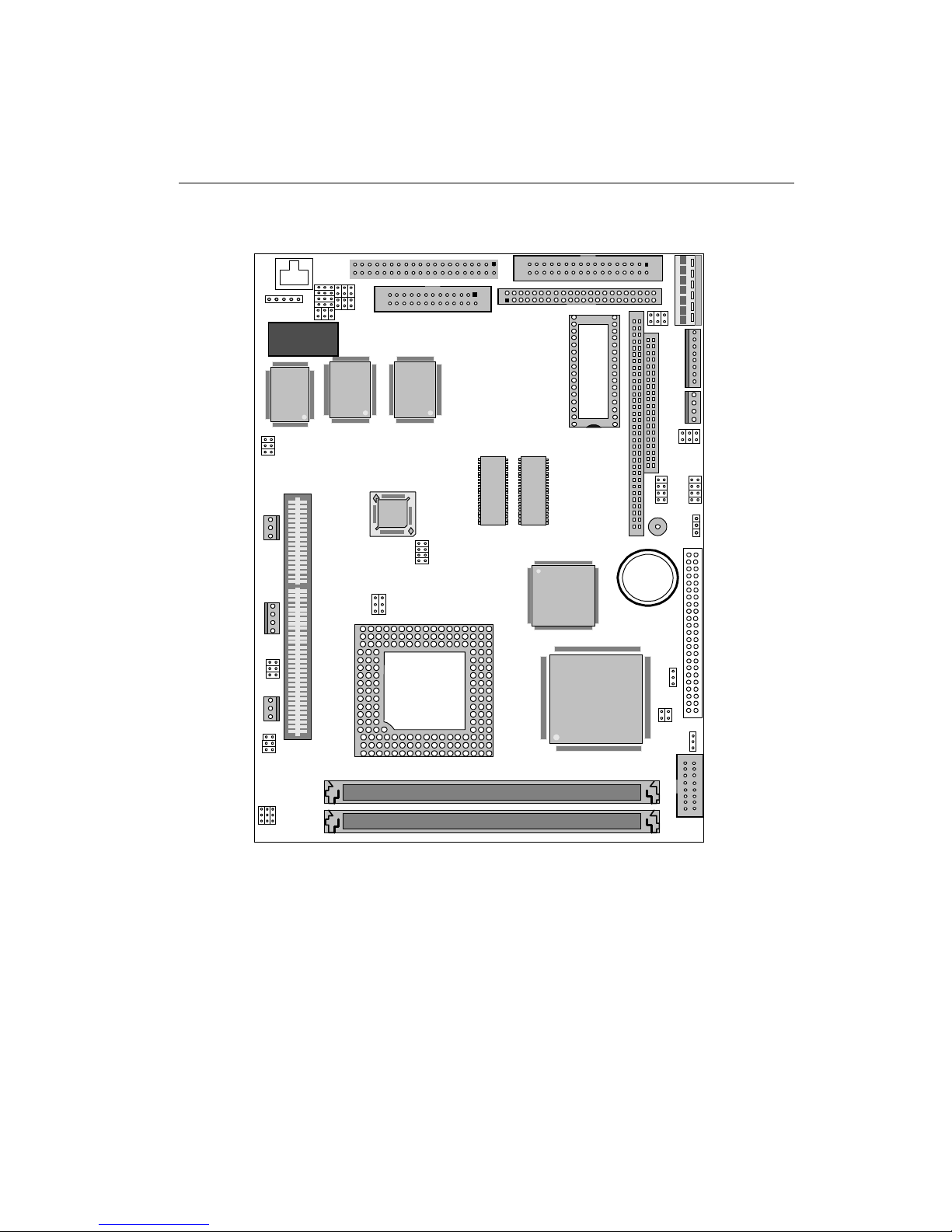

Board layout ........................................................................... 6

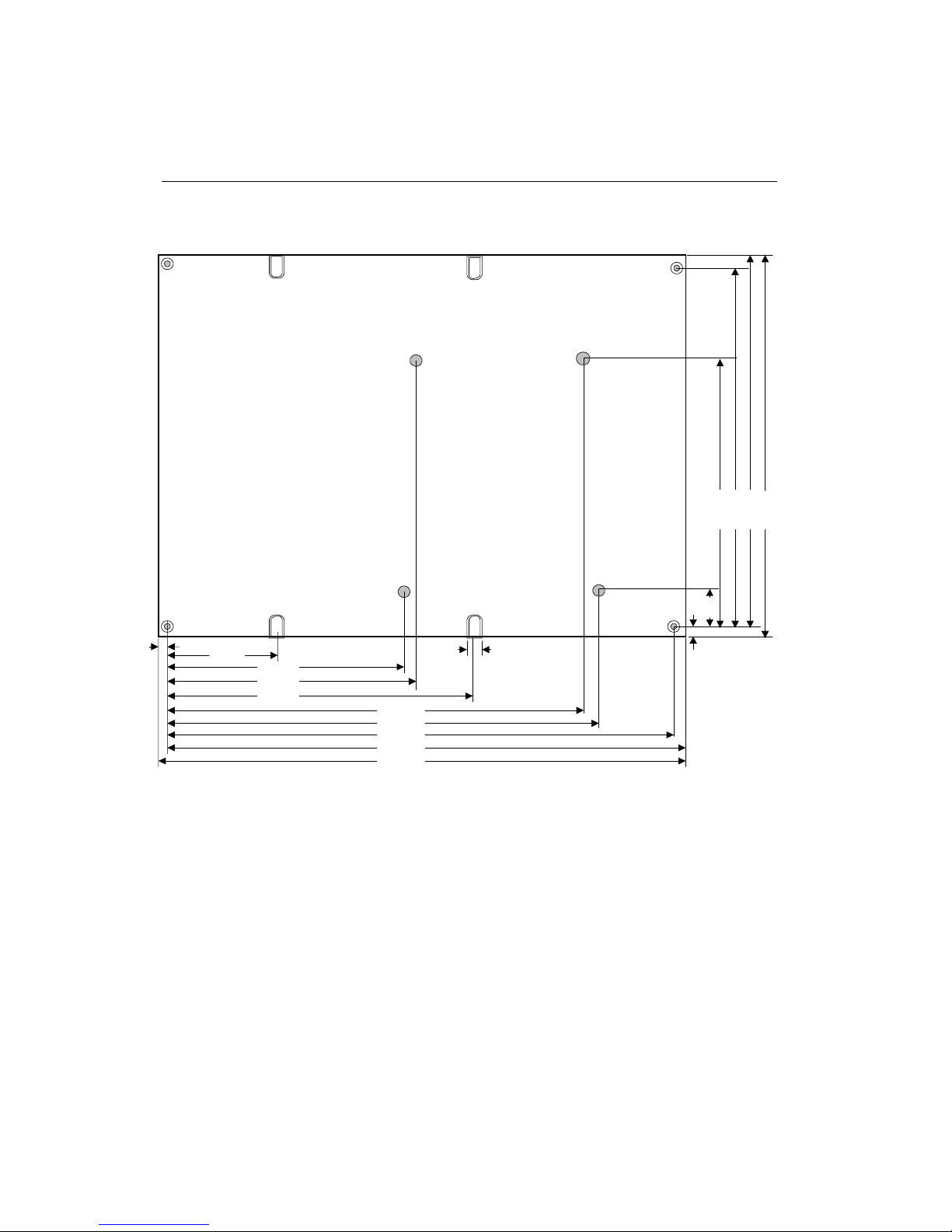

Boarddimensions ................................................................... 7
Chapter 2: Installation ......................................... 9
Jumpersand connectors ...................................................... 10
Locatingjumpers.................................................................. 12
Locating connectors ............................................................. 13
Setting jumpers ..................................................................... 14
CPUinstallingand upgrading ............................................. 15
Installing DRAM(SIMMs) .................................................. 16
InstallingSIMMs.................................................................. 16
Internal VGA setting (J1)
(for PCM-5892 chipset only)............................................. 17
System clock setting (J2)................................................... 18
LCD driving voltage select (J3 and J11) ........................ 19
LCD singal select (J5)(J6) ................................................ 19
Clear CMOS (J7)................................................................ 19
CPU frequency ratio (J8) ................................................... 20
CPU type select (J10) ........................................................ 21
CPU voltage setting (J12) ................................................. 22
DOC address selection (J13 ............................................. 23
Ethernet LED signal connectors (J14, J15, J16) ................ 24
COM2RS-232/422/485select .............................................. 25
COM3/COM4IRQ select..................................................... 25
COM3/COM4 RI pin voltage select (J20, J21) .................. 26

Display connectors (CN1, CN3) .......................................... 27
USB connector (CN5)........................................................... 29
Front panel connector (CN6)............................................... 30
Power connectors (CN8, CN12, CN2, CN17, and CN19).. 31
Keyboard and mouse connector (CN9) .............................. 32
IDEharddrive connector (CN11) ....................................... 33
connecting the hard drive ........................................................ 33
IDE hard drive connector (CN11)........................................... 34
Parallel port connector (CN13) ........................................... 35
Parallel port IRQ..................................................................... 35
Parallel port connector table (CN13) ...................................... 35
Serialports(CN15)............................................................... 36
COM 1-4 RS-232/422/485 serial ports (CN15) ...................... 36
Floppy drive connector (CN16) ........................................... 37
Connecting thefloppy drive .................................................... 37
Floppy drive connector (CN16) .............................................. 38
DiskOnChip socket (U16) .................................................... 39
DiskOnChip (DOC) 2000 Installation ................................ 40
CPUjumper setting example ............................................... 41
Chapter 3: AMIBIOS Setup .................................. 47
System test and initialization............................................... 48
Systemconfiguration verification ............................................ 48
Award BIOSsetup ................................................................ 49
Enteringsetup ......................................................................... 49
StandardCMOSSetup ........................................................ 51
BIOSfeaturessetup.............................................................. 53
CHIPSETfeaturessetup ...................................................... 57
Powermanagementsetup .................................................... 61
PNP/PCI configuration setup .............................................. 67
Load BIOS defaults/Load setup defaults ........................... 70
Integratedperipheralssetup ................................................ 71
Supervisor/Userpasswordsetting........................................ 69
IDE HDD auto detect ........................................................... 71
Hdd low level format utility................................................. 78

Save & exit setup .................................................................. 79
Exitwithoutsaving ............................................................... 81
Chapter 4: C&T 6555x Flat Panel/CRT controller
Display Drivers and Utilities (For
PCM-5894only) ................................ 81
Software Drives ................................................................... 82
Hardware configuration ..........................................................82
Necessary prerequisites ..........................................................83
Before you begin .....................................................................83
Windows 95 .......................................................................... 84
Driverinstallation ....................................................................84
Windows 3.1......................................................................... 85
Driverinstallation ....................................................................85
OS/2....................................................................................... 86
Windows NT 3.51................................................................ 88
Windows NT 4.0 .................................................................. 89
Chapter 5: SiS 5598 VGA Drivers (For PCM-5892
only) ................................................ 91
System Requirements ........................................................ 92
Windows 95 .......................................................................... 92
WINDOWS 95 (Display driver installation) .................... 92
Selecting resolution, color depth, and refresh ............... 93
Windows 3.x......................................................................... 94
Installation ...............................................................................94
Craphics setup.........................................................................94
Power saving setup in Windows 3.x........................................95
NT 3.5x ................................................................................. 95
Windows NT 3.5x display drivers installation..........................95
Selecting resolution and color depth ...........................................
NT 4.0 ................................................................................... 96
Windows NT 4.0 display drivers installation............................96
Selecting resolution and color depth ........................................97
DOS ....................................................................................... 98

VGAutility.............................................................................. 98
Video mode setting.................................................................. 98
Frame Rate setting .................................................................. 98
Powersavingsetting ............................................................... 98
Chapter 6: Ethernet Software configuration... 99
Ethernetsoftwareconfiguration........................................ 100
Appendix A: Programming the Watchdog Timer .
....................................................... 101
Programmingthewatchdogtimer..................................... 102
How to program the WATCHDOG TIMER ......................... 102
Demoprogram...................................................................... 103
Appendix B: Installing PC/104 Modules ........... 105
InstallingPC/104 modules .................................................... 106
Appendix C: Optional Extras ............................ 109
PCM-10489-3 Cable kit for PCM-5894 ................................110

Chapter 1 General Information 1
1
General
Information
This chapter gives background informa-
tion on the mainboard.
Sections include:
• Board specifications
• Layout and dimensions
CHAPTER

2PCM-5894/5892 User Manual
Introduction
The PCM-5894/5892 is a Pentium single board computer with
one onboard PCI SVGA controller, one PCI Ethernet interface
and one PCI expansion slot. Equipped with a 64-bits local bus
architecture, the PCM-5894/5892 releases Pentium's full
potential and provides unprecedented performance compared to
current 32-bit processor boards. The PCM-5894/5892 offers all
the functions of an industrial computer on a single board, but fits
in the space of a 5¼" floppy drive (only 5.75" x 8"). For maximum
performance, the PCM-5894/5892 also supports a 512 KB. L2
cache onboard. An SSD interface supports one 32-pin DIP socket
for the M-Systems DiskOnChip 2000 series, memory capacity
from 2MB to 72MB.
Onboard features include four serial ports (three RS-232 and one
RS-232/422/485),onemulti-modeparallel(ECP/EPP/SPP)port,one
floppy drive controller and one keyboard/PS-2 mouse interface.
The built-in high speed PCI IDE controller supports both PIO and
bus master modes. Up to two IDE devices can be connected,
including large hard disks, CD-ROM drives, tape backup drives,
and other IDE devices.
ThePCM-5894/5892 also features power management to minimize
power consumption. It complies with the “Green Function”
standard and supports three types of power saving features: Doze
mode, Standby mode, and Suspend mode. In addition, the board’s
watchdog timer can automatically reset the system or generate an
interrupt in case the system stops due to a program bug or EMI.
Onboard peripherals with true PCI
performance
The PCM-5894/5892 is a highly integrated, all-in-one single board
computer. All onboard peripherals (including PCI flat panel/VGA
interface, PCI Ethernet, and PCI IDE) adopt PCI technology and
operate through an internal PCI bus. Integrating a Pentium board
with a PCI architecture has unleashed a revolutionary level of
performance. The PCM-5894/5892 is one of the smallest and
most powerful all-in-one Pentium boards available.

Chapter 1 General Information 3
Features
• Accepts Intel Pentium MMX 166~233MHz, AMD-K6/200~300AFR,
Cyrix/IBM/6x86MX-PR166~266GPandIDTwinchipC6180~225MHz
• DiskOnChip (SSD) up to 72MB
• C&T 65554 LCD controller supports 36-bit TFT panels
• 10Base-T/100Base-TX Ethernet, supports remote boot ROM function
• Bus Master IDE and Ultra DMA/33 supported
• ThreeRS-232 and one RS-232/422/485 serial port

4PCM-5894/5892 User Manual
Specifications
Standard SBC functions
•CPU: Intel Pentium MMX 166~233MHz, AMD-K6/200~266AFR,
Cyrix /IBM/6x86MX-PR166~266GP and IDT winchip C6
180~225MHz
•BIOS:AwardFLASHBIOS
•Chipset: SiS5582 (PCM-5892)/SiS5598(PCM-5894)
•Level 2 cache: Onboard 512KB pipeline burst L2 cache.
• System memory: 8MB to 128MB. Two 72-pin SIMM sockets
onboard. Supports BEDO, EDO, and FP DRAM.
•DMA channels: 7
•Interruptlevels: 15
•EnhancedIDE hard disk drive interface: Supports up to two IDE drives.
Supports PIO mode 4 and Bus Master. Also supports Multi-word DMA
andUltra DMA/33.
•FDD interface: Supports up to two floppy disk drives.
•Multi-modeparallel port:Configuredto LPT1,LPT2, LPT3, ordisabled.
Supports SPP, ECP, and EPP.
•Serialports:ThreeRS-232 and one RS-232/422/485 serial ports. Ports
can be configured as COM1, COM2, COM3, COM4, or disabled individ-
ually. Four 16C550 serial UARTs. IR connector reserved for future use.
•Keyboard/mouseconnector:8-pin connector supports standard PC/AT
keyboard and PS/2 mouse.
•USB connectors: Two USB connectors on-board
•Watchdog timer: Can generate a system reset, IRQ15 or NMI. Selectable
timeoutinterval. (2sec~128min, 1sec/step).
•Powermanagement:I/O peripheral devices support power saving and
doze/standby/suspend modes and is APM 1.2 compliant

Chapter 1 General Information 5
•VGA controller: C&T 65554(PCM-5894)/SiS 5598(PCM-5892)
•Display memory: 2MB onboard/UMA structure for PCM-5892
•Display type: Supports CRT and flat panel (TFT, DSTN, Mono, and
EL) display. Can display both CRT and flat panel simultaneously
(PCM-5892 supports CRT displays only)
•Resolution: Supports up to 1024 x 768 @ 64K colors.
•Ethernetcontroller:RealtekRTL813910Base-T/100Base-TX Ethernet
controller
•SSDinterface:One 32-pin DIP socket for M-Systems DiskOnChip 2000
series,memory capacity from 2MB to 72MB.
•PC/104connector: 104-pin connector for a 16-bit bus.
•Powersupplyvoltage:+5V(4.75Vto5.25V)
+12V(11.4V to 12.6V)
•Powerrequirements:
BareBoard: +5V@1.5A
PentiumMMX-233 onboard: +5V@6A
AMDK6-233 onboard: +5V@10A
•Operatingtemperature:32 to140o F(0 to 60oC)
•Boardsize:8”(L)x5.75”(W)(203mmx146mm)
•Weight:0.3kg

6PCM-5894/5892 User Manual
Board layout
U1
UMC
UM8663BF
20PMT04A
SiS
5598/5582
BAT
RTL8139
iTE
IT8661F
DiskOnChip
CHIPS
B5554

Chapter 1 General Information 7
Dimensionsinmm
PCM-5894/5892 dimensions
5.08 40.64 97.16
100.97
119.38
3.56
174.63
177.17
193.04
203.20
198.12
5.08
9.53
135.89
95.25
146.05 140.97
Board dimensions

8PCM-5894/5892 User Manual

Chapter 2 Installation 9
2
Installation
This chapter describes how to set up the
main board hardware, including instruc-
tions on setting jumpers and connecting
peripherals, switches, and indicators. Be
sure to read all the safety precautions
before you begin the installation proce-
dure.
CHAPTER

10 PCM-5894/5892 User Manual
Jumpers and connectors
Connectors on the board link it to external devices such as hard
disk drives, a keyboard, or floppy drives. In addition, the board
has a number of jumpers that allow you to configure your system
to suit your application.
The table below lists the function of each of the board's jumpers
and connectors.
Jumpers
Label Function
J1 Internal VGA setting
J2 System clock setting
J3 LCD driving voltage select
J5 LCD SHF clock setting
J6 LCD ASHF clock setting
J7 Clear CMOS
J8 CPU frequency ratio
J10 CPU type select
J11 LCD driving voltage select
J12 CPU voltage setting
J13 DOC address select
J14 Ethernet transmitting LED
J15 Ethernet receiving LED
J16 Ethernet link signal LED
J17 COM2 selection
J18 COM2 selection
J19 IRQ selection (COM3, COM4)
J20 COM3 RI Pin voltage select
J21 COM4 RI Pin voltage select
