Aaeon MIX-Q370D1 User manual

Industrial Motherboard
MIX-Q370D1

ii
E14570
Second Edition
July 2018
Copyright Notice
This document is copyrighted, 2018. All rights are reserved. The original
manufacturer reserves the right to make improvements to the products described
in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated, or transmitted
in any form or by any means without the prior written permission of the original
manufacturer. Information provided in this manual is intended to be accurate and
reliable. However, the original manufacturer assumes no responsibility for its use,
or for any infringements upon the rights of third parties that may result from its use.
The material in this document is for product information only and is subject to
change without notice. While reasonable efforts have been made in the preparation
of this document to assure its accuracy, the original manufacturer assumes no
liabilities resulting from errors or omissions in this document, or from the use of the
information contained herein.
The original manufacturer reserves the right to make changes in the product
design without notice to its users.
Acknowledgments
All other products’ name or trademarks are properties of their respective owners.
• AMI is a trademark of American Megatrends Inc.
• Intel®, Core™ are trademarks of Intel®Corporation.
• Microsoft Windows®is a registered trademark of Microsoft Corp.
• IBM, PC/AT, PS/2, and VGA are trademarks of International Business
Machines Corporation.
The original manufacturer reserves the right to make changes in the product
design without notice to its users.
All other product names or trademarks are properties of their respective owners.

iii
Contents
Chapter 1: Product overview
1.1 Package contents......................................................................... 1-1
1.2 Features ........................................................................................ 1-1
1.3 Specications............................................................................... 1-2
Chapter 2: Motherboard information
2.1 Before you proceed ..................................................................... 2-1
2.2 Motherboard layout...................................................................... 2-2

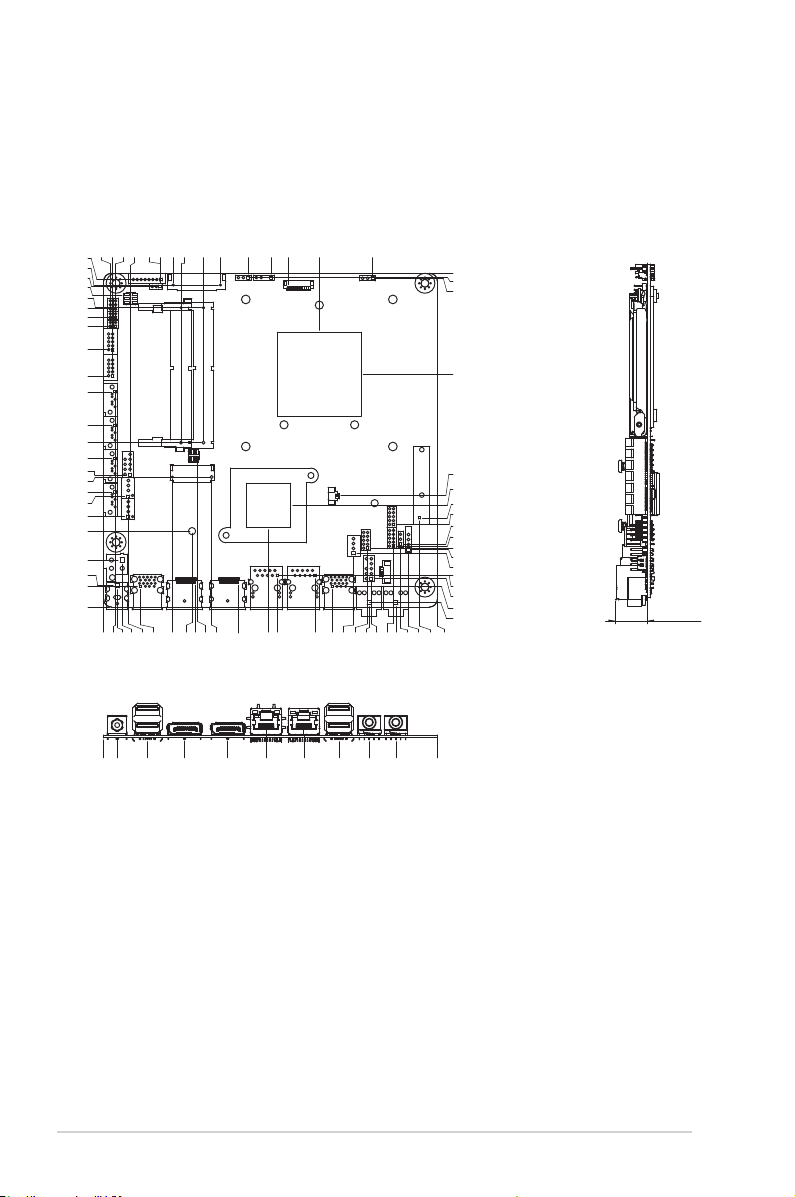

2.3 Screw size..................................................................................... 2-4
2.3.1 Component side.............................................................. 2-4
2.3.2 Solder side ...................................................................... 2-5
2.4 Central Processing Unit (CPU) ................................................... 2-6
2.4.1 Installing the CPU ........................................................... 2-7
2.4.2 CPU heatsink and fan assembly installation................... 2-9
2.5 System memory ......................................................................... 2-11
2.6 Jumpers ...................................................................................... 2-12
2.7 Onboard LEDs............................................................................ 2-16
2.8 Connectors ................................................................................. 2-17
2.8.1 Rear panel connectors.................................................. 2-17
2.8.2 Internal connectors ....................................................... 2-18
Chapter 3: BIOS setup
3.1 BIOS setup.................................................................................... 3-1
3.2 Main menu .................................................................................... 3-2
3.2.1 System Date [Day MM/DD/YYYY] .................................. 3-2
3.2.2 System Time [HH:MM:SS] .............................................. 3-2
3.3 Advanced menu ........................................................................... 3-2
3.3.1 CPUConguration .......................................................... 3-3
3.3.2 Trusted Computing ......................................................... 3-3
3.3.3 SATAConguration ........................................................ 3-4
3.3.4 USBConguration .......................................................... 3-4
3.3.5 Hardware Monitor ........................................................... 3-5
3.3.6 SIOConguration ........................................................... 3-7
3.3.7 AMTConguration .......................................................... 3-7
3.3.8 PCH-FWConguration ................................................... 3-7
3.3.9 Power Management........................................................ 3-7
3.3.10 DigitalIOPortConguration ........................................... 3-8

iv
3.4 Chipset menu ............................................................................... 3-9
3.4.1 SystemAgent(SA)Conguration ................................... 3-9
3.4.2 PCH-IOConguration ..................................................... 3-9
3.5 Security menu ............................................................................ 3-10
3.5.1 Administrator Password ................................................ 3-10
3.5.2 User Password.............................................................. 3-10
3.6 Boot menu .................................................................................. 3-11
3.6.1 BootConguration ........................................................ 3-11
3.6.2 Boot Option Priorities .................................................... 3-11
3.7 Save & Exit menu....................................................................... 3-11
Appendix
Notices.......................................................................................................A-1

1-1
Chapter 1: General information
1.1 Package contents
Check your industrial motherboard package for the following items.
1 x Industrial Motherboard
1 x SATA 6.0Gb/s cable
1 x COM cable
1 x I/O Shield
1 x Support CD
If any of the above items is damaged or missing, contact your distributor or sales
representative immediately.
1.2 Features
• Intel®8th Generation (Coffee Lake S) Core™ i7/ i5/ i3, Pentium®LGA1151 socket
processor
• 2 x SO-DIMMs, max. 32GB, DDR4 2400/ 2133 MHz, non-ECC, un-buffered
memory
• 4 x SATA 6.0 Gb/s, 4 x USB 3.1 Gen 2, 6 x USB 2.0
• Realtek®ALC887HighDenitionAudioCODEC
• Multi Display: Dual DP ++, 1 x eDP, 1 x LVDS
• Dual Ethernet LAN: 1 x Intel®PHY i219LM Giga LAN (supports Intel®AMT 12.0,
standard RJ-45), 1 x Intel®i210AT Giga LAN
• 1 x PCIe 3.0 [x4] slot
• 1 x M.2 E-key (22 x 30mm) slot for PCIe & USB,
1 x M.2 M-key (22 x 80mm) slot for mSATA & PCIe
Chapter 1
Product overview

MIX-Q370D1
1-2
1.3 Specications
(continued on the next page)
SYSTEM
CPU Intel®8th Generation (Coffee Lake S) Core™ i7/ i5/ i3, Pentium®LGA1151
socket processor, max. 65W TDPs
Chipset Intel®Q370 Express Chipset
Memory 2 x SO-DIMMs, max. 32GB, DDR4 2400/ 2133 MHz, non-ECC,
un-buffered memory
Dual channel memory architecture
I/O Chipset NCT6793D
Storage 4 x SATA 6.0Gb/s ports
1 x M.2 M-Key slot (22 x 80mm) at bottom side, mSATA & PCIe
Ethernet 1 x Intel®PHY i219LM Giga LAN (supports Intel®AMT 12.0, standard
RJ-45)
1 x Intel®i210AT Giga LAN
Audio Realtek®ALC887
TPM Nuvoton NPCT650ABBYX TPM2.0 onboard (optional)
Expansion slots 1 x PCIe 3.0 [x4] slot
1 x M.2 E-key slot (22 x 30mm) slot for Wi-Fi module (PCIe & USB)
1 x M.2 M-key slot (22 x 80mm) at the bottom side, mSATA & PCIe
BIOS 128Mbit Flash ROM, AMI BIOS
H/W Status Monitor Monitors CPU/ system temperature
Monitors Vcore/ 5V/ 12V voltages
Monitors CPU/ chassis fan speed
Watchdog Timer 1~255 steps by software program
Smart Fan Control CPU fan/ Chassis fan
Wake On LAN / PXE Yes ( WOL, PXE)
Power States S3, S4, S5
Graphics
Graphics Multi Display Dual DP ++, 1 x eDP, 1 x LVDS
Resolution LVDS: Up to 1920 x 1200 @ 60Hz, Dual Channel 18/24bit (via Chrontel
7511)
eDP: Up to 4096 x 2304 @ 60Hz (only support one inverter)
Backlight Control Voltage / PWM
Environment, Power, and ME
Battery Lithium battery
Power requirement 12VDC
Operating temperature 32oF~140oF (0oC~60oC)
Operating humidity 0%~90% relative humidity, non-condensing
Certicate CE & FCC
Form factor Mini ITX Form Factor: 6.7”x 6.7” (170mm x 170mm)
Weight 1.1 lb (0.5 Kg)

1-3
Chapter 1: General information
I/O
Storage 4 x SATA 6.0Gb/s ports, support RAID 0/ 1/ 5/ 10
4-pin SATA power connector (5V, 12V @1A)
1 x M.2 M-Key slot (22 x 80mm) at the bottom side, mSATA & PCIe
USB 4 x USB 3.1 Gen 2 ports (4 ports at the rear panel)
6 x USB 2.0 ports (6 ports at mid-board)
Display 2 x DP, 1 x eDP, 1 x LVDS
Serial port 1 x RS-232/422/485 COM port supports 5V/12V/RI (at mid-board)
LAN 2 x LAN (RJ-45) ports
Audio Line-in, Mic-in, Line-out, AAFP, internal speaker, DMIC
DIO 8-bit Digital I/O interface (4-in/ 4-out)
FAN 1 x CPU fan connector (4-pin)
1 x Chassis fan connector (4-pin)
Placement
Back Panel I/O Ports 1 x DC Jack
2 x DP
2 x LAN (RJ-45) ports
4 x USB 3.1 Gen 2 ports
1 x Pink audio jack (Mic-In) connector
1 x Lime audio jack (Line-Out) connector
Internal I/O
Connectors
1 x PCIe[x4] slot
1 x M.2 M-key (22 x 80mm) at the bottom side for mSATA & PCIe storage
1 x M.2 E-key (22 x 30mm) at the top side for Wi-Fi module (PCIe & USB)
4 x SATA 6.0Gb/s ports
1 x 4-pin SATA power connector
3 x USB 2.0 pin headers support additional 6 USB ports
1 x Boxer header for COM (COM1: RS-232/422/485 supports 5V/12V/RI)
1 x 40-pin LVDS connector
1 x 40-pin eDP connector
1 x LVDS 3.3V/5V jumper
1 x LCD DC/PWM mode jumper
1 x LCD backlight connector (inverter)
1 x LCD backlight 12V/5V jumper
1 x Digital I/O box header
1 x 4-pin (2x2) internal power connector
1 x 4-pin CPU fan connector
1 x 4-pin Chassis fan connector
1 x Front panel connector
1 x AAFP follows ASUS pin out
1xSpeakerfor2W/4Ω
1 x Chassis intrusion header
1 x 4-pin DMIC connector
1 x Buzzer onboard (pin header)
1 x AT/ATX mode select jumper
1 x Clear CMOS jumper
(continued on the next page)

MIX-Q370D1
1-4
Others
OS support Windows®10 64-bit (CFL does not support 32-bit OS)
Linux Ubuntu16.04.02/Kernel4.8.0
Accessories 1 x SATA cable
1 x SATA power cable
1 x I/O shield
1 x Support DVD
NOTE: Specicationsaresubjecttochangewithoutnotice.

2-1
Chapter 2: Motherboard information
Chapter 2
Motherboard information
2.1 Before you proceed
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
CAUTION!
• Unplugthepowercordfromthewallsocketbeforetouchingany
component.
• Beforehandlingcomponents,useagroundedwriststraportouchasafely
groundedobjectorametalobject,suchasthepowersupplycase,toavoid
damaging them due to static electricity.
• HoldcomponentsbytheedgestoavoidtouchingtheICsonthem.
• Wheneveryouuninstallanycomponent,placeitonagroundedantistatic
pad or in the bag that came with the component.
• Beforeyouinstallorremoveanycomponent,ensurethattheATXpower
supply is switched off or the power cord is detached from the power
supply.Failuretodosomaycauseseveredamagetothemotherboard,
peripherals,orcomponents.

MIX-Q370D1
2-2
MIX-Q370D1
EATX_PWR2
EATX_PWR1
USB3_12
USB3_34
DP1
DP2
LAN2
LAN1
CLRTC1
ATX_AT
SATA_PWR
17.0cm(6.7in)
17.0cm(6.7in)
SATA6G_2 SATA6G_3 SATA6G_4SATA6G_1
F_PANEL
CHASSIS
CHA_FAN1 CPU_FAN1
DDR4 DIMM_A1 (64bit, 260-pin module)
DDR4 DIMM_B1 (64bit, 260-pin module)
INV
LJ1
LJ3
LJ2J1
J3
J4
J2
DIO COM1
COM_V1
LVDS
BOTTOM:EDP1
BOTTOM:M2_TYPE_M1
M2_TYPE_E1
BZ1
ALC
887
USB78
USB56
US910
DMIC
Intel®
Q370
Super
I/O
SPI_1
PCIEX4_1
CH7511
LGA1151
LINE-OUT
MIC-IN AMP_CON
AAFP
BATTERY_H
WGI210AT 128Mb
BIOS
2280
2230
WGI219LM
LED_+5V LED_+5VSB
9 10 11431 2
18
19
17
13
12
15
14
16
21 20
24
25
26
27
28
2223
6 75 8
2.2 Motherboard layout
Place this side
towards the rear
of the chassis
NOTE: Place nine screws into the holes indicated by circles to secure the
motherboard to the chassis.
CAUTION!Donotovertightenthescrews!Doingsocandamagethe
motherboard.

2-3
Chapter 2: Motherboard information
Connectors/Jumpers/Slots Page
1. 12VDCconnector(4-pinEATX_PWR2) 2-18
2. CPUandchassisfanconnectors(4-pinCPU_FAN,4-pinCHA_FAN) 2-19
3. Systempanelconnector(10-1pinF_PANEL) 2-21
4. SATA6.0Gb/sconnectors(7-pinSATA6G_1~4) 2-19
5. DDR4DIMMslots 2-11
6. DigitalI/Oconnector(10-pinDIO) 2-22
7. Serialportconnector(10-pinCOM1) 2-22
8. COM1operatingmodeselectionjumpers(2-pinJ1/J2/J3/J4) 2-13
9. Invertervoltageselection(3-pinLJ2) 2-15
10. LVDSpanelvoltageselection(3-pinLJ1) 2-15
11. Inverterbacklightcontrolmodeselection(3-pinLJ3) 2-15
12. COM1Ring/+5V/+12Vselectionjumper(6-pinCOM1_V1) 2-13
13. Backlightinverterpowerconnector(8-pinINV) 2-24
14. EmbeddedDisplayPort(40-pineDP1) 2-25
15. LVDSconnector(40-pinLVDS) 2-24
16. ClearRTCRAM(3-pinCLRTC1) 2-12
17. Chassisintrusionjumper(4-1pinCHASSIS) 2-14
18. Intel® LGA1151CPUsocket 2-6
19. AT/ATXmodeselection(3-pinAT_ATX) 2-14
20. Batteryconnector(2-pinBATTERY_H) 2-23
21. USB2.0connectors(10-pinUSB56,USB78andUSB910) 2-20
22. DMICconnector(5-1pinDMIC) 2-26
23. Speakeroutconnector(4-pinAMP_CON) 2-18
24. Frontpanelaudioconnector(10-1pinAAFP) 2-26
25. SATApowerconnector(SATA_PWR) 2-25
26. StandbyPowerLED(LED_5V,LED_5VSB) 2-16
27. M.2M-KeyandM.2E-Keyslots 2-23
28. BIOSprogrammableconnector(8-pinSPI_1) 2-20

MIX-Q370D1
2-4
2.3 Screw size
2.3.1 Component side
11.00
0.00
10.54
2.25
10.54
16.09
23.94
46.10
56.25
58.69
67.44
75.71
92.73
109.75
117.92
131.26
143.15
147.59
152.18
163.45
167.01
159.23
168.02
167.64
118.75
51.82
83.84
152.64
45.45
29.34
32.00
16.03
31.05
42.10
30.04
14.46
27.36
6.89 0.00
18.79 46.74 47.75 88.60
107.75 116.49 135.44 148.99 136.53 127.38 134.60 147.81 151.38 155.45 161.01
9.48
12.57 13.46
6.10 3.43 4.56
5.82
164.21
39.50 50.92 35.45 28.80 29.10 59.55 73.79 85.47 93.94
137.16
84.07
109.98
68.74
16.34
6.89 0.00
22.29 41.24 63.24 82.90
102.05
119.99
170.18 135.44
148.99
55.08 35.08
66.30 57.14
170.18
170.18
38.71
45.08

2-5
Chapter 2: Motherboard information
2.3.2 Solder side
6.35 0.00
59.94
138.19
72.48 91.98
127.98
147.48 163.83
147.48 109.98
72.48 37.23 61.33 6.35
33.02
0.00
10.16
62.96
42.96
81.86
92.94
92.94
81.86
153.95
165.10
156.87
165.10
163.83
52.96
164.21
170.18
170.18

MIX-Q370D1
2-6
2.4 Central Processing Unit (CPU)
ThismotherboardcomeswithanIntel®8thGeneration(CoffeeLakeS)Core™i7/
i5/i3,Pentium®LGA1151socketprocessor.
IMPORTANT:UnplugallpowercablesbeforeinstallingtheCPU.
CAUTION!
• Uponpurchaseofthemotherboard,ensurethatthePnPcapison
thesocketandthesocketcontactsarenotbent.Contactyourretailer
immediatelyifthePnPcapismissing,orifyouseeanydamagetothePnP
cap/socketcontacts/motherboardcomponents.
• Keepthecapafterinstallingthemotherboard.Themanufacturerwill
processReturnMerchandiseAuthorization(RMA)requestsonlyifthe
motherboardcomeswiththecapontheLGA1151socket.
• Theproductwarrantydoesnotcoverdamagetothesocketcontacts
resultingfromincorrectCPUinstallation/removal,ormisplacement/loss/
incorrectremovalofthePnPcap.
MIX-Q370D1
MIX-Q370D1 CPU socket LGA1151

2-7
Chapter 2: Motherboard information
2.4.1 Installing the CPU
1
A
B
2 3
CAUTION! EnsurethatyouinstallthecorrectCPUdesignedforLGA1151only.
DONOTinstallaCPUdesignedforLGA1155andLGA1156socketsonthe
LGA1151socket.

MIX-Q370D1
2-8
A
B
C
4
5

2-9
Chapter 2: Motherboard information
2.4.2 CPU heatsink and fan assembly installation
CAUTION!ApplytheThermal
InterfaceMaterialtotheCPU
heatsinkandCPUbeforeyou
install the heatsink and fan if
necessary.
To install the CPU heatsink and fan assembly
B
A
A
B
1
2
3 4

MIX-Q370D1
2-10
To uninstall the CPU heatsink and fan assembly
A
B
B
A
2
1

2-11
Chapter 2: Motherboard information
2.5 System memory
ThismotherboardcomeswithtwoDoubleDataRate4(DDR4)SmallOutlineDual
InlineMemoryModules(SO-DIMM)sockets.Thegureillustratesthelocationof
theDDR4DIMMsockets:
MIX-Q370D1
MIX-Q370D1 260-pin DDR4 DIMM sockets
DIMM_B1
DIMM_A1
Installing a DIMM
3
To install a DIMM To remove a DIMM
3
NOTE:UsetheDIMM_A1slotwheninsertingonlyoneSO-DIMM.

MIX-Q370D1
2-12
2.6 Jumpers
1. Clear RTC RAM (3-pin CLRTC1)
ThisjumperallowsyoutocleartheRealTimeClock(RTC)RAMinCMOS.
YoucancleartheCMOSmemoryofsystemsetupparametersbyerasing
theCMOSRTCRAMdata.TheonboardbuttoncellbatterypowerstheRAM
datainCMOS,whichincludesystemsetupinformationsuchassystem
passwords.
To erase the RTC RAM:
1. TurnOFFthecomputerandunplugthepowercord.
2. Movethejumpercapfrompins1-2(default)topins2-3.Keepthecapon
pins2-3forabout5~10seconds,thenmovethecapbacktopins1-2.
3. PlugthepowercordandturnONthecomputer.
4. Holddownthe<Del>keyduringthebootprocessandenterBIOSsetup
to reenter data.
CAUTION!ExceptwhenclearingtheRTCRAM,neverremovethecapon
CLRTCjumperdefaultposition.Removingthecapwillcausesystemboot
failure!
NOTES:
• Ifthestepsabovedonothelp,removetheonboardbatteryandmovethe
jumperagaintocleartheCMOSRTCRAMdata.AfterclearingtheCMOS,
reinstall the battery.
• YoudonotneedtocleartheRTCwhenthesystemhangsdueto
overclocking.Forsystemfailureduetooverclocking,usetheCPU
ParameterRecall(C.P.R)feature.Shutdownandrebootthesystemsothe
BIOScanautomaticallyresetparametersettingstodefaultvalues.
MIX-Q370D1
MIX-Q370D1 Clear RTC RAM
1 2
2 3
Normal
(Default)
Clear CMOS
CLRTC1
