AAF TM4 Owner's manual

THE WORLD LEADER IN CLEAN AIR SOLUTIONS
INSTALLATION, OPERATION, AND MAINTENANCE INSTRUCTIONS

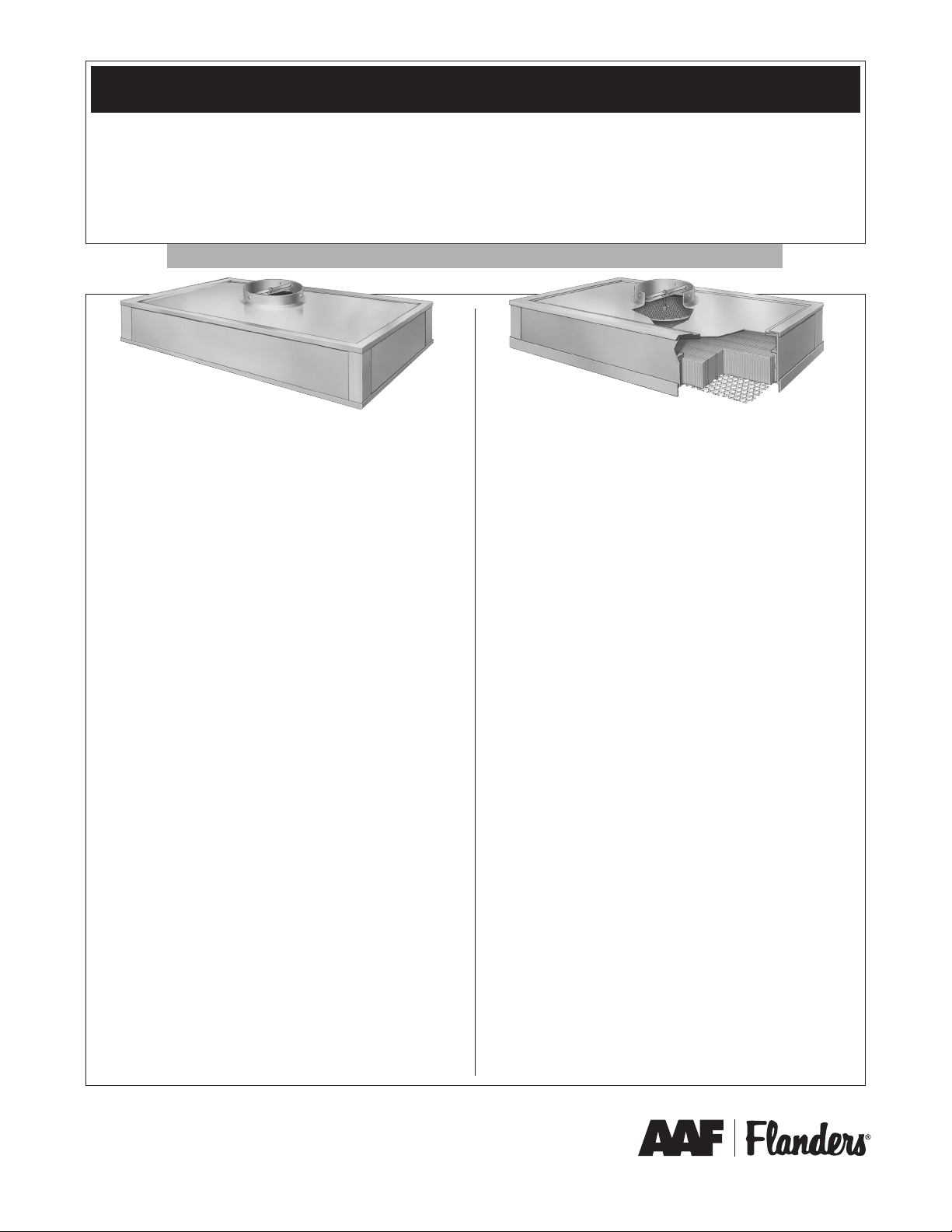

TM-2™and TM-4™
Gasket Seal and Gel Seal Ducted, Disposable Ceiling Filter Modules
Gasket Seal Installation – TM-2 and TM-4
The TM Series Disposable Ceiling Filter Modules are unique
factory-assembled and tested units, incorporating a HEPA
or ULPA lter media pack, damper-diuser, an optional
faceguard, and integral round duct connection. They are
made with an anodized aluminum housing that is
compatible with gasketed T-Bar ceiling grids.
1. Before beginning installation of any HEPA or ULPA lter
module, the system should be cleaned and blown down
with both roughing lters and prelters in place. This is
essential to minimize the initial quantity of particulate that
might be drawn into the lter modules.
2. Carefully remove each bagged module from its shipping
carton just before installation. Remove the poly bag at the
point of installation and inspect the lter face for shipping
damage. Carefully scrutinize each unit before installation.
Avoid accidentally damaging the delicate lter media while
handling the lter. (Gloves are recommended to comply
with some protocol requirements.)
3. The TM-2 and TM-4 units are equipped with four hanger
support points for independently suspending the
modules. Local codes, rigidity of the ceiling system,
or owner preference will determine the use of hangers.
These hangers are available only on the gasket version.
4. AAF Flanders recommends that the modules be sealed
airtight against the ceiling grid. This may be accomplished
by using pressure-sensitive gasketing, caulking, or
non-hardening tape sealant. This is a design decision,
dependent upon room performance requirements.
5. When connecting the exible round duct to the module
collar, avoid excessive slack in the duct. Where practical,
set the housing in place, then connect the round duct to
the collar. Drawbands must be positioned below the
dimples in the collar to prevent slippage or blowo of
the duct connection. Stainless steel, wormgear-type
drawbands are recommended.
Gel Seal Installation – TM-2 and TM-4
TM-4 Disposable Ceiling Filter Modules are unique
factory-assembled and tested units, incorporating a
HEPA or ULPA lter media pack, damper-diuser, optional
faceguard, and integral round duct connection. They are
made with an anodized aluminum housing that is
compatible with gel seal grid systems.
1. Before beginning installation of any HEPA or ULPA lter
module, the system should be cleaned and blown down
with both roughing lters and prelters in place. This is
essential to minimize the initial quantity of particulate that
might be drawn into the lter modules.
2. Carefully remove each bagged module from its shipping
carton just before installation. Remove the poly bag at
the point of installation and inspect the lter face for
shipping damage. Carefully scrutinize each unit before
installation. Avoid accidentally damaging the delicate lter
media while handling the lter. (Gloves are recommended
to comply with some protocol requirements.)
3. Inspect the knife edge seal around the perimeter of the
module for damage.
4. Set the module down into the gel seal grid. Check to be
sure the knife edge on the module penetrates into the gel
in the channel on all four sides to form an airtight seal. No
latches are required. The weight of the module sets the
unit into the gel seal grid.
5. When connecting the exible round duct to the module
collar, avoid excessive slack in the duct. Where practical,
set the housing in place, then connect the round duct
to the collar. Drawbands must be positioned below the
dimples in the collar to prevent slippage or blowo of
the duct connection. Stainless steel, wormgear-type
drawbands are recommended.

TM-2™and TM-4™Ceiling Filter Modules
Operation
Once in position, the modules may be balanced and tested.
1. Adjust the main air supply duct system for total design air
volume before attempting to balance any of the lter
modules.
2. On units equipped with an adjustable damper-diuser,
access by removing the well nut plug and inserting a #4
Phillips screwdriver.
3. On units equipped with an adjustable damper-diuser,
adjust as required in conjunction with the system branch
duct damper to provide the desired air volume.
NOTE: The adjustable disc type damper-diuser is a trim
device and is not intended to induce a large pressure drop.
4. Reinstall the well nut plug into the diuser adjustment port.
5. Determine the actual total air volume (in CFM) through
each module by using a soft balancing hood equipped
with a velometer.
Testing
1. The modules may be leak tested in place.
2. AAF Flanders does not recommend introducing a
challenge aerosol through the port in the face of the lter.
The 7⁄16″ diameter port is too small for proper mixing, and
the challenge aerosol may condense on the diuser
plate, eventually dripping down onto the media pack.
NOTE: The same port is used for both diuser adjustment
and for insertion of a probe to measure the contamination
level of the supply air.
3. AAF Flanders recommends that the challenge aerosol be
introduced into the ductwork at least ten duct diameters
upstream from the module, or preferably into the fan
intake. The port in the face of the lter may be used to
check the contamination level of the supply air at any time.
4. Your AAF Flanders representative can oer several
alternative suggestions and techniques on testing. Contact
AAF Flanders Customer Service toll free at 877.228.7007
for assistance.
Maintenance
TM Series modules need no maintenance. When installed
downstream of a good system of AAF Flanders prelters
(90% AHSRAE eciency recommended), they should provide
years of service.
A periodic (annual) check of airow is recommended. The
modules should be changed when the desired airow is
no longer achieved due to accumulated dirt buildup on the
lters, which increases resistance. Discard the entire module
and replace with new units.
Typical TM module installation
