A&D Life Source UB-525CN User manual

UB-525CN
DIGITAL WRIST BLOOD PRESSURE MONITOR
Instruction Manual
ORIGINAL
1WMPD4003888

Dear Customers
Congratulations on purchasing a state-of-the-art LifeSource by A&D Medical blood pressure monitor, one of the most
advanced monitors available today. Designed for ease of use and accuracy, this device will facilitate your daily blood
pressure regimen. We recommend that you read through this manual carefully before using the device for the rst time.
Preliminary Remarks
qThe device is designed for use on adults, not newborns or infants.
qEnvironment for use. The device is for use to operate by yourself in the home healthcare environment.
qThis device is designed to measure blood pressure and pulse rate of people for diagnosis.
Precautions
qPrecision components are used in the construction of this device. Extremes in temperature, humidity, direct sunlight,
shock or dust should be avoided.
qClean the device with a dry, soft cloth or a cloth dampened with water and a neutral detergent. Never use alcohol,
benzene, thinner or other harsh chemicals to clean the device.
qAvoid tightly folding the cuff for long periods, as such treatment may shorten the life of the components.
qThe device is not water resistant. Prevent rain, sweat and water from soiling the device.
qMeasurements may be distorted if the device is used close to televisions, microwave ovens, cellular telephones,
X-ray or other devices with strong electrical elds.
qUsed equipment, parts and batteries are not treated as ordinary household waste, and must be disposed of according
to the applicable local regulations.
qWhen reusing the device, conrm that the device is clean.

qDo not modify the device. It may cause accidents or damage to the device.
qTo measure blood pressure, the wrist must be squeezed by the cuff hard enough to temporarily stop blood ow
through the artery. This may cause pain, numbness or a temporary red mark to the wrist. This condition will appear
especially when measurement is repeated successively. Any pain, numbness, or red marks will disappear with time.
qWireless communication device, such as home networking devices, mobile phones, cordless phones and their base
stations, walkie-talkies can affect this blood pressure monitor. Therefore, a minimum distance of 30 cm should be
kept from such devices.
qMeasuring blood pressure too frequently may cause harm due to blood ow interference. Check that the operation of
the device does not result in prolonged impairment of blood circulation, when using the device repeatedly.
qClinical testing has not been conducted on newborn infants and pregnant woman. Do not use on newborn infants or
pregnant woman.
qIf you have had a mastectomy, please consult a doctor before using the device.
qDo not let children use the device by themselves and do not use the device in a place within the reach of infants. It
may cause accidents or damage.
qThere are small parts that may cause a choking hazard if swallowed by mistake by infants.
qDo not touch the batteries and the patient at the same time. That may result in electrical shock.
qIn the case of single components failure enclosure of near cuff may become hot and potentially cause malfunction.
qUse of accessories not detailed in this manual may compromise safety.
qShould the battery short-circuit, it may become hot and potentially cause burns.
qAllow the device to adapt to the surrounding environment before use (about one hour).
Precautions

qDo not inate without wrapping the cuff around your wrist.
qDo not apply the device to a wrist with other medical electrical equipment attached. The equipment may not function
properly.
qPeople who have a severe circulatory decit in the arm must consult a doctor before using the device to avoid
medical problems.
qDo not self-diagnose the measurement results and start treatment by yourself. Always consult your doctor for
evaluation of the results and treatment.
qDo not apply the device on a wrist with an unhealed wound.
qDo not apply the device on an arm receiving an intravenous drip or blood transfusion. It may cause injury or
accidents.
qDo not use the device where ammable gases such as anesthetic gases are present. It may cause an explosion.
qDo not use the device in highly concentrated oxygen environments, such as a high-pressure oxygen chamber or an
oxygen tent. It may cause a re or explosion.
Intended Use of Device:
qUB-525CN blood pressure monitor is designed to measure systolic, diastolic pressure and pulse rate of adults who
are twelve (12) years and older. It can detect irregular heartbeats and display a symbol on the display.
Precautions

Contents
Parts Identication E-6
Symbols E-7
Using the Monitor E-10
Measurements E-13
Recalling the Memory Data E-14
Deleting Data Stored in Memory E-14
What Is The IHB/AFib Indicator? E-15
Pressure Bar Indicator E-15
WHO Classication Indicator E-16
About Blood Pressure E-16
Troubleshooting E-18
Maintenance E-19
Technical Data E-19
Warrranty E-21

E-6
Systolic pressure
Diastolic pressure
IHB/AFib symbol
Pulse rate
Alkaline batteries (LR03 or AAA)
Batter
ycover
button ( average, memory and change of preset parameters)
START button
Display
Cuff
Heart mark
Battery indicator
MEMORY
Average
WHO classification indicator
and
Pressure bar indicator
Parts Identication
Display

E-7
Symbols
Symbols that appear on the display
Symbols Function/Meaning Recommended Action
Appears while measurement is in progress. It
blinks when the pulse is detected.
Measurement is in progress. Remain as still as
possible.
Irregular Heartbeat symbol (IHB/AFib) Appears
when an irregular heartbeat is detected during
measurement
––––––––––––––––
Previous measurements stored in memory ––––––––––––––––
Average data ––––––––––––––––
The battery power indicator during measurement. ––––––––––––––––
The battery is low when it blinks. Replace all batteries with new ones when the
mark blinks.
E
1
E
2
or
Unstable blood pressure due to movement during
measurement
Take another measurement. Remain still during
measurement.
The systolic and diastolic values are within 10
mmHg of each other.
Apply the cuff correctly, and take another
measurement.

E-8
Symbols Function/Meaning Recommended Action
E
3
The pressure value did not increase during
ination.
Apply the cuff correctly, and take another
measurement.
The cuff is not applied correctly.
EPUL DISPLAY ERROR
The pulse is not detected correctly.
E
E
Blood pressure monitor internal error
Remove the batteries and press the START
button, and then install the batteries again. If the
error still appears, contact the dealer.
E
9
Symbols

E-9
Symbols
Symbols that are printed on the device
Symbols Function/Meaning
Standby and Turn the device on.
SYS Systolic blood pressure in mmHg
DIA Diastolic blood pressure in mmHg
PUL Pulse per minute
LR03(AAA) Battery installation guide
Direct current
Type BF: Device, cuff and tubing are designed to provide special protection against electrical shocks.
SN Serial number
Refer to instruction manual/booklet
IP International Protection Symbol
Keep dry

E-10
Using the Monitor
Installing/Changing the Batteries

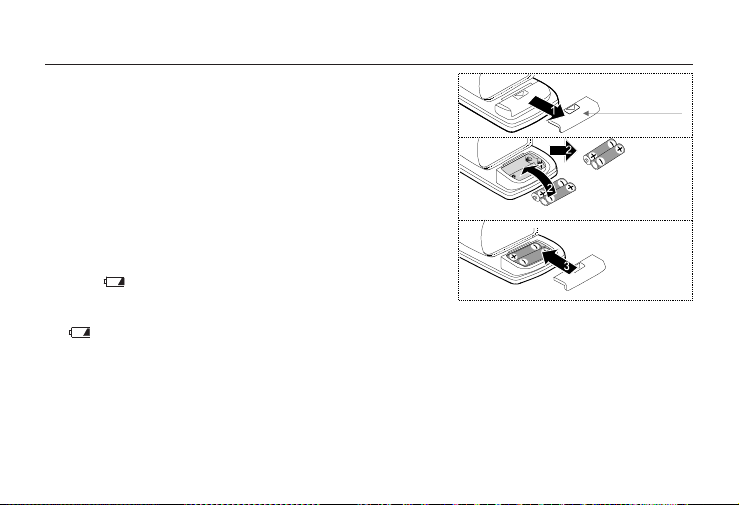

1. Remove the battery cover.
2. Remove the used batteries and insert new batteries into the battery
compartment as shown, taking care that the polarities (+ and -) are
correct. Use only LR03 or AAA batteries.
3. Attach the battery cover.
CAUTIONS
qInsert the batteries as shown in the battery compartment. If installed
incorrectly, the device will not work.
qWhen (LOW BATTERY mark) blinks on the display, replace all
batteries with new ones. Do not mix old and new batteries. It may
shorten the battery life, or cause the device to malfunction.
q(LOW BATTERY mark) does not appear when the batteries are drained.
qThe battery life varies with the ambient temperature and may be shorter at low temperatures. Generally, two new
LR03/AAA batteries will last approximately for four months when used twice for measurement each day.
qUse the specied batteries only. The batteries provided with the device are for testing monitor performance and may
have a limited life.
qRemove the batteries if the device is not to be used for a long period of time. The batteries may leak and cause a
malfunction.
Battery cover
Used batteries
New batteries

E-11
Using the Monitor
Applying the Cuff
1. Wrap the cuff around your wrist about 1 cm above your hand as shown in the
gure at the right.
2. Apply the cuff tightly using the Velcro strip.
Note: For accurate measurements, apply the cuff tightly and measure on a bare wrist
How to Take Accurate Measurements
qRemain still and keep quiet during measurement.
qSit down in a comfortable position. Place your elbow on a table with your palm facing upward and the cuff is at the
same level as your heart.
qRelax for about ve to ten minutes before measurement. If you are excited or depressed by emotional stress, the
measurement will reect this stress as a higher (or lower) than normal blood pressure reading and the pulse reading
will usually be faster than normal.
qTry to measure your blood pressure at about the same time every day.
qAn individual’s blood pressure varies constantly, depending on what they are doing, what they have eaten and what
they drink can have a very strong and rapid effect on your blood pressure.
qDo not measure immediately after physical exercise or a bath. Rest for twenty or thirty minutes before taking the
measurement.
qDo not cross your legs. Keep your feet at on the oor and straighten your back.
qThis device bases its measurements on the heartbeat. If you have a very weak or irregular heartbeat, the device may
have difculty determining your blood pressure.
About 1 cm

E-12
qShould the device detect a condition that is abnormal, it will stop the measurement and display an error symbol.
See page 6 for the description of symbols.
qThis blood pressure monitor is intended for use by adults. Consult with your physician before using this device on a
child. A child should not use this device unattended.
qThe automatic blood pressure monitor’s performance may be affected by excessive temperature or humidity, or altitude.
Measurement
qDuring measurement, it is normal for the cuff to feel very tight.
After Measurement
qWhile readings are displayed, if you press the START button to turn the device off, new readings are stored in
memory.
qWhile readings are displayed, if you press the button to turn the device off, new readings are not stored.
qRemove the cuff and record your data.
Notes: The device is provided with an automatic power shut-off function which stores the current data in the memory and turns the device off automatically one
minute after measurement. Allow at least three minutes between measurements on the same person.
Using the Monitor

E-13
Measurements
Note: The UB-525, once used, will provide an ination appropriate to the user.
1. Wrap the cuff around your wrist. Sit comfortably with the cuff at the same
level as your heart and relax.
2. Press the START button. All of the display segments are displayed.
3. Zero (0) is displayed blinking briey. Then the display changes, as
measurement begins. The cuff starts to inate. It is normal for the cuff to feel
very tight. The measurement starts automatically when ination starts, and
the (heart mark) blinks.
Note: If you wish to stop ination at any time, press the START button again.
4. When the measurement is complete, the device displays readings (of the
systolic and diastolic pressure readings, pulse rate, WHO classication,
IHB/AFib symbol). The cuff exhausts the remaining air and completely
deates automatically.
Note: If you do not want to store new readings in memory, press the button while readings are displayed.
5. Press the START button again to turn the device off. Remove the cuff.
Notes: The device is provided with an automatic power shut-off function. Allow at least three minutes
between measurements on the same person.
All segments
Zero display
Inflation is started
Inflating and
Measurement in
progress
Systolic pressure
Diastolic pressure
WHO classification
IHB/AFib symbol
Pulse rate

E-14
Recalling the Memory Data
Note: This device stores the last 60 measurements in memory.
1. Press the button when turning the device off. The average of all
measurements and the number of data are displayed. If no data, “0” is
displayed. Press the or START button to turn the device off.
2. Use the following buttons to display data (of number and measurement data).
qThe device displays the average of all measurements and the number of
data are displayed.
qPressing the button each time , the device displays as follows:
• Average data of all measurements taken between.
• Data (of number and measurement data). The device displays in order
from most recent data.
In the example: No.30 & data No.29 & data ... No.01 & data.
3. If you press the button after oldest data is displayed, the device proceeds to
step 1, the average of all measurements and the number ofdata are displayed.
4. Press the START button to turn the device off. After one minute of
non-operation, the device will turn off automatically.
Deleting Data Stored in Memory
Press and hold the button until turning off the device automatically. The device
displays the mark, deletes data stored in memory while blinking the mark and
turns off automatically.
Turn off
button
Turn off
Memory mode
Average of all the data
Number of all data
Ex.: No.30
Most recent data
Last data (Oldest)
button
button
button

E-15
What is the IHB/AFib Indicator?
When the monitor detects an irregular rhythm during the measurements, the IHB/AFib indicator will appear on the display
with the measurement values.
Note: We recommend contacting your physician if you see this IHB/AFib indicator frequently.
What is AFib?
The heart contracts due to electrical signals occurring in heart and sends blood through the body. Atrial brillation (AFib)
occurs when the electrical signal in the atrium becomes confused and leads to disturbances in the pulse interval. AFib can
cause blood to stagnate in the heart, which can easily create clots of blood, a cause of stroke and heart attack.
Pressure Bar Indicator
The indicator monitors the progress of pressure during measurement.
Pressurizing
Inflation in progress
Measurement in progress Inflation complete

E-16
WHO Classication Indicator
Each 6 segments of the bar indicator correspond to the WHO blood pressure classication is described on page 15.
About Blood Pressure
What is Blood Pressure?
Blood pressure is the force exerted by blood against the walls of the arteries. Systolic pressure occurs when the heart
contracts. Diastolic pressure occurs when the heart expands. Blood pressure is measured in millimeters of mercury
(mmHg). One’s natural blood pressure is represented by the fundamental pressure, which is measured rst thing in the
morning while one is still at rest and before eating.

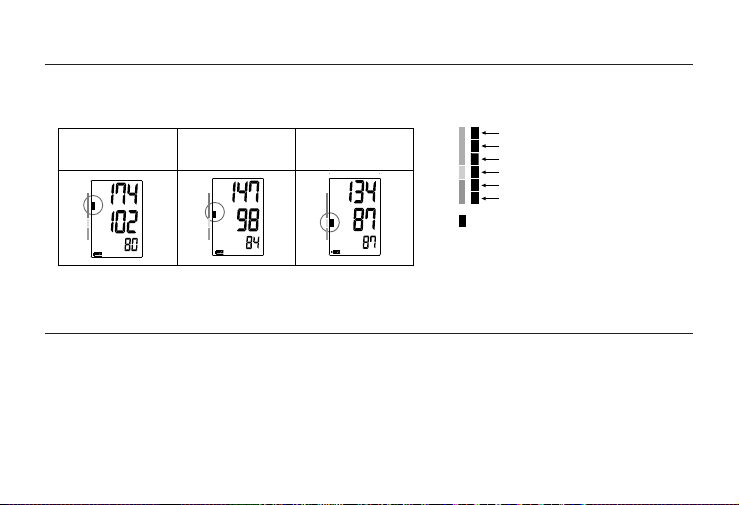

Example WHO Classification Indicator
High normal Moderate hypertension
Moderate
hypertension Mild hypertension
Mild hypertension
High normal
Normal
The indicator displays a
segment, based on the
current data, corresponding
to the WHO classification.
Optimal
Severe hypertension
:

E-17
qDo not smoke
qReduce salt and fat intake
qMaintain proper weight
qExercise regularly
qHave regular physical checkups
What is Hypertension and How is it Controlled?
Hypertension, an abnormally high arterial blood pressure, if left unattended can cause many health problems including
stroke and heart attack. Hypertension can be controlled by altering lifestyle, avoiding stress, and with medication under a
doctor’s supervision. To prevent hypertension or keep it under control:
Why Measure Blood Pressure at Home?
Blood pressure measured at a clinic or doctor’s ofce may cause apprehension and can produce an elevated reading, 25
to 30 mmHg higher than that measured at home. Home measurement reduces the effects of outside inuences on blood
pressure readings, supplements the doctor’s readings and provides a more accurate, complete blood pressure history.
Blood Pressure Variations
An individual’s blood pressure varies greatly on a daily and seasonal basis.
It may vary by 30 to 50 mmHg due to various conditions during the day. In
hypertensive individuals variations are even more pronounced. Normally, the
blood pressure rises while at work or play and falls to its lowest levels during
sleep. So, do not be overly concerned by the results of one measurement.
Take measurements at the same time every day using the procedure
described in this manual to get to know your normal blood pressure. Regular
readings give a more comprehensive blood pressure history. Be sure to note
the date and time when recording your blood pressure. Consult your doctor
to interpret your blood pressure data.
About Blood Pressure

E-18
Troubleshooting
Problem Possible Reason Recommended Action
Nothing appears in the
display, even when the
device is turned on.
Batteries are drained. Replace all batteries with new ones.
Battery terminals are not in the correct
position.
Reinstall the batteries with terminals matching
those indicated in the battery compartment.
The cuff does not
inate.
Battery voltage is too low. (Low Battery
mark) blinks. If the batteries are drained
completely, the mark does not appear.
Replace all batteries with new ones.
The device does not
measure.
Readings are too high
or too low.
The cuff is not applied properly. Apply the cuff correctly.
You moved your wrist or body during the
measurement.
Make sure you remain very still and quiet
during the measurement.
The cuff position is not correct.
Sit comfortably and still. Raise your hand
so that the cuff is level at the same level as
your heart.
––––––––––––––––
If you have a weak or irregular heart beat, the
device may have difculty in determining your
blood pressure.
Other
The value is different from that measured
at a clinic or doctor’s ofce. See “Why Measure Blood Pressure at Home?”
–––––––––––––––– Remove the batteries. Place them back
properly and try measurement again.
Note: If the actions described above do not solve the problem, contact the dealer. Do not attempt to open or repair this product yourself, as any attempt to do so
will make your warranty invalid.

E-19
Maintenance
Do not open the device. It uses delicate electrical components and an intricate air unit that could be damaged. If you cannot
x the problem using the troubleshooting instructions, contact the authorized dealer in your area or our customer service
department. The A&D customer service will provide technical information, spare parts and units to authorized dealers.
The device was designed and manufactured for a long service life. However it is generally recommended to have the device
inspected every 2 years, to ensure proper functioning and accuracy. Please contact the authorized dealer in your area
Technical Data
Type UB-525CN
Measurement method Oscillometric measurement
Measurement range
Pressure: 0 – 299 mmHg
Systolic pressure: 60 – 279 mmHg
Diastolic pressure: 40 – 200 mmHg
Pulse: 40 – 180 beats / minute
Measurement accuracy Pressure: ±3 mmHg
Pulse: ±5%
Power supply 2 x 1.5V alkaline batteries (LR03 or AAA)
Number of measurements Approx. 250 measurements, when AAA alkaline batteries are used, with pressure
value of 170 mmHg at room temperature of 23 °C.
Wrist circumference 13.5 – 21.5cm (5.3” – 8.5”)

E-20
Classication Internally powered ME equipment (Continuous operation mode)
Applied part Cuff Type BF
Useful life Device: 5 years (when used six times a day)
Clinical test According to ISO81060-2:2013
EMC IEC 60601-1-2: 2014
Memory Last 60 measurements
Operating conditions 10°C to 40°C / 15% RH to 85 %RH/ 800 hPa to 1060 hPa
Transport / storage conditions -20°C to 60°C / 10%RH to 95 %RH
Dimensions Approx. 56 [W] x 88 [H] x 21.5 [D] mm
Weight Approx. 90 g, excluding the batteries
Ingress protection IP20
Note: Specications are subject to change for improvement without prior notice. IP classication is the degrees of protection provided by enclosures in accordance
with IEC 60529. This device is protected against solid foreign objects of 12 mm diameter and greater such as a nger. This device is not protected against water.
Technical Data
