A&D UA-1020 User manual

Premier / TriCheCk™ Blood Pressure moniTor
Models UA-1020 + UA-1020CN
Instruction Manual
Manuel d'instructions
Manual de instrucciones
englishFrançaisesPañol
+
original

E-1 A&D Medical (Toll-Free): 1-888-726-9966
This blood pressure monitor was clinically validated by an independent
organization. Blood pressure measurements determined with this device are
equivalent to those obtained by a trained observer using the cuff/stethoscope
auscultation method within the limits prescribed by the American National
Standard Institute (ANSI/AAMI SP10) for electronic sphygmomanometers.
The published study was performed by a reviewing committee consisting of
physicians and/or nurses. Among blood pressure manufacturers, A&D Medical
is proud to have the highest number of Clinically Validated monitors with a
positive recommendation from professionals that are available to consumers.
THIS MONITOR IS CLINICALLY VALIDATED
☞
This device conforms to the European Directive 93/42 EEC for Medical
Products. This is made evident by the
R6(AA)
2010
0366
EC REP
mark of conformity.
(0366: The reference number to the involved notified body)
☞
The device is designed for use on adults only, not newborns or infants.
☞
Environment for use. The device is for use indoors.
PRELIMINARY REMARKS
The UA-1020 is designed to be used at home, by those who are eighteen (18)
years and older, to monitor blood pressure (systolic and diastolic) and pulse rate.
It is not designed for ambulatory use.
IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS
DANGER - TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
CAREFULLY FOLLOW THESE INSTRUCTIONS.
☞
Use appropriate AC adapter and converter(s) when outside the U.S.A.
☞
Avoid tightly folding the cuff or storing the hose tightly twisted for long
periods, as such treatment may shorten the life of the components.
☞
The device and cuff are not water resistant. Prevent rain, sweat and water
from soiling the device and cuff.
PRECAUTIONS

E-2
In Canada - Auto Control Medical (Toll-Free): 1-800-461-0991
IMPORTANT INFORMATION
Please read this important information before using your monitor.
☞
Please remember that only a medical practitioner is qualified to interpret
your blood pressure measurements. Use of this device should not replace
regular medical examinations.
☞
Consult your physician if you have any doubt about your readings.
Should a mechanical problem occur, contact A&D Medical in the U.S.A. at
1-888-726-9966 or contact Auto Control in Canada at 1-800-461-0991.
☞
Do not attempt to service, calibrate, or repair this monitor.
☞
Because your UA-1020 monitor contains delicate, high-precision parts,
avoid exposing it to extremes in temperature or humidity or to direct
sunlight, shock and dust. A&D Medical guarantees the accuracy of this
monitor only when it is stored and used within the temperature and
humidity ranges noted on page E-26.
☞
Clean the monitor and cuff with a dry, soft cloth or a cloth dampened with
water and a mild detergent. Never use alcohol, benzene, thinner or other
harsh chemicals to clean monitor or cuff.
☞
Remove and replace batteries if monitor is not used for more than six
months. Alkaline batteries recommended.
☞
Measurements may be distorted if the device is used close to televisions,
microwave ovens, cellular telephones, X-ray or other devices with strong
electrical fields.
☞
The device was designed and manufactured for a long service life.
However it is generally recommended to have the device inspected every
2 years, to ensure proper functioning and accuracy. Please contact the
authorized dealer in your area or A&D for maintenance.
☞
Used equipment, parts and batteries are not treated as ordinary household
waste, and must be disposed of according to the applicable local
regulations.
PRECAUTIONS

E-3 A&D Medical (Toll-Free): 1-888-726-9966
Fast. Easy. Accurate.
Congratulations on purchasing a state-of-the-art A&D Medical
blood pressure monitor—one of the most technologically
advanced monitors available today. Designed for ease of use
and accuracy, this monitor will facilitate your daily blood
pressure regimen.
Physicians agree that daily self-monitoring of blood pressure
is an important step individuals can take to maintain
cardiovascular health and prevent the serious consequences
associated with undetected and untreated hypertension.
A&D Medical has been manufacturing high quality
healthcare products for over 20 years. We are committed to
providing you and your family with monitoring devices that
provide the utmost in accuracy and convenience.
A&D Medical - Designed for Life.
+

E-4
In Canada - Auto Control Medical (Toll-Free): 1-800-461-0991
?VALIDATION STATEMENT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-1
IMPORTANT INFORMATION ...........................................E-2
MANUFACTURER'S STATEMENT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-3
TABLE OF CONTENTS ...............................................E-4
WHAT DISPLAY SYMBOLS MEAN .................................. E-5 – E-6
MONITOR COMPONENTS .............................................E-7
HOW UA-1020 WORKS ..............................................E-8
BEFORE YOU START ................................................E-8
SELECTING THE CORRECT CUFF SIZE ....................................E-9
ADJUSTING THE CLOCK .............................................E-10
ADJUSTING THE PRESSURE .........................................E-10
TRICHECK™ MODE ...............................................E-11
TAKING YOUR BLOOD PRESSURE ................................ E-12 – E-13
MEASUREMENT USING TRICHECK .....................................E-14
MEASUREMENT WITH SET PRESSURE ..................................E-15
MEASUREMENT WITH DESIRED SYSTOLIC PRESSURE ......................E-15
WHAT IS AN IRREGULAR HEARTBEAT ..................................E-16
ABOUT THE PRESSURE RATING INDICATOR™ ............................E-17
ABOUT MEMORY .................................................E-18
USING THE MONITOR WITH AC ADAPTER ...............................E-19
ABOUT BLOOD PRESSURE ..................................... E-20 – E-24
TROUBLESHOOTING ...............................................E-25
SPECIFICATIONS .................................................E-26
EMC TABLE ................................................E-27 –E-29
CONTACT INFORMATION ............................................E-30
FRENCH INSTRUCTIONS .............................................F-1
SPANISH INSTRUCTIONS ............................................S-1
LOGBOOK PAGES ..................................................L-1
TABLE OF CONTENTS

E-5 A&D Medical (Toll-Free): 1-888-726-9966

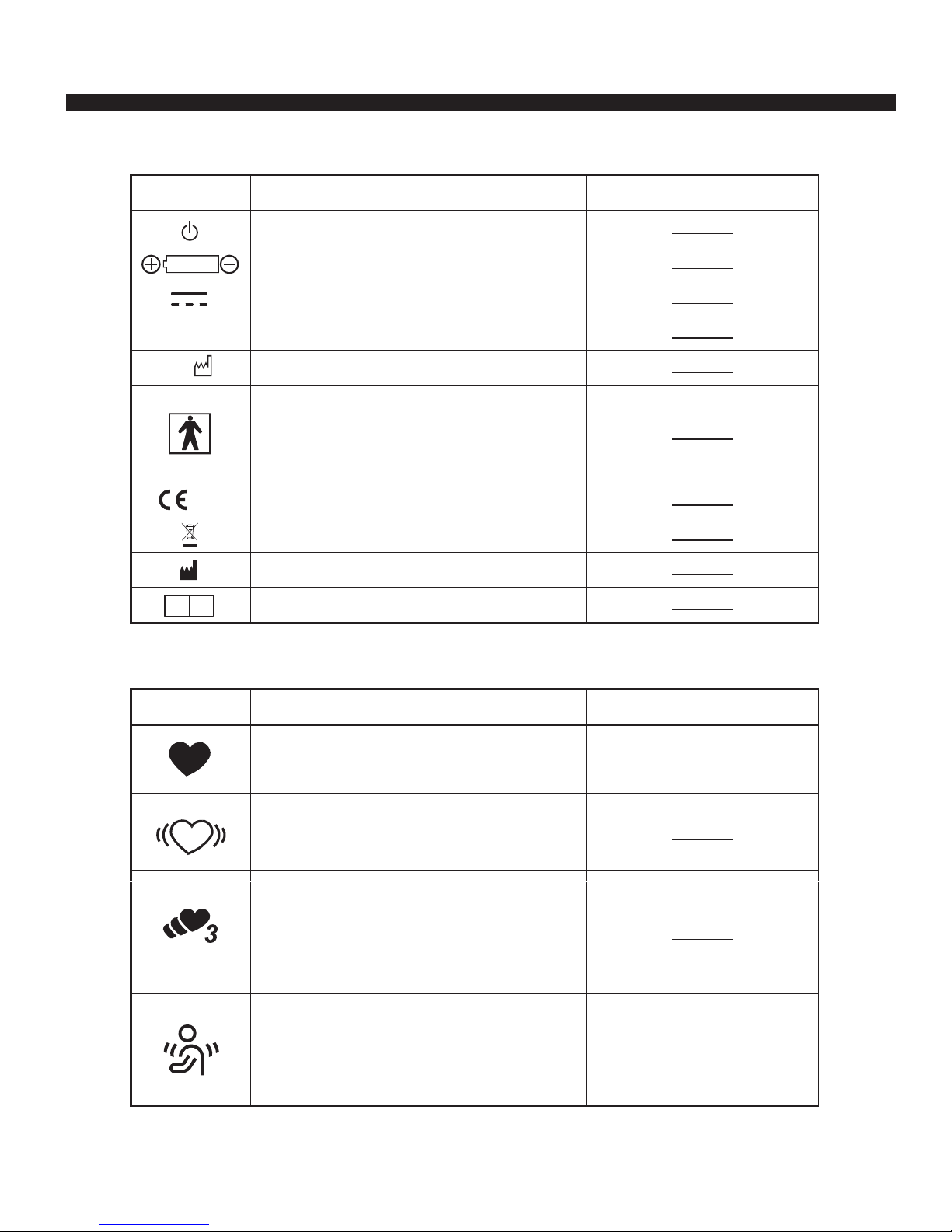

WHAT DISPLAY SYMBOLS MEAN
Symbols that are printed on the device case
Symbols Function / Meaning Recommended Action
Standby and turn the device on.
Battery installation guide
Direct current
SN Serial number
Date of manufacture
Type BF: Device, cuff and tubing are
designed to provide special protection
against electrical shock.
EC directive medical device label
WEEE label
Manufacturer
EU-representative
Symbols that appear on the display
Symbols Function / Meaning Recommended Action
Appears while measurement is in
progress. It blinks when the pulse is
detected.
Measurement is in
progress. Remain as still
as possible.
Irregular Heartbeat symbol (I.H.B.)
Appears when an irregular heartbeat
is detected during measurement.
TriCheck mode
Takes three consecutive
measurements automatically and
displays the average values of the
three measurements.
Appears when a body or arm
movement is detected.
The reading may yield
an incorrect value. Take
another measurement.
Remain still during
measurement.
R6(AA)
2010
0366
EC REP

E-6
In Canada - Auto Control Medical (Toll-Free): 1-800-461-0991
WHAT DISPLAY SYMBOLS MEAN

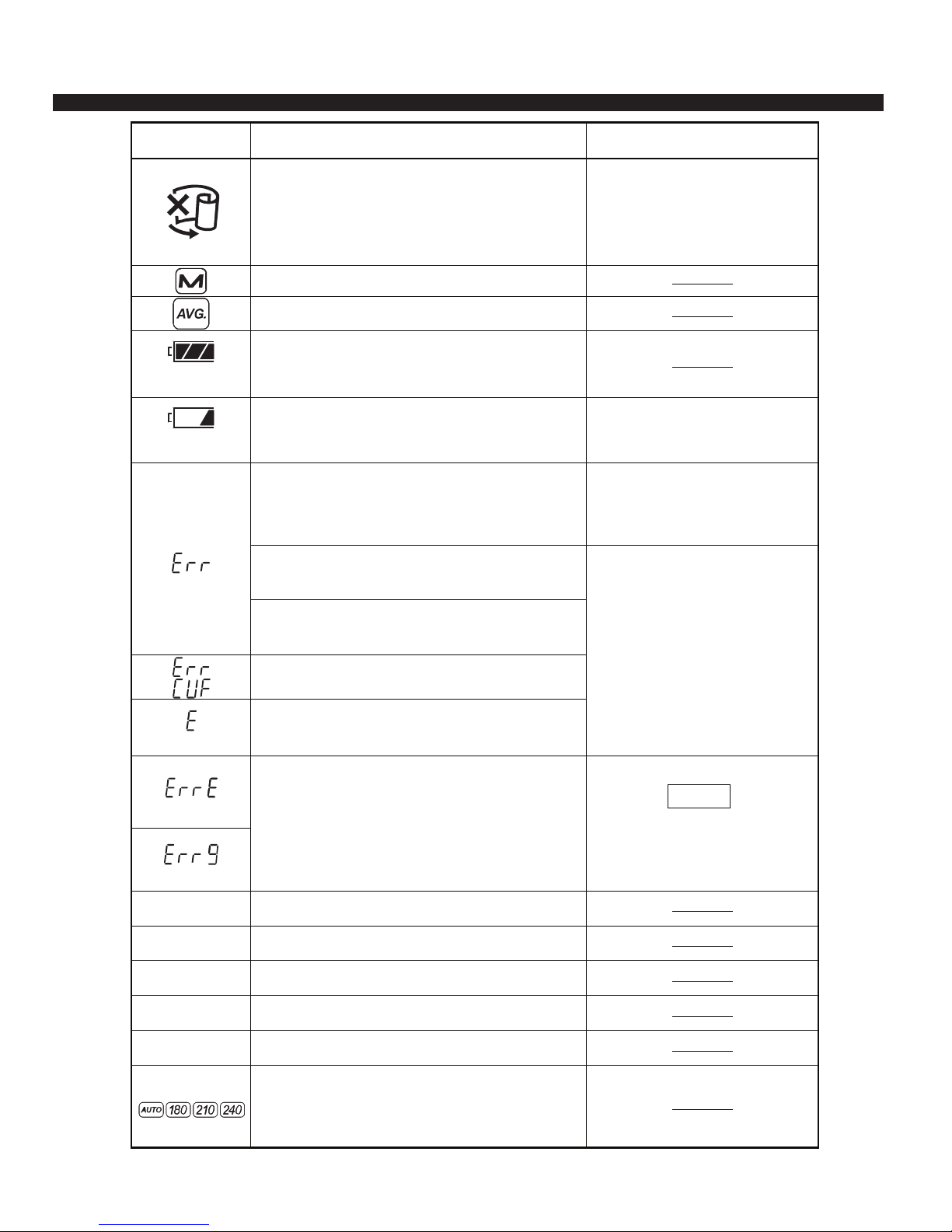

Symbols Function / Meaning Recommended Action
Appears during measurement when
the cuff is applied loosely.
The reading may yield an
incorrect value. Apply the
cuff correctly, and take
another measurement.
Previous measurements stored in memory
Average data
Full Battery
The battery power indicator during
measurement.
Low Battery
The battery is low when it blinks.
Replace all batteries with new
ones when the mark blinks.
Unstable blood pressure due to
movement during measurement.
Take another measurement.
Remain still during
measurement.
The systolic and diastolic values are
within 10 mmHg of each other.
Apply the cuff correctly,
and take another
measurement.
The pressure value did not increase
during the inflation.
The cuff is not applied correctly.
PUL. DISPLAY ERROR
The pulse is not detected correctly.
Blood pressure monitor internal error
Remove the batteries and
press the START button,
and then install the batteries
again. If the error still
appears, contact the A&D.
SYS. Systolic blood pressure in mmHg
DIA. Diastolic blood pressure in mmHg
PUL./min. Pulse per minute
AM Data taken in the AM
PM Data taken in the PM
Pressure settings
Indicates the pressure value as set
by the user.

E-7 A&D Medical (Toll-Free): 1-888-726-9966
MONITOR COMPONENTS
Battery Compartment
Display
Air Hose
AC Adapter Jack
START Button
Air Connector Plug
Air Socket
Display
WHO Classification Indicator
and Cuff Inflation Meter
MEMORY
Systolic
Pressure
Diastolic
Pressure
Pulse Rate
Battery Indicator
Heart Mark
1.5V Batteries
(AA, LR6 or R6P)
Clock Display
SET Button
Button
Button
Battery Cover
I.H.B. Symbol
(Irregular heartbeat symbol)
AM / PM Mark
Movement Error Symbol
Cuff Fit Error Symbol
Average Pressure Settings
TriCheckTM Symbol
Arm Cuff
Battery Compartment
Display
Air Hose
AC Adapter Jack
START Button
Air Connector Plug
Air Socket
Display
Pressure Rating Indicator
and Cuff Inflation Meter
MEMORY
Systolic
Pressure
Diastolic
Pressure
Pulse Rate
Battery Indicator
Heart Mark
1.5V Batteries
(AA, LR6 or R6P)
Clock Display
SET Button
Button
Button
Battery Cover
I.H.B. Symbol
(Irregular heartbeat symbol)
AM / PM Mark
Movement Error Symbol
Cuff Fit Error Symbol
Average Pressure Settings
TriCheckTM Symbol
Button
VOLUME
Arm Cuff
Speaker

E-8
In Canada - Auto Control Medical (Toll-Free): 1-800-461-0991
HOW UA-1020 WORKS
A&D blood pressure monitors are easy to use, accurate and digitally display full
measurement readouts. Our technology is based on the "oscillometric method"
– a noninvasive blood pressure determination. The term "oscillation" refers to
any measure of vibrations caused by the aterial pulse. Our monitor examines
the pulsatile pressure generated by the aterial wall as it expands and contracts
against the cuff with each heartbeat.
The cuff is inflated until the artery is fully blocked. The inflation speed is
maximized and the pressure level is optimized by the device. The monitor takes
measurements while the cuff is both inflating and deflating. This results in a
faster measurement providing greater comfort to the user.
BEFORE YOU START

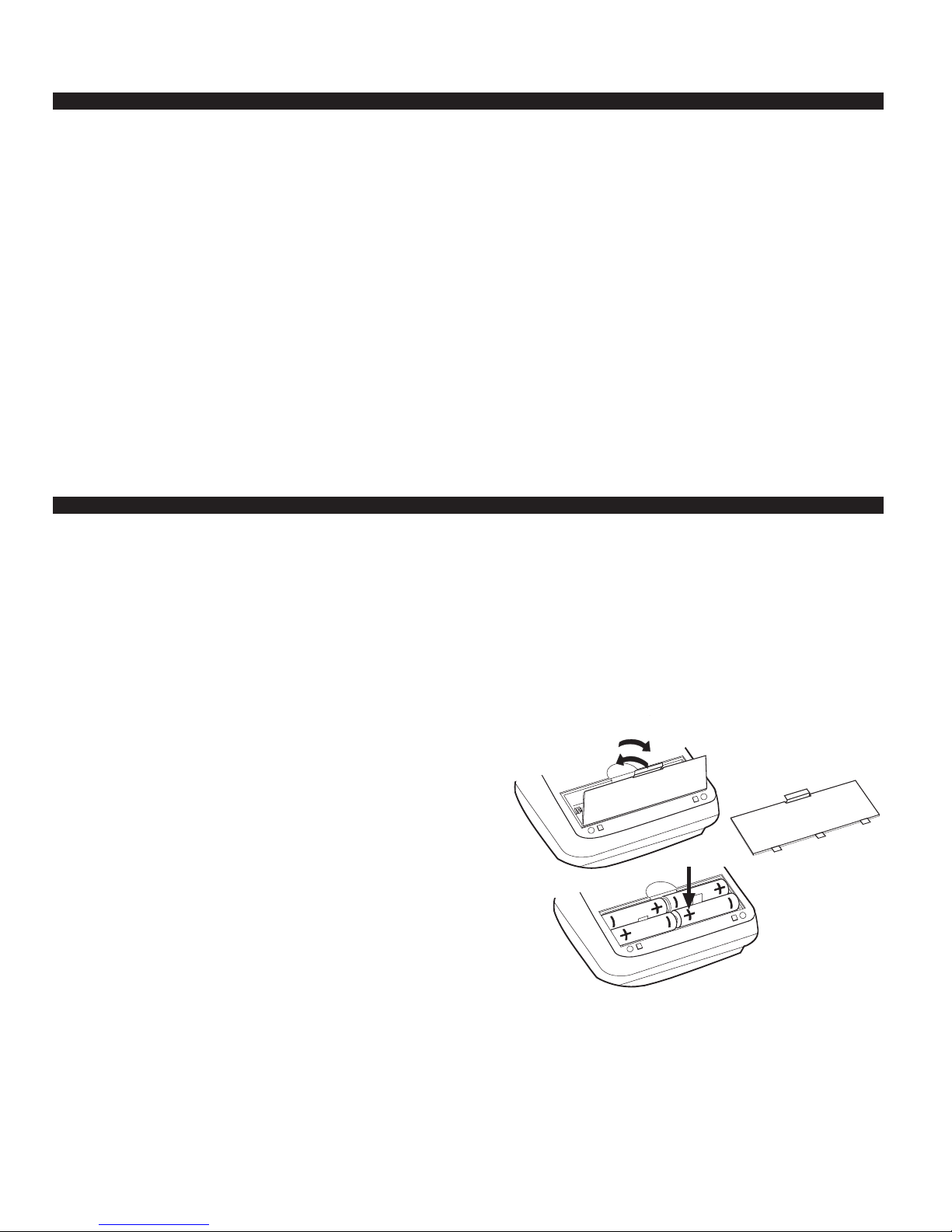

You must install 4 type A (1.5 volt) batteries (alkaline batteries recommended),
or use the AC Adapter (see page E-19 for using the Monitor with AC Adapter)
and attach the cuff to the monitor before using it. To install batteries (or replace
them if the "Low Battery" symbol appears on display), proceed as follows:
1. Remove battery compartment cover by gently pushing down on arrow and
sliding cover forward.
2. Put in bottom row of batteries first.
Place the batteries in compartment
with positive (+) and negative (–)
terminals matching those indicated in
the compartment. Be sure batteries make
contact with compartment terminals.
3. Replace cover by sliding it into the
compartment and gently pressing into
place.
NOTE: Rechargeable batteries are not recommended
for use with this monitor.
NOTE: Please dispose of batteries following local
regulations.
Step 3
Step 1
Step 2

E-9 A&D Medical (Toll-Free): 1-888-726-9966
Using the correct cuff size is important for an accurate reading. A cuff that
is too large will produce a reading that is lower than the correct blood
pressure; a cuff that is too small will produce a reading that is higher than
the correct blood pressure. With your arm hanging at the side of your body,
measure the circumference of your upper arm at the midpoint between the
shoulder and elbow.
Our unique cuff is designed to accommodate a wide range of arm sizes,
from 9 – 14.6" (23 – 37 cm). The SlimFit™ cuff is designed to provide you
with a quick and comfortable fit. Just slide the cuff onto your upper arm
and secure – it’s that simple! For more detail, please read the section Taking
Your Blood Pressure (see pg. E-12).
If your arm circumference is greater than 14.6" (37 cm) or smaller than 9"
(23 cm), you will need to purchase a different size cuff than the one that is
included in this box. Please call A&D Medical at 1-888-726-9966 (in Canada
please call 1-800-461-0991) for more information on our alternate cuff sizes.
SELECTING THE CORRECT CUFF SIZE
BRAND
6.3 SlimFit™ Small Cuff
SlimFit™ Medium Cuff
SlimFit™ Large Cuff
SmoothFit™ Cuff
22 - 32cm
8.6" - 12.6"
1 - 2cm
(0.5'')
1 2
22 - 32cm
8.6" - 12.6"
1 - 2cm
(0.5'')
1 2 3

E-10
In Canada - Auto Control Medical (Toll-Free): 1-800-461-0991
ADJUSTING THE CLOCK
The UA-1020 blood pressure monitor has a built-in clock that gives you the time
and date and can tell you when a blood pressure reading stored in memory was
taken. We recommend that you adjust the clock prior to use. To adjust the clock,
follow these simple steps:
1. Press the clock button located to the right of the display.
2. Use the arrow buttons to set the year.
3. After reaching the desired year, press the clock button again.
4. Repeat the process for the month, day and hour.
5. The next setting will be for pressure.
ADJUSTING THE PRESSURE
1. After setting the year, month, day and hour, the next mode is the pressure
setting.
2. Default is , which stands for automatic.
3. For even more rapid readings, you can adjust the default to about 30 mmHg
or more above your expected systolic pressure.
4. Use the arrow buttons to set the pressure.
5. After reaching the desired pressure, press the clock button again.
6. The next setting will be for TriCheck
™
Mode.

E-11 A&D Medical (Toll-Free): 1-888-726-9966
The UA-1020 blood pressure monitor has an optional feature to automatically
take three consecutive readings one minute apart and then provide you with the
average. This complies with the American Heart Association's recommended
measuring method.
1. After setting the year, month, day, hour and pressure, the next mode is the
TriCheck
™
Mode.
2. Default is off.
3. To turn on, use the arrow buttons.
4. To turn off again, use the arrow buttons.
5. After reaching the desired setting, press the clock button again.
6. This will end your settings session.
7. To adjust any values, push the clock button and begin again.
TRICHECK™ MODE

E-12
In Canada - Auto Control Medical (Toll-Free): 1-800-461-0991
TAKING YOUR BLOOD PRESSURE
TIPS FOR BLOOD PRESSURE MONITORING:
☞
Relax for several moments before measurement.
☞
Do not smoke or ingest caffeine at least 30 minutes prior to measurement.
☞
Remove constricting clothing and place cuff on bare arm.
☞
Unless your physician recommends otherwise, use left arm to measure
pressure.
☞
Do not talk during measurement.
☞
Do not cross legs and keep your feet flat on floor during measurement.
NOW YOU ARE READY.
FOLLOW THESE SIMPLE STEPS:
1. Sit comfortably with your left arm resting on
a flat surface so that the center of your upper
arm is at the same height as your heart.
2. Lay left arm on the table, palm up and wrap
the cuff around the upper arm, about 0.5" (1-2
cm) above the inside of the elbow, as shown,
Place the cuff directly against the skin, as
clothing my cause a faint pulse, and result in
a measurement error.
3. Secure cuff around arm. The cuff should be
snug but not too tight. You should be able to
insert two fingers between the cuff and your
arm.
4. Make sure cuff is aligned at heart level
1-2 cm
0.5” or
Air Hose
Cuff
Artery position mark
At heart level

E-13 A&D Medical (Toll-Free): 1-888-726-9966
TAKING YOUR BLOOD PRESSURE
5. Press the
START
button. All of the display
segments are displayed. Zero (0) is displayed
blinking briefly. The display changes, as
indicated in the figure at the right, as the
measurement begins. The cuff starts to inflate.
It is normal for the cuff to feel very tight. A
pressure bar indicator is displayed, on the left
edge of the display, during the inflation.
Note: If you wish to stop inflation at any time, press the
START button again.
6. When inflation is complete, deflation starts
automatically and
START
Measurement
in progress
Systolic pressure
Diastolic pressure
Pressure Rating Indicator
Pulse rate
Exhausts remaining
air automatically
Press
Pressurizing
Zero display
Starts inflation
All of the display
segments displayed
blinks, indicating that the
measurement is in progress. Once the pulse is
detected, the mark blinks with each pulse beat.
Note: If an appropriate pressure is not obtained, the
device starts to inflate again automatically. To avoid
re-inflation, see “Measurement with the SET Pressure”
on the next page.
7. When the measurement is complete, the
systolic and diastolic pressure readings and
pulse rate are displayed. The device announces
the measurement results. The cuff exhausts the
remaining air and deflates completely.
8. Press the
START
button to turn the device off.
After one minute of non-operation, the device
will turn off automatically.
9. The reading is then stored into memory. See page E-18 for more details about
the memory function.
10. Remove cuff and make a note of blood pressure and pulse rate on the
chart in the back of this manual, indicating date and time of measurement.
Additional logbook charts can be downloaded and printed for free at
www.andmedical.com or in Canada at www.autocontrol.com. We advise
that you record the date and time after each measurement becaue an
accurate blood pressure history relies not on single or sporadic readings,
but on a pattern over time.
START
Measurement
in progress
Systolic pressure
Diastolic pressure
Pressure Rating Indicator
Pulse rate
Exhausts remaining
air automatically
Press
Pressurizing
Zero display
Starts inflation
All of the display
segments displayed

E-14
In Canada - Auto Control Medical (Toll-Free): 1-800-461-0991
MEASUREMENT USING TRICHECK
1. Press the
START
button.
All of the display segments are displayed.
Zero (0) is displayed blinking briefly and the
first measurement starts.
2. When the measurement is complete, the
systolic and diastolic pressure readings
and pulse rate are displayed, then a
one-minute countdown starts for the second
measurement.
3. After one minute, the second measurement
starts.
4. When the measurement is complete, the
average readings of the first and second
measurements are displayed, then a
one-minute countdown starts for the third
measurement.
5. After one minute, the third measurement
starts.
6. When the measurement is complete, the
average readings of the three measurements
are displayed and stored in memory.
Notes:
During the measurement, the TriCheck
symbol is displayed.
To cancel the measurement, press the START
button. In this case, no data is stored in
memory.
When the cuff fit error symbol appears during the first measurement, cancel
the measurement, reapply the cuff correctly and start a new measurement.
After measurement, the average data of the three measurements is stored in
memory. No data will be stored, when canceling the measurements, or before
completion of the third measurement.
START
At heart level
Press
All of the display
segments displayed
First measurement
Second measurement
Third measurement
Results of the
first measurement
Average of the first and
second measurements
Average of the
three measurements
One minute after
One minute after

E-15 A&D Medical (Toll-Free): 1-888-726-9966
MEASUREMENT WITH SET PRESSURE
The UA-1020 is designed to detect the pulse and to inflate the cuff to a systolic
pressure level automatically. If re-inflation occurs repeatedly, use the following
methods.
During the blood pressure measurement, re-inflation may occur. A fixed pressure
value can be set to avoid re-inflation.
1. At step 6 of the clock adjustment procedure (see page
E-10), press the
SET
button to go to the pressure setting
mode. The current setting blinks.
2. Press the or button to select a pressure value
about 30 mmHg or more above your expected systolic
pressure from the following.
AUTO
: Automatic pressurization (default value)
180
: Pressure value of 180 mmHg (fixed)
210
: Pressure value of 210 mmHg (fixed)
240
: Pressure value of 240 mmHg (fixed)
3. Press the
SET
button to go to the TriCheck setting mode.
Press the
START
button to turn the device off. After three minutes of
non-operation, the device will turn off automatically. The next measurement
will be performed with the new pressure value.
Turn off TriCheck
setting mode
or
START
Refer to previous page
for measurement
Press and hold the button
At heart level
Release the button
at the desired
systolic pressure
MEASUREMENT WITH DESIRED SYSTOLIC PRESSURE
Use this method when re-inflation occurs repeatedly even if the pressure value is
set to
240
in the procedure above or when the results are not displayed even if
the pressure decreases to 20 mmHg or less.
1. Place the cuff on the arm (preferably the left arm).
2. Press and hold the
START
button until a number
about 30 to 40 mmHg higher than your expected
systolic pressure appears.
3. When the desired number is reached, release the
START
button to start measurement. Continue to
measure your blood pressure as described on the
previous page.
Turn off TriCheck
setting mode
or
START
Refer to previous page
for measurement
Press and hold the button
At heart level
Release the button
at the desired
systolic pressure

E-16
In Canada - Auto Control Medical (Toll-Free): 1-800-461-0991
WHAT IS AN IRREGULAR HEARTBEAT
The UA-1020 blood pressure monitor provides a blood pressure and pulse rate
measurement even when an irregular heartbeat occurs. The Irregular Heartbeat
symbol
123
123
123
123
123
123
123
123
123
123
123
123
err CUf
p-3
1932-1AIc UA787EXC•06 illust•03,12p symbols.FH7
will appear in the display window in the event an Irregular
Heartbeat has occured during measurement. An irregular heartbeat is defined as
a heartbeat that varies by 25% from the average of all heartbeat intervals during
the blood pressure measurement. It is important that you relax, remain still and
refrain from talking during measurements.
Note: We recommend contacting your physician if you see this symbol frequently.
ABOUT CUFF INFLATION METER
The Cuff Inflation Meter is located on the left side of the display screen to tell
you when the blood pressure monitor is inflating and deflating the cuff. The Cuff
Inflation Meter moves up during inflation and moves down during deflation.
Inflation in Progress Inflation Complete Deflation/Measurement
in Progress

E-17 A&D Medical (Toll-Free): 1-888-726-9966
ABOUT THE PRESSURE RATING INDICATOR™
The Pressure Rating Indicator™ is a feature which
provides a snapshot of your blood pressure classifi-
cation based on your measurements. This will let you
quickly know what your blood pressure readings
mean. Each segment of the bar indicator corresponds
to the Seventh Report of the Joint National Committee
(JNC7) on Prevention, Evaluation and Treatment of
High Blood Pressure from the National Heart, Lung
and Blood Institute - May 2003. For a more detailed
look at this blood pressure classification, please refer
to “Assessing High Blood Pressure” on page E-21.
JNC7 Classification Indicator
Hypertension Stage 2
Hypertension Stage 2
Hypertension Stage 1
Prehypertension
Prehypertension
Normal
JNC7 Classification Indicator
Stage 2 Hypertension
Stage 1 Hypertension
Prehypertension
Normal
Example
Hypertension
Stage 2
Example
Stage 2
Hypertension
: The indicator displays a segment, based on the current measurement,
corresponding to the JNC7 Classification.
NOTE: Due to other risk factors (e.g. diabetes, obesity, smoking, etc.) in addition to your blood
pressure measurement, the Pressure Rating Indicator is approximate. Please consult with your
physician for interpretation and diagnosis of your blood pressure measurements.
NOTE: Residents outside of the United States (e.g.. Canada and Mexico) should refer to the WHO
Classification Table on page E-21 for assessment of their blood pressure
measurement.
JNC7 Classification Indicator
Hypertension Stage 2
Hypertension Stage 2
Hypertension Stage 1
Prehypertension
Prehypertension
Normal
JNC7 Classification Indicator
Stage 2 Hypertension
Stage 1 Hypertension
Prehypertension
Normal
Example
Hypertension
Stage 2
Example
Stage 2
Hypertension
JNC7 Classification Indicator
Hypertension Stage 2
Hypertension Stage 2
Hypertension Stage 1
Prehypertension
Prehypertension
Normal
JNC7 Classification Indicator
Stage 2 Hypertension
Stage 1 Hypertension
Prehypertension
Normal
Example
Hypertension
Stage 2
Example
Stage 2
Hypertension

E-18
In Canada - Auto Control Medical (Toll-Free): 1-800-461-0991
ABOUT MEMORY
Note: This device stores the last 90 measurements in memory. The device announces the memory
data values as they are displayed.
1. Press the or button. The average of all
measurements and the number of data are
displayed. (If no data, “0” is displayed.
Press the ,or
START
button to turn the
device off.)
2. Each time the button (or the button
to display the data in the reverse order) is
pressed, the memory data is displayed as
follows.
Average of all AM (morning) measurements
taken between 4:00 and 9:59. (In the
example, 10 measurements. If no data, “--” is
displayed.)
Average of all PM (evening) measurements
taken between 18:00 and 1:59. (In the
example, 9 measurements. If no data, “--” is
displayed.)
Most recent data (See No. 35). Three
seconds after the data number display, the
measurement data is displayed.
Last data (No.1). Three seconds after the
data number display, the measurement data
is displayed.
3. After the last data is displayed, press the
button to return the average display of all measurements.
4. Press the
START
button to turn the device off. After one minute of
non-operation, the device will turn off automatically.
Average of
all the data
Average systolic
Average diastolic
Average pulse
Press or
Most recent data
Systolic
Diastolic
Pulse
Last data (Oldest)
Average
of AM data
Average
of PM data
Average systolic
Average diastolic
Average pulse
Average systolic
Average diastolic
Average pulse
Systolic
Diastolic
Pulse

E-19 A&D Medical (Toll-Free): 1-888-726-9966
USING THE MONITOR WITH AC ADAPTER
The UA-1020 has an AC adapter jack to allow you to supply power from an outlet
in your home. We recommend you only use the exclusive AC adapter to avoid
potential damage to the monitor. Please contact A&D Medical at 1-888-726-9966 or
if you are in Canada contact AutoControl at 1-800-461-0991, if you would like to
purchase an AC adapter.
CONNECTING THE AC ADAPTER TO THE MONITOR:
1. Gently insert the AC adapter plug into a 120V AC outlet.
2. Connect the AC adapter plug into the jack on the back of the monitor.
DISCONNECTING THE AC ADAPTER FROM THE MONITOR:
1. Turn the unit off by pressing the START button.
2. Disconnect the plug from the jack of the monitor quickly.
3. Gently remove the AC adapter from the outlet.
NOTE: If monitor has batteries and an AC adapter connected, the measurements stored
in memory may be lost if AC adapter is unplugged from the wall first. To ensure that
measurements remain in memory, make sure the unit is off and that the jack plugged
into the monitor is removed quickly before unplugging adapter from the wall.
Jack
Plug
AC Adapter
TB-233
