A&D UA-651BLE User manual

A&D Medical (Toll-Free): 1-888-726-9966
DELUXE CONNECTED BLOOD PRESSURE MONITOR
Model UA-651BLE
Instruction Manual
ORIgINaL
1WMPD4002833

E-1
A&D Medical (Toll-Free): 1-888-726-9966
1. GREETINGS
2. PRELIMINARY REMARKS
This A&D blood pressure monitor is one of the most advanced
monitors available and is designed for ease of use and accuracy.
This device will facilitate your daily blood pressure regimen.
We recommend that you read through this manual carefully before
using the device for the first time. The Bluetooth
®
word mark and logos
are registered trademarks owned by Bluetooth SIG, Inc. and any use of
such marks by A&D is under license. Other trademarks and trade names
are those of their respective owners.
3. PRECAUTIONS
☞
Precision components are used in the construction of this device.
Extremes in temperature, humidity, direct sunlight, shock or dust
should be avoided.
☞
Clean the device and cuff with a dry, soft cloth or a cloth
dampened with water and a neutral detergent. Never use
alcohol, benzene, thinner or other harsh chemicals to clean the
device or cuff.
☞
The device complies with part 15 of the FCC rules and contains
the FCC ID VPYLBVZ.
☞
The device is designed for use on adults only, and is not
intended for infants.
☞
This device is designed for use in the home healthcare
environment to measure blood pressure and pulse rate of people
for diagnosis.

E-2
A&D Medical (Toll-Free): 1-888-726-9966
☞
Avoid tightly folding the cuff or storing the hose tightly twisted for
long periods, as such treatment may shorten the life of the
components.
☞
The device and cuff are not water resistant. Prevent rain, sweat
and water from soiling the device and cuff.
☞
Measurements may be distorted if the device is used close to
televisions, microwave ovens, cellular telephones, X-ray or other
devices with strong electrical fields.
☞
When using the device, confirm that the device is clean.
☞
Used equipment, parts and batteries are not treated as ordinary
household waste, and must be disposed of according to the
applicable local regulations.
☞
When the AC adapter is used, make sure that the AC adapter
can be readily removed from the electrical outlet when
necessary.
☞
Do not modify the device. It may cause accidents or damage to
the device.
☞
To measure blood pressure, the arm must be squeezed by the
cuff hard enough to temporarily stop blood flow through the
artery. This may cause pain, numbness or a temporary red mark
to the arm. This condition will appear especially when
measurement is repeated successively. Any pain, numbness, or
red marks will disappear with time.
PRECAUTIONS

E-3
A&D Medical (Toll-Free): 1-888-726-9966
☞
Do not apply the cuff on an arm in which another medical
device is attached. The equipment may not function properly.
☞
People who have a severe circulatory deficit in the arm must
consult a doctor before using the device, to avoid medical
problems.
☞
Do not self-diagnose the measurement results and start
treatment by yourself. Always consult your doctor for evaluation
of the results and treatment.
☞
Do not apply the cuff on an arm with an unhealed wound.
☞
Do not apply the cuff on an arm receiving an intravenous drip or
blood transfusion. It may cause injury.
☞
Do not use the device where flammable gases such as
anesthetic gases are present. It may cause an explosion.
☞
Do not use the device in highly concentrated oxygen
environments, such as a high-pressure oxygen chamber or an
oxygen tent. It may cause a fire or explosion.
PRECAUTIONS
☞ This device complies with Part 15 of FCC rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this
device must accept any interference recieved, including
interference that may cause undesired operations.

E-4
A&D Medical (Toll-Free): 1-888-726-9966
?PARTS IDENTIFICATION........................................................................... E-5
SYMBOLS...................................................................................... E-6 - E-7
USING THE MONITOR.................................................................... E-8 - E-15
MEASUREMENT......................................................................... E-16 - E-18
WHAT IS AN IRREGULAR HEARTBEAT..................................................... E-19
PRESSURE BAR INDICATOR.................................................................. E-19
TROUBLESHOOTING.............................................................................. E-20
MAINTENANCE..................................................................................... E-21
TECHNICAL DATA....................................................................... E-21 - E-24
CONTACT INFORMATION....................................................................... E-24
TABLE OF CONTENTS

E-5
A&D Medical (Toll-Free): 1-888-726-9966
PARTS IDENTIFICATION
Display
M
Displa
y
A
ir Hose
Arm Cuff
Button
Index
AirSocket
Proper fit range
A
rtery position mark
DC jac
k
AC adapter Plug
AirConnector Plug
Battery Compartment
Battery Cove
r
SystolicPressure
Diastolic Pressure
Battery Indicator
(Irregular heartbeat symbol)
Pressure Bar Indicator
r
I.H.B. symbol
Communication mark
Heart Mark
START

E-6
A&D Medical (Toll-Free): 1-888-726-9966

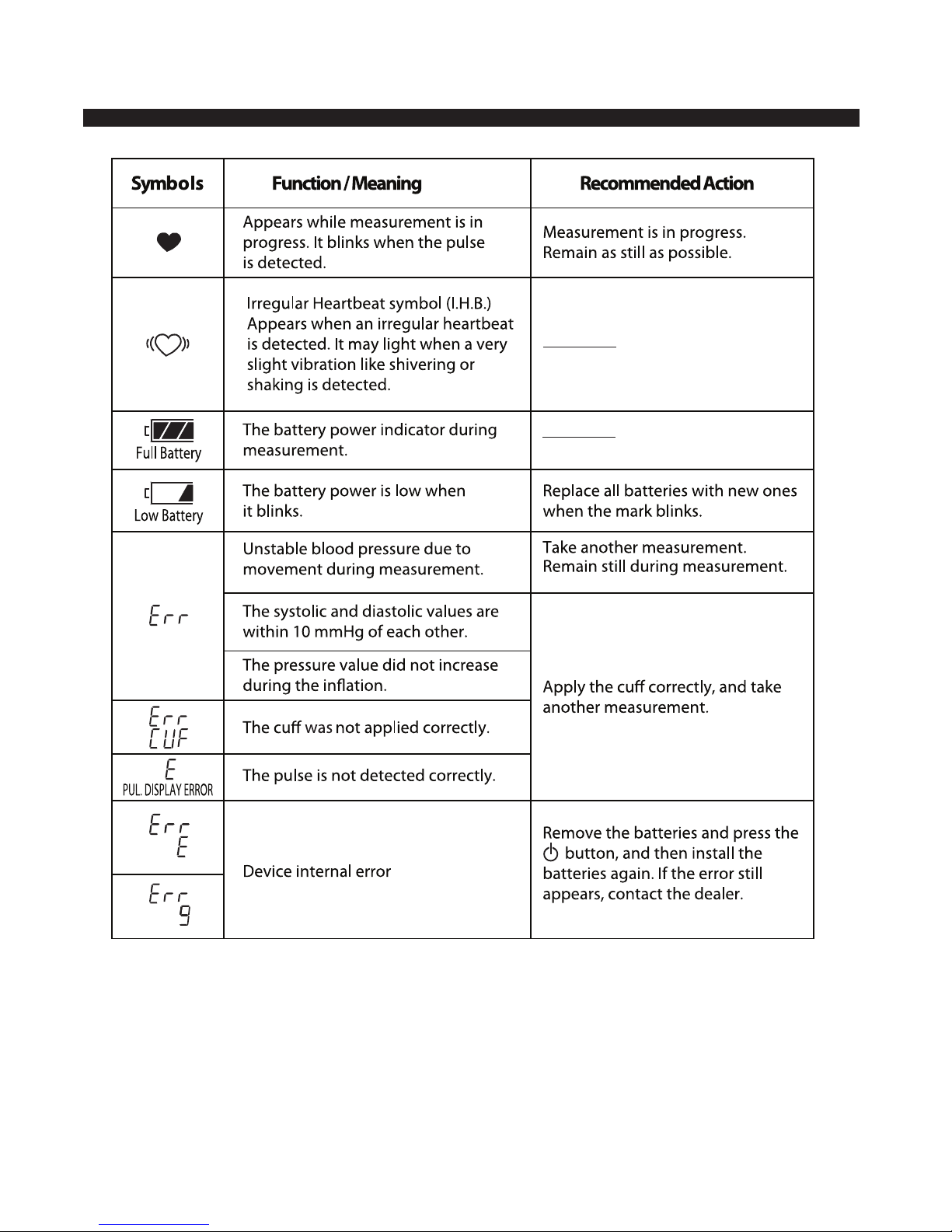

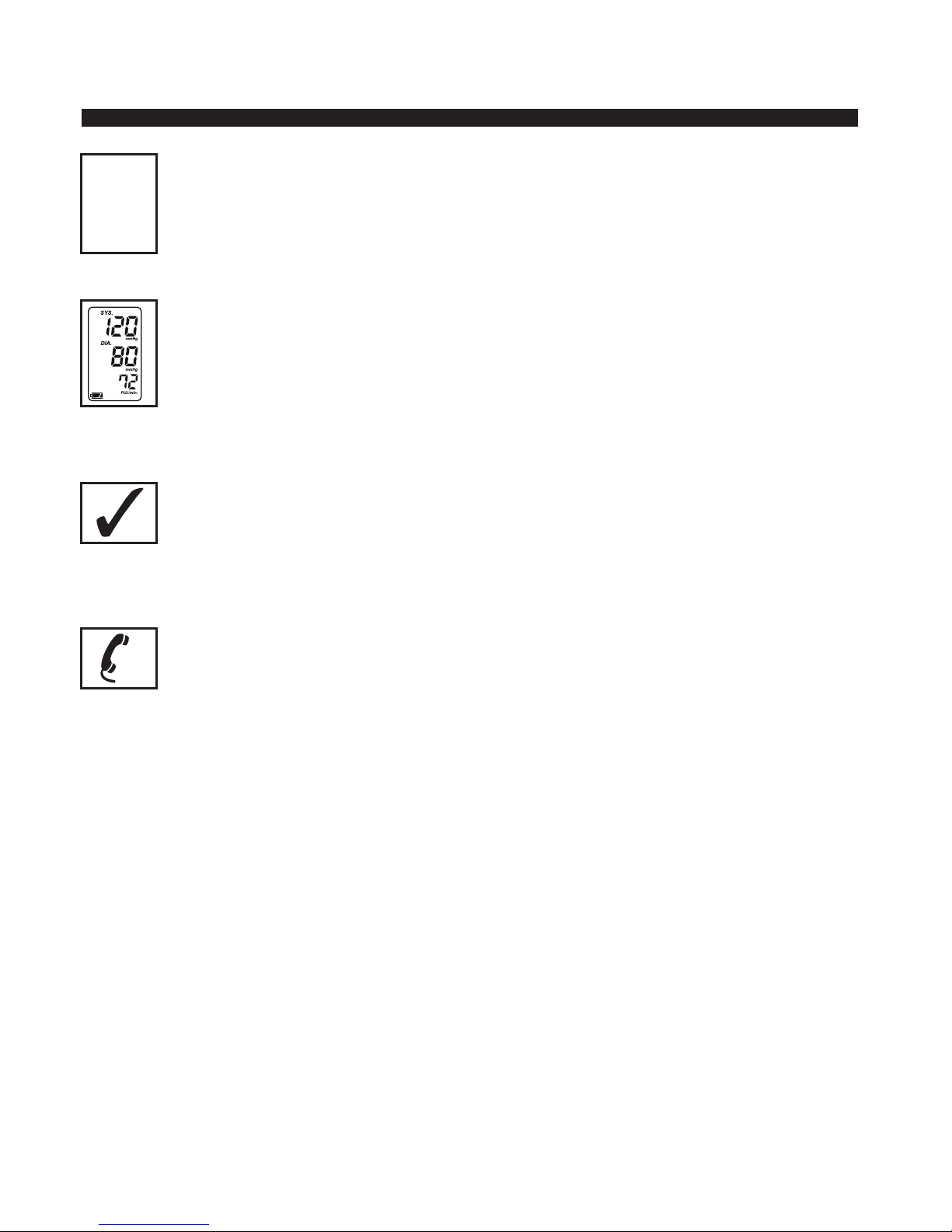

SYMBOLS

E-7
A&D Medical (Toll-Free): 1-888-726-9966
SYMBOLS
and are illuminated
alternately during
communication
Date of Manufacture
BT Bluetooth Address
SE

E-8
A&D Medical (Toll-Free): 1-888-726-9966
USING THE MONITOR
Installing/ Changing the batteries
1. Remove the battery cover.
2. Remove the used batteries from
the battery compartment when
changing them.
3. Insert new batteries into the
battery compartment as shown,
taking care that the polarities
(+) and (-) are correct.
4. Replace the battery cover. Use
only R6P, LR6 or AA batteries.
CAUTION
☞ Insert the batteries as shown in the battery compartment.
If installed incorrectly, the device will not work.
☞ When blinks on the display and the device indicates
that the battery needs to be replaced, replace all batteries
with new ones. Do not mix old and new batteries.
It may shorten the battery life, or cause the device to
malfunction. Replace the batteries two seconds or more after
the device turns off.
☞ If does not appear, then the batteries are completely
drained.
☞ The battery life varies with the ambient temperature and
may be shorter at low temperatures.
☞ Use the specified batteries only. The batteries provided with
the device are for testing the device performance and may
have a limited life.
☞ Remove the batteries if the device is not to be used for a
long time. The batteries may leak and cause a malfunction.
Step 1
Step 3
Step 4
Step 2

E-9
A&D Medical (Toll-Free): 1-888-726-9966
USING THE MONITOR
Connecting the Air Hose
Connecting the AC Adapter
Wireless Function
Insert the air connector plug into the
air socket firmly.
Insert the AC adapter plug into
the DC jack. Then, insert the AC
adapter into an electrical outlet.
The AC adapter part # TB-233,
is sold separately.
☞
In the unlikely event that this monitor causes radio wave
interference to a different wireless station, change the location
where this monitor is used or stop use immediately.
☞
Be sure to use in a location where visibility between the two
devices that you want to connect is good. The connection distance
is reduced by the structure of buildings or other obstructions. In
particular, connection may be impossible when devices are used
on either side of reinforced concrete.
☞
Do not use Bluetooth
®
connection in the range of a wireless LAN
or other wireless devices, near devices that emit radio waves such
as microwaves, in locations where there are many obstructions, or
in other locations where signal strength is weak. Doing so may
result in frequent loss of connection, very slow communication
speeds and errors.
Air Socket
A
ir Connector Plug
A
ir Hose
DC Jack
AC adapter Plug
