A&D UA-705 User manual

Digital Blood Pressure Monitor
Model UA-705
Instruction Manual
Manuel d’instructions
Manual de Instrucciones
Manuale di Istruzioni
1WMPD4000988B

English 1
ENGLISH
Contents
Dear Customers.................................................................... 2
Preliminary Remarks ............................................................. 2
Precautions........................................................................... 2
Parts Identification................................................................ 3
Symbols................................................................................ 4
Using The Monitor ................................................................ 5
Installing / Changing The Batteries .................................. 5
Connecting The Air Hose ................................................. 5
Selecting The Correct Cuff ............................................... 5
Attaching The Arm Cuff ................................................... 6
How To Take Proper Measurements ................................... 6
Measurement (Operation)................................................. 6
After Measurement .......................................................... 6
Measurements ...................................................................... 7
Measurement With Storing Data ....................................... 7
Notes For Proper Measurement ........................................ 8
Operation Mode.................................................................... 9
WHO Classification Indicator ................................................. 9
Pressure Bar Indicator ........................................................... 9
What Is An Irregular Heartbeat?........................................... 10
About Blood Pressure.......................................................... 10
What Is Blood Pressure? ................................................. 10
What Is Hypertension And How Is It Controlled? ............. 10
Why Measure Blood Pressure At Home? .......................... 10
WHO Blood Pressure Classification ................................. 10
Blood Pressure Variations ................................................ 11
Troubleshooting ................................................................. 11
Maintenance ....................................................................... 12
Technical Data.................................................................... 12

English 2
Dear Customers
Congratulations on purchasing a state-of-the-art A&D blood pressure monitor,
one of the most advanced monitors available today. Designed for ease of use
and accuracy, this monitor will facilitate your daily blood pressure regimen.
We recommend that you read through this manual carefully before
using the device for the first time.
Preliminary Remarks
This device conforms to the European Directive 93/42 EEC for Medical
Products. This is made evident by the mark of conformity.
(0366: The reference number to the involved notified body)
The device is designed for use on adults only, not newborns or infants.
Environment for use
The device is for use indoors.
Precautions
Precision components are used in the construction of this device. Extremes in
temperature, humidity, direct sunlight, shock or dust should be avoided.
Clean the device with a soft, dry cloth. Never use thinner, alcohol, benzine, or a
wet cloth.
Avoid tightly folding the cuff or storing the hose tightly twisted for long periods,
as such treatment may shorten the life of the components.
The device and cuff are not water-resistant. Prevent rain, sweat and water from
soiling the device and cuff.
Measurements may be distorted if the device is used close to televisions,
microwave ovens, cellular telephones, X-ray or other devices with strong
electrical fields.
Used equipment, parts and batteries are not treated as ordinary household
waste, and must be disposed of according to the applicable local regulations.

English 3

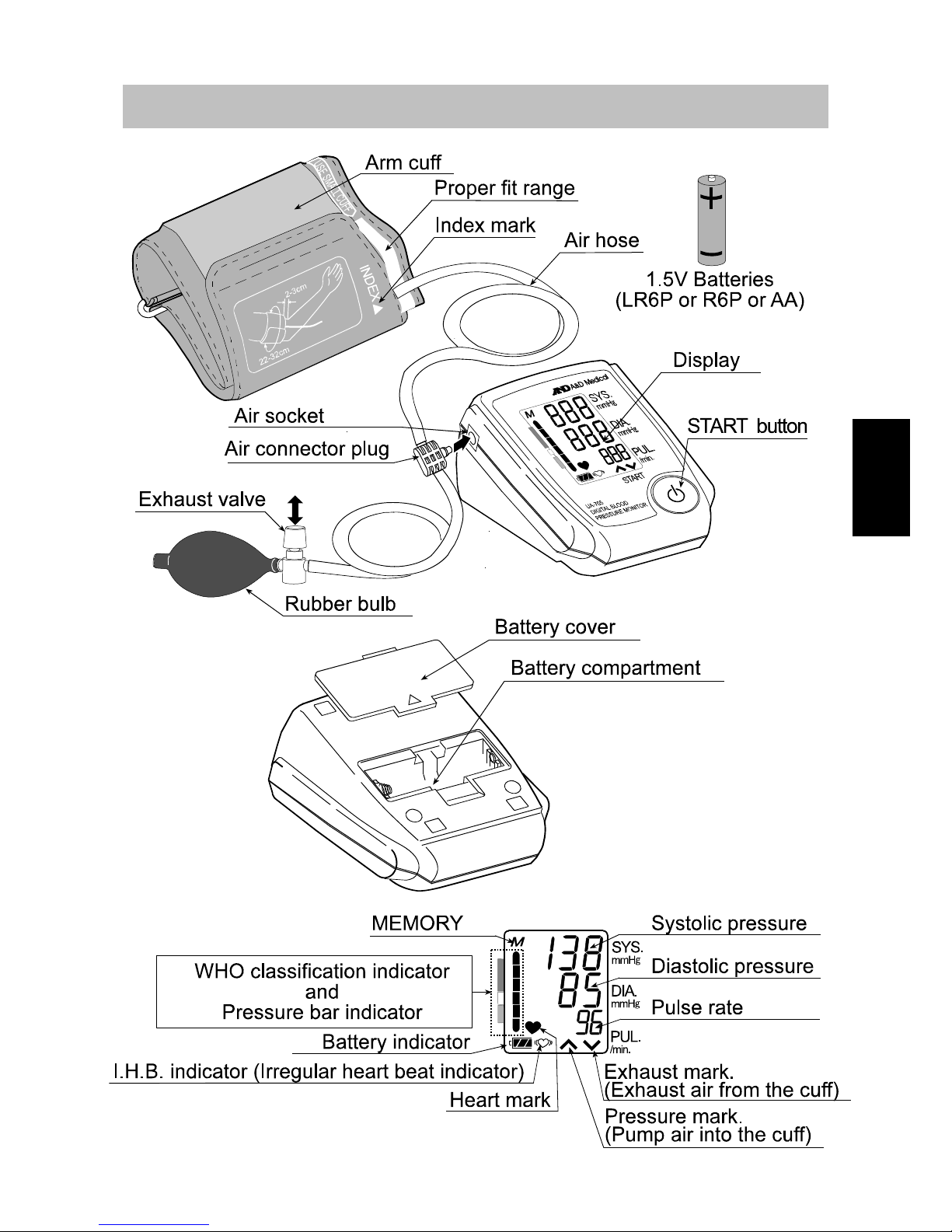

Parts Identification

English 4
Symbols
Symbols Function / Meaning Recommended Action
Standby and ON switch.
Battery installation guide
SN Serial number
Date of manufacture
Type BF: Device, cuff and tubing are
designed to provide special protection
against electrical shocks.
The indicator that appears while
measurement is in progress. It blinks
when the pulse is detected.
Measurement is in
progress. Remain as still
as possible.
Irregular Heartbeat indicator. (I.H.B.)
The indicator that appears when an
irregular heartbeat or any excessive
body movement is detected during the
measurement.
Flashes when there is air remaining
in the cuff at power up.
Flashes at the completion of the
measurement until exhaust is complete.
Press the exhaust
valve button to
exhaust air from the
cuff.
Flashes when pressure is insufficient
for the measurement. Pump air into the cuff with the rubber bulb.
Previous measurements stored in
memory.
Full Battery Indicates remaining battery power.
low Battery Blinks when battery is low. Replace battery with
new one when the
indicator blinks.
Unstable blood pressure due to
movement during the measurement.
Try the measurement again.
Remain very still during
the measurement.
The systolic and diastolic values are
within 10 mmHg of each other.
The pressure value did not increase
during inflation.
The cuff is not fastened correctly.
PUL. DISPLAY ERROR
The pulse is not detected correctly.
Check the air hose
connecter plug and cuff.
Fasten the cuff correctly,
and try the
measurement again.
EC directive medical device label
WEEE label

English 5
Using The Monitor
Installing / Changing The Batteries
1. Remove the battery cover.
2. Insert a new battery into the battery
compartment as shown, taking care that
the polarities (+) and (-) are correct.
Use only R6P, LR6, AA or equivalent battery.
3. Close the battery cover.
CAUTION
Insert the battery as shown in the battery compartment. If not, the device will
not work.
When (LOW BATTERY mark) blinks in the display, replace the battery with a
new one.
(LOW BATTERY mark) does not appear when the battery is drained.
Battery life varies with the ambient temperature and may be shorter at low
temperatures.
Use the specified battery only. The battery provided with the device is for
testing monitor performance and may have a limited life.
Remove the battery if the device is not to be used for a long time.
The battery may leak and cause a malfunction.
The stored data are cleared when the batteries are removed.
Connecting The Air Hose
Insert the air connector plug into
the air socket firmly.
Selecting The Correct Cuff
Using the correct cuff size is important for an accurate reading. If the cuff is not
the proper size, the reading may yield an incorrect blood pressure value.
The arm size is printed on each cuff.
The index and proper fit range, on the cuff, tell you if you are attaching the
correct cuff. (Refer to "Attaching The Arm Cuff" on next page)
If the index points outside of the range, contact your local dealer to purchase a
replacement cuff.
Arm Size Recommended Cuff Size Order No.
32 cm to 45 cm Large cuff UA-CUFDBKLA-EC
22 cm to 32 cm Medium cuff UA-CUFDBKAU-EC
－Small cuff －
Arm size: The circumference at the biceps.
Note: This UA-705 monitor is NOT designed for using a small cuff.

English 6
Using The Monitor
Attaching The Arm Cuff
1. Wrap the cuff around the upper arm,
about 2 - 3 cm above the elbow, as
shown. Place the cuff directly against
the skin, as clothing may cause a faint
pulse and result in a measurement
error.
2. Constriction of the upper arm, caused
by rolling up a shirtsleeve, may prevent
accurate readings.
3. Confirm that the index points within
the proper fit range.
How To Take Proper Measurements
For the most accurate blood pressure
measurement:
Sit comfortably at a table.
Rest your arm on the table.
Relax for about five to ten minutes
before measurement.
Place the center of the cuff at the same height as your heart.
Remain still and keep quiet during measurement.
Do not measure right after physical exercise or a bath. Rest for twenty or
thirty minutes before taking the measurement.
Try to measure your blood pressure at the same time every day.
Measurement (Operation)
During measurement, it is normal for the cuff to feel very tight.
Select a measurement mode (operation of the device).
Normal measurement with storing data : ..................................... Press the START button.
Recalling data : ......................................... Press and hold the START button to recall data.
Clearing data : ........................................................................Remove the battery and re-install it.
After Measurement
After the measurement is completed, remove the cuff and record your data,
then press the START button to turn off the power.
Note: The device is an automatic power shut-off function, which turns the power
off approximately one minute after measurement.
Allow at least three minutes between measurements on the same person.
Rolled up shirtsleeve
2 -3 cm
Constriction of the Upper
A
rm
A
ir Hose
Cuff
Inde
x
and Proper fit range

English 7
Measurements
Measurement With Storing Data
1. Place the cuff on the arm (preferably the left
arm).
Sit quietly during measurement.
2. Press the
START button.
The buzzer sounds and the average
blood pressures and the WHO
classification and last data number are
displayed briefly.
When the " 0 " is flashing, the device is
ready for measurement. If the mark is
displayed, the cuff has some air trapped
in it. Press the exhaust valve button until
the mark is displayed.
3. Pressurize the cuff by squeezing the rubber
bulb.
A pressure bar indicator and the current
pressure are displayed.
Stop squeezing the rubber bulb when the
mark disappears.
Note: If you want to stop inflation at any time,
stop squeezing the rubber bulb and
press the exhaust valve button to expel
the air from the cuff.
4. When inflation is complete, deflation starts
automatically and the buzzer sounds and
the (heart mark) blinks, indicating that
the measurement is in progress. Once the
pulse is detected, the mark flashes and
the buzzer sounds with each pulse beat.
5. When the measurement is complete,
the buzzer sounds and the mark is
displayed. The systolic and diastolic
pressure readings and pulse rate are
displayed and stored.
6. Press the exhaust valve button to
completely release air from the cuff.
When a measurement is made with
insufficient pressure, the mark will
be displayed. Re-pressurize the cuff.
Stop squeezing the rubber bulb when
the mark disappears.

English 8
When a measurement is made with an
erratic pulse or in a very noisy
environment, will display.
7. Turning the power off
Press the
START button to turn the power off.
The device will be in standby mode.
8. Subsequent measurements
If a subsequent measurement is required, turn off the power and turn it on
again. When "0 " is displayed, the device is ready for another measurement.
Note: Allow at least three minutes between measurements on the same
person.
9. Automatic power-off function
If the device is left on after a measurement, it will turn off automatically
after about one minute. It may be turned off at any time by pressing the
START button.
Notes For Proper Measurement
Sit down in a comfortable position. Place the arm to be used for the
measurement on a table or other support so that the center of the cuff will be
at the same height as your heart.
Relax for about five or ten minutes before taking a measurement. If you are
excited or depressed by emotional stress, the measurement will reflect this
stress as a higher (or lower) than normal blood pressure reading and the
pulse reading will usually be faster than normal.
Your blood pressure varies constantly, depending on what you are doing and
what you have eaten. What you drink can have a very strong and rapid effect
on your blood pressure.
This device bases its measurements on the heartbeat. If you have a very
weak or irregular heartbeat, the device may have difficulty determining your
blood pressure.
Should the device detect a condition that is abnormal, it will stop the
measurement and display an error symbol. Refer to page 4 for the
descriptions of the symbols.
This blood pressure device is intended for use by adults only. Consult with
your physician before using this device on a child. A child should not use this
device unattended.

English 9
Example:
Operation Mode
Measurement with storing data ( Refer to page 7)
Press the
START button. Blood pressure is measured and data is stored
within the device. The device can store the last thirty sets of data for each
button.
Recalling data
Press and hold the START button to recall the
data. Stored data are automatically displayed in
order from the last data.
Clearing data
Remove battery to clear all data. Re-install it again.
WHO Classification Indicator
Each of the six segments of the bar indicator corresponds to the WHO blood
pressure classification described on the next page.
Pressure Bar Indicator
The indicator monitors the
progress of pressure during
measurement.
The indicator displays a segment,
based on the current data,
corresponding to the WHO
classification.
:
Inflation complete
Pressurizing
Measurement in progress
Releasing air
Inflation in progress
WHO Classification Indicator
Severe hypertension
Moderate hypertension
Mild hypertension
High normal
Normal
Optimal
Moderate
hypertension
Data number
Stored Data
Alternation
Press and hold

English 10
What Is An Irregular Heartbeat?
Model UA-705 blood pressure monitor provides a blood pressure and pulse
rate measurement even when an irregular heartbeat occurs. An irregular
heartbeat is defined as a heartbeat that varies by 25% from the average of all
heartbeats during the blood pressure measurement. It is important that you are
relaxed, remain still and do not talk during measurements.
Note: We recommend contacting your physician if you see this indicator frequently.
About Blood Pressure
What Is Blood Pressure?
Blood pressure is the force exerted by blood against the walls of the arteries.
Systolic pressure occurs when the heart contracts. Diastolic pressure occurs
when the heart expands. Blood pressure is measured in millimeters of mercury
(mmHg). One's natural blood pressure is represented by the fundamental
pressure, which is measured first thing in the morning while one is still at rest
nd before eating.
What Is Hypertension And How Is It Controlled?
Hypertension, an abnormally high arterial blood pressure, if left unattended, can
cause many health problems including stroke and heart attack. Hypertension
can be controlled by altering one's lifestyle, avoiding stress, and with medication
under a doctor’s supervision. To prevent hypertension or to keep it under
control:
Do not smoke Exercise regularly
Reduce salt and fat intake Have regular physical checkups
Maintain proper weight
Why Measure Blood Pressure At Home?
Blood pressure measured at a clinic or doctor's office may cause apprehension
and can produce an elevated reading, 25 to 30 mmHg higher than that
measured at home. Home measurement reduces the effects of outside
influences on blood pressure readings, supplements the doctor's readings and
provides a more accurate, complete blood pressure history.
WHO Blood Pressure
Classification
Standards to assess high blood
pressure, without regard to age,
have been established by the
World Health Organization
(WHO), as shown in the chart on
the right.
Reference Material: Journal of Hypertension 1999, Vol 17 No.2
Diastolic blood
p
ressure
S
y
stolic blood
p
ressure
O
p
timal
Normal
Hi
g
h-normal
Grade 1 h
yp
ertension
(
mild
)
Grade 2 h
yp
ertension
(
moderate
)
Grade 3 h
yp
ertension
(
severe
)

English 11

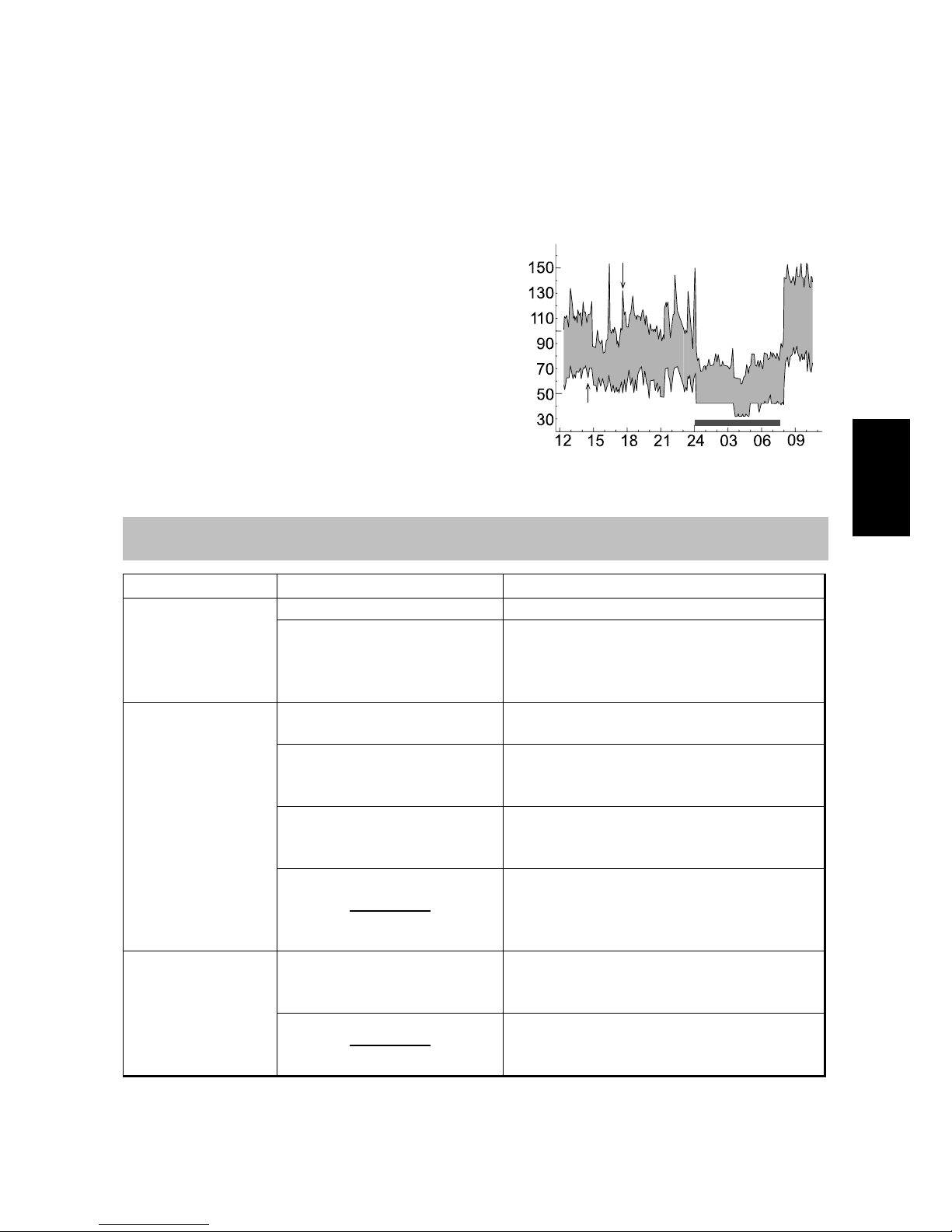

Blood Pressure Variations
An individual’s blood pressure varies greatly on a daily and seasonal basis. It
may vary by 30 to 50 mmHg due to various conditions during the day. In
hypertensive individual variations are even more pronounced. Normally, the
blood pressure rises while at work or play and falls to its lowest levels during
sleep. So, do not be overly concerned
by the results of one measurement.
Take measurements at the same time
every day using the procedure
described in this manual to get to
know your normal blood pressure.
Regular readings give a more
comprehensive blood pressure history.
Be sure to note date and time when
recording your blood pressure.
Consult your doctor to interpret your
blood pressure data.
Troubleshooting
Problem Possible Reason Recommended Action
Battery is drained. Replace all battery with a new one.Nothing
appears in the
display, even
when the power
is turned on.
Battery polarities are not
in the correct position.
Reinstall the battery with its negative
and positive end matching those
indicated in the battery
compartment.
The cuff is not fastened
properly. Fasten the cuff correctly.
You moved your arm or
body during the
measurement.
Make sure you remain very still and
quiet during the measurement.
The cuff position is not
correct.
Sit comfortably and still.
Ensure that the cuff is the same
level as the heart.
The unit does
not measure.
Readings are
too high or too
low.
If you have a very weak or irregular
heart beat, the device may have
difficulty in determining your blood
pressure.
The value is different
from that measured at a
clinic or doctor’s office.
See “Why measure blood pressure
at home?”.
Other
Remove the battery. Re-install it
properly and try the measurement
again.
Note: If the actions described above do not solve the problem, contact the
dealer. Do not attempt to open or repair this product, as any attempt to
do so will make your warranty invalid.
Typical fluctuation within a da
y
(
Measured ever
y
five minutes
)
Blood Pressure
S
y
stolic
Diastolic
PM
A
M Time
mmH
g
Slee
p

English 12
Maintenance
Do not open the device. It uses delicate electrical components and an
intricate air unit that could be damaged. If you cannot fix the problem using
the troubleshooting instructions, request service from your dealer or from the
A&D service group. The A&D service group will provide technical information,
spare parts and units to authorized dealers.
The device was designed and manufactured for a long service life. However
it is generally recommended to have the monitor inspected every 2 years, to
ensure proper functioning and accuracy. Please contact either your
authorized dealer or A&D for maintenance.
Technical Data
Type UA-705
Measurement method Oscillometric measurement
Measurement range Pressure: 20 - 280 mmHg
Pulse: 40 - 200 beats / minute
Measurement accuracy Pressure: ±3 mmHg or 2%, whichever is greater
Pulse: ±5%
Power supply 1 x 1.5V batteries (R6P, LR6 or AA)
Classification Type BF
Clinical test According to ANSI / AAMI SP-10 1987
EMC IEC 60601-1-2: 2001
Data memory Last 30 measurements
Operating condition +10°C to +40°C / 30%RH to 85 %RH
Storage condition -10°C to +60°C / 30%RH to 85 %RH
Dimensions Approx. 81 [W] x 54 [H] x 105 [D] mm
Weight Approx. 120 g, excluding battery
Note: Specifications are subject to change for improvement without prior
notice.
