English 1
ENGLISH
CONTENTS
1.
DEAR CUSTOMERS................................................................
Page 2
2.
PRELIMINARY REMARKS.......................................................
Page 2
3.
SYMBOLS................................................................................
Page 2
4.
IMPORTANT SAFEGUARDS ...................................................
Page 3
5.
INTRODUCTION......................................................................
Page 5
6.
SPECIFICATIONS....................................................................
Page 5
7.
PARTS IDENTIFICATION.........................................................
Page 6
8.
OPERATING INSTRUCTIONS.................................................
Page 7
9.
CLEANING...............................................................................
Page 8
10.
MAINTENANCE .......................................................................
Page 8
11.
TROUBLESHOOTING..............................................................
Page 9
12.
IMPORTANT INFORMATION REGARDING ELECTRO
MAGNETIC COMPATIBILITY (EMC) .......................................
Page 10
13.
CORRECT DISPOSAL OF THIS PRODUCT
(WASTE ELECTRICAL & ELECTRONIC EQUIPMENT) ...........
Page 10

English 2
1. DEAR CUSTOMERS
Thank you for purchasing the UN-014 Compressor Nebulizer.
This device is a compact medical device designed to deliver the medication
prescribed by your doctor.
The compressor creates a stream of air that travels through the clear tubing to
the nebulizer which generates a mist of medicinal particles small enough to
reach the furthest parts of your lungs to provide maximum benefit for the
treatment of asthma, allergies and other respiratory disorders.
Your Compressor Nebulizer should be used only as directed. Do not use this
device for anything other than as prescribed by your doctor.
Before use, read this instruction manual thoroughly.
2. PRELIMINARY REMARKS
This device conforms to the European Directive 93/42 EEC for Medical
Products. This is proved the CE conformity marking CE0120. (0120: The
identification number of the Notified Body.)
3. SYMBOLS
Symbols
Meaning
Caution Attention or Consult accompanying documents
Type BF Equipment
～
Alternating Current
Double Insulation
Indoor use only
Manufacturer
Refer to instruction manual
WEEE label
EU-representative
0120
EC directive medical device label
EC
REP

English 3
4. IMPORTANT SAFEGUARDS
CAUTION:
1. Federal Law restricts the sale or use of this device to an order by a
physician.
2. Follow the instructions of your physician when operating this device.
3. This product is a nebulizer for the inhalation of medical aerosols and is
suitable for solutions used by children. Use only the type and amount of
medication prescribed by the patient’s doctor.
4. This device is intended for aerosol therapy only. Any other use is not
recommended.
5. Do not untwist the jet nebulizer during operation.
6. Do not pour more than 6ml of solution into the jet nebulizer.
DANGER:
Risk of electrocution.
7. Always unplug the unit immediately after using.
8. Do not use while bathing.
9. Do not place or store the unit where it can fall or be pulled into a tub or
sink.
10. Do not place or drop the device into water or other liquid.
11. Do not reach for a product that has fallen into water. Unplug immediately.

English 4
WARNING:
Risk of burns, electrocution, fire or injury
1. Electrical Shock Hazard: Do not remove the cabinet or open the cover.
2. Disconnect the power cord from the electrical outlet before cleaning or
servicing.
3. Do not place this equipment near hot, sparking or burning objects.
4. Do not use oil or grease on or near this device.
5. Turn the unit off when it is not in use.
6. Keep the cord away from HEATED or HOT surfaces.
7. NEVER drop or insert any object into any opening.
8. NEVER block the air openings of the product or place it on a soft surface,
such as a bed or couch, where the air openings may be blocked.
9. Avoid operating in wet or damp locations.
10. Unplug the unit before filling the nebulizer.
11. When using this product near TVs, microwave ovens, pulse telephones, X-
rays, or other strong electric field, there may be electrical interference. It is
recommended to be far away from these devices when using the nebulizer.
WARNING:
Risk of infection
1. This nebulizer is intended for both adult and pediatric patient use.
2. Cleaning of the nebulizer is recommended after each aerosol treatment.
Disinfecting is recommended once a day. Please follow cleaning and
disinfecting instructions in this manual.
This unit is not suitable for use in anesthetics breathing systems.
This unit is not suitable for solutions in suspension or high viscosity liquids. In
such cases information should be sought from the drug supplier.

English 5
5. INTRODUCTION
This compressor nebulizer is designed to deliver a prescribed medication
solution to treat patient respiratory disorders, such as asthma, allergies and
bronchitis. The nebulizer converts the medication solution into an aerosolized
mist which is inhaled by the patient through the mouthpiece or mask. Read this
manual thoroughly before using the nebulizer and store it for future reference.
6. SPECIFICATIONS
Electrical Requirements
230 V / 50 Hz
Power Consumption
Below 60 W
Rated Current
Below 0.70 A
Dimensions
Length 150 mm × Width 140 mm ×
Height 90 mm
Weight
1.2 kg (2.64 lbs)
Sound Pressure Level
55 dBA
Max. Compression Pressure
35 psi to 50 psi (241 kpa to 345 kpa)
Neb. Operating Pressure
9-16 psi (62 kpa to 110 kpa)
Liter Flow Range
5-8 L/min
Average Nebulization Rate:
Approx. 0.25 mL/min (6 ml medicine
can be nebulized within 18 minutes)
Maximum nebulizer solution capacity
6 ml
Maximum residual medicine volume
0.5 ml
Particle size (MMAD)
Approximately 3 μm
Operating Temperature/Humidity
+ 10 °C to + 40 °C,
30% RH to 85% RH
Storage/Transport Temperature
Range/ Humidity
- 20 °C to + 70 °C,
10% RH to 95% RH
Operating and Storage/Transport
Atmospheric Pressure
700 hpa to 1,060 hpa
Protection against electric shock
- Classified as Type
- Type BF applied parts: Mouthpiece, masks
Degree of safety in the presence of flammable anesthetics or oxygen —
No AP/APG (not suitable for use in the presence of flammable anesthetics or
oxygen)
Mode of operation — Continuous
IPX0 — No special protection against harmful ingress of water.

English 6

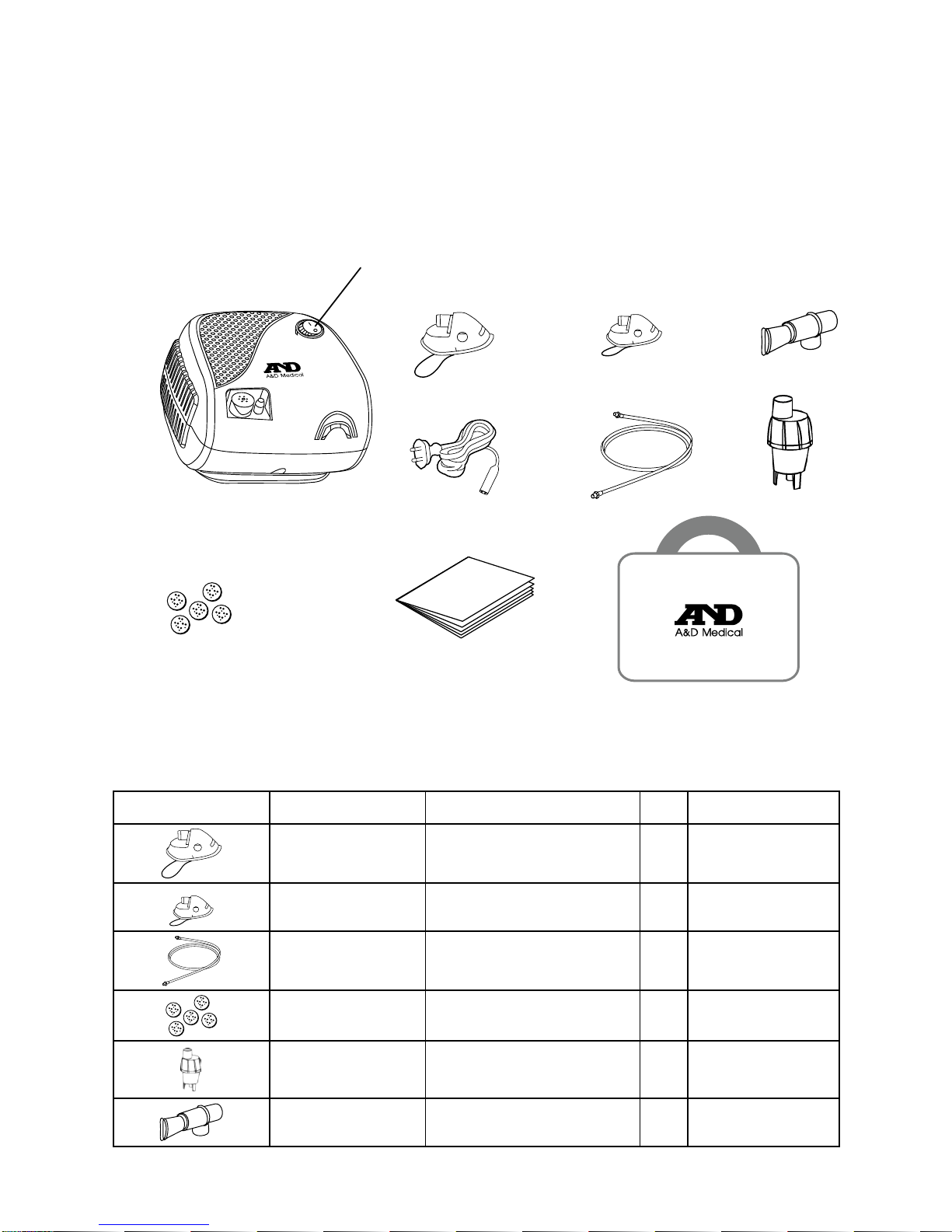

7. PARTS IDENTIFICATION
1. Main unit (compressor)
2.
Adult mask
3.
Child mask
4.
Mouthpiece
5. Power cable (*)
6. Air tube
7.
Nebulizer cup
8.
Air filters
9.
Instruction manual
10. Carrying case
(*) C-plug: UN-014A-EC1B, BF-plug: UN-014A-EC2B,
A-plug: UN-014A-EC3B, O-plug: UN-014A-EC4B
Replacement parts list
Appearance
Part name
Part code
Qty
Material
Adult mask UNB-014A-01EC 1 PVC
Child mask UNB-014A-02EC 1 PVC
Air tube UNB-014A-03EC 1 PVC
Air filter UNB-014A-04EC 5 urethane sponge
Nebulizer cup UNB-014A-05EC 1 PP, SAN
Mouthpiece UNB-014A-06EC 1 PP, SAN
2
4
5 (*)
7
1
9
3
6
10
8
Power switch ("
｜
":ON, "
○
":OFF)

English 7
8. OPERATING INSTRUCTIONS
1. Place compressor on a stable, sturdy and flat surface so that the unit can
be easily reached when you are seated.
2. Pull out the power cord from the base of the device and make sure that the
device is in the "Off" (O) position by pressing on the left side of switch.
3. Plug power cord into a wall outlet.
4. Connect one end of the nebulizer tubing into the air outlet connector.
5. Add the prescribed solution through the opening on the cup using an eye
dropper or pre-measured dose container.
The "6cc" marking on the nebulizer cup is the maximum level.
Medication cannot be filled beyond the maximum level.
6. Assemble mouthpiece and insert it into the top of the nebulizer cup. If an
aerosol mask is used, connect the bottom of the mask to the top of the
nebulizer cup.
7. Connect the tube to nebulizer air inlet connector.
8. Turn the power on to start the unit.
9. Initiate the treatment by placing the mouthpiece between the teeth. Inhale
and exhale through the mouthpiece.
10. If an aerosol mask is used, place the mask over the mouth and nose.

English 8
9. CLEANING
1. Turn the power off and unplug from the wall outlet.
2. Remove the tube from the air inlet.
3. TO CLEAN: Disassemble the mouthpiece, nebulizer cup, chamber and
baffle, and wash these items in hot water with dish-washing detergent.
Rinse these items thoroughly to remove the detergent and air dry.
4. TO DISINFECT: Mix one part of white vinegar with 3 parts hot water in a
clean container. Submerge mouthpiece, nebulizer cup, chamber and baffle
for half an hour in the solution. Remove from solution and let air dry.
5. There is no need to clean the tube. If necessary wipe the surface regularly.
Note:
Replace the nebulizer accessories including adult mask, child mask,
mouthpiece, nebulizer cup, Air tube after using 6 months.
Replace the filter every 30 days or if the filter turns grey.
CAUTION:
The jet nebulizer must be changed if it becomes clogged.
CAUTION:
The nebulizer and accessories must not be boiled.
10. MAINTENANCE
1. The air compressor filter should be replaced when it turns gray.
Additional filters can be procured from your dealer.
2. Only authorized personnel shall make repairs to this product.
CAUTION:
The nebulizer may be damaged if used with a dirty filter or
if the filter is replaced by some other material such as
cotton. Do NOT operate without a filter.

English 9
11. TROUBLESHOOTING
Check the following if your unit should fail during operation. You can also refer
to the pages of this manual for complete instructions.
Problem
Cause
Remedy
Nothing happens
when the power
switch is pressed.
The AC adapter is not
connected correctly to the
electrical outlet or the
compressor.
Check that the plug is inserted in
an electrical outlet. Unplug then
reinsert the plug if necessary.
No nebulization or
low nebulization
rate when the
power is on.
There is no medication in
the medication tank.
Add the correct amount of
medication to the medication
tank.
There is too much/little
medication in the
medication tank.
The vaporizer head is
missing or not assembled
correctly.
Attach the vaporizer head
correctly.
The nebulizer kit is not
assembled correctly.
Assemble the nebulizer kit
correctly.
The nozzle is blocked.
Make sure that the nozzle is free
of blockages.
The nebulizer kit is tilted at
a sharp angle.
Make sure that the nebulizer kit
is not tilted at an angle of more
than 45 degrees.
The air tube is not
connected correctly.
Make sure that the air tube is
correctly connected to the
compressor and nebulizer kit.
The air tube is folded or
damaged.
Make sure that the air tube does
not contain kinks.
The air tube is blocked.
Make sure that the air tube is
free of blockages.
The air filter is dirty.
Replace the air filter with a new
one.
The device is
abnormally loud.
The air filter cover is not
attached correctly.
Attach the air filter cover
correctly.
The device is very
hot.
The compressor is covered
by something.
Do not cover the compressor
with any type of cover during
use.
The device was operated
continuously for over 20
minutes.
Limit use to 20 minutes at a
time, and allow a 40 minute rest
interval before using the device
again.
NOTE:
If the suggested remedy does not solve the problem, do not try to
repair the device. No parts of the unit are user serviceable.
Return the unit to an authorized retail outlet or distributor.

English 10
12. IMPORTANT INFORMATION REGARDING ELECTRO
MAGNETIC COMPATIBILITY (EMC)
With the increased number of electronic devices such as PCs and mobile
(cellular) telephones, medical devices in use may be susceptible to
electromagnetic interference from other devices. Electromagnetic interference
may result in incorrect operation of the medical device and create a potentially
unsafe situation. Medical devices should also not interfere with other devices.
In order to regulate the requirements for EMC (Electro Magnetic Compatibility)
with the aim to prevent unsafe product situations, the EN60601-1-2:2007
standard was implemented. This standard defines the levels of immunity to
electromagnetic interferences as well as maximum levels of electromagnetic
emissions for medical devices.
This medical device confirms to the EN60601-1-2:2007 standard for both
immunity and emissions. Nevertheless, special precautions need to be
observed:
●Do not use mobile (cellular) telephones and medical devices, which generate
strong electrical or electromagnetic fields; near the medical device. This may
result in incorrect operation of the unit and create a potentially unsafe
situation. The recommended minimum distance is 7 meters. Verify correct
operation of the device in case the distance is shorter.
13. CORRECT DISPOSAL OF THIS PRODUCT
(WASTE ELECTRICAL & ELECTRONIC EQUIPMENT)
This marking shown on this product and its literature, indicates that it should
not be disposed of with other household wastes at the end of its working life.
To prevent possible harm to the environment or human health from
uncontrolled waste disposal, please separate this from other types of wastes
and recycle it responsibly to promote the sustainable reuse of material
resources.
Household users should contact either the retailer where they purchased this
product, or their local government office for details of where and how they can
dispose this item for environmentally safe recycling.
This product does not contain any hazardous substances.

A&D Company, Limited
3-23-14 Higashi-Ikebukuro, Toshima-ku Tokyo 170-0013 JAPAN
http://www.aandd.jp
A&D INSTRUMENTS LIMITED
Unit 24/26 Blacklands Way, Abingdon Business Park, Abingdon,
Oxfordshire OX14 1DY United Kingdom
Telephone: [44] (1235) 550420 Fax: [44] (1235) 550485
A&D Australasia Pty Ltd.
32 Dew Street, Thebarton, South Australia 5031 AUSTRALIA
Telephone: [61] (8) 8301-8100 Fax: [61] (8) 8352-7409
A&D Instruments India Private Limited
509 Udyog Vihar Phase V Gurgaon-122 016, Haryana, India
Tel：[phone] Fax：[phone]
Shenzhen Bi-rich Medical Devices Co.Ltd,
No. 10th, Hongqian 2nd Road, ShangNan, Shajing street, Bao'An district,
518125 Shenzhen City, Guangdong Province, P.R.China
Trinium
Hakakatu 16 A 1 90120 OULU FINLAND
0120
EC
REP
