ABB 8209-101-500 User manual

1473-1-8313 │ Rev. 01 │ 17.12.2012
Operating Instructions
Busch-AudioWorld®
Pos: 2 /#Neustruktur#/ Online-Dokumentatio n (+KNX)/Titelblät ter/AudioVideo/ Titelblatt - 8209 - BJE @ 22\mod_1332422 011689_15.docx @ 205478 @ @ 1
MDRC power adaptor
8209-101-500
Busch-AudioWorld®
=== Ende der Liste für Te xtmarke Cover ===

Operating Instructions
Busch-AudioWorld®
Operating Instructions | 1473-1-8313
— 2 —
Pos: 4 /#Neustruktur#/ Online-Dokumentatio n (+KNX)/Inhaltsver zeichnis (--> Für alle Dokument e <--)/Inhaltsverzeic hnis @ 19\mod_1320649044386_ 15.docx @ 109653 @ @1
1Safety.......................................................................................................................................................................3
2Intended use............................................................................................................................................................3
2.1 Environment............................................................................................................................................3
3Technical data..........................................................................................................................................................4
4Setup and function...................................................................................................................................................4
4.1 Features of function and equipment........................................................................................................4
4.2 Possible combinations ............................................................................................................................5
5Installation and electrical connection .......................................................................................................................6
5.1 Requirements for the electrician .............................................................................................................6
5.2 General mounting instructions ................................................................................................................7
5.3 Mounting .................................................................................................................................................7
5.4 Electrical connection...............................................................................................................................8
5.4.1 Connecting terminals and LED displays..................................................................................................8
5.4.2 Installation / connection possibilities .......................................................................................................9
=== Ende der Liste für Te xtmarke TOC ===

Operating Instructions
Busch-AudioWorld®
Safety
Operating Instructions | 1473-1-8313
— 3 —
Pos: 6 /#Neustruktur#/ Online-Dokumentatio n (+KNX)/Überschr iften (--> Für alle Doku mente <--)/1. Ebene/S - T/Sic herheit @ 18\mod_130261279179 0_15.docx @ 103357 @ 1 @ 1
1 Safety
Pos: 7 /#Neustruktur#/ Online-Dokumentatio n (+KNX)/Sicherhei tshinweise und Hinweise ( --> Für alle Dokumente <--)/W arnhinweise/Sicherheit - 230 V @ 18\mod_ 1302606816750_15.doc x@ 103 308 @ @ 1
Warning
Electric voltage!
Risk of death and fire due to electrical voltage of 230 V.
– Work on the 230V supply system may only be performed by authorised electricians!
– Disconnect the mains power supply prior to installation and/or disassembly!
Pos: 8 /#Neustruktur#/ Online-Dokumentatio n (+KNX)/Überschr iften (--> Für alle Doku mente <--)/1. Ebene/A - F/Bestimmungsgem äßer Gebrauch @ 18\mod_130276332 1316_15.docx @ 103483 @ 1 @ 1
2 Intended use
Pos: 9 /#Neustruktur#/ Online-Dokumentatio n (+KNX)/Bestimmungsge mäßer Gebrauch/Audi oVideo/Bestimmungsge maesser Gebrauch -Audi o allgemein @ 23\mod_133594 2854884_15.docx @ 208893 @ @ 1
The device is part of the Busch-AudioWorld® system and is to be used exclusively with the components that are
supplied and licensed as described in the "Structure and Function" chapter. The device must only be installed in
dry indoor rooms.
Pos: 10.1 /#Neustrukt ur#/Online-Dokumenta tion (+KNX)/Übersc hriften (--> Für alle Dokumente <--) /2. Ebene/U - Z/ Umwel t @ 25\mod_13406919 35719_15.docx @ 220064 @ 2 @ 1
2.1 Environment
Pos: 10.2 /#Neustrukt ur#/Online-Dokumentation (+ KNX)/Sicherheitshi nweise und Hinweise (--> Für alle Dokumen te< --)/Hinweise - Umwelt/Hinweis - Umwe lt - Hinweis Elektroger äte @ 18\mod_1302763973434 _15.docx @ 103500 @ @ 1
Consider the protection of the environment!
Used electric and electronic devices must not be disposed of with domestic waste.
– The device contains valuable raw materials which can be recycled. Therefore, dispose of the
device at the appropriate collecting depot.
Pos: 10.3 /#Neustrukt ur#/Online-Dokumentation (+ KNX)/Sicherheitshi nweise und Hinweise (--> Für alle Dokumen te< --)/Hinweise - Umwelt/Hinweis - Umwe lt - Entsorgung Elektr ogeräte @ 20\mod_132576069 5972_15.docx @ 136583 @ @ 1
All packaging materials and devices bear the markings and test seals for proper disposal. Always dispose of the
packaging material and electric devices and their components via the authorized collecting depots and disposal
companies.
The products meet the legal requirements, in particular the laws governing electronic and electrical devices and
the REACH ordinance.
(EU Directive 2002/96/EC WEEE and 2002/95/EC RoHS)
(EU REACH ordinance and law for the implementation of the ordinance (EC) No.1907/2006)
Pos: 11 /#Neustruktur #/Online-Dokumentati on (+KNX)/Steuermodu le - Online -Dokumentation (--> Für alle Dokumente < --)/++++++++++++Seitenumbruch++++++++++++@ 9\mod_12688 98668093_0.doc x@ 52149 @ @ 1

Operating Instructions
Busch-AudioWorld®
Technical data
Operating Instructions | 1473-1-8313
— 4 —
Pos: 12 /#Neustruktur #/Online-Dokumentati on (+KNX)/Überschr iften (--> Für alle Dokumente <--)/1. Ebene/S - T/Techni sche Daten @ 11\mod_1279185386 320_15.docx @ 83019 @ 11 @ 1
3 Technical data
Pos: 13 /#Neustruktur #/Online-Dokumentati on (+KNX)/Technisc he Daten/AudioVideo/ Technische Daten - 8209 @ 22\mod_1332422 189039_15.docx @ 205507 @ @ 1
Designation Value
Rated voltage 230 V AC, ±10%, 50 / 60 Hz
Supply current 1.5 A, 15 V DC, SELV
Mounting method DIN rail: (VDE 50022)
Protection type IP 20
Temperature range 5 °C … 40 °C
Dimensions 7 TE à 18 mm
Line type J-Y(ST)Y n x 2 x 0.8
Pos: 14 /#Neustruktur #/Online-Dokumentati on (+KNX)/Überschr iften (--> Für alle Dokumente <--)/ 1. Ebene/A - F/Aufbau und Funktion @ 11\mod _1279185435352_15.doc x @ 83027 @ 11 @ 1
4 Setup and function
Pos: 15 /#Neustruktur #/Online-Dokumentation (+KNX)/ Überschriften ( -->F ür alle Dokumente <--)/2. Ebene/A - F /Funktions-und Au sstattungsmer kmale @ 23\mod_133655763014 0_15.docx @ 209136 @ 11 @ 1
4.1 Features of function and equipment
Pos: 16 /#Neustruktur #/Online-Dokumentati on (+KNX)/Aufbau und Funk tion/Audio/Funk tionen - 8209 @ 22\mod_1332422335596_15. docx @ 205522 @ @ 1
Power supply unit for extending the maximum number of amplifier units that can be connected to a central unit by
5 additional units.
– A parallel connection to the supply line of the central unit is possible.
– Automatic power off during periods of non-utilisation.
– A maximum of 3 MDRC power supply unit extensions is possible per system.
Pos: 17 /#Neustruktur #/Online-Dokumentati on (+KNX)/Steuermodu le - Online -Dokumentation (--> Für alle Dokumente < --)/++++++++++++Seitenumbruch++++++++++++@ 9\mod_12688 98668093_0.doc x@ 52149 @ @ 1

Operating Instructions
Busch-AudioWorld®
Setup and function
Operating Instructions | 1473-1-8313
— 5 —
Pos: 18 /#Neustruktur #/Online-Dokumentati on (+KNX)/Überschr iften (--> Für alle Dokumente <--)/ 2. Ebene/G - L/Kombina tionsmöglichkeiten @ 19\mod _1320312769153_15.doc x @ 109520 @ 2 @ 1

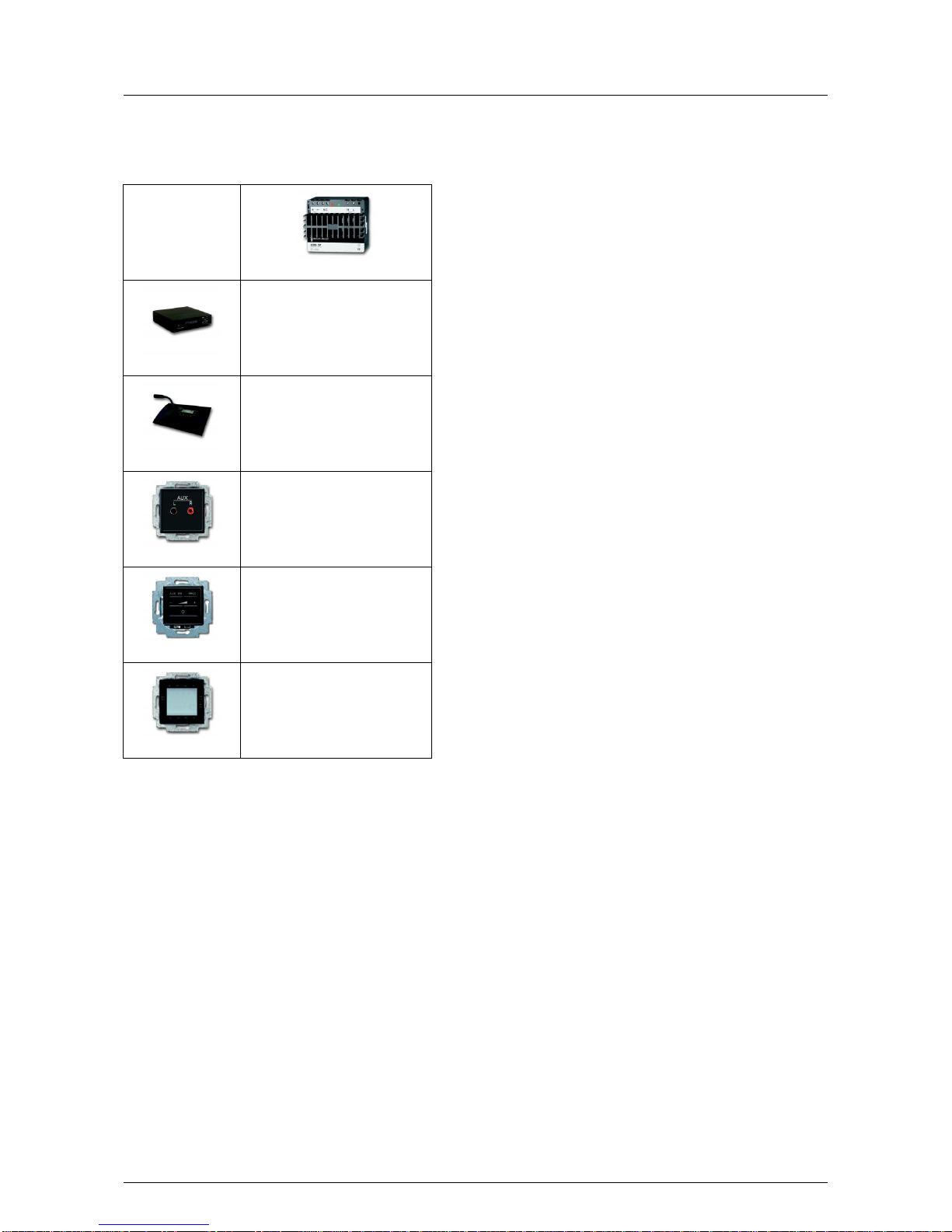

4.2 Possible combinations
Pos: 19 /#Neustruktur #/Online-Dokumentati on (+KNX)/Kombinations möglichkeiten/Audi o/Kombinations möglichkeiten - 8209 @ 23\mod_133431 0177719_15.doc x@ 20814 8@ @ 1
8209-101-500
8202
X
8205
X
8210 U
X
8211 U
X
8214 U
X
Pos: 20 /#Neustruktur #/Online-Dokumentati on (+KNX)/Steuermodu le - Online -Dokumentation (--> Für alle Doku mente <--)/++++++++++++Seitenumbruch++++++++++++ @ 9\mod_1268898668093 _0.docx @ 52149 @ @ 1

Operating Instructions
Busch-AudioWorld®
Installation and electrical
connection
Operating Instructions | 1473-1-8313
— 6 —
Pos: 21 /#Neustruktur #/Online-Dokumentati on (+KNX)/Überschr iften (--> Für alle Dokumente <--)/ 1. Ebene/M - O/Montage und e lektrischer Anschluss @ 23\mod_1 336477157864_15.d ocx @ 209033 @ 11 @ 1
5 Installation and electrical connection
Pos: 22 /#Neustruktur #/Online-Dokumentati on (+KNX)/Sicherhei tshinweise und Hinweise ( --> Für alle Dokumente <--)/W arnhinweise/Sicher heit - Niederspannungs- und 23 0 V-Leitungen @ 23\mod_13365588 68201_15.docx @ 209164 @ @ 1
Warning
Electric voltage!
Risk of death due to electrical voltage of 230 V during short-circuit in the low-voltage line.
– Low-voltage and 230 V lines must not be installed together in a flush-mounted socket!
Pos: 23 /#Neustruktur #/Online-Dokumentati on (+KNX)/Sicherhei tshinweise und Hinweise ( --> Für alle Dokumente <--)/W arnhinweise/Sicherhei t - Fachkenntnisse @ 23\mod_1336 559183027_15.docx @ 209179 @ 111 @ 1
5.1 Requirements for the electrician
Warning
Electric voltage!
Install the device only if you have the necessary electrical engineering knowledge and experience.
• Incorrect installation endangers your life and that of the user of the electrical system.
• Incorrect installation can cause serious damage to property, e.g. due to fire.
The minimum necessary expert knowledge and requirements for the installation are as follows:
• Apply the "five safety rules" (DIN VDE 0105, EN 50110):
1. Disconnect from power;
2. Secure against being re-connected;
3. Ensure there is no voltage;
4. Connect to earth and short-circuit;
5. Cover or barricade adjacent live parts.
• Use suitable personal protective clothing.
• Use only suitable tools and measuring devices.
• Check the supply network type (TN system, IT system, TT system) to secure the following
power supply conditions (classic connection to ground, protective earthing, necessary
additional measures, etc.).
Pos: 24 /#Neustruktur #/Online-Dokumentati on (+KNX)/Steuermodu le - Online -Dokumentation (--> Für alle Dokumente < --)/++++++++++++Seitenumbruch++++++++++++@ 9\mod_12688 98668093_0.doc x@ 52149 @ @ 1

Operating Instructions
Busch-AudioWorld®
Installation and electrical
connection
Operating Instructions | 1473-1-8313
— 7 —
Pos: 25 /#Neustruktur #/Online-Dokumentati on (+KNX)/Montage/a lle Geräte/Montagehin weise - Allgemein @ 33\mod_136084 6993155_15.doc x@ 277666 @ 2 @ 1
5.2 General mounting instructions
• Terminate all branches of the wiring system via a connected bus device (e.g., indoor station, outdoor station,
system device).
• Do not install the system controller directly next to the bell transformer and other power supplies (to avoid
interference).
• Do not install the lines of the system bus together with 230 V- lines.
• Do not use common cables for the connecting wires of the door openers and wires of the system bus.
• Avoid bridges between different cable types.
• Use only two wires for the system bus in a four-core or multi-core cable.
• When looping, never install the incoming and outgoing bus inside the same cable.
• Never install the internal and external bus inside the same cable.
Pos: 26 /#Neustruktur #/Online-Dokumentati on (+KNX)/Überschr iften (--> Für alle Dokumente <--)/ 2. Ebene/M - O/Montage @ 18\mod_130 2615960458_15.doc x@ 103424 @ 2222 @ 1
5.3 Mounting
Pos: 27 /#Neustruktur #/Online-Dokumentati on (+KNX)/Montage/a lle Geräte/Montage - Hutschi enen nach DIN EN 500022 - Ohne Doc variable @ 20\mod_1325766045140_1 5.docx @ 136603 @ @1
The MDRC must only be installed on mounting rails according to DIN EN 500022. The MDRC is latched onto the
mounting rail.
Pos: 28 /#Neustruktur #/Online-Dokumentati on (+KNX)/Steuermodu le - Online -Dokumentation (--> Für alle Dokumente < --)/++++++++++++Seitenumbruch++++++++++++@ 9\mod_12688 98668093_0.doc x@ 52149 @ @ 1

Operating Instructions
Busch-AudioWorld®
Installation and electrical
connection
Operating Instructions | 1473-1-8313
— 8 —
Pos: 29 /#Neustruktur #/Online-Dokumentati on (+KNX)/Überschr iften (--> Für alle Dokumente <--)/ 2. Ebene/A - F/Elektrischer Anschluss @ 21\mod_1328177 051724_15.doc x@ 138042 @ 23322 @ 1
5.4 Electrical connection
Pos: 30 /#Neustruktur #/Online-Dokumentation (+KNX)/ Überschriften ( -->F ür alle Dokumente <--)/3. Ebene/A - F /Anschlussklemmen und LED -Anzeigen @ 33\mod_136076636322 1_15.docx @ 277573 @ 233 @ 1

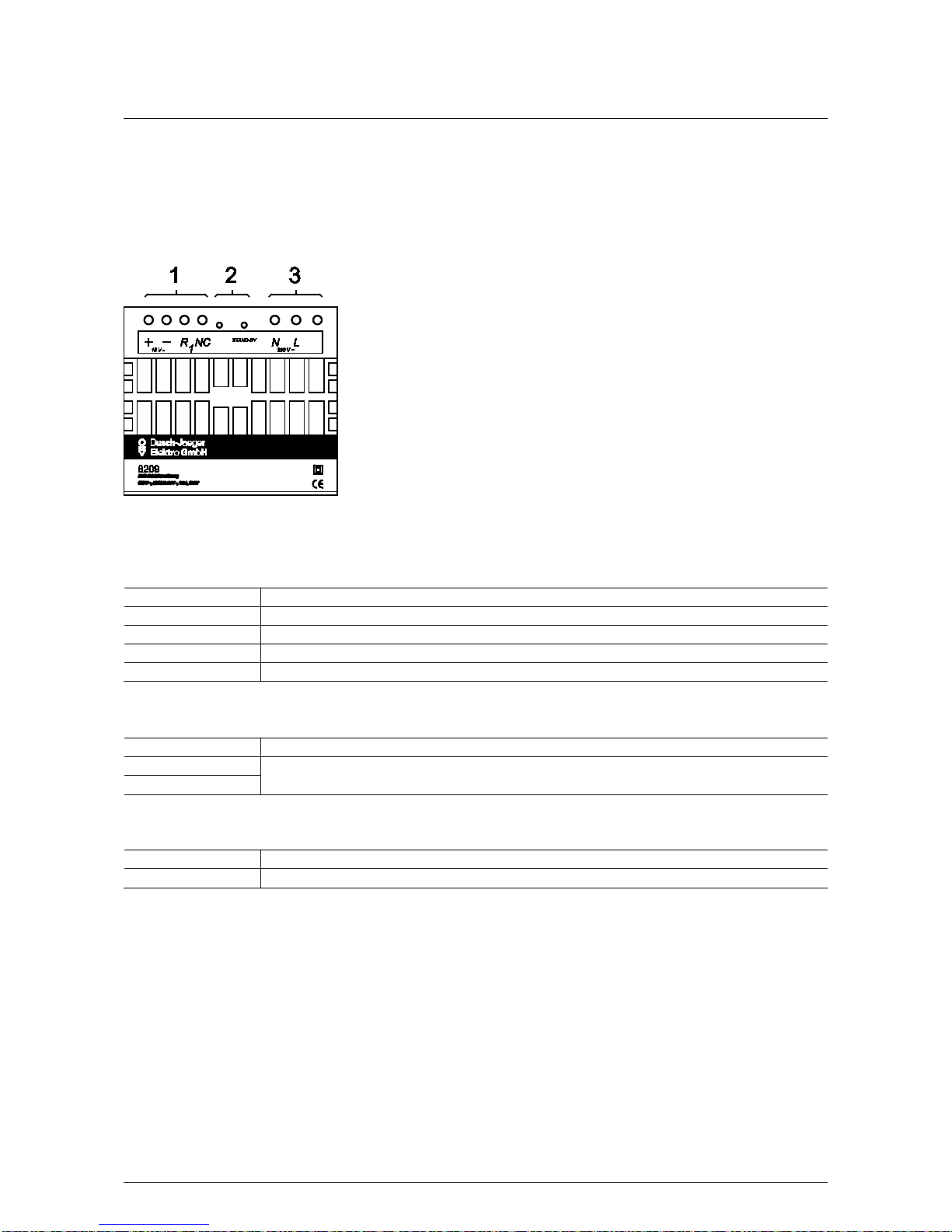

5.4.1 Connecting terminals and LED displays
Pos: 31 /#Neustruktur #/Online-Dokumentati on (+KNX)/Anschluss/A udioVideo/Ansch luss - 8209 @ 22\mod_1332489475074_ 15.docx @ 205553 @ @ 1
Fig. 1: Connecting terminals
1 System bus | 2LED displays | 3Power supply
System bus
No. Assignment
+ (15 V - )
- (15 V - )
R
1
Right channel
NC Not occupied
Power supply
No. Assignment
N 230 V AC, ±10%, 50 / 60 Hz
L
LED displays
Designation
Assignment
STANDBY The device is in muting mode; this mode is activated by the first amplifier.
Pos: 32 /#Neustruktur #/Online-Dokumentati on (+KNX)/Steuermodu le - Online -Dokumentation (--> Für alle Dokumente < --)/++++++++++++Seitenumbruch++++++++++++@ 9\mod_12688 98668093_0.doc x@ 52149 @ @ 1

Operating Instructions
Busch-AudioWorld®
Installation and electrical
connection
Operating Instructions | 1473-1-8313
— 9 —
Pos: 33 /#Neustruktur #/Online-Dokumentati on (+KNX)/Anschluss/Au dioVideo/Insta llations-/ Anschlussm öglichkeiten - 8209 @ 33\mod_1360766 249549_15.docx @ 277556 @ 3 @ 1

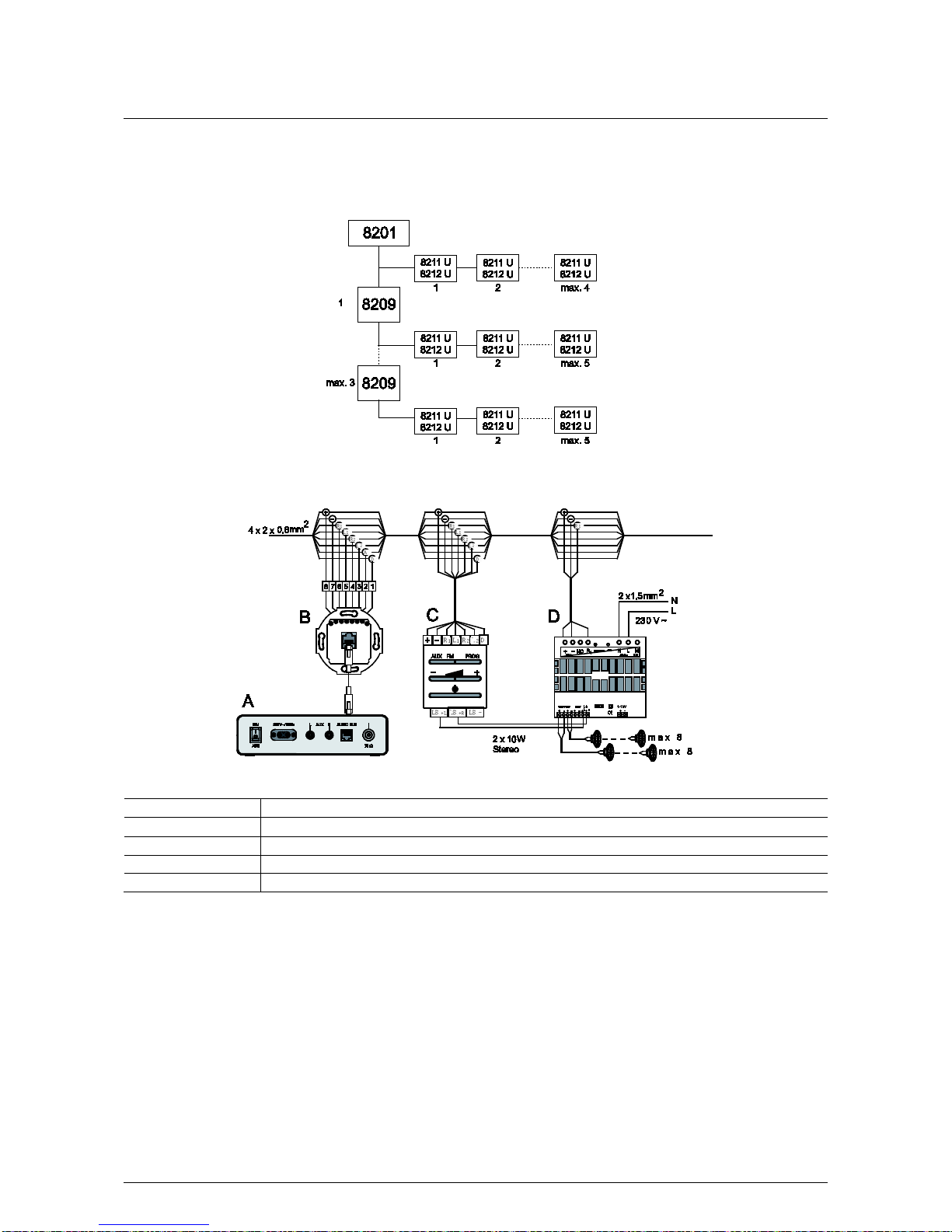

5.4.2 Installation / connection possibilities
Fig. 2: Circuit diagram
Fig. 3: Installations / connection possibilities
Devices
A 8201 / 8202
B 0213
C 8211 U
D 8208

Operating Instructions
Busch-AudioWorld®
Installation and electrical
connection
Operating Instructions | 1473-1-8313
— 10 —
Fig. 4: Installations / connection possibilities
Devices
A 8210 U
B 8208
C Potentiometer 2112 / 6550
=== Ende der Liste für Te xtmarke Content ===
