ABB M4M 30 User manual

M4M 30 User manual 2CSG445042D0201
Network Analyzer
M4M 30
User manual

M4M 30 NETWORK ANALYZER USER MANUAL 3
Table of Contents
1.General information..............................................................................................5
1.1.Use and storage of the manual.............................................................................5
1.2.Copyright ..................................................................................................................5
1.3.Liability disclaimer..................................................................................................5
1.4.General safety warnings ........................................................................................5
1.5.Cyber Security Disclaimer......................................................................................6
2.Packaging contents.............................................................................................. 7
3.Technical characteristics .....................................................................................8
3.1.Description of the device ......................................................................................8
3.2.Main functionalities................................................................................................8
3.3.Versions.....................................................................................................................9
3.4.Overall dimensions .................................................................................................9
3.5.Technical data ........................................................................................................10
4.Installation .......................................................................................................... 13

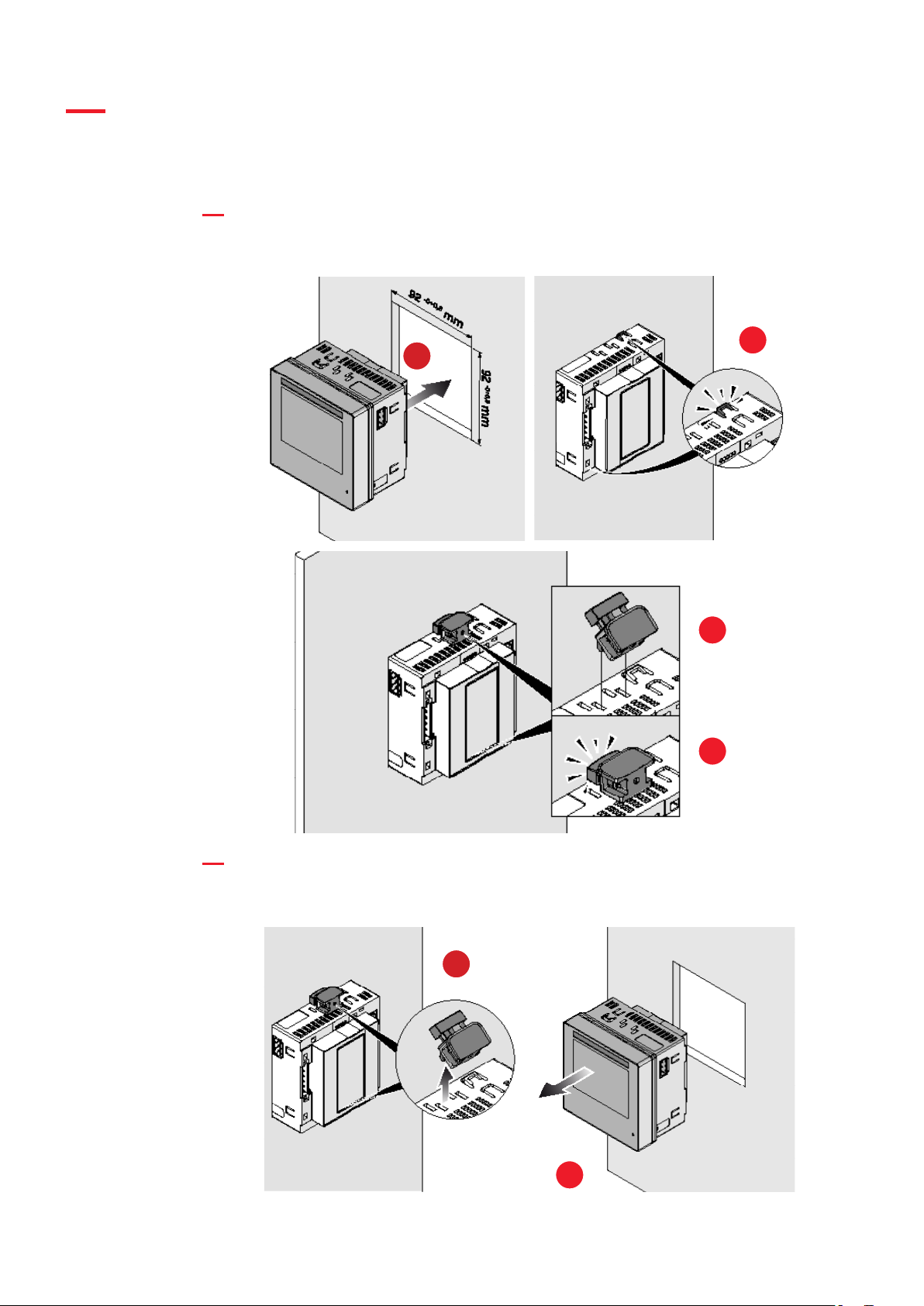

4.1.Assembly................................................................................................................. 13
4.2.Disassembly........................................................................................................... 13
4.3.Wiring diagrams....................................................................................................14
5.Access to device .................................................................................................20
5.1.Homepage ............................................................................................................. 20
5.2.Navigation symbols ............................................................................................. 21
5.3.Notification icons ................................................................................................. 21
5.4.Overview of menu pages.....................................................................................22
5.5.Data entry...............................................................................................................23
5.6.Favourite page ......................................................................................................25
6.First commissioning ..........................................................................................26
6.1.Language ................................................................................................................26
6.2.Password for the first use...................................................................................26
6.3.Date and time ........................................................................................................27
6.4.Type of network ....................................................................................................27
6.5.CT ratio ...................................................................................................................28
6.6.VT ratio .................................................................................................................. 30
7.Configuration ...................................................................................................... 31
7.1.Unit ........................................................................................................................... 31
7.2.Installation..............................................................................................................35
7.3.Historicals.............................................................................................................. 38

4M4M 30 NETWORK ANALYZER USER MANUAL
7.4.Input / output ...................................................................................................... 48
7.5.Alarms..................................................................................................................... 50
7.6.Complex alarms .....................................................................................................51
7.7.Tariffs .......................................................................................................................52
7.8.Communication .................................................................................................... 54
7.9.Other settings........................................................................................................57
8.Data Reading.......................................................................................................60
8.1.Realtime ..................................................................................................................61
8.2.Energy .....................................................................................................................62
8.3.Power Quality ....................................................................................................... 64
8.4.Average.................................................................................................................. 65
8.5.Min Value .............................................................................................................. 66
8.6.Max Value ..............................................................................................................67
8.7.I/O ........................................................................................................................... 68
8.8.Notifications ........................................................................................................ 69
8.9.Timers .................................................................................................................... 71
9.Historicals ........................................................................................................... 72
9.1.Load profile ............................................................................................................72
9.2.Max/min demand .................................................................................................73
9.3.Energy Snapshots.................................................................................................73
9.4.Energy Trend .........................................................................................................74
10.Graphs ................................................................................................................75
10.1.Realtime.................................................................................................................76
10.2.Waveforms ............................................................................................................77
10.3.Harmonics ............................................................................................................79
10.4.Phasors .................................................................................................................81

M4M 30 NETWORK ANALYZER USER MANUAL 5
1.General information
1.1.Use and storage of the manual
Carefully read this manual and adhere to the indications described prior to using the device.
This manual contains all of the safety information, the technical aspects and the operations necessary to
ensure the correct use of the device and maintain it in safe conditions.
1.2.Copyright
The copyright of this manual is the property of ABB S.p.A.
This manual contains texts, designs and illustrations of a technical nature which must not be disclosed or
transmitted to third parties, even partially, without the written authorisation of ABB S.p.A.
1.3.Liability disclaimer
The information contained in this document is subject to change without notice and cannot be
considered as an obligation by ABB S.p.A. ABB S.p.A. is not liable for any errors that may appear in this
document. ABB S.p.A. is not liable under any circumstances for any direct, indirect, special, incidental or
consequential damage of any kind that may arise from using this document. ABB S.p.A. is also not liable
for incidental or consequential damage that may arise from using the software or hardware mentioned in
this document.
1.4.General safety warnings
Non-adherence to the following points can lead to serious injury or death.
Use the suitable personal protection devices and adhere to the current regulations governing electrical
safety.
• This device must be installed exclusively by qualified personnel who have read all of the information relative
to the installation.
• Check that the voltage supply and measurement are compatible with the range permitted by the device.
• Ensure that all current and voltage supplies are disconnected prior to carrying out any controls, visual
inspections and tests on the device.
• Always assume that all circuits are under voltage until they are completely disconnected, subjected to tests
and labelled.
• Disconnect all of the power supply prior to working on the device.
• Always use a suitable voltage detection device to check that the supply is interrupted.
• Pay attention to any dangers and carefully check the work area ensuring that no instruments or foreign
objects have been left inside the compartment in which the device is housed.
• The correct use of this device depends on a correct manipulation, installation and use.hdfh
• Failure to adhere to the basic installation information can lead to injuries as well as damage to the electric
instruments or to any other product.
• NEVER connect an external fuse in by-pass.
• Disconnect all of the input and output wires before carrying out a dielectric rigidity test or an insulation test
on an instrument in which the device is installed.
• The tests carried out at a high voltage can damage the device’s electronic components.
• The device has to be installed inside a switchboard.
• Installation of M4M shall include a switch or circuit breaker for the connection of auxiliary supply and voltage
measurement. The switch or circuit breaker must be suitably located and easily reachable and must be
marked as the disconnecting device for M4M.
• Switch off circuit breaker or switch before disconnecting from the auxiliary supply and voltage
measurement or connecting to the auxiliary supply or voltage measurement.

6M4M 30 NETWORK ANALYZER USER MANUAL
1.5.Cyber Security Disclaimer
M4M 30 network analyzer is designed to be connected and to communicate information and data via
a network interface, which should be connected to a secure network. It is your sole responsibility to
provide and continuously ensure a secure connection between the product and your network or any
other network (as the case may be) and to establish and maintain appropriate measures (such as but
not limited to the installation of firewalls, application of authentication measures, encryption of data,
installation of antivirus programs, etc.) to protect the M4M 30 network analyzer product, the network, its
system and interfaces against any kind of security breaches, unauthorized access, interference, intrusion,
leakage and/or theft of data or information. ABB S.p.A. and its affiliates are not liable for damages and/
or losses related to such security breaches, unauthorized access, interference, intrusion, leakage and/or
theft of data or information.
Although ABB S.p.A. provides functionality testing on the products and updates that we release, you
should institute your own testing program for any product updates or other major system updates (to
include but not limited to code changes, configuration file changes, third party software updates or
patches, hardware change out, etc.) to ensure that the security measures that you have implemented
have not been compromised and system functionality in your environment is as expected.

M4M 30 NETWORK ANALYZER USER MANUAL 7
2.Packaging contents
Packaging contents
1 Network analyzer M4M 30
2 Installation manual
3 Calibration certificate
4 Installation accessories (removable terminals, fixing clips)
The number and type of removable terminals in the package varies according to the different versions.
Please refer to below table to check the removable terminals included in each package.
Product
Name
Current input
terminal
(8 poles)
Voltage input
terminal
(4 poles)
Auxiliary supply
terminal
(2 poles)
Programmable
I/O terminal n.1
(5 poles)
Programmable
I/O terminal n.2
(3 poles)
Analogue
outputs terminal
(3 poles)
RS485 terminal
(3 poles)
M4M 30
MODBUS X X X X - - X
M4M 30
ETHERNET X X X X - - -
M4M 30
PROFIBUS X X X X - - -
M4M 30 I/O X X X X X X X
M4M 30
BACNET X X X X - - -
M4M 30
ROGOWSKI - X X X - - X
Please notice that terminals for current input on M4M 30 Rogowski are pre-wired on ABB’s R4M
Rogowski coils
1
4
4
2
3

8M4M 30 NETWORK ANALYZER USER MANUAL
3.Technical characteristics
3.1.Description of the device
M4M 30 is ABB’s network analyzer range that allows complete power quality analysis and energy
efficiency evaluations.
All M4M 30 network analyzers are equipped with touchscreen color display for simplified access to the
device and with Bluetooth module for smart commissioning.
3.2.Main functionalities
Real-time
TRMS current •
TRMS Voltage •
Frequency •
Active, Reactive and Apparent Power •
Power Factor •
Operating timer, countdown timer •
Energy
Active, Reactive and Apparent Energy •
4 quadrant Energy (Import/Export) •
Tariffs •
Power quality
THD (I, VLN, VLL) •
Individual Harmonics 40th
Unbalances (I, VLN, VLL) •
Neutral current Measured
Phasors (I, VLN) •
Waveforms (I, VLN, VLL) •
Data recording and logs
Single alarms 25
Warnings, alarms and errors logs •
Complex alarms with logics 4
Demand values (average) Advanced
Min/Max Demand values Advanced
Energy Trending logs •
RTC •
HMI
Graphs visualization Advanced
Notifications •
Homepage and favourite page •
Password protection •
Connectivity
Automatic integration in ABB Ability™ EDCS •
Bluetooth Low Energy •
Communication Protocols Modbus RTU, Modbus TCP/IP,
Profibus DP-V0, BACnet/IP
RJ45 Daisy Chain (Ethernet version) •

M4M 30 NETWORK ANALYZER USER MANUAL 9
3.3.Versions
Product Name I/O Communication protocol
M4M 30 MODBUS 4 programmable I/O Modbus RTU, Bluetooth
M4M 30 ETHERNET 4 programmable I/O Modbus TCP/IP, Bluetooth
M4M 30 PROFIBUS 4 programmable I/O Profibus DP-V0, Bluetooth
M4M 30 I/O 6 programmable I/O,
2 analogue outputs
Modbus RTU, Bluetooth
M4M 30 ROGOWSKI 4 programmable I/O Modbus RTU, Bluetooth
M4M 30 BACNET 4 programmable I/O BACnet/IP, Bluetooth
3.4.Overall dimensions
*with terminal.
IEC 61554

10 M4M 30 NETWORK ANALYZER USER MANUAL
3.5.Technical data
Auxiliary power supply
Voltage range [V] 48 to 240 VAC/VDC ±15%
Frequency [Hz] 50/60 Hz ±5%
Power Consumption [VA] 10 VA max
Installation category CAT III 300V class per IEC 61010-1 edition 3
Protection fuse T1 A - 277 VAC
Measurement accuracy*
Measurement type True RMS up to the 40th harmonic
128 samples per cycle, zero blind
IEC 61557-12 IEC 61557-12 PMD/S/K70/0,5
Active energy Class 0,5 acc. to IEC 61557-12
Class 0,5S acc. to IEC 62053-22
Reactive energy Class 2 acc. to IEC 61557-12
Class 2S acc. to IEC 62053-23
Active power Class 0,5 acc. to IEC 61557-12
Reactive power Class 1 acc. to IEC 61557-12
Apparent power Class 0,5 acc. to IEC 61557-12
Voltage Class 0,2 acc. to IEC 61557-12
Current Class 0,2 acc. to IEC 61557-12
Neutral current Class 0,2 acc. to IEC 61557-12
Frequency Class 0,1 acc. to IEC 61557-12
Unbalances Class 0,2 acc. to IEC 61557-12
Harmonics, THD (Current, voltage) Class 1 acc. to IEC 61557-12
*Accuracy referred to insertion with .../5A CT or Rogowski coils. Derating for .../1A CT.
Voltage measurement inputs
Measurement range [V] 50 - 400 VAC (L-N) 87 - 690 VAC (L-L)
Measurement category 400V~ (CAT III)
Rated frequency [Hz] 50-60 Hz
Max. VT secondary (indirect connection) [V] 400 VAC (L-N)
Max over voltage [V] 800 VAC (L-L)
Protection fuse T1 A - 277 VAC
Current measurement inputs
Number of current inputs 4 (L1, L2, L3, N)
Indirect insertion with CT
CT secondary 5 A (Class 0.5S)
1 A (Class 1)
Measurement range without accuracy derating 50 mA - 6 A
Starting current 5 mA
Burden 0.024 VA at 6 A
Indirect insertion with Rogowski coils (only M4M 30 Rogowski)
Rated current 10000 A
Measurement range without accuracy derating 100 A - 12 kA
Starting current 10 A

M4M 30 NETWORK ANALYZER USER MANUAL 11
I/O
Digital Output
Voltage (min - max) 5 - 240 VAC/DC
Current (min - max) 2 - 100 mA
Max ON state drop voltage 1,5 V
Max R value at Min voltage conditions (5 V) 1750 Ohm
Min R value at Max voltage conditions (240 V) 2400 Ohm
Pulse duration [ms] 20 ms ON, 20 ms OFF
Pulse frequency 25 Hz
Alarm activation delay [s] 1 - 900 s (programmable)
Alarm return hysteresis 0 - 40% (programmable)
Digital Input
Maximum Voltage 240 VAC/DC
Max voltage for OFF state on input 20 VAC/DC
Min voltage for ON state on input 45 VAC/DC
Analogue Output
Programmable electrical parameters Span [0 - 20 mA or 4 - 20 mA]
Load Typical 250 Ohm, max 500 Ohm
Mechanical characteristics
Overall dimensions 96 mm x 96 mm x 77,5 mm
(Depth inside the switchboard: 57mm )
IP degree of protection (IEC 60529) Front: IP54
Terminals: IP20
Weight [g] 400
Terminal characteristics
Voltage inputs
Nominal cross section: 2,5 mm
2
Solid/stranded wire: 0,2 - 2,5 mm
2
(AWG 24 - 12)
Pitch: 7,62 mm
Poles: 4
Current inputs
Nominal cross section: 2,5 mm
2
Solid/stranded wire: 0,2 - 2,5 mm
2
(AWG 24 - 12)
Pitch: 5,08 mm
Poles: 8
Screw flanges for fixing
RS-485 Serial port
Nominal cross section: 2,5 mm
2
Solid/stranded wire: 0,2 - 2,5 mm
2
(AWG 24 - 12)
Pitch: 5,08 mm
Poles: 3
I/O
Nominal cross section: 2,5 mm
2
Solid/stranded wire: 0,2 - 2,5 mm
2
(AWG 24 - 12)
Pitch: 5,08 mm
Poles: 5 (Programmable I/O)
Poles: 3 (Programmable I/O only on M4M 30
I/O)
Poles: 3 (Analogue outputs, only on M4M 30 I/O)
Rogowski current probes
Only with ABB Rogowski probes:
- R4M-200: 200 mm diameter (2CSG202150R1101)
-R4M-80: 80 mm diameter (2CSG202160R1101)

12 M4M 30 NETWORK ANALYZER USER MANUAL
Climatic conditions
Operating temperature -25 to 70 °C (K70 acc. to IEC 61557-12)
Storage temperature -40 to 85 °C (K70 acc. to IEC 61557-12)
Relative humidity Max 93% (non-condensing) at 40°C
Pollution degree 2
Altitude < 2000 m
User Interface
Access to device Touchscreen
Display type Graphic color display
Display dimensions 70 x 52 mm (3.5")
Communication protocol
Modbus RTU M4M 30 Modbus, M4M 30 I/O, M4M 30 Rogowski
Communication interface RS485 with optical isolation
Baud rate 9.6, 19.2, 38.4, 57.6, 115.2 kbps
Parity number Odd, Even, None
Stop bit 1, 2
Address 1-247
Connector 3 pole terminal
Profibus DP-V0 M4M 30 Profibus
Protocol Profibus with slave DP-V0 function in
compliance with IEC 61158 regulations
Communication interface RS485 with optical isolation
Baud rate Automatic detection [9.6 - 12 Mbps]
Address 0-126
Connector DB 9 female connector (do not use connectors
with 90° cable outlet)
LED indicators Green for communication status
Red for communication error
Modbus TCP/IP M4M 30 Ethernet
Protocol Modbus TCP/IP
Communication interface RJ45 (2 ports for daisy-chain feature)
BACnet M4M 30 Bacnet
Protocol BACnet/IP
Communication interface RJ45
Bluetooth
Type BLE (Bluetooth Low Energy)
Real-time clock
Clock drift ~ 0.4 seconds per day
Battery backup time ~ 3 years without control power
Standards
Power metering and monitoring devices (PMD) IEC 61557-12 (IEC 62053-22, IEC 62053-23)
Electrical safety IEC 61010-1
EMC
IEC 61326-1 (IEC 61000-3-2, IEC 61000-3-3, IEC
61000-4-2, IEC 61000-4-3, IEC 61000-4-
4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8,
IEC 61000-4-11)

M4M 30 NETWORK ANALYZER USER MANUAL 13
4.Installation
4.1.Assembly
4.2.Disassembly
12
3
4
1
2

14 M4M 30 NETWORK ANALYZER USER MANUAL
4.3.Wiring diagrams
The operations to carry out for the correct connection of the device, based on the type of electric line
available, are described in this section.
The installation and the cabling of the device must be carried out by qualified personnel.
Danger of electrocution, burning and electric arc.
Use the personal protection devices suitable to adhere to the current regulations governing electrical safety.
Prior to carrying out any connections check the sectioning of the electric supply with the voltage detection
device.
• M4M 30 MODBUS connection
• M4M 30 ETHERNET connection
• M4M 30 PROFIBUS connection

M4M 30 NETWORK ANALYZER USER MANUAL 15
• M4M 30 I/O connection
• M4M 30 BACNET connection
• M4M 30 ROGOWSKI connection

16 M4M 30 NETWORK ANALYZER USER MANUAL
Wiring diagrams - M4M 30 Modbus, M4M 30 Ethernet, M4M 30 I/O, M4M 30 Profibus, M4M 30 Bacnet
The M4M 30 can be used on different type of network (please refer to chapter “” for the configuration on
the device).
According to the type of network that has been chosen, the parameters visualized on the device HMI
change.
Below the wiring diagrams for M4M 30 working with CT .../5A or .../1A (M4M 30 Modbus, M4M 30
Ethernet, M4M 30 I/O, M4M 30 Profibus, M4M 30 Bacnet) are shown:
• 3-phase 4-wire network with 4CTs
• 3-phase 4-wire network with 3CTs
• 3-phase 4-wire network with 1CT
• 3-phase 3-wire network with 1CT
• 3-phase 3-wire network with 3CTs

M4M 30 NETWORK ANALYZER USER MANUAL 17
• 3-phase 3-wire network with 2CTs
• 2-phase 3-wire network with 2CTs
• 1-phase 2-wire network with 1CT
Wiring diagrams - M4M 30 Rogowski
Below the wiring diagrams for M4M 30 working with Rogowski coils are shown:
• 3-phase 4-wire network with 4RogCTs
• 3-phase 4-wire network with 3RogCTs

18 M4M 30 NETWORK ANALYZER USER MANUAL
• 2-phase 3-wire network with 2RogCTs
• 3-phase 3-wire network with 3RogCTs
• 3-phase 3-wire network with 2RogCTs
• 3-phase 4-wire network with 1RogCT
• 1-phase 2-wire network with 1RogCT
• 3-phase 3-wire network with 1RogCT

M4M 30 NETWORK ANALYZER USER MANUAL 19
Inputs and outputs connections
• Programmable I/O: Alarm output with external relays for load command. Example of wiring for I/O1 as
alarm output, COM is common for all I/O:
A: V aux 48 V a.c./d.c. 100mA
B: External relay
• Programmable I/O: Pulse output. Example of wiring for I/O1 as pulse output, COM is common for all
I/O:
A: V aux 48 V a.c./d.c. 100mA
C: Pulse acquisition
• Programmable I/O: Tariff input. Please note that only I/O1, I/O2, I/O3 can be used as tariff inputs.
Example of wiring for I/O1 as tariff input, COM is common for all I/O:
A: 24-240VDC / 57-240VAC
B: Tariff acquisition
• Programmable I/O: Pulse input for external pulse acquisition. Example of wiring for I/O1 as pulse input,
COM is common for all I/O:
A: 24-240VDC / 57-240VAC
B: Pulse acquisition (Impulse length at least 30 mS )
Same wiring schemes apply for I/O5 and I/O6 available only on M4M 30 I/O.
• Analogue outputs, typical load 250 Ohm, max 500 Ohm (available only on M4M 30 I/O):

20 M4M 30 NETWORK ANALYZER USER MANUAL
5.Access to device
5.1.Homepage
The device menu is divided into four sections.
Menu Description
Graphs Graphical representation of the main measured parameters.
Data reading Reading of the main measured parameters.
Historicals Reading of the measured parameters recorded in the flash memory.
Configuration
Setup of the device.
