Introduction to the manual
Contents of this manual
This chapter gives basic information on the manual.
Applicability
This manual is applicable with ACS880-7407LC semiconductor switch units.
Safety instructions
Obey all safety instructions delivered with the drive.
•Read the complete safety instructions before you install, commission, use or service
the drive. The complete safety instructions are given in ACS880 liquid-cooled multidrive
cabinets and modules safety instructions (3AXD50000048633 [English]).
•Read the software-function-specific warnings and notes before changing the default
settings of a function. For each function, the warnings and notes are given in the section
describing the related user-adjustable parameters.
•Read the task-specific safety instructions before starting the task. See the section
describing the task.
Target audience
This manual is intended for people who plan the installation, install, start-up and do
maintenance work on the drive, or create instructions for the end user of the drive concerning
the installation and maintenance of the drive.
Read the manual before working on the drive. You are expected to know the fundamentals
of electricity, wiring, electrical components and electrical schematic symbols.
1
Introduction to the manual 9
Categorization by option code
The option code (option +A123) identifies information which concerns only a certain optional
selection. The options included in the unit are listed on the type designation label.
Use of component designations
Some device names in the manual include the item designation in brackets, for example
[Q20], to make it possible to identify the components in the circuit diagrams of the drive.
Terms and abbreviations
DescriptionTerm
Inverter module(s) under control of one control unit, and related components. One
inverter unit typically controls one motor.
Inverter unit
Drive for controlling several motors which are typically coupled to the same machinery.
Includes one supply unit, and one or several inverter units.
Multidrive
Unit equipped with a DC breaker switch for the drive DC bus short circuit protectionSemiconductor switch
unit
Supply module(s) under control of one control unit, and related components.Supply unit
Related manuals
￭Related drive manuals
CodeManual
General manuals
3AXD50000048633
ACS880 liquid-cooled multidrive cabinets and modules safety instructions
3AXD50000048634
ACS880 liquid-cooled multidrive cabinets and modules electrical planning instructions
3AXD50000048635
ACS880 liquid-cooled multidrive cabinets mechanical installation instructions
3AXD50000126880
CIO-01 I/O module for distributed I/O bus control user's manual
Supply unit manuals
3AXD50000174782
ACS880-207LC IGBT supply units hardware manual
3AUA0000131562
ACS880 IGBT supply control program firmware manual
3AXD50000579662
ACS880-307LC…+A018 diode supply units hardware manual
3AUA0000103295
ACS880 diode supply control program firmware manual
Inverter unit manuals
3AXD50000196111
ACS880-107LC inverter units hardware manual
3AUA0000085967
ACS880 primary control program firmware manual
3AUA0000098062
ACS880 primary control program quick start-up guide
Manuals for application programs (Crane, Winder, etc.)
Brake unit and other DC unit manuals
3AXD50000481491
ACS880-607LC 1-phase brake units hardware manual
3AXD50000581627
ACS880-607LC 3-phase dynamic brake units hardware manual
3AXD50000020967
ACS880 (3-phase) brake control program firmware manual
3AXD50000431342
ACS880-1607LC DC/DC converter units hardware manual
3AXD50000024671
ACS880 DC/DC converter control program firmware manual
10 Introduction to the manual
CodeManual
3AXD50000752423
ACS880-7107LC DC feeder unit hardware manual
3AXD50000752430
ACS880-7207LC and -7307LC DC incoming units hardware manual
3AXD50000738984
ACS880-7407LC semiconductor switch unit hardware manual
Option manuals
3AXD50000129607
ACS880-1007LC liquid cooling unit user's manual
3AUA0000085685
ACS-AP-x assistant control panels user’s manual
3AUA0000094606
Drive composer start-up and maintenance PC tool user’s manual
3AXD50000210268
Converter module lifting device for drive cabinets hardware manual
Manuals for I/O extension modules, fieldbus adapters, safety options etc.
You can find manuals on the Internet. See www.abb.com/drives/documents. For manuals
not available in the document library, contact your local ABB representative.
￭Related DC breaker switch manuals
The related DC breaker switch manuals are available from Astrol Electronics AG
www.astrol.ch:
•User's manual (AD-10811-020)
•Astrol Maintenance Plan (AD-10811-041).
Introduction to the manual 11
12
Operation principle and hardware
description
Contents of this chapter
This chapter describes the intended use and construction of the semiconductor switch unit
ACS880-7407LC. The chapter also presents the type designation label and the type code.
Operation principle
The semiconductor switch unit protects the drive DC bus in a short-circuit situation. The
main component is a semiconductor DC breaker switch. The DC breaker switch breaks the
DC bus when it detects a fault current. This limits the current efficiently and rapidly due to
semiconductor technology. The DC breaker switch can be connected either to the DC+ or
DC- busbar.
•If it is necessary to break the fault current in both poles, it is possible to add two units (and
DC breaker switches) into the system, one connected to DC+ busbar and the other to DC-
busbar.
•Liquid-cooled
•Bidirectional functionality
•Three sizes
•When necessary, the unit can be equipped with fuses for backup protection (option +F260).
Refer to the appropriate requirements, such as, for example, the rule requirements of the
relevant classification society in case of marine projects.
•If isolation is required in addition to the short circuit and overload protection, it is possible
to combine the semiconductor switch unit with the DC incoming unit (ACS880-7207LC or
ACS880-7307LC).
2
Operation principle and hardware description 13
•The unit operates independently and does not require any external control system.
•The unit provides interfaces to external control systems for monitoring,
interlocking/triggering and configuration purposes.

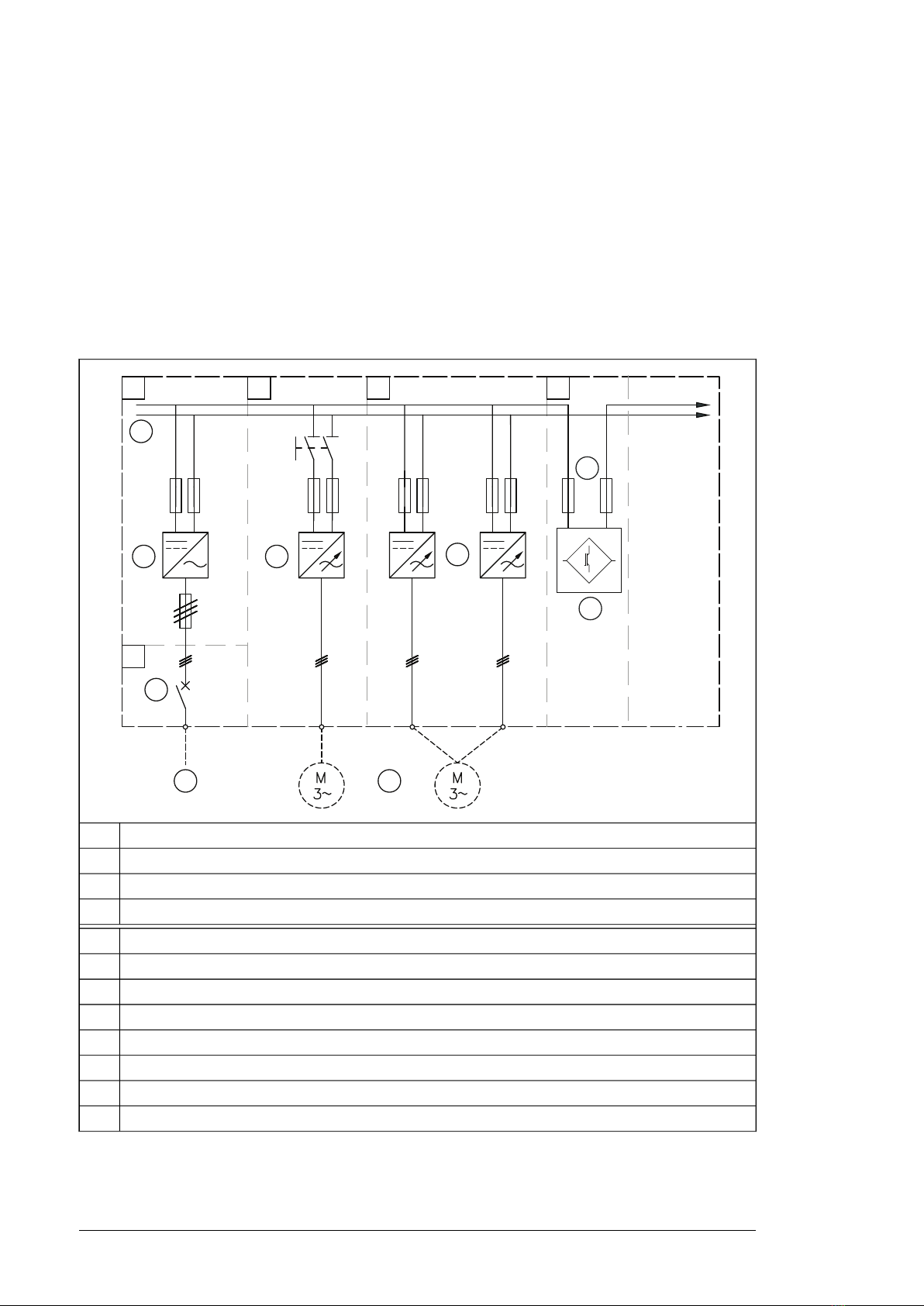

Overview diagram of the drive system
This diagram shows an example multidrive. The supply unit connects the drive to the AC
supply network, and converts the voltage to DC. The DC bus distributes DC voltage to the
inverter units and other units that are optionally included in the delivery, such as a
semiconductor switch unit.
1
3
4
55
6
2
A
B C C D
7
8
Incoming unitA
Supply unitB
Inverter unitC
Semiconductor switch unitD
AC supply1
Main breaker, or main contactor and main switch-disconnector2
Supply module3
DC bus4
Inverter modules5
Motor(s) (acquired by user)6
DC breaker switch7
Backup DC fuses for the semiconductor switch unit (option +F260)8
14 Operation principle and hardware description
Overview diagram of the semiconductor switch unit
2
DC+ DC+
DC- DC-
1
2
+ +
- -
1
2
1
2
1
+
-
+
-
DC breaker switch:1
•On the left: DC+ busbar connection (default configuration, option +F322).
•On the middle: DC- busbar connection (option +F323).
•On the right: DC+ busbar connection and DC- busbar connection (option +F322 and F323).
•There are three unit sizes available: frames SS1, SSU2 and SSU3.
Fuses (option +F260)2
Operation principle and hardware description 15
Layout drawings

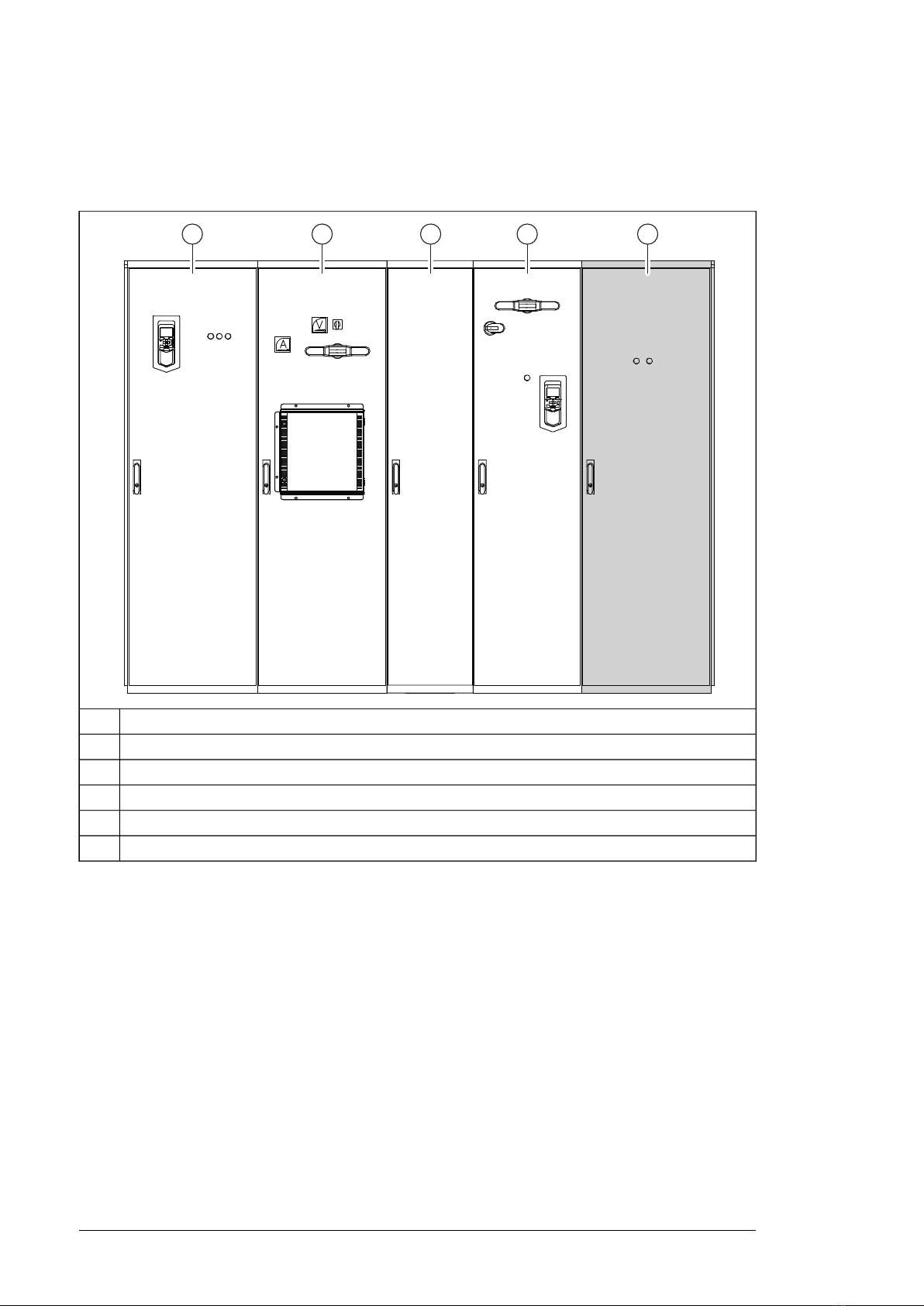

￭Layout of a drive system with a semiconductor switch unit
1 2 3 4 5
Auxiliary control cubicle1
Incoming cubicle (AC)2
Supply module cubicle3
Supply unit1…3
Inverter unit4
Semiconductor switch unit5
16 Operation principle and hardware description

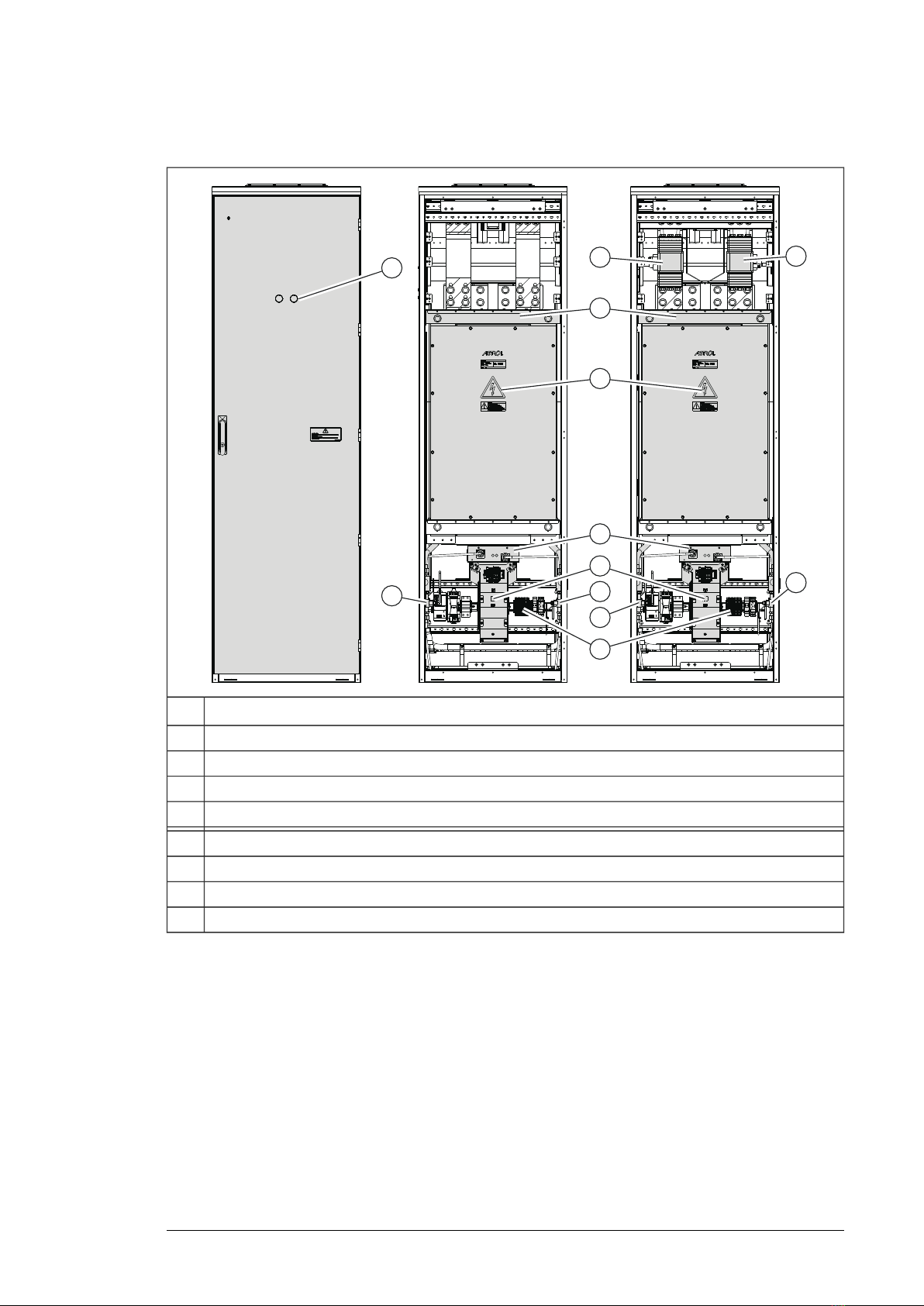

￭Layout of a semiconductor switch unit
1
4
5
2
7
8
3
9
6
6
9
5
Door devices. See Control of the semiconductor switch unit (page 18).
1
DC breaker switch [Q3]2
Terminal block for external control connections [X330]3
Modbus connector (Ethernet RJ485) [R3.1:X20] on the breaker control interface unit (behind the support)4
Backup fuses [F3.1, F3.2, option +F260]5
Cooling inlet manifold with stop and drain valves6
Heat exchanger7
Fan [G115.11]8
Cooling outlet manifold with stop and drain valves9
Operation principle and hardware description 17
Type designation label(s)
Each unit has a type designation label attached onto the inside of the cubicle door. The type
designation label includes the ratings, appropriate markings, a type designation and a serial
number of the unit. An example is shown below.
2
3
4
5
6
7
1ACS880-7407LC-1250A-7+A012+C121+F260
G300+G320+G330+H367
ABB Oy
Hiomotie 13
00380 Helsinki
Finland
Input U1
l1
f
U2
l2
f
S/N:
976 VDC
1250 A
-
976 VDC
1250 A
1190403889
-
Output
MADE IN FINLAND
SSU2
FRAME
IP42
Liquid cooling
Type designation1
Frame size2
Cooling system and other additional data3
Degree of protection4
Ratings5
Valid markings. See ACS880 liquid-cooled multidrive cabinets and modules electrical planning instruc-
tions (3AXD50000048634 [English]).
6
Serial number. The first digit of the serial number refers to the manufacturing plant. The next four digits
refer to the unit's manufacturing year and week, respectively. The remaining digits complete the serial
number so that there are no two units with the same number.
7
Operation principle and hardware description 19
Type designation key
Type designation describes the composition of the unit in short. The complete designation
code is divided in subcodes:
•The first digits form the basic code. It describes the basic construction of the unit. The
fields in the basic code are separated by hyphens.
•The plus codes (or option codes) follow the basic code. Each plus code starts with an
identifying letter (common for the whole product series), followed by descriptive digits.
The plus codes are separated by plus signs.
￭Basic code
The basic code is described in the table below for an example code
ACS880-7407LC-3000A-7.
DescriptionCode
Product seriesACS880
Product type. Liquid-cooled semiconductor switch unit.7407LC
Size. See technical data3000A
Voltage rating. 976 V DC. This is indicated in the type designation label as typical input voltage
levels 976 V DC.
7
￭Option codes
The table below lists the option codes.
DescriptionCode
50 Hz supply frequencyA012
60 Hz supply frequencyA013
IP42 (UL Type 1 Filtered)B054
IP54 (UL Type 12)B055
Marine constructionC121
Plinth height 100 mmC164
Door hinges on leftC176
Plinth height 200 mmC179
Marine product certification issued by DNV GLC205
Marine product certification issued by the American Bureau of Shipping (ABS)C206
Marine product certification issued by Lloyd's Register (LR)C207
Marine product certification issued by Bureau VeritasC209
Marine product certification issued by China Classification Society (CCS)C228
Marine product certification issued by Russian Maritime Register of Shipping (RS)C229
EMC/RFI filter for 2nd environment TN (grounded) or IT (ungrounded) system, category C3E210
Capability of ride-through in voltage break max. 3 s. without trippingF276
DC breaker switch connected to DC+ busbarF322
DC breaker switch connected to DC- busbarF323
Unit is equipped with back up fusesF260
20 Operation principle and hardware description
Table of contents
