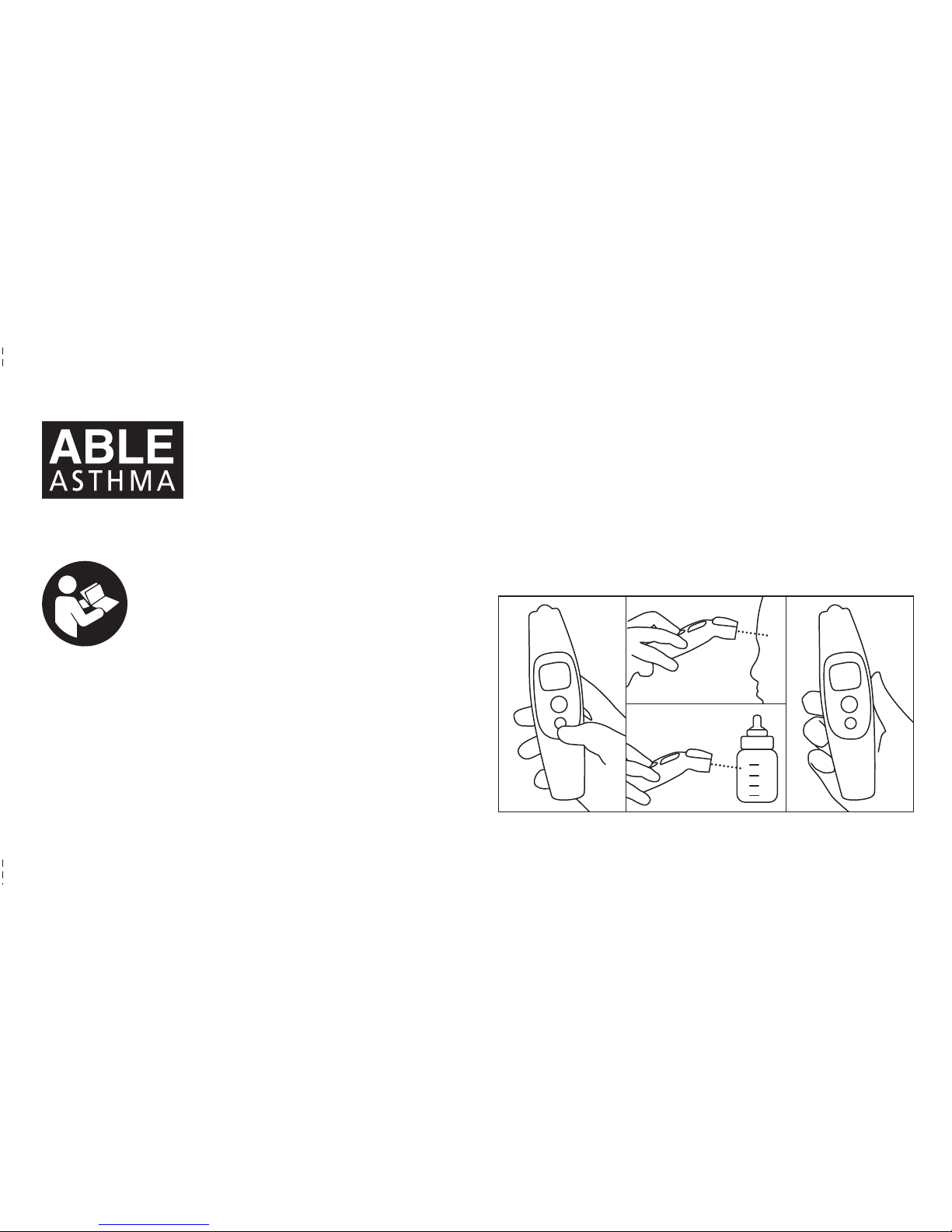

ABLE Asthma FR1MA1 User manual
Guarantee Card FR1MA1FR1MA1FR1MA1
Touchless
Forehead
Thermometer
Touchless
Forehead
Thermometer
Touchless
Forehead
Thermometer
123
≤5cm
≤5cm
30 data
memory
Alarm
beep
Light
Switchable
Multi-
functional
Mercury
free
Hg
0044
See our range at
ableasthma.com.au
Guarantee Card FR1MA1FR1MA1FR1MA1
Touchless
Forehead
Thermometer
Touchless
Forehead
Thermometer
Touchless
Forehead
Thermometer
123
≤5cm
≤5cm
30 data
memory
Alarm
beep
Light
Switchable
Multi-
functional
Mercury
free
Hg
0044
See our range at
ableasthma.com.au
Read the instruction manual carefully
before using this device, especially the
safety instructions, and keep the
instruction manual for future use.
Guarantee Card
Name of Purchaser
Serial Number
Date of Purchase
Specialist Dealer
Please register your product online at ableasthma.com.au/warranty
1
8
9
AT
AK
AL
AM
AN
AO
AP
AQ
AR
AS
2
Type BF applied part
This touchless thermometer is a high quality product incor-
porating the latest technology and tested in accordance
with international standards. With its unique technology,
this device can provide a stable, heat-interference-free
reading with each measurement. The device performs a
self-test every time it is switched on to always guarantee
the specified accuracy of any measurement.
This touchless thermometer is intended for the periodic
measurement and monitoring of human body temperature.
Please read through these instructions carefully in order for
you to understand all functions and safety information.
Touchless Forehead Thermometer
FR1MA1 FR1MA1
EN
1Measuring sensor
2Tracking light
3START button
4Display
5ON/OFF button
6Mode switch
7Battery compartment cover
8All segments displayed
9Memory
AT Ready for measuring
AK Measurement complete
AL Body mode
AM Object mode
AN Low battery indicator
AO Changing between Celsius and Fahrenheit
AP Recall mode
AQ Recall the last 30 readings
AR Measured temperature too high
AS Measured temperature too low
BT Ambient temperature too high
BK Ambient temperature too low
BL Error function display
BM Blank display
BN Flat battery
BO Replacing the battery
Keep dry
7 EN
13. Technical Specifications
This device complies with the requirements of the Medical
Device Directive 93/42/EEC. Technical alterations reserved.
According to the Medical Product User Act a biennial tech-
nical inspection is recommended for professional users.
Please observe the applicable disposal regulations.
Touchless Forehead Thermometer
Manufacturer: ONBO Electronic (Shenzhen) Co., Ltd.
No. 497 Ta Laneg Nan Road, Ta Laneg Street,
Longhua New District, Shenzhen, China
Registration owner and importer: WyMedical Pty Ltd
466 Fullarton Road, Myrtle Bank, South Australia 5064
Customer service: Australia 1800 812 097
Type:
Non Contact Thermometer FR1MA1
Measure-
ment range:
Body mode: 34.0-42.2 °C / 93.2-108.0 °F
Object mode: 0-100.0 °C / 32-212.0 °F
Resolution:
0.1 °C / °F
Measure-
ment accu-
racy:
Laboratory:
±0.2 °C, 36.0 – 39.0 °C
±0.4 °F, 96.8 – 102.2 °F
Display:
Liquid Crystal Display, 4 digits plus special
icons
Acoustic:
The unit is turned ON and ready for the
measurement: 1 short beep.
Complete the measurement: 1 long beep
(1 sec.) if the reading is less than 37.5 °C /
99.5 °F, 10 short «beep» sounds, if the
reading is equal to or greater than 37.5 °C /
99.5 °F.
System error or malfunction: 3 short «bi»
sounds.
Memory:
Auto-Display the last measured temperature
30 readings recall in the memory mode
Backlight:
The display light will be GREEN for
4 seconds, when the unit is turned ON.
The display light will be GREEN for 5
seconds, when a measurement is completed
with a reading less than 37.5 °C / 99.5 °F.
The display light will be RED for 5 seconds,
when a measurement is completed with a
reading equal to or higher than 37.5 °C /
99.5 °F.
Operating
conditions:
Body mode: 16-40.0 °C / 60.8-104.0 °F
Object mode: 5-40.0 °C / 41-104.0 °F
Storage
conditions:
-20 - +50 °C / -4 - +122 °F
15-95 % relative maximum humidity
Automatic
Switch-off:
Approx. 1 minute after last measurement
has been taken.
Battery:
2 x 1.5 V alkaline batteries; size AAA
Battery life-
time:
approx. 2000 measurements
(using new batteries)
Dimensions:
150 x 40 x 39 mm
Weight:
81 g (with batteries), 56 g (w/o batteries)
IP Class:
Reference to
standards:
ASTM E1965;
IEC 60601-1; IEC 60601-1-2 (EMC);
IEC 60601-1-11
Expected
service life:
5 years or 12000 measurements
This thermometer has been clinically tested and
proven to be safe and accurate when used in
accordance to the operating instruction manual.
IP21: Protected against solid foreign
objects of 12.5mm diameter and greater.
Protected against the ingress of vertically
falling water drops with the device
positioned on a turntable.
Read the instruction manual carefully
before using this device, especially the
safety instructions, and keep the
instruction manual for future use.
Guarantee Card
Name of Purchaser
Serial Number
Date of Purchase
Specialist Dealer
Please register your product online at ableasthma.com.au/warranty
1
8
9
AT
AK
AL
AM
AN
AO
AP
AQ
AR
AS
2
Type BF applied part
This touchless thermometer is a high quality product incor-
porating the latest technology and tested in accordance
with international standards. With its unique technology,
this device can provide a stable, heat-interference-free
reading with each measurement. The device performs a
self-test every time it is switched on to always guarantee
the specified accuracy of any measurement.
This touchless thermometer is intended for the periodic
measurement and monitoring of human body temperature.
Please read through these instructions carefully in order for
you to understand all functions and safety information.
Touchless Forehead Thermometer
FR1MA1 FR1MA1
EN
1Measuring sensor
2Tracking light
3START button
4Display
5ON/OFF button
6Mode switch
7Battery compartment cover
8All segments displayed
9Memory
AT Ready for measuring
AK Measurement complete
AL Body mode
AM Object mode
AN Low battery indicator
AO Changing between Celsius and Fahrenheit
AP Recall mode
AQ Recall the last 30 readings
AR Measured temperature too high
AS Measured temperature too low
BT Ambient temperature too high
BK Ambient temperature too low
BL Error function display
BM Blank display
BN Flat battery
BO Replacing the battery
Keep dry
7 EN
13. Technical Specifications
This device complies with the requirements of the Medical
Device Directive 93/42/EEC. Technical alterations reserved.
According to the Medical Product User Act a biennial tech-
nical inspection is recommended for professional users.
Please observe the applicable disposal regulations.
Touchless Forehead Thermometer
Manufacturer: ONBO Electronic (Shenzhen) Co., Ltd.
No. 497 Ta Laneg Nan Road, Ta Laneg Street,
Longhua New District, Shenzhen, China
Registration owner and importer: WyMedical Pty Ltd
466 Fullarton Road, Myrtle Bank, South Australia 5064
Customer service: Australia 1800 812 097
Type:
Non Contact Thermometer FR1MA1
Measure-
ment range:
Body mode: 34.0-42.2 °C / 93.2-108.0 °F
Object mode: 0-100.0 °C / 32-212.0 °F
Resolution:
0.1 °C / °F
Measure-
ment accu-
racy:
Laboratory:
±0.2 °C, 36.0 – 39.0 °C
±0.4 °F, 96.8 – 102.2 °F
Display:
Liquid Crystal Display, 4 digits plus special
icons
Acoustic:
The unit is turned ON and ready for the
measurement: 1 short beep.
Complete the measurement: 1 long beep
(1 sec.) if the reading is less than 37.5 °C /
99.5 °F, 10 short «beep» sounds, if the
reading is equal to or greater than 37.5 °C /
99.5 °F.
System error or malfunction: 3 short «bi»
sounds.
Memory:
Auto-Display the last measured temperature
30 readings recall in the memory mode
Backlight:
The display light will be GREEN for
4 seconds, when the unit is turned ON.
The display light will be GREEN for 5
seconds, when a measurement is completed
with a reading less than 37.5 °C / 99.5 °F.
The display light will be RED for 5 seconds,
when a measurement is completed with a
reading equal to or higher than 37.5 °C /
99.5 °F.
Operating
conditions:
Body mode: 16-40.0 °C / 60.8-104.0 °F
Object mode: 5-40.0 °C / 41-104.0 °F
Storage
conditions:
-20 - +50 °C / -4 - +122 °F
15-95 % relative maximum humidity
Automatic
Switch-off:
Approx. 1 minute after last measurement
has been taken.
Battery:
2 x 1.5 V alkaline batteries; size AAA
Battery life-
time:
approx. 2000 measurements
(using new batteries)
Dimensions:
150 x 40 x 39 mm
Weight:
81 g (with batteries), 56 g (w/o batteries)
IP Class:
Reference to
standards:
ASTM E1965;
IEC 60601-1; IEC 60601-1-2 (EMC);
IEC 60601-1-11
Expected
service life:
5 years or 12000 measurements
This thermometer has been clinically tested and
proven to be safe and accurate when used in
accordance to the operating instruction manual.
IP21: Protected against solid foreign
objects of 12.5mm diameter and greater.
Protected against the ingress of vertically
falling water drops with the device
positioned on a turntable.
3EN
Table of Contents
1. Advantages of this Thermometer
2. Important Safety Instructions
3. How this Thermometer measures Temperature
4. Control Displays and Symbols
5. Changing between Body and Object Mode
6. Directions for Use
7. Changing between Celsius and Fahrenheit
8. How to recall 30 readings in Memory Mode
9. Error Messages
10. Cleaning and Disinfecting
11. Battery Replacement
12. Guarantee
13. Technical Specifications
14. www.ableasthma.com.au
Guarantee Card (see Back Cover)
1. Advantages of this Thermometer
Measures in 1 second
The innovative infrared technology allows the measurement
without even touching the object. This guarantees safe and
sanitary measurements within 1 second.
Multiple uses (wide range of measurement)
This thermometer offers a wide range of measurement from
0 - 100.0 °C / 32.0 - 212.0 °F, meaning the unit can be used
to measure body temperature or it also has a feature allowing
it to be used to measure surface temperature of the following
examples:
•Milk surface temperature in a baby's bottle
•Surface temperature of a baby's bath
•Ambient temperature
Accurate and reliable
The unique probe assembly construction incorporates an
advanced infrared sensor, ensuring that each measurement
is accurate and reliable.
Gentle and easy to use
•The ergonomic design enables simple and easy use of
the thermometer.
•This thermometer can even be used on a sleeping child
without causing any interruption.
•This thermometer is quick, therefore child-friendly.
Auto-Display Memory
The last reading is automatically displayed for 2 seconds
when the unit is switched ON.
Multiple readings recall
Users will be able to recall the last 30 readings when
entering the recall mode, enabling efficient tracking of
temperature variations.
Safe and hygienic
•No direct skin contact.
•No risk of broken glass or mercury ingestion.
•Completely safe for use on children.
•Cleaning of the probe can be done with an alcohol-
moistened cotton tissue, making this thermometer
completely hygienic for use by the whole family.
Fever alarm
10 short beeps and a red LCD backlight alert the patient
that he/she may have a temperature equal to or higher than
37.5 °C.
2. Important Safety Instructions
•
This device may only be used for the purposes described
in these instructions. The manufacturer cannot be held
liable for damage caused by incorrect application.
•
Never immerse this device in water or other liquids.
For cleaning please follow the instructions in the
‘Cleaning and Disinfecting’ section.
FR1MA1
4
•Do not use this device if you think it is damaged or notice
anything unusual.
•Never open this device.
•
A basic physiological effect called vasoconstriction can
occur in the early stages of fever, resulting in a cool skin
effect. The recorded temperature using this thermometer
can, therefore, be unusually low.
•If the measurement result is not consistent with the
patient's finding or unusually low, repeat the measure-
ment every 15 minutes or double check the result by
another core body temperature measurement.
•
This device comprises sensitive components and must be
treated with caution. Observe the storage and operating
conditions described in the «Technical Specifications»
section.
•Ensure that children do not use this device unsuper-
vised; some parts are small enough to be swallowed.
•
Do not use this device close to strong electromagnetic
fields such as mobile telephones or radio installations.
Keep a distance from such devices when using this unit.
•Protect it from:
- extreme temperatures
- impact and dropping
- contamination and dust
- direct sunlight
- heat and cold
•If the device is not going to be used for a prolonged
period the batteries should be removed.
WARNING:
Use of this device is not intended as a
substitute for consultation with your physician. This de-
vice is NOT waterproof so do not immerse in liquids.
3. How this Thermometer measures Temperature
This thermometer measures infrared energy radiated from
the forehead as well as objects. This energy is collected
through the lens and converted to a temperature value.
4. Control Displays and Symbols
•All segments displayed 8: Press the ON/OFF button
5to turn on the unit; all segments will be shown for
2 seconds.
•Memory 9: The last reading will automatically be
shown on the display for 2 seconds.
•Ready for measuring AT: When the unit is ready for
measuring, the «°C» or «°F» icon will keep flashing
while the mode icon (body or object) will be displayed.
•
Measurement complete
AK
:
The reading will be shown
on the display
4
with the «
°C
» or «
°F
» icon and the mode
icon steady. The unit is ready for the next measurement as
soon as the «
°C
» or «
°F
» icon is flashing again.
•Low battery indicator AN: When the unit is turned on,
the «» icon will keep flashing to remind the user to
replace the batteries.
5. Changing between Body and Object Mode
For changing from body to object mode, slide the mode
switch 6at the side of the thermometer downwards. For
switching back to body mode, slide the switch up again.
6. Directions for Use
Measuring in body mode
1. Press the ON/OFF button 5. The display 4is acti-
vated to show all segments for 2 seconds.
2. The last measurement reading will automatically be
shown on the display for 2 seconds with the «
M
» icon
9
.
3. When the «°C» or «°F» icon is flashing, a beep sound is
heard and the thermometer is ready for measuring AT.
4. Aim the thermometer at the center of the forehead
with a distance of no more than 5 cm. Please remove
FR1MA1
EN
any hair, sweat or dirt from the forehead before
measuring to improve the accuracy of the readings.
5. Press the START button 3and steadily position the
thermometer pointing to the temple area (about 1 cm
above the eyebrow). The activated blue tracking light will
indicate the area being measured. After 1 second a long
beep will verify the completion of measurement.
6. Read the recorded temperature from the LCD display.
Measuring in object mode
1. Follow steps 1-3 above, then aim the thermometer at the
center of the object you want to measure with a distance
of no more than 5 cm. Press the START button 3. After
1 second a long beep will verify the completion of
measurement.
2. Read the recorded temperature from the LCD display.
NOTE:
•Patients and thermometer should stay in similar
room condition for at least 30 minutes.
•Don't take a measurement while or immediately after
nursing a baby.
•
Don't use the thermometer in high humidity environments.
•Patients should not drink, eat or exercise before/while
taking the measurement.
•Don't move the measurement device from the
measuring area before hearing the termination beep.
•Use an alcohol swab to carefully clean the probe and
wait for 15 minutes before taking a measurement on
another patient.
•10 short beeps and a red LCD backlight alert the patient
that he/she may have a temperature equal to or higher
than 37.5 °C.
•Always take the temperature in the same location, since
temperature readings may vary according to locations.
•Doctors recommend rectal measurement for newborn
infants within the first 6 months, as all other measuring
methods might lead to ambiguous results. If using a non
contact thermometer on those infants, we always recom-
mend verifying the readings with a rectal measurement.
•In the following situations it is recommended that three
temperatures are taken with the highest one taken as
the reading:
1. Children under three years of age with a compromised
immune system and for whom the presence or
absence of fever is critical.
2. When the user is learning how to use the thermometer
for the first time until he/she has familiarized himself/
herself with the device and obtains consistent readings.
3. If the measurement is surprisingly low.
•
Readings from different measuring sites should not
be compared as the normal body temperature varies
by measuring site and time of day
, being highest in the
evening and lowest about one hour before waking up.
Normal body temperature ranges:
- Axillar: 34.7 - 37.3 °C / 94.5 - 99.1 °F
- Oral: 35.5 - 37.5 °C / 95.9 - 99.5 °F
- Rectal: 36.6 - 38.0 °C / 97.9 - 100.4 °F
- Microlife NC 100: 35.4 - 37.4 °C / 95.7 - 99.3 °F
7. Changing between Celsius and Fahrenheit
This thermometer can display temperature readings in either
Fahrenheit or Celsius. To switch the display between °C and
°F, simply turn OFF the unit,
press and hold
the START
button
3
for 5 seconds; after 5 seconds, the current
measurement scale («
°C
» or «
°F
» icon) will flash on the
display
AO
. Change the measurement scale between °C and
°F by pressing the START button
3
. When the measure-
ment scale has been chosen, wait for 5 seconds and the unit
will automatically enter the «ready for measuring» mode.
8. How to recall 30 readings in Memory Mode
This thermometer can recall the last 30 readings.
5
FR1MA1
6
•Recall mode AP: Press the START button 3to enter
Recall mode when power is off. The memory icon «M»
will flash.
•Reading 1 - the last reading AQ: Press and release the
START button 3to recall the last reading. Display 1
alone with memory icon.
•Reading 30 - readings in succession: Press and
release the START button 3consecutively to recall the
last 30 readings in succession.
Pressing and releasing the START button 3after the last
30 readings have been recalled will resume the above
sequence from reading 1.
9. Error Messages
•
Measured temperature too high
AR
:
Displays «
H
»
when measured temperature is higher than 42.2 °C /
108.0 °F in body mode or 100 °C / 212 °F in object mode.
•Measured temperature too low AS:Displays «L»
when measured temperature is lower than 34.0 °C /
93.2 °F in body mode or 0 °C / 32 °F in object mode.
•Ambient temperature too high BT: Displays «H»
and when ambient temperature is higher than
40.0 °C / 104.0 °F.
•Ambient temperature too low BK: Displays «L» and
when ambient temperature is lower than 16.0 °C /
60.8 °F in body mode or lower than 5.0 °C / 41.0 °F in
object mode.
•
Error function display
BL
:
The system has a malfunction.
•Blank display BM: Check if the batteries have been
inserted correctly. Also check polarity (<+> and <->) of
the batteries.
•
Flat battery indicator
BN
:
If only «
» icon is shown on
the display, the batteries should be replaced immediately.
10.Cleaning and Disinfecting
Use an alcohol swab or cotton tissue moistened with
alcohol (70% Isopropyl) to clean the thermometer casing
and the measuring sensor. Ensure that no liquid enters the
interior of the device. Never use abrasive cleaning agents,
thinners or benzene for cleaning and never immerse the
device in water or other cleaning liquids. Take care not to
scratch the surface of the sensor lens and the display.
11.Battery Replacement
This device is supplied with 2 new, long-life 1.5V, size AAA
batteries. Batteries need replacing when this icon «»BN
is the only symbol shown on the display.
Remove the battery cover BO by sliding it in the direction
shown.
Replace the batteries – ensure correct polarity as shown by
the symbols in the compartment.
Batteries and electronic devices must be dis-
posed of in accordance with the locally applicable
regulations, not with domestic waste.
12.Guarantee
This device is covered by a 2 year guarantee from the date
of purchase. The guarantee valid only on presentation of
the guarantee card completed by the dealer (see back)
confirming date of purchase or the receipt.
•The guarantee covers the device. Batteries and pack-
aging are not included.
•Opening or altering the device invalidates the guarantee.
•The guarantee does not cover damage caused by
improper handling, discharged batteries, accidents or
non-compliance with the operating instructions.
Please contact Able Asthma.
FR1MA1
Read the instruction manual carefully
before using this device, especially the
safety instructions, and keep the
instruction manual for future use.
Guarantee Card
Name of Purchaser
Serial Number
Date of Purchase
Specialist Dealer
Please register your product online at ableasthma.com.au/warranty
1
8
9
AT
AK
AL
AM
AN
AO
AP
AQ
AR
AS
2
Type BF applied part
This touchless thermometer is a high quality product incor-
porating the latest technology and tested in accordance
with international standards. With its unique technology,
this device can provide a stable, heat-interference-free
reading with each measurement. The device performs a
self-test every time it is switched on to always guarantee
the specified accuracy of any measurement.
This touchless thermometer is intended for the periodic
measurement and monitoring of human body temperature.
Please read through these instructions carefully in order for
you to understand all functions and safety information.
Touchless Forehead Thermometer
FR1MA1 FR1MA1
EN
1Measuring sensor
2Tracking light
3START button
4Display
5ON/OFF button
6Mode switch
7Battery compartment cover
8All segments displayed
9Memory
AT Ready for measuring
AK Measurement complete
AL Body mode
AM Object mode
AN Low battery indicator
AO Changing between Celsius and Fahrenheit
AP Recall mode
AQ Recall the last 30 readings
AR Measured temperature too high
AS Measured temperature too low
BT Ambient temperature too high
BK Ambient temperature too low
BL Error function display
BM Blank display
BN Flat battery
BO Replacing the battery
Keep dry
7 EN
13. Technical Specifications
This device complies with the requirements of the Medical
Device Directive 93/42/EEC. Technical alterations reserved.
According to the Medical Product User Act a biennial tech-
nical inspection is recommended for professional users.
Please observe the applicable disposal regulations.
Touchless Forehead Thermometer
Manufacturer: ONBO Electronic (Shenzhen) Co., Ltd.
No. 497 Ta Laneg Nan Road, Ta Laneg Street,
Longhua New District, Shenzhen, China
Registration owner and importer: WyMedical Pty Ltd
466 Fullarton Road, Myrtle Bank, South Australia 5064
Customer service: Australia 1800 812 097
Type:
Non Contact Thermometer FR1MA1
Measure-
ment range:
Body mode: 34.0-42.2 °C / 93.2-108.0 °F
Object mode: 0-100.0 °C / 32-212.0 °F
Resolution:
0.1 °C / °F
Measure-
ment accu-
racy:
Laboratory:
±0.2 °C, 36.0 – 39.0 °C
±0.4 °F, 96.8 – 102.2 °F
Display:
Liquid Crystal Display, 4 digits plus special
icons
Acoustic:
The unit is turned ON and ready for the
measurement: 1 short beep.
Complete the measurement: 1 long beep
(1 sec.) if the reading is less than 37.5 °C /
99.5 °F, 10 short «beep» sounds, if the
reading is equal to or greater than 37.5 °C /
99.5 °F.
System error or malfunction: 3 short «bi»
sounds.
Memory:
Auto-Display the last measured temperature
30 readings recall in the memory mode
Backlight:
The display light will be GREEN for
4 seconds, when the unit is turned ON.
The display light will be GREEN for 5
seconds, when a measurement is completed
with a reading less than 37.5 °C / 99.5 °F.
The display light will be RED for 5 seconds,
when a measurement is completed with a
reading equal to or higher than 37.5 °C /
99.5 °F.
Operating
conditions:
Body mode: 16-40.0 °C / 60.8-104.0 °F
Object mode: 5-40.0 °C / 41-104.0 °F
Storage
conditions:
-20 - +50 °C / -4 - +122 °F
15-95 % relative maximum humidity
Automatic
Switch-off:
Approx. 1 minute after last measurement
has been taken.
Battery:
2 x 1.5 V alkaline batteries; size AAA
Battery life-
time:
approx. 2000 measurements
(using new batteries)
Dimensions:
150 x 40 x 39 mm
Weight:
81 g (with batteries), 56 g (w/o batteries)
IP Class:
Reference to
standards:
ASTM E1965;
IEC 60601-1; IEC 60601-1-2 (EMC);
IEC 60601-1-11
Expected
service life:
5 years or 12000 measurements
This thermometer has been clinically tested and
proven to be safe and accurate when used in
accordance to the operating instruction manual.
IP21: Protected against solid foreign
objects of 12.5mm diameter and greater.
Protected against the ingress of vertically
falling water drops with the device
positioned on a turntable.
Table of contents
